In practical and experimental implementations, augmented reality and virtual reality can replace or diminish the consumer's belief in reality. Augmented and virtual reality has been adopted in various industries such as retail, healthcare, scientific education and real estate.
B ACKGROUND
One of the main advantages of augmented reality is that it can visualize information in 3D instead of 2D. Another key benefit of augmented reality is that it can not only make complex data more understandable, but also create an interactive experience that is intuitive, meaningful and also memorable for the users.
M OTIVATION
O BJECTIVES
RESEARCH 5
- A UGMENTED R EALITY (AR)
- V IRTUAL R EALITY (VR)
- F IRST P ERSON V IEW (FPS)
- N ORMAL U NITY V IEW (N ON -AR MODE )
But sometime later, while I was discussing the project plan with my supervisor, he asked me what if some user doesn't have virtual reality equipment and what if the user lost the tracking image or the wrong tracking image, even worse, he no tracking image. If any user does not have image tracking device and virtual reality then he/she can switch to normal view mode of unity to view models.
3D MODEL DEVELOPMENT 8
L AYOUT

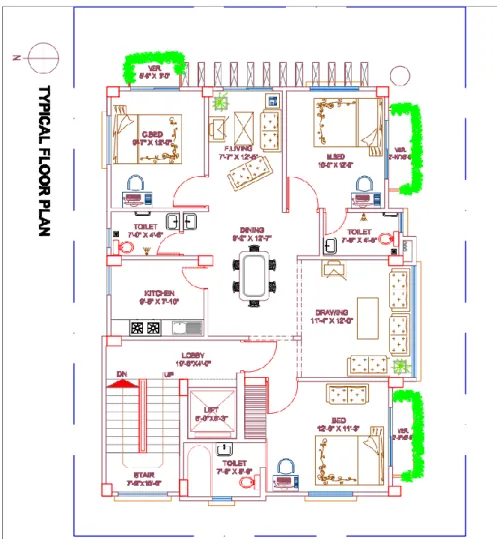

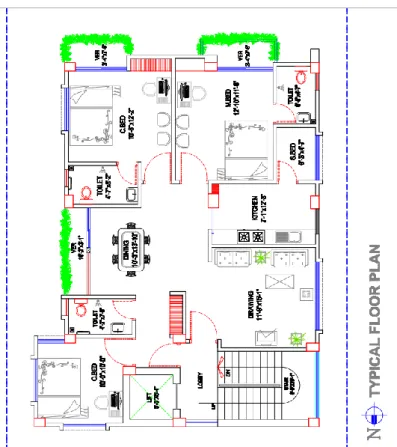

L AYOUTS OF MY PROJECT

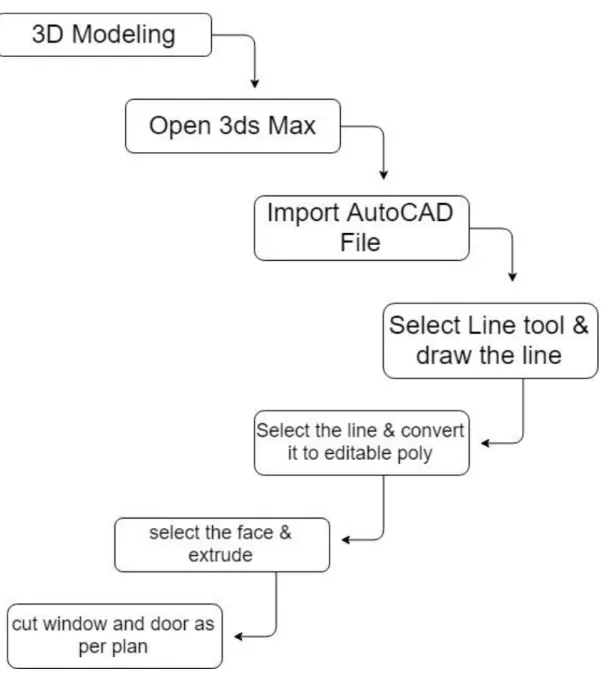

WORKFLOW 11
T EXTURING WORKFLOW

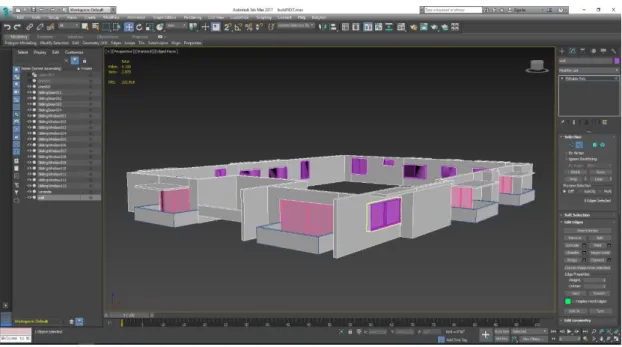

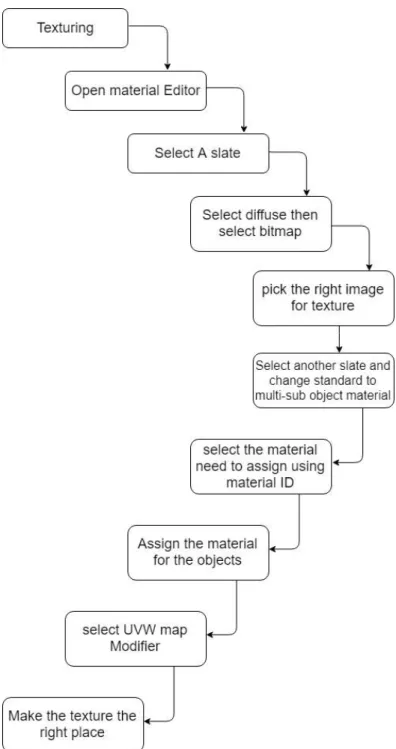

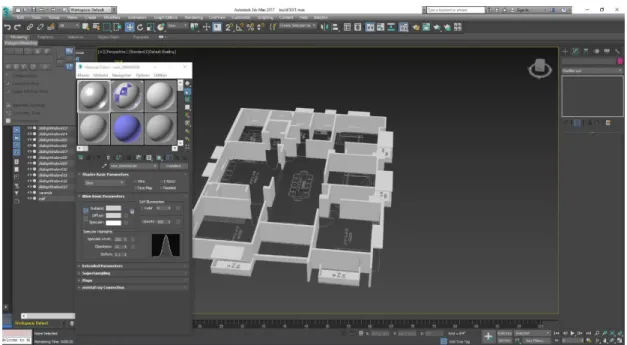

To do this, I select another material tile and change its mode from standard to multi/sub-object material mode. After that, I used the UVW map modifier for each object to set the appropriate texture.
U NITY WORKFLOW

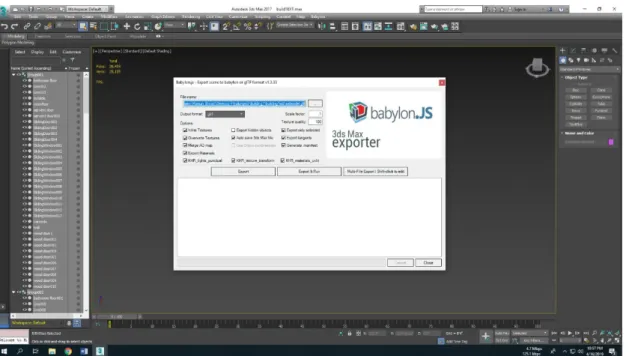

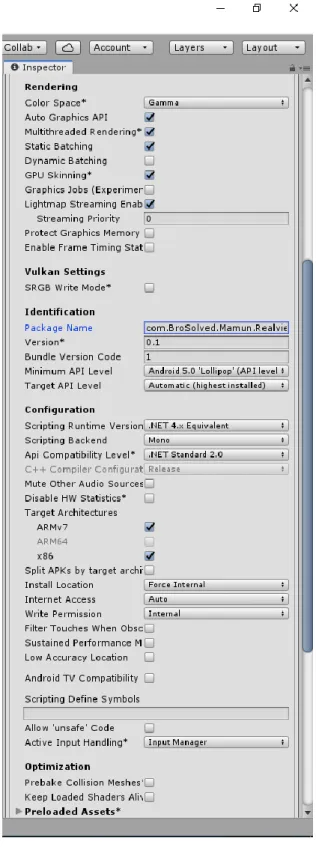

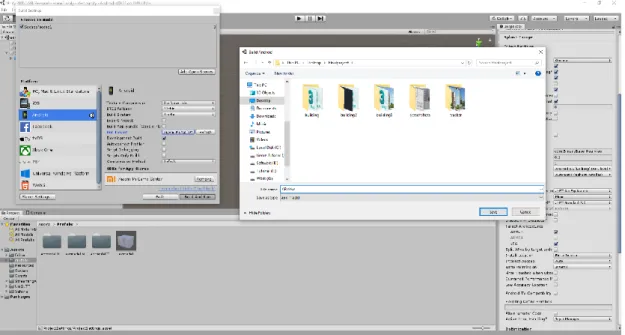

In the build settings, unity defaults to PC, mac & Linux standalone environment. After switching platforms I opened player settings and changed the orientation to landscape left from resolution and presentation. After exporting from 3ds max using Babylon js in glTF [13] (GL Transmission Format) I need to import these models into entity.
AR WORKFLOW
N ORMAL V IEW W ORKFLOW
VR WORKFLOW
F IRST P ERSON V IEW W ORKFLOW
AUTODESK A UTO CAD
Computer-aided programming planning gives you a chance to structure 2D and 3D illustrations and models, replacing the usual pencil and paper drafting to make diagrams with effectively arranged electronic records. Autodesk is the maker of AutoCAD programming and in addition AutoCAD LT, a less expensive form with fewer capacities downloaded in 1993. Geographic data frames use AutoCAD programming to archive landforms and moment situation.
Transferring AutoCAD 3D documents to Autodesk Simulation software enables specialists to mechanically rework blueprints for pressure testing and inter-part interference testing. You can even send AutoCAD documents to 3D printing administrations that use printers containing resin to make plastic parts or models of larger plans. This and, to a lesser degree, its commercial DXF file design, have progressed towards becoming the true, if restrictive, standards for CAD information interoperability, particularly for the exchange of 2D drawings AutoCAD has included support for.
AutoCAD is authorized free of charge to students, teachers, and instructive foundations, with a three-year sustainable permit accessible. The understudy variant of AutoCAD is virtually indistinguishable to the full business customization, with one special case: DWG records created or modified by a understudy version set an interior piece signal At the point when such a DWG document by any form of AutoCAD is printed. established as AutoCAD 2014 SP1, the yield includes a plot stamp/standard on each of the four sides. Understudy version objects a "contagion" of a business adaptation DWG document on the off chance that it was foreign made in versions more seasoned than AutoCAD 2015.
A UTODESK 3DS MAX

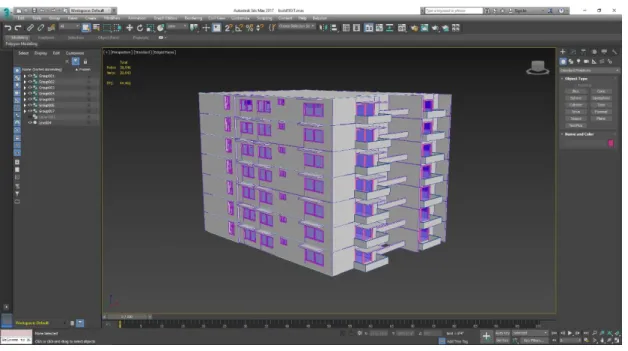

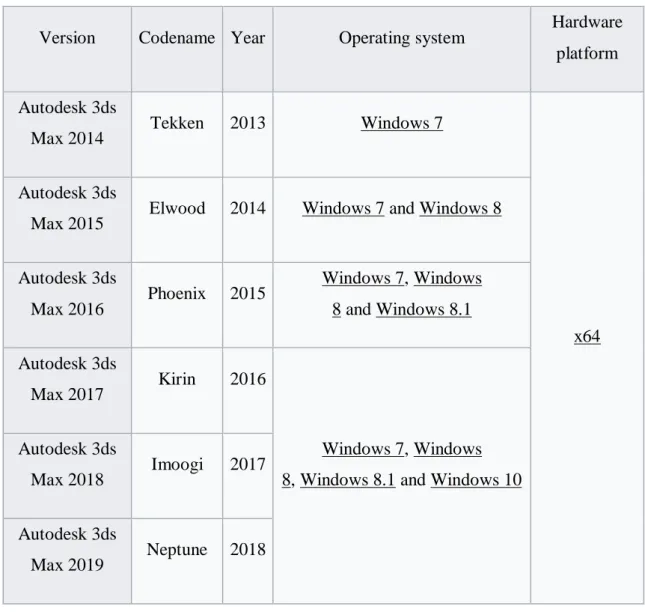

Understudy Version objects “smear” a DWG business customization document if they are created abroad in more experienced executions than AutoCAD 2015. The most recent version of 3ds Max additionally includes shaders, unique recreation, molecule frameworks, radiosity is a use of the limited component strategy for unraveling the display condition for scenes with surfaces that reflect light diffusely). Demonstrating polygons is more common in a diversion scheme than in any other display strategy, because the simple command over individual polygons takes excessive progress into account. NURBS is a scientifically correct representation of freestyle surfaces such as those used for vehicle bodies and ship structures, which can actually be replicated at any point and at any time.
The surface tool is for creating normal 3ds Max splines and then applying a modifier called "surface". This modifier creates a surface from every three or four vertices in a grid. Every venture is unique, however, there are major advancements that apply to almost any model you make with 3ds Max. Note: You can also start 3ds Max from the Start menu or use any other standard Windows strategy.
If you happen to start 3ds Max from a command prompt window or batch record, you can include command line switches. 3ds Max is a "solitary reporting application", which means you can only work on a solitary scene at some random minute. You can run multiple iterations of 3ds Max and open an alternate scene each time, but doing so requires a significant amount of memory.
UNITY 3D
Before C# was the essential programming dialect used for the car, it recently maintained Boo, which was suspended in the Unity 5 release, and a variant of JavaScript called Unity Script, which was released in August 2017 after the arrival of Unity 2017.1 was deployed. Contractions that are not present in the single development are not open in the final form. Contraption None is proportional to a non-VR app (ie a generic Unity app) and can be changed mid-runtime without merging it into the enumeration; the unusual case of this is None.
Counting None as a widget in the summary allows you to predefine a non-VR application before trying to introduce a VR widget. In case the presentation of the device you try to change to drops, Unity prevents VR with that widget still set as a dynamic VR widget. This has the effect of making all changes to the Camera parent affect the Camera itself.
Runtime forms can be found in the release notes of each major and minor Unity release. At the point when your gadget's camera detects these markers, it actually triggers a presentation of virtual content over the world position of the marker in the camera. This type of tracking relies on advances such as GPS, accelerometers, gyroscopes, and more unpredictable image processing calculations to place virtual objects or data on Earth.
A DOBE P HOTOSHOP
34;Photoshop Document." A PSD record stores an image with help for most image choices accessible in Photoshop. The .PSD record configuration can be sent to and from the various Adobe applications, such as Adobe Illustrator, Adobe Premiere Pro and After Effects.
A DOBE I LLUSTRATOR
After Photoshop is stacked, a sidebar with a variety of devices appears with numerous images that change capacity on one side of the screen. As a component of Creative Cloud, this version acquired upgrades that for example match shading, text style and program settings, saving records to the cloud, and reconciliation with Balance and different highlights, for example another touch-perfect sorting device , images in brushes, CSS- extraction and document bundling. Like many Photoshop users, when he first learned it, he was frustrated with the tools and the different way of working.
A sidebar that appears on the left side of the screen with an assortment of tools that let you choose, create, and control items or visual art in Illustrator. These devices can be chosen as follows: drawing, composing, painting, reshaping, cutting and cutting, imaging, moving and zooming, and graphing. A small triangle has the choice to see or grow some wrapped instruments by holding down the mouse button on the triangle.
Some models of the artist's basic apparatus are marking devices, brush instruments, pen devices, pencil devices eg. The definition tools are used to format, change and arrange the artwork by selecting, placing and stacking the object precisely. Pen tools create straight and curved lines for fine art and can add focus capture in modes and erase from modes.
V ISUAL S TUDIO
The most essential release of Visual Studio, the Community Edition, can be accessed at no cost out of pocket. The first version of visual studio was visual studio 97. Before that, Visual Basic, Visual C++, Visual FoxPro and Visual SourceSafe were sold separately.
B ABYLON JS
U NI GLTF
MODEL OUTPUT 56
- A UGMENTED R EALITY V IEW
- N ORMAL U NITY V IEW (W ITHOUT AR)
- V IRTUAL R EALITY V IEW
- F IRST PERSON VIEW

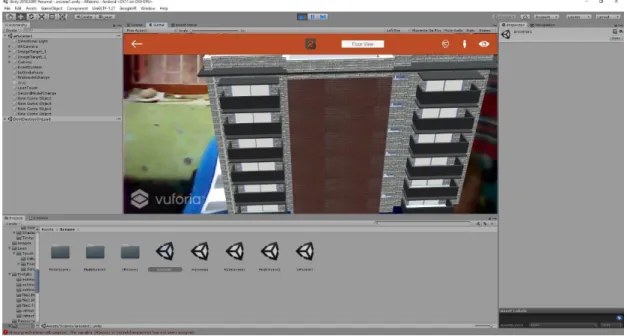

When the user will place the camera on the tracker image, the exterior of the selected building will be shown on the screen. User can rotate the exterior of the building to have a 360-degree view of the complete building. At the top of the screen there is a menu bar to navigate the users. On the top right there is a button called floor view.
If you click it, the outer model will change and the inner model will be displayed on the screen. In addition to the floor view, there is another button that takes users to the normal single view mode. Clicking the normal unified view button launches the normal unified view and users can see the models without the AR view.
The exterior view is displayed first, then the interior view is displayed after clicking the floor view button. Like if any user wants to see the kitchen specifically when he/she clicks on the kitchen view button the camera will show the kitchen specifically. Clicking on it will take the user to the program's virtual reality mode in interior models.
PROBLEMS & SOLUTIONS BASED ON UX 61
In unity when you enable VR SDK it will turn the whole app into VR project and this was another biggest problem for me while developing this project. I found out that the app I built for testing purposes has turned into a virtual reality app.
L OW POLY MODEL EXTRACTING
S PECIFIC ROOM SECTION VIEW
FUTURE UPDATES 67
P IPELINE & E LECTRIC V IEW
I took a short course on “Augmented Reality (AR)” and “Virtual Reality (VR)” and its requirements are extensible enough that I could challenge myself and produce a very nice looking mobile application with the combination of Augmented and virtual reality along with first person and normal 3D model display mode.
