These days, the Sunshine Risen panel has been gradually fulfilled in recent times to turn into electricity above the solar power. A solar-based panel can be made either as an independent case or as a huge frame that is attached with an energy fake. We try to eat more of the essentials of the sun by using a solar oriented board. With the end goal to expand the change from the sun based on electric imperativeness, the sun based panel must be orchestrated in reverse to the sun, as monitoring the sun's territory and organizing the sun acting panel are essential.
The aim of this task is to design a custom system that can detect the position of the sun and use the vitality based on the sun to store the battery and switch the DC current to power the air conditioner if we happen to need the power of the air conditioner; however, in our ventures we only indicate one-way control that can be stored with a battery. It will plan the information voltage from the oscillator circuit and plan the address the motor should be facing with the goal of getting the most glow energy from the sun. The monitoring circuit at this point locates the motor used to install the solar panel.
As it may be other practical sources of life energy, besides the geothermal and tidal, get their bills from the sun. They are broadly portrayed as either lethargic or dynamic in the way they capture, transform, and distribute solar-based progress.
Scopes
Sun based following framework will benefit us to use all sun based vitality in the most effective way.
Methodology
Organization of the Report
COMPONENT DESCRIPTION
Prelude

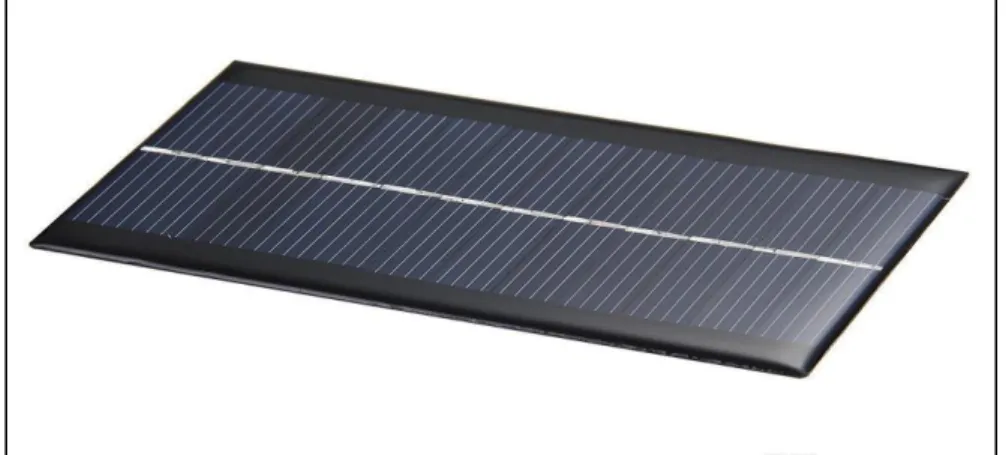

2.2 6v 1w solar panel
Features
Output
Description of Sensor (LDR )
- Construction of Sensor (LDR )
The easiest visual sensor is photonic resistors or photosensitizers, which are sensitive to light and are formed from two types, Cds (cadmium sulfide) and GaAs (gallium arsenide). The photosensitivity is the inactive part, the opposite of which is opposed to the measure of brightness power that is coordinated with it. The photocell to be used for the tracker depends on the boring obstruction and the opposition to the immersion of the light.
The term light immersion indicates that further increasing the light power to the CdS cells will not further reduce their resistance. Normally the resistance of an LDR is high, here and up to 1000,000 ohms they are fixed with light resistance, certainly falling. Light sensor plan The sun-oriented system uses a Cds photosensitivity for distinguishing glare.

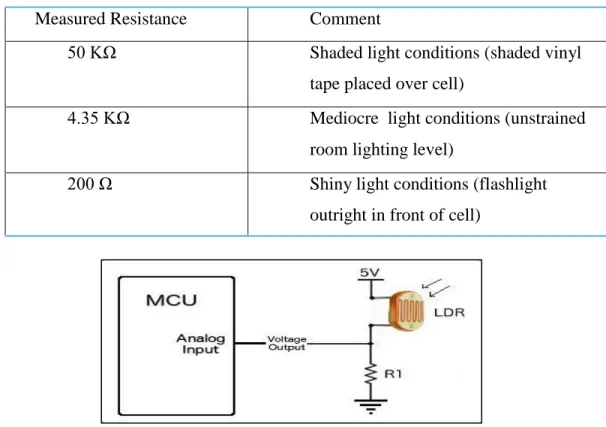

Photo Sensitivity The obstruction is evaluated under flaming gloss, normal gloss and low gloss conditions.
Ardunio UNO
2.5 100k resistance
Resistance Description

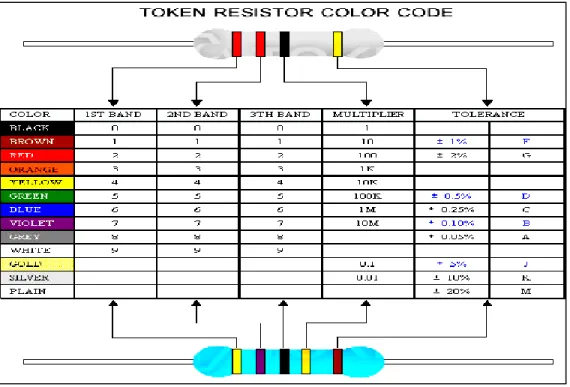

Resistor Color Code

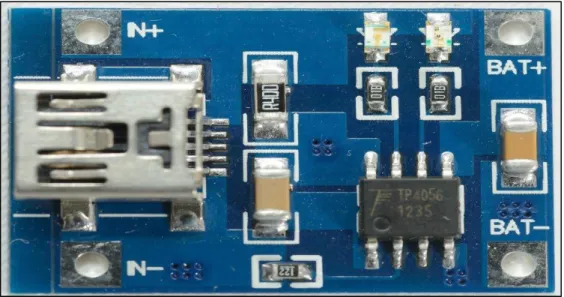

Tp-4056 charger module
The CV voltage is just under 4.2 volts, not surprising given the fact that the datasheet for the TP4056 indicates that it tends to be somewhere in the 4.137 and 4.263 volt range.
Toggle switch
Various types of actuators are used for movement by hand or to identify position, level, temperature or current. Exceptional types are used, for example, to control mechanical assembly, to overhaul electric motors, or to recognize fluid measurement. A common use is control of lighting, where characteristic switches can be wired in one circuit to approve auxiliary control of light fixtures.
A toggle switch is a class of electrical switches that are physically actuated by a mechanical switch, handle, or rocker frame. Rotary switches come in a wide variety of styles and sizes and are used in a variety of applications. Many of them are expected to provide synchronous triggering of various electrical contact plans, or control of fairly voluminous amounts of electrical current or network voltages.
34;Flip" is a reference to a type of segment or joint that contains two arms, which are essentially like each other, connected by an elbow-like bend. In each case, the articulation "flip change" is associated with a switch with a short handle and a positive quick action, paying little respect to whether it genuinely contains a flip frame or not.In some settings, full registration, a rotary switch or a scroll action is appreciated in the special feeling of a mechanical or programmable switch that moves back and forth between the two communicates each time it is pushed, paying little attention to mechanical refinement.
For example, the tops jolt key on a computer prompts for all letters in uppercase after being crushed.
2.8 1n400n Diode
Features of 1N400n diode
- Jumper Ware
- lithium battery (3.7 V)
- Servo Motor
- Mechanism
- USB Module (5V)
Lithium is particularly useful because of the way in which its particles can be organized to move between the anode and the cathode, while still using an intercalated lithium compound as the cathode material without using lithium metal as the anode material. A servo motor is a rotary actuator or direct actuator that provides accurate control of exact or level position, speed, and effort. A servomotor is a closed-loop servomechanism that uses position input to control its kinetics and final position.
The commitment to its control is a banner (simple or modernized) that addresses the position coordinated for the revenue axis. The motor is connected to some type of encoder to provide position and speed analysis. The purposeful position of the revenue differs from the leading position, the external involvement with the controller. If the yield position shifts from the required position, an error hail occurs, causing the motor to rotate in either direction, obviously to pass the yield shaft to the comfortable position.
As the positions approach, the screw flag is reduced to zero and the motor stops. This type of servo motor is not fully used in today's kinetic control, however it makes the substrate from the clear and efficient servos used for radio controlled models. Today's servomotors increasingly use oscillating optical encoders to estimate the speed of the output shaft and a variable speed drive to control the motor's agility.
From the perspective of PC users, the USB interface increased the ease of use in several different ways. The USB interface is self-programmable, so the user does not need to change the settings in the creation and interface for data speed or composition, or the organization of interventions with, input/output addresses, or direct memory reach channels. The USB takes full advantage of the additional planning power that can be financially injected into peripheral conflicts with the objective that they can be self-directed; USB flash drives often lack user-customizable interface settings. The USB interface is "flashable", removing the contraptions can be exchanged without rebooting the host computer.
Minute innovations can be fulfilled explicitly by the USB interface, removing additional power supply connections. Since the use of USB logos is simply approved after consistency testing, the user can be assured that a USB innovation will definitely work without extensive connection to settings and plan; the USB interface describes installation traditions from extraordinary mixes, changing the faithful quality over predecessor interfaces. Just when a creation connects to a port on a running computer system, it is either in and out, therefore it is conceived using existing contraceptive drivers, or the structure prompts the user to discover a driver which is then presented and scheduled normally. .
2.13 9V Adapter
Cost Analysis Purchase Price (TK)
In this section we will show the cost of our project indicating the cost statement representation of our project.
Conclusion
SYSTEM REVIEWS
Introduction
General Block Diagram
Voltage and Current Specification
Circuit Diagram
- Working Process of our Circuit
Hold the board with the dlite base on the cardboard and the two board dolls appear. Now cut one of the two leads of the LDR with the intention that one lead is shorter and the other longer. Place the bent metal strip on the back of the cardboard Apply paste to the LDRs to fix them firmly. Connect the two caps of the LDR as shown At alternate ends of the LDR Solder resistance of 10k ohm Connect the four caps of the 4 LDRs by connecting a dummy.
List of Components used in Circuit
- Cost Sheet
Price (TK)
Conclusion
SOFTWARE ANALYSIS
- Introduction
- Description of our Software
- The compiled window of my code is shown below
- Flow Chart of Diagram
Normally you don't intend to modify documents or run programs on a direction line interface. Although it is possible to expand on direction line when necessary, with an update from an outsider, for example Ino. In this application we use a brilliant Fire Base Data Reestablish framework. Our all-configuration is exceptionally simple and easy to use for all customers. It has a menu bar and a food menu. It is also a mini computer framework. Each livelihood list is all but difficult to use and all information is stored in our.
Result & Analysis
- Calculated output

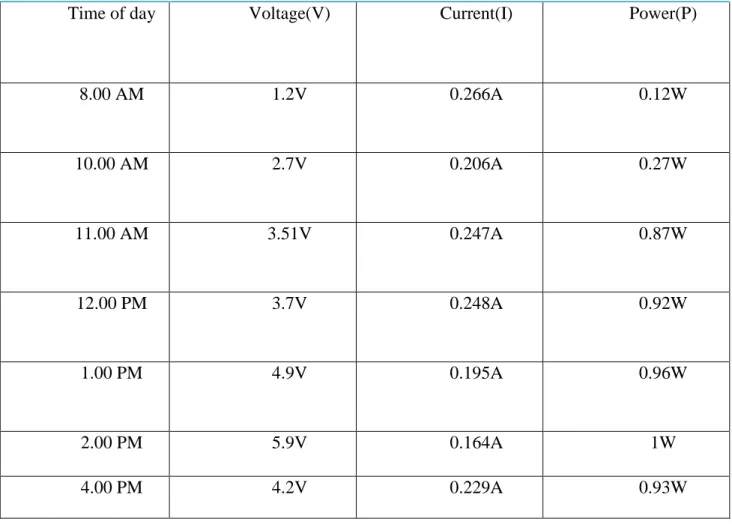

- First Day Designed instrument output
- Second Day Designed instrument output
- Output voltage & Current Day 1
- Output Voltage and current Day Two
- Result
- Proposed circuit assembly for the Automatic Solar Tracker
- Proposed assembly for solar tracker
In this project we need some voltage and current between day one and day two. That could be seen in this voltage output graph and it was separated from day one and day two. We also show a case on day one and day two output voltage and current. In the first figure we see that there are two lines and different colors. There is a tension case.
We discovered at 10am that the voltage level was 2.7V and supplied the solar plate we were using. We found that at 10:00 am the voltage level was 2.7 V and the current supplied to the load was 0.206 A and the solar tracking system for detecting the position of the sun was oriented towards the east side. The next day the voltage level went up and the voltmeter showed 5.22V-5.95V and the current supplied was 0.183A-0.289A and the power supply was at peak level, 1 watt, and was the same as before.
Now, this efficiency rating is for the single solar panel, while that system produces an average of 0.79W of power in a given day.
CONCLUSION
Conclusion
