It is hereby declared that this project and the thesis entitled "title" have been carried out by the following students under my direct supervision and that this work has been carried out by them in the laboratories of the Department of Electrical and Electronic Engineering under the Faculty of Engineering of Daffodil Internationale University in partial fulfillment of the requirements for the degree of Bachelor of Science in Electrical and Electronic Engineering. Chandra, Kaliakoir, Gazipur”, submitted by MdSabbir Hossain, ID Session Fall 2020, has been accepted as satisfactory in partial fulfillment of the requirement for the degree of Bachelor of Science in Electrical and Electronic Engineering dated January 31, 2021. First, the full award for “ALMIGHTY ALLAH” the author of any universe in this universe.
It turned out to be his guidance and relentless inspiration at a certain stage of the journey of uncertainty and doubt that helped me move forward with this work. I am also grateful to the Faculty of Electrical and Electrical Engineering for presenting their supportive direction of our initiative. This report is entirely based on industrial training in Walton Hi-Tech Industry, one of the leading brands in Bangladesh.
Through this, I learned about the history of the company and the success goals of the company and the product manufacturing process, to adopt different types of machines and methods according to different departments to complete the product manufacturing process. One of the most important sections is cyclopentene C-5 chemical plant, this chemical is used to complete the refrigerator foam system.
CHAPTER-1
Introduction
- The background of the study
- Objective of the study
- Limitation
- Introduction
- The History of Walton Group of Industries
- About of Walton Factory
- Client and Product
- The Journey abroad
- Manufacturing Facilities
- Working Environment
- Safety caution
- Vision & Mission
- Vision
- Mission
- Corporate culture
- Values
- Certificate
- Award
- International Award
- Local Awards
- Special Award and Souvenir
The company name is "Walton Hi-Tech Industries Limited" and it is a company that manufactures electronics and home appliances. And Walton is the latest multinational electrical, electronics, automotive and other equipment brand to manage production through various subsidiaries under the banner of Walton Group headquarters in Bangladesh and one of the largest equipped R&D facilities in the world. In the local market, Walton developed and supports local demand by advocating to export their product to the international market and to provide technicians and workers in or country. Today, Walton employs more than 20,000+ people in a total of 22 manufacturing bases under 667+ acres of the factory.
Walton has earned a high reputation in the industry as a giant professional manufacturer and its unmatched expertise in manufacturing electrical and electronic products in the most competitive manner in terms of quality, cost, design and innovation. Walton has set a milestone as the highest performing Bangladesh employer in the subject of electronics. It currently exports products to 30 countries, including the largest markets in the Middle East and Africa.
To sell 26,000 units of air conditioners and 1 lakh units of refrigerators in the Indian markets over the next two years, Walton has also signed agreements with Korean giant Hyundai and Indian Reliance. To become an influential global brand by 2021 and to achieve one of the top 5 brands in the world by 2030 in the electrical and electronic sector.
The basic information of the company is given below
CHAPTER-03
About My Working Place
Cyclopentane-C5 Chemical Plant)
- Introduction
- Physical Description
- Application
- Packaging Information
- Hazard Statement
- The Cyclopentane C5 Chemical Preservation Methods
- The Loading Method OfCyclopentane C5 Chemical
- Hazard Direction
- Protective Equipment For Handling Meterials
- Precautionary Measure
- Emergency Overview
- First Aid Procedures
- The warning instruction of cyclopentane C5 area
- About The Picture
- About The Picture
And if kept in the open, it mixes with the air very quickly. Walton company has a total of five underground storage tanks for this cyclpentane C5 chemical, among the five underground storage tanks that have four underground tanks, the total capacity is 35 tons, and another new fifth container, which contains the chemical is. 75 tons. And each of these underground storage tanks is made with a lot of strength and a lot of safety measures.
Finally, the underground storage tanks are stored using the loading methods from the containers imported from abroad. And the biggest thought is that Cyclopentane C5 chemical underground storage system is the only Walton company in Bangladesh. Because this cyclopentane C5 chemical is a highly flammable substance that evaporates quickly and mixes with the air very quickly and spreads very quickly. this loading work we must have permission from the company's special senior officers and department manager and the department manager.
The first thing to do before cyclopentane C5 chemical load, is to release under the underground storage tank nitrogen pressure. Because when the nitrogen pressure is released, the C5 chemical along with the nitrogen pressure also spreads around the area. And the reason for using this nitrogen pressure is to keep the chemicals in the underground storage tank under pressure.
And it is very important to release the nitrogen pressure in the underground storage tank before the chemical loading of C5 cyclopanthine. The chemicals are transferred from the container to the underground storage tank after the security guards and the fire service team and the maintenance team ensure the overall safety and then we start the loading work. And when the loading job is done, then this underground tank is ready to be transferred to the cyclopentane C5 chemical in each shed. 02) Fire hazard - fire can occur at any temperature.
The use of an exhaust system face mask is not adequate. 01) Adequate air ventilation must be organized. 02). Any type of fire-making device is strictly prohibited for use in the C5 cyclopentane area within seventy feet. 02) Welding, grinding, or gas cutting of this type of work is totally prohibited in the C5 cyclopentane area within seventy feet. Any type of motor vehicle cannot pass this C5 cyclopentane zone within seventy feet.
Chapter-04
Importance Of Using Electrical, Electronic &Mechanicaldevices)
- Introduction
- Lightning Arrester
- The Features Of Lightning Arrester
- Nitrogen Pressure
- Glycol Chemical
- Earthing
- What are the requirement for earthing
- What is neutral?
- Differences between earthing and neutral
- What is the value of earthing resistance
- Pressure Gauge Meter
- Chemical Level Sensor
- Safety Weight Valence Valve
- C5 Gas Sensor
- Pneumatic Rotary Actuator
- Pressure Regulator
- Proximity Sensor
- The Types Of Proximity Sensors
- Inductive type proximity sensor
- Capacitive type proximity sensor
- Photoelectric type proximity senor
- Timer
- Relay
- Emergency Push Button Switch
- Using Place of Emergency Switch
- Types Of Emergency Switch
- Circuit Breaker
- When its works?
- Fuse
- Difference Between fuse & Circuit Breaker
- Magnetic Conductor
- Overload Relay
- Types Of Overload Relay
- Thermal overload relay
- Magnetic Overload relay
- Use Of Overload relay
- Tank Monitoring System
- About The Figure
- C5-Chemical Supply Pump

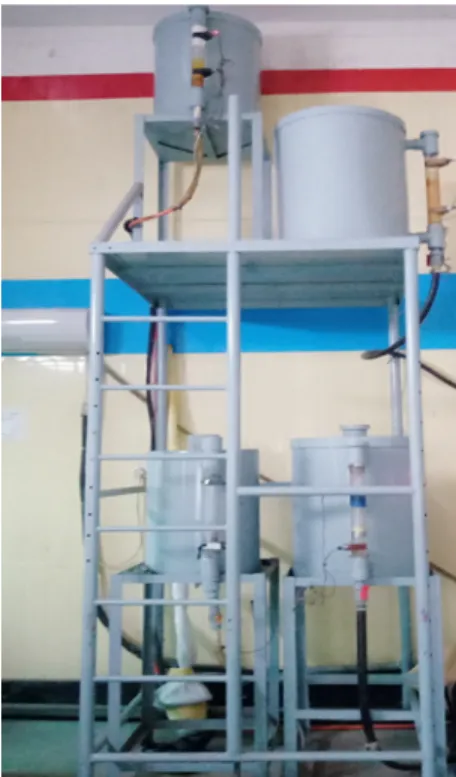

Because the main purpose of using this glycol chemical is to always keep the C5 chemical in the underground storage tank and the C5 chemical in the pipeline cold. In case of any kind of fault or to safely transfer leakage current to disconnect the faulty circuit from the equipment. 02). Arrange for any part of the voltage system to be more specific than ground.
Pressure gauges are used to monitor how much nitrogen pressure is going inside each tank and how much pressure is in the tank. Chemical level sensors are used to measure and quantify the amount of chemical level in the underground voltage tank. Safety weight valence valve it is mainly used to automatically dissipate the excess nitrogen pressure inside the underground tank.
C5 gas sensor it is mainly used to detect the smell of chemicals mixed with air if there is any leakage problem outside the tank and show the level of leakage in the meter. Three of the most common configurations of pneumatic rotary actuators ate rock-and-tooth gear, rocker yoke, and vane design. Proximity sensors are mainly used to indicate the presence of an object from how close it is.
The emergency stop switch is a safety device used to turn off equipment in an emergency when it cannot be turned off normally. The purpose of the emergency push button is to quickly shut down equipment when there is a risk of injury or when the work flow must be stopped. When a circuit has a voltage higher than the specified voltage, the circuit breaker automatically protects the circuit. 01).
When excess current flows in the circuit, the metal wire of the fuse melts and provides protection to the circuit. If the metal wire of the fuse is burned, it can be reused. 4.27: Difference between fuse and circuit breaker:. The working principle of the fuse is electrical and thermal properties of the conductive materials.
And the switch works on electromagnetism and switching materials. 02) Circuit breaker has less response wire than fuse. 03). A magnetic follower is an electromagnetic switch used to control the motor in many large automation industries.
CHAPTER-05
CONCLUSION
Walton is one of the best electronics industries in Bangladesh and also the best in the world, so this is a great opportunity for me to work with Walton. While working at Walton Hi-Tech Industries Limited, I worked in the maintenance department in the chemical sector.
