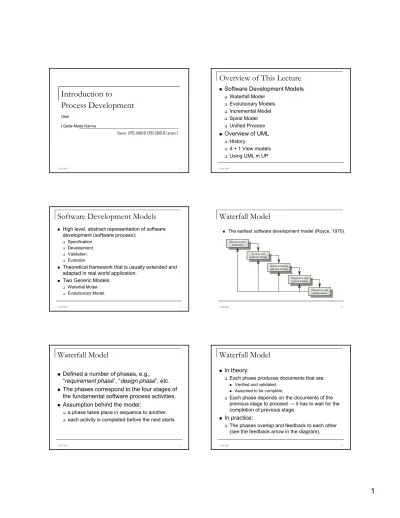

Introduction to
Process Development
Oleh
3/20/2013 1
I Gede Made Karma
Source : CPSC-4360-01, CPSC-5360-01, Lecture 2
Overview of This Lecture
Software Development Models
Waterfall Model
Evolutionary Models
Incremental Model
Spiral Model
3/20/2013 2
p
Unified Process
Overview of UML
History
4 + 1 View models
Using UML in UP
Software Development Models
High level, abstract representation of software development (software process):
Specification.
Development.
Validation.
E l ti
3/20/2013 3
Evolution.
Theoretical framework that is usually extended and
adapted in real world application.
Two Generic Models:
Waterfall Model.
Evolutionary Model.
Waterfall Model
The earliest software development model (Royce, 1970).
Requirements definition
System and software design
3/20/2013 4
Implementation and unit testing
Integration and system testing
Operation and maintenance
Waterfall Model
Defined a number of phases, e.g.,
“
requirement phase
”, “
design phase
”, etc.
The phases correspond to the four stages of
the fundamental software process activities
the fundamental software process activities.
Assumption behind the model:
a phase takes place in sequence to another.
each activity is completed before the next starts.
Waterfall Model
In theory:
Each phase produces documents that are:
Verified and validated.
Assumed to be complete.
Each phase depends on the documents of the
Each phase depends on the documents of the
previous stage to proceed → it has to wait for the completion of previous stage.
In practice:
The phases overlap and feedback to each other
Waterfall Model: Advantages
Tangible products (the various documents) at
the end of every phases
→
good to measure
progress.
Intuitive sensible and general purpose:
3/20/2013 7
Intuitive, sensible and general purpose:
Emphasize planning before action.
Recommend a top-down perspective. See the big
picture before zooming down.
Waterfall Model: Problems
Specification is frozen early, because:
It is costly and time consuming.
Later stages can be carried out.
Cannot adapt to changing or incorrect
3/20/2013 8
specification:
Ignore or code around.
Does not meet user requirement.
Testing at the very end of development:
Work or die situation.
Waterfall Model: Observations
Process stages can be iterative.
Flexibility in coping with changing specification.
Early and frequent validation of software system.
The later models are designed in response to these
3/20/2013 9
g p
observations.
Evolutionary Model
Evolves an initial implementation with user feedback
→ multiple versions until the final version.
Specification Initial Concurrent
activities
3/20/2013 10
Validation Final version Development Intermediate
versions Specification Initial version
Outline description
Evolutionary Model
Two fundamental types:
Exploratory Development:
Explores the requirement and delivers a final system.
Starts with something that is understood and evolves by adding new features proposed by customers.
Th t t i
Throwaway prototyping:
Understands the requirement and develop a better requirement definition.
Experimenting with poorly understood requirement.
Usually develops User Interface (UI) with minor or no functionality.
Evolutionary Model: Advantages
Customer involvement in the process:
More likely to meet the user requirement.
Early and frequent testing:
More likely to identify problems More likely to identify problems.
Lower risk.
Evolutionary Model: Problems
The process is intangible:
No regular, well-defined deliverables.
The process is unpredictable:
Hard to manage, e.g., scheduling, workforce allocation, etc.
Systems are poorly structured:
3/20/2013 13
Systems are poorly structured:
Continual, unpredictable change tends to corrupt the software structure.
Can cause major problems during software evolution.
Systems may not even converge to a final version.
No strategy to gauge or solve this problem.
Incremental Model
Combine the advantages of Waterfall and
Evolutionary Model.
Requirements Split into
i t
Design S t
3/20/2013 14
Outline increments System Architecture
Develop
Increment IncrementValidate IncrementIntegrate
Validate System
Final System
Incremental Model
Each increment is a mini-waterfall.
3/20/2013 15
Incremental Model
Prioritizes the services to be provided by the
system.
Maps these requirements to
Increment
based
on priority.
Freezes requirement for the current
Increment.
3/20/2013 16
q
Requirements for the later increments can evolve
concurrently.
Each
Increment
release is a working system:
Allows user to experiment.
Can be put into service right away.
Incremental Model: Advantages
Early utilization:
the 1stincrement satisfies the most critical
requirement.
Early increments can serves as prototypes.
Early increments can serves as prototypes.
Lower risk of overall project failure.
Most crucial and basic services are
implemented first
→
receives multiple testing
throughout development.
Incremental Model: Problems
Hard to map requirement into small
increments (< 20,000 lines of code).
Hard to define the basic services that are
shared by all subsequent increments
shared by all subsequent increments.
Popular variant:
AGILE method:
eXtreme Programming (XP)
Spiral Model
Formalize the Evolutionary Model and avoid the
management shortcomings.
3/20/2013 19
Spiral Model
Process is represented as a
spiral
rather than
as a sequence of activities with backtracking.
Each loop = One Iteration = A process phase.
Each Loop passes through 4 quadrants (90°):
Obj ti S tti
3/20/2013 20
Objective Setting.
Risk Assessment and Reduction.
Development and Validation.
Planning.
As loops move away from center
→
Time and
Cost increase.
Spiral Model
Risk Driven:
Explicitly identify risks for each iteration.
Address the highest perceived risk.
Does not prescribe a fix process:
P j t M h th i t ti it
3/20/2013 21
Project Manager chooses the appropriate activity
for each iteration base on progress and perceived risk.
Flexible:
May resemble other process model depends on
needs.
Unified Process
State of the art process, by learning from the history of previous software development processes.
3/20/2013 22
Unified Process
Integrating two seemingly contradicting insights:
Definitive activities and deliverables as in the
Waterfall Model.
Iterative and incremental processes.
A project is split into several
phases:
A project is split into several
phases:
Each phase is split into several iterations.
Each iteration consists of the traditional process activities, known as workflow.
Each workflow places
different
emphasis on the
activities depending on the current iteration.
Unified Process: 4 Phases
Inception:
Plan the project.
Evaluate risk.
Elaboration:
Understand problem domain.
Design system architecture Design system architecture.
Plan development.
Construction:
Design, programming and test.
Transition:
Moving system from developer to user environment.
Other Process Models
Formal System Development:
Transforms a mathematical based specification through different representation → executable program. Program correctness is easy to demonstrate, as the
transformations preserve the correctness.
Reuse Oriented Development:
3/20/2013 25
Reuse-Oriented Development:
Concentrates on integrating new system with existing components/systems.
Growing rapidly as development cost increase.
Aspect-Oriented Development.
Agent-Oriented Software Development.
Unified Modeling Language (UML)
A
visual language
to
Visualize, construct, document software system.
Similar to all other languages, UML has:
Grammar: Rules to follow when drawing diagrams.
Semantics:The meaning behind each diagram
3/20/2013 26
Semantics:The meaning behind each diagram.
Used with the Object-Oriented Method.
Separates the language from the software
process
→
can be used with other software
development model.
Currently, this is an industry standard.
What UML is NOT
Not a programming language.
Not executable.
Exist tools to translate into code (skeleton), but the programmer still need to do the bulk of work.
N t
ft
d li
t
l
3/20/2013 27
Not a software modeling tool.
There are tools that implementthe UML standard,
e.g., ArgoUML, Visual Paradigm, RationalRose.
Not a SE method or software development
process.
UML: Brief History
OO Modeling approach with different strengths and
weaknesses grows rapidly.
In 1995,
There were more than 50 named techniques in the industry.
The Object Management Group (OMG) calls for a common
d li h
3/20/2013 28
modeling approach.
Rumbaugh, Booch, and Jacobson (The three amigos)
with input from others, formalized the UML standard (UML 1.1) in 1997.
Revised in 2003 (UML 1.5): Currently most widely used.
Reorganized in 2005 (UML 2.0): A new standard.
UML: 4 + 1 View Models
A system can be viewed in different ways,
usually depends on the role of the viewer.
UML supports this by providing the 4 + 1 View
Models [Kruchten, 1995]:
System
Design View
Implementation View
Deployment View
Process View Use Case
View
Use Case View
Audience:
System Analyst, End Users and Testers.
Usage:
Describes the system’s external behaviour
Describes the system s external behaviour.
Defines the requirements of the system, so it
constraints all the other views.
Has the central role in driving the development
Example of Use Case
Elevator System
Use case 1: ‘Call Elevator’ is this possible written story: Basic course of events: If the userOutside wants to call lift to
go up/down, then he/she presses UpButton/DownButton;
Exception 1: If the lift is at the ground floor, then there is no DownButton;
3/20/2013 31
DownButton;
Exception 2: If the lift is at the top floor, then there is no UpButton;
Use case 2: ‘Move From Inside’ is this written story: The userFromInside can select a floor number (from 1 to the
number of floors of the building), or can press “Open”, “Close”.
Design View
Audience:
System Analyst and Programmers.
Usage:
Describes the logical structures that support the
3/20/2013 32
functional requirements expressed in the use case view.
Consists of definitions of program components
(classes, data), their behaviour and interactions.
Useful as basis for coding.
Implementation View
Audience:
System Engineer and Tester.
Usage:
Describes the physical components out of which
3/20/2013 33
the system is to be constructed:
executable files,
libraries of code,
databases.
Useful for configuration management and system
integration.
Process View
Audience:
System Analyst, Programmer and Tester.
Usage:
Non-Functional requirements.
3/20/2013 34
Defines concurrency within the system.
Relatively undeveloped.
Deployment View
Audience:
System Integrator (setup the system at client side).
Usage:
Non-Functional.
D ib h i l t th t d l d
Describes physical components that are deployed
in the physical environment:
Network of computers, connection protocol.
Computer specification.
Relatively Undeveloped.
UML Terminology
Model:
Refers to the information in a single view, e.g., Use Case Model. OR
Refers to all the information about the system, i.e., System Model.
Model element:
Independent graphical notation element, e.g., a box, an arrow, etc, that has a well defined meaning.
Diagram:
UML Diagrams by Views
1. Use case diagram (use case view)
2. Object diagram (use case and design views)
3. Sequence diagram (use case and design views)
4. Collaboration diagram (use case and design views)
Cl di (d i i )
3/20/2013 37
5. Class diagram (design view)
6. Statechart diagram (design and process views)
7. Activity diagram (design and process views)
8. Component diagram (implementation view)
9. Deployment diagram (deployment view)
UML Diagrams by Characteristic
Software system exhibits two characteristics:
Static: Logical Structure, e.g., relationship
between classes, attributes of a class, etc.
Dynamic: Behavior of the system, e.g., how to
3/20/2013 38
y y g
respond to a certain event, how to initiate an action, etc.
In addition, knowledge about setting up and
running the system:
Implementation
.
UML Diagrams by Characteristic
Static:
Use case diagram
Class diagram
Dynamic:
Object diagram
State diagram
3/20/2013 39
State diagram
Activity diagram
Sequence diagram
Collaboration diagram
Implementation:
Component diagram
Deployment diagram
Design Model and Code
Models present an abstract view of system.
Implementation adds enough detail to make these
models executable.
UML model Object structures
UML specifies
3/20/2013 40
Source code Executing program Java
Abstract view of Abstract view of
specifies
Compile time Run time
UML Models
Both documentation (‘UML model’) and ‘Source code’ can be described as compile-time artifacts.
‘Object structures’: Programmers in object-oriented languages (e.g., Java, C++) tend to use abstract models of program execution which talk in terms of objects being created and destroyed as a program runs
created and destroyed as a program runs.
‘Executing program’: describes the effect the program has on computer’s processor and memory when the program is running.
The upper and below parts refer to design and programming.
The left and right parts refer to compile-time and run-time.
Unified Process and UML
UP is
Use Case Driven
:
A systematic utilization of Use Case.
UML diagrams are used in the
Requirement,
Analysis
and
Design
activities in the UP
Analysis
and
Design
activities in the UP
workflow.
UP: Requirement and Analysis
UP starts with
use
cases
describing how
users interact with the
system:
3/20/2013 43
A domain model records facts about real world entities.
UML use case and class
diagrams document these.
UP: Analysis and Design
Analysis and Design usually overlap in UP as the
same diagrams are used.
Proceed by Realization and Refinement.
3/20/2013 44
UP: Realization and Refinement
Use case
realizations
indicate how the
functionality will be supported by the system.
Documented in UML interaction diagrams, e.g.,
Sequence Diagram, Collaboration Diagram.
3/20/2013 45
This causes the domain model to be
refined
into a more implementation-oriented
class
diagram
.
UP: Specifying Behavior
UML provides
State Chart
to document the
behavior of classes.
3/20/2013 46
Summary (1)
Waterfall Process Model:
Development activities in a linear fashion.
Requirements to freeze very early in
development.
T ti l t i th
Testing very late in the process.
Evolutionary Process Model in response to
iterative nature of development:
Use of prototyping.
Requirements evolve with users’ feedback.
Summary (2)
Incremental Process Model in response to
incremental nature of development:
Delivery in increments.
Allows prioritizing risks in development.
Allows prioritizing risks in development.
Summary (3)
Spiral Model:
Addresses incremental and iterative nature of
development.
Allows risk evaluation at every phase.
Expensive process.
3/20/2013 49
p p
Allows use of multiple process models.
Unified Process:
Incorporates best industry practices.
Extensive use of UML models.
Allows iteration of workflows.
Summary
Software Development Models
Waterfall Model
Evolutionary Models
Incremental Model
Spiral Model
3/20/2013 50
p
Unified Process
Overview of UML
History
4 + 1 View models
Using UML in UP
Reading Suggestions
[Wadhwa, Andrei, Soo; 2007], Chapter 2
[Sommerville; 2008], Chapters 1 and 4
[Priestley; 2004], Chapter 3
3/20/2013 51
Coming up next
Use Case Modeling, Domain Modeling:
[Wadhwa, Andrei, Soo; 2007], Chapters 2 and 3
[Priestley; 2004], Chapter 4
3/20/2013 52
Thank you for your attention!
