NO. NAMA BARANG VOLUME
PERALATAN LABORATORIUM
1 BLOOD BANK REFRIGERATOR 1 Unit
Specifications :
Exterior (Cabinet) : Material: Galvanized steel plate, Powder coating
Interior (Chamber) : Vol: 245 l, Material: Galvanized steel plate, Powder coating Door : Double anti-fog glass
Insulation : Non-CFC Polyurethane foam or foam panel, Thichness: 70mm Drawers : Material : Stainless steel plate
Compressing Unit : 1/5 HP hermetically sealed compressor x 1, Air-cooling type Cooling Unit : Finned tube coil type evaporator with blower,
Automatic off-cycle defrost system Refrigerant : R-134a, Charge: 280g
Operating Temperature :Approx. 1.0º C ~ 6.0º C Power Source : AC 230V, 50/60Hz
Power Consumption : 450W
Chamber Lighting : Fluorescent lamp, 20W, 1ea
Temperature Recording : Recording range: -10ºC ~ +40ºC , 7-day Revolution,
Ø125 mm Diagram, 1.5V (LR6) Battery driven, Fiber tip pen u
2 SEROLOGICAL CENTRIFUGE 1 Unit
Specifications :
Maximum speed : Range 4500 - 5000 rpm Maximum RCF : 2822 X Gram (g)
Control system : programmable microprocessor control Speed set range : 1000 – 5000 rpm
Speed set step : 10 rpm
Timer set range : 1-99 minutes and hold position Timer set step : 1 minute
Motor : induction motor
Supply values : 230 V 50/60 Hz, 110 V, 60 Hz Power consumption : 350 W
3 Dry Heat Sterilizer & Incubator 32 LT 2 Unit
Specifications :
Cabinet : Stainless steel
Chamber : Stainless steel/ Volume 32 L Insulation : Mineral Wool, t 50 mm Power Source : AC 230V, 50/60 Hz Power Consumption : 1.200W
PENGADAAN ALAT KEDOKTERAN, KESEHATAN DAN KB RSUD H. ABDUL MANAP KOTA JAMBI
DANA APBN P TAHUN ANGGARAN 2011
Mode : Sterilizer / Incubation
Temperature Control : Microprocessor, PID controller Convection Method : Natural Convection
Temperature Range :
- Sterilization Mode: 140°C, 160°C, 180°C (available user cycle 35°C~220°C) - Incubatio Mode : 37°C, 42°C, 52°C, 60°C, 70°C (available user cycle 35°C~80°C) Display : Graphic Display, LCD module
Environment Conditions - Atitudes up to 2.000 meters
- Temperature range of +5°C ~ +40°C.
- Maximum reative humadity of 80% for temperatures up to 31°C, decressind linearly to 50% at 40°C - Main supply voltage fluctuation of ±10% of nominal - Installation category (overvoltage category) II, Pollution Degree 2
4 MICROSCOPE BINOCULAR 3 Unit
Specifications :
- Binocular head
- Widefield ocular 10x, Plan field ocular 16x
- Standard achromatic objectives (4x, 10x, 40x and 100x oil) - X-Y stage with vernier scales
- Coaxial fine and coarse adjusment
- 1.25 N.A. Abbe condenser with adjustable iris diaphragm - 6V/20W halogen illumination light system with intensity control
5 PLASMA EXTRACTOR 1 Unit
Specifications :
BENEFITS * Labor saving
* Perfect for automation of componens separation * Enables operator to multi-task
* Up to 5 electronic expressors can operate on one A/C power adaptor * Eliminates use of multiple power adaptors
* 1-year warranty
Sensor type : Infrared interruption sensor Clamping power source : Geared motor
Clamp speed : ~ 1 secons from detecting red cells Controls : Power, open, close, start, sencitivity
POWER REQUIREMENTS Power source : A/C power adaptor
(A/C 100-120V or 220-240V A/C in, 18 V out Power consumption : 10 Watts max
ACCESSORIES INCLUDED Power adaptor
Jumper cable (for tandem connections) User manual
Specifications :
Base Material : Alumunium Alloy & SUS Rollers : Special Composite Steel, Non-Rust Cutters : Not Available
Features : Self-Centering Rollers Cutter : None
7 HEMOSCALE 1 Unit
Specifications :
Collection Volume : 0 - 1199 mL Weight Display : 0 - 1199 Grams Elapsed Time Display : 0 - 1199 Grams
Target Volume range : 0 - 1199 mL Default Value 450 mL or 500 mL with 5 mL Increments Accuracy
Weight Tolerance : +/- 1 grams
Weight Accuracy : 0 grams to + 3 grams Time Display Accuracy : 1 second maximum
LCD Custom Designed Display : 110V - 120V A/C, 220V - 240V A/C, 50 - 60 Hz Power Requirements : Rechargeable Ni-Cad 12V DC
Battery Pack : Rechargeable Ni-Cad 12V DC
Accessories Include : - Ni-Cad Battery Pack - Battery Recharger unit - A/C Power Adapter - User Manual
- Carrying/Transport Case - Mixer Stand
8 HEMOGLOBINE METER 1 Unit
Specifications :
Measuring Range : 0 -240 g/L Tolerance : < 2 %
Linear Range : < 5 % FS Dilution Ratio : 1:251
Testing Time : < 4 s (maximum absorption) Stability : < 1 g/L/h (25 ± 10ºC)
Continuous working time : > 10 hours
Sample absorption : 1 - 9 mL, ten grades adjustable
Standard setting : 0 - 240 g/L adjustable (whole number times of ten) Electrical : AC220 V ± 10% (50Hz)
Power Consumption : < 10 W
9 COOL BOX 2 Unit
Specifications :
Capacity : 25 liters
Ambient Temperature : -10ºC up to + 40ºC Power consumption : 40 watt
10 IMUNOLOGI ANALIZER + UPS 1 Unit
Specifications :
System
Automatic rotary-random access panel input Batch mode
Hingga 30 tes berbeda tiap running (1 jam 20 menit)
Metoda ELISA
Compliment Fixation Test (CFT)
Sampel Serum
Display
Touch-screen LCD 6” STN color display
Printer
Dot thermal, 832 dot/line
Ukuran kertas 112 mm continuous roll
Panjang Gelombang 450, 640, 650 nm
Packaging 36 atau 12 devices
The single test device contains all the reagents necessary Master curve procedure with 1 point calibrator included in the kit
Internal CPU 16 bit Microprocessor Multi I/O Ports
1 Mb internal permanent memory 512 Kb RAM
Kondisi Operasional
Range temperature : 18-300C (64-860F) Kelembaban : < 80%
Ketinggian dari dasar : < 2000 mt (6.562 kaki)
Cahaya : Jangan berada pada tingkat cahaya yang sangat terang Hindari debu dan gas berbahaya
Keperluan Listrik
Arus listrik : 105< >240 VAc ; 50-60 Hz Line voltage : 110/220 Volt
Absorbed power : max 360 W Level kebisingan : <80 dB
Fuses : 2 x 2A T (5X20mm)
Washing Buffer Autoimmunity Cleaning Solution
Sanitizing Solution
Infectious Diseases - Elisa
Chorus Toxoplasma IgG 36 Test
Chorus Toxoplasma IgM 36 Test
Chorus Toxoplasma IgG Avidity 12 Test
Chorus Rubella IgG 36 Test
Chorus Rubella IgM 36 Test
Chorus Rubella IgG Avidity 12 Test
Chorus Cytomegalovirus IgG 36 Test
Chorus Cytomegalovirus IgM 36 Test
Chorus Cytomegalovirus IgG Avidity 12 Test
Chorus HSV 1 Screen 36 Test
Chorus HSV 2 Screen 36 Test
Chorus Herpes Simplex 1+2 IgG 36 Test
Chorus Herpes Simplex 1+2 IgM 36 Test
Chorus Measles IgG 36 Test
Chorus Measles IgM 36 Test
Chorus Mumps IgG 36 Test
Chorus Mumps IgM 36 Test
Pneumotropic Virues
Chorus Influenza A Virus 12 Test
Chorus Influenza B Virus 12 Test
Autoimmunity - Elisa - Eheumatology
Chorus Ana-8 S 36 Test
Chorus DSDNA- G 36 Test
Autoimmunity - Elisa - Thrombosis
Chorus Cardiolipin-G 36 Test
Chorus Cardiolipin-M 36 Test
Chorus Beta 2 Glycoprotein-G 36 Test
Chorus Beta 2 Glycoprotein-M 36 Test
11 WATER BATHS 2 Unit
Specifications :
Rectangular water bath for flattening paraffin-embedded tissue sections in all areas of bio-medical research and routine diagnostics.
Because of its high temperature consistency the Leica HI1210 can also be used for maintaining specimens and solutions at required temperature for immunohistochemical and enzyme chemical application.
Ergonomic design ensures maximum user-friendliness and easy cleaning.
Features:
Digital display, membrane keyboard, temperature range from ambient to +75°C, set value memory (battery back-up). High temperature consistency (control accuracy 0.2°C), working temperature above +44°C indicated by flashing LED.
Set
Temperature displayed in addition to actual temperature.
Dimensions match those of Leica HI1220 Flattening
Table for side-by-side operation.
Dimensions (WxDxH): 308 x 340 x 95 mm
Dimensions (WxDxH): 12.13 x 13.39 x 3.74 inches Capacity: 2 l 1 Instruction manual Leica HI1210
12 MICROTOME 1 Unit
Specifications :

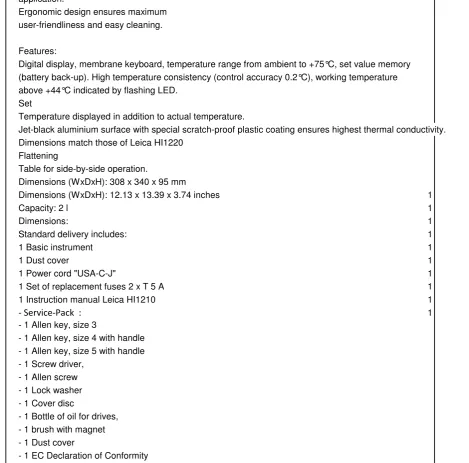

Rectangular water bath for flattening paraffin-embedded tissue sections in all areas of bio-medical research and routine diagnostics.
Because of its high temperature consistency the Leica HI1210 can also be used for maintaining specimens and solutions at required temperature for immunohistochemical and enzyme chemical application.
Ergonomic design ensures maximum user-friendliness and easy cleaning.
Features:
Digital display, membrane keyboard, temperature range from ambient to +75°C, set value memory (battery back-up). High temperature consistency (control accuracy 0.2°C), working temperature above +44°C indicated by flashing LED.
Set
Temperature displayed in addition to actual temperature.
Jet-black aluminium surface with special scratch-proof plastic coating ensures highest thermal conductivity. Dimensions match those of Leica HI1220
Flattening
Table for side-by-side operation.
Dimensions (WxDxH): 308 x 340 x 95 mm
Dimensions (WxDxH): 12.13 x 13.39 x 3.74 inches 1
Capacity: 2 l 1
Dimensions: 1
Standard delivery includes: 1
1 Basic instrument 1
1 Dust cover 1
1 Power cord "USA-C-J" 1
1 Set of replacement fuses 2 x T 5 A 1
1 Instruction manual Leica HI1210 1
- Service-Pack : 1 - 1 brush with magnet - 1 Dust cover
- 1 Instruction manual
- Glass Staining Dish with Rak Pengecatan 12 Set
13 AUTOMATED ESR SYSTEM 1 Unit
Specifications :
Power Supply : from 90 to 264 VAC (50/ 60 Hz) Power consumption : 65 W max
Fuses : 2 x 1.0A T (5 x 20 mm) Ambient temperature : Operational
Storage
Relative humidity tolerance : from 20 to 80% without condensation
Central Unit : RISC 8 BIT technology with extremely low dissipation; 103 microprocessor
Display : With liquid crystal in Super Twisted technology; Two rows each with 16 character
Cuvette-holder plate : with 20 numbered recesses for the relative cuvettes; with 15 numbered recesses in the Plus version Plate rotation speed : 1 rotation every 1.5 seconds during normal operation
Optical unit : A pair of opto-electronic elements in solid state (photodiode + phototransistor)
Printer : Alphanumeric with thermal paper 58 mm wide, 36 characters per line, speed : 20 mm/ sec. Protection category : CLASS I
Installation category : II
14 DIGITAL SCALE 1 Unit
Specifications :
Capacity : 4100
Weighing units (g) : g, kg, ct, lb, oz, dwt, tical, tola, mommes, baht, grain, mesghal, newton, ozt, teals
Readability d (g) : 0.01 Platform size : 180mm dia. Cal Weight-Span : 2kg, 4kg Cal Weight-Linearity : 2kg / 4kg Repeatibility (std dev) mg : 10 Linearity (mg) : ±30 Taring time (s) : 1 Stabilization time (s) : 3
Gross weight (lb/kg) : 7.3lb / 3.3kg Shipping weight (lb/kg) : 11.8lb / 5.4kg
Operating condition : 10°C (14°F) to 40°C (104°F) at 10% to 80%
relative humadity, non-condensing, up to 4000m above sea level Storage temp. : -40°C (-40°F) to 70°C (158°F) at 10% to 80% relative humadity
non-condensing
15 ULTRAVIOLET RAYS STERILIZER 2 Unit
Specifications :
Temperature control : amb.+5°C~120°C Timer : 0 ~ 60 min
Germicidal lamp : 15 watts Power consumption : 600 watts Environment condition : - Altitudes up to 2.000 meters - Temperature range of +5°C to 40°C - Maximum relative humidity of 80%
- Main supply voltage fluctuation of ± 10% of nomina
- Instalation category (overvoltage category) II , pollution degree 2
16 FREEZING MICROTOME 1 Unit
Specifications :
Microtome
Section thickness range : 1 to 100μm Trimming range: : Clinic: 10–40μm
Research: 1–600μm
Total specimen feed : 25mm Vertical stroke: : 59mm
Specimen retraction : 20μm (can be deactivated) Maximum specimen size : Range 40 x 80mm Specimen orientation : 8 ° (x, y-axis) Electric coarse feed : Slow: 300μm/s
Fast: 900μm/s Cryochamber
Temperature range : 0°C to -35°C at ambient temperature of 20 °C
Defrosting of cryochamber
Automatic defrosting : Programmable (hot gas defrost) Selectable time
: (hot gas defrost) Selectable time 1 defrost in 24 h or manual hot gas defrost,
Defrost time: 12 minutes Automatic shut off Defrost : at -5 °C chamber temperature
Quick-freeze shelf
Minimum temperature : Down - 42 °C (+ 5 K), at chamber temp. -35 °C Number of freezing stations : 15+2 15+2
Defrost : Manual hot-gas defrost Manual hot-gas defrost
1 Peltier element
Number of freezing stations : 2
Max. temperature difference : 17 K, at chamber temp. of -35 °C
Power draw : 1900 VA
General Information
Operating temperature range : 18°C to 35°C
Relative humadity : max. 60%, non-condensing Storage humadity : <60%
17 CYTOCENTRIFUGE 1 Unit
Power supply*) 208 – 240 V 1 ~ 100 – 127 V 1 ~ Frequency 50 – 60 Hz
Consumption 300 VA
Emission EN 55011 group 1, class B, FCC class B EN 6100032, EN 6100033 -Immunity EN 6100062 -Max. capacity 4 x 100 ml / 32 x 15 ml
Max. RPM (speed) 6,000 min-1
Max. RCF 4,226
Running time 1– 99 min, continuous run, short cycle mode (impulse key)
18 MANUAL STAINING STATION (STAINING JAR) PACK OF 10 PCS 1 Pack
Specifications :
The sturdy polypropylene coplin staining jar improves on the classic tapered square design with a large opening for easier placement and removal of slides. The polypropylene screw cap is 53mm in diameter, has a flat top, easy-grip larger knurled edge, deep thread and a seal ring to prevent leaks. Can be used to stain slides in a microwave oven if cap is left loosely attached to the jar. Internal slots hold up to 10 standard 25 x 75mm slides back to back.
Autoclavable at 121°C. Remove cap when atoclaving
19 PARAFIN DISPENSER 1 Unit
Specifications :
Height of work surface : 30 mm Capacity : 3.751
Temperature setting range : Room temperature up to 70°C Control accuracy :
- Container : Approx 1°K
- Plate : Approx 2°K (steady state) Power Supply : 100 V 50/60 Hz 115 V 50/60 Hz 230 V 50/60 Hz 240 V 50/60 Hz Heating capacity :
- Histotap : 200 W - Histotap Plus : 350 W
Power consumption : - Histotap : 215 W - Histotap Plus : 365 W
20 CENTRIFUGE 30 HOLE 1 Unit
Specifications :
Benchtop centrifuge, classic without rotor
Power supply*) 200 – 240 V 1~ 100 –127 V 1~ Frequency 50 – 60 Hz 50 – 60 Hz 50 Hz Consumption 400 VA
class B -Immunity EN 6100062 EN 6100062 -Max. capacity 4 x 100 ml / 32 x 15 ml
Max. RPM (speed) 15,000 min-1
Max. RCF 21,382
Running time 1 sec – 99 min : 59 sec, ∞ continuous run, short cycle mode (impulse key)
21 AUTOMATED ANALYZER CLINICAL CHEMISTRY 1 Unit
Specifications :
General Characteristics
Processing Capacity : Up to 54 positions (including samples, calibrators and controls) per tray in a work plan
Incubation 1 : 21 to 9999 s Incubation 2 : 0 to 180 s
Unlimited duplicates for blanks, calibrators and samples Calibration storing
Patient data (name, age, sex, etc.) files - demography database
SAMPLE TRAY
Sample Cup Capacity : 1.2 ml maximum
Tray Capacity : 54 cups for samples, calibrators and controls
REAGENT TRAY
Tray Capacity : 20 reagent bottles of about 45 ml
REACTION WELLS 12 rows with 12 wells each
Reaction Well Capacity : 1 ml maximum
RESERVOIRS
Wash Bottle : 0.5 litre Waste Bottle : 0.5 litre
There is also the possibility to connect to an external waste tank. It is necessary to disconnect the Tygon tube from the Waste Bottle and to attach it to the white connector to the left of the bottles. It is then necessary to connect the tube found in the accessory box to the blue connector on the base of the instrument
PROGRAMMING
Tests : Unlimited
Profiles : Up to 9 with an unlimited number of tests
ANALYSIS MODES
End Point : 1 or 2 reagents
KINETIC ANALYSIS
Absorbance measurements during the programmed interval Linearity evaluation
Use of factor or calibrator
Single Calibrator : For one test (specific) or common to several test (multiple)
Calibration Curve
CALIBRATION CURVE Up to 8 standards
Axes : Linear and logarithmic
Calculation Function : Spline, linear regression, square regression, polygonal
QUALITY CONTROL
Analytical Limits Control : Blank, linearity, factor Up to 3 control materials per test
Levey-Jennings / Shewart charts
SAMPLE AND REAGENT DISPENSING
Single-syringe pipetting up to 1000 µl (positive displacement), 1/16 µl steps Sample Volume Range : 2 to 200 µl in 1/16 µ steps
Reagent 1 Volume Range : 30 to 1000 µl in 1/16 µl steps Reagent 2 Volume Range : 0 to 1000 µl 1/16 µl steps Liquid Detection : Ohmic sensor
TEMPERATURE 3 thermostated areas
Reagent pre-warmed in the transfer arm (+/- 1°C)
Reaction mixture thermostated in the reaction wells to 37°C ± 2°C Reaction mixture thermostated in the flow cuvette to 37°C ±0.2°C
OPTICAL SYSTEM
Principle : Interference filter
Readings : Monochromatic or dichromatic Filters wheel with up to 8 filters and automatic filter selection Light Source : Halogen lamp (12 V and 20 W) Detector : Silicon photodiode
TRANSFER SYSTEM
Continuous flow system, with peristaltic pump Capacity of the cuvette flow : 18 µl
Automatic calibration
PC MINIMUM REQUIREMENTS
The instrument should be connected to a personal computer which fulfills the following requirements :
- Processor 2 Ghz - 256 MBytes RAM
- Hard disk capacity > 20 GBytes
- Operating System Microsoft Windows ™ 98 or XP - Driver for 3.5" 1.44 MBytes disks
- CD-ROM
- Built-in Network Adapter - Output : Serial port - External printer
ASSISTANCE TO USERS
Automatic selection of the calibrators and controls required for a work plan Automatic selection of the reagents required for a work plan
Automatic alert messages on-screen
GRAPHS
Calibration and kinetic curves Quality control (Levey-Jennings)
PERALATAN CSSD
1 STEAM STERILIZER 2 Unit
Specifications :
Chamber : Volume 40.5 lt, Rectangular Type Reservoir : Volume 4 lt
Tray : Qty. 2 ea
Power Source : AC 230 V, 50/60 Hz Power Consunption : 2,000 W
Sterilizing agent : Saturated steam of max. 2.10 bar pressure Controls : Microprocessor
Exposure temperature : 121°C - 134°C Vacuum pump : Flow rate : 30 lt / min
Drying Ability : Less than 2.0% of the amount of moisture within porous loads Air Filter : Min. fitration efficiency : 99.97 % for 0.3 µm Particles
Pressure Gauge : Dial Type, 760 mmHg - 4 bar Printer : Thermal Printing dpi,
Paper Roll
Environment conditions : - Altitudes up to 2.000 meters
- Temperature range of +5°C to +40°C - Maximum relative humidity of 80%
- Main supply voltage fluctuation of ± 10% of normal.
- Instalation category (overvoltage category) II , pollution degree 2
2 STEAM STERILIZER 196 LT 1 Unit
Specifications :
Style : Single door , cabinet type Chamber : 196 lt
Loading system : Two shelves One shelf One rack
Operating temperature : 110°C ~135°C Air removal : Vacuum
Controls : 8 bits microprocessor Display : graphic display, LCD(EL back-light)
Printer : Dot matrix, 40 columns, single color paper roll :W57.5 mm x L22m
Power source : Built in steam generator AC 220V,3 ph,50/60 Hz,32 A or AC380V ,3 ph , 4 wire,50/60 Hz , 20 A External steam system only : AC220v,50/60Hz,5A Steam source : Buit in steam generator
Water pump : 300W External Steam System:
Saturated Steam of 97% dryness, 3.5~5 kgf/cm² Pressure
max.20kg/h of flow rate
Water source : 2.1 kgf/cm² ~ 5 kgf/cm² of pressure , max.50 l/min of flow rate
Vacuum system : Water ejector , water pump Environment condition
: - Altitudes up to 2,000 meters - +5°C to 40°C of Temperature range - Maximum relative humidity of 80%
- Main supply voltage fluctuation of ± 10% of nominal.
- Instalation category (overvoltage category) II , pollution degree 2
INCLUDE WITH :
- MEJA STAINLESS STEEL
Specifications :
Material : Stainless Steel
- RAK STAINLESS STEEL (2 Tingkat)
Specifications :
Material : Stainless Steel
- PAKET STERILISASI (untuk satu tahun)
Consisting Of :
Wripping Paper 6
Wripping Paper 6
Wripping Paper 1
Wripping Paper 1
ADHESSIVE TAPES (STEAM), 50
BOWIE & DICK INDICATORTESTSHEET 3
POUCHES STERICLIN GUSSETTE, 1
POUCHES STERICLIN GUSSETTE 1
POUCHES STERICLIN GUSSETTE 2
POUCHES STERICLIN GUSSETTE 2
POUCHES STERICLIN GUSSETTE 1
POUCHES STERICLIN GUSSETTE 2
POUCHES STERICLIN GUSSETTE 2
POUCHES STERICLIN FLAT, 1
POUCHES STERICLIN FLAT, 3
POUCHES STERICLIN FLAT 3
POUCHES STERICLIN FLAT 3
POUCHES STERICLIN FLAT 3
POUCHES STERICLIN FLAT 3
POUCHES STERICLIN FLAT 1
POUCHES STERICLIN FLAT 5
POUCHES STERICLIN FLAT 10
INDICATOR STRIPS (STEAM) 5
ALKAZYME SACHET 25 MG 48
3 CUTTING AND SEALING MACHINE 1 Unit
Specifications :
Applicable roll bag : Width of roll : 50 ~ 400 mm / Diameter of roll : max.250 mm Interior Diameter of Roll's Paper Tube : 50 ~ 75 mm Productivity : About 7 pc/min
Cutting length : 20 cm (12 cm ~ 999 cm) Cutting quantity : 1 pc (1 pc ~ 999 pc) Sealing temperature : 195 °C (110 ~ 230°C) Sealing time : 2 s (1 s ~ 3 s)
Controls : Microprocessor Power : AC220 V, 50/60 Hz Heater : 500 W
4 NEEDLE SYRINGE DISTROYER 1 Unit
Specifications :
Workplace related emission Lp: 81 dB (A)
Operating condition : bottom sieve = 0,5 mm conidur Diameter of sieve : 0,01 mm – 1 mm
Safety operation : self termination Body frame : Dural Aluminium Feeding angle : = 75 0 clock wise side Parameter per setting up location
The ambient temperature between 410 F and 1040 F.
Maximum relative humidty 80 % at temperature of 87,00 F, falling in a linear fashion to 50 % relative humidity at 40 0F.
Electrical : 1500 Watt; 1 phase ; 50 – 60 Hz ; 1420 – 1720 rpm Required standing area : 1.000 mm x 1.000 mm: no safety distance necessary Disinfecting Apparatus : * Intermittent Flow Transfer
* Compatible with low viscosity disinfecting solution only * Automatic operation
5 E.O GAS STERILIZER 85.4 LT 1 Unit
Specifications :
Chamber : capacity : 85.4 lt Reservoir :
feed water : Hardness < atau 0.02 mmol/lt
Capacity : 4.5 lt (max. : Overflow), 4.2lt (typical), 2.6lt (min) Loading system : One(1) basket,One(1) rack
Steriliant : Mixtures of ethylene oxide and inert gases Water source : Pressure : 1.5~3.0 kgf/cm²
Power source : AC 230V,50/60 Hz Power consumption : 1,200 W Control : Microprocessor
Vacuum system : Vacuum pump 33 lt/min cap. Display : graphic display LCD (EL back- light) Printer : Dot matrix, 40 columns ,single color ,paper Environment Conditions :
- Altitudes up to 2,000 meters
- Maximum relative humidity of 80% for temperature up to 31°C, decreasing linearly to 50% at 40°C.
- Main supply voltage fluctuation of ±10% of nominal.
- Installation category (Overvoltage Category)II, Pollution Degree 2.
Completed with :
- Table : 1
- Cylinder EO : 1 - Gas Pressure Regulator : 1
PERALATAN LAUNDRY
1 LOW SPIN WASHING MACHINES 2 Unit
Technical Data :
Loading capacity 23 kg
Heating Electric
Drum Volume 215 lt
Door diameter 380 mm
G-factor 86
Voltage 3x400V+N 50Hz
2 Tumble Dryer 2 Unit
Technical Data :
Loading capacity 23 kg
Heating Electric
Load diameter (mm) 560
Voltage 3x400V+N 50Hz
Heating power (Kw) 24
3 HYDROEXTRACTORS 2 Unit
Specifications :
- Stainless steel 18/10 AISI 304 drum - Mechanical Timer From 0-15 minutes
- Special thermal profections and anti-humadity insulation of the motor, equipped with current breaking system
- Solid steel base to be bolded on the ground - Triphase without neutral : 220/240V - 50/60Hz - RPM 1.400
4 FLATWORK IRONERS 2 Unit
Technical Data :
Voltage : 3x400V+N 50/Hz Total power : 13.9 Kw
5 LINEN HAMPER CARRIAGE # Unit
Specifications :
Construction : Stainless Steel sheets
Feature : - One bracket hanger for plastic - Linen bag (for dirty cloth) - One cupboard with three selves Handle : Stainless Steel pipes
Castor : 4" with two brakes
6 LAUNDRY TROLLEY # Unit
Specifications :
Construction : made of steel sheet and wire mesh on all side
Painting : epoxy powder coating finished Castor : 4"
7 RAK PAKAIAN BERSIH STAINLESS STEEL # Unit
Specifications :
Material : Stainless Steel
8 MEJA STAINLESS STEEL 4 Unit
Specifications :
Material : Stainless Steel
HOSPITAL EQUIPMENT
1 X-RAY FILM VIEWER 3 Unit
Specifications :
Construction : powder coated steel sheet Feature : - acrylic screen
- 10 x 10 watt TL Lamp with power switch Power consumption : 100 watt
2 EMERGENCY TROLLEY 5 Unit
Specifications :
CONSTUCTION - MAIN FRAME
Made of stainless steel plate & stainless steel pipes
- DRAWER UNIT
Made of stainless steel plate - DOORS
Made of stainless steel pipes plate ACCESSORIES
- Handle made of aluminum
- Oxygen rack made of stainless steel rod & stainless steel plate - Infusion stand Made of steel pipes & stainless steel rod Infusion stand Made of steel pipes & stainless steel rod FINISHING
Polished CASTOR
Ø 3", Two castors with brake Made of rubber
3 UV ROOM STERILIZER 3 Unit
Specifications :
CONSTRUCTION - MAIN FRAME
Made of stainless steel plate & stainless steel rod - LAMP HOLDER
Made of steel plate, stainless steel pipes & stainless steel rod - LAMP
Power supply 220V/550 Hz Power consumption 130 Hz UV Lamp 4 x 30 watt UV Lamp 4 x 10 watt On/Off using timer - HANDLE
Made of stainless steel pipes & stainless steel rod - COMPONENT SUPPORT
Made of stainless steel plate & stainless steel rod FINISHING
Polished CASTOR
Ø2" made of rubber
4 INSTRUMENT TROLLEY # Unit
Specifications :
CONSTRUCTION - SHELVES
Made of stainless steel plate - HANDLE
Made of stainless steel pipes - FOOT UNIT
Made of stainless steel pipes FINISHING
Polished CASTOR
Ø2", Two castor with brakes Made of plastic
Specifications :
CONSTRUCTION - MAIN FRAME
Made of square steel pipes & steel plate - UPPER FRAME
Made of square steel pipes & steel plate - DOOR
Made of aluminum
(completed with lock & handle) - SHELVES
4 shelves made of glass FINISHING
Powder coating
6 DRESSING TROLLEY # Unit
Specifications :
Construction : Stainless steel Feature : - Two shelf with list - Push handle
- Bottle rack at upperself
- stainless steel bowl stand included D320 Castor : 2"
7 INSTRUMENT CABINET # Unit
Specifications :
CONSTRUCTION - MAIN FRAME
Made of square steel pipes & steel plate - UPPER FRAME
Made of square steel pipes & steel plate - DOOR
Upper door made of aluminum (completed with lock & handle)
Lower door made of square steel pipes & steel plate (completed with lock & handle)
- SHELVES
3 shelves made of glass FINISHING
Powder coating
8 MEDICINE TROLLEY # Unit
Specifications :
Medicine drawer : 24 pieces made from plastic Castor : 4”
9 FOOD CART WITH HEATER 4 Unit
Specifications :
- Constructed from stainless steel sheet and pipe - Capacities : 16 stainless steel tray, 8 on each side - With Heater & thermo control for warming the food - Power supply AC 220 V,50Hz, 800 Watt
- Two doors on front side and back side - Push handle and guard rail on top table - Four castor 4” or 5” diameter with 2 brakes
10 STRETCHER 4 Unit
Specifications :
CONSTUCTION KNOCK DOWN - UPPER FRAME
Made of stainless steel pipes - FOOT UNIT FRAME
Made of stainless steel pipes & stainless steel plate
- FOOT UNIT CENTRAL FRAME Made of stainless steel pipes ACCESSORIES
- Mattress made of foam covered by vinyl - Infusion stand made of stainless steel pipe FINISHING
Polished CASTOR
Ø 6", Two castors with total lock two castors with direction lock
11 WHEEL CHAIR STEEL FOLDING 6 Unit
Specifications :
• Folding type with 2 pneumatic tired and stainless steel hand rim, toggle brake
• Material : Chrome plated tubular steel or painted steel, footrest, synthetic leather upholstered seat • Seat : Approx. 420 (w) x 420 (d) x 500 (h) mm • Folder width : Approx. 290 mm
• Wheels : Approx. 24” (600 mm) pneumatic • Castors : Approx. 5”
• Weight : ± 20 kg
• Other function : Detachable arm rest, swing out foot rest, rubber handle
12 SPYGMOMANOMETER STAND 2 Unit
Measurable Range : 0-300mmHg Mercury Purity : 99.99%
Housing : Aluminum die-casting Valve : Standard type
Basement : Zinc die-casting / aluminum dia. 43 cm Cuff : Cotton, (gray)
Tube : Latex rubber tubing
13 Mayo Table # Unit
Specifications :
Stand construction : stainless steel Adjustable height stand : stainless steel Movement pole : stainless steel Tray : stainless steel Castor : 2"
14 Urinal + Bedpan Carriege # Unit
Specifications :
Contuction : stainless steel pipes Castor : 3"
Finishing : polished
15 Overbed table # Unit
Specifications :
CONSTRUCTION - TABLE
Made of plywood covered by melamyn - UPPER STAND
Made of stainless steel pipe - LOWER STAND
Made of stainless steel pipe - FOOT UNIT
Made of stainless steel plate ADJUSMENT RANGE
Hi - Low adjustment by screw mehanism FINISHING
Polished CASTOR
Ø 2" (two castors with brake)
16 MORTUARY CARRIAGE 1 Unit
Specifications :
Construction : steel sheet & square steel pipes Cover : aluminium
Base : steel sheet
