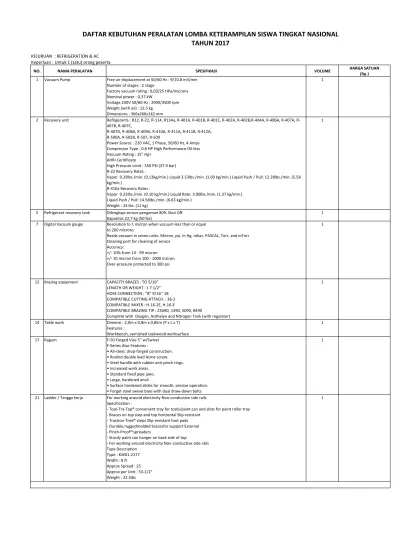

DAFTAR KEBUTUHAN PERALATAN LOMBA KETERAMPILAN SISWA TINGKAT NASIONAL
TAHUN 2017
KEJURUAN : REFRIGERATION & AC
Keperluan : Untuk 1 (satu) orang peserta
NO. NAMA PERALATAN SPESIFIKASI VOLUME HARGA SATUAN (Rp.)
1 Vacuum Pump Free air displacement at 50/60 Hz : 9/10.8 m3/min Number of stages : 2 stage
Factory vacuum rating : 0,03/25 HPa/microns Nominal power : 0,37 kW
Voltage 230V 50/60 Hz : 2900/3500 rpm Weight (with oil) : 12.5 kg
Dimensions : 366x266x142 mm
1
2 Recovery unit Refrigerants : R12, 22, 114, R134a, 401A, 401B, 401C, 402A, 402B,404A, 406A, 407A, R-407B, R-407C,
R-407D, R-408A, R-409A, R-410A, R-411A, R-411B, R-412A, R-500A, R-502B, R-507, R-509
Power Source : 220 VAC, 1 Phase, 50/60 Hz, 4 Amps Compressor Type : 0.8 HP High Performance Oil-less Vacuum Rating : 15” Hg+
AHRI Ceritificate
High Pressure Limit : 550 PSI (37.9 bar) R-22 Recovery Rates :
Vapor 0.29lbs./min. (0.13kg/min.) Liquid 3.53lbs./min. (1.60 kg/min.) Liquid Push / Pull: 12.28lbs./min. (5.58 kg/min.)
R-410a Recovery Rates :
Vapor 0.22lbs./min. (0.10 kg/min.) Liquid Rate: 3.00lbs./min. (1.37 kg/min.) Liquid Push / Pull: 14.58lbs./min. (6.63 kg/min.)
Weight : 24 lbs. (11 kg)
1
5 Refrigerant recovery tank Dilengkapi sensor pengaman 80% Shut Off
Kapasitas 22,7 kg (50 lbs) 1
7 Digital Vacuum gauge Resolution to 1 micron when vacuum less than or equal to 200 microns
Reads vacuum in seven units: Micron, psi, In Hg, mbar, PASCAL, Torr, and mTorr Cleaning port for cleaning of sensor
Accuracy:
+/- 10% from 10 - 99 micron
+/- 10 micron from 100 - 1000 micron Over-pressure protected to 300 psi
1
12 Brazing equipment CAPACITY BRAZES : TO 5/16” LENGTH OR WEIGHT : L 7 1/2” HOSE CONNECTION : “B” 9/16”-18 COMPATIBLE CUTTING ATTACH. : 36-2 COMPATIBLE MIXER : H-16-2E, H-16-E
COMPATIBLE BRAZING TIP : 23A90, 1390, 5090, 8490
Complete with Oxygen, Asithelyn and Nitrogen Tank (with regulator)
1

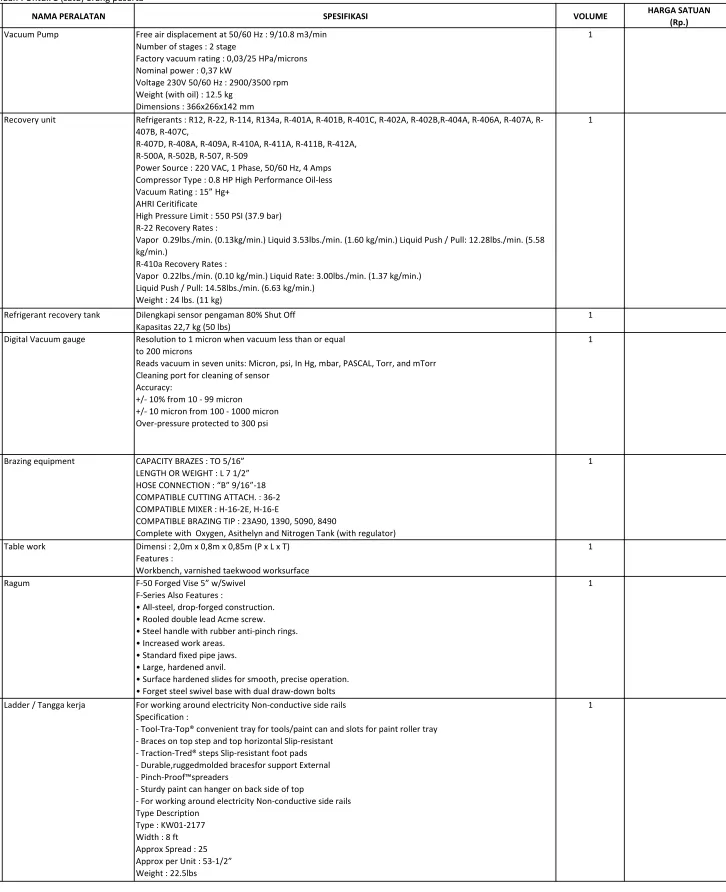

14 Table work Dimensi : 2,0m x 0,8m x 0,85m (P x L x T) Features :
Workbench, varnished taekwood worksurface
1
17 Ragum F-50 Forged Vise 5” w/Swivel F-Series Also Features :
• All-steel, drop-forged construction. • Rooled double lead Acme screw. • Steel handle with rubber anti-pinch rings. • Increased work areas.
• Standard fixed pipe jaws. • Large, hardened anvil.
• Surface hardened slides for smooth, precise operation. • Forget steel swivel base with dual draw-down bolts
1
21 Ladder / Tangga kerja For working around electricity Non-conductive side rails Specification :
- Tool-Tra-Top® convenient tray for tools/paint can and slots for paint roller tray - Braces on top step and top horizontal Slip-resistant
- Traction-Tred® steps Slip-resistant foot pads - Durable,ruggedmolded bracesfor support External - Pinch-Proof™spreaders
- Sturdy paint can hanger on back side of top
- For working around electricity Non-conductive side rails Type Description
Type : KW01-2177 Width : 8 ft Approx Spread : 25 Approx per Unit : 53-1/2” Weight : 22.5lbs
