11//44 VVeerrttiiccaall bbaazzooookkaa aanntteennnnaa ffoorr tthhee 4400m m

Details

< Hits: 59559

I needed a omnidirectional antenna for the 40m.

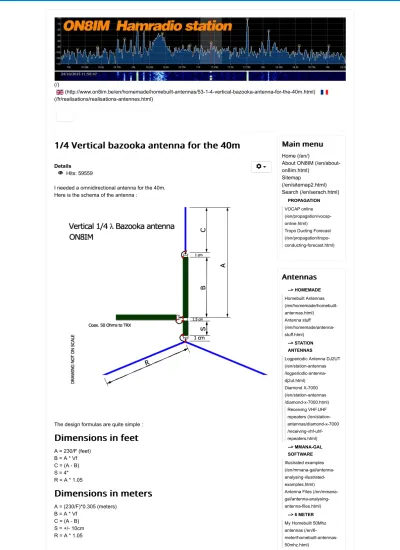

Here is the schema of the antenna :

The design formulas are quite simple :

DDiim meennssiioonnss iinn ffeeeett

A = 230/F (feet) B = A * Vf C = (A - B) S = 4"

R = A * 1.05

DDiim meennssiioonnss iinn m meetteerrss

A = (230/F)*0.305 (meters) B = A * Vf

C = (A - B) S = +/- 10cm R = A * 1.05

The angle of the radials will be idealy between 35° and 45°

M Maaiinn m meennuu

Home (/en/)

About ON8IM (/en/about- on8im.html)

Sitemap

(/en/sitemap2.html) Search (/en/serach.html)

PROPAGATION VOCAP online (/en/propagation/vocap- online.html)

Tropo Ducting Forecast (/en/propagation/tropo- conducting-forecast.html)

AAnntteennnnaass

--> HOMEMADE Homebuilt Antennas (/en/homemade/homebuilt- antennas.html)

Antenna stuff

(/en/homemade/antenna- stuff.html)

--> STATION ANTENNAS

Logperiodic Antenna DJ2UT (/en/station-antennas /logperiodic-antenna- dj2ut.html) Diamond X-7000 (/en/station-antennas /diamond-x-7000.html)

Receiving VHF.UHF repeaters (/en/station- antennas/diamond-x-7000 /receiving-vhf-uhf- repeaters.html) --> MMANA-GAL SOFTWARE Illustrated examples (/en/mmana-gal/antenna- analysing-illustrated- examples.html)

Antenna Files (/en/mmana- gal/antenna-analysing- antenna-files.html)

--> 6 METER My Homebuilt 50Mhz antennas (/en/6- meter/homebuilt-antennas- 50mhz.html)

8

(2)

 Prev (/en/homemade/homebuilt-antennas/54-2-phased-verticals-array-40m.html) Next  (/en/homemade/homebuilt-antennas/9-bobtail-curtain-30-m.html) Vf (velocoty factor of used coax) depends of the type of cable. Don't trust to much the clasic 0.66 value : the best is to mesure the Vf with a antenna analyser, results are some surprising (espacialy when you use old coax cables).

Applied as there are, those formulas gived me results close to what theoreticaly expected.

No re-tuning was necessary.
