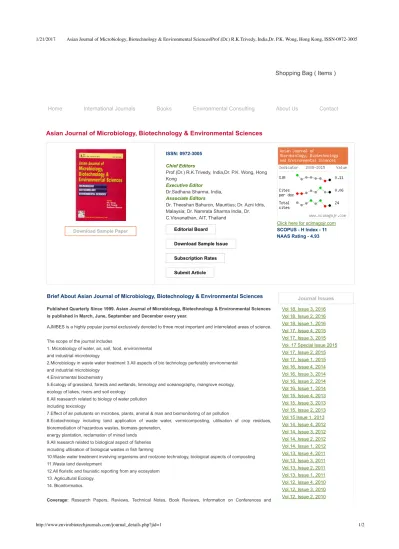

AJ - 3.pmd

(1)

1/21/2017 Asian Journal of Microbiology, Biotechnology & Environmental Sciences|Prof.(Dr.) R.K.Trivedy, India,Dr. P.K. Wong, Hong Kong, ISSN-0972-3005

http://www.envirobiotechjournals.com/journal_details.php?jid=1 1/2

Shopping Bag ( Items )

Download Sample Paper

ISSN: 09723005 Chief Editors

Prof.(Dr.) R.K.Trivedy, India,Dr. P.K. Wong, Hong Kong

Executive Editor Dr.Sadhana Sharma, India, Associate Editors

Dr. Theeshan Bahuron, Mauritius; Dr. Azni Idris, Malaysia; Dr. Namrata Sharma India, Dr.

C.Visvanathan, AIT, Thailand Editorial Board Download Sample Issue Subscription Rates Submit Article

Click here for scimagojr.com SCOPUS H Index 11 NAAS Rating 4.93 Home International Journals Books Environmental Consulting About Us Contact

Asian Journal of Microbiology, Biotechnology & Environmental Sciences

Brief About Asian Journal of Microbiology, Biotechnology & Environmental Sciences

Published Quarterly Since 1999. Asian Journal of Microbiology, Biotechnology & Environmental Sciences is published in March, June, September and December every year.

AJMBES is a highly popular journal exclusively devoted to three most important and interrelated areas of science.

The scope of the journal includes

1. Microbiology of water, air, soil, food, environmental and industrial microbiology

2.Microbiology in waste water treatment 3.All aspects of bio technology perferably environmental and industrial microbiology

4.Enviromental biochemistry

5.Ecology of grassland, forests and wetlands, limnology and oceanography, mangrove ecology, ecology of lakes, rivers and soil ecology

6.All reasearch related to biology of water pollution including toxicology

7.Effect of air pollutants on microbes, plants, animal & man and biomonitoring of air pollution

8.Ecotechnology including land application of waste water, vermicomposting, utilisation of crop residues, bioremediation of hazardous wastes, biomass generation,

energy plantation, reclamation of mined lands 9.All research related to biological aspect of fisheries including utilisation of biological wastes in fish farming

10.Waste water treatment involving organisms and rootzone technology, biological aspects of composting 11.Waste land development

12.All floristic and faunistic reporting from any ecosystem 13. Agricultural Ecology.

14. Bioinformatics.

Coverage: Research Papers, Reviews, Technical Notes, Book Reviews, Information on Conferences and

Journal Issues Vol 18, Issue 3, 2016 Vol 18, Issue 2, 2016 Vol 18, Issue 1, 2016 Vol 17, Issue 4, 2015 Vol 17, Issue 3, 2015 Vol. 17 Special Issue 2015 Vol 17, Issue 2, 2015 Vol 17, Issue 1, 2015 Vol 16, Issue 4, 2014 Vol 16, Issue 3, 2014 Vol 16, Issue 2, 2014 Vol 16, Issue 1, 2014 Vol 15, Issue 4, 2013 Vol 15, Issue 3, 2013 Vol 15, Issue 2, 2013 Vol 15 Issue 1, 2013 Vol 14, Issue 4, 2012 Vol 14, Issue 3, 2012 Vol 14, Issue 2, 2012 Vol.14, Issue 1, 2012 Vol.13, Issue 4, 2011 Vol.13, Issue 3, 2011 Vol.13, Issue 2, 2011 Vol.13, Issue 1, 2011 Vol.12, Issue 4, 2010 Vol.12, Issue 3, 2010 Vol.12, Issue 2, 2010

(2)

1/21/2017 Asian Journal of Microbiology, Biotechnology & Environmental Sciences|Prof.(Dr.) R.K.Trivedy, India,Dr. P.K. Wong, Hong Kong, ISSN-0972-3005

http://www.envirobiotechjournals.com/journal_details.php?jid=1 2/2

Become a fan on Facebook Follow us on Twitter

Training Pogrammes all over the World, Topical Articles, New Publications and Products Information.

Asian Journal of Microbiology, Biotechnology & Environmental Sciences is abstracted/covered in:

Chemical Abstracts, U.S.A.

SCOPUS

EBSCO Publishing, U.S.A.

Cambridge Science Abstracts Ecology Abstracts

Pollution Abstracts EcoDisc CD Rom Geological Abstracts

International Development Abstracts Oceanographic Literature Review Zoological Records

Indian Science Abstracts, Niscair, India Elsevier’s Compendex

Elsevier’s Current Awareness in Biological Sciences Elsevier’s Encompass

Elsevier’s Geobase

Asian Journal of Microbiology, Biotechnology & Environmental Sciences journal is accredited with National Academy of Agricultural sciences, NAAS, India.

Asian Journal of Microbiology, Biotechnology & Environmental Sciences journal is covered by SCOPUS.

Asian Journal of Microbiology, Biotechnology & Environmental Sciences journal also features in Uhlrich International Periodical Directory, U.K., Gale Directory, U.K. and SAARC directory of periodicals.

Vol.12, Issue 1, 2010 Vol 11, Issue 4, 2009 Vol 11, Issue 3, 2009 Vol 11, Issue 2, 2009 Vol 11, Issue 1, 2009 Vol 10, Issue 4, 2008 Vol 10, Issue 3, 2008 Vol 10, Issue 3, 2008 Vol 10, Issue 2, 2008 Vol 10, Issue 1, 2008 Vol 9, Issue 4, 2007 Vol 9, Issue 3, 2007 Vol 9, Issue 2, 2007 Vol 9, Issue 1, 2007 Vol 8, Issue 4, 2006 Vol 8, Issue 3, 2006 Vol 08, Issue 2, 2006 Vol 08, Issue 1, 2006 Vol 7 Issue 4, 2005 Vol 07, Issue 3, 2005 Vol 07, Issue 2, 2005 Vol 6 Issue 4, 2004 Vol 6 Issue 3, 2004 Vol 6 Issue 2, 2004 Vol 6 Issue 1, 2004 Vol 5 Issue 3, 2003 Vol 5 Issue 2, 2003 Vol 04, Issue 4, 2002 Vol 04, Issue 1, 2002 Vol 3 Issue 12, 2001 Vol 1 Issue 12, 2000 Vol 1 Issue 34, 1999 Vol 1 Issue 12, 1999 hacked via rafi innominate

Looking for Past Issues?

Click here to get them!!

• •

(3)

1/21/2017 Scientiﬁc papers published under Asian Journal of Microbiology, Biotechnology & Environmental Sciences Vol 16, Issue 2, 2014

http://www.envirobiotechjournals.com/issue_articles.php?iid=171&jid=1 1/5

Shopping Bag ( Items )

Home International Journals Books Environmental Consulting About Us Contact

Asian Journal of Microbiology, Biotechnology & Environmental Sciences Journal Papers Issue: Vol 16, Issue 2, 2014

USE OF ANTIBIOTIC AND PROBIOTIC CONTROLLING WATER QUALITY, GROWTH AND SUVIVAL OF SHRIMP LARVAE PENAEUS MONODON FABRICIUS

PATANG Get Abstract

AN INVESTIGATION OF ENZYMATIC KINETIC RESOLUTION OF RACEMIC CLOPIDOGREL YASSER GABER, MAGDY ALI AMIN AND RAJNI HATTIKAUL

Get Abstract

CARBON DIOXIDE FIXATION BY COCULTURE GREEN MICROALGAE THROUGH OVERALL VOLUMETRIC MASS TRANSFER COEFFICIENT (KLA) OF CARBON DIOXIDE IN CLOSED SYSTEM

ASTRI RINANTI, EDWAN KARDENA, DEA INDRIANI ASTUTI AND KANIA DEWI Get Abstract

ISOLATION, CHARACTERIZATION AND IDENTIFICATION OF HIGH SALT TOLERANT BACTERIA WITH CMCASE ABILITY

A.E. EKRAM, M.P.E. SHAEKH, I. SARKER, S. ZAMAN, Z. FERDOUSI, S.M. SHAHIK, M.S. ISLAM, M.S. NOORE AND A.S.M.H.K. CHOWDHURY

Get Abstract

BIODEGRADATION OF ACID BLUE 113: KINETIC ANALYSIS AND PLACKETT BURMAN SCREENING DESIGN FOR MEDIUM COMPONENTS

A. KARUNYA, SWETHA SUNKAR, S. ANURADHA JABASINGH AND C. VALLI NACHIYAR Get Abstract

EFFECT OF DIFFERENT FACTORS ON THE PROTEOLYTIC ENZYMES ACTIVITY OF LACTOBACILLUS

P. BURDE AND A. O. INGLE Get Abstract

EVALUATION OF PHYTOTOXICITY OF METALLIC NANOPARTICLES AGAINST AMARANTHUS RETROFLEXUS

A. ARUNA, S.KARTHICK RAJA NAMASIVAYAM AND P. SARATH CHANDU

Journal Issues Vol 18, Issue 3, 2016 Vol 18, Issue 2, 2016 Vol 18, Issue 1, 2016 Vol 17, Issue 4, 2015 Vol 17, Issue 3, 2015 Vol. 17 Special Issue 2015 Vol 17, Issue 2, 2015 Vol 17, Issue 1, 2015 Vol 16, Issue 4, 2014 Vol 16, Issue 3, 2014 Vol 16, Issue 2, 2014 Vol 16, Issue 1, 2014 Vol 15, Issue 4, 2013 Vol 15, Issue 3, 2013 Vol 15, Issue 2, 2013 Vol 15 Issue 1, 2013 Vol 14, Issue 4, 2012 Vol 14, Issue 3, 2012 Vol 14, Issue 2, 2012 Vol.14, Issue 1, 2012 Vol.13, Issue 4, 2011 Vol.13, Issue 3, 2011 Vol.13, Issue 2, 2011 Vol.13, Issue 1, 2011 Vol.12, Issue 4, 2010 Vol.12, Issue 3, 2010 Vol.12, Issue 2, 2010 Vol.12, Issue 1, 2010 Vol 11, Issue 4, 2009 Vol 11, Issue 3, 2009 Vol 11, Issue 2, 2009 Vol 11, Issue 1, 2009 Vol 10, Issue 4, 2008 Vol 10, Issue 3, 2008 Vol 10, Issue 3, 2008 Vol 10, Issue 2, 2008 Vol 10, Issue 1, 2008 Vol 9, Issue 4, 2007 Vol 9, Issue 3, 2007 Vol 9, Issue 2, 2007 Vol 9, Issue 1, 2007 Vol 8, Issue 4, 2006 Vol 8, Issue 3, 2006 Vol 08, Issue 2, 2006 Vol 08, Issue 1, 2006

(4)

Asian Jr. of Microbiol. Biotech. Env. Sc. Vol. 16, No. (2) : 2014 : 253-258

*Corresponding author’s email: [email protected]; [email protected].; [email protected].; [email protected]

Article-3

CARBON DIOXIDE FIXATION BY CO-CULTURE GREEN MICROALGAE THROUGH OVERALL VOLUMETRIC MASS

TRANSFER COEFFICIENT (K

_L

A) OF CARBON DIOXIDE IN CLOSED SYSTEM

ASTRI RINANTI¹, EDWAN KARDENA^2*, DEA INDRIANI ASTUTI³ AND KANIA DEWI⁴

1Faculty of Civil and Environmental Engineering, Bandung Institute of Technology, Indonesia.

Jl. Ganesha No. 10, Bandung 40132, Indonesia

2*Faculty of Civil and Environmental Engineering, Bandung Institute of Technology, Indonesia. Jl. Ganesha No. 10, Bandung 40132, Indonesia

3School of Life Sciences and Technology, Bandung Institute of Technology, Indonesia Jl. Ganesha No. 10, Bandung 40132, Indonesia

4Faculty of Civil and Environmental Engineering,

Bandung Institute of Technology, Indonesia. Jl. Ganesha No. 10, Bandung 40132, Indonesia (Received : 28 November, 2013; accepted : 17 December, 2013)

Key words : CO₂ removal, Biomitigation, CO₂ fixation, Volumetric mass transfer coefficient, Co-culture.

Abstract–Culture conditions are very important to CO₂ bio-fixation but its implementation is limited by the poor mass transfer efficiency. The three green microalgae, i.e. Chlorella, Scenedesmus obliquus, and Ankinstrodemus sp were cultured as co-culture in a vertical bubble photobioreactor as closed system, with 160 µm size diameter of pore membrane sparger to explore the possibility of coupling CO₂ biofixation affected the carbon mass transfer process. In this study, overall volumetric mass transfer coefficient (K_La) of CO₂ were developed with operational culture conditions at temperatures (⁰C) of 30, light intensities (lux) of 4000 and photoperiodism (light/dark; hour) of 16/8, with various high concentration (%) CO₂supplied from the bottom of photobioreactor were 0, 2, 5, 7. The result showed that the highest K_La value (h^-1) was 0.1419 5% pure CO₂supplied, gas flow rate 8 L/min during 12 days experiment. While at this condition, the maximum dried biomass (g/mL) was 2.7 (µ = 0.38) at 5% pure CO₂. It could be concluded that CO₂ removal efficiency (%) affected by the K_La value, whereas the highest CO₂removal efficiency (%) of 49.02 occurred when the Kla value was highest.

INTRODUCTION

There are three cases of mass transfer: liquid-solid mass transfer, liquid-liquid mass transfer and gas- liquid mass transfer. In this work, gas-liquid mass transfer will be discussed to analyze the mass transfer coefficient of carbon dioxide in water.

Carbon dioxide is usually the main carbon source in the photosynthetic cultivation of microalgae and can be transferred continually or intermittently from the gas phase to the liquid phase of the culture medium (Grima et al., 1999). ( When dissolving in water, CO₂ equilibrates into CO₂(aq), HCO₃^-(aq), and CO₃^-(aq).

This lowers the pH, whereas at a pH of 6 and lower, CO₂(aq) is dominant. At a pH of 6–9, HCO₃^-(aq) becomes more pronounced, and at a pH of 9 and

above, CO₃^2- becomes predominant (Ota et al., 2009).

The critical concentration of CO₂ necessary for optimal growth of co-culture microalgae cannot be stated in general, as it strongly depends on the delivery system implemented in the culture vessel.

Becker (1995) described that since transfer of CO₂ occurs through the interface between the gaseous mixture and the liquid medium culture, two main processes to increase such an interface area can be devised: (i) passive mode, where extensive gas/

culture interface areas are used and gas diffuses into the culture; and (ii) active mode, where use of an extra apparatus for aeration either by injecting the gas into the medium or spraying the medium into the gas forces expansion of the contact area between gas and culture.

Final for Printing

(5)

254 RINANTIETAL. Kazim (2012) suggested that the process of

carbon dioxide transfer from the gaseous phase to the liquid phase is dependent on the overall mass transfer coefficient of carbon dioxide. The exact mass transfer coefficient values will help determine the transfer rate of gaseous carbon dioxide to a liquid phase, and the optimal amount of the gas supply needed to increase its consumption by microalgae for maximum possible growth. Singh and Majumder (2010) reported superfisial gas velocity is one of several factors which affect the mass transfer coefficient of carbon dioxide.

Carbon dioxide is soluble in water and its solubility has been reported as being higher than other gases such as nitrogen, oxygen, argon, neon, krypton and Helium. In fact, the solubility of carbon dioxide is 26 times higher than oxygen (Kordac and Linek, 2008). Due to carbon dioxide’s high solubility in water, cultivation of microalgae is required optimal K_La (CO₂). K_La values demonstrated CO₂ mass transfer process for better microalgae culture.

However, not always the high value of K_La (CO₂) is suitable for the growth of microalgae culture. K_La values (CO₂) that is too high may cause the shear stress on the microalgae. This phenomenon may inhibit the growth of microalgae, and should be avoided.The purpose of this study was to determine the rate of CO₂ absorption by microalgae, measuring of the mass transfer coefficient (K_La) and its relation to cell growth and CO₂removal.

MATERIALS AND METHODS

Cultivation and growth condition in vertical photobioreactor

Co-culture of three green microalgae, i.e. Chlorella, Scenedesmus obliquus, and Ankinstrodemus sp were isolated from Bojong Soang wastewater treatment plant in Bandung, Indonesia. This consortium cultured in vertical photobioreactor (total capacity 10L) as closed system were containing of 8 L Provasoli Haematocochus Medium (PHM) injected continuously during 12 days experiment, with various concentration pure CO₂ gas (0%, 2%, 5%, 7%) from the bottom of vertical column photobioreactor. Composition of PHM was (per litre): 1.0 g KNO₃, 0.2 g KH₂PO₄, 0.2 g MgSO₄.7H₂O, 0.1 g Fe stock consists of (per litre) 189 g EDTA and 24.4 g FeCl₃.6H₂O. All nutrients were dissolved in distilled water containing (per litre) 0.1 mL trace element made by (per 500 mL) 2.05 mgZnCl₂, 30.5 mg H₃BO₃, 2.55 mg CaCl₂.6H₂O, 3.0 mg

CuSO₄.5H₂O, 2.05 mg MnCl₂.4H₂O and 19 mg (NH₄)6.Mo₇.O₂4.4H₂O (Provasoli & Pintner, 1959).

Environmental conditions adopted at 30°C temperature range with light intensity of 4000 lux obtained from fluorescent lamp, 16 hour light and 8 hour dark, 8 L/minof CO₂ flow rate.

Measurement of growth rate of the microalgae A regression equation of the cell density and dry weight per liter of culture was obtained by a spectrophotometric method. Specific growth rate (m) of microalgae is calculated by the following formula :

………. (Eq. 1)

• m = specific growth rate (cell biomass /mL/

unit time)

• N_n = Initial cell culture density at time t₀(cell/

mL)

• N_t = Culture density at time t (cell/mL)

• t-t₀=time interval (day)

Cell density (N) is obtained from calibration curve OD 665 vs X with a spectrophotometer.

Measurement of CO₂concentration

Concentration of CO₂ in a series of photobioreactor system was measured twice a day, using Combination Portable Gas Detector Model RX-515 RIKEN. Measurements were performed to determine changes in the concentration of CO₂ in the gas holder with time, whereas the concentration of CO₂ dissolved in the culture medium was measured once daily by using acidity alkalinity method to know the solubility of CO₂ in the culture medium.

Determination of CO₂removal and CO₂removal efficiency

Efficiency of CO₂ removal can be calculated by the following formula :

(Eq.2) Carbon Transfer Rate (CTR; gCO₂/L/h) is the amount of CO₂ that is transferred in the medium volume and required by the cell metabolism for a unit of time (Ohtaguchi and Wijanarko, 2003 in Dianursanti, 2012).

(6)

Carbon Dioxide Fixation by Co-Culture Green Microalgae through Overall Volumetric Mass 255

.. (Eq.3) Where,

αCO₂ = a constant that contains a fixed number of temperature and pressure, airflow superficial velocity; ∆yCO₂ = the concentration change of CO₂ in and out of the reactor by the incoming CO₂ concentration, multiplied by 100%

.. (Eq. 4)

Where, Ug = superficial gas velocity, i.e discharge gas fed per reactor cross-sectional area (m.h^-1); A = surface area of the photobioreactor facing or exposed to light (m²); MCO₂= relative molecular mass of CO₂ (44 mol); P = operating pressure (1 atm);V = volume of medium (L); R = Rydberg constant (0.08205 L.atm/mol.K); T = operating temperature (⁰K).

Carbon fixation rate as specific CO₂ transfer rate (qCO₂; gCO₂/g cell/h) is the rate of CO₂ that is transferred in a medium volume due to the activity of biological life within a unit of time.

.. (Eq.5) Where,

X = cell dry weight per unit volume (g/L).

Measurement of volumetric CO₂ mass transfer coefficient (K_La CO₂)

Carbon dioxidemasstransfer coefficient (K_La)is acommonparameterthat is oftenusedtoassessthe performance ofthe bioreactorin the microalgaecultivationprocess. The mass transfer of carbon dioxide from the gas phase to the liquid phase is expressed using the following equation:

Na = K_La (C*_AL– C_AL) .. (Eq.6) Where Na is the rate of carbon dioxide transfer per unit of time (gmol m^-3 s^-1), KL is the liquid phase mass transfer coefficient (m s^-1), a is the gas-liquid interfacial area per unit volume of fluid (m² m^-3), CAL is the concentration of dissolved carbon dioxide in the broth, and C*AL, also called the solubility of carbon dioxide, is the saturated concentration of carbon dioxide in the broth (gmol m^-3). The concentration difference (C*AL-CAL) refers to the driving force triggering mass transfer of

carbon dioxide from the gas phase to the liquid phase (Doran, 1995).

RESULTS AND DISCUSSION Growth response vs CO₂removal efficiency The concentration of carbon dioxide in the culture medium should not be less than required in order to maximize growth but must not exceed the tolerance limits of inorganic carbon required. Figure 1 shows the co-culture can utilize CO₂ injected into the culture until it reaches concentrations of 7% and turn it into biomass. In a previous study (Rinanti et al., 2013) explained that CO₂was injected from the bottom of the column to allow gas mixing with the medium. This is a low cost solution to obtain a high productivity. Sparger attached at the bottom of the reactor to convert the gas into small bubbles.

Sparging with microbbuble allow thorough mixing, CO₂ mass transfer and also removes O₂ produced during photosynthesis. Bubbling carbon dioxide- rich gas through vertical photobioreactor not only provide CO₂ for microalgae, but also help deoxygenation suspension and mixing to increase the frequency of the cycle. Air is bubbled at the bottom-a strategy that provides good overall mixing, sufficient supply of CO₂, and efficient removal of O_2.

The reactivity of carbon dioxide in aqueous solutions establishes various equilibriums in its contact with water. The first equilibrium refers to the dissolution of the gas in the water, forming carbonic acid. The carbonic acid undergoes almost instantaneous dissociation into bicarbonate and carbonate ions with the total inorganic carbon concentration being given by the sum of the species

Fig. 1. CO₂ removal efficiency and dried weight biomass as a response of high concentration CO₂ supplied, 30⁰C, pH 6-7, flow rate of CO₂ of 8 L/min, 4000 lux of light intensity, 16 hour light/8 hour dark

(7)

256 RINANTIETAL. CO₃^2-, HCO₃^-and CO₂(Carvalho et al., 2006).

Highest dry biomass of 2.70 g/L (µ = 0.38) obtained from cultures supplied with 5% CO₂. The value was 2-fold higher than cultures supplied with 7% CO2 (µ = 0.32) but did not differ significantly with culture supplied with 2% CO₂ (µ = 0.11). Our results are better than Ryu et al. (2009) study which produces a maximum dry weight of 2.02 g/L occurred in cultures supplied with 5% CO₂, while the minimum dry weight of 1.16 g/L occurred in cultures supplied with 0.5% CO₂. Results of our study, the dry weight of 1.40 g/L occurred in cultures supplied with 7% CO₂. Thus, it seems that an increase in the supply of CO2 will lead to an increase in dry weight biomass of microalgae, until a certain tolerance limits.

Tang (2011) using 5-20% CO₂ from flue gas as a carbon source for microalgae that cultured in a closed system. Although microalgae can be grown in culture were supplied with 5% to 20% CO₂ but the best growth potential occured in culture supplied with 10% CO₂. At high concentrations (> 20%), CO₂ will induce and cause the pH decreases, carbonate anhydrase activity was reduced, thus inhibiting the growth of microalgae. Previous research showed that the concentration of CO₂ over 5% can be harmful to cells and can be limited the growth of microalgae (De Morais and Costa, 2007, Yoo et al, 2010,Tang et al, 2011).

Fig. 1 also showed there were a linear relationship between the dry weight of the biomass to ability of microalgae for removing CO₂. Such as biomass dry weight, the data showed the highest removal efficiency of CO₂ (49.02%) shown by a culture that was supplied with 5% CO₂. The value shown 2-fold higher thanefficiency in culture supplied by higher concentration (7%) of CO_2.Up to a certain limit of CO₂ concentration, the higher of biomass dry weight, the higher the efficient CO₂ removal. CO₂ absorption by microalgae cells supposedly stimulated by increasing the CO₂ content in the media, so absorption rate of CO₂was low in the culture without the addition of CO₂gas.

Carbon dioxide transfer rate and Carbon dioxide fixation rate

CO₂ transfer efficiency is one of the most important parameters to improve microalgae productivity and CO₂biofixation in a photobioreactor culture system.

Mass transfer of carbon dioxide in the photobioreactor will also be influenced by hydrodynamic aspects, one of which was superficial

gas velocity in the photobioreactor. Superficial velocity (Ug, Eq. 4) also called volumetric flux, i.e the gas volumetric flow rate divided by cross- sectional area photobioreactor. If the diameter of the photobioreactor was 15 cm, the surface area of the tube cross section was 1.767 x10^-2 m², the injected gas flow rate of 8 L / min so that the value of the superficial velocity of 7.5 x 10^-3 m/s.

High concentrations of CO₂ supplied to the culture medium using a bubble as CO₂ transfer, proved to be more effective to promote growth, rather than doing the same thing at the ambient air.

Fig. 2 showed the average of CTR fastest occured in cultures supplied with 5% CO₂. This value is not significantly different than the CTR ccoured in culture that was supplied with 2% CO₂, but as well as cell dry weight and CO removal efficiency, the value of this 2-fold higher than the culture that was supplied with 7% CO₂. Value of carbon fixation rate did not differ significantly in any culture that were supplied with 2%, 5%, and 7% CO₂.

Fig. 2. Average of Carbon dioxide transfer rate and Carbon dioxide fixation rate in high concentration CO₂ supplied, 30⁰C, pH 6-7, flow rate of CO₂ of 8 L/min, 4000 lux of light intensity, 16 hour light/8 hour dark

CTR values in all cultures increased from day 2 but gradually decreased from day 8 (Fig. 3A), whereas the value qCO₂ in all cultures begin to decline gradually beginning to the end of the study (Figure 3B). Culture supplied with 2% and 5% CO₂ showed CTR and q profilethat did not differ value significantly, compared to CTR and qCO₂ profile in the culture supplied with 7% CO₂. Gas CO₂flow rate of 8L/min was estimated to cause transfer and fixation of CO₂ to be less than the maximum. Low pH values and high aeration conditions due to the rapid flow rate causes a decrease in inorganic carbon available for CO₂ stripping. In addition, a

(8)

Carbon Dioxide Fixation by Co-Culture Green Microalgae through Overall Volumetric Mass 257 study shows the importance of pH control during

inorganic carbon supplied to the growth of microalgae biofilm. Conversely, when the CO₂ stripping lower production rate (for example, using low agitation and / or aerated conditions), the concentration of dissolved CO₂will increase in the value of saturation (saturated concentration) (Contreras, 2007).

Mass transfer of carbon dioxide capacity in the photobioreactor is determined by the liquid phase mass transfer coefficient and the specific area available for mass transfer (Carvalho et al., 2006).

Mass transfer coefficient is very important because there is a close relationship between biological processes, physicochemical and CO₂concentration in the solution. This research resulted in mass transfer coeficient of 0.1491 per hour (0.4146.10^-6/ sec) in cultures supplied with 5% CO₂(Table 1). This very small value was caused by the high aeration conditions due to the very rapid flow rate (8L/min), so diameter of bubbles being large and retention time in medium was going faster. Corresponding to increase in K_La, initially specific growth rate increases but from the end of the transition zone, it starts decreasing. Shear stress may be possible reason for the fall in specific growth rate (Contreras,2007). Zhang et al. (2002) did the

comparative analysis of KLa in different photobioreactor in different percent of CO₂ and concluded that requirement of critical KLa increases with decrease in the concentration of CO₂in the inlet gas stream to meet the CO₂demand of microalgal cells.

Determination of mass transfer coefficient using the data saturation concentration of carbon dioxide (CO₂ supplied to the culture) and have calculated the concentration in the water by using the Henry constant, where the Henry constant gas into a liquid was the 10^-1.5mol/L/atm (Michelcic, 1999). When there is mass transfer of carbon dioxide from the gas phase to the liquid phase (water), only dissolved CO₂ was responsible for the mass transfer of carbon dioxide through the gas-liquid interface, though CO₂ of all species were CO₃^2-, HCO₃^-and CO₂(Kazim, 2012).

CONCLUTION

In considering the results of the studies described above, it would showed that the information about the overall mass transfer coefficient of carbon dioxide is essential for a better feeding control and accurate data of how much carbon dioxide has been consumed by microalgae in comparison to the

Fig. 3. Profile of (A) Carbon dioxide transfer rate and (B) Carbon dioxide fixation rate in high concentration CO₂ supplied, 30⁰C, pH 6-7, flow rate of CO₂ of 8 L/min, 4000 lux of light intensity, 16 hour light/8 hour dark

(A)

Table 1.Carbon transfer rate (CTR; gr/L/h), Carbon fixation rate (q; per hour) and Mass Transfer Coeffisient (K_La; per hour) in elevated CO₂ concentration

Concentration Carbon transfer rate Carbon fixation rate Mass Transfer Coeffisient

of CO₂ supplied (CTR; gr/L/h) (q; per hour) (K_La; per hour)

2% 93.17 40.08 0.0438

5% 101.29 42.02 0.1491

7% 48.55 37.21 0.0251

(B)

(9)

258 RINANTIETAL. supplied carbon dioxide. In terms of biomitigation,

it means how efficient of carbon dioxide could be removed by microalgae.The highest K_La value of 0.1491 per hour occurred in cultures supplied with 5% CO₂, in condition CO₂ gas flow rate of 8L/min.

Increasing the value of K_La will be pursued in next research to study the effect of gas CO₂flow rate to CO₂superficial gas velocity.

REFERENCES

Becker, E.W. 1995. Microalgae: Biotechnology and Microbiology. Cambridge University Press, Cambridge.

Carvalho, A.P., Meireles L.A. and Malcata, F.X. 2006.

Microalgal reactors: a review of enclosed system design and performances. Journal Biotechnology Progress. 6 (22): 1490-1506.

Contreras, Edgardo M. 2007. Carbon dioxide stripping in bubbled column.Journal of Industrial Engineering Chemical Resource, American Chemical Society. 46: 6332- 6337.

de Morais, M.G. and Costa, J.A.V. 2007. Biofixation of carbon dioxide by Spirulina sp. and Scenedesmus obliquus cultivated in a three-stage serial tubular photobioreactor. Journal of Biotechnology, 129: 439-445.

Dianursanti. 2012. Pengembangan Sistem Produksi Biomassa Chlorella vulgaris dalam Reaktor Plat Datar melalui Optimasi Pencahayaan menggunakan Teknik Filtrasi pada Aliran Kultur Media. Disertasi Program Doktor. Fakultas Teknik Universitas Indonesia, Indonesia.

Doran, P. M. 1995. Mass Transfer, in: Anonymous Bioprocess Engineering Priniciples, pp. 190.

Grima, E. M., Ferna ìndez, F. G. A., Camacho, F. G. and Chisti, Y. 1999. Photobioreactors: light regime, mass transfer, and scale-up. J.Biotechnol. 70: 231-247.

Kazim, S.A. 2012. Experimental & Empirical Correlations for the Determination of the Overall Volumetric Mass Transfer Coefficient (KLa) of Carbon Dioxide in Stirred Tank Bioreactors. Thesis of of Biochemical &

Biomaterials Engineering. The School of Graduate and Postdoctoral Studies The University of Western Ontario London, Ontario, Canada.

Kordac, M. and Linek, V. 2008. Dynamic Measurement of Carbon Dioxide Volumetric Mass Transfer Coefficient in a Well-Mixed Reactor Using a pH Probe: Analysis of the Salt and Supersaturation Effects. Industrial & Engineering Chemistry Research 47(4): 1310-1317.

Mihelcic, J.R., 1999. Fundamental of Environmental Engineering. John Willey & Sons, New York Ota, M., Kato, Y., Watanabe, H., Watanabe, M., Sato, M.,

Smith, R. L. Jr., and Inomata, H., 2009. Effects of inorganic carbon on photoautotrophic growth of microalgae Chlorococcum littorale. Biotechnology Progress. 25: 492-499

Provasoli, L. and Pintner, I.J. 1959. Artificial media for freshwater algae: problems and suggestions In :The Ecology of Algae. Tryon, C.A. & Hartman, R.T. Ed.

Special Publication No. 2. University Pittsburgh:

Pymatuning Laboratory of Field Biol. pp. 84-96.

Rinanti, A., Kardena, E., Astuti, D.I., Dewi, K. 2013.

Integrated Vertical Photobioreactor for carbon dioxide removal using phototrophic microalgae.

Nigerian Journal of Technology. 32(2)

Ryu, Hyun Jin., Oh, Kyeong Keun dan Kim and Young Soo. 2009. Optimization of the Influential Factors for the Improvement of CO₂ Utilization Efficiency and CO₂ Mass Transfer Rate. Journal of Industrial and Engineering Chemistry. 15: 471-475.

Singh, M.K. and Majumder, S. K., 2010. Theoretical Studies on Effect of Operating Parameters on Mass Transfer in Bubbly Flow. Journal of Engineering and Applied Sciences. 5(2): 160-173.

Tang, D., Han, Wei., Li, Penglin., Miao, X. and dan Zhong, J. 2011. CO₂ biofixation and fatty acid composition of Scenedesmus obliquus and Chorella pyrenoidosa in response to different CO₂ levels.Journal of Bioresource Technology Sciendirect, Elsevier Ltd. 102: 3071-3076.

Yoo, C., Jun, S.Y., Lee, J.Y., Ahn, C.Y. and Oh, H.M. 2010.

Selection of microalgae for lipid production under high levels carbon dioxide. Journal of Bioresource.

Technology. 101: S71–S74.

Zhang, K., Kurano, N. and Miyachi, S. 2002. Optimized aeration by carbon dioxide gas for microalgal production and mass transfer characterization in a vertical flat plate photobioreactor. Bioproc Biosyst Eng.

25: 97–101.
