Modular Design
Plug & Play Kit easy to have additional functions when need AC Power Modular, Failsafe Modular and Bluetooth Modular
Brushless DC Motor
High duty cycle performance
LED Light Indicator
Easy to know the status of the position
Multi-Voltage
AC110V~AC220VHigh Duty Cycle
30%~75%

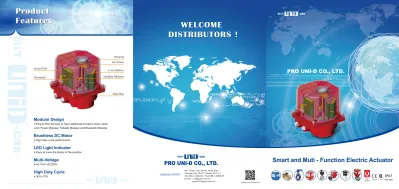

Smart and Muti - Function Electric Actuator
Drive PCB
Housing AC Power
Li-ion Battery Variable Resistor
Gear Box Bluetooth
Product
Features
UM1~UM8 PCB Wiring Diagram
Please see the wiring diagram and product specifications for the electrical connections.
□AC Voltage □DC Voltage
□On/Off Type □Modulating Type □Battery for Failsafe(J4 Pin1+Pin2)
□J3-AC90~264V(50/60HZ)input 5-Pin 20AWG Wire Diameter 1 AC- L Power Input
3 AC- N Power Input 5 G Ground
Pin1+Pin3 for AC Power, Pin5 for Ground.
□ J4-DC24V 6Pin 20AWG Wire Diameter 3 DC Heater 24V/5W
4 DC Heater 24V/5W 5 DC24V- DC Ground 6 DC24V+
Pin5+Pin6 for DC Power
Pin3+Pin4 for Heater (Optional)
□ J5-IO 16Pin 24AWG Wire Diameter
1 On/Off Type Signal Pin1+Pin7 for Open
3 Dry contact1 (AC260V/100mA)
Pin3+Pin4 for signal Close feedback 4 Dry contact1 (AC260V/100mA)
5 Dry contact2 (AC260V/100mA)
Pin5+Pin6 for signal Open feedback 6 Dry contact2 (AC260V/100mA)
7 G signal ground- Common Pin for signal
8 Modulating - V input 2~10VDC+ Pin8+Pin7 for Input 2~10V (Optional) 9 Modulating - A input 4~20mA+ Pin9+Pin7 for Input 4~20mA (Optional) 10 Modulating - V output 2~10VDC+ Pin10+Pin7 for Output 2~10V (Optional) 11 Modulating - A output 4~20mA+ Pin11+Pin7 for Output 4~20mA (Optional)
Made by UNID 創 20/12/14
1 16 5
1 6
1
