A QR code is present on the front door of each cabin: scanning it provides access to a website displaying technical information. Intuitive one-line diagrams on the front door of each functional unit allow a clear understanding of cabin components and power flows.
Overview EcoStruxure ready solutions
CLOSE THE LOOP
All the Schneider Electric protection, measurement and control devices can be connected to our Substation monitoring device. The monitoring information and control functions can be scaled according to the needs of each customer.
Grid
The HMI can be installed anywhere within the substation to allow local control and monitoring, independent of any external systems. Optionally, the Magelis control and monitoring functions can be mirrored on a tablet through Wifi connection thanks to our Vijeo Design Air app.
Power
Thanks to its cost-effective and flexible design, the Easergy P3 provides an excellent alternative for a variety of protection applications. User-friendliness has always been a value of Schneider Electric products and the Easergy P3 is no exception, with the unique possibility of being controlled from a smartphone or tablet with the "Easergy SmartApp".
Easergy P3 advanced Advanced applications with
The Easergy P3 protection relay family has been developed to cover standard protection needs for industrial and commercial building applications. The quick setup is achieved with the unique "eSetup Easergy Pro" setup software, which improves user-friendliness.
EcoStruxure ready solutions
Schneider Electric's range covers a wide range of applications, from stand alone protection to a complete system.
Integrated
Standalone
Simple system
High-end system
Using Zigbee Green Power communication protocol, Easergy Th110 ensures robust communication that can be used to create interoperable solutions that evolve in the Industrial Internet of Things (IIoT) age. Easergy TH110 is self-supplied by the network power and it can ensure high performance, providing accurate thermal monitoring.
Characteristics
Assist the maintenance manager in monitoring environmental moisture and contaminants that are harmful to the switchgear. Thanks to its very compact size and wireless communication, Easergy TH110 enables easy and widespread installation at various critical points without affecting the performance of the MV switchgear.
EcoStruxture ready solutions
Schneider Electric's range of services helps you improve the uptime of your installation and control your capital expenditure. Schneider Electric extends the life of your system (during installation, operation and environmental conditions) while providing upgrades.
CONTACT US!
Schneider Electric helps you install solutions based on your plans that improve efficiency, reliability and safety. ECOFIT™: Stay updated and improve the performance of your electrical installations (LV, MV, protection relays, etc.).
LSC2B
Rated normal current and maximum short-time current (1) Functional unit with circuit breaker. 2) Functional unit with safety contactor (3). Functional unit with switch and fuse combination (DI cabinet) (8) Rated current according to installed fuses, see documentation.
No sources of interference due to external influence during operation – In accordance with IEC/EN avoidance of internal arcs has top priority – The IEC/EN Table 102, recommendations include the use of gas-. The operating company is free to choose a switchgear unit with internal arc classification IAC according to the applicable standards.
Functional overview
5 Low voltage auxiliary equipment and protection, monitoring and control units are in a control cabinet which is separate from the medium voltage part. TU 4 control cabinet Low voltage. auxiliary equipment and protection, monitoring and control units are in a control cabinet which is separate from the medium voltage part. Opening the access panel to the medium voltage connections and fuses is possible only when the earthing switches upstream and downstream of the fuses are closed.
The voltage presence indicator is located on the front of the functional unit, integrated into the switch's control panel. For access to the main rails from the front of the switchboard, a removable panel is provided at the bottom of the LV cabinet.
Motorpact
Safety and protection of persons and property
A motorized version of the truck allows the circuit breaker to be inserted and removed remotely. A shunt closing release operates to close the circuit breaker when the voltage at the release terminals is between 85% and 110% of its rated voltage. A shunt opening release opens the circuit breaker when the voltage at the release terminals is between 70% and 110% (in the case of direct current) - or between 85% and 110% (in the case of alternating current) - of its rated voltage.
The second shunt opening release operates to open the circuit breaker when the voltage at the release terminals is between 70% and 110% (in the case of direct current) - or between 85% and 110% (in the case of alternating current) - of the voltage his nominal. The closing of the circuit breaker is possible when the voltage at the release terminals is equal to or exceeds 85% of its rated voltage.
Specific applications according to IEC 62271-100
LF circuit breaker

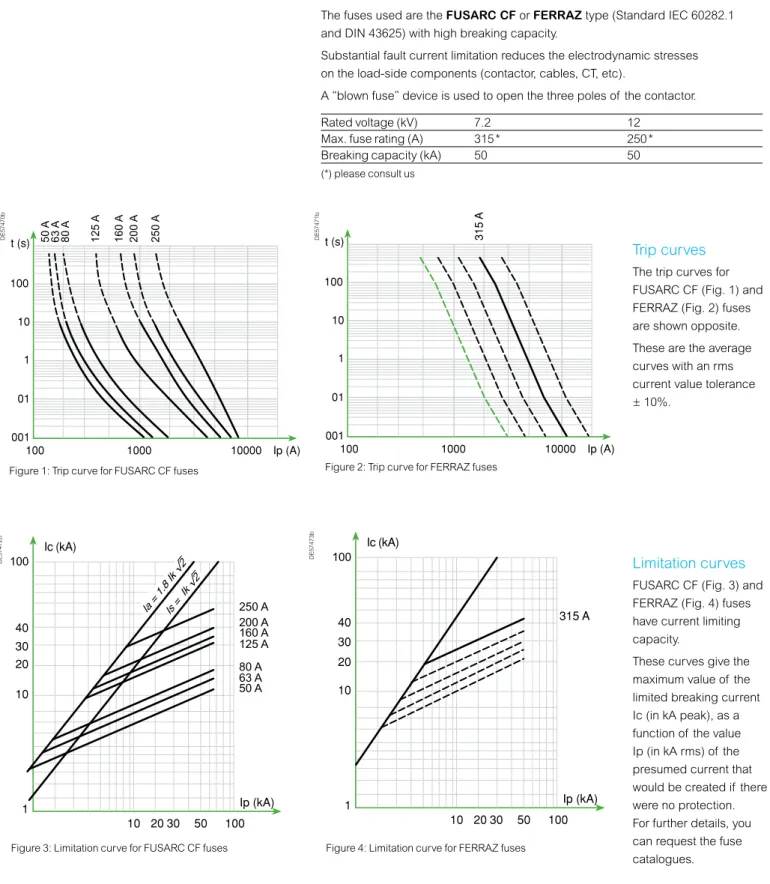

Mechanical interlock of contactor in open position to prevent winding in or out with closed contacts. These curves show the maximum value of the limited interrupting current Ic (in kA peak) as a function of the value Ip (in kA rms) of the assumed current that would occur in the absence of protection. Latch coils are inserted into the circuit at the end of the contactor stroke.
Movable contact rotation is driven by a quick-acting mechanism that is independent of the operator. To increase the cooling of the arc, a relative motion is created between the arc and the gas.
Voltage Transformers for MCset
In the withdrawable fuse version, the live part is completely encased in an epoxy resin, which provides both electrical insulation and excellent mechanical strength. With one insulated MV terminal, for connection between neutral and phase conductors in 3-phase systems with withdrawable MV fuses. This transformer supplies current to the coil to keep the contactor's magnetic circuit closed.
Schneider Electric has compiled a list of current transformers suitable for use with digital protection devices to facilitate the determination of accuracy characteristics.
The Easergy P3 protection relay concept has been expanded with a number of features that make installing and testing the relays even more efficient and user-friendly, such as the virtual injection test that is accessible with the eSetup Easergy Pro setup software. The Easergy P3 protection relay family is based on proven technology concepts developed in close cooperation with customers. The Easergy P3 feeder manager was developed to meet basic protection needs for OEMs, utilities and industrial applications.
Thanks to its cost-effective and flexible design, the Easergy P3 offers an excellent alternative for various protection applications. Easergy P3 combines further protection functions such as directional earth fault for supply and motor protection.
Easergy P3 standard Universal applications
Ease of use is a key benefit of the Easergy P3, designed to save time at every stage of the project lifecycle. A lot of effort has gone into designing the operational aspects of the new products. Setup and download/upload is much faster thanks to the unique eSetup Easergy Pro setup software, which dramatically improves ease of use.
The informative human-machine interface displays the information the user needs with the support of customized explanatory texts.
Protection, monitoring & control
The shorter the operating time of the arc flash protection unit, the smaller the damage caused by the arc fault and the shorter the possible power failure. Limited damage also means limited need for repairs and enables quick restoration of the power supply. Preventive maintenance can be difficult in severe operating conditions also due to limited accessibility and visibility of the contacts.
Thanks to its very compact footprint and its wireless communication, the Easergy TH110 allows an easy and widespread installation at all possible critical points without affecting the performance of the MV Switchgears. Specific monitoring algorithms make it possible to detect drift from the threshold based on the specific installation characteristics, also regarding the variable loads or abnormal behavior coming from phase comparison.
Key benefits
Loose and faulty connections cause an increase in resistance in localized points which will lead to thermal runaway until the complete failure of the connections. Harsh environment due to pollution, condensation and strong temperature shifts is one of the most critical causes of failure due to accelerated aging. Easergy CL110 is connected to the Substation Monitoring Device (SMD) which harvests the data for local signal, data analyzes and nearby display.
Using Zigbee Green Power communication protocol, the Easergy CL110 ensures reliable and robust communication that can be used to create interoperable solutions evolving in the Industrial Internet of Things (IIoT) era. The Easergy CL110 provides accurate temperature monitoring of the metal surface in direct contact with it.
Note: for further information, refer to the civil engineering guide and the user and instruction manual. The distance required to remove a functional unit from the plant without moving the other units An anchor point. The depth of the cable cellar or cable duct can be reduced if it is compatible with the bending radius of the cables used.
Implementation examples
Distance required to remove a functional unit from the switchboard without moving the other units. 5. Provide an exhaust tunnel above the switchboard. when the height of the room is less than 4 meters. 2 depths are available depending on the number of cables and the internal arc resistance of the cabinet: 2,000 mm and 2,275 mm. Padlock of closing hatches for pull-out parts. Locking of the pull-out part/cable compartment. Disconnection of the circuit breaker operating mechanism.
Locking the mechanical shelf of the retractable part (draw) p p p p p p p Locking the mechanical shelf of the retractable part (lock). Shelf position indicator contact for the retractable part 6 NO + 6 NC p p Blocking the insulating shutters for the retractable parts.
