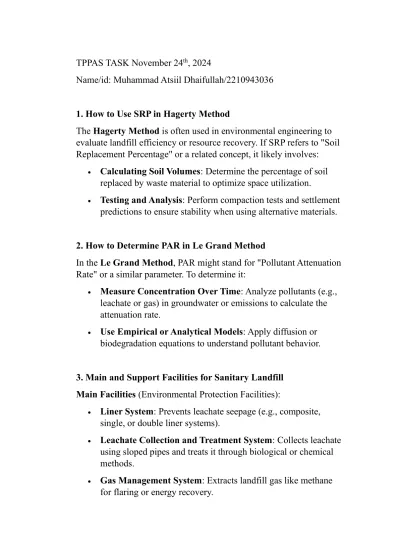

TPPAS TASK November 24th, 2024
Name/id: Muhammad Atsiil Dhaifullah/2210943036
1. How to Use SRP in Hagerty Method
The Hagerty Method is often used in environmental engineering to evaluate landfill efficiency or resource recovery. If SRP refers to "Soil Replacement Percentage" or a related concept, it likely involves:
• Calculating Soil Volumes: Determine the percentage of soil replaced by waste material to optimize space utilization.
• Testing and Analysis: Perform compaction tests and settlement predictions to ensure stability when using alternative materials.
2. How to Determine PAR in Le Grand Method
In the Le Grand Method, PAR might stand for "Pollutant Attenuation Rate" or a similar parameter. To determine it:
• Measure Concentration Over Time: Analyze pollutants (e.g., leachate or gas) in groundwater or emissions to calculate the attenuation rate.
• Use Empirical or Analytical Models: Apply diffusion or biodegradation equations to understand pollutant behavior.
3. Main and Support Facilities for Sanitary Landfill Main Facilities (Environmental Protection Facilities):
• Liner System: Prevents leachate seepage (e.g., composite, single, or double liner systems).
• Leachate Collection and Treatment System: Collects leachate using sloped pipes and treats it through biological or chemical methods.
• Gas Management System: Extracts landfill gas like methane for flaring or energy recovery.
• Daily Cover Layers: Soil or alternative materials cover waste daily to control odor and pests.
Support Facilities:
• Access Roads: Includes permanent and temporary roads for vehicles.
• Administrative Buildings: Includes offices and labs for monitoring.
• Weighing Stations: Tracks waste volumes entering the landfill.
• Drainage Systems: Channels rainwater to reduce contamination risk.
• Perimeter Fences and Green Barriers: For security and aesthetics.
4. Explain About Landfill Mining
Landfill mining involves excavating previously buried waste to:
• Recover recyclables like metals and plastics.
• Reclaim land for future use.
• Minimize environmental contamination by removing hazardous materials.
• Generate energy from organic waste.
5. Decomposition Process in Anaerobic Landfill
Decomposition in an anaerobic landfill occurs in phases:
1. Initial Phase (Aerobic): Oxygen in the landfill is consumed, and organic materials break down.
2. Transition Phase: Oxygen depletion begins anaerobic conditions, producing CO2 and organic acids.
3. Acid Phase: Increased acid production lowers pH; BOD and COD rise.
4. Methane Phase: Methanogenic bacteria convert acids into methane (CH4) and CO2. pH stabilizes, and contaminant levels decline.
5. Maturation Phase: Remaining slowly degradable materials continue breaking down, with reduced gas and leachate production.
6. Best Option/Alternative for Landfill Liner Structure Based on the material:
• Composite Liner Systems: A combination of geomembrane and compacted clay, effective for municipal solid waste.
• Double Liner Systems: Includes two layers, often with a geomembrane and clay or geosynthetic components, providing added protection for hazardous waste.
• Single Liner Systems: A basic layer of compacted clay or geomembrane suitable for construction debris landfills.
For Indonesian conditions, a recommended design involves:
1. Geomembrane Layer: Made from HDPE for impermeability.
2. Clay Layer: Compacted to <10^-7 cm/s permeability.
3. Drainage Layer: 20-30 cm thick gravel facilitates leachate flow.
4. Slope Design: 1-2% slope directs leachate to a collection system.
