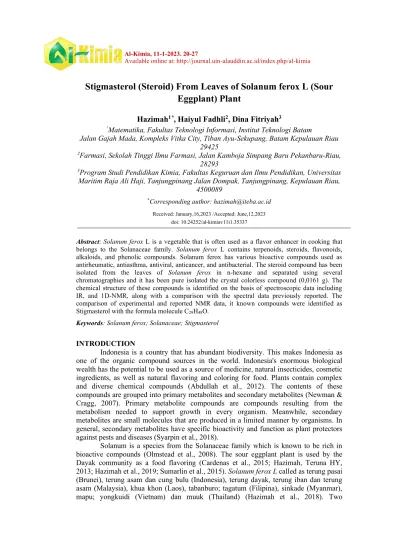

Stigmasterol (Steroid) From Leaves of Solanum ferox L (Sour Eggplant) Plant
Hazimah1*, Haiyul Fadhli2, Dina Fitriyah3
1Matematika, Fakultas Teknologi Informasi, Institut Teknologi Batam
Jalan Gajah Mada, Kompleks Vitka City, Tiban Ayu-Sekupang, Batam Kepulauan Riau 29425
2Farmasi, Sekolah Tinggi Ilmu Farmasi, Jalan Kamboja Simpang Baru Pekanbaru-Riau, 28293
3Program Studi Pendidikan Kimia, Fakultas Keguruan dan Ilmu Pendidikan, Universitas Maritim Raja Ali Haji, Tanjungpinang Jalan Dompak, Tanjungpinang, Kepulauan Riau,
4500089
*Corresponding author: [email protected]
Received: January,16,2023 /Accepted: June,12,2023 doi: 10.24252/al-kimiav11i1.35337
Abstract: Solanum ferox L is a vegetable that is often used as a flavor enhancer in cooking that belongs to the Solanaceae family. Solanum ferox L contains terpenoids, steroids, flavonoids, alkaloids, and phenolic compounds. Solanum ferox has various bioactive compounds used as antirheumatic, antiasthma, antiviral, anticancer, and antibacterial. The steroid compound has been isolated from the leaves of Solanum ferox in n-hexane and separated using several chromatographies and it has been pure isolated the crystal colorless compound (0,0161 g). The chemical structure of these compounds is identified on the basis of spectroscopic data including IR, and 1D-NMR, along with a comparison with the spectral data previously reported. The comparison of experimental and reported NMR data, it known compounds were identified as Stigmasterol with the formula molecule C29H48O.
Keywords: Solanum ferox; Solanaceae; Stigmasterol
INTRODUCTION
Indonesia is a country that has abundant biodiversity. This makes Indonesia as one of the organic compound sources in the world. Indonesia's enormous biological wealth has the potential to be used as a source of medicine, natural insecticides, cosmetic ingredients, as well as natural flavoring and coloring for food. Plants contain complex and diverse chemical compounds (Abdullah et al., 2012). The contents of these compounds are grouped into primary metabolites and secondary metabolites (Newman &
Cragg, 2007). Primary metabolite compounds are compounds resulting from the metabolism needed to support growth in every organism. Meanwhile, secondary metabolites are small molecules that are produced in a limited manner by organisms. In general, secondary metabolites have specific bioactivity and function as plant protectors against pests and diseases (Syarpin et al., 2018).
Solanum is a species from the Solanaceae family which is known to be rich in bioactive compounds (Olmstead et al., 2008). The sour eggplant plant is used by the Dayak community as a food flavoring (Cardenas et al., 2015; Hazimah, Teruna HY, 2013; Hazimah et al., 2019; Sumarlin et al., 2015). Solanum ferox L called as terung pasai (Brunei), terung asam dan cung bulu (Indonesia), terung dayak, terung iban dan terung asam (Malaysia), khua khon (Laos), tabanburo; tagatum (Filipina), sinkade (Myanmar), mapu; yongkuidi (Vietnam) dan muuk (Thailand) (Hazimah et al., 2018). Two
sesquiterpene compounds that are cytotoxic were isolated from Solanum lyratum and named solajiangxins F and G (Yadav et al., 2012). A flavonoid compound has been isolated from Solanum verbascifolium named 7,4′-dimethyl-apigenin-6-C-β- glucopyranosyl-2″-O-α-l-arabinopyranoside (Ohtsuki et al., 2010). Two alkaloid compounds that have anti-breast cancer properties from Curcuma xanthorrhiza are named erianosides A and B (Atun et al., 2022).
Solanum ferox is widely used by the community to treat various diseases, that is syphilis, body aches, lack of appetite, fever, itching, wounds, bruises and antipyretics.
Solanum ferox is reported to have pharmacological activity, such as antioxidant and antibacterial (Hazimah, Teruna HY, 2013). Active compounds from plants can be extracted with various organic solvents, such as hexane, ethyl acetate and methanol, various active secondary metabolites have been isolated from the n-hexane fraction (Syarpin et al., 2018) and n-Hexane is a decent solvent when applied to extract non-polar compounds because it has various advantages, namely being volatile, stable, and selective. In this study, the isolation and characterization of the n-hexane fraction of stigmasterol compounds from the leaves of Solanum ferox was carried out.
RESEARCH METHODS Tools and Materials
The tools used are a rotary evaporator unit, maserator, mortar, distillation equipment, chromatography column, TLC plate, ultraviolet lamp (Camag®) 254/366 nm, Fisher John Melting Point Apparatus (SMP 11-Stuart®), analytical balance, UV spectrophotometer-Vis 10S Genesis, IR spectrophotometer Shimadzu brand Prestige 21 type, NMR spectrophotometer brand JOEL type ECA 500 with a frequency of 500 Hz for protons and 125 Hz for carbon, vials, aluminum voil, and glassware commonly used in laboratories. The materials used were n-hexane, ethyl acetate, methanol, silica gel 70-230 mesh, silica gel 60 GF254, silica gel TLC plate GF254, solvents for spectroscopic analysis (UV, IR and NMR) were CDCl3, cotton, aluminum foil and aquades.
Procedures
Sampel Preparation
The sample used in this study was the leaves of Solanum ferox plant which was planted at COMPOS FMIPA, University of Riau. Solanum ferox plants which had been dried in the oven at 400C were cut into small pieces until smooth. Then weighed several times until the weight is constant.
Isolation of chemical compounds from Solanum ferox L
The dried samples from leaves of Solanum ferox were macerated and ultrasonicated several times using n-hexane solvent until colorless. The colorless solvent was collected and the solvent was evaporated using a rotary evaporator to obtain a thick n-hexane extract.
Separation by VLC (Liquid Vacuum Chromatography)
Extract was fractionated using liquid vacuum chromatography to separate the compounds in the n-hexane extract. Liquid vacuum chromatography (3 cm in diameter and 20 cm in height) was filled with silica gel 60 GF254 to a height of approx 5 cm. The Column filling is carried out in a vacuum, in order to obtain maximum packing density.
The n-hexane extract to be fractionated was pre-adsorbed and put into the column. Then
eluted in a gradient manner using n-hexane solvent (100 ml), the ratio of n-hexane-ethyl acetate (60 ml:40 ml). The results of the separation were accommodated in a numbered erlemeyer and then a TLC test was carried out to determine the number of components of each fraction. Fractions 1, 2 and 3 of the hexane extract gradient were combined because they had the same spot pattern, so there were 6 fractions.
Separation by column chromatography
1.25 grams extract of n-hexane was separated using column chromatography. The column can be prepared by making silica gel slurry which functions as an absorbent by dissolving it in n-hexane and stirring thoroughly. Then it is poured into the column slowly. Silica gel in the column is made solid and the surface should not dry. Column elution was carried out with various eluents that had increasing polarity, for F3 from the VLC extract n-hexane results starting from eluent n-hexane (100%), n-hexane: ethyl acetate (9:1), n-hexane: ethyl acetate (8:2), n-hexane: ethyl acetate (7:3), n-hexane: ethyl acetate (6:4), so on until it reaches ethyl acetate: methanol (1:1) with an increase of 10%.
The sample is pre-absorbed before being inserted into the column, then eluted with solvent to form bands. The fractionation results that come out are accommodated in vials that have been numbered. The fractions that were separated by column chromatography which revealed the presence of crystals were subjected to a TLC test to determine the same Rf (Retardation Factor) value so that they could be combined. The crystals formed were recrystallized with a solvent that does not dissolve in the cold state and dissolves in the hot state, then the recrystallized crystals were subjected to the TLC test.
Testing the results of separation with TLC
The fractions resulting from column chromatography separation were subjected to the TLC test by dabbing them on the TLC plate using a capillary tube. Each fraction was spotted on a numbered plate according to the vial number, then eluted with crude extract TLC results with a good stain separation pattern. The elution process in TLC, the eluent is put into the chamber so that the pressure is homogeneous, after the TLC homogeneous pressure is eluted to the upper limit of the plate, then the plate is removed and dried.
Stains can be seen with an ultraviolet (UV) lamp or with a stain suppression reagent. The fractions having the same Rf value are combined and the solvent is evaporated.
Characterization
Five (5) mg of crystals were characterized using NMR, 0.2 mg crystals were characterized using UV spectroscopy at the UR FMIPA Biochemistry Laboratory, 0.1 mg crystals were characterized using IR spectroscopy at the IR Laboratory, UR FMIPA.
RESULT AND DISCUSSION Solanum ferox leaves extract
500 grams of sour eggplant (Solanum ferox) leaves were extracted by
maceration method using n-hexane solvent 3 repetitions for 24 hours and
ultrasonication was carried out for 30 minutes to produce 14.29 grams of dark
green extract, then the extract was subjected to a TLC test with comparison of
Hexane and Ethyl acetate solvents (9:1) to check of components present in n-
hexane viscous extracts.
Recrystallization and determination of melting point
Recrystallization was carried out using hot n-hexane solvent and white needle crystals weighing 0.0161 g were obtained. The crystals melting point was measured using the Fisher Johns tool. The melting point of the crystal is 125-126 oC with standard melting point of stigmasterol is 127-128 oC(Nurmalasari et al., 2016).
Characterization
White crystals were characterized using UV spectroscopy at a wavelength of 200 – 400 nm. UV spectroscopic analysis resulted in maximum absorption at a wavelength of 271 nm.
Figure 1. UV Chromatogram
This reveals that compound has no conjugated bonds, this is due to the presence of a carbonyl group, while the double bond is not clear due to overlapping spectra. This is supported by IR data which reveals absorption at wave number and 1666 cm-1 (compound) which revelas the presence of a C=C double bond.
200 220 240 260 280 300 320 340 360 380 400 0
0,2 0,4 0,6 0,8 1 1,2
Wavelength (nm)
Absorbansi
Figure 2. FT-IR Chromatogram
The IR spectrum (KBr) of the compound (Figure 2) reveals the presence of hydroxyl group (3421 cm-1), C-H sp3 (2958 cm-1), olefinic group C=C sp2 (1666 cm-1) and C-O group (1052 cm-1). The 1H-NMR spectrum of the compound (Figure 3) reveals the presence of six sp3 methyl signals consisting of two tertiary methyl signals that resonate at δH 0.67 (3H, s) and 1.00 (3H, s), three secondary methyls at δH 0.92 (3H, d, J
= 5.9 Hz), 0.84 (3H, d, J = 6.4 Hz), and 0.82 (3H, d, J = 6.4 Hz), one primary methyl signal that resonates at δH 0.80 (3H, t, J = 6.0 Hz) suggesting characteristics of steroid group compounds (Yayli & Baltaci, 1996). Three olefinic methine signals resonating at δH 5.35 (1H, d, J = 5.1 Hz, H-6), 5.18 (1H, dd, J = 8.5; 15.1 Hz, H-22), and 5.00 (1H, dd, J = 8.6; 15.6 Hz, H-23), as well as one oxygenated methin signal at δH 3.52 (1H, m, H-3) suggest characteristics of 3-β stigmasterol compounds (Cayme & Ragasa, 2004; Yayli &
Baltaci, 1996).
The 13C-NMR spectrum of the compound (Figure 3) reveals the presence of 29 carbon signals consisting of six methyl, ten methylene, eleven methine and two quaternary carbon signals that suggest steroid class compounds (Yayli & Baltaci, 1996).
The presence of six methyl signals resonating at δc 12.40 (C-18), 19.56 (C-19), 21.24 (C- 21), 21.30 (C-26), 19.14 (C-27), and 12.20 (C-29), one oxymetin signal at δc 71.98 (C-3), three methine olefinics at δc 121.87 (C-6), 138.46 (C-22), 129.43 (C-23), as well as one singlet olefinic carbon signal at δc 140.91 (C-5) suggest characteristics of stigmasterol compounds (Cayme & Ragasa, 2004; Yayli & Baltaci, 1996). Such functionality is calculated as two of the total six degrees of unsaturation. The remaining four degrees of unsaturation, correspond to the basic framework of steroid stigmastan (Cayme & Ragasa, 2004). Comparison of compound spectroscopic data with stigmasterol compounds (Cayme & Ragasa, 2004), it reveals that the two compounds have a very high degree of compatibility, thus the compounds are identified as stigmasterol (Figure 5).
Figure 3. 1H-NMR Spectrum
Ratio of the spectroscopic data of the compound and the compound stigmasterol (Katja, 2021) reveals that the two compounds have a very high degree of concordance, thus the compound is identified as stigmasterol (Fig 5).
Fig 4. 13C-NMR Spectrum
Comparison of compound spectroscopic data with stigmasterol compounds (Cayme & Ragasa, 2004), sreveals that the two compounds have a very high degree of compatibility, thus the compounds are identified as stigmasterol (Figure 5).
Tabel 1. Ratio NMR data with Stigmasterol (Katja, 2021).
No
Crystal Stigmasterol
13C NMR δc (mult)
1H NMR δH (Integral, mult,
J=Hz)
13C NMR
δc (mult)
1H NMR δH (Integral, mult,J=Hz)
1 37.40 1.08 (1H, m) 37.4 1.08 (1H, m)
1.84 (1H, m) 1.84 (1H, m)
2 31.80 1.49 (1H, m) 31.8 1.49 (1H, m)
1.81 (1H, m) 1.81 (1H, m)
3 71.98 3.52 (1H, m) 72.0 3.52 (1H, m)
4 42.47 2.28 (1H, dd, 2.0;5.2) 42.5 2.28 (1H, dd, 2.0;5.2) 2.30 (1H, dd, 2.0;5.2)
5 140.91 - 140.9 -
6 121.87 5.35 (1H, d, 5.1) 121.9 5.35 (1H, d, 5,1)
7 32.06 1.54 (1H, m)
1.96 (1H, m)
32.1 1.54 (1H, m) 1.96 (1H, m)
8 32.04 1.46(1H, m) 32.0 1.46(1H, m)
9 50.33 0.94 (1H, m) 50.3 0.94 (1H, m)
10 36.68 - 36,.7 -
11 21.37 1.46 (1H, m)
1.49 (1H, m) 21.3 1.46 (1H, m) 1.49 (1H, m)
12 39.85 1.15 (1H, m)
1.95 (1H, m)
39.9 1.15 (1H, m) 1.95 (1H, m)
13 42.38 - 42.5 -
14 57.03 1.03 (1H, m) 56.9 1.03 (1H, m)
15 24.53 1.07 (1H, m)
1.56 (1H, m)
24.5 1.07 (1H, m) 1.56 (1H, m)
Figure 4. Spektrum 13
C NMR
16 29.08 1.26 (1H, m)
1.67 (1H, m) 28.4 1.26 (1H, m) 1.67 (1H, m)
17 56.12 1.13 (1H, m) 56.1 1.13 (1H, m)
18 12.40 0.67 (3H, s) 12.1 0.67 (3H, s)
19 19.56 1.00 (3H, s) 19.5 1.00 (3H, s)
20 40.65 2.02 (1H, m) 40.7 2.02 (1H, m)
21 21.24 0.92 (3H, d, 5.9) 21.2 0.92 (3H, d, 5,9) 22 138.46 5.18 (1H, dd 8.5;15.1 138.5 5.18 (1H, 8,5;15,1
23 129.43 5.00 (1H, dd, 8,6;
15.6) 129.5 5.00 (1H, dd, 8.6; 15.6)
24 51.40 1.53 (1H, m) 51.4 1.53 (1H, m)
25 31.80 1.45 (1H, m) 31.8 1.45 (1H, m)
26 21.30 0.84 (3H, d, 6,4) 21.3 0.84 (3H, d, 6.4) 27 19.14 0.82 (3H, d, 6,4) 19.1 0.82 (3H, d, 6.4) 28 25.57 1.51 (1H, t, 3,2) 25.6 1.51 (1H, t, 3.2) 29 12.20 0.80 (3H, t, 6,0) 12.2 0.80 (3H, t, 6.0)
O H
1
3 5 10
9 18
7 12
14 19
17
16 20 21
22
24
26
27 29
Figure 5. Stigmasterol
CONCLUSION
Based on the interpretation of the IR spectra, 1H-NMR, 13C-NMR and comparative data, the isolate was a colorless crystalline solid of 0.0161 g isolated from 500 g of dry powder of S.
ferox leaves is stigmasterol.
ACKNOWLEDGMENTS
Thank you to the Directorate of Research and Community Service Directorate General of Strengthening Research and Development Ministry of Research, Technology and Higher Education in accordance with Research Contract Number: 018/K10/Kontrak- Penelitian/2018
REFERENCES
Abdullah, M., Nesa, M., Islam, R., Banu, J., Sarkar, J., & Islam, N. 2012. Bioactivity Studies Of Solanum Ferox L Against Tribolium Castaneum (Herbst) Adults.
Journal Life Earth Sci., 7, 29–32.
Atun, S., Sinardekawati, A., Purpratama, A. C., Aznam, N., & Sangal, A. 2022.
Curcuminoid Nanoemulsion from Curcuma xanthorrhiza Extract and Its Activity as Antioxidant, Antibacterial and Antifungal. 15(2), 907–913.
Cardenas, P. D., Sonawane, P. D., Heinig, U., Bocobza, S. E., Burdman, S., & Aharoni, A. 2015. The bitter side of the nightshades: Genomics drives discovery in
Solanaceae steroidal alkaloid metabolism. In Phytochemistry (Vol. 113, pp. 24–32).
https://doi.org/10.1016/j.phytochem.2014.12.010
Cayme, J.-M. C., & Ragasa, C. Y. 2004. Structure elucidation of -beta stigmasterol and beta-sitosterol from Scsbania urandittorallinn.J Pers. and beta-carotene from Hcliotronium indicumlinn. hv NMR spectroscopy. Number, 20(112), 5–12.
Hazimah, Teruna HY, J. C. 2013. Aktivitas Antioksidan dan Antimikrobial dari Ekstrak Plectranthus amboinicus. Jurnal Penelitian Farmasi Indonesia, 1(2), 39–42.
Hazimah, Azharman, Z., Rahyuti, V., Afriliani, D., & Organik Universitas Riau, K. 2018.
Aktivitass Antibakteria Ekstrak Metanol Daun Tanaman Solanum ferox L. 4(1), 2621–1262.
Hazimah, H., Azharman, Z., Yuharmen, Y., Rahyuti, V., & Afriliani, A. 2019.
Antibacterial Activity of The Hexane Extract from Leaf of Plant Solanum Ferox L.
https://doi.org/10.4108/eai.18-10-2018.2287176
Katja, D. G. 2021. Senyawa Stigmasterol (Steroid) dari Kulit Batang Chisocheton celebicus koord (Meliaceae). Chemistry Progress, 14(1), 56–61.
https://doi.org/10.35799/cp.14.1.2021.34154
Newman, D. J., & Cragg, G. M. 2007. Natural products as sources of new drugs over the last 25 years. In Journal of Natural Products (Vol. 70, Issue 3, pp. 461–477).
https://doi.org/10.1021/np068054v
Nurmalasari, F., Ersam, T., & Fatmawati, S. 2016. Isolasi Senyawa Antioksidan dari Kulit Batang Sonneratia ovata Backer. Jurnal Sains Dan Seni Its, 5(2), 3–7.
https://media.neliti.com/media/publications/130421-ID-isolasi-senyawa- antioksidan-dari-kulit-b.pdf
Ohtsuki, T., Miyagawa, T., Koyano, T., Kowithayakorn, T., & Ishibashi, M. 2010.
Isolation and structure elucidation of flavonoid glycosides from Solanum verbascifolium. Phytochemistry Letters, 3(2), 88–92.
https://doi.org/10.1016/j.phytol.2010.02.002
Olmstead, R. G., Bohs, L., Migid, H. A., Santiago-valentin, E., Garcia, V. F., & Collier, S. M. 2008. A molecular phylogeny of the Solanaceae. 57(November), 1159–1181.
Sumarlin, D., Dirhamsyah, M., & Ardian, H. 2015. Identifikasi Tumbuhan Sumber Pangan di Hutan Tembawang Desa Aur Sampuk Kecamatan Sengah Temila Kabupaten Landak. Jurnal Hutan Lestari, 4(1), 32–39.
Syarpin, S., Nugroho, W., & Rahayu, S. 2018. Uji Fitokimia dan Antioksidan Ekstrak Etanol Buah Terung Asam (Solanum Ferox L). Acta Pharmaciae Indonesia, 6(September), 46–50. https://doi.org/10.5281/zenodo.3707211
Yadav, A. G., Patil, V. N., Asrondkar, A. L., Naik, A. A., Ansulkar, P. V, Bobade, A. S.,
& Chowdhary, A. S. 2012. Anti-Oxidant and Anti-Microbial Activities of Pyrazolyl-Benzothiazole Derivatives Using Vilsmeier-Haack Reaction. Rasayan Journal of Chemistry, 5(1), 117–120.
Yayli, N., & Baltaci, C. 1996. The Sterols of Cyclamen Coum The Sterols of Cyclamen Coum Nurettin YAYLI Cemalettin BALTACI. 20(4).
https://journals.tubitak.gov.tr/chem:https://journals.tubitak.gov.tr/chem/vol20/iss4/1 0
