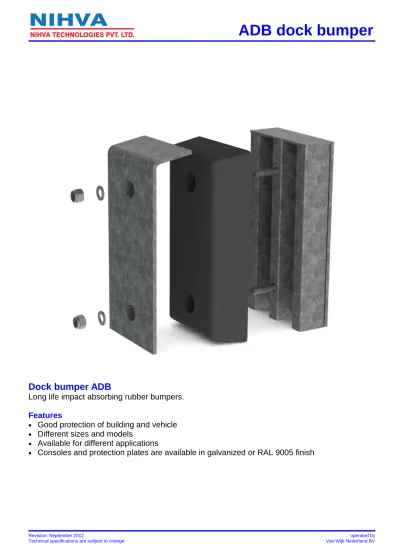

ADB dock Bumper

(1)

ADB dock bumper

Revision: September 2012 operated by

Technical specifications are subject to change Van Wijk Nederland BV

Dock bumper ADB

Long life impact absorbing rubber bumpers.

Features

•

Good protection of building and vehicle

•

Different sizes and models

•

Available for different applications

•

Consoles and protection plates are available in galvanized or RAL 9005 finish

(2)

ADB dock bumper

Revision: September 2012 operated by

Technical specifications are subject to change Van Wijk Nederland BV

`(*) Geknikt model ADB rubber bumpers

Made of long life impact absorbing rubber to protect buildings and vehicles.

All dock bumpers are equipped with countersunk mounting holes.

.

Consoles

Suitable for safe installation of the dock bumper to the building. In a renovation, where the loading dock is damaged, these consoles are indispensable.

All consoles are equipped with studs.

Protection plates

Suitable for intensive use of the loading dock. Available as straight or bended model guard.

Options

By means of the mounting bracket, the dock platform bumper can be placed 100 mm above platform level.

As an option, the consoles and protection plates are available in galvanized finish.

Article nr. Dimension WxHxD (mm)

Weight per pair (kg) ADB-4008 80x400x70 8 ADB-3010 250x300x100 12 ADB-5010 250x500x100 24 ADB-5015 250x500x150 36

Weight per pair (kg)

Suitable for rubber bumper

ADC-3010 250x300x10 14 ADB-3010

ADC-3050 250x300x50 21 ADB-3010

ADC-3090 250x300x90 30 ADB-3010

ADC-5010 250x500x10 22 ADB-5010 or 5015 ADC-5050 250x500x50 33 ADB-5010 or 5015 ADC-5090 250x500x90 48 ADB-5010 or 5015

Suitable for rubber bumper

ADP-3010 230x270x10 10 ADB-3010

ADP-3110 (*) 230x275x10 15 ADB-3010 ADP-5010 230x470x10 18 ADB-5010 or 5015 ADP-5110 (*) 230x475x10 22 ADB-5010 ADP-5115 (*) 230x475x10 22 ADB-5015

Suitable for

ADC-760 250x80x160 14 All consoles

ADC-305 Optional galvanized finish consoles ADP-305 Optional galvanized finish protection plates
