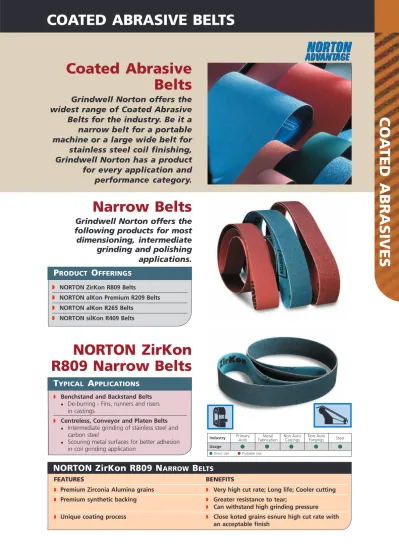

C O A TED ABRASIVES COATED ABRASIVE BELTS

Grindwell Norton offers the widest range of Coated Abrasive Belts for the industry. Be it a narrow belt for a portable machine or a large wide belt for stainless steel coil finishing, Grindwell Norton has a product for every application and performance category.

Coated Abrasive Belts

Narrow Belts

Grindwell Norton offers the following products for most dimensioning, intermediate grinding and polishing applications.

P

^RODUCT

O

^FFERINGS

NORTON ZirKon R809 Belts

NORTON alKon Premium R209 Belts NORTON alKon R265 Belts

NORTON silKon R409 Belts

Benchstand and Backstand Belts

De-burring - Fins, runners and risers in castings

Centreless, Conveyor and Platen Belts

Intermediate grinding of stainless steel and carbon steel

Scouring metal surfaces for better adhesion in coil grinding application

T

YPICAL

A

PPLICATIONS

NORTON ZirKon R809 Narrow Belts

Industry Usage

Direct Use Probable Use

Steel Primary

Auto Metal

Fabrication Non Auto

Castings Non Auto Forgings

FEATURES BENEFITS

Premium Zirconia Alumina grains Very high cut rate; Long life; Cooler cutting Premium synthetic backing Greater resistance to tear;

Can withstand high grinding pressure Unique coating process Close koted grains esnure high cut rate with

an acceptable finish

NORTON ZirKon R809 N

^ARROW

B

^ELTS

(2)

C O A TED ABRASIVES

COATED ABRASIVE BELTS

NORTON alKon P

REMIUM

R209 N

ARROW

B

ELTS

Tough Premium Aluminum Good for medium to high pressure

Oxide grain applications; Long life; Good cut rate

Premium synthetic backing High strength; Resistance to tearing;

Ability to withstand high grinding pressure Unique coating process Esnures high cut rate at an acceptable finish

NORTON alKon Premium R209 Narrow Belts

Benchstand and Backstand Belts

Heavy stock removal on forged components like hand tools and castings

Grinding and de-burring of aluminium castings

Blending, dimensioning and shaping of brass castings like sanitary ware fittings Centreless, Conveyor and Platen Belts

Intermediate grinding of stainless and carbon steel

Moderate pressure applications in furniture sanding

T

YPICAL

A

PPLICATIONS

Direct Use Probable Use Primary

Auto Metal Steel

Fabrication Non Auto Castings Non Auto

Forgings Leather

(3)

C O A TED ABRASIVES COATED ABRASIVE BELTS

NORTON alKon R265 N

ARROW

B

ELTS

Tough Aluminum Oxide grain Good for medium to high pressure applications Flexible Cotton backing Strength combined with flexibility for grinding

over the edge of the contact wheel

High base adhesion Resistance to grain shedding

NORTON alkon R265 Narrow Belts

Benchstand and Backstand Belts

Grinding and de-burring of all metals

Final polishing of forged componenets like hand tools

Blending and shaping of brass castings like sanitary ware fittings

Centreless, Conveyor and Platen Belts

Intermediate grinding of stainless steel and carbon steel

Glass edge bevelling

Moderate pressure applications in furniture sanding

Portable File Belts

Finishing, contour and shape sanding of all metallic surfaces where flexibility and ability to grind hard-to-reach areas is a requirement

T

YPICAL

A

PPLICATIONS

Direct Use Probable Use Primary

Auto Metal Steel

Fabrication Non Auto Castings Non Auto

Forgings Glass

(4)

C O A TED ABRASIVES

SIZE GRIT CAP STD. STOCK

Width X Length CODE PKG. LIST NO.

50 x 3500 220 R229 45 AB 17

50 x 3500 320 R265 45 AB 18

50 x 3500 400 R265 45 AB 19

75 x 3500 36 R209 20 AB 21

75 x 3500 60 R209 30 AB 23

75 x 3500 120 R209 30 AB 25

75 x 3500 220 R229 30 AB 27

75 x 3500 320 R265 30 AB 28

75 x 3500 400 R265 30 AB 29

150 X 7770 60 R209 5 AB 93

150 X 7770 80 R209 5 AB 94

150 X 7770 120 R209 5 AB 95

150 x 1220 36 R209 30 AB 41

150 x 1220 60 R209 30 AB 43

150 x 1220 80 R209 30 AB 44

300 x 1830 24 R209 10

300 x 1830 36 R209 10

SIZE GRIT CAP STD. STOCK

Width X Length CODE PKG. LIST NO.

20 X 520 60 R209 100 AB 150

50 x 2000 36 R809 50 ZB 1

50 x 2000 60 R809 50 ZB 3

50 x 2000 80 R809 50 ZB 4

50 x 3500 60 R809 45 ZB 13

75 x 3500 36 R809 20 ZB 21

75 x 3500 60 R809 30 ZB 23

50 x 2000 36 R209 50 AB 1

50 x 2000 60 R209 50 AB 3

50 x 2000 80 R209 50 AB 4

50 x 2000 120 R209 50 AB 5

50 x 2000 220 R265 50 AB 7

50 x 2000 320 R265 50 AB 8

50 x 3500 60 R209 45 AB 13

50 x 3500 80 R209 45 AB 14

50 x 3500 120 R209 45 AB 15

Note:Grit 24 available in R409 CAP only. Grits 150, 180, 220, 320, 400 & 600 available in R265 CAP only.

S

TOCK

A

VAILABILITY

T

ABLE Narrow Coated Abrasive Belts

COATED ABRASIVE BELTS

NORTON silkon R409 Narrow Belts

NORTON silKon R409 N

ARROW

B

ELTS

Sharp Silicon Carbide grain Ideal for sanding of MDF / Particle Board Unique coating method Close koted grains esnure high cut rate with

an acceptable finish

Premium synthetic backing High strength backing

Can be used for wet applications too Centreless, Conveyor and Platen Belts

Glass edge bevelling

Dimensioning and finishing of steel coils

T

^YPICAL

A

PPLICATIONS

Direct Use Probable Use Metal

Fabrication Steel Glass

(5)

C O A TED ABRASIVES COATED ABRASIVE BELTS

Wide Belts

Grindwell Norton offers the following stock products to meet wide belt needs in the woodworking and metalworking industries.

METALWORKING

Conveyor grinding

• Polishing steel coils

De-burring of large flat plates

WOODWORKING

Calibration and intermediate sanding of plywood

Abrasive plaining and dimensioning of glued-up stock

T

YPICAL

A

PPLICATIONS

NORTON alKon Premium R209 Cloth Wide Belts

P

^RODUCT

O

^FFERINGS

NORTON alKon Premium R209 Belts NORTON Metalite R206 Belts CORA S88XL Belts

NORTON silKon R409 Belts NORTON ZirKon R809 Belts

NORTON Adalox Antistatic H231 & H189 Paper Wide Belts

Steel Boards &

Laminates Direct Use Probable Use

(6)

C O A TED ABRASIVES

COATED ABRASIVE BELTS

Metalworking

Large plate dimensioning

Steel coil polishing

CRCA sheet deburring Woodworking

Calibration

Abrasive plaining and dimensioning of glued-up stock and particle board

T

YPICAL

A

PPLICATIONS

NORTON Metalite R206 Wide Cloth Belts

NORTON Metalite R206 Belts

High Performance Aluminum Oxide grain Good for medium to high pressure applications Strong Polycotton backing Robust backing - strength combined with

flexibility for grinding Double resin bond structure Resistance to grain shedding

Wide Grit range Suitable for applications from roughing

to finishing

CORA S88XL B

ELTS

Sharp Premium Silicon Carbide grain Good for medium to high pressure applications; Long life.

Premium polyester backing High strength; Resistance to tearing;

Ability to withstand high grinding pressure

& uniform grain coating.

Special Anti-static treatment Dissipates static electricity.

Prevents sanding swarf from sticking to the belt High strength polyester tape joint for wide belts Smooth trouble-free operation

Woodworking

Calibration on particle board applications

Laminate back scouring

Abrasive plaining and dimensioning of glued-up stock and banded particle board

T

^YPICAL

A

PPLICATIONS

CORA S88XL Wide Cloth Belts

Metal

Fabrication Boards &

Steel Boards &

(7)

C O A TED ABRASIVES COATED ABRASIVE BELTS

Woodworking

Calibration on particle board applications

Laminate back scouring Rubber

Back scouring of rubber re-treads

T

YPICAL

A

PPLICATIONS

NORTON silKon R409 Wide Cloth Belts

NORTON silKon R409 W

IDE

C

LOTH

B

ELTS

Sharp Silicon Carbide grain Ideal for sanding of MDF / Particle Board Premium synthetic backing High strength; Resistance to tearing;

& uniform grain coating

Wide grit range Suitable for applications from roughing

to finishing

High strength polyester tape joint for wide belts Smooth trouble-free operation Uniformly close koted grain High cut rate at acceptable finish

Fine scratch-free finishes

NORTON ZirKon R809 B

ELTS

Premium Zirconia Alumina grain Tough sharp grain suited for roughing operations on MDF / Particle Board Premium synthetic backing High strength; Resistance to tearing;

& uniform grain coating High strength polyester tape joint for wide belts Smooth trouble-free operation Uniformly close koted grain High cut rate at acceptable finish

Fine scratch-free finishes Metalworking

SS/CRCA coil polishing - No. 4 finish generation Woodworking

Calibration of particle board applications

Laminate back scouring

T

^YPICAL

A

PPLICATIONS

NORTON ZirKon R809 Wide Cloth Belts

Steel Boards &

(8)

C O A TED ABRASIVES

NORTON Adalox Antistatic H231 &

H189 Paper Wide Belts

Woodworking

Calibration & finishing heads on rubber wood and plywood board applications

Stroke sanding on plywoods

T

^YPICAL

A

PPLICATIONS

NORTON A

DALOX

A

NTISTATIC

H231 P

APER

W

IDE

B

ELTS

Blocky & Friable White Aluminum Oxide grain Fine finishes and Long life on Wood

Uniform ESU coating Scratch-free finish

Open Kote & Antistatic Less Loading

Heavy weight paper Strength to resist tearing

Resin bond Heat resistant

NORTON A

DALOX

A

NTISTATIC

H189 P

APER

W

IDE

B

ELTS

Blocky & Friable White Aluminum Oxide grain Fine finishes and Long life on Wood

Uniform ESU coating Scratch-free finish

Close Kote & Antistatic Less Loading

Heavy weight paper Strength to resist tearing

Resin bond Heat resistant

SIZE GRIT CAP STD. STOCK

WIDTH X LENGTH CODE PKG. LIST NO.

1320 x 1900 36 R809 5 WZ 11

1320 x 1900 60 R809 5 WZ 13

1320 x 1900 24 R409 5 WS 10

1320 x 1900 36 R409 5 WS 11

1320 x 1900 60 R409 5 WS 13

S

^TOCK

A

VAILABILITY

T

^ABLE

Coated Abrasive Belts for Woodworking

C28

COATED ABRASIVE BELTS
