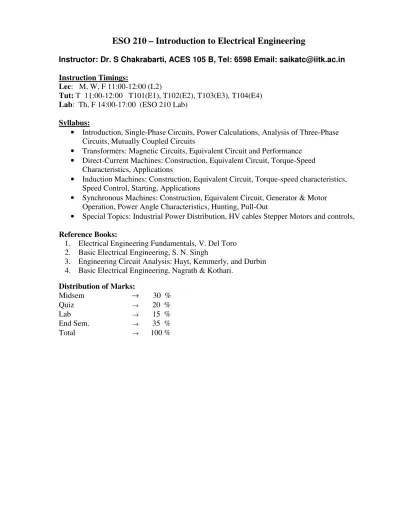

ESO 210 – Introduction to Electrical Engineering
Instructor: Dr. S Chakrabarti, ACES 105 B, Tel: 6598 Email: [email protected] Instruction Timings:
Lec: M, W, F 11:00-12:00 (L2)
Tut: T 11:00-12:00 T101(E1), T102(E2), T103(E3), T104(E4) Lab: Th, F 14:00-17:00 (ESO 210 Lab)
Syllabus:
• Introduction, Single-Phase Circuits, Power Calculations, Analysis of Three-Phase Circuits, Mutually Coupled Circuits
• Transformers: Magnetic Circuits, Equivalent Circuit and Performance
• Direct-Current Machines: Construction, Equivalent Circuit, Torque-Speed Characteristics, Applications
• Induction Machines: Construction, Equivalent Circuit, Torque-speed characteristics, Speed Control, Starting, Applications
• Synchronous Machines: Construction, Equivalent Circuit, Generator & Motor Operation, Power Angle Characteristics, Hunting, Pull-Out
• Special Topics: Industrial Power Distribution, HV cables Stepper Motors and controls, Reference Books:
1. Electrical Engineering Fundamentals, V. Del Toro 2. Basic Electrical Engineering, S. N. Singh
3. Engineering Circuit Analysis: Hayt, Kemmerly, and Durbin 4. Basic Electrical Engineering, Nagrath & Kothari.
Distribution of Marks:
Midsem → 30 %
Quiz → 20 %
Lab → 15 %
End Sem. → 35 %
Total → 100 %
Tutorial and Laboratory Sessions
Sections
Tutorial (Tuesday) Laboratory (ESO 210 lab) Instructors Tut. Room Instructors Day E1 Prof. S P Das
(spdas) T101(E1) Prof. S P Das
(spdas) Thursday
E2 Prof. S. K. Mishra
(santanum) T102(E2) Prof. S. K. Mishra
(santanum) Thursday
E3 Prof. N. Verma
(nishchal) T103(E3) Prof. N. Verma
(nishchal) Friday
E4 Poonam Chaudhary
(poonamc) T104(E4) Anindya Dasgupta
(anindyad) Friday
Instructions:
1. Most of the instructions, announcements, and resource material for the course can be found in the following link:
http://home.iitk.ac.in/~saikatc/ESO210/ESO210.htm
2. Make-up for mid semester exams may be taken on production of medical certificate.
and no make-ups are allowed for the quizzes.
3. Tutorial will start from the week beginning from August 1, 2011 and Laboratory experiments will start from the week beginning from August 1, 2011.
4. Every student must complete all the experiments. Make up-lab will be arranged (on producing proper medical leave or institute duty leave certificates) to complete the missed experiments during the regular lab hours. However there will not be any make up lab scheduled for experiment no. 9 due to lack of slots thereafter.
5. Each student must come to lab with individual lab sheet, calculator, graph sheet etc.
Students are required to bring lab sheet with the title of experiment, theory, and observation table already prepared. All students must take the signature of the lab instructors on the readings.
6. The student should wear shoes (not the slippers) while doing the experiments.
ESO 210: Introduction to Electrical Engineering
Laboratory Schedule
Timing: 14:00 to 17:00
Expt. No. Sections & Days
Thursday (E1,E2) Friday (E3,E4)
1 Aug 4 Aug 5
2 Aug 11 Aug 12
3 Aug 18 Aug 19
Make up Lab on Aug 25 (E1,E2), 26 (E3,E4)
4 Sep 1 Sep 2
5 Sep 8 Sep 9
6 Sep 22 Sep 23
Midsem during Sep 12-16
Make up Lab on Sep 29 (E1,E2) and 30(E3,E4) Midsem Recess during Oct 3-7
7 Oct 20 Oct 21
8 Oct 27 Oct 28
Make up Lab : Nov 3 (E1,E2), 4(E3,E4)
9 Nov 17 Nov 18
Lists of Experiments Exp.
No. Title
1 Determination of Thevenin equivalent of a given electrical circuit.
2 Measurement of electrical energy in AC circuit.
3 Power measurement in balanced three-phase circuits.
4 Determination of self and mutual inductances of coils.
5 To study the windings of a transformer and assembling it.
6 Determination of the equivalent circuit of a single-phase transformer and evaluation of its performance.
7 To study the characteristics of a DC generator.
8 Speed control of DC motor.
9 Determination of load characteristics of a single phase induction motor.
TA Duties
Instructors TAs Sections
Prof. S P Das (spdas)
Gopinath G. R.
(grgopi)
Sayak Bhaumik (sayak)
E1
Prof. S. K. Mishra (santanum)
Sumit Sarakar (sarkar)
Alok Bansal (alokb)
E2
Prof. N. Verma (nishchal)
Satvik Dubey (satvik)
Kuldeep Chaudhary (kuldeep)
E3
Poonam Chaudhary (poonamc)
Anindya Dasgupta (anindyad)
Palas Soni (palash)
Shruti Agrawal (shrutiag)
E4
Prof. S Chakrabarti (saikatc)
C Parveen Kumar Reddy (preddy)
Dongare Kapil Subhash (kapil)
General Coordination
