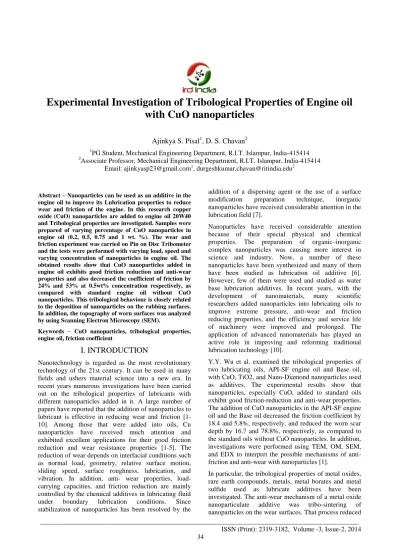

Experimental Investigation of Tribological Properties of Engine oil with CuO nanoparticles
Ajinkya S. Pisal1, D. S. Chavan2
1PG Student, Mechanical Engineering Department, R.I.T. Islampur, India-415414
2Associate Professor, Mechanical Engineering Department, R.I.T. Islampur, India-415414 Email: [email protected]1, [email protected]2
Abstract – Nanoparticles can be used as an additive in the engine oil to improve its Lubrication properties to reduce wear and friction of the engine. In this research copper oxide (CuO) nanoparticles are added to engine oil 20W40 and Tribological properties are investigated. Samples were prepared of varying percentage of CuO nanoparticles in engine oil (0.2, 0.5, 0.75 and 1 wt. %). The wear and friction experiment was carried on Pin on Disc Tribometer and the tests were performed with varying load, speed and varying concentration of nanoparticles in engine oil. The obtained results show that CuO nanoparticles added in engine oil exhibits good friction reduction and anti-wear properties and also decreased the coefficient of friction by 24% and 53% at 0.5wt% concentration respectively, as compared with standard engine oil without CuO nanoparticles. This tribological behaviour is closely related to the deposition of nanoparticles on the rubbing surfaces.
In addition, the topography of worn surfaces was analyzed by using Scanning Electron Microscopy (SEM).
Keywords – CuO nanoparticles, tribological properties, engine oil, friction coefficient
I. INTRODUCTION
Nanotechnology is regarded as the most revolutionary technology of the 21st century. It can be used in many fields and ushers material science into a new era. In recent years numerous investigations have been carried out on the tribological properties of lubricants with different nanoparticles added in it. A large number of papers have reported that the addition of nanoparticles to lubricant is effective in reducing wear and friction [1- 10]. Among those that were added into oils, Cu nanoparticles have received much attention and exhibited excellent applications for their good friction reduction and wear resistance properties [1-5]. The reduction of wear depends on interfacial conditions such as normal load, geometry, relative surface motion, sliding speed, surface roughness, lubrication, and vibration. In addition, anti- wear properties, load- carrying capacities, and friction reduction are mainly controlled by the chemical additives in lubricating fluid under boundary lubrication conditions. Since stabilization of nanoparticles has been resolved by the
addition of a dispersing agent or the use of a surface modification preparation technique, inorganic nanoparticles have received considerable attention in the lubrication field [7].
Nanoparticles have received considerable attention because of their special physical and chemical properties. The preparation of organic–inorganic complex nanoparticles was causing more interest in science and industry. Now, a number of these nanoparticles have been synthesized and many of them have been studied as lubrication oil additive [6].
However, few of them were used and studied as water base lubrication additives. In recent years, with the development of nanomaterials, many scientific researchers added nanoparticles into lubricating oils to improve extreme pressure, anti-wear and friction reducing properties, and the efficiency and service life of machinery were improved and prolonged. The application of advanced nanomaterials has played an active role in improving and reforming traditional lubrication technology [10].
Y.Y. Wu et al. examined the tribological properties of two lubricating oils, API-SF engine oil and Base oil, with CuO, TiO2, and Nano-Diamond nanoparticles used as additives. The experimental results show that nanoparticles, especially CuO, added to standard oils exhibit good friction-reduction and anti-wear properties.
The addition of CuO nanoparticles in the API-SF engine oil and the Base oil decreased the friction coefficient by 18.4 and 5.8%, respectively, and reduced the worn scar depth by 16.7 and 78.8%, respectively, as compared to the standard oils without CuO nanoparticles. In addition, investigations were performed using TEM, OM, SEM, and EDX to interpret the possible mechanisms of anti- friction and anti-wear with nanoparticles [1].
In particular, the tribological properties of metal oxides, rare earth compounds, metals, metal borates and metal sulfide used as lubricate additives have been investigated. The anti-wear mechanism of a metal oxide nanoparticulate additive was tribo-sintering of nanoparticles on the wear surfaces. That process reduced
the metal-to- metal contact and created a load bearing film. Also the summarized mechanisms of the friction- reduction and anti- wear of nanoparticles in lubricants as the result of colloidal effect, rolling effect, protective film, and third body. The results of these investigations show that nanoparticles deposit on the rubbing surface and improve the tribological properties of the base oil, displaying good friction and wear reduction characteristics [7].
In the present study we have synthesized stable CuO nanoparticles with an „oleic acid‟ surface modifier which gives very good dispersibility in organic solvents.
In order to estimate the ranges of applications of CuO nanoparticles, it was necessary to investigate its tribological behaviour under increasingly severe contact conditions.
II. EXPERIMENTAL
2.1 Materials
The SAE 20W40 engine oil (Pure lubricants, Chennai, India) was used as the base oil. The Pure lubricants engine oil contains some additives for friction reduction and anti-wear, but the Base oil purchased does not. Pure lubricants are manufacturers of industrial lubricant, automobile oil and greases. It is a British Standards certified company. The properties of base oil are given in table no.1.
Properties Range
Appearance Br & clear
Color 1.5 ASTM
Density @ 29.5 D.C. 0.880 gm/ml
K. V. @ 40 D.C. 94 cSt
K. V. @ 100 D.C. 10.54 cSt
Viscosity Index 94 (MIN)
Flash Point (oC) 252
Aniline Point (oC)
Pour Point
105.5.
L-6
Table 1 Properties of Base oil CuO nanoparticles, Figure 1 were purchased from Sigma Aldrich Company, India.
Figure 1 Copper oxide (CuO) in form of nano powder
2.2 Preparation of Nano-oil
One of the most effective factors of the nanofluid properties is the rate of dispersion and stability of nanoparticles inside the base fluid. When dispersion of particles inside the base fluid is not good, it is possible that agglomeration and precipitation of nanoparticles occur; which may cause damage of the frictional surfaces. In the present research, to disperse nanoparticles inside the base oil, we used oleic acid as surface modifier and by preparing lubricant samples in concentrations of 0.2 wt%, 0.5 wt%, 0.75 wt% and 1wt% using an ultrasonic probe for 45 min. These concentration values were obtained from the results of bibliographic research, where concentration of nanoparticles is in the range 0.2-1 wt%. The results confirm that the existence of the surface modification layer can effectively prevent the agglomeration of Cu nanoparticles and provide good oil-dispersion ability.
The materials used in the experiments and their properties are shown in Table 2.
Nanoparticles Properties Copper oxide
(CuO)
Morphology: nearly spherical, Purity:99.95+%, APS: 25-55 nm, Bulk Density: 0.79 g/cm3, True
Density: 6.4 g/m3
Specimens Properties
Disks Grey Cast Iron, hardness=130- 180BHN, d=160 mm, t=8mm, E=66- 157GPa, ν=0.26
Pins Aluminium alloy hardness=100- 150BHN, d=10 mm, l= 30mm, E=73GPa, ν=0.33
Table 2 Properties of the materials 2.3 Anti-Wear Test Procedure
All test-section components were cleaned thoroughly.
Testing was conducted using a Magnum‟s Tribotester.
The friction and wear testing machine was set for pure sliding contact, with a pin-on-disk configuration. The manufactured test pins were run against a counter face of the manufactured disk (properties given in Table 2).
All wear tests were carried out at loading condition 30N, 50N and 65N. The disk was rotated at constant speed of 1000 rpm at room temperature for 10 minute time. The coefficient of friction and wear rate was recorded using strain gauge in tribotester. Wear surfaces on pin were characterized using Scanning Electron Microscopy (SEM).
III. RESULTS AND DISCUSSION
3.1 Anti-wear Properties
`The anti-wear properties are examined according to the results obtained from computerized data acquisition
system in the form of graph. The wear in microns of base oil without nanoparticles is shown in fig. 2, which gives a similar pattern for different experimental values, and a maximum standard deviation of 7, 15 and 25 with respect to load conditions 30N, 50N and 65N among all sets of test data.
The anti-wear property is a function of additive concentration in base oil. Fig. 3 shows the graph of wear verses time in which 0.5 wt% concentration of base oil sample drastically improved the wear reduction at 30N and 65N loading conditions of 3μ and 18μ. But at 50N the wear rate slightly increased by 0.8 μ than that of the base oil.
So as per the above discussion nanoparticle at 0.5% can be reduce wear compared with pure base oil. Since base oil does not contain any anti-wear additive, the tribochemical reaction film cannot be produced on rubbing surfaces. Therefore, lower wear might be attributed to rolling effect of the nanoparticles.
Figure 2 Wear in micron with base oil without nanoparticles
Figure 3 Wear of base oil with and without nanoparticles at 0.5% concentration
3.2 Friction-reduction properties
In order to confirm the repeatability of experimental data, the coefficient of friction was measured in triplicate using the pin on disk tribotester under 30N, 50N and 65N load conditions for 10 minute. The friction
coefficients of base oil without nanoparticles are displayed in fig. 4, which show a similar trend for different experimental results, and a maximum standard deviation of 0.114, 0.028 and 0.059 with respect to 30N, 50N and 65N load conditions among all sets of test data.
The Coefficients Of Friction of the base oil with and without nanoparticles are shown in fig. 5. The x- coordinate shows the time elapse from start to end of single test. The coefficient of friction of base oil containing nanoparticles, CuO are slightly lower than those of base oil without nanoparticles.
The addition of CuO nanoparticles reduced coefficient of friction with respect to pure base oil. The best results were found for the suspensions with a nanoparticle concentration of 0.5%. Fig. 3 shows the suspensions with 0.5 wt% of base oil sample exhibited 24% and 53%
of friction coefficient reduction with respect to the base oil without containing nanoparticles at, 50N and 65N load condition respectively. But for 30N load there was observed to be slight increase in friction coefficient by 1% for 0.5%wt. As can be seen fig. 5 the base oil containing nanoparticles yields better friction reduction behavior which helps the lubrication regime to change from boundary lubrication into mixed or hydrodynamic lubrication, as a result the lower coefficient of friction is observed.
Figure 4 coefficient of friction of base oil without nanoparticles
3.3 Analysis of Specimen surfaces
The SEM morphology was employed to investigate the worn surface of the specimens lubricated by the base oil with and without CuO nanoparticles. Fig. 6 - a and b represents SEM images of rubbed surface lubricated by base oil without nanoparticles. All photographs taken at load are 30N, 50N and 65N at 1000rpm disk speed.
Figure 5 coefficient of friction of base oil with and without nanoparticles at 0.5% concentration By observing fig.6 the surface appears to have many thick and deep furrows and pits or spalls because of contact fatigue and adhesive fatigue. Also gradual removal process of metals fibers is observed, normally occurring in the sequence of fiber thinning, fiber fracture and final removal of broken fiber pieces.
a)
b)
Figure 6-a and b SEM images of worn surfaces with base oil without nanoparticles
But the comparison with base oil with nanoparticles was shown by small wear depth. As shown in fig 7-c and d worn surfaces appear much smoother without severe scuffing. The fiber removal was gradually and fully contributed to the wear resistance of the composites. As the result, the specific wear of the material was much more stable, and load carrying capacity of the material was significantly improved.
c)
d)
Figure 7-c and d SEM images of worn surfaces with base oil with CuO nanoparticles
In this study an interesting result was obtained from the wear surface analysis that with increase in the concentration of nanoparticles, some of the properties of engine oil improved, but it was noticed that an increase in concentration causes a reduction in lubricating properties of engine oil due to agglomeration and precipitation of nanoparticles and as a result causes damage to frictional surface on the wear surfaces. So determining the appropriate concentration to achieve better properties is a very important issue. The tribological performance of base oil could be remarkably improved by using nanoparticles as additional fillers.
Meanwhile, a three body mild abrasive wear was suggested due to the presence of hard nanoparticles in the contact region. However, the three-body contact problem is very complex and depends on many variables, including particle characteristics such as size, hardness and shape and properties of the counterparts such as surface topography and lubricating and loading conditions. The presence of so many factors, and the
interactions among them, makes a full characterization of the roles of these factors in friction and wear very difficult. Up to now, there is still a lack of fundamental understanding of the wear mechanisms when using nanoparticles in such wear conditions. This means that systematic investigation of all the relevant characteristics and properties of nanoparticles is still a matter of further research.
IV. CONCLUSIONS
The following conclusions have been drawn from the conducted research work:.
1. As a lubricant, friction-reduction properties of base oil are enhanced by the addition of CuO nanoparticles to a moderate concentration.
2. Dispersing nanoparticles inside engine oil, due to the base oil's high viscosity, is a very difficult work. The nanoparticles modified by oleic acid exhibited good dispersibility and stability in base oil.
3. Base oil with CuO nanoparticles improved tribological properties in terms of load carrying capacity, anti-wear and friction reduction than base oil without nanoparticles. The results showed that 0.5wt% concentration was an optimum concentration.
4. For the friction reduction test, when CuO nanoparticles were added into base oil, the coefficient of friction reduced by 24% and 53%
at 0.5wt% concentration as compared to oil without nanoparticles.
5. The deposition of nanoparticles on the worn surface can decrease the shearing stress, and hence reduce friction and wear.
