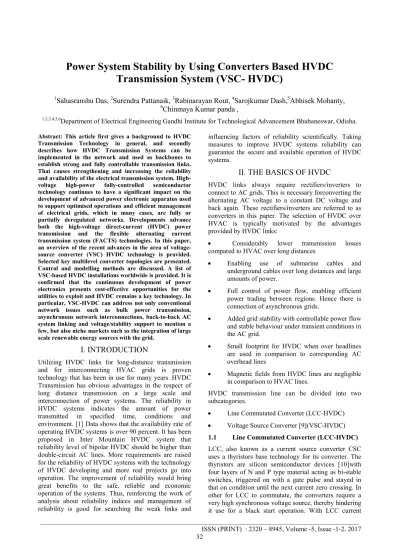

Power System Stability by Using Converters Based HVDC Transmission System (VSC- HVDC)
1Sahasranshu Das, 2Surendra Pattanaik, 3Rabinarayan Rout, 4Sarojkumar Dash,5Abhisek Mohanty,
6Chinmaya Kumar panda ,
1,2,3,4,5,6Department of Electrical Engineering Gandhi Institute for Technological Advancement Bhubaneswar, Odisha.
Abstract: This article first gives a background to HVDC Transmission Technology in general, and secondly describes how HVDC Transmission Systems can be implemented in the network and used as backbones to establish strong and fully controllable transmission links.
That causes strengthening and increasing the reliability and availability of the electrical transmission system. High- voltage high-power fully-controlled semiconductor technology continues to have a significant impact on the development of advanced power electronic apparatus used to support optimised operations and efficient management of electrical grids, which in many cases, are fully or partially deregulated networks. Developments advance both the high-voltage direct-current (HVDC) power transmission and the flexible alternating current transmission system (FACTS) technologies. In this paper, an overview of the recent advances in the area of voltage- source converter (VSC) HVDC technology is provided.
Selected key multilevel converter topologies are presented.
Control and modelling methods are discussed. A list of VSC-based HVDC installations worldwide is provided. It is confirmed that the continuous development of power electronics presents cost-effective opportunities for the utilities to exploit and HVDC remains a key technology. In particular, VSC-HVDC can address not only conventional network issues such as bulk power transmission, asynchronous network interconnections, back-to-back AC system linking and voltage/stability support to mention a few, but also niche markets such as the integration of large scale renewable energy sources with the grid.
I. INTRODUCTION
Utilizing HVDC links for long-distance transmission and for interconnecting HVAC grids is proven technology that has been in use for many years .HVDC Transmission has obvious advantages in the respect of long distance transmission on a large scale and interconnection of power systems. The reliability in HVDC systems indicates the amount of power transmitted in specified time, conditions and environment. [1] Data shows that the availability rate of operating HVDC systems is over 90 percent. It has been proposed in Inter Mountain HVDC system that reliability level of bipolar HVDC should be higher than double-circuit AC lines. More requirements are raised for the reliability of HVDC systems with the technology of HVDC developing and more real projects go into operation. The improvement of reliability would bring great benefits to the safe, reliable and economic operation of the systems. Thus, reinforcing the work of analysis about reliability indices and management of reliability is good for searching the weak links and
influencing factors of reliability scientifically. Taking measures to improve HVDC systems reliability can guarantee the secure and available operation of HVDC systems.
II. THE BASICS OF HVDC
HVDC links always require rectifiers/inverters to connect to AC grids. This is necessary forconverting the alternating AC voltage to a constant DC voltage and back again. These rectifiers/inverters are referred to as converters in this paper. The selection of HVDC over HVAC is typically motivated by the advantages provided by HVDC links:
Considerably lower transmission losses compared to HVAC over long distances
Enabling use of submarine cables and underground cables over long distances and large amounts of power.
Full control of power flow, enabling efficient power trading between regions. Hence there is connection of asynchronous grids.
Added grid stability with controllable power flow and stable behaviour under transient conditions in the AC grid.
Small footprint for HVDC when over headlines are used in comparison to corresponding AC overhead lines
Magnetic fields from HVDC lines are negligible in comparison to HVAC lines.
HVDC transmission line can be divided into two subcategories.
Line Commutated Converter (LCC-HVDC)
Voltage Source Converter [9](VSC-HVDC) 1.1 Line Commutated Converter (LCC-HVDC) LCC, also known as a current source converter CSC uses a thyristors base technology for its converter. The thyristors are silicon semiconductor devices [10]with four layers of N and P type material acting as bi-stable switches, triggered on with a gate pulse and stayed in that on condition until the next current zero crossing. In other for LCC to commutate, the converters require a very high synchronous voltage source, thereby hindering it use for a black start operation. With LCC current
_______________________________________________________________________________________________
rating reaching up to 6250A and blocking voltage of 10KV, this make LCC to have the highest voltage and power rating level of all the HVDC converter technologies.
LCC achieves its control by regulating the firing angle ᾱ on both rectifier and inverting side. It has an approach that utilizes a uni-directional line commutated flow of DC current which is inject into a receiving AC network, thereby termed CSC because the output current is kept at a constant level Fig 1.
Fig 1: LCC–HVDC Design
1.2 Voltage Source Converter (VSC-HVDC) Voltage source converter uses insulated gate bipolar transistor IGBT technology. The current in this technology can both be switched on and off at any time independent of the AC voltage, that is, it creates its own AC voltages in case of black start. Its converters operate at a high frequency with pulse width modulation PWM which allows simultaneous adjustment of the amplitude and phase angle of converter[8] while keeping the voltage constant. VSC has high degree of flexibility with inbuilt capability to control both its active and reactive power as shown in fig. 2, which makes it more useful in urban power network area.
Fig 2: VSC–HVDC Design
III. POWER IMPROVEMENT USING VSC- HVDC
Fig 3: Configuration of the HVDC system
The configuration shown in figure 3 consists of ac filters, transformer, converters, phase reactors, dc filters capacitor. This scheme is based on the voltage source converter (VSC), where the valves are built by IGBT[2]
(Insulated Gate Bipolar Transistor) and PWM (Pulse Width Modulation) is used to create a desired waveform.
The main function of the VSC-HVDC is to transmit constant dc power from the rectifier to the inverter.
Converters
The converter is a 12-pulse double bridge converter which consists of two 6-pulse bridge converters connected in series and employs IGBT power semiconductors, one operating as a rectifier and the other as inverter.
Transformers
The converters are normally connected to the ac system via the transformers. The most important function is to transform ac voltage to a value suitable for the converter.
Phase reactors
The phase reactors are used for controlling both the active and reactive power flow by regulating current through them and filters are used to reduce harmonic contents as a result of switching.
AC filters
The output of AC voltage contains harmonic components. These harmonics have to be removed to prevent them from being emitted into the ac system and causing equipment malfunctioning or radio and telecommunication interference. High –pass filters are installed to mitigate the harmonics.
DC capacitors
The objective of the dc capacitor is to provide a low inductive path for the turned off current and energy storage to be able to control the power flow. It also reduces the ripples on the dc side. The size of the capacitors depends on the required dc voltage.
AC source
Ideally the ac source model can be developed by using Thevenin equivalent circuit. However, for simplicity, the source was modelled using ideal symmetrical three- phase voltage.
IV. CONTROL DESIGN OF DC TRANSMISSION
Power transmit from station-A to station-B through HVDC link. The current flowing in the dc transmission is determined by the dc voltage difference between the two converter stations.
Fig 4:Control Design of DC Transmission Using the notation shown in figure 4,where
rd=represents the total resistance of the transmission line.
Id =DC current.
UdA = dc voltage at station A . UdB= dc voltage at station B.
Id= UdA - UdB
rd
Power transmitted to station B can represent as:
Pd=UdB.Id= UdB
UdA - UdB
rd
4.1 PWM Control System
The rectifier controls the dc voltage and the inverters controls the active power while the reactive power cannot be independently controlled. The PWM technology makes it possible to control the reactive power and the active power independently. The master control, however, is usually designed with specification depending on the requirements of transmission. The control can be designed for constant current or constant power transmitted, or it can be designed to help stabilize the frequency in one of AC networks by varying the current of active power transmitted. The master control is only active in a station selected to act as the master station, which controls the current command. In order to synchronize the two converters and assume that they operate with the same current command, a telecommunication is required. The telecommunication system should be fault-free to avoid the current command to both converter station from been frozen. It is equipped with an IEEE type AC 4A excitation system of which block diagram is shown in Figure 5.
Transmission lines are represented as the Bergeron model. It is based on a distributed LC parameter travelling wave line model, with lumped resistance. It represents the L and C elements of a PI section in a distributed manner.
Fig. 5 : IEEE type AC 4A excitation system 4.2 MCC Control System
A master current controller (MCC)[7], shown in Figure 6, is used to control the current order for converters. It measures the conductor ac current, computes the permissible dc current, and produces dc current order for inverters and rectifiers.
Fig. 6 : Master current controller (MCC)
V. SIMULATION AND RESULTS
A force commutated VSC is used to transmit dc power from a 400kV ,2000MVA, 50Hz system to another ac system. The rectifier and the inverter are connected through a 125km line (i.e. distributed parameter line) and two 8mH phase reactors. The sinusoidal pulse width modulation switching uses a frequency 27 times the fundamental frequency.A converter transformer (Y/D) is used to permit the optimal voltage transformation. To meet ac system harmonic specifications, ac filters form an essential part of the scheme. They can either be connected on the ac system side or the converter side of the converter transformer.
Fig. 7 : Simulink Model of HVDC system The filter is made up of passive R, L, C components their values can be computed using specified nominal reactive[6] power, tuning frequency and quality factor.
Results
_______________________________________________________________________________________________
The performance of the system is analysed under improvement when the lines are loaded beyond their thermal and the response of the system is given in figure 9. Shows the voltage-current behaviour of the Inverter under improvement and it shows the transient stability of the system has shifted from -0.2 and 0. 2 seconds under normal condition to 0.2 and 0.6 seconds when improved. Figure 8 responses remain the same as when operating under normal operating condition but with a slight shift from 0 to 0.01 seconds indicating that when loaded beyond the thermal limit, the effect is minimal in the inverter station compared to the rectifier station. It can also be observed that with the configuration used, the reactive power at the sending end was minimised while the receiving end voltage was maintained without any compensation.
Fig. 8 : Inverter current and voltage reference under improvement
Fig.9 : Inverter voltage-current behaviour under improvement.
VI. CONCLUSION:
This paper presents a feasibility of a steady-state stability performance of dc Transmission and the system studied shows there is a substantial increase in the load ability of the line. The line is loaded to its thermal limit with the superimposed dc current. The dc power flow does not impose any stability problem. It can be concluded that the system response is fast[4]; high quality ac voltages and ac currents can be obtained at the receiving station; the active and reactive power can be controlled independently. The scheme also ensures that the receiving voltage can be maintained without [3]compensation. This scheme can also be tailored to a multitude of applications depending on the control strategy selected. The knowledge obtained from this simulation can be used to predict the characteristic behaviour and the performance of the real system.
