sd/- STANDARD DEPARTURE CHART - INSTRUMENT (SID)

(1)

Airports Authority of India AIP Supplement 154/2019 Page 1 of 8

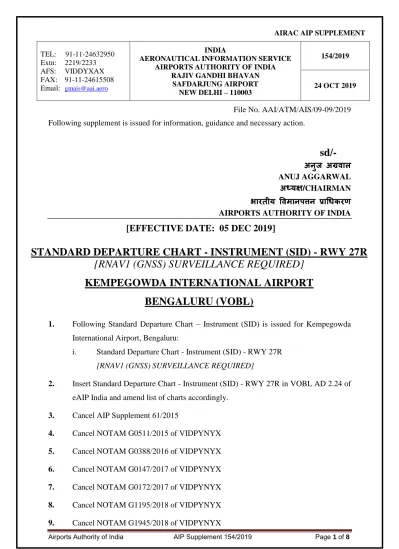

AIRAC AIP SUPPLEMENT

File No. AAI/ATM/AIS/09-09/2019 Following supplement is issued for information, guidance and necessary action.

sd/-

अनुज अग्रवाल ANUJ AGGARWAL

अध्यक्ष/ CHAIRMAN भारतीय ववमानपत्तन प्राधिकरण AIRPORTS AUTHORITY OF INDIA

[EFFECTIVE DATE: 05 DEC 2019]

STANDARD DEPARTURE CHART - INSTRUMENT (SID) - RWY 27R [RNAV1 (GNSS) SURVEILLANCE REQUIRED]

KEMPEGOWDA INTERNATIONAL AIRPORT BENGALURU (VOBL)

1. Following Standard Departure Chart – Instrument (SID) is issued for Kempegowda International Airport, Bengaluru:

i. Standard Departure Chart - Instrument (SID) - RWY 27R [RNAV1 (GNSS) SURVEILLANCE REQUIRED]

2. Insert Standard Departure Chart - Instrument (SID) - RWY 27R in VOBL AD 2.24 of eAIP India and amend list of charts accordingly.

3. Cancel AIP Supplement 61/2015

4. Cancel NOTAM G0511/2015 of VIDPYNYX

9. Cancel NOTAM G1945/2018 of VIDPYNYX TEL: 91-11-24632950

Extn: 2219/2233 AFS: VIDDYXAX FAX: 91-11-24615508 Email: [email protected]

INDIA

AERONAUTICAL INFORMATION SERVICE AIRPORTS AUTHORITY OF INDIA

RAJIV GANDHI BHAVAN SAFDARJUNG AIRPORT

NEW DELHI – 110003

154/2019

24 OCT 2019

(2)

c c

c

c l c

c

c c

c

c c

c

c c

c

c c c

VOD 178 28000' SEA LVL

VOP 196 5000'

GND

VOR 44B FL210 GND/SEA

LA TI D 7B

AN IRO 7B OP AM O

7B

TULNA 7B VEMBO 7B

AK TI M 7B PEXEG 7 B

GUNIM 7B SA I7 B

SAI

VEMBO 7 S AN IR O 7S

1 0 4 8

5 3 4 7 3 9

4 1 4 9

5 2 4 6

6 7 4 8

3 1 3 7 4 2 4 1 3 5 4 0

6 1

GUNI M 7J

VOD 179B 6000' AMSL

GND

VOD 177 26500' AMSL

GND

VOD 188 19000' AMSL

GND

VOP 195 5000' AMSL

GND

VOR 183A 45000' AMSL

GND

VOR 183B 45000' AMSL

15000'

VOR 181A GND UNL VOR 181B

GND UNL VOR 185D

FL200 GND

VOR185B 6000' AMSL

GND VOR185A 6000' AMSL

GND VOR181D

FL460 GND

TRA809 FL400

GND VOR185C 6000' AMSL

GND

VOD 179A 5000' AMSL

GND

VOR181C FL460

GND

VA GP U 7B

VAGPU

Yelahanka Aerodrome 4000

5000

4000 4000

4000 4000 4000

4000

4000 4000

4000

4000 4000

4000

4000 4000

4000

5000 5000

5000 5000 50006000

40005000

294°

020°

335°

089°

048°

262°

189°

187°

095°

032°

088°

292°

212°

131°

123°

096°

262°

088°

015°

031°

030°

082°

302°

253°

095°

006°

342°

106.5

53.6 71.4

59.7

53.1

42.8 41.2

33.9

29.0 24.4 17.7

15.0 14.9

13.0 14.2

11.7 8.6

11.1 38.4

13.8

16.6

36.0 30.8

95.5

23.0 69.8

VEMBO LATID

ANIRO

LIGLO BL802 FL140

TULNA BL804

FL110 FL100 PEXEG

BL811 FL140

OPAMO

BL503 FL110 GUNIM

BL504

BL801

AKTIM OMUKA

BL507 FL110 BL506 BL803

BL818

BL816 DOXIT

80°0'0"E 79°0'0"E

78°0'0"E 77°0'0"E

76°0'0"E 75°0'0"E

15°0'0"N 15°0'0"N

14°0'0"N 14°0'0"N

13°0'0"N 13°0'0"N"N

ELEV ALT IN FEET

DIST IN NAUTICAL MILE BRG ARE MAGNETIC VAR 1.8°W(2010)

TRANSITION ALT 7000

10 0 10 20 30 40 NM RNAV1(GNSS)

SURVEILLANCE REQUIRED

RWY 27R BENGALURU (VOBL) STANDARD DEPARTURE CHART

INSTRUMENT (SID) AKTIM 7B, ANIRO 7B, GUNIM 7B, GUNIM 7J,

OPAMO 7B, SAI 7B, PEXEG 7B, TULNA 7B, VEMBO 7B, LATID 7B, VEMBO 7S,ANIRO 7S VAGPU 7B

AKTIM 7B , GUNIM 7B, PEXEG 7B,TULNA 7B, VEMBO 7S, ANIRO 7S Cross BL801 at or above A 070 due Yelahanka airspace restriction

!

A

MSA 25NM BENGALURU ARP

6000 5500

36 0°

20 5°

APP ARR 121.250

APP 127.750

TWR 124.350

(3)

RNAV 1 SID RWY27R (VOBL)

TABULAR DESCRIPTION RNAV 1 SID RWY27R(VOBL) ANIRO 7B

VEMBO 7B

Waypoint Identifier

Path Descriptor

Fly over

Course Angle

Turn Direction

Upper Limit Altitude

Lower Limit Altitude

Speed Limit

TM DST VA Navigation Specification

0M(⁰T) ft ft kt NM °

- VA 272.34°

(270.50° ) - - +3400.00 - - RNAV 1

BL801 CF Y 302.00°

(300.17°) R - - - - RNAV 1

BL503 TF 32.32°

(30.49° ) R -FL110 - - 14.87 RNAV 1

BL802 TF 87.78°

(85.95° ) R - +FL140 - 12.96 RNAV 1

LIGLO TF 87.84°

(86.00°) - - - - 14.20 RNAV 1

VEMBO TF 89.08°

(87.24° ) - - - - 42.84 RNAV 1

ANIRO 7S

Waypoint Identifier

Fly over

Speed Limit

TM DST VA Navigation Specification

- VA 272.34°

(270.50°) - - +3400.00 - - 3.32 RNAV 1

BL801 CF Y 302.00°

(300.17°) R - +7000.00 - - 3.32 RNAV 1

BL803 TF 211.98°

(210.14°) L - - - 11.69

-

^{RNAV 1}

BL506 TF 123.13°

(121.30°) L - - - 8.58

-

^{RNAV 1}

BL804 TF 95.35°

(93.52° ) L -FL110 +FL100 - 15.00

-

^{RNAV 1}

BL816 TF 95.44°

(93.60°) - - - - 23.02 - RNAV 1

DOXIT TF 5.56°

(3.73° ) L - - - 16.61 - RNAV 1

BL818 TF 30.43°

(28.59° ) R - - - 13.80 - RNAV 1

Waypoint Identifier

Fly over

Course Angle

Lower Limit Altitude

Speed Limit

- VA 272.34°

(270.50°) - - +3400.00 - - RNAV 1

BL801 CF Y 302.00°

(300.17°) R - - - - RNAV 1

BL503 TF 32.32°

(30.49° ) R -FL110 - - 14.87 RNAV 1

BL802 TF 87.78°

(85.95°) R - +FL140 - 12.96 RNAV 1

LIGLO TF 87.84°

(86.00°) - - - - 14.20 RNAV 1

ANIRO TF 47.82°

(45.98°) L - - - 41.22 RNAV 1

____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

(4)

ANIRO TF 30.50°

(28.66° ) R - - - 36.03 - RNAV 1

VEMBO 7S

Waypoint Identifier

Fly over

Speed Limit

TM DST VA Navigation

Specification

- VA 272.34°

(270.50°) - - +3400.00 - - 3.32 RNAV 1

BL801 CF Y 302.00°

(300.17°) R - +7000.00 - - 3.32 RNAV 1

BL803 TF 211.98°

(210.14°) L - - - 11.69

-

^{RNAV 1}

BL506 TF 123.13°

(121.30°) L - - - 8.58

-

^{RNAV 1}

BL804 TF 95.35°

(93.52° ) L -FL110 +FL100 - 15.00

-

^{RNAV 1}

BL816 TF 95.44°

(93.60°) - - - - 23.02 - RNAV 1

DOXIT TF 5.56°

(3.73° ) L - - - 16.61 - RNAV 1

BL818 TF 30.43°

(28.59° ) R - - - 13.80 - RNAV 1

VEMBO TF 82.42°

(80.59°) R - - - 30.84 - RNAV 1

TULNA 7B

Waypoint Identifier

Fly over

Speed Limit

TM DST VA Navigation

Specification

- VA 272.34°

(270.50°) - - +3400.00 - - 3.32 RNAV 1

BL801 CF Y 302.00°

(300.17°) R - +7000.00 - - 3.32 RNAV 1

BL803 TF 211.98°

(210.14°) L - - - 11.69

-

^{RNAV 1}

BL506 TF 123.13°

(121.30°) L - - - 8.58

-

^{RNAV 1}

BL804 TF 95.35°

(93.52° ) L -FL110 +FL100 - 15.00

-

^{RNAV 1}

BL816 TF 95.44°

(93.60°) - - - - 23.02 - RNAV 1

TULNA TF 95.64°

(93.81° ) - - - - 53.64 - RNAV 1

(5)

RNAV 1 SID RWY27R (VOBL) AKTIM 7B

Waypoint Identifier

Fly over

Speed Limit

- VA 272.34°

(270.50°) - - +3400.00 - - 3.32 RNAV 1

BL801 CF Y 302.00°

(300.17°) R - +7000.00 - - 3.32 RNAV 1

BL803 TF 211.98°

(210.14°) L - - - 11.69 - RNAV 1

BL506 TF 123.13°

(121.30°) L -FL110 - - 8.58 - RNAV 1

BL507 TF 130.55°

(128.72°) R -FL110 - - 11.07 - RNAV 1

OMUKA TF 186.81°

(184.98°) R - - - 24.43 - RNAV 1

AKTIM TF 189.06°

(187.22°) - - - - 28.98 - RNAV 1

PEXEG 7B

Waypoint Identifier

Fly over

Speed Limit

- VA 272.34°

(270.50°) - - +3400.00 - - 3.32 RNAV 1

BL801 CF Y 302.00°

(300.17°) R - +7000.00 - - 3.32 RNAV 1

BL811 TF 262.45°

(260.61°) L -FL140 - - 33.91 - RNAV 1

PEXEG TF 262.24°

(260.41°) - - - - 53.13 - RNAV 1

GUNIM 7B

Waypoint Identifier

Fly over

Speed Limit

- VA 272.34°

(270.50°) - - +3400.00 - - 3.32 RNAV 1

BL801 CF Y 302.00°

(300.17°) R - +7000.00 - - 3.32 RNAV 1

BL504 TF 292.08°

(290.24° ) L - - - 17.70 - RNAV 1

GUNIM TF 293.82°

(291.99°) - - - - 106.53 - RNAV 1

____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

(6)

GUNIM 7J

Waypoint Identifier

Fly over

Speed Limit

- VA 272.34°

(270.50°) - - +3400.00 - - - RNAV 1

BL801 CF Y 302.00°

(300.17°) R - - - RNAV 1

BL503 TF 32.32°

(30.49° ) R -FL110 - - 14.87 - RNAV 1

OPAMO TF 335.21°

(333.38°) L - - - 71.39 - RNAV 1

GUNIM TF 253.14°

(251.31° ) L - - - 95.50 - RNAV 1

OPAMO 7B

Waypoint Identifier

Fly over

Speed Limit

- VA 272.34°

(270.50°) - - +3400.00 - - - RNAV 1

BL801 CF Y 302.00°

(300.17°) R - - - RNAV 1

BL503 TF 32.32°

(30.49° ) R -FL110 - - 14.87 - RNAV 1

OPAMO TF 335.21°

(333.38°) L - - - 71.39 - RNAV 1

VAGPU 7B

Waypoint Identifier

Fly over

Speed Limit

- VA 272.34°

(270.50°) - - +3400.00 - - - RNAV 1

BL801 CF Y 302.00°

(300.17°) R - - - RNAV 1

BL503 TF 32.32°

(30.49° ) R -FL110 - - 14.87 - RNAV 1

OPAMO TF 335.21°

(333.38°) L - - - 71.39 - RNAV 1

VAGPU TF 342.17°

(340.34°) R - - - 69.79 - RNAV 1

SAI 7B

Waypoint Identifier

Fly over

Speed Limit

- VA 272.34°

(270.50°) - - +3400.00 - - - RNAV 1

BL801 CF Y 302.00°

(300.17°) R - - - RNAV 1

BL503 TF 32.32°

(30.49° ) R -FL110 - - 14.87 - RNAV 1

(7)

RNAV 1 SID RWY27R (VOBL)

SAI TF (14.77° )

12.94° L - - - 38.37 - RNAV 1

LATID 7B

Waypoint Identifier

Fly over

Speed Limit

- VA 272.34°

(270.50°) - - +3400.00 - - - RNAV 1

BL801 CF Y 302.00°

(300.17°) R - - - RNAV 1

BL503 TF 32.32°

(30.49° ) R -FL110 - - 14.87 - RNAV 1

LATID TF 19.56°

(17.73°) L - - - 59.71 - RNAV 1

____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

(8)

WAYPOINT LIST RNAV 1 SID RWY027R

BL801 N 13:18:33.89E 77:30:31.44

BL503 N 13:31:26.39E 77:38:15.84

BL802 N 13:32:21.94E 77:51:32.08

LIGLO N 13:33:21.98E 78:06:04.50

ANIRO N 14:02:09.76E 78:36:30.20

VEMBO N 13:35:30.00E 78:50:00.00

BL803 N 13:08:24.55E 77:24:30.09

BL506 N 13:03:56.18E 77:32:00.72

BL804 N 13:03:01.21E 77:47:20.85

BL816 N 13:01:35.04E 78:10:53.28

DOXIT N 13:18:13.96E 78:11:59.69

BL818 N 13:30:24.10E 78:18:45.99

TULNA N 12:58:06.00E 79:05:43.00

BL507 N 12:56:59.10E 77:40:51.60

OMUKA N 12:32:32.35E 77:38:41.31

AKTIM N 12:03:39.94E 77:34:57.76

BL811 N 13:13:02.91E 76:56:12.65

PEXEG N 13:04:15.10E 76:02:30.20

BL504 N 13:24:43.54E 77:13:29.61

GUNIM N 14:05:08.30E 75:32:08.50

SAI N 14:09:00.00E 77:47:05.00

VAGPU N 15:41:36.00E 76:41:13.00

LATID N 14:28:34.63E 77:56:55.50

OPAMO N 14:35:34.60E 77:05:25.90
