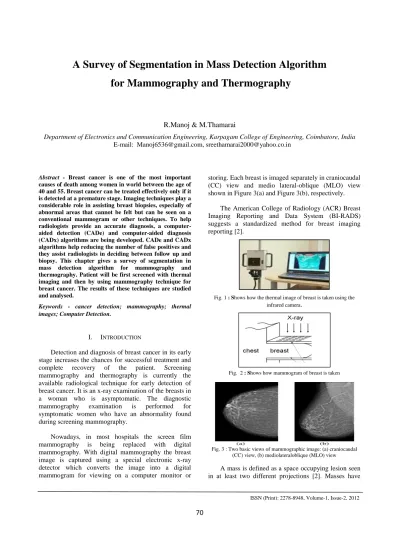

A Survey of Segmentation in Mass Detection Algorithm for Mammography and Thermography

(1)

ISSN (Print): 2278-8948, Volume-1, Issue-2, 2012

70

for Mammography and Thermography

R.Manoj & M.Thamarai

Department of Electronics and Communication Engineering, Karpagam College of Engineering, Coimbatore, India E-mail: [email protected], [email protected]

Abstract - Breast cancer is one of the most important causes of death among women in world between the age of 40 and 55. Breast cancer can be treated effectively only if it is detected at a premature stage. Imaging techniques play a considerable role in assisting breast biopsies, especially of abnormal areas that cannot be felt but can be seen on a conventional mammogram or other techniques. To help radiologists provide an accurate diagnosis, a computer- aided detection (CADe) and computer-aided diagnosis (CADx) algorithms are being developed. CADe and CADx algorithms help reducing the number of false positives and they assist radiologists in deciding between follow up and biopsy. This chapter gives a survey of segmentation in mass detection algorithm for mammography and thermography. Patient will be first screened with thermal imaging and then by using mammography technique for breast cancer. The results of these techniques are studied and analysed.

Keywords - cancer detection; mammography; thermal images; Computer Detection.

I. INTRODUCTION

Detection and diagnosis of breast cancer in its early stage increases the chances for successful treatment and complete recovery of the patient. Screening mammography and thermography is currently the available radiological technique for early detection of breast cancer. It is an x-ray examination of the breasts in a woman who is asymptomatic. The diagnostic mammography examination is performed for symptomatic women who have an abnormality found during screening mammography.

Nowadays, in most hospitals the screen film mammography is being replaced with digital mammography. With digital mammography the breast image is captured using a special electronic x-ray detector which converts the image into a digital mammogram for viewing on a computer monitor or

storing. Each breast is imaged separately in craniocaudal (CC) view and medio lateral-oblique (MLO) view shown in Figure 3(a) and Figure 3(b), respectively.

The American College of Radiology (ACR) Breast Imaging Reporting and Data System (BI-RADS) suggests a standardized method for breast imaging reporting [2].

Fig. 1 : Shows how the thermal image of breast is taken using the infrared camera.

Fig. 2 : Shows how mammogram of breast is taken

Fig. 3 : Two basic views of mammographic image: (a) craniocaudal (CC) view, (b) mediolateraloblique (MLO) view

A mass is defined as a space occupying lesion seen in at least two different projections [2]. Masses have

(2)

71 different density (fat containing masses, low density, isodense, and high density), different margins (circumscribed, microlobular, obscured, indistinct, spiculated) and different shape (round, oval, lobular, irregular). Round and oval shaped masses with smooth and circumscribed margins usually indicate benign changes. On the other hand, a malignant mass usually has a spiculated, rough and blurry boundary.

However, there exist a typical cases of macrolobulated or speculated benign masses, as well as microlobulated or well-circumscribed malignant masses [3]. A round mass with circumscribed margins is shown in Figure 4(a). Calcifications are deposits of calcium in breast tissue. Calcifications detected on a mammogram are an important indicator for malignant breast disease but are also present in many benign changes. Benign calcifications are usually larger and coarser with round and smooth contours [2]. Malignant calcifications tend to be numerous, clustered, small, varying in size and shape, angular, irregularly shaped and branching in orientation [1]. Calcifications are generally very small and they may be missed in the dense breast tissue.

Fig. 4 : Examples of abnormalities: (a) round mass with circumscribed margins, (b) fine pleomorphic clustered calcifications

Another issue is that they sometimes have low contrast to the background and can be misinterpreted as noise in the inhomogeneous background [4]. Fine pleomorphic clustered calcifications with high probability of malignancy are shown in Figure 4(b)

Bilateral asymmetries of concern are those that are changing or enlarging or new, those that are palpable and those that are associated with other findings, such as micro calcifications or architectural distortion [5]. 65- 90% of the biopsies of suspected cancers turn out to be benign [6]. Objective and quantitative analysis facilitated by the application of computers to biomedical image analysis leads to a more accurate diagnostic decision by the physician [7].

Computer-aided detection (CADe) and computer- aided diagnosis (CADx) systems can improve the results of mammography screening programs and decrease number of false positive cases. Most image processing

algorithms consist of a few typical steps depicted in Figure 5. The screen film mammographic images need to be digitized prior the image processing. This is one of the advances of digital mammography where the image can be directly processed. The first step in image processing is the preprocessing step. It has to be done on digitized images to reduce the noise and improve the quality of the image. The segmentation step aims to find suspicious regions of interest (ROIs) containing abnormalities.

Fig. 5 : Typical steps in image processing algorithms

The interpretation being mostly used is the confusion matrix (1) or just the number of true positives (TPs) and false positives (FPs). The confusion matrix consists of true negative (TN), false positive (FP), false negative (FN) and true positive (TP).

C = ⎡TN FP⎤ (1) ⎣FN TP⎦

There are some often mentioned terms such as accuracy (2), precision (3), sensitivity or true positive rate (TPR) (4) and false positive rate (FPR) (5).

(3)

72 II. MASS DETECTION ALGORITHMS IN MAMMOGRAPHY

Fig. 6 : The steps involved in Mammographic images processing

As already defined, a mass is space occupying lesion seen in at least two different projections defined with wide range of features that can indicate benign changes but can also be a part of malignant changes.

Masses with round, smooth and circumscribed margins usually indicate benign changes while masses with spiculated, rough and blurry margins usually indicate a malignant mass. A benign round mass is shown in Figure 7(a) and malignant spiculated mass is shown in Figure 7(b).

Fig. 7 : An example of: (a) round mass, (b) spiculated mass

Algorithms for breast mass detection in digital mammography usually consist of several steps:

segmentation, feature extraction, feature selection and classification. In the segmentation step regions of interest (ROIs) that contain abnormalities are segmented from the normal breast tissue. In the second stage of the algorithm each ROI is characterized with the set of features. In the feature selection step the best set of features are selected and in the classification step suspicious ROIs are classified as benign masses or malignant masses.

2.1 Segmentation

The aim of the segmentation is to extract ROIs containing all masses and locate the suspicious mass candidates from the ROI. Segmentation of the suspicious regions on a mammographic image is designed to have a very high sensitivity and a large number of false positives are acceptable since they are expected to be removed in later stage of the algorithm [4]. Researchers have used several segmentation techniques and their combinations.

2.1.1 Thresholding Techniques

Global thresholding [11] is one of the common techniques for image segmentation. It is based on the global information, such as histogram. The fact that masses usually have greater intensity than the surrounding tissue can be used for finding global threshold value. On the histogram, the regions with an abnormality impose extra peaks while a healthy region has only a single peak [6]. After finding a threshold value the regions with abnormalities can be segmented.

Global thresholding is not a very good method to identify ROI because masses are often superimposed on the tissue of the same intensity level. Global thresholding has good results when used as a primary step of some other segmentation techniques. Local thresholding is slightly better than global thresholding.

Li et al. [12] used local adaptive thresholding to segment mammographic image into parts belonging to same classes and an adaptive clustering to refine the results.

Matsubara et al. [13] developed an adaptive thresholding technique that uses histogram analysis to divide mammographic image into three categories based on the density of the tissue ranging from fatty to dense Dominguez and Nandi [14] performed segmentation of regions via conversion of images to binary images at multiple threshold levels.

Varela et al. [15] segmented suspicious regions using an adaptive threshold level. The images were previously enhanced with an iris filter.

Li et al. [16] used adaptive gray-level thresholding to obtain an initial segmentation of suspicious regions followed by a multiresolution Markov random field model-based method.

2.1.2 Region-Based Techniques

Markov random field (MRF) or Gibbs random field (GRF) is one of the segmentation methods in iterative pixel classification category. MRFs/GRFs are statistical Read the Image

Convert the Image into Binary Form

Edge Detection

Create Morphological structuring element of Image

Erode and Dilation of the image

Morphological operations on images

Display the cancer region

(4)

73 methods and powerful modeling tools [16]. Székely et al. [17] used MRF in "fine" segmentation to improve the preliminary results provided by the "coarse"

segmentation.

Zheng et al. [18] used an adaptive topographic region growth algorithm to define initial boundary contour of the mass region and then applied an active contour algorithm to modify the final mass boundary contour.

Pappas [19] used a generalization of K-means clustering algorithm to separate the pixels into clusters based on their intensity and their relative location.

Li et al. [12] used an adaptive clustering to refine the result attained from the localized adaptive thresholding.

Sahiner et al. [20] used K-means clustering algorithm followed by object selection to detect initial mass shape within the ROI.

2.1.3 Edge Detection Techniques

Edge detection algorithms are based on the gray level discontinuities in the image. Basis for edge detection are gradients or derivatives that measure the rate of change in the gray level.

Rangayyan [7] described standard operators for edge detection such as Prewitt operator, Sobel operator, Roberts’s operator and Laplacian of Gaussian (LoG) operator.

Fauci et al. [21] developed an edge-based segmentation algorithm that uses iterative procedure, a ROI Hunter algorithm for selecting ROIs.

Petrick [22] used Laplacian of Gaussian filter in conjunction with density weighted contrast enhancement (DWCE). DWCE method enhances the structures within the mammographic image to make the edge detection algorithm able to detect the boundaries of the objects.

Zou et al. [23] proposed a method that uses gradient vector flow field (GVF) which is a parametric deformable contour model. After the enhancement of mammographic images with adaptive histogram equalization, the GVF field component with the larger entropy is used to generate the ROI. In the Figure 8 an example of GVF with and without enhancement is given.

Component generated from (a), (c) the enhanced image through adaptive histogram equalization, (d) the horizontal GVF component of (c), (e) generated mass mask [23] © IEEE Ferreira et al. [24] used active contour model (ACM) based on self-organizing network (SON) to segment the ROI.

Fig. 8 : An example of GVF: (a) the original mammographic image, (b) the horizontal GVF

Yuan et al. [25] employed a dual-stage method to extract masses from the surrounding tissues. Radial gradient index (RGI) based segmentation is used to yield an initial contour close to the lesion boundary location and a region-based active contour model is utilized to evolve the contour further to the lesion boundary.

2.1.4 Hybrid Techniques

Stochastic model-based image segmentation is a technique for partitioning an image into distinctive meaningful regions based on the statistical properties of both gray level and context images.

Li et al. [26] employed a finite generalized Gaussian mixture (FGGM) distribution which is a statistical method for enhanced segmentation and extraction of suspicious mass areas. Finally, they applied a contextual Bayesian relaxation labeling (CBRL) technique to perform the selection of the suspected masses. The examples of the segmentation results are shown in Figure 9.

Ball and Bruce [27] segmented suspicious masses in polar domain. They used adaptive level set segmentation method (ALSSM) to adaptively adjust the border threshold at each angle in order to provide high- quality segmentation results. They extended their work in [28] where they used spiculation segmentation with level sets (SSLS) to detect and segment spiculated masses.

Fig. 9 : Examples of normal mixed fatty and glandular mammogram:

(a) Original mammogram, (b) Segmentation result based on the original mammogram, (c) Enhanced mammogram, (d) Result based on the enhanced mammogram [26] © IEEE

In conjunction with level set segmentation they used Dixon and Taylor line operator (DTLO) and a generalized version of DTLO (GDTLO). Hassanien and

(5)

74 Ali [29] developed an algorithm for segmenting speculated masses based on pulse coupled neural networks (PCNN) in conjunction with fuzzy set theory.

III. MASS DETECTION ALGORITHMS IN THERMOGRAPHY While capturing the thermal image, the room temperature must be kept stable at approximately 22 to 24°C, so that the patient feels comfortable, and not sweating nor shivering. Fluorescent ceiling lights are used and very far away from the scanned area. Patients are asked to remove their dress from their waist upwards and left to equilibrate with the ambient surroundings for 10 to 20 minutes. Patient is later instructed to sit in the middle of a rotation stool without a back rest, positioned at approximately 100 cm from the thermal camera [27].

Patients are asked to keep their hands on their head and remain at rest. Three images are captured from each patient: one face (0 degree) and one oblique on each side at 45 degree angle from middle line for optimal exposure of all aspects of the breasts. Images are then appropriately labelled and stored. These colour images (thermogram) comprise colour pixels, each one reflecting a single temperature measurement.

Diagnostic criteria for breast cancer by thermography are as follows [28, 29]:

 An asymmetric hot spot

 Asymmetric abnormal exaggeration of vascular patterns

 Significant temperature differences in heat pattern - a high thermal index

 Positive heat patterns in sequential thermography

 Existence of a hot spot in subtraction thermography

Here thermal images are segmented using 3 methods based on grey threshold, RGB and K-mean technique

3.1 Grey Threshold

In threshold based image segmentation cut off value is selected by trial and error methods and an optimal value is selected as the threshold. In threshold based image segmentation, the green, blue and red threshold values are obtained by trial and error method. An optimal threshold value is chosen and based on that, the image is separated. The optimal threshold value will be calculated for all the primary colours red, green and blue.

Fig. 10 : Threshold based Colour segmented thermal image with histogram

3.2 RGB Technique

In RGB the images are segmented by the colour function. RGB based segmentation colours are grouped as Red, Green and Blue. All fades of red comes under Red, fades of green under Green and so on. Whereas detecting Red regions, all fades are grouped together and other colours are separated similarly.

In Figure 11 the images are segmented using RGB filters. However this segmentation is not very effective since it transforms the fades of red into single red colour as marked as RED region in the image. The same thing with the green and blue fades. When the threshold and filter based segmented images are added, the original image can be retrieved from RGB filter based segmentation. But in threshold of images, it was found that some regions were missing as shown in Figure 10 (bottom row). This missing region indicates that the few pixel values were omitted in the original image while calculating the threshold values.

Fig. 11 : RGB based Colour segmented thermal image

Region of High Temperature (ROI) Gray Scale Image

0 1000 2000 3000

Histogram

0 100 200

Region of Low Temperature (Normal) Gray Scale Image

0 1000 2000

Histogram

0 100 200

Region of Medium Temperature (Normal) Gray Scale Image

0 2000 4000

Histogram

0 100 200

Original Image RED

BLUE GREEN

ADDED IMAGE Using Filter ADDED IMAGE Using Threshold

(6)

75 3.3 K-mean Technique

In k-mean the images are segmented using the k- means algorithm. K-mean thermogram image analysis detects the masses by using image segmentation technique and asymmetry analysis. It is the fastest unsupervised learning technique for image clustering.

The process and steps are demonstrated in flow chart as shown in Figure 12. In this work, the K-mean colour segmentation is used for identifying the high temperature region on the breast. Based on this technique the images are segmented into many clusters i.e., small regions based on the colours. K-mean divides the M data points to K disjoint subsets Si where i = 1, 2, 3...K. It is based on the objective minimization function as given by,

(2) where x_n : a vector representing n^th data point in S_i µ_i : geometric centre of data points

Fig. 12 : The steps involved in K-mean clustering of Thermal images

Fig. 13 shows the segmented thermal images using K-mean. Since the number of clusters used for segmentation is five, so the produced segmented coloured images will be five. Red colour in the thermal image shows the region of high temperature. Referring to Figure 13, the fourth segmented image is red in colour. This represents the region of high temperature.

From this we can obviously determine the region of the cancer tumours by using thermal images. In Figures 10,11 the left side breast is in lower temperature region compared to the right breast. The hotter spots are more pronounced in the right breast which indicates the possibility of cancer.

Fig.13 : K-Mean based Colour segmented thermal image

In Figure 9, the right side breast is in lower temperature compared to the left breast. The hotter spots are more pronounced in the left breast. Thus we can conclude that the probability of the left breast to have cancerous tumours is very high.

IV. CONCLUSION

CADS based image processing system helps the clinician to identifying the cancer regions. Cancer identification can be done by using mammogram or thermal images or by both. The patients might feel discomfort during the mammogram session since the breast will be pressed by the plates while taking the image. In thermal image the patient would feel more comfortable since there is no such painful procedure like mammogram. It can be concluded that the thermal images can be used effectively to detect cancer cells.

This would help physician especially pathologist to diagnosis cancer at earlier stage and be able to propose adequate and effective treatment for the patients.

In this chapter, algorithms that are commonly used and the ones recently developed were presented. Over the years there has been an improvement in the detection algorithms but their performance is still not perfect.

Possible reason for such a performance may be the characteristics of breast abnormalities. Masses and calcifications are sometimes superimposed and hidden in the dense tissue which makes the segmentation of correct regions of interest difficult. Furthermore, the choice of a classifier has a great influence on the final result and classifying abnormalities as benign or malignant is a difficult task even for expert radiologists.

Further developments in each algorithm step are required to improve the overall performance of computer aided detection and diagnosis algorithms.

Thermal Image First Segmented Image

Second Segmented Image Third Segmented Image

Fourth Segmented Image Fifth Segmented Image

Read the Image

Perform colour transformation

Creating cluster based on the colour Reshape the image

Segmentation of image

Detection of high temperature region

Display the cancer region

(7)
