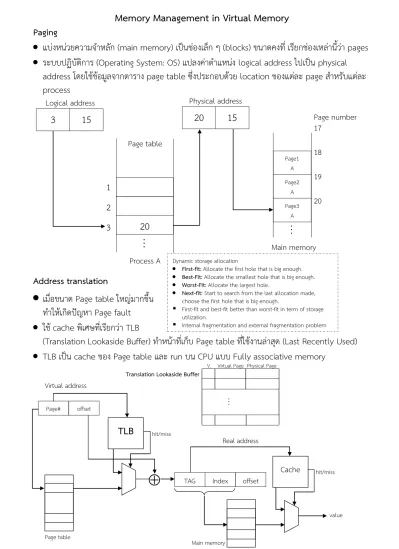

Memory Management in Virtual Memory
Paging
แบ่งหน่วยความจ าหลัก (main memory) เป็นช่องเล็ก ๆ (blocks) ขนาดคงที่ เรียกช่องเหล่านี้ว่า pages
ระบบปฏิบัติการ (Operating System: OS) แปลงค่าต าแหน่ง logical address ไปเป็น physical address โดยใช้ข้อมูลจากตาราง page table ซึ่งประกอบด้วย location ของแต่ละ page ส าหรับแต่ละ process
Address translation
เมื่อขนาด Page table ใหญ่มากขึ้น ท าให้เกิดปัญหา Page fault ใช้ cache พิเศษที่เรียกว่า TLB
(Translation Lookaside Buffer) ท าหน้าที่เก็บ Page table ที่ใช้งานล่าสุด (Last Recently Used)
TLB เป็น cache ของ Page table และ run บน CPU แบบ Fully associative memory
3 15 20 15
20
1 2 3
Physical address Logical address
Page table
Process A
Main memory
Page1 A Page2
A Page3
A
Page number 17
18 19 20
Dynamic storage allocation
First-fit: Allocate the first hole that is big enough.
Best-Fit: Allocate the smallest hole that is big enough.
Worst-Fit: Allocate the largest hole.
Next-fit: Start to search from the last allocation made, choose the first hole that is big enough.
First-fit and best-fit better than worst-fit in term of storage utilization.
Internal fragmentation and external fragmentation problem
Translation Lookaside Buffer V. Virtual Page Physical Page
Virtual address
Page# offset
offset TAG Index
TLB
Page table
hit/miss
Cache hit/miss
Main memory
value
Real address
