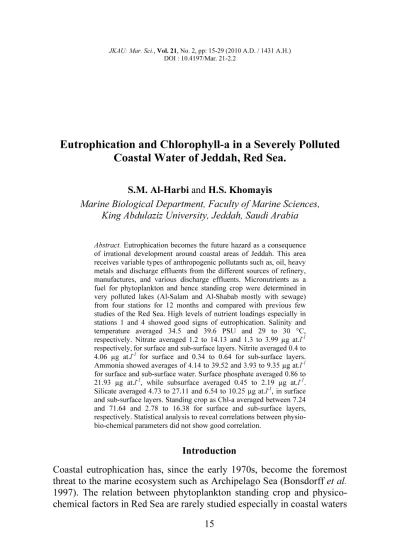

Eutrophication and Chlorophyll-a in a Severely Polluted Coastal Water of Jeddah, Red Sea.

(1)

15

S.M. Al-Harbi and H.S. Khomayis

Marine Biological Department, Faculty of Marine Sciences, King Abdulaziz University, Jeddah, Saudi Arabia

Abstract. Eutrophication becomes the future hazard as a consequence of irrational development around coastal areas of Jeddah. This area receives variable types of anthropogenic pollutants such as, oil, heavy metals and discharge effluents from the different sources of refinery, manufactures, and various discharge effluents. Micronutrients as a fuel for phytoplankton and hence standing crop were determined in very polluted lakes (Al-Salam and Al-Shabab mostly with sewage) from four stations for 12 months and compared with previous few studies of the Red Sea. High levels of nutrient loadings especially in stations 1 and 4 showed good signs of eutrophication. Salinity and temperature averaged 34.5 and 39.6 PSU and 29 to 30 °C, respectively. Nitrate averaged 1.2 to 14.13 and 1.3 to 3.99 µg at.l^-1 respectively,for surface and sub-surface layers. Nitrite averaged 0.4 to 4.06 µg at.l^-1for surface and 0.34 to 0.64 for sub-surface layers.

Ammonia showed averages of 4.14 to 39.52 and 3.93 to 9.35 µg at.l^-1 for surface and sub-surface water. Surface phosphate averaged 0.86 to 21.93 µg at.l^-1, while subsurface averaged 0.45 to 2.19 µg at.l^-1. Silicate averaged 4.73 to 27.11 and 6.54 to 10.25 µg at.l^-1, in surface and sub-surface layers. Standing crop as Chl-a averaged between 7.24 and 71.64 and 2.78 to 16.38 for surface and sub-surface layers, respectively. Statistical analysis to reveal correlations between physio- bio-chemical parameters did not show good correlation.

Introduction

Coastal eutrophication has, since the early 1970s, become the foremost threat to the marine ecosystem such as Archipelago Sea (Bonsdorff et al.

1997). The relation between phytoplankton standing crop and physico- chemical factors in Red Sea are rarely studied especially in coastal waters

(2)

of Saudi Arabia. Sporadic sources within mostly short term determinations of micro-nutrients and Chlorophyll-a as well as qualitative phytoplankton production were reported (Al-Harbi et al., 1998; Behairy et al., 1983; Behairy and Saad, 1984; El-Rayis, 1998; El- Rayis et al., 1982; El-Sayed and Niaz, 1999; Dowaidar et al., 1978;

Dowaidar and Shaikh, 1984; Halim, 1969; Hariri et al., 1997; Khalil et al., 1984; Kandil, 1982; Morcos, 1970; Saad and Fahmy, 1984; Shaikh, 1981; and recently Khomayis, 2002). El-Rayis et al., (1982) had reported that the average salinity of sea water of middle Cornish in Jeddah was 37.87%, while average phosphate concentration in the same area was 13.0 μML^-1, but the contents of silicate ranged between 1.50 μML^-1and 56.10 μM L^-1. MEPA Series (1987) showed that temperature ranged between 21°C and 26 °C in the north of Red Sea, and between 28 °C and 32 °C in the south of Red Sea, the low value recorded in winter and the high in summer. Salinity ranged between 37% in the south and 42% in the north of the Red Sea. In the same study the ammonia and phosphate measurements were, > 2.0 μML^-1 and 3.0 μML^-1, respectively. Hariri et al. (1997) carried out a study in coastal waters of Jeddah and reported that the temperature average was 30.45°C, whereas salinity was 38.26%.

They found also the range of micronutrients concentrations such as nitrate (0.02 - 1.68 μML^-1) , nitrite(0.15 - 1.15 μM L^-1), ammonia (0.1 - 2.56 μML^-1) and phosphate (0.82- 6.7 μM L^-1). In the area already highly polluted by sewage in the south of Jeddah El-Sayed & Niaz (1999) indicated high values of ammonia (130-824 μM L^-1), phosphate (0.5 – 68.4 μM L^-1), nitrite (0.02 - 1.61μM L^-1) and nitrate (0.68 μM L^-1).

Khomayis (2002) studied the chemical and physical parameters along Jeddah coastal waters. He found temperature ranged between 23 and 31.5°C, salinity between 38.46- 39.22% nitrate between 0.66 - 3.19 μM L^-1m, nitrite between 0.30 and 1.02 μM L^-1, ammonia between 2.11 and 9.09 μM L^-1, phosphate between 0.16 - 0.74 μM L^-1, silicate between 0.3- 0.85 μM L^-1 and chlorophyll ranged between 0.31 and 2.08 μg L^-1.

The present study aimed to investigate the chemicals, physical and biological parameters in the polluted sea water ponds of Jeddah coastal waters and make correlations between these parameters and previous studies.

(3)

Materials and Methods

This study was carried out in semi closed sea lagoons (Bohairat Alsalam and Bohairat Alshabab) very heavily polluted by sewage discharges. These lagoons are located at longitudes (39° 08´ - 39° 11´) east and latitudes (21° 29´ - 21° 33´) north. These lagoons are very shallow with no more than 4 m in depth. Sample stations (Fig. 1) were selected in the middle of Bohairat Alsalam (station 1) and in the mouth of the lagoon (station 2). The fourth station was selected in the mouth of Bohairat Alshabab and affected by the discharge of sewage output. The third station was the control station and located in the open sea.

Fig. 1. Map shows the study location and stations.

(4)

Sea water samples were collected early morning at monthly intervals (December 2001- November 2002) from the surface water by clean plastic bucket and from the 3m depth by Vandorn bottle. To remove the large particulate matter and zooplankton, the seawater samples were strained through a net of 120μ mesh size to 5 liter polythene bottles. The samples were transferred to the laboratory for chlorophyll a and micronutrients (phosphate, silicate, nitrate, nitrite, ammonia and silicate) determinations, using the method based on Parsons et al. (1984). Salinity and temperature of the seawater were measured in situ by a HEDGA refractometer and a mercury thermometer ranging from 0°C -50°C.

Results

Temperature ranged between 25.5-33.5 ^oC. Maximum value was recorded at station 4 (August 2002), and the minimum was in January 2002 at station 1 (Table 1). The general pattern of temperature shows that summer extended from June to November 2002 with an average 29-30

oC. In general, temperatures showed lower levels during January 2002 at all stations.

Table 1. Average surface temperature (^oC) at all stations during the study period.

Stations

Months Station 1 Station 2 Station 3 Station 4

Dec2001 26 28.5 28.5 28

Jan 2002 25.5 26.5 27 26

Feb 28.5 27 28 28.5 Mar 29 27 28 28

Apr 27 27 27.5 28.5

May 27 28 28 29 Jun 29 29 30 31 Jul 30.5 30.5 31.5 32.5 Aug 32 32 32.5 33.5

Sep 31 32 32 32 Oct 33 31.5 32 32.5 Nov 29 29 29 30

Average 29.0 29.0 29.5 30.0

Salinity ranged between 25.5 and 40.5 PSU (Table 2). Station 4 experienced lower levels of salinity than the other stations, except of 31 PSU recorded in August at station 1. It ranged at station 4 between 25.5

(5)

PSU in April and 40 PSU in May with an average of 34.5 PSU. Salinity at station 3 ranged between 36 and 40.5; avr. 36.9 PSU., while salinity at station 2 ranged between 37 and 40; avr. 39.5 PSU., and station 1 ranged between 31 and 40; avr.37.5 PSU.

Table 2. Levels of salinity as (psu) along the study area during the study period.

Months Station 1 Station 2 Station 3 Station 4

Dec. 2001 40 40 40 39

Jan. 2002 37.5 40 39.5 32.5

Feb 31 40 36 30 Mar 40 40 40 40 Apr 39.5 37 40.5 25.5 May 40 40 40.5 40

Jun 36.5 37.5 40 35 Jul 39 40 40 36 Aug 31 39 39 34 Sep 38 40 40 32 Oct 38.5 40 40 34.5 Nov 39 40 40 36

Average 37.5 39.5 39.6 34.5

Nitrate concentrations in surface and sub-surface layer are shown in Table 3. Surface water showed high level of nitrate and wide range of variations particularly in station 1 and 4 (0.08-62.31, avr.12.60 µg at.l^-1; and 2.1-39.51, avr. 14.13 µg at.l^-1 respectively. Stations 2 and 3 showed less variations (UDL-5.52, avr. 2.27 µg at.l^-1; and UDL-2.76; avr. 1.12 µg at.l^-1respectively. Temporal changes in nitrate showed high levels from July until September with the highest value of 62.31 µg at.l^-1 recorded in August at the surface water of station1. Station 2 showed high level in June. Temporal variation in station 4 showed high levels during most of the study period with high peaks during April and September. Surface nitrate readings were usually higher than sub-surface ones. Temporal variations in Sub-surface waters showed high nitrate levels during December 2001 at station 2, 3 and 4; and the highest level occurred during August at station 1.

(6)

Table 3. Concentrations of nitrate (NO₃) as µg at.l^-1 during the study period.

Stations Months

Station 1 Station 2 Station 3 Station 4

Surface Sub-

surface Surface Sub-

surface Surface Sub- surface Dec-01 4.75 1.9 3.67 7.75 2.76 7.51 6.6 5.44

Jan-02 5.46 5.7 1.6 0.82 1.01 0.53 27 2.56 Feb 0.08 UDL 3.67 0.37 0.45 0.58 4.55 2.79 Mar 5.05 1.45 1.39 0.45 1.26 0.63 2.1 1.08 Apr 1.22 0.72 1.81 4.52 1.6 0.53 39.51 4.71 May 5.78 1.13 0.23 1.55 0.75 0.29 2.23 0.91 Jun 4.39 0.67 5.52 0.33 0.34 0.12 12.42 2.89 Jul 22.78 2.88 UDL 0.43 1.39 0.21 1.58 2.74 Aug 62.31 16.8 0.27 0.28 UDL UDL 14.06 1.98 Sep 14.39 3.95 UDL 1.21 UDL UDL 31.23 3.66 Oct UDL UDL UDL UDL UDL UDL UDL UDL Nov UDL UDL UDL UDL UDL UDL UDL UDL

Average 12.62 3.91 2.27 1.77 1.2 1.3 14.13 2.88

UDL= under detection limit

Nitrite concentrations in surface and sub-surface layers are shown in Table 4. Surface water showed wide range of variations particularly in station 4, (0.07-13.98 avr.4.06 µg at. l^-1). Stations 1, 2, and 3 showed low nitrite levels (0.2-2.16, avr.0.97; 0.03-1.78, avr.0.5; and 0.1-1.28, avr.0.4 µg at. l^-1),respectively. January 2002, April seems to experience slight higher levels in all the three stations and higher levels at station 1 appeared during August.

Table 4. Concentrations of nitrite (NO₂) as µg at.l^-1 during the study period.

Stations Months

Station 1 Station 2 Station 3 Station 4

Surface Sub-

surface Surface Sub- surface Dec-01 1.47 1.51 1.13 1.09 0.97 0.99 1.43 1.37

Jan-02 1.76 1.57 1.47 1.39 1.28 1.36 9.91 1.52 Feb 0.2 0.1 0.51 0.46 0.33 0.33 1.37 0.51 Mar 0.25 0.15 0.15 0.13 0.25 0.1 0.79 0.15 Apr 2.13 0.9 1.78 0.19 0.25 0.11 11.65 0.36 May 0.92 0.31 0.19 1.28 0.41 0.09 0.23 0.38 Jun 0.22 0.43 0.18 2.15 0.28 0.23 3.99 0.46 Jul 0.82 0.21 0.03 0.09 0.19 0.09 0.07 0.33 Aug 2.16 0.17 0.07 0.1 0.15 0.1 3.48 0.13 Sep 0.2 0.13 0.1 0.33 0.33 0.13 13.98 0.36 Oct 1.23 0.42 0.3 0.23 0.2 0.36 1.54 0.2 Nov 0.28 0.33 0.13 0.22 0.1 0.13 0.24 0.13

Average 0.97 0.52 0.50 0.64 0.40 0.34 4.06 0.49

(7)

Subsurface water showed similar trend of low nitrite concentrations as surface water except station 2 where levels of nitrite were slightly higher than surface during May- September and November.

Ammonia concentrations in surface and sub-surface water are shown in Table 5. Surface water showed wide range of variations at all stations.

Surface water at station 4 showed higher level during the study period (3.83-82.37; avr. 39.52 µg at.l^-1), although the highest ammonia level of 103.98 µg at.l^-1 occurred at station 1 during January. Lowest values occurred in the surface and sub-surface layer of station 1, 2, and 3 in December, in the surface and the sub-surface layers at station 4 during January and October, respectively. High values of ammonia occurred in the sub-surface layer during April (St. 1-3) and January (St. 4).

Table 5. Concentrations of Ammonia (NH₄) as µg at.l^-1 during the study period.

Stations Months

Station 1 Station 2 Station 3 Station 4 Surface Sub-

surface Surface Sub- surface Dec2001 0.38 0.64 0.38 0.06 0.77 0.32 9.64 9.70 Jan 2002 103.98 5.88 5.30 9.48 4.09 10.28 3.83 20.05

Feb 4.62 4.8 15.74 3.05 2.5 3.92 49.47 8.83 Mar 8.21 5.03 3.69 3.05 15 3.78 54.78 10.71 Apr 2.40 51.76 39.76 19.48 3.02 17.22 62.17 4.73 May 3.83 4.48 1.83 18.76 8.03 0.67 7.50 5.70 Jun 4.47 1.61 11.17 1.98 3.35 1.78 42.28 12.18 Jul 1.92 1.39 1.20 1.20 2.33 1.55 14.82 12.23 Aug 2.18 2.60 1.75 1.68 2.51 1.48 52.63 3.83

Sep 4.43 2.35 2.58 6.51 2.68 2.82 40.24 5.40 Oct 2.40 1.03 1.29 1.66 1.19 1.24 82.37 3.37 Nov 1.48 3.11 2.16 2.42 4.21 2.16 54.58 15.47 Average 11.69 7.05 7.24 5.78 4.14 3.93 39.52 9.35

Phosphate concentrations in surface and sub-surface water are shown in Table 6. Phosphate content showed wide range of variations at all stations from undetectable level to 58.31 µg at.l^-1. Station 4 sustained the highest levels in surface and sub-surface layers during all the study period with averages of 39.52 and 9.35 µg at.l^-1, respectively.

(8)

Table 6. Concentration of phosphate (PO₄) as µg at.l^-1 during the study period.

Stations Months

surface Surface Surface Sub-

surface Surface Dec2001 0.40 0.30 UDL 0.85 UDL 2.35 3.05 0.60 Jan 2002 0.83 1.25 1.15 0.80 1.28 1.15 32.93 2.90 Feb 0.45 0.65 5.55 0.45 0.40 0.45 32.93 2.85 Mar 2.95 0.75 0.70 UDL 1.85 UDL 8.70 0.90 Apr 15.48 2.58 11.08 UDL UDL 5.78 25.13 UDL May 15.47 UDL 11.08 UDL UDL UDL 58.31 UDL Jun 1.78 0.05 10.73 0.18 0.43 0.13 22.75 2.60 Jul 1.13 UDL UDL UDL 0.73 UDL 0.70 7.40 Aug 3.08 0.22 0.15 0.23 1.47 0.02 27.47 0.77 Sep UDL UDL UDL UDL UDL UDL 22.15 0.95 Oct UDL UDL 0.02 UDL 0.43 0.14 26.15 1.24 Nov 0.05 0.39 0.24 0.19 0.34 0.39 2.95 1.74 Average 4.16 0.77 4.52 0.45 0.86 1.30 21.93 2.19

Silicate concentrations in surface and sub-surface layers are shown in Table 7. Silicate concentrations showed wide range of variations from UDL (August and September) to 68.84 µg at. l^-1 (January) at station 4.

High levels of silicate appeared during December 2001 and January 2002 at all stations The levels dropped in February and March. It is noticeable occasionally in stations 2, 3 and 4, the sub-surface water sustained higher levels than surface ones.

Table 7. Concentration of silicate (SIO₃) as µg at.l^-1 during the study period.

Stations Months

surface Surface Sub- surface Dec2001 20.08 9.54 16.10 31.21 12.72 30.32 26.94 22.66 Jan 2002 14.76 14.66 15.21 13.77 25.10 18.39 68.84 34.79 Feb 4.57 3.89 6.86 4.69 0.91 1.49 26.17 5.49 Mar 8.00 5.60 1.49 4.23 2.74 UDL 11.89 5.26 Apr 12.00 9.37 10.51 6.74 4.69 3.09 54.74 8.69 May 7.09 5.43 1.37 2.11 0.51 UDL 1.60 2.11 Jun 6.06 3.66 13.43 2.51 0.80 1.77 53.83 5.66 Jul 14.00 4.86 5.77 3.43 1.77 3.37 6.11 5.20 Aug 58.44 2.93 0.65 1.71 UDL UDL 13.68 0.42 Sep 8.69 1.83 1.77 1.03 0.34 UDL 20.57 23.32 Oct 40.80 7.20 1.77 2.46 0.34 0.23 20.57 4.74 Nov 31.98 12.19 6.42 4.60 2.14 3.42 20.43 4.71 Average 18.87 6.76 6.78 6.54 4.73 7.76 27.11 10.25

(9)

Station 4 sustained higher levels in surface and sub-surface water (1.6-68.84, avr. 27.11 and 0.42-34.79, avr. 10.25 µg at.l^-1 respectively.

Station 1 sustained concentrations of 4.57-58.44, avr. 18.87 µg at.l^-1; and 1.83-14.66, avr. 6.76 µg at.l^-1 in surface and sub-surface respectively.

Stations 2 and 3 showed averages surface concentrations of 6.78 and 6.54 and sub-surface concentrations of 6.54 and 7.76 µg at.l^-1, respectively.

Phytoplankton biomass results as chlorophyll-a (Chl-a) in surface and subsurface water are shown in Table 8. Levels of Chl-a showed wide range of variations at all stations. Chl-a was higher in surface water than subsurface ones except in some occasions at stations 1 and 2 where sub- surface Chl-a were higher than surface ones. Station 4 still expressed the highest, even in Chl-a values in the surface and sub-surface layers during the study period, ranged between 27.17-242.2, avr. 71.64 mg Chl-a l^-1 for the surface and between 5.63-46.55, avr. 16.38 mg Chl-a l^-1 in the sub- surface water. Station 1 showed high level in August 32.54 mg Chl-a l^-1 and low level occurred in May 4.25 mg Chl-a l^-1, and few peaks occurred in February and April. Station 2 showed the highest in April 14.71 and the lowest in March 3.58 mg Chl-a l^-1 which was followed by peaks with the same timing of station 1. Station 3 sustained high level in July and the highest occurred in August (22.38 mg Chl-a l^-1) while the lowest occurred in March (1.84 mg Chl-a l^-1).

Table 8. Levels of Chlorophyll-a (mg Chl-a l^-1) during the study period.

Stations Months

Surface Surface Sub- surface Dec2001 BD BD BD BD BD BD BD BD Jan 2002 8.8 7.98 5.82 3.57 3.85 1.82 55.96 9.98

Feb 29.07 26.35 14.71 19.52 2.44 1.55 47.09 11.1 Mar 9.49 3.76 3.58 3.9 1.84 1.37 27.17 5.89 Apr 13.14 9.38 14.02 4.69 5.47 1.77 96.29 9.92 May 4.25 3.99 5.6 2.38 2.79 1.31 40.99 13.66

Jun 28.76 7.19 12.34 4.88 6.9 4.00 33.68 5.63 Jul 6.43 6.58 5.89 5.47 9.11 2.18 28.68 13.69 Aug 32.54 12.49 12.48 33.55 22.38 4.31 68.94 13.14 Sep 7.81 7.69 7 3.65 9.07 4.31 242.21 14.28 Oct 6.59 7.53 7.67 8.33 4.66 2.79 42.04 36.31 Nov 10.87 3.38 9.61 9.45 11.09 5.19 104.96 46.55 Average 14.34 8.76 8.97 9.04 7.24 2.78 71.64 16.38

(10)

Discussion & Conclusion

The results showed the differences in chemical and biological parameters than previous studies in polluted areas of the Red sea. Surface water temperature reported in this study appeared within the level suggested by MEPA (1987) that temperature within the average of 28- 32^oC in the southern Red Sea. In this study temperature appeared between 26-33.5^oC and increment noticed from June to October 2001.

Salinity reached its maximum in August at all stations except station 1 (October). The annual amplitude was 8^oC and supported with Khomayis (2002). The general trend showed increasing temperature from station 1 to station 4.

Salinity showed that station 4 experienced the lowest average of 34.5% while high average appeared at station 3 and 2 with values of 39.5 and 39.6% respectively. El-Rayis et al. (1982) recorded an average of 37.87% at the surface water of the middle Red Sea. Khomayis (2002) showed similar levels of salinities (38.46-39.22%) in Petromin and south Cournich areas.

Nitrate concentrations showed higher values at stations 1 and 4 than the control station 3, which might explain the effect of domestic discharge. Station 1 is located in the center of Al-Salam Lake where domestic waste is discharged and high nitrate levels occurred from July- September and with maximum value of 62.31 µg at.N.l^-1 in August.

Station 4, which is located also at a very sever domestic discharge, affect the monthly fluctuations from April-September with the highest of 39.51 µg at.N.l^-1in April. Behairy and Saad (1984) have reported a large variation 0.02-56.37 µg at.N.l^-1 in the same area of the coastal water of Jeddah. Khomayis (2002) also reported high levels of nitrate reached 10.04 and 8.87 µg at.l^-1 during February 1994 and November 1993 around the Petromin area affected by organic discharges. Hariri et al.

(1997) reported nitrate ranged between 0.02 and 1.68 µg at.l^-1 in the coastal area of Jeddah. El-Sayed and Niaz (1999) found that the concentration of nitrate never exceed 0.68 µg at.l^-1 in the Southern Cournich of Jeddah. The previous results in (Hariri et al., 1997 and El- Sayed and Niaz, 1999) are in agreement with this study that nitrate at high effluent discharges experience high levels of nitrate and vice versa.

Levels of nitrite showed low levels at all stations except surface water of station 4. Average levels of stations 1-3 were between 0.4-0.97

(11)

µg at.l^-1while average increased to 4.06 µg at.N.l^-1at station 4. The most interesting point that levels of nitrite goes parallel to levels of nitrate.

Three peeks of nitrite and nitrate occurred in January, June and September. This might be explained by the reduction of nitrate to nitrite and the oxidation of ammonia to nitrite (Grasshof, 1969).

Ammonia levels in the surface and subsurface water showed high values during all the study period. Station 1 and 4 experienced higher levels and reached 103 and 82.37 µg at.N.l^-1, respectively due to the effect of domestic waste effluents. In comparison to previous studies, Hariri et al. (1997) reported ammonia ranged between 0.1 and 2.56 µg at.l^-1 in the coastal water of Jeddah. Khomayis (2002) found ammonia ranged between 2.11 and 9.09 µg at.l^-1, and high level of 36 µg at.l^-1 recorded in October in a location close to oily and domestic waste effluent. El-Sayed and Niaz (1999) reported higher levels of ammonia at the domestic effluents of south Jeddah when level reached 824 µg at.N.l^-1.

Although it is reported that phosphate levels are very low in the Red Sea; El-Rayis et al. (1982) reported levels between 0.5-68 µg at.l^-1 in the surface water of middle cournich of Jeddah. In May, phosphate experience high levels at station 1, 2 and 4 with values of 15.47, 11.08 and 58.31 µg at.l^-1 respectively. These high levels might be caused by the effect of domestic effluents. This suggestion might be supported by the results found by El-Sayed and Niaz (1999) where a value reached 170 µg at.l^-1 in the domestic effluent of Jeddah. Khomayis (2002) reported levels between depletion and 2.72 µg at.l^-1 in the coastal water of Jeddah.

Although the Red Sea is known for its poor silicate levels, and no rivers are connecting to it, silicate concentrations showed high levels. In this study, silicate experienced the highest level of 68.84 µg at.l^-1 during January at station 4. Additionally, high levels occurred at all stations with maximum concentration of 54.44 µg at.l^-1 at station 1. Not only the surface water, but also the subsurface ones recorded high values of 34.79 µg at.l^-1(station 4) and 30.32 µg at.l^-1 (station 3). The average of silicate during this study reached 4.73-27.11 µg at.l^-1for surface water and ranged of 4.73-10.25 µg at.l^-1 for subsurface water, although Khomayis (2002) reported average of 0.3 to 0.85 µg at.l^-1 at different stations of the coastal water of the Red Sea. This finding of high value might be the consequence of variable effluent discharges in the study area.

(12)

Standing crop as Chl-a was rarely investigated in the Saudi coastal water. The previous study (Khomayis, 2002) reported average amount of Chl-a of 0.02 and 10.16 µg .l^-1, in Obhur and Petromin areas, respectively. The high values occurred at station 4, during Sep. and Oct.

1993, which was affected with two sources of pollutions, refinery cooling system discharge and organic material in addition to Jeddah oil refinery.

During this study and at all stations general trend of high of Chl-a levels were recorded and particularly at station 1 and 4. As these two stations received high quantity of effluents, which resulted in increasing levels of nutrients, eutrophication, were suitable for increasing phytoplankton standing crop, and hence occurrence of high Chl-a concentrations.

Table 9. Correlation coefficient values between bio-physico-chemical parameters and Chl-a values.

T^oC S%o

NO₃ NO₂

NH₄ PO₄

SiO₃ Chl-a

T^oC S%o 0.0178

NO₃ 0.0061 0.5824

NO₂ 0.1072 0.4335

0.1341

NH₄ 0.0002 0.2344

0.0589 0.1247

PO₄ 0.026

0.1115 0.0148

0.0829 0.0204

SiO₃ 0.235

0.4644 0.0137

0.4235 0.0646

0.0861

Chl-a 0.0407

0.1332 0.4300

0.4988 0.0092

0.0055 0.0004

References

Al-Harbi, S.M. Khomayis, H.S. and Jastaniah, H.A. (1998) The Distribution of Heavy Metals and their Effects on Phytoplankton Population Along the Coast of Jeddah, Funding Project Center, Jeddah: Faculty of Marine Science, King Abdulaziz University.

Behairy, A.K.A., Al-Kholy, A.A., Hashem, M.T. and El-Sayed, K.H. (1983) Preliminary study on the geology and fisheries of the coastal area between Jeddah and Yanbu. J. Fac. Mar.

Sci. 2: 1-47.

Behairy, A.K.A. and Saad, M.A.H. (1984) Effect of pollution on the coastal waters of the Red Sea in front of Jeddah, Saudi Arabia. II. Nutrient Salts. Tethys, 11(2): 119-125.

Boney, A.D. (1975). Phytoplankton. Edward Arnold, London.

Bonsdorff, E., Blomqvist E.M., Mattila, J. and Norkko, A. (1997) Coastal eutrofication:

Causes, Consequences and Perspectives in the Archipelago areas of the northern Baltic Sea.

Estuarine, Coastal and Shelf Science. 44(1): 63-72.

Dowidar, N.M., Raheem El-Din, S.A. and Aleem, A.A. (1978) Phytoplankton populations in the region of Obhor (Jeddah, Saudi Arabia). Bull. Fac. Sci. K.A.U. Jeddah, 2: 271-292.

Dowidar, N.M., and Shaikh, E.A. (1984) Primary productivity and standing crop of phytoplankton in the coastal water of Jeddah (Red Sea). Proc. Symp. Coral Reef Environ.

Red Sea, Jeddah, pp: 577-596.

El-Rayis, O.A. (1998) Environmental conditions of two Red Sea coastal lagoons in Jeddah. 2- Nutrients. JKAU: Mar. Sci. 9: 49-59.

(13)

El-Rayis, O.A., Abbas, M.M. and Qurashi, A.A. (1982) Distribution of chemical pollutants in Jeddah coastal waters, Red Sea; I- Phosphate and silicate. J. Fac. Mar. Sci. 2: 73-80.

El-Sayed, M.A. and Niaz, G. (1999) Study of Sewage Pollution Profile Along the Southern Coast of Jeddah: Study of Some Organic and Inorganic Pollutants, Scientific Research Council, Faculty of Marine Science, King Abdulaziz University, Jeddah.

Grasshof, K. (1969) “Meteor” Forschungsergebnisse, Gebruder Botntrager, Berlin, Reihe A, 6:

76 p.

Halim, Y. (1969) Plankton of the Red Sea. Oceanog. Mar. Biol. Ann. Rev., 7: 231-275.

Hariri, M.S., Al-Harbi, S.M., Al-Lohaibi, S.S. and Mosbah, Saad (1997) Preliminary Marine Environmental Study in front Equestrian Club, Jeddah Cournich, Jeddah, KAU.

Kandil, M.M. (1982) Hydrological and chemical studies on the Red Sea waters in front of Hurgada. M.Sc. Thesis, Alex. Univ.

Khalil, A.N., Khafaji, A.R. and Ibrahim, A.M. (1984) Proc. Symp. Coral Reef Environ. Red Sea, Jeddah, pp: 555-576.

Khomayis, H.S. (2002) The annual Cycle of Nutrient Salts and Chlorophyll-a in the Coastal Waters of Jeddah, Red Sea. JKAU. Mar. Sci. 13: 131-145.

MEPA, Meteorology and Environmental Protection Administration (1987) Red Sea, Coastal and Marine Management Series, Report No. 1, Kingdom of Saudi Arabia.

Morcos, S.A. (1970) Physical and chemical oceanography of the Red Sea. Oceanography and Marine Biology Annual Review, 8: 73-202.

Parson, T.R., Miata, Y. and Lalli, C.M. (1984) A Manual of Chemical and Biological Methods of Seawater Analysis, Oxford: Pergamon Press.

Saad, M.A.H. and Fahmy, M.A. (1984) Distribution of nutrient salts in the Saudi Coastal waters of the Red Sea. Proc. Symp. Coral Reef Environ. Red Sea, Jeddah, Jan. pp: 129-144.

Shaikh, E.A. (1981) Phytoplankton ecology and production of the Red Sea off Jeddah, Saudi Arabia. Ph.D. Thesis, Open University, U.K.
