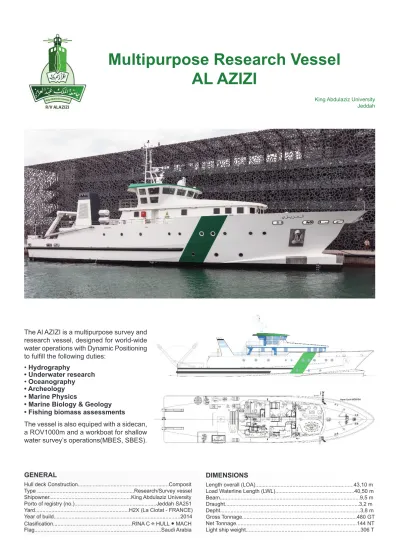

Multipurpose Research Vessel AL AZIZI

(1)

Multipurpose Research Vessel AL AZIZI

King Abdulaziz University Jeddah

The Al AZIZI is a multipurpose survey and research vessel, designed for world-wide water operations with Dynamic Positioning to fulfill the following duties:

• Hydrography

• Underwater research

• Oceanography

• Archeology

• Marine Physics

• Marine Biology & Geology

• Fishing biomass assessments The vessel is also equiped with a sidecan, a ROV1000m and a workboat for shallow water survey’s operations(MBES, SBES).

GENERAL

Hull deck Construction...Composit Type ...Research/Survey vessel Shipowner...King Abdulaziz University Porto of registry (no.)...Jeddah SA251 Yard...H2X (La Ciotat - FRANCE) Year of build...2014 Clasification...RINA C ✠HULL ● MACH Flag...Saudi Arabia

DIMENSIONS

Length overall (LOA)...43,10 m Load Waterline Length (LWL)...40,50 m Beam...9,5 m Draught...3,2 m Depht...3,8 m Gross Tonnage...480 GT Net Tonnage...144 NT Light ship weight...306 T

(2)

P

^ROPULSION

- M

^ACHINERY

Main engines...2X Caterpilar C32 - 2X380 KW - 1216 HP Main generators...2X Cumins QSM11 D(M) - 2X291kW Safety generator...Cumins - QSB7 DM - 132kW Ship power networks ...24 V DC, 220 V AC, 380 V, 3 PH, 60 HZ Bow thruster (electric driven)...Schottel STT110FP - 200 kW Azimuthal pump jet - stern (electric driven)...Schottel SPJ 57 RD - 250 kW

D

^ECK

E

^QUIPMENT

Windlass (Electric) ...Hardy M5 - 11 kW Deck crane (Hydraulic)...Covis ST4 -15t/m portée 12m A-Frame (Hydraulic)...4,5 tons/5.20 m under gantry/3.1 m width Winch/crank (Hydraulic)...Starter Argos 90 LT Deck Capstan (Hydraulic)...Starter CPV 50 Fishing Net...capacity 500Kg Gondola...all sonars

This vessel specification believed to be correct but is subject to change, please contact Marine Operation Department K.A.U. prior to basing any commercial decisions on this informations

Marine Operation Department

King Abdulaziz University - Faculty of Marine Science P. O. Box 80207 Jeddah 21589 - Saudi Arabia

Phone: +33 6 5853 8761 +966 5 8137 9251 email: [email protected]

A

CCOMODATION

Total Accommodation (with TV SAT)...15 cabins/25 persons Berth Cabins Scientist...6 cabins/12 scientist Crew Mess...1 With TV SAT Officers Mess...1 With TV SAT Air Conditioning system...Independant, in each cabin CTA...All rooms

Infirmary...1

Laundry...1

Galley...1

Workshop...1

C

OMMUNICATION GMDSS VHF...Thrane & Thrane A/S GMDSS MF/HF...Thrane & Thrane A/S GMDSS Satcom and type...Thrane & Thrane A/S Iridium World Phone...1

Sat system communication...Intellian V80G - Kuband SSB Send/Receive...1

AIS...FURUNO EPIRB - SART...3

VHF DSC...2X Cobham Portable UHF/VHF...6

Navtex...1

C

^APACITY Fuel oil...59000 L Potable water...8000 L Fresh water maker...AQUABASE SLCE YC3 - 2X180 L/H Frozen Storage...2 m³ Frozen Fishery...0,5 m³ Clear Deck...90 m² Workshop...10 m² Dry Lab...20 m² Wet Lab...12 m² Survey Room...40 m² Diving Room...8 m²

S

CIENTIFIC EQUIPMENT Multibeam performance...3000m Single Beam performance...1500m Fishing Sonar...Ixblue FFS SEAPIX S.V.P...Valeport Rosette...12/Sea-Bird Electronics PC for research equipment...9

Subbottom Profiler...Ixblue Baie SBP FFS Sounder Rack ...KNUDSEN Side scan sonar...C-MAX CM2 Sonar ROV with GAPS...Kongsberg ROV 1000m

G

^EOLOGY Seabed Grab Sampler...Van Veen Grab Sampler 2500 cm² Box Corer...2500 cm² Gravity Corer + Piston Corer...2 m sampling Day Grab...sampling volume of 15 liters

B

^IOLOGY Standart Mineralisator…...…..1 to 5 stations Sifter………...…….Numerical sifter as series JR Locator………...…………..+ Complete Standart 201 PC Evolution Ectrophotometre…...………1

Centrifugal…………...Legend Micro21 Centrifugal Polisher…...….Easypure II RF Distiller………...…………...1 4L/H with tank Boiler………...….Numeric 10L Incubator………...Bacterio IFP500 70°C 108 L Hydrocarbon Analysor…………...…….OCMA310 Recycling Gemini wood………...…………75cm Microscope………...Inverse CKX31 FC and CX31 FC 4 Lenses Bino Stereozoom……….…...…………..SZ61 EPI Plancton net…...…1

S

^AFETY

& F

^IRE

F

^IGHTING

E

^QUIPMENT

MOB/Rescue Craft...1 for 6 crew Life Rafts...4X20 persons Life jackets...300% of compliment Fixed extinguishing system in engine room...NOVEC Work Boat with MB&SSB...Shallow water survey - 70 Hp

N

^AVIGATION

E

^QUIPMENT

Dynamic Positioning...NAVIS NavDP4000 Radar...2X FURUNO with ARPA Gyroscopic Compass ...SIMRAD Auto Pilot...SIMRAD AP70 Positioning system...GPS- DGPS- GPS RTK Navigational Echo Sounder...FURUNO FE-700 Electronic chart...ECDIS

P

^ERFORMANCE

& C

^ONSUMPTION

(

INFORMATION ONLY

)

Maximum speed - light loaded...14 knots - 11t/day Transit Speed - medium loaded...12 knots - 6,5t/day Economic Speed - medium loaded...10 knots - 4,5t/day Hydro survey speed - medium loaded...6 knots - 2,5t/day Stand-by on DP...2/tday Stand-by at port...1t/day Antifouling system...14XHarsonic®
