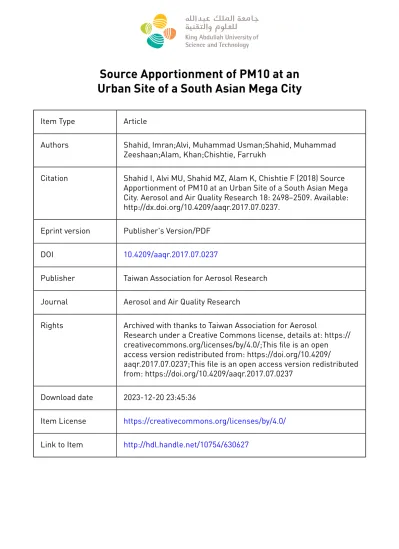

Source Apportionment of PM10 at an Urban Site of a South Asian Mega City
Item Type Article
Authors Shahid, Imran;Alvi, Muhammad Usman;Shahid, Muhammad Zeeshaan;Alam, Khan;Chishtie, Farrukh
Citation Shahid I, Alvi MU, Shahid MZ, Alam K, Chishtie F (2018) Source Apportionment of PM10 at an Urban Site of a South Asian Mega City. Aerosol and Air Quality Research 18: 2498–2509. Available:
http://dx.doi.org/10.4209/aaqr.2017.07.0237.
Eprint version Publisher's Version/PDF
DOI 10.4209/aaqr.2017.07.0237
Publisher Taiwan Association for Aerosol Research Journal Aerosol and Air Quality Research
Rights Archived with thanks to Taiwan Association for Aerosol
Research under a Creative Commons license, details at: https://
creativecommons.org/licenses/by/4.0/;This file is an open access version redistributed from: https://doi.org/10.4209/
aaqr.2017.07.0237;This file is an open access version redistributed from: https://doi.org/10.4209/aaqr.2017.07.0237
Download date 2023-12-20 23:45:36
Item License https://creativecommons.org/licenses/by/4.0/
Link to Item http://hdl.handle.net/10754/630627
Aerosol and Air Quality Research, 18: 2498–2509, 2018 Copyright © Taiwan Association for Aerosol Research ISSN: 1680-8584 print / 2071-1409 online
doi: 10.4209/aaqr.2017.07.0237
Source Apportionment of PM
10at an Urban Site of a South Asian Mega City Imran Shahid
1*, Muhammad Usman Alvi
2,3, Muhammad Zeeshaan Shahid
4, Khan Alam
5, Farrukh Chishtie
61 Institute of Space Technology, Islamabad 44000, Pakistan
2 Institute of Chemistry, University of the Punjab, Lahore 54590, Pakistan
3 University of Education, Okara Campus, Okara 57000, Pakistan
4 King Abdullah University of Science and Technology, Thuwal 23955-6900, Saudi Arabia
5 Department of Physics, University of Peshawar, Peshawar 25120, Pakistan
6 SERVIR-Mekong, Asian Disaster Preparedness Center, Bangkok 10400, Thailand
ABSTRACT
In the present study, analysis and source apportionment of the elemental composition of PM10 was conducted in the urban atmosphere of Karachi. Trace elements such as Ni, Ba, Cd, Ca, Mg, Cr, Mn, Fe, Co, Cu, Sr and Ti were measured. The PM10
concentration ranged from 255 μg m–3 to 793 μg m–3, with an average of 438 ± 161 μg m–3. Among the various elements analyzed, concentrations of Ca, Al and Fe were the highest (> 10000 ng m–3), followed by Mg and S (> 1000 ng m–3).
Elements such as Zn, P, Cu, Pb, Mn, Ti, Sr and Ba demonstrated medium concentrations (> 100 ng m–3), whereas the lowest concentrations were found for elements such as Cr, Ni and Se (> 10 ng m–3). The Positive Matrix Factorization (PMF) model identified five possible factors that contributed to PM10, namely, biomass burning, coal combustion, resuspended road/soil dust, vehicular emissions and industrial dust. Industrial dust was the highest contributor (23.2%) to PM10 followed by Biomass burning (23%), Vehicular emissions (22.2%), Coal combustion (21.7%) and Re-suspended dust (9.9%). A strong positive correlation (R2 = 0.98) was observed between the model predicted PM10 mass and the gravimetrically measured mass collected on filters.
Keywords: Particulate matter; Air pollution; Urban air quality; Elemental analysis; Source apportionment; Positive Matrix Factorization.
INTRODUCTION
Air pollutants is turning out to be highly problematic in developing countries like China, India and Pakistan, especially in mega cities like Beijing, Shanghai, Mumbai, Calcutta, Delhi, Lahore and Karachi. There has been a growing concern on almost all levels regarding airborne Particulate Matter (PM) in recent years. Anthoropogeic sources which contribute to PM consist mainly of fossil fuel and biomass burning, industries and construction activities (Parekh et al., 2001). PM not only influences global climate change, but also has been associated with adverse health and enviromnetal impacts as reported in previous studies (Gwynn et al., 2000; Husain et al., 2007; Lodhi et al., 2009;
Khan et al., 2010; Stone et al., 2010; Kaushar et al., 2013;
Kim et al., 2015; Pope et al., 2015). Ghude et al. (2016) has reported premature mortality rate due to exposure of
*Corresponding author.
E-mail address: [email protected]
PM2.5 and ozone concentration in India and Chate et al.
(2013) has assessed the population exposure in India due to air pollutants during Common Wealth games in 2010.
Atmospheric PM that has aerodynamic diameter less than or equal to 10 µm (PM10) has been studied intensively over the past few decades, because this size fraction is respirable is trapped by the alveoli of the lungs (Perez et al., 2008).
According to the reports of World Health Organization (WHO), there is a strong association between air pollution and cardiovascular and cancerous diseases, beyond respiratory diseases. Some regional festivals like new year Diwali also deteriorate the air quality in South Asian cities. Parkhi et al. (2016) and Beig et al. (2013) has reported the large variation in air quality during Diwali festivals and also estimate population exposure during these festivals. Trace elemental profiles have been studied extensively due to the numerous adverse effects of elements on human health (Sarnat et al., 2006; Liu et al., 2009; Freitas et al., 2010;
Mavroidis and Chaloulakou, 2010; Anderson and Thundiyil, 2012). Like other developing countries, there has been a deep concern on airborne particulate matter levels in Pakistan.
There are limited number studies that have discussed air
Shahid et al., Aerosol and Air Quality Research, 18: 2498–2509, 2018 2499 quality in Karachi and some of these have been summarized
as follows:
According to Husain et al. (2007) and Lodhi et al. (2009) some key anthropogenic activities such as transportation, agricultural actvities, industries, biomass burning for cooking and construction activities are progressively deteriorating air quality in Karachi due to rapid and excessive contributions of particulate matter. Khwaja et al. (2012) have described the impact of bad air quality on the morbidity rate in in the metropolitan city of an estimated population of 15 million.
Another study by Khwaja et al. (2009) features measurements of the composition of urban aerosol using electron microscopy. They report that seven different types of sources namely, sea salt, cement, steel mill, fossil fuel, soil, biological, and mobile sources contributed to ambient air, whereas vehicular traffic emission was the major contributor.
Shahid et al. (2016) have reported PM2.5 concentration of 75 µg m–3 in Karachi. Mansha et al. (2012) has described PM2.5 concentration and corresponding source apportionment using PMF model at an urban site in Karachi and showed that the sea salt originated from the Arabian Sea while road dust, transport and inudustrial emissions are major contributors to secondary aerosols. Parekh et al. (2001) reported TSP loading in the ambient air of Karachi and observed an averaged TSP concentration of 668 µg m–3. Ghauri et al. (2007) has established baseline levels in major urban cities including Karachi and reported TSP concentration at 410 µg m–3 in Karachi. Yakub and Iqbal (2010) studied
the risk of hyperhomocysteinemia due to lead (Pb) level in blood of a low income urban population in Karachi. Shahid et al. (2016) reported chemical characterization of PM10
and PM2.5 that included Elemental Carbon (EC), Organic Carbon (OC), soluble ions, anyhdro sugars and mass closure.
All the studies mentioned above reported PM10 and TSP concentrations only one Mansha et al. (2012) has used PMF model for PM2.5 This study is an attempt to estimate the contribution of five differnet sectors in PM10 mass using trace metals concentrations in PMF model.
MATERIALS AND METHODS Study Area
Karachi is situated on coast of Arbain Sea in south of Pakistanwith geographic coordinates 24°51′N 67°02′E. The sampling site for this study is situated on the north western region of Karachi airport i.e., SUPARCO Headquarters as shown in Fig. 1. There are four different seasons in the region which inclues pre-monsoon usually from April–
June, monsoon from July to September, post-monsoon from October to December and winter from January–March. The annual average rainfall in Karachi is about 170 mm, and approximately 80% of the precipitation occurring between July to September. The air is usualy hot and humid and dew point temperatures are usually above 21°C. Daytime temperatures can exceed 27°C throughout the year. The monthly mean wind magnitude and vectors (m s–1) from
Fig. 1. Location map.
Shahid et al., Aerosol and Air Quality Research, 18: 2498–2509, 2018
2500
MERRA 2 satellite data at 10 m height during the study peried i.e., March and April of year 2010 are provided in Fig. 2(a). According to Dutkiewicz et al. (2009) in Karachi winds are comparatively calm in winter, but there is a strong influence of northeasterly continental air. The daily mean temperature at 2m height over Karachi, during March and April of 2010 have been given in Fig. 2(b).
Sampling
PM samples were collected on Quartz fiber filters (Pall Corporation) at an urban site in Karachi as shown in Fig. 1
using a PM10 high volume sampler. The sampling was done during the pre-monsoon season in the months of March–
April 2009. The field blanks samples were also collected and considered for calculation procedures. In order to reduce the losses due to evaporation and volatization the filter samples were kept in refrigeration prior to chemical analysis.
Chemical Analysis
Trace metals Ni, Ba, Cd, Ca, Mg, Cr, Mn, Fe, Co, Cu, Sr, and Ti were measured using 5% HNO3 standard solution and Al, Pb, Zn, Se, P and S, 1000 mg L–1 in 1%
Fig. 2(a). Monthly mean wind magnitude and vectors (m s–1) from MERRA 2 satellite data at 10 m height during March and April of 2010.
Fig. 2(b). Daily mean Temperature at 2 m height over Karachi, during March and April of 2010.
Shahid et al., Aerosol and Air Quality Research, 18: 2498–2509, 2018 2501 HNO3 standard solution using Inductively coupled plasma
atomic emission spectroscopy (ICP-AES), spectrometer. The method was described by Mukhtar and Limbeck (2012).
The used methods were assessed for accuracy and the applicability by investigation of the certified reference material SRM 2709® (San Joaquin Soil) from National Institute of Standards and Technology (NIST, Gaithersburg, MD, USA) which was processed and analyzed in the same way as the collected aerosol samples. The uncertainty in chemical analysis has been described in detail by Mukhtar and Limbeck (2012).
Source Apportionment and Data Analysis
Receptor models are widely used in various research areas because of their capability to handle large datasets.
These models are applied so as to reduce the original datasets into lower dimensions, in order to analyze hidden information and to clarify the inconsistency of the measured variables.
Particularly, in the field of environmental studies, the goals of receptor modelling are to estimate the number and composition of sources, to highlight any trends and/or correlations among observations and to identify potential tracer/indicator for pollutant sources. The positive matrix factorization (PMF) is a mathematical approach developed by Paatero and Tapper in (1994), and used for quantification of source contributions to the samples based on the composition or markers of the sources. PMF is a non data-sensitive method that can resolve inhomogeneous datasets without any univariate analysis. An error estimates (or weight) related to the data can be introduced in PMF e.g., in difficult data sets outliers or below-detection limit can be introduced in the model with some weight. The composition is determined by analytical techniques suitable for the particular medium and important species that are required to separate impacts.
A speciated data set can be used as a data matrix X of i by j dimensions, where i is number of samples and j is chemical species that are measured with certain uncertainties sij The aim of this receptor model is to resolve the chemical mass balance (CMB) between source profiles and measured species concentrations, (Eq. (1)), with number of factors p, the species profile f of each source, and the amount of mass g contributed by each factor to each sample.
1
p
ik kj ij
ij k
x g f e
(1)To analyze source profiles (fkj) and contributions (gik), PMF uses a least squares method. The purpose of EPA PMF is to minimizes the sum of squares of standardized (residual divided by corresponding uncertainty value) residuals (Q).
2
1 1
a b
ij
i j ij
Q e
s
(2)where, a = Total number of samples, b = Total number of species and sij = Uncertainty for jth species in the ith sample.
Eq. (1) can be defined as
X = GF + E (3)
where X is Matrix of Measured data with dimension “no.
of samples” M “no. of species”.
G is Contributions Matrix with dimension “no. of samples”
M “no. of factors”.
F is Source profiles Matrix with dimension “no. of species”
M “no. of factors”.
E is Matrix of residuals with dimension “no. of samples”
M “no. of species”.
The uncertainty matrix ‘S’ and Matrix of the measured concentrations ‘M’ are inputs for PMF model, matrices
‘G’, ‘F’ and ‘E’ are attained as output data. The source contribution matrix “G” was applied for source apportionment by considering the measured PM10 mass. For quantitative source apportionment, a scaling coefficient, yk, is presented in the model Eq. (1) as follows,
1 p
k
ik kj ij
ij k k
x g y f e
y
(4)so that yk was measured by multi-linear regression of calculated source contribution against measured particulate matter mass. The constant of linear regression was assumed to be zero. Moreover,
1 m
i k ik
l
m y g
(5)This approach was implemented in the EPA-PMF version 3.1.1, and applied to the analytical results of the collected PM10 samples to classify their sources and contributions to the receptor's site. After several runs, EPA-PMF 3.1.1 revealed the five most appropiate sources that have a minimum Q value.
RESULTS AND DISCUSSION Particulate Matter
The average PM10 concentration at the sampling site varied from 255 µg m–3 to 793 µg m–3 with an average of 438 ± 161 µg m–3. The minimum value of PM10 is much higher than WHO limits (150 µg m–3) and also prescribed by Pakistan National Environmental Quality Standards (NEQS) for Ambient Air (Pak-EPA). The PM10 concentrationa at Karachi has been shown in Fig. 3. The observed PM10
concentration of this study is quite high as compared to the studies conducted in most of the European cities. In Milan- Italy PM10 levels of 81.4 µg m–3 and 91.9 µg m–3 were observed during day and night times respectively (Vecchi et al., 2007). Limbeck et al. (2009) reported PM10 levels in Vienna-Austria at three different sites of Schafberg (20.4 µg m–3), Kendlerstraße (27.7 µg m–3) and Rinnbockstraße (32.5 µg m–3). A mean PM10 concentration of 34.4 µg m–3 was observed in an urban environment of Zaragoza city of Spain by Callen et al. (2013). In Ulsan-Korea PM10 concentration of
Shahid et al., Aerosol and Air Quality Research, 18: 2498–2509, 2018
2502
Fig. 3. PM10 Obsvered and predicted concentrations at Karachi.
50.5 µg m–3 was reported by Hieu and Lee (2010). Similarly, from Istanbul-Turkey the annual mean concentration of PM10 of 39.1 µg m–3 was noted by Theodosi et al. (2010).
The measured PM10 level of 438 µg m–3 at the sampling site is comparable to the other reports from the Asian countries.
Duan et al. (2007) reported PM10 at an urban location of Guangzhou that ranged from 80 µg m–3 to 397 µg m–3. Karar and Gupta (2007) measured PM10 mass concentrations ranged from 68.2 µg m–3 to 280.6 µg m–3 and 62.4 µg m–3 to 401 µg m–3 at the residential and industrial sites of Kolkata respectively. The PM10 concentration levels measured in other cities of Pakistan (inclding Karachi) were also in the range of observation mentioned in the present study. Alam et al. (2015) reported PM10 mean concentration of of 480 µg m–3 in the Peshawar city that is very close to PM10
concentration in presented study. At Lahore, Pakistan an annual average PM10 mass concentration of 340 µg m–3 was observed by Schneidemesser et al. (2010). Similarly, respirable PM10 annual average concentration of 336 µg m–3 were reported by Stone et al. (2010). Likewise Alam et al.
(2014) reported that PM10 concentration at an urban site in Lahore varied from 254 µg m–3 to 555 µg m–3 with an average of 406 µg m–3. In Faisalabad city average PM10
concentrations of 372 µg m–3, 283 µg m–3, 223 µg m–3 and 150 µg m–3 were observed at designated sites by Zafar et al.
(2015). In a comparative study; PM10 concentrations were assessed from four large cities (Karachi, Lahore, Rawalpindi and Peshawar) in Pakistan. From all these above cited studies it is obivious that PM10 concentraiton in Karachi is comparable to other cities in the region but far higher thatn WHO limits and European cities.
Trace Elements
The total eighteen elements were analyzed in PM10
samples collected from an urban area of Karachi. According to the observed concentration ranges elements have been divided into four groups as summarized in Table 1. In the first group three elements: Ca, Al and Fe have been place.
Among this group, the concentration of Ca was highest with an average amount of 57260 ng m–3. It may originate from soil sources and sea salt spray. After Ca, Al and Fe have the highest average concentrations of 14280 ng m–3 and 13730 ng m–3 respectively. Both these elements are the dominant constituent of mineral dust. Apart from that, these elements can come from vehicular emissions, constructional activities and industrial emissions. Limbeck et al. (2009) has reported trace metals concentrations in Vienna that has less than 0.1 ng m–3 (Cd), approximately 200 ng m–3 (Zn), and mineral components ranging from 0.01 ng m–3 (Ca) to 16.3 ng m–3 (Si). Hieu et al. (2010) has reported Ca (3025 ng m–3) followed by Al (166 ng m–3) and Na (1523 ng m–3) in Ulsan, South Korea. Venkataraman et al. (2002) reported the size and chemical characteristics of aerosols measured at Mumbai and measured concentration of various elements like Al (3330 ng m–3), Si (70 ng m–3), Fe (1920 ng m–3), Mn (40 ng m–3) and Zn (770 ng m–3). Mansha et al. (2012) examined the source apportionment of PM in Karachi. The chemical analysis of these samples indicated that Al (51440 ng m–3), Ca (43910 ng m–3) and K (51360 ng m–3) as the major components of the samples during the summer season (Mansha et al., 2012).
Mg and S constitute the second group of elements with concentrations of 7350 ng m–3 and 6390 ng m–3, respectively.
Mg may have its origin from earth crest, sea salt spray and industrial activities, whereas S may come from vehicular emissions and burning of fossil fuels.
Elements like Zn, P, Cu, Pb, Mn, Ti, Sr and Ba have been placed in the third group. The average concentrations of
Shahid et al., Aerosol and Air Quality Research, 18: 2498–2509, 2018 2503 Table 1. Summary of trace element levels (ng m–3) in the airborne particulate matter (PM10).
Minimum (ng m–3) Maximum (ng m–3) Average (ng m–3)
PM10 (µg m–3) 255 793 438
Al 7050 32200 14280
Ba 50 190 220
Ca 28200 91360 57260
Cd < LOD < LOD < LOD
Co < LOD < LOD < LOD
Cr 20 100 50 Cu 190 540 420
Fe 4930 31160 13730
Mg 3320 14980 7350
Mn 130 730 370 Ni 10 50 20 P 270 730 570
Pb 120 1160 410
S 3760 10650 6390
Se 10 20 10 Sr 110 330 220 Ti 130 640 260
Zn 180 1870 830
these elements were comparable and found to be: Zn (830 ng m–3), P (570 ng m–3), Cu (420 ng m–3), Pb (410 ng m–3), Mn (370 ng m–3), Ti (260 ng m–3), Sr (220 ng m–3) and Ba (220 ng m–3). These heavy elements affect the human health the most and are usually attributed to anthropogenic sources.
Salam et al. (2003) determined trace elements in Dhaka Bangladesh and found that Fe (24800 ng m–3), As (9.8 ng m–3), Cd (2.5 ng m–3), Cu (54 ng m–3), Pb (280 ng m–3), Zn (800 ng m–3), Na (1300 ng m–3), K (1600 ng m–3), Ca (6800 ng m–3) and Mg (42 ng m–3) concentration in aerosol samples collected under pre-monsoon conditions. Alam et al. (2015) investigated the elemental profile in the aerosol samples collected from Peshawar. Elements analyzed were crustal Al (7590 ng m–3), Si (3060 ng m–3), Mg (4050 ng m–3), Fe (8630 ng m–3), traffic related Cu (1750 ng m–3), Mn (190 ng m–3), Pb (2200 ng m–3), Zn (1420 ng m–3), Ba (60 ng m–3) and mixed sources of soils and pollution like Sr (1110 ng m–3), Cr (550 ng m–3), K (2570 ng m–3) and Na (5280 ng m–3) Alam et al. (2014) described the characterization of crustal Al (12000 ng m–3), Ca (18000 ng m–3), Mg (5690 ng m–3), Fe (10200 ng m–3), S (5600 ng m–3), and Ti (210 ng m–3) and trace metals As (5 ng m–3), Ba (111 ng m–3), Cd (40 ng m–3), Cr (30 ng m–3), Cu (230 ng m–3), Mn (290 ng m–3), Ni (10 ng m–3), Pb (920 ng m–3), Sn (10 ng m–3) and Zn (3020 ng m–3) in PM10 samples collected from an urban site in Lahore. Ali and Athar (2010) monitored the ambient air quality of Lahore and determined PM10 and Pb levels. The concentration of Pb at different locations of the city was found in the range of 1900 to 7200 ng m–3. Niaz et al. (2012) evaluated the air pollutant Lead (Pb) in the Faisalabad city.
The Pb contents of 4330 ng m–3 were recorded during whole study period Ghauri et al. (2007) determined lead contents from various sites in the urban area of Karachiwith concentrationswhich ranged from 3030–5870 ng m–3.
The least concentrations were measured for elements placed in the fourth group. This included heavy metals like
Cr, Ni, Se and found to be 50 ng m–3, 20 ng m–3 and 10 ng m–3 respectively. The trace concentration of these metals were observed due to their lowest crustal abundance, while concentration of both Co and Cd were lower than the detection limit. Das et al. (2015) measured elemental composition of particulate matter from 16 locations in Greater Kolkata. In PM10 size fractions Fe (11242 ng m–3), Na (2393 ng m–3), Al (5223 ng m–3), K (3486 ng m–3), Ca (7610 ng m–3) were present in high concentrations, Mn (249 ng m–3), Zn (761 ng m–3) and Pb (394 ng m–3) demonstrated medium concentrations, while V (18 ng m–3), Co (4.1 ng m–3), Ni (48 ng m–3), Mo (15 ng m–3), Cd (8.6 ng m–3), Sn (21 ng m–3) and Sb (10 ng m–3) had low concentrations (Das et al., 2015).
Qadir et al. (2012) monitored geological and anthropogenic contributions to the urban air of Rawalpindi/Islamabad by trace elemental analysis. The presence of Yb, Cs, Sc, Rb, Co, Eu, La, Ba, Zn and Hf indicated their geological origin, while Sc was considered to be arising from coal burning.
The presence of Cr, Fe, Ce, Pb and Cd was attributed to anthropogenic activities (Qadir et al., 2012). Schneidemesser et al. (2010) measured detailed elemental composition in monthly composites from Lahore. Elemental analysis revealed extremely high concentrations of Pb (4400 ng m–3), Zn (12000 ng m–3), Cd (77 ng m–3) and several other toxic metals (Schneidemesser et al., 2010). It is obivious from all above cited studies that elemental concentration at Karachi is much higher than European cities but comparable to region South Asian cities like Lahore, Peshawar, Mumbai. As most of the mega cities in South Asia experience worst air quality Gulia et al. (2015).
Source Apportionment
The Positive Matrix Factorization model (EPA PMF 3.1.1) was used for source apportionment. The analytical results of the PM10 samples collected during this study were used in the PMF model in order to identify sources
Shahid et al., Aerosol and Air Quality Research, 18: 2498–2509, 2018
2504
and their contributions to the total PM10 mass. Based on the analytical results of the present study, five (05) factors were identified by PMF. The major sources of PM10 were identified as biomass burning, coal combustion, re-suspension road/soil dust, vehicular emission, and industrial dust as shown in Fig. 4.
Lim et al. (2010) measured PM10 concentration at Daejeon, Korea and identified nine different sources using PMF model that includes vehicle exhaust, soil, road dust, cement/construction, fossil fuel combustion and field burning, secondary aerosol, incineration/Pb related industry and metal smelting. Xie et al. (2008) determined source contributions to ambient PM10 in Beijing, China with PMF model. Results indicated various sources of ambient PM10
which were urban fugitive dust, crustal soil, coal combustion, secondary sulfate and nitrate, biomass burning with municipal incineration and vehicle emissions. Chueinta et al. (2000) reported fine and coarse fractions of airborne particulate matter in an urban residential area of metropolitan Bangkok. PMF revealed soil as the major source of airborne particulate matter for all data sets while other sources were motor vehicles, sea-salt spray, charcoal/wood burning and incineration contributions. Gu et al. (2011) used PMF method in order to identify the sources of ambient particles (PM10) in Augsburg. For particulate chemical composition data, six factors were identified and associated with NaCl, secondary
sulfate, biomass burning, secondary nitrate, traffic emission and re-suspended dust. Chan et al. (2008) collected PM samples from Melbourne, Sydney, Brisbane and Adelaide.
Chan et al. (2008) reported eight different factors for the fine particle samples that includes combustion sources, crustal/soil dust, ammonium sulphates, nitrates, motor vehicles, marine aerosols, chloride depleted marine aerosols, and industry.
While for the coarse particle four factos were recognized including marine aerosols, crustal/soil dust, nitrates and road side). Gupta et al. (2012) reported the PM sources of various sites within Mumbai city using PMF. Industrial area of Mahul showed sources such as residual oil combustion and paved road dust, traffic, coal fired boiler and nitrate sources.
On the basis of the previouse studies, as described earlier five factors were designed for source apportionment in PMF. These factors covers almost all aspects of available sources in the region and these factors includes biomass burning, coal combustion, re-suspended soil dust, vehicular emission and industrial combustion. The uncertainities values for chemical analysis used in PMF has been given in Table S1 as (Supplementary Material).
Factor-1 corresponds to biomass burning, and it has a major contribution from Cu, Co, Cd, Mg, and Ca, which results in 23% average mass of PM10 as shown in Fig. 5. Recently, Alam et al. (2015) reported that household combustion emission in Peshawar contained biomass burning, which
Fig. 4. Contributions of identified sources to PM10 mass at Karachi, Pakistan.
Shahid et al., Aerosol and Air Quality Research, 18: 2498–2509, 2018 2505
Fig. 5. Trace metals in aerosols samples and their major sources at Karachi during March to April, 2009.
contributed 12.8% of the total mass of PM10. Secondary aerosol formation in rural areas of Lahore and Karachi could be largely from coal and biomass combustion (Lodhi et
al., 2009; Mansha et al., 2012). Secondary aerosols contain nitrates and sulfates, which are emitted directly from natural as well as anthropogenic sources. Gugamsetty et al. (2012)
Shahid et al., Aerosol and Air Quality Research, 18: 2498–2509, 2018
2506
reported that biomass burning, wood burning, and vegetative burning produces high concentration of potassium and sulphate.
Factor-2 is identified as coal combustion, which has a major contribution from Zn, Sn, Cd, and Co. Coal combustion contributed 21.7% of the total mass of PM10.
Factor-3, re-suspended road/soil dust contributed 9.9%
of the total mass of PM10. Re-suspended road/soil dust includes Ba, Al, Mg, Cu, Fe, Ca, Cr and Mn. Recent studies reported that re-suspended road/soil dust includes high concentration of Al, Ca, Fe, Mg, Mn, Sr, Ti, and Zn (Gugamsetty et al., 2012; Alam et al., 2014).
Factor-4 is responsible for vehicular emission, and has a major contribution from Pb, Sb, Zn, Sn, S, As and Cd, which results in 22.2% average mass of PM10.
Factor-5 was identified as industrial dust, which contributed 23.2% of the total mass of PM10. Industrial dust has a major contribution from Ni, Ti, Fe, Al, As and Mn. The PMF model result appears to be significantly good for the elemental data of particulate matter utilized. A strong positive correlation was observed between predicted and calculated mass of PM10. The correlation (R2) between the measured (gravimetrically measured mass collected on filter) and the model predicted PM10 mass was 0.98 as shown in Fig. 6.
CONCLUSION
During the last few decades, there has been a rapid increase in population, urbanization, industrialization, transportation and other human activities, especially in developing countries.
As a result, a sharp increase has occurred in both the variety and the quantity of air pollutants and their corresponding sources. The ambient air quality of Karachi is getting worse day by day due to a large number of factors, including industrialization, inefficient energy usage, tremendously high vehicular population, unobstructed solid waste burning, and utilization of ozone depleting species. The average PM10
concentration measured at an urban site in Karachi was found to be many folds higher than the maximum daily and annual average concentrations of PM10 prescribed as ambient- air guidelines by Pakistan NEQS and WHO. This measured value was also significantly higher than the limits given by European and United States ambient air quality standards.
The observed and predicted values of PM10 by PMF showed excellent correlation, with R2 = 0.98, a mean bias of 0.22 and an RMSE value of 17.3 μg m–3, demonstrating the accuracy of the model. The PMF study revealed that industrial dust is a major contributor (23.2%) to PM10 followed by Biomass burning (23%), Vehicular emissions (22.2%), Coal combustion (21.7%) and Re-suspended dust (9.9%).
Fig. 6. Correlation between observed and predicted PM10 concentration. The RMSE value is in µg m–3.
Shahid et al., Aerosol and Air Quality Research, 18: 2498–2509, 2018 2507 The extreme heat wave in June 2015 killed more than 1500
people in Karachi, and air pollution may have increased its impact in urban areas. In order to improve the air quality to safe levels, it is indeed high time for the establishment of continuous air monitoring stations, the complete characterization and source identification of pollutants, and the revision and implementation of air quality standards and legislation along with development of future strategies and effective planning.
SUPPLEMENTARY MATERIAL
Supplementary data associated with this article can be found in the online version at http://www.aaqr.org.
REFERENCES
Alam, K., Mukhtar, A., Shahid, I., Blaschke, T., Majid, H., Rahman, S., Khan, R. and Rahman, N. (2014). Source apportionment and characterization of particulate matter (PM10) in urban environment of lahore. Aerosol Air Qual. Res. 14: 1851–1861.
Alam, K., Rahman, N., Khan, H.U., Haq, B.S. and Rahman, S. (2015). Particulate matter and its source apportionment in Peshawar, northern Pakistan. Aerosol Air Qual. Res.
15: 634–647.
Ali, M. and Athar, M. (2010). Impact of transport and industrial emissions on the ambient air quality of Lahore City, Pakistan. Environ. Monit. Assess. 171: 353–363.
Anderson, J.O. and Thundiyil, J.G. (2012). Clearing the air: A review of the effects of particulate matter air pollution on human health. J. Med. Toxicol. 8: 166–175.
Awan, M.A., Ahmed, S.H., Aslam, M.R. and Qazi, I.A.
(2011). Determination of total suspended particulate matter and heavy metals in ambient air of four cities of Pakistan. Environ. Sci. Eng. 2: 128–132.
Beig, G., Chate, D.M., Ghude, S.D., Ali, K., Satpute, T., Sahu, S.K., Parkhi, N. and Trimbake, H.K. (2013).
Evaluating population exposure to environmental pollutants during Deepavali fireworks displays using air quality measurements of the SAFAR network. Chemosphere 92:
116–124
Callén, M.S., López, J.M., Iturmendi, A. and Mastral, A.M.
(2013). Nature and sources of particle associated polycyclic aromatic hydrocarbons (PAH) in the atmospheric environment of an urban area. Environ. Pollut. 183:
166–174.
Chan, Y.C., Cohen, D.D., Hawas, O., Stelcer, E., Simpson, R., Denison, L., Wong, N., Hodge, M., Comino, E. and Carswell, S. (2008). Apportionment of sources of fine and coarse particles in four major Australian cities by positive matrix factorisation. Atmos. Environ. 42: 374–
389.
Chandra, S., Kulshrestha, M., Singh, R. and Singh, N.
(2016). Chemical characteristics of trace metals in PM10
and their concentrated weighted trajectory analysis at Central Delhi, India. J. Environ. Sci. 55: 184–196.
Chate, D., Beig, G., Satpute, T., Sahu, S.K., Ali, K., Parkhi, N. and Ghude, S. (2013). Assessments of population
exposure to environmental pollutants using air quality measurements during Commonwealth Games-2010.
Inhalation Toxicol. 25: 333–340.
Chueinta W., Hopke P.K. and Peetero P. (2000).
Investigation of sources of atmospheric aerosol at urban and suburban residential areas in Thailand by positive matrix factorization. Atmos. Environ. 34: 3319–3329.
Das, R., Khezri, B., Srivastava, B., Datta, S., Sikdar, P.K., Webster, R.D. and Wang, X. (2015). Trace element composition of PM2.5 and PM10 from Kolkata-A heavily polluted Indian metropolis. Atmos. Pollut. Res. 6: 742–
750.
Duan, J., Bi, X., Tan, J., Sheng, G. and Fu, J. (2007).
Seasonal variation on size distribution and concentration of PAHs in Guangzhou city, China. Chemosphere 67:
614–622.
Dutkiewicz, V.A., Alvi, S., Ghauri, B.M., Choudhary, M.I.
and Husain, L. (2009). Black carbon aerosols in urban air in South Asia. Atmos. Environ. 43: 1737–1744.
Freitas, M.C., Pacheco, A.M.G., Verburg, T.G. and Wolterbeek, H.T. (2010). Effect of particulate matter, atmospheric gases, temperature, and humidity on respiratory and circulatory diseases' trends in Lisbon, Portugal. Environ. Monit. Assess. 162: 113–121.
Ghauri, B., Lodhi, A. and Mansha, M. (2007). Development of baseline (air quality) data in Pakistan. Environ. Monit.
Assess. 127: 237–252.
Ghude, S.D., Chate, D.M., Jena, C., Beig, G., Kumar, R., Barth, M.C., Pfister, G.G., Fadnavis, S. and Pithani, P.
(2016). Premature mortality in India due to PM2.5 and ozone exposure. Geophys. Res. Lett. 43: 4650–4658.
Gu, J., Pitz, M., Schnelle-Kreis, J., Diemer, J., Reller, A., Zimmermann, R., Soentgen, J., Stoelzel, M., Wichmann, H.E., Peters, A. and Cyrys, J. (2011). Source apportionment of ambient particles: Comparison of positive matrix factorization analysis applied to particle size distribution and chemical composition data. Atmos.
Environ. 45: 1849–1857.
Gugamsetty, B., Wei, H., Liu, C., Awasthi, A., Hsu, S., Tsai, C., Roam, G., Wu, Y. and Chen, C. (2012). Source characterization and apportionment of PM10, PM2.5 and PM0.1 by using positive matrix factorization. Aerosol Air Qual. Res. 12: 476–491.
Gulia, S., Nagendra, S.M.S., Khare, M. and Khanna, I.
(2015). Urban air quality management – A review.
Atmos. Pollut. Res. 6: 286–304.
Gupta, I., Salunkhe, A. and Kumar, R. (2012). Source apportionment of PM10 by positive matrix factorization in urban area of Mumbai, India. Sci. World. J. 2012:
585791.
Gwynn, R.C., Burnett. R.T. and Thurston, G.D. (2000). A time-series analysis of acidic particulate matter and daily mortality and morbidity in the Buffalo, New York, region.
Environ. Health. Perspect. 108: 125–133.
Hieu, N.T. and Lee, B. (2010). Characteristics of particulate matter and metals in the ambient air from a residential area in the largest industrial city in Korea. Atmos. Res.
98: 526–537.
Husain, L., Dutkiewicz, V.A., Khan, A.J. and Ghauri, B.M.
Shahid et al., Aerosol and Air Quality Research, 18: 2498–2509, 2018
2508
(2007). Characterization of carbonaceous aerosols in urban air. Atmos. Environ. 41: 6872–6883.
Iqbal, M.Z., Shafig, M., Zaidi, S.Q., Athar, M. and Halt, M. (2015). Effect of automobile pollution on chlorophyll content of roadside urban trees. Global J. Environ. Sci.
Manage. 1: 283–296.
Karar, K. and Gupta, A.K. (2007). Source apportionment of PM10 at residential and industrial sites of an urban region of Kolkata, India. Atmos. Res. 84: 30–41.
Kaushar, A., Chate, D., Beig, G., Srinivas, R., Parkhi, N., Satpute, T., Sahu, S., Ghude, S., Kulkarni, S., Surendran, D., Trimbake, H. and Trivedi, D.K. (2013). Spatio- temporal variation and deposition of fine and coarse particles during the Commonwealth Games in Delhi.
Aerosol Air Qual. Res. 13: 748–755.
Khan, F., Hirano, K. and Masunaga, S. (2010). Quantifying the sources of hazardous elements of suspended particulate matter aerosol collected in Yokohama, Japan. Atmos.
Environ. 44: 2646–2657.
Khwaja, H.A., Parekh, P.P., Khan, A.R., Hershey, D.L., Naqvi, R.R., Malik, A. and Khan, K. (2009). An in-depth characterization of urban aerosols using electron microscopy and energy dispersive X-ray analysis. Clean 37: 544–554.
Khwaja, H.A., Fatmi, Z., Malashock, D., Aminov, Z., Kazi, A., Siddique, A., Qureshi, J. and Carpenter, D.O.
(2012). Effect of air pollution on daily morbidity in Karachi, Pakistan. J. Local Global Health Sci. 1: 1–13.
Kim, K., Kabir, E. and Kabir, S. (2015). A review on the human health impact of airborne particulate matter.
Environ. Int. 74: 136–143.
Kumar, M., Kumar, M., Singh, R.K., Murari, V., Singh, A.K., Singh, R.S. and Banerjee, T. (2016). Fireworks induced particle pollution: A spatio temporal analysis.
Atmos. Res. 180: 78–91.
Kumar, M., Raju, M.P., Singh, R.K., Singh, A.K., Singh, R.S. and Banerjee, T. (2017). Wintertime characteristics of aerosols over middle Indo-Gangetic Plain: Vertical profile, transport and radiative forcing. Atmos. Res. 183:
268–282.
Lim, J.M., Lee, J.H., Moon, J.H., Chung, Y.S. and Kim, K.H. (2010). Source apportionment of PM10 at a small industrial area using Positive Matrix Factorization.
Atmos. Res. 95: 88–100.
Limbeck, A., Handler, M., Puls, C., Zbiral, J., Bauer, H.
and Puxbaum, H. (2009). Impact of mineral components and selected trace metals on ambient PM10 concentrations.
Atmos. Environ. 43: 530–538.
Liu, B., Yang, J., Yuan, J., Wang, J., Dai, Q., Li, T., Bi, X., Feng, Y., Xiao, Z., Zhang, Y. and Xu, H. (2017). Source apportionment of atmospheric pollutants based on the online data by using PMF and ME2 models at a megacity, China. Atmos. Res. 185: 22–31.
Liu, L., Poon, R., Chen, L., Frescura, A.M., Montuschi, P., Ciabattoni, G., Wheeler, A. and Dales, R. (2009). Accute effects of air pollution on pulmonary function, airway inflammation, and oxidative stress in asthmatic children.
Environ. Health. Perspect. 117: 668–670.
Lodhi, A., Ghauri, B., Khan, M.R., Rahman, S. and Shafique,
S. (2009). Particulate matter (PM2.5) concentration and source apportionment in Lahore. J. Braz. Chem. Soc. 20:
1811–1820.
Majid, H., Alam, K., Madl, P. and Hofmann, W. (2013).
Exposure assessment and associated lung deposition calculations for vehicular exhaust in four metropolitan cities of Pakistan. Environ. Monit. Assess. 185: 5265–
5276.
Mansha, M. and Ghauri, B. (2011). Assessment of fine particulate matter (PM2.5) in metropolitan Karachi through satellite and ground-based measurements. J.
Appl. Remote Sens. 5: 053546.
Mansha, M., Ghauri, B., Rahman, S. and Amman, A.
(2012). Characterization and source apportionment of ambient air particulate matter (PM2.5) in Karachi. Sci.
Total Environ. 425: 176–183.
Mavroidis, I. and Chaloulakou, A. (2010). Characteristics and expected health implications of annual PM10
concentrations in Athens, Greece. Int. J. Environ. Pollut.
41: 124–139.
Mukhtar A. and Limbeck A. (2012). A new approach for determination of crustal and trace elements in airborne particulate matter. Int. J. Environ. Anal. Chem. 92: 496–
508.
Nazir, R., Shaheen, N. and Shah, M.H. (2011).
Indoor/outdoor relationship of trace metals in the atmospheric particulate matter of an industrial area.
Atmos. Res. 101: 765–772.
Niaz, Y., Iqbal, M., Masood, N., Bokhari, T.H., Shehzad, M.A. and Abbas, M. (2012). Temporal and spatial distribution of lead and total suspended particles in ambient air of Faisalabad, Pakistan. IJCBS 2: 7–13.
Parekh, P.P., Khwaja, H.A., Khan, A.R., Naqvi, R.R., Malik, A., Shah, S.A., Khan, K. and Hussain, G. (2001).
Ambient air quality of two metropolitan cities of Pakistan and its health implications. Atmos. Environ. 35: 5971–
5978.
Parkhi, N., Chate, D., Ghude, S.D., Peshin, S., Mahajan, A., Srinivas, R., Surendran, D., Ali, K., Singh, S., Trimbake, H. and Beig, G. (2016). Large inter annual variation in air quality during the annual festival ‘Diwali’ in an Indian megacity. J. Environ. Sci. 43: 265–272.
Paatero P. and Tapper U. (1994). Positive matrix factorization: A non-negative factor model with optimal utilization of error estimates of data values.
Environmnetrics 5: 111–126.
Perez, L., Tobias, A., Querol, X., Ku, N., Viana, M., Valero, N. and Gonza, M. (2008). Coarse particles from saharan dust and daily mortality. Epidemiology 19: 800–807.
Pope, C.A., Burnett, R.T., Thun, M.J., Calle, E.E., Krewski, D. and Thurston, G.D. (2015). Lung cancer, cardiopulmonary mortality, and long-term exposure to fine particulate air pollution. JAMA 287: 1132–1141.
Qadir, M.A., Zaidi, J.H., Ahmad, S.A., Gulzar, A., Yaseen, M., Atta, S. and Tufail, A. (2012). Evaluation of trace elemental composition of aerosols in the atmosphere of Rawalpindi and Islamabad using radio analytical methods.
Appl. Radiat. Isot. 70: 906–910.
Roy, A., Chatterjee, A., Sarkar, C., Das, S.K., Ghosh, S.K.
Shahid et al., Aerosol and Air Quality Research, 18: 2498–2509, 2018 2509 and Raha, S. (2017). A study on aerosol-cloud
condensation nuclei (CCN) activation over eastern Himalaya in India. Atmos. Res. 189: 69–81.
Salam, A., Bauer, H., Kassin, K., Mohammad, S. and Puxbaum, H. (2003). Aerosol chemical characteristics of a mega-city in Southeast Asia (Dhaka–Bangladesh).
Atmos. Environ. 37: 2517–2528.
Sarnat, S.E., Coull, B.A., Schwartz, J., Gold, D.R. and Suh, H.H. (2006). Factors affecting the association between ambient concentrations and personal exposures to particles and gases. Environ. Health. Perspect. 114: 649–655.
Schneidemesser, E.V., Stone, A.E., Quraishi, T.A., Shafer, M.M. and Schauer, J.J. (2010). Toxic metals in the atmosphere in Lahore, Pakistan. Sci. Total Environ. 408:
1640–1648.
Shafiq, M., Iqbal, M.Z., Arayne, M.S. and Athar, M. (2012).
Biomonitoring of heavy metal contamination in Pongamia pinnata and Peltophorum pterocarpum growing in the polluted environment of Karachi, Pakistan. J. Appl. Bot.
Food Qual. Bot. 85: 120–125.
Shah, M.H., Shaheen, N. and Nazir, R. (2012). Assessment of the trace elements level in urban atmospheric particulate matter and source apportionment in Islamabad, Pakistan. Atmos. Pollut. Res. 3: 39–45.
Shahid, I., Kistler, M., Mukhtar, A., Ghauri, B.M., Ramirez- Santa Cruz, C., Bauer, H. and Puxbaum, H. (2016).
Chemical characterization and mass closure of PM10 and PM2.5 at an urban site in Karachi – Pakistan. Atmos.
Environ. 128: 114–123.
Shahid, M.Z., Liao, H., Li, J., Shahid, I., Lodhi, A. and Mansha, M. (2015). Seasonal variations of aerosols in Pakistan: Contributions of domestic anthropogenic emissions and transboundary transport. Aerosol Air Qual.
Res. 15: 1580–1600.
Sharma, S.K., Mandal, T.K., Saxena, M., Rashmi, Rohtashi, Sharma, A. and Gautam, R. (2014) Source apportionment of PM10 by using positive matrix factorization at an urban site of Delhi, India. Urban Clim. 10: 656–670.
Sharma, S.K., Sharma, A., Saxena, M., Choudhary, N., Masiwal, R., Mandal, T.K. and Sharma, C. (2016).
Chemical characterization and source apportionment of aerosol at an urban area of Central Delhi, India. Atmos.
Pollut. Res. 7: 110–121.
Stone, E., Schauer, J., Quraishi, T.A. and Mahmood, A.
(2010). Chemical characterization and source
apportionment of fine and coarse particulate matter in Lahore, Pakistan. Atmos. Environ. 44: 1062–1070.
Sudheer, A.K. and Rengarajan, R. (2012). Atmospheric mineral dust and trace metals over urban environment in western India during winter. Aerosol Air Qual. Res. 12:
923–933.
Theodosi, C., Im, U., Bougiatuoti, A., Zarmpas, P., Yenigun, O. and Mihalopoulos N. (2010). Aerosol chemical composition over Istanbul. Sci. Total Environ. 408:
2482–2491.
Vaishya, A., Singh, P., Rastogi, S. and Babu, SS. (2017).
Aerosol black carbon quantification in the central Indo- Gangetic Plain: Seasonal heterogeneity and source apportionment. Atmos. Res. 185: 13–21.
Vecchi, R.Ã., Marcazzan, G. and Valli, G. (2007). A study on nighttime–daytime PM10 concentration and elemental composition in relation to atmospheric dispersion in the urban area of Milan (Italy). Atmos. Environ. 41: 2136–
2144.
Venkataraman, C., Reddy, C.K., Josson, S. and Reddy, M.S. (2002). Aerosol size and chemical characteristics at Mumbai, India, during the INDOEX-IFP (1999). Atmos.
Environ. 36: 1979–1991.
Waheed, S., Siddique, N., Arif, M., Daud, M. and Markwitz, A. (2012). Size-fractionated airborne particulate matter characterization of a residential area near Islamabad airport by IBA methods. J. Radioanal. Nucl. Chem. 293:
279–287.
Xie, S.D., Liu, Z., Chen, T. and Hua, L. (2008).
Spatiotemporal variations of ambient PM10 source contributions in Beijing in 2004 using positive matrix factorization. Atmos. Chem. Phys. 8: 2701–2716.
Yakub, M. and Iqbal, M.P. (2010). Association of blood lead (Pb) and plasma homocysteine: A cross sectional survey in Karachi, Pakistan. PLoS One 5: 3–8.
Zafar, M., Arshad, M. and Khokhar, M.F. (2015). Assessment of particulate matter (PM10) and Polycyclic aromatic hydrocarbons levels at various sites in faisalabad and their potential toxicity. Pak. J. Agri. Sci. 52: 233–238.
Received for review, July 24, 2017 Revised, October 24, 2017 Accepted, October 26, 2017
