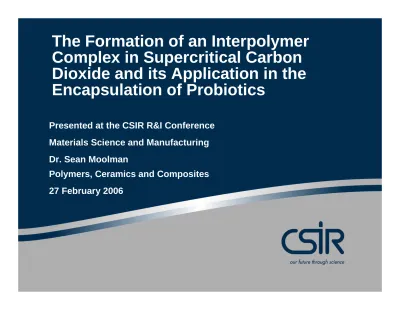

The Formation of an Interpolymer Complex in Supercritical Carbon Dioxide and its Application in the Encapsulation of Probiotics

Presented at the CSIR R&I Conference Materials Science and Manufacturing Dr. Sean Moolman

Polymers, Ceramics and Composites 27 February 2006

(2)

Structure of talk

•

Supercritical fluids

What are they & what makes them special?

•

^Probiotics

What is it & why do we want to encapsulate it?

•

Polymers and scCO₂

Love/hate relationship!

•

Interpolymer complexes

A potential solution!

•

The CSIR technology

So how do we do it?

•

^Results

(Does it actually work?!)

•

Conclusions

Where to from here?

(3)

Supercritical fluids

What are they & what makes them special?

(4)

(5)

Slide 5 © CSIR 2006 www.csir.co.za

Comparison of typical values of physico-chemical properties for a liquid, gas and supercritical fluid

1 10^-5

10^-1 Gas

300 10^-5

10^-3 Supercritical fluid

1000 10^-3

10^-5 Liquid

Density [kg/m³] Viscosity [Pa.s]

Diffusivity [cm²/s]

Material state

(6)

Supercritical carbon dioxide

Most commonly used supercritical fluid, because:

•

Non-toxic & non-flammable

•

Inert – cannot be oxidised

•

Relatively mild supercritical conditions (31.0 ºC, 73.8 bar)

•

Inexpensive

•

Easy separation by depressurization & no residual solvent

•

Environmentally benign (zero net effect – already produced by many industries, e.g. beer production) But:

•

SCF processing relatively expensive, therefore higher value add applications

(Commercially used in e.g. decaffeination, hops extraction)

(7)

CO₂ Total Solubility Parameter - Experimental vs. Calculated

0 2 4 6 8 10 12 14 16 18

1 10 100 1000

Pressure (bar)

Hildebrand parameter (MPa0.5)

Exp. 31 ºC LW 31 ºC Hansen 31 ºC Adjusted molar vol.

Calculation base values:

LW: d_d = 16.6 d_p = 5.3 d_h = 5.7 MPa^0.5 Hansen: d_d = 15.3 d_p = 6.9 d_h = 4.1 MPa^0.5

T_ref = 25 ºC, P_ref = 1655 bar, V_ref = 3.61E-5 m³/mol Adjusted V_ref = 4.15E-5 m³/mol, P_ref = 606 bar

Temperature = 31 ºC

Hansen LW Adjusted

(8)

Probiotics

What is it & why do we want to encapsulate it?

(9)

Bacteria & the human body

•

No. of bacteria 20 times more than no. of cells!

•

Large intestine – 10¹⁰ – 10¹¹ bacteria / g intestinal contents;

400 – 500 species

•

Up to 1.5 kg of bacteria!

•

Friendly bacteria – help promote digestion, aid in absorption of nutrients

•

Pathogens – responsible for digestive problems (diarrhoea, etc.)

(From Holzapfel et al. 1998. Overview of gut flora and Probiotics. Int. Jnl. Food Microb. 41:85-101)

(10)

Probiotics - definitions

•

Live microbial cultures fed by mouth and surviving transit through the large intestine where they colonise the system (Frost and Sullivan, 2000; Saarela et al., 2000)

•

A preparation of or a product containing viable, defined microorganisms in sufficient numbers, which alter the microflora by implantation or colonization, in a

compartment of the host and by that, exert beneficial

effects on host health (Schrezenmeir and de Vrese, 2001)

•

Live microorganisms which when administered in

adequate amounts confer a health benefit on the host (FAO/WHO, 2001).

•

Most commonly Lactobacillus and Bifidobacterium

(11)

Potential benefits of probiotics as supplement or in functional foods

•

Prevention and treatment of diarrhoea caused by rotavirus, especially in children

•

Immune system enhancement

•

Reducing some allergic reactions\

•

Treating and preventing respiratory infections, especially in children

•

Decreased faecal mutagenicity

•

Decrease in the level of pathogenic bacteria

•

Decreased faecal bacterial enzyme activity

•

Prevention of the recurrence of superficial bladder cancer

•

The restoration of the correct balance of natural microflora after stress, antibiotic treatment, alcohol use and

chemotherapy

(12)

Problems with putting probiotics in food products…

•

Lactobacillus – microaerophilic & Bifidobacterium – anaerobic, thus sensitive to OXYGEN…

•

Short shelf-life…→ encapsulation?

•

Encapsulation difficult because the bacteria also sensitive to HEAT and SOLVENTS

•

Also sensitive to the aggressive GASTRIC environment

•

Thus a ‘soft’ encapsulation method required – perhaps supercritical CO₂-based? (no solvent, low temp., no oxygen)

•

Enteric release would be advantageous (i.e. protection in stomach, release in intestines)

(13)

Polymers and scCO

₂

Love/hate relationship!

(14)

Polymers and scCO

₂

•

High-pressure CO₂ can depress polymer T_g and/or melting point of polymers and improve processing…

•

However, many polymers have insufficient solubility in or compatibility with scCO₂ to enable processing at mild

pressures and temperatures

Graphs from: Kirby CF, McHugh MA. 1999. Phase Behaviour of Polymers in Supercritical Fluid Solvents. Chem. Rev. 99:565-602.

(15)

Approaches to overcome low affinity between polymers and scCO

₂

Limited flexibility with regards to properties

Fats, waxes and oils are generally soluble in scCO₂

Use fats / waxes for encapsulation

These polymers generally have low mechanical integrity and/or barrier properties

These polymers are more amenable to scCO₂processing.

Use low molar mass and low polarity polymers

Reintroduces requirement for use of a solvent - many actives are

sensitive to solvents Use scCO₂as an anti-solvent to extract

the solvent from a sprayed polymer solution and thus precipitate the polymer

Gas anti-solvent (GAS)

technique

No obvious second supercritical fluid with desired combination of properties (low/no toxicity, low critical temperature & pressure, low cost, etc.)

The use of a second supercritical fluid to enhance polymer processability Mixtures of SCFs

Reintroduces requirement for use of a solvent - many actives are

sensitive to solvents The addition of a cosolvent such as

methanol or ethanol to increase the solvation power of scCO₂

Cosolvents

Need FDA approval for surfactants The addition of CO₂-soluble surfactants

Surfactants

Need FDA approval for new polymers Incorporation of "CO₂-philic" functional

groups in new polymers Polymer design

Limitations Elaboration

Approach

(16)

Interpolymer complexes

A potential solution!

(17)

What are interpolymer complexes?

“Non-covalent interaction between two or more polymers through forces such as ionic forces, hydrophobic interactions, hydrogen bonding and Van der Waals forces”

(18)

Proven, proprietary CSIR technologies based on interpolymer complexes…

•

Controlled release drug delivery systems

•

Barrier coating for packaging applications

0 20 40 60 80 100

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

PMVE-MA as wt fraction of (PVOH + PMVE-MA)

Normalized viscosity

0 0.005 0.01 0.015 0.02 0.025 0.03 0.035 0.04 0.045 0.05

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%

Gantrez content OTR (cm3@stp/bottle/day)

(19)

Desired properties of polymers for encapsulation system

•

^scCO₂-processable (soluble / plasticizable)

•

pH-dependent release in intestinal tract

•

Complementary (form interpolymer complex)

•

FDA approved for food or pharma

(20)

The CSIR technology

So how do we do it?

(21)

Polymer system

Vinyl pyrrolidone repeat unit Vinyl acetate repeat unit

(22)

SCF processing unit

(23)

SCF processing unit

(24)

Important parameters

•

Temperature, pressure

•

Back pressure in product chamber

•

Nozzle configuration (e.g. capillary vs. orifice)

•

Processing aids

•

Stirrer design

(25)

Results

(Does it actually work?!)

(26)

Plasticization of PVP and PVAc-CA

PVP

PVAc-CA

2000 – 3000 g/mol

45 000 g/mol

(27)

Formation of interpolymer complex in scCO

₂

PVAc-CA Complex PVP

Carbonyl absorption band

acetate absorption band overlapping with two carbonyl stretching modes of the free and self- associated carboxylic acid groups

1664 cm^-1

1681 cm^-1

0 1 2 3 4 5 6 7 8 9

Moisture absorption (%)

PVP:PVAc-CA PVP-VAc:PVAc-CA PEO-PPO-PEO:PVAc-CA Moisture absorption, 72 hours, 60% RH, 30 ºC

Dry blend scCO2-processed

24 h, 30 ºC, 60% RH

(28)

Product particles containing B. lactis

Particle size (µm)

0.1 1 10 100 1000 10000

Normalized volume distribution

0 20 40 60 80 100

PVP:PVAc-CA 0.25:0.75 GMS:PVP:PVAc-CA 0.75:0.0625:0.1875

Sauter mean diameter 168 µm Sauter mean

diameter 6.9 µm

3.0E+12 3.0E+12

9.3E+10 0.0E+00

5.0E+11 1.0E+12 1.5E+12 2.0E+12 2.5E+12 3.0E+12

Viable cell count (cfu/g)

Control SCF-encapsulated Spray-dried Survival of B. longum through encapsulation process

(29)

0 5 10 15 20 25

% of encapsulated drug released

0 20 40 60 80 100

pH 6.8 buffer pH 1.2 buffer

pH-dependent release of indomethacin

(30)

Dissolution/swelling of encapsulated B. longum

Freeze-dried control

SCF encapsulated

(31)

Shelf-life improvement

*Cui et al. 2000. Survival and stability of bifidobacteria loaded in alginate poly-l-lysine microparticles. Internat. J. of Pharmaceutics 210:51-59

Bb12 (B. lactis ) survival after 7 weeks

1.0E+06 1.0E+07 1.0E+08 1.0E+09 1.0E+10 1.0E+11 1.0E+12 1.0E+13 1.0E+14

Bb12 - RT PL3/129 - RT Bb12 - 4 ºC PL3/129 - 4 ºC Bb12 - RH PL3/129 - RH B. bifidum in alginate- polylysine, 4ºC*

Sample / conditions

Bacteria survival (cfu/g)

RH = Humidity cabinet, 30 ºC, 60% RH RT = Room temperature, dessicated 4 ºC = 4 ºC, dessicated

(32)

SGJ & SIF results – vs time

1.E+08 1.E+09 1.E+10 1.E+11 1.E+12 1.E+13 1.E+14

-1 1 3 5 7

Time (h)

Viable cells (cfu/g)

Bb-46 control

Encapsulated - pellet

Encapsulated - supernatant Encapsulated - total

Before experiment

Simulated gastric juice (HCl, pepsin, saline, pH 2)

Simulated intestinal fluid (KH₂PO₄, NaOH, pancreatin, pH 6.8)

(33)

Summary of B. longum results - final counts

1.E+06 1.E+07 1.E+08 1.E+09 1.E+10 1.E+11 1.E+12 1.E+13

Viable bacteria (cfu/g)

Controls (cfu/g) Encapsulated (cfu/g)

Controls (cfu/g) 2.25E+08 1.16E+07 1.16E+07 1.21E+08 1.07E+10 2.05E+08 Encapsulated (cfu/g) 3.29E+09 1.35E+08 1.52E+09 9.45E+08 1.52E+12 1.20E+09

Normal system

Normal system +

Pluronic

Normal system

Normal system - low er press.

Normal system +

GMS

Normal + GMS +

gelatin

Counts after exposure to simulated gastric juice and simulated intestinal fluid

(34)

Conclusions

Where to from here?

(35)

Conclusions

•

Can form interpolymer complexes in scCO₂

•

Can process these interpolymer

complexes in scCO₂, without complexation inhibitor

•

Can successfully encapsulate drugs and bacteria using PVP:PVAc-CA and the PGSS system, with minimal

damage to bacteria

•

PVP:PVAc-CA interpolymer complex insoluble in acidic environments, but swells & releases in alkaline

environments

•

SCF-encapsulated B. longum has improved survival through gastric environment compared to controls

(36)

Further work

•

Investigate other applications (e.g. oral vaccines)

•

Improve shelf-life performance / testing methodology

•

Shelf-life trials with subsequent SGJ-SIF testing

•

Trials on SHIME system (Gent University – Belgium)

•

Atomistic simulation to investigate optimum stoichiometric ratios

•

Culture B. bifidum and determine effect of SCF-based encapsulation

(37)

Acknowledgements

•

Project team:

• Philip Labuschagne, Dr. Thilo van der Merwe (CSIR)

• Mapitsi Thantsha, Prof. Eugene Cloete (UP)

•

IDC (joint investment)

•

DST (funded first supercritical fluid reactor system)
