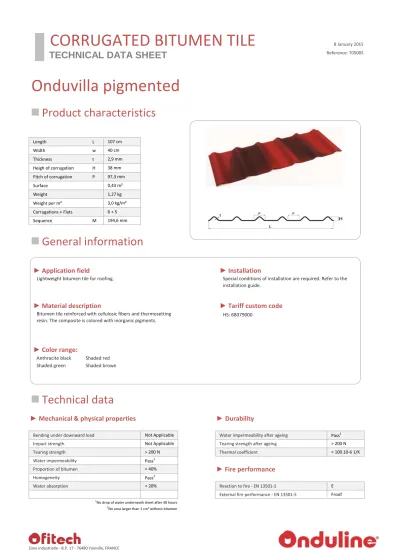

TECHNICAL DATA SHEET
Product characteristics
Length L
Width w
Thickness t
Heigh of corrugation H
Pitch of corrugation P
Surface
Weight
Weight per m²
Corrugations + Flats
Sequence M
General information
►
Application field
►
Installation
►
Material description
►
Tariff custom code
HS: 68079000
►
Color range:
Anthracite black Shaded red Shaded green Shaded brown
Technical data
►
Mechanical & physical properties
►
Durability
Bending under downward load Water impermeability after ageing Impact strength Tearing strength after ageing Tearing strength Thermal coefficient Water impermeability
Proportion of bitumen
►
Fire performance
Homogeneity
Water absorption Reaction to fire - EN 13501-1 External fire performance - EN 13501-5
1
No drop of water underneath sheet after 48 hours
2
No area larger than 1 cm² without bitumen
CORRUGATED BITUMEN TILE
Pass1 > 40% 1,27 kg
0,43 m²
Bitumen tile reinforced with cellulosic fibers and thermosetting resin. The composite is colored with inorganic pigments.
Special conditions of installation are required. Refer to the installation guide.
8 January 2015
Reference: T05005
Onduvilla pigmented
Lightweight bitumen tile for roofing.
Pass1 3,0 kg/m²
38 mm
97,3 mm
> 200 N
< 100.10-6 1/K
E
Froof Not Applicable
> 200 N
Pass2 107 cm
40 cm
2,9 mm
Not Applicable
< 20% 6 + 5
194,6 mm
