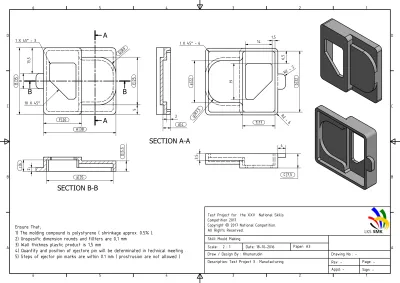

SECTION B-B
SECTION A-A
B
B
Test Project for the XXV National Skills
Competition 2017
Copyright 2017 National Competition.
All Rights Reserved.
Skill: Mould Making
Date: 18-10-2016
Scale: 2 : 1
Rev:
-Draw / Design By : Khumarudin
Description: Test Project 3 : Manufacturing
Drawing No :
Sign:
Appd:
Page:
-Paper: A3
Ensure That;
1) The molding compound is polystyrene ( shrinkage approx. 0.5% ).
2) Unspesific dimension rounds and fillters are 0,1 mm
3) Wall thicknes plastic product is 1,5 mm
4) Quantity and position of ejectore pin will be determinated in technical meeting .
5) Steps of ejector pin marks are within 0.1 mm ( prostrusion are not allowed )
