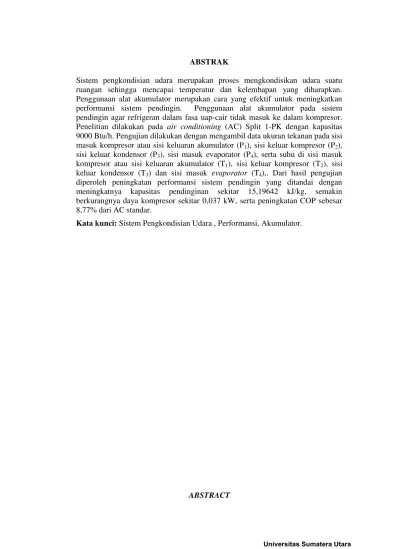

ABSTRAK
Sistem pengkondisian udara merupakan proses mengkondisikan udara suatu ruangan sehingga mencapai temperatur dan kelembapan yang diharapkan. Penggunaan alat akumulator merupakan cara yang efektif untuk meningkatkan performansi sistem pendingin. Penggunaan alat akumulator pada sistem pendingin agar refrigeran dalam fasa uap-cair tidak masuk ke dalam kompresor. Penelitian dilakukan pada air conditioning (AC) Split 1-PK dengan kapasitas 9000 Btu/h. Pengujian dilakukan dengan mengambil data ukuran tekanan pada sisi masuk kompresor atau sisi keluaran akumulator (P1), sisi keluar kompresor (P2),
sisi keluar kondensor (P3), sisi masuk evaporator (P4), serta suhu di sisi masuk
kompresor atau sisi keluaran akumulator (T1), sisi keluar kompresor (T2), sisi
keluar kondensor (T3) dan sisi masuk evaporator (T4),. Dari hasil pengujian
diperoleh peningkatan performansi sistem pendingin yang ditandai dengan meningkatnya kapasitas pendinginan sekitar 15,19642 kJ/kg, semakin berkurangnya daya kompresor sekitar 0,037 kW, serta peningkatan COP sebesar 8,77% dari AC standar.
Kata kunci: Sistem Pengkondisian Udara , Performansi, Akumulator.
ABSTRACT
Air conditioning systems is process air customize a room so as to achieve the expected temperature and humidity. The use of a accumulator is an effective way to increase the performance of the cooling system. The use of a accumulator on cooling system so that the refrigerant in a liquid-vapor phase did not enter into the compressor. Research done on the air conditioning (AC) Split 1-PK with a capacity of 9000 Btu/h. The test is done by taking the data size of the pressure on
the incoming side of the compressor or the ouput side of the accumulator (P1), the
sides out of the compressor (P2), out side condenser (P3), and incoming side
evaporator (P4), as well as the temperature at the compressor inlets or the ouput
side of the accumulator (T1), out side of the compressor (T2), out side condenser
(T3), and incoming side evaporator (T4). The test results obtained from
performance improvement of the cooling system which is characterized by increasing the cooling capacity of about 15,19642 kJ/kg, the reduction in
compressor power of about 0,037 kW, and as well as increased COP of 8,77% by standart.
Keywords: Performance, Air conditioning systems, Accumulator.
