LAMPIRAN 1
HASIL ANALISIS REGRESI NONLINIER DENGAN SOFTWARE SPSS
Warning # 849 in column 23. Text: in_ID
The LOCALE subcommand of the SET command has an invalid parameter. It could
not be mapped to a valid backend locale. GET
FILE='J:\Backup File\Kingstone\DATA TA JHON\nonlinier regression.sav'.
DATASET NAME DataSet1 WINDOW=FRONT. * NonLinear Regression.
MODEL PROGRAM a=0.771 b=0.32. COMPUTE PRED_=a * x + b * x * x. NLR y
/OUTFILE='C:\Users\SONY\AppData\Local\Temp\spss9032\SPSSFNLR.TMP' /PRED PRED_
/CRITERIA SSCONVERGENCE 1E-8 PCON 1E-8.
Nonlinear Regression Analysis
Notes
Output Created 22-Mar-2014 14:14:38
Comments
Input Data J:\Backup File\Kingstone\DATA TA
JHON
onlinier regression.sav Active Dataset DataSet1
Filter <none> Weight <none> Split File <none> N of Rows in Working Data
File
31
Missing Value Handling Definition of Missing User-defined missing values are treated as missing.
Cases Used Statistics are based on cases with no missing values for any variable used. Predicted values are calculated for cases with missing values on the dependent variable.
Syntax MODEL PROGRAM a=0.771 b=0.32.
COMPUTE PRED_=a * x + b * x * x. NLR y
/OUTFILE='C:\Users\SONY\AppData\L ocal\Temp\spss9032\SPSSFNLR.TMP '
/PRED PRED_
/CRITERIA SSCONVERGENCE 1E-8 PCON 1E-8.
Resources Processor Time 00 00:00:00,016
Elapsed Time 00 00:00:00,050
Files Saved Parameter Estimates File C:\Users\SONY\AppData\Local\Temp\ spss9032\SPSSFNLR.TMP
[DataSet1] J:\Backup File\Kingstone\DATA TA JHON\nonlinier regression.sav
Iteration Historyb
Iteration Numbera
Residual Sum of Squares
Parameter
a b
1.0 ,807 ,771 ,320
1.1 ,003 ,146 ,843
2.0 ,003 ,146 ,843
2.1 ,003 ,146 ,843
Derivatives are calculated numerically.
Parameter Estimates
Parameter Estimate Std. Error
95% Confidence Interval Lower Bound Upper Bound
A ,146 ,021 ,104 ,188
B ,843 ,025 ,792 ,894
Correlations of Parameter
Estimates
a b
A 1,000 -,995
B -,995 1,000
ANOVAa
Source Sum of Squares df Mean Squares
Regression 14,579 2 7,290
Residual ,003 29 ,000
Uncorrected Total 14,582 31
Corrected Total ,548 30
Dependent variable: y
a. R squared = 1 - (Residual Sum of Squares) / (Corrected Sum of Squares) = ,995.
Skala Survey Digambar Diperiksa Diketahui Paraf Tanggal Petugas Ranting Ir.Bonar Sinurat Ir.E.Nelson Siahaan Ir.Ferdinand Siahaan
GAMBAR PENYULANG KI.4-MAWAS RANTING LABUHAN
LAMPIRAN 2

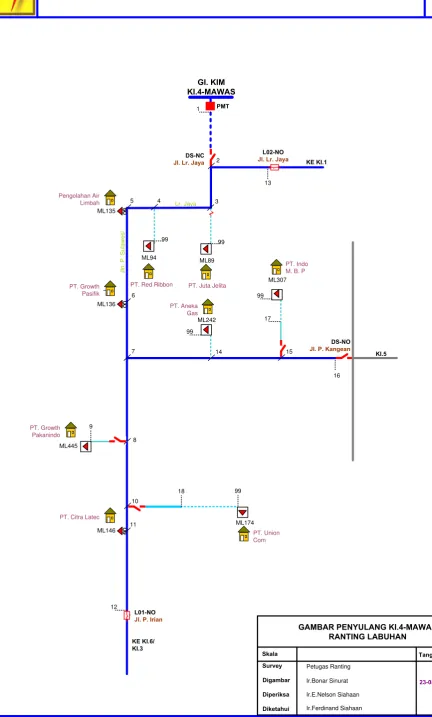

GAMBAR SATU GARIS PENYULANG 20 KV
GI. KIM KI.4-MAWAS
PMT
L02-NO
Jl. Lr. Jaya
L01-NO
Jl. P. Irian
KE KI.6/ KI.3 PT. Growth Pasifik PT. Aneka Gas PT. Indo M. B. P
Jln. P . Sulawe si PT. Union Com Lr. Jaya
PT. Juta Jelita PT. Red Ribbon
KE KI.1 KI.5 1 2 3 4 5 99 6 7 12 13 14 15 DS-NO
Jl. P. Kangean
16 99 17 18 A DS-NC
Jl. Lr. Jaya
23-08-05
PT. Growth Pakanindo
LEGEND
A. CONDUCTOR
NO.
CONDUCTOR
SEGMENT
TYPE OF CONDUCTOR
1.
MAIN FEEDER/ OVERHEAD
LINE
AAAC
2.
MAIN FEEDER/ CABLE/
XLPE
3.
SUB MAIN FEEDER/
OVERHEAD LINE
AAAC
4.
LATERAL/ CABLE
XLPE
B. AMR
NO.
SYMBOL
TYPE OF AMR
6.
AMR PENYULANG
7.
AMR PELANGGAN
150 KV
150 KV
~
PTL
Transmisi
60 MVA
20 KV
ML 89 ML 94
ML 135
ML 136
ML 445
ML 146
Ke feeder
KI. 6/KI.3
E
loss
?
Ke feeder KI. 1
ML 242
Ke feeder KI. 5
LAMPIRAN 2. B
ONE LINE DIAGRAM PENYULANG KI.4-MAWAS
1
2
13
3
4
5
6
7
8
10
11
12
99
99
99
99
14
3
15
16
17
9
18
ML 174
99
GI KIM
ML 307
LAMPIRAN 2. C
A
NOMOR UTAMA SUB UTAMA LATERAL
TITIK AAAC AAAC AAAC AAAC AAAC AAAC AAAC AAAC AAAC AAAC XLPE XLPE XLPE SIMPUL 3X185 3x150 3x70 3x185 3x70 3x50 3x185 3x70 3x50 3x35 3x300 3x95 3x50
(KMS) (KMS) (KMS) (KMS) (KMS) (KMS) (KMS) (KMS) (KMS) (KMS) (KMS) (KMS) (KMS) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1 1-2 1,28
2 2-3 0,40
2-13 0,10
3 3-4 3-99 0,20 0,03
4 4-5 4-99 0,03 0,03
5 5-6 0,09
6 6-7 0,04
7 7-8 0,10
7-14 0,05
8 8-10 8-9 0,15 0,03
9
-10 10-11 10-18 0,01 0,10
11 11-12 0,19
12 - Ke KI.6/KI.3
13 - Ke KI.1
14 14-15 14-99 0,15 0,02
15 15-16 15-17 0,20 0,02
16 - KE KI.5
17 17-99 0,03
18 18-99 0,02
1,71 0,00 0,00 0,00 0,13 0,02 0,00 0,00 0,00 0,00 1,28 0,02 0,11
TOTAL KMS
1,71 0,00 0,13 0,02 0,00 1,41 3,27
LAMPIRAN 3
DATA DIMENSI JARINGAN DISTRIBUSI 20 KV
PENYULANG KI.4 - MAWAS
P E N Y U L A N G S U T M SKTM
SEGMEN PENYULANG PANJANG PENYULANG PANJANG UTAMA SUB UTAMA LATERAL UTAMA/ LATERAL
JENIS PENGHANTAR KETERANGAN
JLH PHASA x PENAMPANG SATUAN
JUMLAH PANJANG PENYULANG (Per Besar Penampang Penyulang)
JUMLAH PANJANG PENYULANG (Per Jenis Penampang )
LAMPIRAN 3. B
1. IMPEDANSI KABEL NA2XSEFGBY
Luas Penampang
(mm²)
Z1 Z0
Keterangan
R0 (Ω) jX0 (Ω) R1 (Ω) jX1 (Ω)
50 * 0,4036 0,1291000 0,4036 0,1291000 *Hasil Interpolasi
95 * 0,3001 0,1214000 0,3001 0,1214000 *Hasil Interpolasi
120 0,2530 0,1177154 0,2530 0,1177154
150 0,2060 0,1138512 0,2060 0,1138512
185 0,1640 0,1100813 0,1640 0,1100813
240 0,125 0,1056831 0,125 0,1056831
300 * 0.1185 0,1029000 0.1185 0,1029000 *Hasil Interpolasi
Kurva Interpolasi Reaktansi
Kurva Interpolasi Resistansi
0,0000000 0,0200000 0,0400000 0,0600000 0,0800000 0,1000000 0,1200000 0,1400000
0 100 200 300 400
data asli interpolasi
0 0,05 0,1 0,15 0,2 0,25 0,3 0,35 0,4 0,45 0,5
0 50 100 150 200 250 300 350
R
1
[
Ω
]
Luas Penampang [mm²]
2. IMPEDANSI KONDUKTOR AAAC
Luas Penampang
(mm²)
AAAC
Z1 , Z2 Zo
R1 jX1 Ro jXo
16 2,0161 0,4036 2,1641 1,6911
35 0,9217 0,3790 1,0697 1,6665
50 0,6452 0,3678 0,7932 1,6553
70 0,4608 0,3572 0,6088 1,6447
95 0,3396 0,3449 0,4876 1,6324
120 0,2688 0,3376 0,4166 1,6251
150 0,2162 0,3305 0,3631 1,6180
185 0,1744 0,3239 0,3224 1,6114
240 0,1344 0,3158 0,2824 1,6033
*Keterangan
Sumber : SPLN 64 : 1985 [18]
NO. NO. ALAMAT/LOKASI MERK ID AMR/KWH METER
URUT GARDU TRAFO PELANGGAN
1 ML89 PT Juta Jelita Milik Plgn 120130053894 1.385 2 ML94 PT Red Ribbon Milik Plgn 120130054391 690 3 ML445 PT Growth Pakanindo Milik Plgn 120130499180 345 4 ML135 PT KIM Persero Morawa 120130079299 197
5 ML136 PT Growth Pasifik Milik Plgn 120130005791 555 6 ML242 PT Aneka Gas Milik Plgn 120130113015 5.710 7 ML307 PT Indo MBP Milik Plgn 120130178478 345 8 ML174 PT Union Con. Milik Plgn 120130011567 1.730 9 ML146 PT Citra Latec Milik Plgn 120130011555 3,5
200,5 10.760,00 1 PHASA 3 PHASA
(KVA) (KVA)
LAMPIRAN 4
TOTAL DAYA TERPASANG DAYA TERPASANG TR/TM
10960,50
TR TM
DATA DAYA TERPASANG PELANGGAN PENYULANG KI.4 - MAWAS
RANTING MEDAN LABUHAN
Location: KI.4 Mawas
Engineer: Jhon Palmer Sitorus
Study Case: LF ETAP 7.5.0
Page: 3
SN: 12345678
Filename: Penyulang_KI.4
Project: Load Flow Analysis
LAMPIRAN 5
Contract: Final Project
Date: 03-22-2014
Revision: Base
Config.: Normal
Branch Losses Summary Report
ID MW Mvar MW Mvar kW kvar From To
CKT / Branch From-To Bus Flow To-From Bus Flow Losses % Bus Voltage
% Drop Vd
in Vmag
9.358 5.864 -9.312 -5.824 46.2 40.2 100.0 99.5 0.55
Cable1
9.312 5.824 -9.291 -5.784 21.3 39.5 99.5 99.1 0.35
Line1
99.5 99.5 0.00 Line11
1.173 0.727 -1.173 -0.727 0.1 0.0 99.1 99.1 0.00
Cable2
8.118 5.057 -8.109 -5.042 8.1 15.1 99.1 98.9 0.15
Line2
0.584 0.362 -0.584 -0.362 0.0 0.0 98.9 98.9 0.00
Cable3
7.525 4.680 -7.524 -4.679 1.0 1.9 98.9 98.9 0.02
Line3
7.357 4.564 -7.354 -4.558 3.0 5.6 98.9 98.9 0.06
Line4
0.168 0.115 -0.163 -0.101 4.4 13.5 98.9 93.5 5.39
T2
6.884 4.267 -6.883 -4.265 1.2 2.2 98.9 98.8 0.03
Line5
1.759 1.089 -1.759 -1.088 0.2 0.4 98.8 98.8 0.02
Line6
5.124 3.176 -5.123 -3.175 0.8 1.5 98.8 98.8 0.02
Line12
1.467 0.908 -1.467 -0.907 0.2 0.4 98.8 98.8 0.02
Line7
0.292 0.181 -0.292 -0.181 0.0 0.0 98.8 98.8 0.00
Line16
0.003 0.000 -0.003 0.000 0.0 0.0 98.8 98.8 0.00
Line8
1.464 0.907 -1.463 -0.907 0.3 0.3 98.8 98.8 0.03
Line17
98.8 98.8 Line9
0.003 0.000 -0.003 0.000 0.0 0.0 98.8 98.6 0.17
T1
4.831 2.994 -4.830 -2.994 0.5 0.2 98.8 98.8 0.01
Cable4
0.292 0.181 -0.292 -0.181 0.0 0.0 98.8 98.8 0.00
Line13
98.8 98.8 0.00 Line14
0.292 0.181 -0.292 -0.181 0.0 0.0 98.8 98.8 0.00
Line15
0.292 0.181 -0.292 -0.181 0.0 0.0 98.8 98.8 0.00
Cable5
1.463 0.907 -1.463 -0.907 0.1 0.0 98.8 98.8 0.00
Cable6
87.5 120.8
