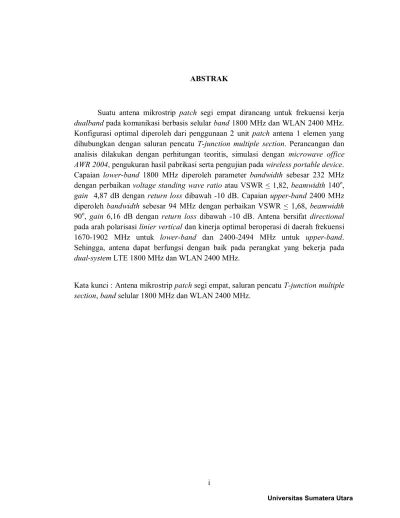

ABSTRAK
Suatu antena mikrostrip patch segi empat dirancang untuk frekuensi kerja dualband pada komunikasi berbasis selular band 1800 MHz dan WLAN 2400 MHz. Konfigurasi optimal diperoleh dari penggunaan 2 unit patch antena 1 elemen yang dihubungkan dengan saluran pencatu T-junction multiple section. Perancangan dan analisis dilakukan dengan perhitungan teoritis, simulasi dengan microwave office AWR 2004, pengukuran hasil pabrikasi serta pengujian pada wireless portable device. Capaian lower-band 1800 MHz diperoleh parameter bandwidth sebesar 232 MHz dengan perbaikan voltage standing wave ratio atau VSWR < 1,82, beamwidth 140o, gain 4,87 dB dengan return loss dibawah -10 dB. Capaian upper-band 2400 MHz diperoleh bandwidth sebesar 94 MHz dengan perbaikan VSWR < 1,68, beamwidth 90o, gain 6,16 dB dengan return loss dibawah -10 dB. Antena bersifat directional pada arah polarisasi linier vertical dan kinerja optimal beroperasi di daerah frekuensi 1670-1902 MHz untuk lower-band dan 2400-2494 MHz untuk upper-band. Sehingga, antena dapat berfungsi dengan baik pada perangkat yang bekerja pada dual-system LTE 1800 MHz dan WLAN 2400 MHz.
Kata kunci : Antena mikrostrip patch segi empat, saluran pencatu T-junction multiple section, band selular 1800 MHz dan WLAN 2400 MHz.
ii ABSTRACT
A rectangular patch microstrip antenna is designed for dualband frequency on communications base on cellular 1800 MHz and WLAN 2400 MHz. The optimal configuration is obtained from using 2 units of 1 element antenna patch connected with the T-junction multiple section corporate feed. Analysis and design is done with theoretical calculation, simulation with microwave office AWR 2004, measurement of the antenna fabrication as well as testing on wireless portable devices. The achievement of the lower-band 1800 MHz obtained bandwidth parameters of 232 MHz with the improvement of voltage standing wave ratio or VSWR <1.82, beamwidth 140o, gain 4.87 dB with return loss below -10 dB. Achievement of
upper-band 2400 MHz obtained upper-bandwidth of 94 MHz with improvement of VSWR <1.68, beamwidth 90o, gain 6.16 dB with return loss below -10 dB. The antennas are
directional in the direction of vertical linear polarization and optimum performance operates in the frequency range 1670-1902 MHz for lower-band and 2400-2494 MHz for upper-band. Thus, the antenna works well on device that work on dual-system cellular 1800 MHz and WLAN 2400 MHz.
Keywords: Rectangular patch microstrip antenna, corporate feed T-junction multiple section, cellular 1800 MHz and WLAN 2400 MHz bands.
