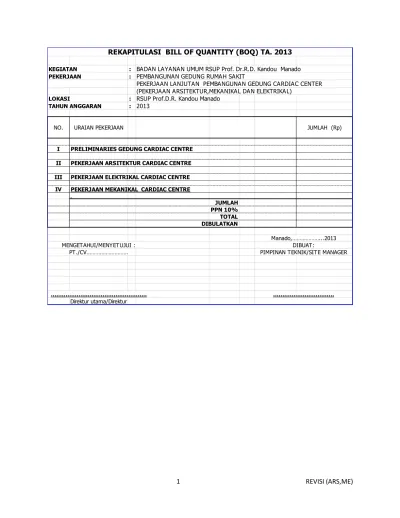

REKAPITULASI BILL OF QUANTITY (BOQ) TA. 2013

(1)

1 REVISI (ARS,ME)

:

BADAN LAYANAN UMUM RSUP Prof. Dr.R.D. Kandou Manado

:

RSUP Prof.D.R. Kandou Manado

:

2013

NO.

URAIAN PEKERJAAN

JUMLAH (Rp)

I

PRELIMINARIES GEDUNG CARDIAC CENTRE

II

PEKERJAAN ARSITEKTUR CARDIAC CENTRE

III

PEKERJAAN ELEKTRIKAL CARDIAC CENTRE

IV

PEKERJAAN MEKANIKAL CARDIAC CENTRE

JUMLAH

PPN 10%

TOTAL

DIBULATKAN

MENGETAHUI/MENYETUJUI :

PT./CV……….

……….

Direktur utama/Direktur

Manado,………...2013

DIBUAT:

PIMPINAN TEKNIK/SITE MANAGER

………

TAHUN ANGGARAN

PEKERJAAN

LOKASI

REKAPITULASI BILL OF QUANTITY (BOQ) TA. 2013

KEGIATAN

PEKERJAAN LANJUTAN PEMBANGUNAN GEDUNG CARDIAC CENTER

PEMBANGUNAN GEDUNG RUMAH SAKIT

(2)

2 REVISI (ARS,ME)

:

NO.

HARGA

SATUAN (Rp)

JUMLAH (Rp)

A

PRELIMINARIES

137.600.000

1 Pembersihan Lokasi

1,00 Ls

5.000.000

2 Papan Nama Proyek

1,00 Ls

1.100.000

3 Listrik Proyek

1,00 Ls

15.000.000

4 Air Proyek

1,00 Ls

20.000.000

5 P3K (Cardiac Centre)

1,00 Ls

13.500.000

6 Testing material & commisioning (termasuk ME)

1,00 Ls

35.000.000

7 Shop Drawing & As Build Drawing

1,00 Ls

10.000.000

8 Mobilisasi & Demobilisasi

1,00 Ls

33.000.000

9 Pembersihan Akhir

1,00 Ls

5.000.000

5.000.000 TOTAL PRELIMINARIE

137.600.000

BILL OF QUANTITY (BOQ)

PRELIMINARIES

VOLUME

URAIAN PEKERJAAN

KEGIATAN

PEKERJAAN

LOKASI

TAHUN ANGGARAN

BADAN LAYANAN UMUM RSUP Prof. Dr.R.D. Kandou Manado

PEMBANGUNAN GEDUNG RUMAH SAKIT

RSUP Prof.D.R. Kandou Manado

2013

PEKERJAAN LANJUTAN PEMBANGUNAN GEDUNG CARDIAC CENTER

(PEKERJAAN ARSITEKTUR,MEKANIKAL DAN ELEKTRIKAL)

(3)

3 REVISI (ARS,ME)

:

NO.

sat

SATUAN

HARGA

SATUAN (Rp)

JUMLAH (Rp)

A

PEKERJAAN PENUTUP CELAH ANTAR RUANGAN

1 Penutup Kalsiboard lengkap dengan pengecetan

M2

37,67

Pada Lantai 2,3,4

B

PENYEMPURNAAN RG CATH LAB (2 RG)

1 Medical Insulated panel untuk Dinding +lapis Timah Hitam

188,00

m2

2 medical Insulated panel untuk celling

100,00

m2

3 Pintu Besi Double Swing lapis Timbal

2,00

unit

Dimensi 2100 mm H x (800 + 800) mmW

4 Pintu Besi Single Swing Lapis Timbal

5,00

unit

Dimensi 2100 mm H x 900 mmW

5 Pekerjaan Pasangan lantai Finil

100,00

m2

TOTAL PEKERJAAN ARSITEKTUR

URAIAN PEKERJAAN

PEKERJAAN LANJUTAN PEMBANGUNAN GEDUNG CARDIAC CENTER

LOKASI

RSUP Prof.D.R. Kandou Manado

TAHUN ANGGARAN

2013

(PEKERJAAN ARSITEKTUR,MEKANIKAL DAN ELEKTRIKAL)

BILL OF QUANTITY (BOQ)

PEKERJAAN ARSITEKTUR

KEGIATAN

BADAN LAYANAN UMUM RSUP Prof. Dr.R.D. Kandou Manado

(4)

4 REVISI (ARS,ME)

:

NO.

Volume SATUAN

_{SATUAN (Rp)}

HARGA

JUMLAH (Rp)

A

Pemasangan Transformer 800 KVA

1,00

lot

12.180.000 B

Pemasangan Panel Tegangan Menengah (PTM)

- 1 incoming, 1 metering, 2 outgoing

1,00

lot

7.770.000 C

Pemasangan Power Quality Compensator (PQC)

1,00

lot

8.790.000

8.790.000 dan Pengetesan

D

Pengadaan & Pemasangan PUTR

1,00

unit

660.000.000

660.000.000 (Panel Utama Tegangan Rendah)

E

Pekerjaan Elektronik

Fire Alarm Sytem

1 Lantai Satu

- MCFA Kaps. 16 Zone c/w Battery

1,00

lot

- Annunciator kaps. 16 Zone

1,00

bh

- JBFA

1,00

unt

- UPS 5 KVA

1,00

unt

- Photoelectric Smoke Detector

35,00

bh

- Heat Detector

43,00

bh

- Manual Call Point

2,00

bh

- Indicator Lamp

2,00

bh

- Alarm Bell

2,00

bh

1.210.000 2 LANTAI DUA

- JBFA

1,00

unt

- Photoelectric Smoke Detector

17,00

unt

- Heat Detector

26,00

bh

- Fixed Temperatur Heat Detector

1,00

bh

- Manual Call Point

2,00

bh

- Indicator Lamp

2,00

bh

- Alarm Bell

2,00

bh

3 LANTAI TIGA

- JBFA

1,00

unt

1.210.000

1.210.000 - Photoelectric Smoke Detector

18,00

unt

- Heat Detector

26,00

bh

- Manual Call Point

2,00

bh

- Indicator Lamp

2,00

bh

- Alarm Bell

2,00

bh

BILL OF QUANTITY (BOQ)

PEKERJAAN ELEKTRIKAL

KEGIATAN

BADAN LAYANAN UMUM RSUP Prof. Dr.R.D. Kandou Manado

PEKERJAAN

PEMBANGUNAN GEDUNG RUMAH SAKIT

URAIAN PEKERJAAN

PEKERJAAN LANJUTAN PEMBANGUNAN GEDUNG CARDIAC CENTER

LOKASI

RSUP Prof.D.R. Kandou Manado

TAHUN ANGGARAN

2013

(5)

5 REVISI (ARS,ME)

NO.

Volume SATUAN

_{SATUAN (Rp)}

HARGA

JUMLAH (Rp)

4 LANTAI EMPAT

- JBFA

1,00

unt

- Photoelectric Smoke Detector

17,00

unt

- Heat Detector

21,00

ttk

- Manual Call Point

2,00

bh

- Indicator Lamp

2,00

bh

- Alarm Bell

2,00

bh

5 Sound System

UPS 10 KVA (2x5kVA)

1,00

unit

6 MATV System

Lantai 1,2, & 3

master Station W/Handset

7,00

unit

F

PENGADAAN JARINGAN PLN & AKLI (Cardiac Centre)

1 Biaya Pengujian & Sertifikasi Instalasi Listrik

690.000

VA

2 Pekerjaan Kabel Feeder

- Kabel dari Cubicle ke Trafo XLPE 1 x 3 x 35 mm2

20,00

m

- Instalasi Pentanahan Pengaman (Trafo & Panel-panel)

12,00

m

- Pek. Kabel Power TM dari Gardu Induk Ke PTM Cardiac

1,00

Lot

(kabel N2XSEFGbY-3x95 mm2 )

- Kabel N2XSY - 3 x 1 c x 70 mm2 dari PTM

15,00

m'

ke Trafo 800 kva

- Kabel NYY 4 (4 x 1 x 185 mm2)+BC 70 mm dari

Trafo ke PUTR

15,00

m'

9.870.000

148.050.000 - Kabel NYY 3( 4x1x185 mm2) + BC 70 mm2

150,00

mtr

5.120.000

768.000.000 dari PKG ke PUTR

- kabel dari PUTR ke:

PP Hydrant -FRC 4 x 70 mm2

110,00

mtr

PP Jockey -FRC 4 x 6 mm2

110,00

mtr

PP SP - NYY 4 x 10 mm2

24,00

mtr

- PP-SP.CR Ke:

LCP-SP1 -NYY 4 X 6mm2

36,00

mtr

LCP-SP2 -NYY 4 X 6 mm2

65,00

mtr

LCP-SP3 - NYY 4 X 6 mm2

57,00

mtr

3 Pembangunan gardu PLN

16 M2

4 PENYAMBUNGAN DAYA 690 KVA

690.000

VA

URAIAN PEKERJAAN

(6)

6 REVISI (ARS,ME)

NO. Volume SATUAN _{SATUAN (Rp)} HARGA JUMLAH (Rp)

G PEKERJAAN ELEKTRIKAL GEDUNG CARDIAC CENTRE -1 LANTAI - DASAR

LAMPU PENERANGAN & ACCESSORIES

- Lampu TL - 2 x 36 w TKI 134,00 bh

- Lampu TL - 1 x 36 w 4,00 bh

- Lampu TL - 1 x 36 w + Nicad Battery 2,00 bh - Lampu Wash basin TL - 1 x 18 w 4,00 bh - Lampu TL - 2 x 18 w V shape 15,00 bh - Lampu Exit TL - 1 x 10 w + Nicad Battery 5,00 bh - Lampu Tangga TL - 1 x 18 w + Nicad Battery 4,00 bh - Lampu Down Light PLC - 2 x 13 w 271,00 bh - Lampu Down Light PLC - 2 x 13 w + Nicad Batrtery 10,00 bh - Lampu Down Light PLC - 1 x 13 w 84,00 bh - Lampu Down Light PLC - 1 x 13 w + Nicad Batrtery 10,00 bh 2 LANTAI - DUA

- Lampu TL - 2 x 36 w TKI 101,00 bh - Lampu Wash basin TL - 1 x 18 w 4,00 bh - Lampu 3 x TL 36 termasuk Box Plate Steel & acrylic lengkp 20,00 bh Instlalasi Titik lampu pada Rg Cathlab

- Lampu TL - 2 x 18 w V shape 15,00 bh 726.000 - Lampu Exit TL - 1 x 10 w + Nicad Battery 3,00 bh

- Lampu Tangga TL - 1 x 18 w + Nicad Battery 9,00 bh - Lampu Down Light PLC - 2 x 13 w 76,00 bh - Lampu Down Light PLC - 1 x 13 w 30,00 bh

3 LANTAI - TIGA

- Lampu Wash basin TL - 1 x 18 w 2,00 bh - Lampu TL - 2 x 18 w V shape 11,00 bh - Lampu TL - 2 x 36 w V shape 5,00 bh - Lampu Exit TL - 1 x 10 w + Nicad Battery 3,00 bh - Lampu Tangga TL - 1 x 18 w + Nicad Battery 5,00 bh - Lampu Down Light PLC - 2 x 13 w 79,00 bh - Lampu Down Light PLC - 1 x 13 w 43,00 bh 4 LANTAI - EMPAT

- Lampu TL - 1 x 36 w + Nicad Battery 1,00 bh - Lampu TL - 2 x 18 w V shape 5,00 bh - Lampu TL - 2 x 36 w V shape 5,00 bh - Lampu Exit TL - 1 x 10 w + Nicad Battery 1,00 bh - Lampu Tangga TL - 1 x 18 w + Nicad Battery 5,00 bh - Lampu Down Light PLC - 2 x 13 w 142,00 bh - Lampu Down Light PLC - 1 x 13 w 33,00 bh - Lampu Down Light PLC - 1 x 13 w + Nicad Batrtery 4,00 bh

- Lampu PAR 80w 10,00 bh

5 LANTAI - ATAP

- Lampu Tangga TL - 1 x 18 w + Nicad Battery 2,00 bh

- Lampu TL - 1 x 36 w 6,00 bh

- Lampu kapal (termasuk pengadaan lampu) 8,00 bh TOTAL ELEKTRIKAL

(7)

7 REVISI (ARS,ME)

: :

NO. Volume SATUAN _{SATUAN (Rp)} HARGA JUMLAH (Rp) H MECHANICAL UTILITIES

1 Pekerjaan Pemadam Kebakaran (Lanscape)& Instalasi Air Bersih 355.850.122

1 Pengadaan & Pemasangan Pipa BSP (Black Steel) SCh 40 standard ASTM dari ruang pompa sampai ke hydrant pilar di area site plan, di cat besi, flinkute jacketing karung lengkap fitting, galian dan urugan tanah kembali serta peralatan bantu lainnya.

- BSP Sch 40 diameter 4" 400,00 m 475.400 190.160.000

- fitting 1,00 ls 22.000.000 22.000.000

2 Hydrant pilar, lengkap dengan hose nozzle

gate valve dan peralatan bantu yang diperlukan, pilar hydrant 4,00 Unit 12.790.166 51.160.664

2 way uk.4"x2 1/2"x21/2"

3 Seamese connection lengkap dengan check valve

dan peralatan bantu yang diperlukan 1,00 Unit 12.150.658 12.150.658

4 Hydrant box / fire hose cabinet type out door, lengkap dengan hose nozzle, gate valve, dan peralatan bantu

box ukuran 95 x 66 x 20 cm tebal plat 1.5 mm lengkap 4,00 Unit 12.532.200 50.128.800

1 roll fire hose machino coupling ukr 2 1/2" x 30 m 1 bh strigh nozle, 1 set hose rack 2 1/2.

5 Lanjutan Pekerjaan Instalasi air Bersih

Pengadaan & Pemasangan Pipa PE 2" lengkap Aceeciries dari Rumah 110,00 m' 275.000 30.250.000 pompa ke gedung Cardiac Centre lengkap dengan galian Tanah (60 cm)

timbunan Pasir bekas galian,timbunan tanah kembali.

2 UPS LIFT

UPS untuk Bed Liff & Pass. Lift (IGD & CARDIAC) 6 bh 67.500.000 405.000.000

I Penangkal petir Non Radioaktif 1,00 lot 137.000.000 137.000.000 J Pengadaan & Pemasangan AC 7.481.470.568

M PEKERJAAN ASESORIES RUANG CATLAB & RUANG OPERASI (4 RG)TOTAL MEKANIKAL 8.379.320.690

BILL OF QUANTITY (BOQ)

PEKERJAAN MEKANIKAL

KEGIATAN BADAN LAYANAN UMUM RSUP Prof. Dr.R.D. Kandou Manado

PEKERJAAN PEMBANGUNAN GEDUNG RUMAH SAKIT

URAIAN PEKERJAAN

PEKERJAAN LANJUTAN PEMBANGUNAN GEDUNG CARDIAC CENTER

LOKASI RSUP Prof.D.R. Kandou Manado

TAHUN ANGGARAN 2013

(8)

8 REVISI (ARS,ME)

NO. Volume Sat.

HARGA

SATUAN JUMLAH Rp.

J PENGADAAN & PEMASANGAN AC

PEKERJAAN AIR CONDITIONING SISTEM SETARA VRF

(SISTEM KERJA OUTDOOR KE INDOOR JARAKNYA 50-100 M ,SMART SOFWARE) I UNIT

A LANTAI 1

I INDOOR 1.1

1 Code : IU.1-6, 1-46, 1-47, 1-51, 1-55,1-45,1-52,1-53 8 unit 12.567.150 100.537.200 Type : Wall Mounted

Cooling Cap. : 7.500 BTU/h Voltage : 1Ph/220V/50Hz

2 Code : IU.1-57 1 unit 12.818.600 12.818.600 Type : Wall Mounted

3 Code : IU.1-9,1-8 2 unit 18.221.030 36.442.060 Type : 4 Way Cassette

4 Code : IU 1-54, 1-56 2 unit 18.904.760 37.809.520 Type : 4 Way Cassette

5 Code : IU.1-7, 1-48 2 unit 20.968.790 41.937.580 Type : 4 Way Cassette

6 Code : IU.1-49, 1-43, 1-44 3 unit 20.676.680 62.030.040 Type : 4 Way Cassette

7 Code : IU.1-1 S/D 1-5,1-50 6 unit 25.512.010 153.072.060 Type : 4 Way Cassette

OUTDOOR

1 Code : OU.1-1 1 unit 500.819.920 500.819.920 Type : VRF (SETARA)

ACCESSORIES

Wired Remote Control 24 unit 1.300.050 31.201.200 Join Kit Indoor 23 unit 2.557.300 58.817.900 Join Kit Outdoor 2 unit 2.557.300 5.114.600

(9)

9 REVISI (ARS,ME)

NO. Volume Sat.

HARGA

SATUAN JUMLAH Rp.

INDOOR 1.2

1 Code : IU.1-10,1-11,1-20,1-25,1-27,1-30,1-31,1-32,1-33,1-37,1-38,1-39 12 unit 12.567.150 150.805.800

Type : Wall Mounted Cooling Cap. : 7.500 BTU/h Voltage : 1Ph/220V/50Hz

2 Code : IU.1-58 1 unit 13.979.550 13.979.550

3 Code : IU.1-12,1-12,1-13,1-15,1-16,1-17,1-21,1-23,1-24,1-35,1-36 10 unit 16.879.250 168.792.500

Type : 4 Way Cassette Cooling Cap. : 12.000 BTU/h Voltage : 1Ph/220V/50Hz

4 Code : IU.1-18,1-28,1-40,1-41 4 unit 18.904.760 75.619.040

5 Code : IU.1-19,1-26,1-34 3 unit 20.968.790 62.906.370

6 Code : IU.1-42 1 unit 20.676.680 20.676.680

7 Code : IU.1-29 1 unit 18.221.030 18.221.030

8 Code : IU.1- 14,1-22 2 unit 22.818.820 45.637.640

OUTDOOR

1 Code : OU.1-2 1 unit 500.819.920 500.819.920

Type : VRF (SETARA) Cooling Cap. : 443.700 BTU/h Voltage : 3Ph/380V/50Hz

ACCESSORIES

Wired Remote Control 34 unit 1.300.050 44.201.700

Join Kit Indoor 33 unit 2.557.300 84.390.900

Join Kit Outdoor 2 unit 2.557.300 5.114.600 URAIAN PEKERJAAN

(10)

10 REVISI (ARS,ME)

NO. Volume Sat. SATUAN HARGA JUMLAH Rp.

B

LANTAI 2

I

INDOOR 2.1

1 Code

: IU.2-4

1 unit

19.046.000

19.046.000 Type

: 4 Way Cassette

Cooling Cap.

: 7.500 BTU/h

Voltage

: 1Ph/220V/50Hz

2 Code

: IU.2-11

1 unit

16.879.250

16.879.250 Type

: 4 Way Cassette

Cooling Cap.

: 9.600 BTU/h

Voltage

: 1Ph/220V/50Hz

3 Code

: IU.2-9, 2-12, 2-13

3 unit

18.221.030

54.663.090 Type

: 4 Way Cassette

Cooling Cap.

: 15.000 BTU/h

Voltage

: 1Ph/220V/50Hz

4 Code

: IU.2-2, 2-3, 2-7, 2-8

4 unit

18.904.760

75.619.040 Type

: 4 Way Cassette

Cooling Cap.

: 19.000 BTU/h

Voltage

: 1Ph/220V/50Hz

5 Code

: IU.2-5, 2-10

2 unit

20.968.790

41.937.580 Type

: 4 Way Cassette

Cooling Cap.

: 24.900 BTU/h

Voltage

: 1Ph/220V/50Hz

6 Code

: IU.2-1A, 2-1B,2-6A,2-6B

4 unit

28.400.000

113.600.000 Type

: High Static pressure Ducted

Cooling Cap.

: 47.800 BTU/h

Voltage

: 1Ph/220V/50Hz

OUTDOOR

1 Code

: OU.2-1

1 unit

397.139.060

397.139.060 Type

: VRF (SETARA)

Cooling Cap.

: 344.700 BTU/h

Voltage

: 3Ph/380V/50Hz

ACCESSORIES

Wired Remote Control

15 unit

1.300.050

19.500.750 Join Kit Indoor

14 unit

2.557.300

35.802.200 Join Kit Outdoor

1 unit

2.557.300

(11)

11 REVISI (ARS,ME)

NO. Volume Sat.

HARGA

SATUAN JUMLAH Rp.

I INDOOR 2.2

1 Code : IU.2-18 1 unit 12.567.150 12.567.150

2 Code : IU.2-14,2-15,2-19 3 unit 16.879.250 50.637.750

3 Code : IU.2-16, 2-17 2 unit 18.904.760 37.809.520

4 Code : IU.2-20,2-21,2-22,2-23 4 unit 28.400.000 113.600.000

Type : High Static Pressure Ducted Cooling Cap. : 47.800 BTU/h

Voltage : 1Ph/220V/50Hz

OUTDOOR

1 Code : OU.2-2 1 unit 290.028.850 290.028.850

Type : VRF(SETARA) Cooling Cap. : 249.100 BTU/h Voltage : 3Ph/380V/50Hz

ACCESSORIES

Join Kit Outdoor 1 unit 2.557.300 2.557.300

C LANTAI 3

I INDOOR 3.1

1 Code : IU.3-26,3-27 2 unit 12.567.150 25.134.300

2 Code : IU.3-1, 3-2, 3-3, 3-4, 3-5, 3-28 6 unit 14.198.900 85.193.400

3 Code : IU.3-10, 3-11, 3-12, 3-29, 3-30 5 unit 18.904.760 94.523.800

4 Code : IU.3-25 1 unit 20.968.790 20.968.790

(12)

12 REVISI (ARS,ME)

NO. Volume Sat.

HARGA

SATUAN JUMLAH Rp.

OUTDOOR

1 Code : OU.3-1 1 unit 223.817.250 223.817.250

ACCESSORIES

Join Kit Outdoor 1 unit 2.557.300 2.557.300

I INDOOR 3.2

1 Code : IU.3-6, 3-7, 3-8, 3-9, 4 unit 14.198.900 56.795.600

2 Code : IU.3-21,3-22,3-23 3 unit 13.979.550 41.938.650

3 Code : IU.3-15,3-16,3-17 3 unit 16.879.250 50.637.750

4 Code : IU.3-18,3-19,3-20 3 unit 18.221.030 54.663.090

5 Code : IU.3-13,3-14 2 unit 18.904.760 37.809.520

6 Code : IU.3-24 1 unit 20.968.790 20.968.790

OUTDOOR

1 Code : OU.3-2 1 unit 255.107.260 255.107.260

ACCESSORIES

(13)

13 REVISI (ARS,ME)

NO. Volume Sat. SATUAN HARGA JUMLAH Rp.

D LANTAI 4

I INDOOR 4.1

3 Code : IU.4-3, 4-4, 4-5 3 unit 13.979.550 41.938.650 Type : Wall Mounted

4 Code : IU.4-11 1 unit 18.904.760 18.904.760 Type : 4 Way Cassette

5 Code : IU.4-1, 4-2, 4-8, 4-9 4 unit 25.512.010 102.048.040 Type : 4 Way Cassette

6 Code : IU.4-7 1 unit 26.060.920 26.060.920 Type : 4 Way Cassette

OUTDOOR

1 Code : OU.4-1 1 unit 290.028.850 290.028.850 Type : VRF (SETARA)

ACCESSORIES

Wired Remote Control 11 unit 1.300.050 14.300.550 Join Kit Indoor 10 unit 2.557.300 25.573.000 Join Kit Outdoor 1 unit 2.557.300 2.557.300

(14)

14 REVISI (ARS,ME)

NO. Volume Sat.

HARGA

SATUAN JUMLAH Rp.

II INDOOR 4.2

1 Code : IU.4-17 1 unit 12.567.150 12.567.150

2 Code : IU.4-16 1 unit 22.818.820 22.818.820

3 Code : IU.4-15 1 unit 16.879.250 16.879.250

4 Code : IU.4-13,4-14,4-18,4-19 4 unit 20.968.790 83.875.160

5 Code : IU.4-6 1 unit 13.979.550 13.979.550

6 Code : IU.4-20 1 unit 18.904.760 18.904.760

OUTDOOR

1 Code : OU.4-2 1 unit 194.622.300 194.622.300

ACCESSORIES

(15)

15 REVISI (ARS,ME)

NO. Volume Sat.

HARGA

SATUAN JUMLAH Rp.

II INSTALASI UNIT AC

A Pipa Refrigerant & Accessories 1 LOT 478.873.685 478.873.685

1 Pipa refrigerant Ø 1/4" 325 m 2 Pipa refrigerant Ø 3/8" 612 m 3 Pipa refrigerant Ø 1/2" 555 m 4 Pipa refrigerant Ø 5/8" 446 m 5 Pipa refrigerant Ø 3/4" 219 m 6 Pipa refrigerant Ø 7/8" 180 m 7 Pipa refrigerant Ø 1 1/8" 305 m 8 Pipa refrigerant Ø 1 3/8" 87 m 9 Pipa refrigerant Ø 1 5/8" 188 m 10 Elbow tembaga Ø 3/8" 120 bh 11 Elbow tembaga Ø 1/2" 89 bh 12 Elbow tembaga Ø 5/8" 76 bh 13 Elbow tembaga Ø 3/4" 40 bh 14 Elbow tembaga Ø 7/8" 40 bh 15 Elbow tembaga Ø 1 1/8" 51 bh 16 Elbow tembaga Ø 1 3/8" 16 bh 17 Elbow tembaga Ø 1 5/8" 37 bh 18 Sock tembaga Ø 3/8" 120 bh 19 Sock tembaga Ø 1/2" 89 bh 20 Sock tembaga Ø 5/8" 76 bh 21 Sock tembaga Ø 3/4" 40 bh 22 Sock tembaga Ø 7/8" 40 bh 23 Sock tembaga Ø 1 1/8" 51 bh 24 Sock tembaga Ø 1 3/8" 16 bh 25 Sock tembaga Ø 1 5/8" 15 bh

26 Isolasi Pipa refrigerant Ø 1/4" x 13mm 325 m

32 Isolasi Pipa refrigerant Ø 1 1/8" x 19mm 305 m

B Drain 1 LOT 49.313.382 49.313.382 1 Pipa PVC Ø 3/4" 198 btg 2 Pipa PVC Ø 1" 186 btg 3 Pipa PVC Ø 2" 120 btg 4 Pipa PVC Ø 4" 18 btg 5 Knie PVC Ø 3/4" 262 bh 6 Knie PVC Ø 1" 87 bh 7 Knie PVC Ø 2" 32 bh 8 Tee PVC Ø 3/4" X 1" 131 bh 9 Tee PVC Ø 1" X 2" 16 bh 10 Tee PVC Ø 2" X 4" 8 bh URAIAN PEKERJAAN

(16)

16 REVISI (ARS,ME)

NO. Volume Sat.

HARGA

SATUAN JUMLAH Rp.

C Elektrikal 1 LOT 275.708.602 275.708.602

1 Kabel Power Outdoor 391 mtr

2 Kabel Power Indoor 5.240 mtr

3 Kabel Kontrol 2.802 btg

4 Pipa Conduit 20mm 933 btg

5 Klem Conduit 623 bh

6 Pipa Flexible 1 rol

D Supporting Material 1 LOT 214.107.389 214.107.389

1 Kable Tray 40cmX10cm + Tutup 25 mt

2 Siku 40x40 59 btg

3 UNP-50 1 btg

4 Longdrat 10mm 332 mt

5 Mur 10mm + Ring Plat 664 set

6 Dinaset M10 332 bh

7 Syncromate 1 klg

8 Thinner 3 klg

9 Dynabolt M12 108 bh

10 Karet Mounting Outdoor 18 bh

11 Pondasi Outdoor 108 unit

12 Kawat Las 430 btg

13 Freon R410 24 can

14 Oksigen (O2) 2 tbg

15 LPG 2 tbg

16 Duct tape non lem 283 roll

17 Duct tape lem 94 roll

18 Lem PVC 2 klg

19 Fisher + Screw S6 6 dos

E Ducting & Hepa Filter 4 LOT 170.200.000 680.800.000 F. Jasa Pemasangan Unit AC 1 Lot 202.500.000 202.500.000

- Outdoor 17 Unit 17 unit - Indoor 133 Unit 133 unit

Total 2 1.901.303.058 Total 1+2 #REF!
