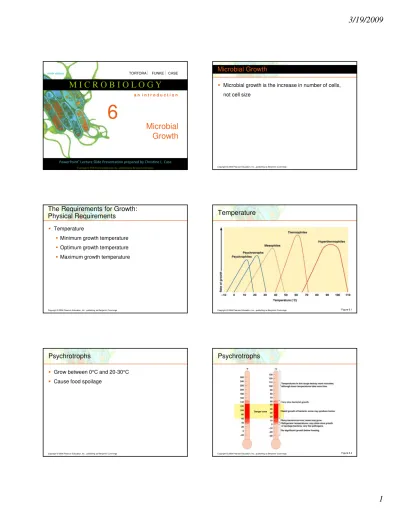

M I C R O B I O L O G Y
a n i n t r o d u c t i o n
ninth edition TORTORA⏐FUNKE⏐CASE
6
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
PowerPoint®Lecture Slide Presentation prepared by Christine L. Case
6
Microbial
Growth
Microbial growth is the increase in number of cells, not cell size
Microbial Growth
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
The Requirements for Growth:
Physical Requirements
Temperature
Minimum growth temperature
Optimum growth temperature
Maximum growth temperature
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
g p
Temperature
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings Figure 6.1
Psychrotrophs
Grow between 0°C and 20-30°C
Cause food spoilage
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
Psychrotrophs
The Requirements for Growth:
Physical Requirements
pH
Most bacteria grow between pH 6.5 and 7.5
Molds and yeasts grow between pH 5 and 6
Acidophiles grow in acidic environments
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
p g
The Requirements for Growth:
Physical Requirements
Osmotic pressure
Hypertonic environments, increase salt or sugar, cause plasmolysis
Extreme or obligate halophiles require high osmotic
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
g p q g
pressure
Facultative halophiles tolerate high osmotic pressure
The Requirements for Growth:
Physical Requirements
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings Figure 6.4
The Requirements for Growth:
Chemical Requirements
Carbon
Structural organic molecules, energy source
Chemoheterotrophs use organic carbon sources
Autotrophs use CO2
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
p 2
The Requirements for Growth:
Chemical Requirements
Nitrogen
In amino acids and proteins
Most bacteria decompose proteins
Some bacteria use NH4+or NO3–
A few bacteria use N2in nitrogen fixation
S lf
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings Sulfur
In amino acids, thiamine and biotin
Most bacteria decompose proteins
Some bacteria use SO42–or H2S
Phosphorus
In DNA, RNA, ATP, and membranes
PO43–is a source of phosphorus
The Requirements for Growth:
Chemical Requirements
Trace elements
Inorganic elements required in small amounts
Usually as enzyme cofactors
The Requirements for Growth:
Chemical Requirements
Oxygen (O2)
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings Table 6.1
Toxic Forms of Oxygen
Singlet oxygen: O2boosted to a higher-energy state
Superoxide free radicals: O2–
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
Peroxide anion: O22–
Hydroxyl radical (OH•)
The Requirements for Growth:
Chemical Requirements
Organic growth factors
Organic compounds obtained from the environment
Vitamins, amino acids, purines, and pyrimidines
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
Culture Media
Culture medium: Nutrients prepared for microbial growth
Sterile: No living microbes
Inoculum: Introduction of microbes into medium
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
Culture: Microbes growing in/on culture medium
Agar
Complex polysaccharide
Used as solidifying agent for culture media in Petri plates, slants, and deeps
Generally not metabolized by microbes
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
y y
Liquefies at 100°C
Solidifies ~40°C
Culture Media
Chemically defined media: Exact chemical composition is known
Complex media: Extracts and digests of yeasts, meat, or plants
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
p
Nutrient broth
Culture Media
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings Tables 6.2, 6.4
Growth in Continuous Culture
A “continuous culture” is an open system in which
fresh media is continuously added to the culture at
a constant rate, and old broth is removed at the
same rate.
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
This method is accomplished in a device called a
chemostat.
Typically, the concentration of cells will reach an
equilibrium level that remains constant as long as
the nutrient feed is maintained.
Basic Chem ost at Syst em
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
Our Ch em ost at Syst em
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
Anaerobic Culture Methods
Reducing media
Contain chemicals (thioglycollate or oxyrase) that combine O2
Heated to drive off O2
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings 2
Anaerobic Culture Methods
Anaerobic jar
Anaerobic Culture Methods
Anaerobic chamber
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings Figure 6.6
Capnophiles Require High CO
2 Candle jar
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
CO2-packet
Figure 6.7
Selective Media
Suppress unwanted microbes and
encourage desired
microbes.
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings Figure 6.9b–c
Selective Media
Inhibits the growth of some bacteria while selecting for the growth of others
Example:
Brilliant Green Agar
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
g
dyes inhibit the growth of Gram (+) bacteria
selects for Gram (-) bacteria
Most G.I. Tract infections are caused by Gram (-) bacteria
Selective Media
EMB (Eosin Methylene Blue)
dyes inhibit Gram (+) bacteria
selects for Gram (-) bacteria
G.I. Tract infections caused by Gram (-)
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
y ( )
bacteria
Differential Media
Make it easy to distinguish colonies of different microbes.
Some media are both selective and
differential
Mannitol salt agaris both selective and differential
Selective:
Staphylococcus aereuscan grow on mannitol salt agar that has a high concentration of salt; the growth of other organisms will be inhibited
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings inhibited
Differential:
Staphylococcus aureusferments mannitol and the medium will change color
Other organisms that grow on high salt will grow on mannitol salt agar but may not ferment mannitol; the media will not change colors
Selective and Differential Media
Mannitol Salt Agar
used to identify Staphylococcus aureus
M i l S l A
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
Mannitol Salt Agar
High salt conc. (7.5%) inhibits most bacteria
sugar Mannitol
pH Indicator (Turns Yellow when acid)
Selective and Differential Media
MacConkey’s Agar
used to identify Salmonella
MacConkey’s Agar
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
Bile salts and crystal violet (inhibits Gram (+) bacteria)
lactose
pH Indicator
Many Gram (-) enteric non-pathogenic bacteria can ferment lactose, Salmonella can not
Enrichment Media
Encourages growth of desired microbe
Assume a soil sample contains a few phenol-degrading bacteria and thousands of other bacteria
Inoculate phenol-containing culture medium with the soil and incubate
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
soil and incubate
Transfer 1 ml to another flask of the phenol medium and incubate
Transfer 1 ml to another flask of the phenol medium and incubate
Only phenol-metabolizing bacteria will be growing
A pure culture contains only one species or strain.
A colony is a population of cells arising from a single cell or spore or from a group of attached cells.
A colony is often called a colony-forming unit (CFU).
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
y y g ( )
Streak Plate
Preserving Bacteria Cultures
Deep-freezing: –50°to –95°C
Lyophilization (freeze-drying): Frozen (–54° to –72°C) and dehydrated in a vacuum
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
Reproduction in Prokaryotes
Binary fission
Budding
Conidiospores (actinomycetes)
Fragmentation of filaments
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
g
Binary Fission
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings Figure 6.11 Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings Figure 6.12b
If 100 cells growing for 5 hours produced 1,720,320 cells:
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
PLAY Animation: Bacterial Growth
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings Figure 6.14
1. Lag Phase
Bacteria are first introduced into an environment or media
Bacteria are “checking out” their surroundings
cells are very active metabolically
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
y y
# of cells changes very little
1 hour to several days
2. Log Phase
Rapid cell growth (exponential growth)
population doublesevery generation
microbes are sensitive to adverse conditions
antibiotics
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
anti-microbial agents
3. Stationary Phase
Death rate = rate of reproduction
cells begin to encounter environmental stress
lack of nutrients
lack of water
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
not enough space
metabolic wastes
oxygen
pH
Endospores would form now
4. Death Phase
Death rate > rate of reproduction
Due to limiting factors in the environment
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
Measuring Microbial Growth
Direct methods
Plate counts
Filtration
MPN
Indirect methods
Turbidity
Metabolic activity
Dry weight
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
Direct microscopic count
Dry weight
Direct Measurements of Microbial Growth
Plate counts: Perform serial dilutions of a sample
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings Figure 6.15, step 1
Plate Count
Inoculate Petri plates from serial
dilutions
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings Figure 6.16
Plate Count
After incubation, count colonies on plates that have 25-250 colonies (CFUs)
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings Figure 6.15
Direct Measurements of Microbial Growth
Filtration
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings Figure 6.17
Direct Measurements of Microbial Growth
Multiple tube MPN test.
Count positive tubes and
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings
compare to
statistical
MPN table.
Figure 6.18b
Direct Measurements of Microbial Growth
Direct microscopic count
Direct Measurements of Microbial Growth
Copyright © 2006 Pearson Education, Inc., publishing as Benjamin Cummings Figure 6.19, steps 1, 3
Estimating Bacterial Numbers
by Indirect Methods
Turbidity
