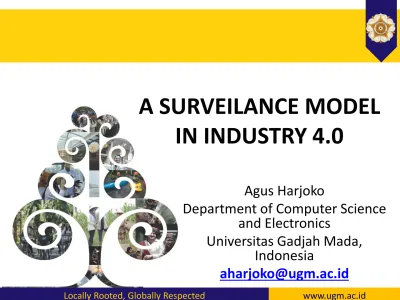

A SURVEILANCE MODEL

IN INDUSTRY 4.0

Agus Harjoko

Department of Computer Science

and Electronics

Universitas Gadjah Mada,

Indonesia

(2)

www.ugm.ac.id

Locally Rooted, Globally Respected

Outline

• UGM etc

• Overview

• SVS

• LPU

• DCCU

(3)

www.ugm.ac.id

Locally Rooted, Globally Respected

Universitas Gadjah Mada

• Located in Yogyakarta, Indonesia

(4)

www.ugm.ac.id

Locally Rooted, Globally Respected

Dept. Computer Science and

Electronics

• Study programs

• Undergraduate in Computer Science

• Undergraduate in Electronics and

Instrumentation

• Master in Computer Science

• Doctor in Computer Science

• Research labs: 5

• AI and Data Science

(5)

www.ugm.ac.id

Locally Rooted, Globally Respected

Industry 1.0

–

4.0

• 1784:

mechanical

loom

• 1850: kapal

uap dll

• 1970:

electronics and

IT

• 2016:

cyber-physical

(6)

www.ugm.ac.id

Locally Rooted, Globally Respected

Volume Data Growth

• International Data Corp, 2017 (1 ZB = 1 trillion giga bytes)

00.05

2

12

47

163 2005

2010

2015

2020

2025

(7)

www.ugm.ac.id

Locally Rooted, Globally Respected

Key factors for data growth

• Evolution of data: business to life-critical

–

Internet activities, socmed, transportation etc

• Embedded system and IoT

–

Smart city, smart agriculture, etc

• Mobile and real-time data

–

Real-time-data-based bussiness

• AI systems change the landscape

–

AI, NLP, machine learning

• Secutiry as critical foundation

(8)

www.ugm.ac.id

Locally Rooted, Globally Respected

Country readyness IR4.0

(9)

www.ugm.ac.id

Locally Rooted, Globally Respected

Making Indonesia 4.0

• Roadmap Industry 4.0, April 2018

• 5 sectors

–

Food and beverage

–

Textile and apparel

–

Automotive

–

Electronics

–

Chemical

• Why?

–

60% of manufacturing GDP

–

65% of manufacturing exports

(10)

www.ugm.ac.id

Locally Rooted, Globally Respected

Creating values from converging

technologies

(11)

www.ugm.ac.id

Locally Rooted, Globally Respected

(12)

www.ugm.ac.id

Locally Rooted, Globally Respected

Surveilance in Industri 4.0

• In-door and out-door

• Traffic Monitoring

• Computer Vision Research group

(13)

www.ugm.ac.id

Locally Rooted, Globally Respected

Existing traffic monitoring in

Yogyakarta, Indonesia

(14)

www.ugm.ac.id

Locally Rooted, Globally Respected

Problems & Motivations

14

• Missing frames

• High computing power

(15)

www.ugm.ac.id

Locally Rooted, Globally Respected

Proposed Solution

15

• Distributing computing tasks

• Smart Video Sensor (SVS)

• Local Processing Unit (LPU)

• Data Center and Control Unit (DCCU)

• Need communication data format (XML)

(16)

www.ugm.ac.id

Locally Rooted, Globally Respected

Illustration for proposed solution

existing

Proposed solution

(17)

www.ugm.ac.id

Locally Rooted, Globally Respected

SVS Architecture

Video

Sensor

Module

Video

Compression

Module

Feature

Extraction

Module

Feature

Representation

Module

(18)

www.ugm.ac.id

Locally Rooted, Globally Respected

Video Sensor Module

Video

aquisition

function

Resolution,

positioning,

lighting

(19)

www.ugm.ac.id

Locally Rooted, Globally Respected

Sample frame : Galeria

(20)

www.ugm.ac.id

Locally Rooted, Globally Respected

Video Compression Module

Compressing

video for

efficient

transmission

fungsi

Size, quality,

need for video

(21)

www.ugm.ac.id

Locally Rooted, Globally Respected

Feature Extraction Module

Function

Pre-processing,

segmenting,

extracting

features

Parameters

(22)

www.ugm.ac.id

Locally Rooted, Globally Respected

Feature Extraction Module

Frames

Segments

Video stream

Preprocessing

Segmentation

Feature

extraction

Ciri-ciri obyek

<?xml version="1.0" encoding="utf-8"?> <feature feature_extraction="program"> <headerframe target="frameNumber">90 <headerframe target="currenttime">2014-01-16T06:15:43.23+07:00

</headerframe>

<objectnumber target="Object">1</objectnumber> <featureitem target="WBB">39</featureitem> <featureitem target="HBB">46</featureitem>

<featureitem target=“ROI”>1794</featureitem>

<featureitem target="centroid">[378 42]</featureitem> <featureitem target="aspectratio">1</featureitem> <featureitem target="PBB">170</featureitem>

:

<featureitem target="Dispersedness">14.7226427583197</featureitem>

:

<featureitem target=“ROI">2380</featureitem>

:

<featureitem target="Dispersedness">16.7321836705882</featureitem> </headerframe>

</feature>

</headerframe>

:

</feature>

</headerframe>

:

</feature>

</headerframe>

:

(23)

www.ugm.ac.id

Locally Rooted, Globally Respected

Pre-processing example

23 frame

Histogram

Equalization

(24)

www.ugm.ac.id

Locally Rooted, Globally Respected

Frame before and after segmentation

24 frame

Gaussian

Mixture

Model

(25)

www.ugm.ac.id

Locally Rooted, Globally Respected

Morphological Image Processing

25 morphological

opening and

closing

(26)

www.ugm.ac.id

Locally Rooted, Globally Respected

Feature Representation Module

Function

Representing

features

Parameters

(27)

www.ugm.ac.id

Locally Rooted, Globally Respected

Representation scheme

27 Object : 1

F1: value

F2: value

Fn: value

LocationNm: value VideoNm: value FrameNo: value Time: YYYY-MM-DDThh:mm:ss.sTZD

Object : 2

F1: value

F2: value

Fn: value

Object : n

F1: value

F2: value

(28)

www.ugm.ac.id

Locally Rooted, Globally Respected

XML Structure

<?xml version="1.0" encoding="utf-8"?>

<Z feature_XML="list">

<HFrame Value ="LocationNm"> galeria </HFrame>

<HFrame Value ="VideoNm"> galeria_4 </HFrame>

<HFrame Value ="FrameNo">194

<HFrame Value ="FTime">2014-01-16T06:10:15.21+07:00

</HFrame>

<ObjectNo Value ="Object"> 1 </ObjectNo>

<Feature Value ="WBB">156</Feature>

<Feature Value ="HBB">149</Feature>

<Feature Value ="ROI">23244</Feature>

<Feature Value ="centroid">[368 383] </Feature>

<Feature Value ="aspectratio">1</Feature>

<Feature Value ="PBB">610</Feature>

:

<Feature Value ="Dispersedness">15.154932</Feature>

:

<ObjectNo Value ="Object"> 3 </ObjectNo>

<Feature Value ="WBB">22</Feature>

<Feature Value ="HBB">37</Feature>

<Feature Value ="ROI">814</Feature>

<Feature Value ="centroid">[166 156] </Feature>

<Feature Value ="aspectratio">1</Feature>

<Feature Value ="PBB">118</Feature>

:

<Feature Value ="Dispersedness">15.233610</Feature>

</HFrame>

(29)

www.ugm.ac.id

Locally Rooted, Globally Respected

Transmission Module

Function

Transmitting

compressed

video and

features in XML

format

Parameters

(30)

www.ugm.ac.id

Locally Rooted, Globally Respected

Local Processing Unit

• Working for local needs

• Receives features from the SVS

• converts features from XML to numbers,

• selects the appropriate features based on

LPU’s

special needs

• processes the selected features

• results may be communicated with the DCCU

• Example:

• timing local traffic light controller,

(31)

www.ugm.ac.id

Locally Rooted, Globally Respected

Example: XML reading

</headerframe>

<featureitem target= ROI > </featureitem>

:

<featureitem target= ROI"> </featureitem>

:

</feature>

</headerframe>

:

</feature>

</headerframe>

:

</feature>

</headerframe>

:

</feature>

</headerframe>

:

</feature>

</headerframe>

:

</feature>

XML representation

Convert

XML



numbers

(32)

www.ugm.ac.id

Locally Rooted, Globally Respected

Data Center and Control Unit

• Coordinating LPUs in a certain region

• Stores compressed video from SVS

• May sends signals to LPUs

• Receives object features extracted from SVS

• Process features for regional needs

• Example:

• synchronizing traffic light controllers,

(33)

www.ugm.ac.id

Locally Rooted, Globally Respected

Applications

• Traffic object classification

• Tracking of classified object

• Licence plate recognition

• Licence plate and brand name recognition

• Traffic light controller timing

• Illegally parked vehicle identification

• Warehouse monitoring

(34)

www.ugm.ac.id

Locally Rooted, Globally Respected

Classification of traffic objects

(35)

www.ugm.ac.id

Locally Rooted, Globally Respected

(36)

www.ugm.ac.id

Locally Rooted, Globally Respected

(37)

www.ugm.ac.id

Locally Rooted, Globally Respected

Thank you

Terima kasih

Matur nuwun
