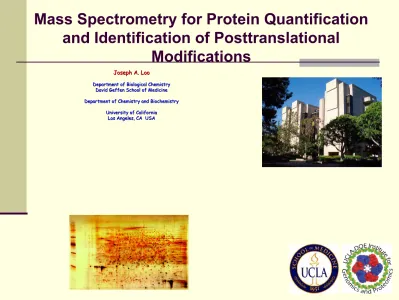

Mass Spectrometry for Protein Quantification
and Identification of Posttranslational
Modifications
Joseph A. Loo Joseph A. Loo
Department of Biological Chemistry
Department of Biological Chemistry
David Geffen School of Medicine
David Geffen School of Medicine
Department of Chemistry and Biochemistry
Department of Chemistry and Biochemistry
University of California
University of California
Los Angeles, CA USA
Proteomics and posttranslational modifications
Patterson and Aebersold, Nature Genetics (supp.), 33, 311 (2003)
protein-ligand protein-ligand interactions interactions protein-ligand protein-ligand interactions interactions protein protein complexes complexes (machines) (machines) protein protein complexes complexes (machines) (machines) protein families protein families
(activity or structural)
(activity or structural)
protein families
protein families
(activity or structural)
(activity or structural)
post-translational post-translational modified proteins modified proteins post-translational post-translational modified proteins modified proteins Eukaryotic cell. Examples of protein
properties are shown, including the interaction of proteins
Proteomic Analysis of Post-translational
Modifications
Post-translational modifications (PTMs)
Covalent processing events that change the properties
of a protein
proteolytic cleavage
addition of a modifying group to one or more amino
acids
Determine its activity state, localization, turnover,
interactions with other proteins
Mass spectrometry and other biophysical methods can
be used to determine and localize potential PTMs
However, PTMs are still challenging aspects of
Complexity of the Proteome
Complexity of the Proteome
Protein processing and modification comprise an important third
dimension of information, beyond those of DNA sequence and protein sequence.
Complexity of the human proteome is far beyond the more than
30,000 human genes.
The thousands of component proteins of a cell and their
post-translational modifications may change with the cell cycle,
environmental conditions, developmental stage, and metabolic state.
Proteomic approaches that advance beyond identifying proteins to Proteomic approaches that advance beyond identifying proteins to elucidating their post-translational modifications are needed.
Use MS to determine PTM of isolated
protein
Enzymatic or
chemical degradation of modified protein HPLC separation of
peptides
MALDI and/or ESI used to identify PTM MS/MS used to
Proteomic analysis of PTMs
Glycoprotein Gel Stain
Glycoprotein Gel Stain
CandyCane glycoprotein molecular weight standards containing alternating glycosylated and nonglycosylated
proteins were electrophoresed through a 13% polyacrylamide gel. After separation, the gel was stained with SYPRO Ruby protein gel stain to detect all eight marker proteins (left). Subsequently, the gel was stained by the standard periodic acid–Schiff base (PAS) method in the Pro-Q Fuchsia
Glycoprotein Gel Stain Kit to detect the glycoproteins alpha2 -macroglobulin, glucose oxidase, alpha1-glycoprotein and avidin.
Nitro-Tyrosine Modification
Oxidative modification of amino acid side chains include methionine oxidation to the corresponding sulfone, nitrosation or
S-nitrosoglutationylation of cysteine residues, and tyrosine modification to yield o,o’-dityrosine, 3-nitrotyrosine and 3-chlorotyrosine.
Nitric oxide (NO) synthases provide the biological precursor for nitrating agents that perform this modification in vivo. NO can form nitrating agents in a number of ways including reacting with
superoxide to make peroxynitrite (HOONO) and through enzymatic oxidation of nitrite to generate NO·2
Tyrosine nitration is a well-established protein modification that occurs in disease states associated with oxidative stress and increased nitric oxide synthase activity.
Nitro-Tyrosine Modification
“Proteomic method identifies proteins nitrated in vivo during inflammatory challenge,” K. S. Aulak, M. Miyagi, L. Yan, K. A. West, D. Massillon, J. W. Crabb, and D. J. Stuehr, Proc. Natl. Acad. Sci. USA 2001; 98: 12056-12061.
116 98 55 37 30 20 kDa
3.5 4.5 5.1 5.5 6.0 7.0 8.4 9.53.5 4.5 5.1 5.5 6.0 7.0 8.4 9.5
MAPK phosphatase 2 MAPK phosphatase 2
E2 G1
enolase enolase casein kinase II
casein kinase II
HSP70 HSP70
Naf-1 Naf-1
Diesel Exhaust Particle-Induced Nitro-Tyrosine Modifications
Diesel Exhaust Particle-Induced Nitro-Tyrosine Modifications
RAW 264.7 macrophage exposed to DEP (Xiao, Loo, and Nel - UCLA)
Sypro Ruby
anti-nitro-tyrosine
trans. factor AP-2ß trans. factor AP-2ß MnSOD
Phosphorylation
Analysis of the entire complement of phosphorylated proteins in cells: “phosphoproteome”
Qualitative and quantitative information regarding protein phosphorylation important
Important in many cellular processes
signal transduction, gene regulation, cell cycle, apoptosis
Most common sites of phosphorylation: Ser, Thr, Tyr
MS can be used to detect and map
locations for phosphorylation
MW increase from addition of
phosphate group
treatment with phosphatase allows
determination of number of phosphate groups
digestion and tandem MS allows for
MS/MS and Phosphorylation
Detection of phosphopeptides in complex mixtures can be
facilitated by neutral loss and precurson ion scanning using
tandem mass spectrometers
Allow selective visualization of peptides containing
phosphorylated residues
Most commonly performed with triple quadrupole mass
spectrometers
precursor ion transmission
collision cell (chamber)
MS/MS and Phosphorylation
Precursor ion scan
Q1 is set to allow all the components of the mixture to enter the
collision cell and undergo CAD
Q3 is fixed at a specific mass value, so that only analytes which
fragment to give a fragment ion of this specific mass will be detected
Phospho-peptide fragments by CAD to give an ion at m/z 79 (PO3)
Set Q3 to m/z 79: only species which fragment to give a fragment
ion of 79 reach the detector and hence indicating phosphorylation
Q1 Q2
collision cell
Q3
MS/MS and Phosphorylation
Neutral loss scan
Q1 and Q3 are scanned synchronously but with a specific
m/z offset
The entire mixture is allowed to enter the collision cell, but
only those species which fragment to yield a fragment with the same mass as the offset will be observed at the
detector
pSer and pThr peptides readily lose phosphoric acid during
CAD (98 Da)
For 2+ ion set offset at 49
Any species which loses 49 from a doubly charged ion
Enrichment strategies to analyze
phosphoproteins/peptides
Phosphospecific antibodies
Phosphospecific antibodies
Anti-pY quite successful
Anti-pS and anti-pT not as successful, but may be used (M.
Grønborg, T. Z. Kristiansen, A. Stensballe, J. S. Andersen, O. Ohara, M. Mann, O. N. Jensen, and A. Pandey, “Approach for Identification of
Serine/Threonine-phosphorylated Proteins by Enrichment with Phospho-specific Antibodies.” Mol. Cell. Proteomics 2002, 1:517–527.
Immobilized metal affinity chromatography (IMAC)
Immobilized metal affinity chromatography (IMAC)
Negatively charged phosphate groups bind to postively charged
metal ions (e.g., Fe3+, Ga3+) immobilized to a chromatographic
support
Limitation: non-specific binding to acidic side chains (D, E)
Derivatize all peptides by methyl esterification to reduce
non-specific binding by carboxylate groups.
Direct MS of phosphopeptides
bound to IMAC beads
Raska et al., Anal.
Chem. 2002, 74, 3429
IMAC beads placed
directly on MALDI target
Matrix solution spotted
onto target
MALDI-MS of peptides
bound to IMAC bead
MALDI-MS/MS (*) to
MALDI-MS spectrum
obtained from peptide
bound to IMAC beads
applied directly to
MALDI target
MALDI-MS/MS (Q-TOF)
to locate
phosphorylation site
Sample enrichment with
minimal sample
handling
contains phosphorylated
Enrichment strategies to analyze
phosphoproteins/peptides
Chemical derivatization
Chemical derivatization
Introduce affinity tag to enrich for
phosphorylated molecules
Enrichment strategies to analyze
phosphoproteins/peptides
Oda et al., Nature Biotech. 2001, 19, 379 for analysis of pS and pT Remove Cys-reactivity by oxidation with performic acid
Base hydrolysis induce ß-elimination of phosphate from pS/pT Addition of ethanedithiol allows coupling to biotin
Enrichment strategies to analyze
phosphoproteins/peptides
Zhou et al., Nature Biotech. 2001, 19, 375
Reduce and alkylate Cys-residues to eliminate their
reactivity
Protect amino groups with t-butyl-dicarbonate (tBoc)
Phosphoramidate adducts at
phosphorylated residues are formed by carbodiimide condensation with
cystamine
Free sulfhydryls are covalently
captured onto glass beads coupled to iodoacetic acid
Chemical derivatization to
Chemical derivatization to
enrich for phosphoproteins
enrich for phosphoproteins
Developed because
other methods based on
affinity/adsorption (e.g.,
IMAC) displayed some
non-specific binding
Chemical derivatization
methods may be overly
complex to be used
routinely
Sensitivity may not be
sufficient for some
Phosphoprotein Stain
Phosphoprotein Stain
PeppermintStick phosphoprotein molecular weight standards
separated on a 13% SDS
polyacrylamide gel. The markers contain (from largest to smallest) beta-galactosidase, bovine serum albumin (BSA), ovalbumin, beta-casein, avidin and lysozyme. Ovalbumin and beta-casein are
phosphorylated. The gel was stained with Pro-Q Diamond phosphoprotein gel stain (blue) followed by SYPRO Ruby protein gel stain (red). The digital images were pseudocolored.
Phosphoprotein Stain
Phosphoprotein Stain
Visualization of total protein and phosphoproteins in a 2-D gel
Proteins from a Jurkat T-cell lymphoma line cell lysate were
separated by 2-D gel electrophoresis and stained with Pro-Q Diamond
phosphoprotein gel stain (blueblue)
followed by SYPRO Ruby protein gel
stain (redred). After each dye staining,
the gel was imaged and the resulting composite image was digitally
pseudocolored and overlaid.
RAW 264.7 exposed to DEP
Global Analysis of Protein Phosphorylation
Global Analysis of Protein Phosphorylation
Pro-Q Diamond
Pro-Q Diamond
Sypro Ruby
Sypro Ruby
Xiao, Loo, and Nel - UCLA
IEF
9.5 3.54.5 5.1 5.5 6.0 7.0 8.4
5 3 4 1 2 6 7 20 30 37 98 55 9.5
3.54.5 5.1 5.5 6.0 7.0 8.4
30 37 98 55 20 8 9 10 11 12 13 14 TNF
TNF convertase convertase
MAGUK p55
MAGUK p55
PDI
PDI
Protein phosphatase 2A
Protein phosphatase 2A
JNK-1
JNK-1
p38 MAPK alpha
p38 MAPK alpha
A A B m/z R e l. A b un d. Q Q
H EE
Mass spectrometry is inherently not a
quantitative technique. The intensity of a peptide ion signal does not
accurately reflect the amount of peptide in the sample.
equimolar mixture equimolar mixture
of 2 peptides of 2 peptides
516.725 516.828
m/z
(M+2H)2+ : [12C]-ion
[Val5]-Angiotensin II
1031.5188 (monoisotopic)
Lys-des-Arg9-Bradykinin
1031.5552 (monoisotopic)
= 0.036= 0.036
equimolar mixture equimolar mixture
of 2 peptides of 2 peptides
A A B m/z R e l. A bu n d. Q Q
H EE
Two peptides of identical chemical structure that differ in mass because they differ in isotopic composition are expected to generate identical specific signals in a mass spectrometer.
equimolar mixture equimolar mixture
of 2 peptides of 2 peptides
Mass Spectrometry and Quantitative
Measurements
Q
Q
H EE
13C 13C
13C
A
A B
2D 2D
Methods coupling mass spectrometry and stable isotope tagging Methods coupling mass spectrometry and stable isotope tagging have been developed for quantitative proteomics.
ICAT: Isotope-Coded Affinity Tag
Alkylating group covalently attaches the reagent to reduces Cys-residues.
A polyether mass-encoded linker contains 8 hydrogens (d0) or 8 deuteriums (d8) that represents the isotope dilution.
ICAT: Isotope-Coded Affinity Tag
The Cys-residues in sample 1 is labeled with d0-ICAT and sample 2 is labeled with d8-ICAT.
The combined samples are digested, and the biotinylated ICAT-labeled peptides are enriched by avidin affinity chromatography and analyzed by LC-MS/MS.
Each Cys-peptide appears as a pair of signals differing by the mass differential encoded in the tag. The ratio of the signal intensities indicates the abundance ratio of the protein from which the peptide originates.
Stable Isotope Amino Acid or
15N-
in vivo
Labeling
Metabolic stable isotope coding
of proteomes
An equivalent number of cells
from 2 distinct cultures are grown on media supplemented with
either normal amino acids or 14
N-minimal media, or stable isotope
amino acids (2D/13C/15N) or 15
N-enriched media.
These mass tags are
Enzymatic Stable Isotope Coding of
Proteomes
Enzymatic digestion in the presence of 18
O-water incorporates 18O at the carboxy-terminus
of peptides
Proteins from 2 different samples are
enzymatically digested in normal water or H218O.
R
R33 RR44
NH2-CH-CO-NH-CH-COOH
...NH-CH-CO-NH-CH-CO-...NH-CH-CO-NH-CH-CO-1818OOHH
R
R11 RR22
...NH-CH-CO-NH-CH-CO-NH-CH-CO-NH-CH-COOH
...NH-CH-CO-NH-CH-CO-NH-CH-CO-NH-CH-COOH
R
R11 RR22 RR33 RR44
Trypsin /H
Trypsin /H221818OO
(Arg, Lys) (Arg, Lys)
Identification of Low Abundance Proteins
The identification of low abundance
proteins in the presence of high
abundance proteins is problematic
(e.g., “needle in a haystack”)
Pre-fractionation of complex protein
mixtures can alleviate some difficulties
gel electrophoresis, chromatography,
etc
Removal of known high abundance
Identification of Low Abundance Proteins
Additional Readings
R. Aebersold and M. Mann, Mass spectrometry-based proteomics,
Nature (2003), 422, 198-207.
M. B. Goshe and R. D. Smith, “Stable isotope-coded proteomic mass
spectrometry.” Curr. Opin. Biotechnol. 2003; 14: 101-109.
W. A. Tao and R. Aebersold, “Advances in quantitative proteomics via stable isotope tagging and mass spectrometry.” Curr. Opin. Biotechnol. 2003; 14: 110-118.
S. D. Patterson and R. Aebersold, “Proteomics: the first decade and
beyond.” Nature Genetics 2003; 33 (suppl.): 311-323.
M. Mann and O. N. Jensen, “Proteomic analysis of post-translational
modification.” Nature Biotech. 2003; 21: 255-261.
D. T. McLachlin and B. T. Chait, “Analysis of phosphorylated proteins
and peptides by MS.” Curr. Opin. Chem. Biol. 2001; 5: 591-602.
S. Gygi et al., “Quantitative analysis of complex protein mixtures using
Proteomics in Practice: A Laboratory Manual of Proteome Analysis
Reiner Westermeier, Tom Naven Wiley-VCH, 2002
PART II: COURSE MANUAL
Step 1: Sample Preparation Step 2: Isoelectric Focusing
Step 3: SDS Polyacrylamide Gel Electrophoresis Step 4: Staining of the Gels
Step 5: Scanning of Gels and Image Analysis Step 6: 2D DIGE
Step 7: Spot Excision
Step 8: Sample Destaining Step 9: In-gel Digestion
Step 10: Microscale Purification
Step 11: Chemical Derivatisation of the Peptide Digest Step 12: MS Analysis
Step 13: Calibration of the MALDI-ToF MS Step 14: Preparing for a Database Search Step 15: PMF Database Search Unsuccessful
PART I: PROTEOMICS TECHNOLOGY Introduction Expression Proteomics Two-dimensional Electrophoresis Spot Handling Mass Spectrometry
Protein Identification by Database Searching
Proteins and Proteomics: A Laboratory Manual Richard J. Simpson
Cold Spring Harbor Laboratory (2002)
Chapter 1. Introduction to Proteomics
Chapter 2. One–dimensional Polyacrylamide Gel Electrophoresis Chapter 3. Preparing Cellular and Subcellular Extracts
Chapter 4. Preparative Two–dimensional Gel Electrophoresis with Immobilized pH Gradients
Chapter 5. Reversed–phase High–performance Liquid Chromatography Chapter 6. Amino– and Carboxy– terminal Sequence Analysis
Chapter 7. Peptide Mapping and Sequence Analysis of Gel–resolved Proteins Chapter 8. The Use of Mass Spectrometry in Proteomics
Chapter 9. Proteomic Methods for Phosphorylation Site Mapping Chapter 10. Characterization of Protein Complexes
