KO II. Reaksi alkohol.amina .eter

1

© 2011 Pearson Education, Inc.

1

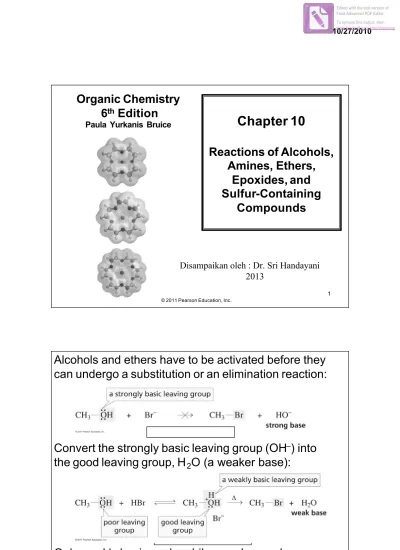

Chapter 10

Reactions of Alcohols, Amines, Ethers,

Epoxides, and Sulfur-Containing

Compounds Organic Chemistry

6th _Edition

Paula Yurkanis Bruice

© 2011 Pearson Education, Inc.

2

Convert the strongly basic leaving group (OH–_{) into}

the good leaving group, H₂O (a weaker base):

Only weakly basic nucleophiles can be used

Alcohols and ethers have to be activated before they can undergo a substitution or an elimination reaction:

© 2011 Pearson Education, Inc.

3

Primary, secondary, and tertiary alcohols all undergo

nucleophilic substitution reactions with HI, HBr, and HCl:

3

© 2011 Pearson Education, Inc.

5

Primary alcohols undergo S_N2 reactions with hydrogen halides:

Reaction carried out in 48% aqueous HBr. Recall that Br– is an excellent nucleophile in water.

© 2011 Pearson Education, Inc.

6

ZnCl₂can be used to catalyze certain S_N2 reactions:

© 2011 Pearson Education, Inc.

7

The Lucas Reagent

Anhydrous ZnCl₂ in conc HCl

Distinguishes primary, secondary, and tertiary low-molecular-weight alcohols

The Lucas reaction:

ROH + HCl

ZnCl2

RCl

Positive test: Solution becomes cloudy

Test results and mechanisms at room temperature:

• Primary: No reaction

• Secondary: Reaction in ~5 minutes

• Tertiary, allylic, and benzylic: Reaction immediate SN2

SN1

SN2 and SN1

5

© 2011 Pearson Education, Inc.

9

Other Methods for Converting Alcohols

into Alkyl Halides

Utilization of phosphorus tribromide:

Other phosphorus reagents can be used:

PBr3, phosphorus tribromide

PCl3, phosphorus trichloride

PCl₅, phosphorus pentachloride POCl3, phosphorus oxychloride

© 2011 Pearson Education, Inc.

10

Activation by SOCl

₂

© 2011 Pearson Education, Inc.

11

The Artificial Sweetener

Splenda (Sucralose)

Could Splenda be a cellular alkylating agent?

7

© 2011 Pearson Education, Inc.

13

Summary: Converting of

Alcohols to Alkyl Halides

Recommended procedures:

© 2011 Pearson Education, Inc.

14

© 2011 Pearson Education, Inc.

15

Several sulfonyl chlorides are available to activate OH groups:

Dehydration of Secondary and Tertiary

Alcohols by an E1 Pathway

9

© 2011 Pearson Education, Inc.

17

The major product is the most stable alkene product:

The most stable alkene product has the most stable transition state

© 2011 Pearson Education, Inc.

18

© 2011 Pearson Education, Inc.

19

Look out for carbocation rearrangement:

Complex Alcohol

11

© 2011 Pearson Education, Inc.

21

Pinicol Rearrangement

Protonate alcohol: Eliminate water:

Rearrange carbocation: Deprotonate:

Resonance-stabilized

© 2011 Pearson Education, Inc.

22

Ring Expansion and Contraction

Show the mechanism for this reaction:

•Protonate the alcohol.

•Eliminate water.

•Rearrange carbocation to afford the more stable cyclohexane ring.

© 2011 Pearson Education, Inc.

23

Primary Alcohols Undergo Dehydration

by an E2 Pathway

The Stereochemical Outcome of

the E1 Dehydration

13

© 2011 Pearson Education, Inc.

25

A Milder Way to Dehydrate an Alcohol

© 2011 Pearson Education, Inc.

26

© 2011 Pearson Education, Inc.

27

Oxidation of Alcohols

Oxidation by chromic acid:

Secondary alcohols are oxidized to ketones

Primary alcohols are oxidized to aldehydes and eventually carboxylic acids:

15

© 2011 Pearson Education, Inc.

29

The oxidation of aldehydes to acids requires the presence of water:

In the absence of water, the oxidation stops at the aldehyde:

PCC, a methylene

chloride–soluble reagent:

No water present

© 2011 Pearson Education, Inc.

30

A tertiary alcohol cannot be oxidized and is converted to a stable chromate ester instead:

Di-tert_{-Butyl Chromate} No hydrogen on

© 2011 Pearson Education, Inc.

31

Amines do not undergo substitution reactions because NH₂– _{is a very strong base (a very poor leaving group):}

Protonation of the amine moiety does not solve the problem:

Nucleophilic Substitution

Reactions of Ethers

17

© 2011 Pearson Education, Inc.

33

Ether cleavage: an S_N1 reaction:

Ether cleavage: an S_N2 reaction:

© 2011 Pearson Education, Inc.

34

Reagents such as SOCl₂and PCl₃ can activate alcohols but not ethers

© 2011 Pearson Education, Inc.

35

Nucleophilic Substitution

Reactions of Epoxides

Recall Section 4.9

19

© 2011 Pearson Education, Inc.

37

Acid-Catalyzed Epoxide Ring Opening

HBr:

Aqueous acid:

© 2011 Pearson Education, Inc.

38 Acidic methanol:

Stereospecificity of epoxide ring opening:

A trans diol

© 2011 Pearson Education, Inc.

39

Reaction of an epoxide in the presence of methanol and acid

Mechanism: Regioselectivity:

When a nucleophile attacks an unprotonated epoxide, the reaction is a pure S_N2 reaction:

21

© 2011 Pearson Education, Inc.

41

Epoxides Are Synthetically

Useful Reagents

Enantiomers

© 2011 Pearson Education, Inc.

42

Epoxy resins are the strongest adhesives known:

© 2011 Pearson Education, Inc.

43

Arene Oxides

Arene oxide fate:

23

© 2011 Pearson Education, Inc.

45

Mechanism for arene oxide rearrangement:

© 2011 Pearson Education, Inc.

46

Arene oxides as a carcinogen:

© 2011 Pearson Education, Inc.

47

BENZO[a]PYRENE EPOXIDATION

Not all smokers get cancer

Benzopyrenes in chimneys were

responsible for cancer of the scrotum in “chimney-boys.” The connection between cancer and chimney soot was made by Percivall Pott in 1775.

Crown Ethers

25

© 2011 Pearson Education, Inc.

49

Thiols are sulfur analogs of alcohols:

Thiols are not good at hydrogen bonding

Thiols form strong complexes with heavy metal cations

Thiols are stronger acids (p_Ka = 10) than alcohols

© 2011 Pearson Education, Inc.

50

In protic solvent, thiolate ions are better nucleophiles than alkoxide ions:
