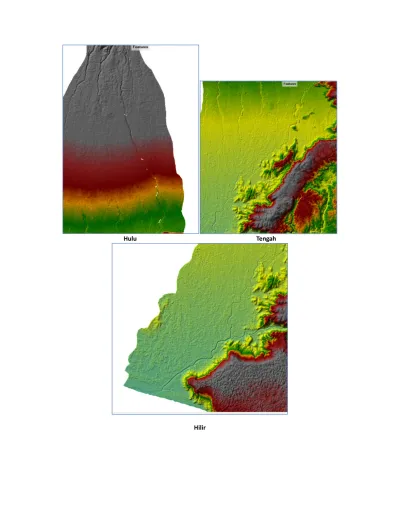

Hulu Tengah
Hilir
DEBIT = Q 50
Trial dn4
Boundary condi on:
- Hulu : Menggunakan debit di bagian hilir di HMS
- Hilir : Normal Depth
Hulu Tengah
Hilir
Keterangan:
LINGKARAN MERAH BANJIR
Trial dn5
Boundary condi on:
- Hulu : Debit di dari junc on se ap sungai yg masuk ke opak
- Hilir : Normal Depth
Hulu Tengah
Hilir
Keterangan:
LINGKARAN MERAH BANJIR
Rekap Penampang Banjir hasil pemodelan 1D
Muka Air
(m) (m) (m)
67+000 810.73 810.75 812.23 MELUAP MELUAP
66+000 767.46 767.47 766.51 AMAN AMAN
65+000 724.18 724.2 723.5 AMAN AMAN
64+000 680.91 680.92 680.35 AMAN AMAN
63+000 637.64 637.65 634.86 AMAN AMAN
62+000 594.37 594.37 591.23 AMAN AMAN
61+000 551.09 551.1 547.39 AMAN AMAN
60+000 507.82 507.82 504.11 AMAN AMAN
59+000 470.14 470.12 464.59 AMAN AMAN
58+000 432.46 432.42 428.71 AMAN AMAN
57+000 394.77 394.73 392.78 AMAN AMAN
56+000 357.09 357.03 356.59 AMAN AMAN
55+000 319.41 319.33 318.97 AMAN AMAN
54+000 297.43 298.15 297.23 AMAN AMAN
53+000 275.45 276.96 274.48 AMAN AMAN
52+000 253.46 255.78 252.63 AMAN AMAN
51+000 231.48 234.59 228.22 AMAN AMAN
50+000 209.5 213.41 206.86 AMAN AMAN
49+000 198.94 202.11 196.25 AMAN AMAN
48+000 188.38 190.81 186.39 AMAN AMAN
47+000 177.83 179.51 177.19 AMAN AMAN
46+000 167.27 168.21 167.38 MELUAP AMAN
45+000 156.71 156.91 154.96 AMAN AMAN
44+000 151.28 151.67 150.66 AMAN AMAN
43+000 145.85 146.43 145.18 AMAN AMAN
42+000 140.42 141.18 142.07 MELUAP MELUAP
41+000 134.99 135.94 136.41 MELUAP MELUAP
40+000 129.56 130.7 130.12 MELUAP AMAN
39+000 125.2 126.09 126.36 MELUAP MELUAP
38+000 120.84 121.48 121.19 MELUAP AMAN
37+000 116.48 116.88 117.04 MELUAP MELUAP
36+000 112.12 112.27 113.1 MELUAP MELUAP
35+000 107.76 107.66 108.44 MELUAP MELUAP
34+000 104.36 104.69 103.94 AMAN AMAN
33+000 100.97 101.72 100.68 AMAN AMAN
32+000 97.57 98.76 95.14 AMAN AMAN
31+000 94.18 95.79 91.68 AMAN AMAN
30+000 90.78 92.82 84.01 AMAN AMAN
29+000 88.18 89.35 81.7 AMAN AMAN
28+000 85.58 85.88 79.87 AMAN AMAN
27+000 82.97 82.41 77.92 AMAN AMAN
26+000 80.37 78.94 76.29 AMAN AMAN
25+000 77.77 75.47 73 AMAN AMAN
24+000 74.61 72.84 70.97 AMAN AMAN
23+000 71.45 70.21 68.59 AMAN AMAN
22+000 68.29 67.58 65.52 AMAN AMAN
21+000 65.13 64.95 63.68 AMAN AMAN
20+000 61.97 62.32 60.78 AMAN AMAN
19+000 60.02 60.35 60.44 MELUAP MELUAP
18+000 58.08 58.37 57.45 AMAN AMAN
17+000 56.13 56.4 56.25 MELUAP AMAN
16+000 54.19 54.42 54.53 MELUAP MELUAP
15+000 52.24 52.45 52.71 MELUAP MELUAP
14+000 48.52 48.83 50.18 MELUAP MELUAP
12+000 41.08 41.58 40.96 AMAN AMAN
11+000 37.36 37.95 37.48 MELUAP AMAN
10+000 33.64 34.33 33.74 MELUAP AMAN
9+000 33.2 33.72 33.42 MELUAP AMAN
8+000 32.76 33.1 31.85 AMAN AMAN
7+000 32.33 32.49 31.75 AMAN AMAN
6+000 31.89 31.87 31.96 MELUAP MELUAP
5+000 31.45 31.26 31.77 MELUAP MELUAP
4+000 30.79 30.58 31.95 MELUAP MELUAP
3+000 30.12 29.9 31.06 MELUAP MELUAP
2+000 29.46 29.21 28.43 AMAN AMAN
1+000 28.79 28.53 28.29 AMAN AMAN
0+000 28.13 27.85 27.85 AMAN AMAN
STA Tanggul Kiri Tanggul Kanan
Kondisi Tanggul Kiri
Kondisi Tanggul Kanan Kala Ulang 50 Tahun
