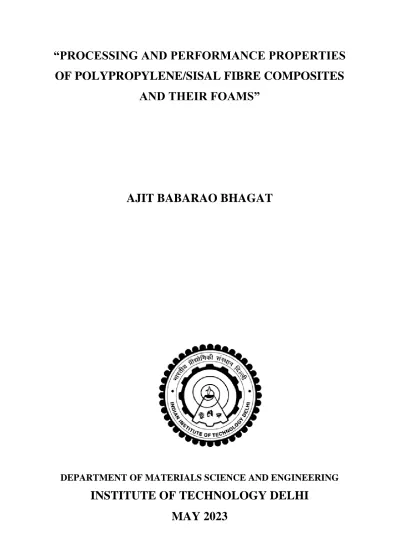

“PROCESSING AND PERFORMANCE PROPERTIES OF POLYPROPYLENE/SISAL FIBRE COMPOSITES

AND THEIR FOAMS”

AJIT BABARAO BHAGAT

DEPARTMENT OF MATERIALS SCIENCE AND ENGINEERING

INSTITUTE OF TECHNOLOGY DELHI

MAY 2023

(2)

© Indian Institute of Technology (IITD), New Delhi , 2023

(3)

“PROCESSING AND PERFORMANCE PROPERTIES OF POLYPROPYLENE/SISAL FIBRE COMPOSITES

AND THEIR FOAMS”

by

AJIT BABARAO BHAGAT

DEPARTMENT OF MATERIALS SCIENCE AND ENGINEERING

Submitted

in fulfilment of the requirements of the degree of Doctor of Philosophy

to the

INDIAN INSTITUTE OF TECHNOLOGY DELHI

MAY 2023

(4)

Dedicated to my

Father “Baba V. Bhagat”

&

Mother “Sheela Bhagat”

(5)

Certificate

This is to certify that the thesis entitled “Processing and Properties of Polypropylene/Sisal fibre composites and their foam” being submitted by Mr. Ajit Babarao Bhagat to the Indian Institute of Technology Delhi, for the fulfilment of award of the degree “Doctor of philosophy” is a record of bonafide research work carried by him under our supervision and guidance. This thesis has been prepared in conformity with the rules and regulations of the Indian Institute of Technology Delhi, New Delhi.

We further certify that the thesis has attained a standard required for the Ph.D. degree of the institute. To the best of our knowledge, the research reported and result presented in the thesis have not been submitted in part or full to any other institute or university for the award of any other degree or diploma.

(Anup Kumar Ghosh) (Bhabani Kumar Satapathy)

Emirates Professor Professor

Department of Materials Sci. & Engg. Department of Materials Sci. & Engg.

Indian Institute of Technology Delhi Indian Institute of Technology Delhi New Delhi-110016, India.
