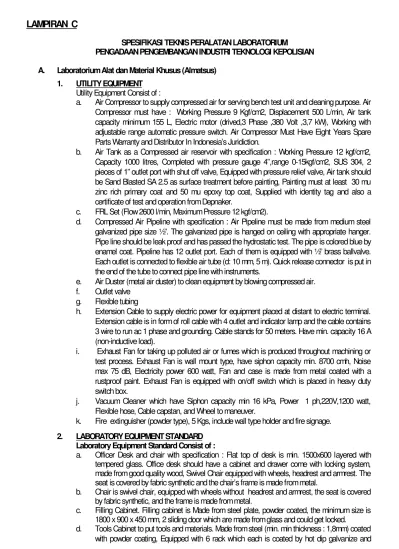

SPESIFIKASI TEKNIS PERALATAN LABORATORIUM
PENGADAAN PENGEMBANGAN INDUSTRI TEKNOLOGI KEPOLISIAN A. Laboratorium Alat dan Material Khusus (Almatsus)
1. UTILITY EQUIPMENT Utility Equipment Consist of :
a. Air Compressor to supply compressed air for serving bench test unit and cleaning purpose. Air Compressor must have : Working Pressure 9 Kgf/cm2, Displacement 500 L/min, Air tank capacity minimum 155 L, Electric motor (drived,3 Phase ,380 Volt ,3,7 kW), Working with adjustable range automatic pressure switch. Air Compressor Must Have Eight Years Spare Parts Warranty and Distributor In Indonesia’s Juridiction.
b. Air Tank as a Compressed air reservoir with specification : Working Pressure 12 kgf/cm2, Capacity 1000 litres, Completed with pressure gauge 4”,range 0-15kgf/cm2, SUS 304, 2 pieces of 1” outlet port with shut off valve, Equipped with pressure relief valve, Air tank should be Sand Blasted SA 2.5 as surface treatment before painting, Painting must at least 30 mu zinc rich primary coat and 50 mu epoxy top coat, Supplied with identity tag and also a certificate of test and operation from Depnaker.
c. FRL Set (Flow 2600 l/min, Maximum Pressure 12 kgf/cm2).
d. Compressed Air Pipeline with specification : Air Pipeline must be made from medium steel galvanized pipe size ½”. The galvanized pipe is hanged on ceiling with appropriate hanger. Pipe line should be leak proof and has passed the hydrostatic test. The pipe is colored blue by enamel coat. Pipeline has 12 outlet port. Each of them is equipped with ½” brass ballvalve. Each outlet is connected to flexible air tube (d: 10 mm, 5 m). Quick release connector is put in the end of the tube to connect pipe line with instruments.
e. Air Duster (metal air duster) to clean equipment by blowing compressed air. f. Outlet valve
g. Flexible tubing
h. Extension Cable to supply electric power for equipment placed at distant to electric terminal. Extension cable is in form of roll cable with 4 outlet and indicator lamp and the cable contains 3 wire to run ac 1 phase and grounding. Cable stands for 50 meters. Have min. capacity 16 A (non-inductive load).
i. Exhaust Fan for taking up polluted air or fumes which is produced throughout machining or test process. Exhaust Fan is wall mount type, have siphon capacity min. 8700 cmh, Noise max 75 dB, Electricity power 600 watt, Fan and case is made from metal coated with a rustproof paint. Exhaust Fan is equipped with on/off switch which is placed in heavy duty switch box.
j. Vacuum Cleaner which have Siphon capacity min 16 kPa, Power 1 ph,220V,1200 watt, Flexible hose, Cable capstan, and Wheel to maneuver.
k. Fire extinguisher (powder type), 5 Kgs, include wall type holder and fire signage. 2. LABORATORY EQUIPMENT STANDARD
Laboratory Equipment Standard Consist of :
a. Officer Desk and chair with specification : Flat top of desk is min. 1500x600 layered with tempered glass. Office desk should have a cabinet and drawer come with locking system, made from good quality wood, Swivel Chair equipped with wheels, headrest and armrest. The seat is covered by fabric synthetic and the chair’s frame is made from metal.
b. Chair is swivel chair, equipped with wheels without headrest and armrest, the seat is covered by fabric synthetic, and the frame is made from metal.
c. Filling Cabinet. Filling cabinet is Made from steel plate, powder coated, the minimum size is 1800 x 900 x 450 mm, 2 sliding door which are made from glass and could get locked.
d. Tools Cabinet to put tools and materials. Made from steel (min. min thickness : 1,8mm) coated
easily elevate moving. Each of them could withhold 100 kg. and have 2 doors lockable (made from steel).
e. Multipurpose rack to put materials and test object. Multipurpose rack is made from construction steel structure, coated with powder coating, have minimum dimension 4000 x 600 x 3000 mm, 6 pieces of rack made from 20 mm multiplex, each rack could withhold 400 kg, Covered by curtain made from transparent plastic mica (min 0,4 mm).
f. Bench Table (steel Material). Equipped with pedestal which is put in the bottom of the seat and could bolted to the floor, Wood Top desk (1100 x 2300 mm) covered by SUS 304 1mm plate, Edge and corner should blunt (rounded or chamfered), Should not bend over 400 kgs load, Completed with 4 single phase socket outlet, IP 55, 250 V, 16A, which is placed in one edge of the desk.
g. Bench Table Working Lamp. Flood lamp type LED 10 watt, Equipped with stand which could be placed to bench table and easily positioning.
h. Combination Wrench Set (metric standard), Chrome vanadium materials. The Size : 6,8,10,11,12,13,14,15,17,19,22,24,27,30.
i. Allen Wrench. Metric Standard, Standard Length with ball end type. The Size : 1.5,2,2.5,3,4,5,6,8,10,12,14.
j. Socket Wrench. Metric standard, Chrome vanadium materials. The size : 8,9,10,11,12,13,14,15,17,18,19,20,22,23,24,27,30,32.
k. Plier Set. Consist of 180 mm, 225 mm combination plier; 160 mm ,200 mm Straight Nose Plier. Insulated grip. Forged Material.
l. Screwdriver set. Single Handle-bit type. Size 2,3,4,5.5, Slotted and Phillips bit. Hardened Bit. Insulated Grip.
m. Hammer Set. Steel Locksmith Hammer 600, 1700 gr. Nylon Hammer head size 22 mm, 50 mm. Rubber Hammer head 60 mm.
n. Digital scale 3 kgs. Capacity 3 kg. Accuracy 0,1 gram. Display lcd. Source power VAC 220V 1 phase.
o. Digital scale 15 kgs. Capacity 15 kg. Accuracy 0,5 gram. Display lcd. Source power VAC 220V 1 phase.
p. Digital calipers. Measure length range 150 mm. Have Accuracy of 0,02 mm, Scale 0,01 mm. Supplied with inspection certificate from manufacture.
q. Vernier Calipers, Measure Length Range 300 mm with Accuracy 0,08 mm, scale 0,05 mm. Supplied with inspection certificate from manufacturer.
r. Stainless Steel Ruler. Range Measurement : 1000 mm, Accuracy 1 mm, 0,5 mm, accuration standard jis b7516, Hardened stainless steel.
s. Stainless Steel Ruler with Range Measurement 500 mm, Accuracy 1 mm, 0,5 mm, Accuration standard jis b7516, Hardened stainless steel.
t. Stainless Steel Ruler (range 150 mm), Accuracy 1 mm, 0,5 mm, Hardened stainless steel, Accuration standard jis b7516.
u. Dial Indicator. Measure Surface Needle Bit. Range 10 mm, Graduation 0,01mm, Supplied with inspection certificate from manufacturer.
v. Dial Indicator. Measure Surface lever bit. Range 1 mm, Graduation 0,001mm, Supplied with inspection certificate from manufacturer.
w. Magnetic Dial Indicator Block Base. Holder for dial indicator in measurement area, magnetic base (assemble via knob).
x. V block
y. Measurement tape
aa. Steel Framing Square 300 mm bb. Volumetric Jar 1000 ml. cc. Volumetric Jar 500 ml. 3. METAL HAND CUFFS TEST
Metal Hand Cuffs Test Consist of :
a. Tension Test, intend to check mechanical strength of handcuffs and handcuff’s locking system. Test Bench apply a tensile force by pull one cuffs by a moving fixture in the direction of the chain while the other cuffs retain on the fixed fixture. Data result (load, time) during test digitally stored. Tension mechanism operated by pneumatic actuator or electric motor drive. Tension mechanism should be capable to applying and maintaining force over 300kgf. tensile force should be adjustable from range 100-300kgf with constant traveling speed. Time of load apply should be adjustable from range 1-300 second. Fixture should be easily hold cuffs on appropriate position. Both of fixture should be made from tool steel with hardness 55-60 RC. Result of testing are serial number, load applied, test time, test period. All parts which have possibility of having friction or scratch should made from non-corrosive material or hot dipped galvanize. Test Bench is supplied with operating procedure.
b. Torque Test Bench. Test the strength of handcuffs upon torque both cw –ccw direction. The test performs by clamp handcuffs at ratchet area and apply torque by insert torque bit between the cheek plate of handcuffs across ratchet area. Data result (torque load, time) during test digitally stored.
1) Torque mechanismis operated by pneumatic actuator or electric motor drive.
2) Torque mechanism should be capable to applying and maintaining torque over 30 Nm on cw-or ccw direction at determined time.
3) Torque applied to handcuffs should be adjusted from range 20-30 Nm. 4) Time of torque apply should be adjustable from range 1-300 second. 5) Clamping face should made from soft metal or other soft material. 6) Torque bit should be made from tool steel with hardness 55-60 RC. 7) Result of testing are serial number, torque applied, test time, test period.
8) All parts which have possibility of having friction or scratch should made from non-corrosive material or hot dipped galvanize.
c. Salt Spray Test. Subject the handcuffs to mist salt water spray at determined time. Inspect hand cuffs visually for evidence of corrosion. Test Bench consist of spraying booth, brine tank, spraying system, timer and temperature controlling system. Spray booth equipped with window for viewing the process. Spray booth equipped with handcuffs hanger which prevent handcuffs touch each other or touch booth wall. Chamber dimension of Spray booth min 1000x600x600 mm. Brine tank should equipped with mixer to maintain solution homogeneity. Salt water should not directly expose the handcuffs. Temperature Controlling system maintain booth temperature at set ting temperature of 30-40 deg C. All parts of temperature controlling system which fit on booth chamber should be min IP 67 to prevent short circuit during test period. Time of process controlled by timer with range 0-24 hours. All parts and equipment should made from non-corrosive material. Should be leak proof and prevent brine splashing out.
4. BATON TEST
Baton Test consist of :
b. Temperature Pre-Treatment – Hot Environment.This treatment should be done before the other series of test by heating the baton to 70 deg C for 24 hours. Heating elements are electric powered elements. Heating room are 1200x650x300 mm and have a door with minimum opening are 600 x 250 mm. Room temperature should be adjustable from 30 to 80 deg c. Outer wall of heating room temperature should be below 40 deg C under maximum operation temperature. Using electric power of VAC 380 v, 3phasa.
c. Impact Test. Giving an impact to the baton that is mounted to 2 supports at its end by a metal material as the pounder. The Test equipment should be able to give impact energy as 100 joule. The pounder should be placed to a track that makes the pounder to hit the same axis of baton. The pounder material should made from material with 60 HRC and pounce area is formed as an arc of 20mm radius. The distance between 2 supports should be adjustable and rigid to the ground as its reference during the test occurred. The supports are designed to be able to resist the impact and only from its axis of impact. All parts which made of steel should made from stainless steel or hot dipped galvanize in case of the possibilty of paint removal is high.
d. Flexural Test. Giving an eccentric, constant and measureable force to baton that is mounted to 1 support at its end. The support must be able to grip baton forcefully with grip as long as 20cm. The equipment should be able to produce adjustable force through compressing rod up to 20kgf. Compressing rod velocity must be constant and adjustable from 5 to 20 mm/minute. Distance between compressing rod and support are 40 cm. All parts which made of steel should made from stainless steel or hot dipped galvanize in case of the possibilty of paint removal is high.
e. Chemical Resistance Test. To determine the resistability of baton against submersion of chemical solution.
1) The submersion pool are made of material that can resist chemical solutions as followed:
a) Hidrocloric Acid b) Sulfate Acid c) Caustic Soda d) Aceton e) Terpentin
2) Submersion pool dimensions are 800 x 150 x 150mm and completed with baton mountings.
3) Subermsion pool equipped with door and sight glass as watch hole. The door must be sealed perfectly and be able to prevent chemical vapor leakage.
4) Equipped with breather hose, diameter 1”, and connected to nylon hose which is run to outside laboratory’s room. The nylon end is connected to spark arrester.
5) Equipped with drain port and valve made of SS316 and connected to nylon hose to drain the chemical solution and stored it to storage tank.
6) Submersible pool should have rigid pedestals that are rigidly mounted to the ground. 7) Submersible pool’s height should be 700mm of the ground.
8) Equipped with a pump that are explosion proof and can withstand the following chemical solution as it is functioned to transfer the solution to the pool from storage tanks.
f. Completed with operation procedure. 5. RIOT HELMET TEST
Riot Helmet Test consist of :
Helmet is mounted to head figure which is mounted to a track that produce hit point is same for several tests. Pounce material hardness is 60 HRC with pounce area is formed by an arc with 20mm radius. Equipped with accelerometer that can measures 600g in 1msec and can be detachable for other measurements. All parts which made of steel should made from stainless steel or hot dipped galvanize in case of the possibilty of paint removal is high.
b. Penetration Resistance Test. To determine the helmet strength against sharp ended objects. The equipment is consisted of stabbing system, head figure as helmet mounting, and sensor for determine whether helmets are perforated or not. Stabbing system could produce 90 Joule energy when stabbing. Stabber must have 60 HRC hardness and the tip point dimension are 0.5mm radius at 60 degree. Helmets mounting are form as similar as human’s head to give the better simulation. Sensor should be able to giving signals when the penetration is able to pierce the helmets or when it is not. All parts which made of steel should made from stainless steel or hot dipped galvanize in case of the possibilty of paint removal is high.
c. Tension Test. Determine the strength of tightening rope of the helmets by giving tension to rope when it is locked. The strength is determined by observing the elongation of rope. Consisted of the pulling system and head figure as helmets mounting. Pulling system is operated by air (pneumatic) and can produce force ( Initial force of 25kgf to be held for certain times, and Advanced force of 150kgf to be held for another certain times). Equipped with elongation gauge or distance meter to determine and record the elongation of rope at initial and advanced force.
d. Face Shield Drop Test. Face Shield Drop test giving a hit to face shield of the helmet and observing the after effect for the user. Face Shield Drop test consisted of pounce system and head figure as helmet and sensor mounting. Pouncer system could produce energy of 10 Joule. Pouncer is mounted to a track that led the pouncer to hit the same position of the face shield for several tests. Pouncer material hardness is 60 HRC with pouncer area is half spherical of 45mm diameter. Helmets must be mounted so the pouncer will hit the face shield perpendicularly. Sensor is set to measure deflection and positioned behind the face shield at the exact position the pouncer hit. All parts which made of steel should made from stainless steel or hot dipped galvanize in case of the possibilty of paint removal is high.
e. Light Transmission Test. Light Transmission test to compare light intensity with and without passing the face shield. Light Transmission test consisted of light source, luxmeter, face shield mounting, and dark room. Light source, face shield mounting and luxmeter are positioned as one optic path and the distance between those components can be adjust easily. Light source, face shield mounting and luxmeter shoule be enclosed by a box to perform as dark room. The box should be able to open easily and the inner material is made of non-reflecting material and painted black.
f. Completed with operation procedure.
6. BODY ARMOR TEST
Body Armor Test consist of :
the bullet without fall. Roma Plastilina no.1 40kgs. Body armor holder must be made from plastic and functioned as framework to hold the armor vertical in front of the tray. Holder must be able to hold any armor despite of its size and model (for men or women models).
b. Knife and Spike Test.This test against knife and other sharp ended materials to determine the strength and reliability.
The Test equipment should equipped with :
1) Knife velocity meter. Knife velocity meter must be able to measure velocity range from 3 to 8 m/s with 0,02 m/s accuracy.
2) Test Knife and Test Nail. Knife and nail must be made from steel and conform to drawing that has been included with weight of each piece is 0.65kg with 6.5gr accuracy. 3) Launcher. Launcher must be made of polymer in cylinder form with low friction coefficient. Completed with nail or knife holder. Launcher weight should be 1.25kg with 13gr accuracy.
4) Launcher Guide. Launcher guide is for guiding the path of free falling launcher. Launcher guide must be able to launch the knife or nail with measurable energy between 30 to 50 Joule. Launching plane of the guide must be made so the friction between guide and the launcher is negligible.
5) Body armor tray. Body armor tray must be made of steel with minimum 12mm thick and inner dimensions are 400x333x76mm. Tray is for placing silencer as armor mat. The tray must be hot dipped galvanized to prevent corrosion. Tray also completed with structures by bolts to maintain rigidity and slope from 0 to 30 deg.
6) Body armor mat. Armor mat is made of 4 layers of neoprene with each thickness is 6mm, plastazote 30mm thick, 33kg/m3, 2 layers rubber 2494d, each 6mm thick. Mat dimension is conform to tray dimension, 400 x 333 mm.
7) Body armor holder. Body armor holder must be made from plastic and functioned as framework to hold the armor vertical in front of the tray. Holder must be able to hold any armor despite of its size and model (for men or women models).
7. BODY SHIELD TEST
Body Shield TestConsist Of : a. Impact Test
Giving an impact to simulate force by impact of blunt objects or if the body shield user falls from height. The specifications are :
1) Body shield is pounced to pounce material with 225 joule energy.
2) Body shield is mounted a stand which is mounted to a track that produce hit point is same for several tests.
3) Body shield mounting must be able to rotate in any degrees to enable impact test from any directions and angles.
4) Pounce material hardness is 60 HRC with pounce area is formed by an arc with 20mm radius
5) Equipped with accelerometer stand that can fit the accelerometer.
6) All parts which made of steel should made from stainless steel or hot dipped galvanize in case of the possibilty of paint removal is high
b. Knife and spike test
To test body shield against knife and other sharp ended materials to determine the strength and reliability. The test equipment’s are:
1) The test equipment should equipped with: a) Knife velocity meter
b) Test knife and test nail c) Launcher
d) Launcher guide e) Body shield mounting
2) Knife velocity meter must be able to measure velocity range from 3 to 8 m/s with 0,02 m/s accuracy
3) Knife and nail must be made from steel and conform to drawing that has been included with weight of each piece is 0.65kg with 6.5gr accuracy
4) Launcher must be made of polymer in cylinder form with low friction coefficient. Completed with nail or knife holder. Launcher weight should be 1.25kg with 13gr accuracy
5) Launcher guide is for guiding the path of free falling launcher. Launcher guide must be able to launch the knife or nail with measurable energy between 30 to 50 Joule. Launching plane of the guide must be made so the friction between guide and the launcher is negligible.
6) Body shield mounting must be able to rotate in any degrees to enable knife and spike test from any directions and angles.
7) All parts which made of steel should made from stainless steel or hot dipped galvanize in case of the possibilty of paint removal is high
8) Completed with operation procedure.
8. DESIGN CENTER AND MACHINING FACILITY Design Center and MachiningFacility consist of :
a. Software Design. Software for designing and computing prototype. The Software should be able to built 3D Model of part and assembly, Converting model to 2D, Make animation from parts and assemblies, Capable to run simulations and make validations.
b. Software CAM. Software for converting model from design to CNC machine commands. Able to convert 3D or 2 D model to G Code CNC 3+2 Axis.
c. Personal Computer. Have Min Processor i7. VGA Card Minimum nVidia Quadro 1000. Harddisk 500 GB. RAM 8 GB. System Operating Windows 7. Display Monitor 21”. Able to print A3 paper size.
d. CNC Milling. Table 700 x 450 mm, Travel xyz 610 450 400, Travel speed xyz 32 32 24 m/min, Spindle speed 8000 rpm, Spindlemotor 5,5 kw, Positioning accuracy 0,005/300 mm, Repatability 0,003 mm, Additional 1 a rotational axis table.
e. Lathe Machine.Working bench axis distance is 1000mm, Minimum swing distance is 320 mm, Capable to make thread with pitch 0,5-7mm, Equipped with Electric Motor 1 kw,1450 rpm, 380, Equipped with 3 and 4 claw, Equipped with set shank holder and carbide bit, and live centre.
f. Manual Milling Machine. 1) Drilling Capacity : 38mm
4) Equipped with motor 750 watt, drill bits of HSS class from 3 to 13 mm, end mill bits 4-12 mm, standard vise machining 10”, Angle 10”, and roundtable.
g. Bench Vise.8 inch size, Steel Bench Vise.
h. Shaving Set. Consist of round shape, flat shape and triangular shape with varies of roughness surface.
i. TIG MMA Inverter Welding Machine.Input 380 V , 8,3 KVA rated. Ouput 20-300A, 19 V Rated, Over Voltage and over current safety equipment, Duty cycle min 60%, Display Current meter Digital, Equipped with torch, Argon gas cylinder, pressure regulator, SMAW handle. j. Hand Grinding. Disc size 100mm, Speed Max 11000rpm, Electric Power Input 220
V,1ph,50hz,600 watt, Equipped with good quality of 24 pieces grinding disc and 24 pieces cutting wheel.
k. Hand Drilling. Impact Type, dual speed, Steel maximum hole 13mm, Concrete maximum hole 18mm, Electric Power Input 220 V,1ph,50hz,650 watt, Equipped with well quality HSS Classdrill bits diameter 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5,11,11.5,12,12.5,13 mm.
l. Hand Shaving. Orbital Type, Pad dimension 185x93, Speed 11000 orbits/min, Electrical power input 220 v, 1ph, 50hz, 190 watt, Completed with shaving materials no 60, 100,150, 200,300 cw for 5 meters each.
m. Dies Grinder. Collet dimension 6 mm, Speed Max 25000rpm, Electrical Power Input 220 V,1ph,50hz,240 watt, Equipped with well quality disc for varies size.
n. Cutting Wheel.Cut off type, Disc Size 14”, Speed Max 3800rpm, Electrical Power Input 220 V,1ph,50hz,2kw, Completed with 12 pieces of well quality cutting disc 14”.
o. Personal Protective Equipments: 1) Protective Metalwork Apron 2) Protective Rigger Gloves 3) Protective Knitted Gloves 4) Protective Rubber Gloves 5) Protective Glasses 6) Mask
7) Earplug 8) Safety Shoes
9) Welding Protective Leather Apron 10) Welding Protective Leather Gloves 11) Welding Helmets
B. LABORATORIUM KAJIAN
1. System Hardware & Software a. Server Virtualization – 3 set
Server Virtualization consist of : 1) Server – 3 units
a) Min. 2U
b) Min. Dual Processor 15M Cache, 2.1 GHz, 7.20 GT/s Intel QPI c) Internal interconnection 2 x QPI links: 6,4 GT/s; 7,2 GT/s; 8,0 GT/s d) Cache 2.5MB per core
e) Chipset Intel C600
f) Memory low voltage 16 x 8GB RDIMM, 1600 MHz, support to 768 GB (24 DIMMs Slot)
g) Provide PCIe slot I/O : (1) x16 length, height, (3) PCIe x8 full-length, full-height, (3) x8 half-full-length, half-height
h) Slot Hard disk supported 8 x 3,5” drive or 16 x 2,5” drive i) Storage capacity 32 TB
j) LCD monitoring system integrated with the server, Cover / Protector of the front side of the server
k) LAN 4 Port 1 GbE
l) Redundant 750 Watt hot plug m) HBA 8 Gbps dual Port n) DVD Rom
o) which features an integrated remote console p) Can operate operating system :
1)) Microsoft Windows Server 2012
2)) Microsoft Windows Server 2008 R2 SP1, x64 (include Hyper-Vv2) 3)) Microsoft Windows Small Business Server 2011
4)) Novell SUSE Linux Enterprise Server 5)) Red Hat Enterprise Linux
6)) Citrix XenServer
7)) VMware vSphere included ESX and ESXi 8)) Red Hat Enterprise Virtualization
q) 3 years of warranty
r) Letters of support and after-sales of the principal
s) Letter of availability of spare parts from the principal for 5 years t) PCs, Servers, Primary Storage and SAN switch one brand to facilitate
interoperability and after-sales service u) Brochure
2) Virtualization – 6 license
Element virtualization consists of: a) Automation Enterprise Cloud
b) Applications and data services - Determination Application , and data changes
c) Governance - approval , reclamation , cost profile and transparent d) Extensibility - Integration of infrastructure , workflows and customization e) Determination and management infrastructure
f) Enterprise Operations Management
g) Monitoring Application - OS , middleware , databases
i) Extensibility - Adjustment for third -party Operating System and application monitoring tools
j) Extensibility - Adjustments for third party infrastructure monitoring devices k) Reinforcement , change and configuration management
l) Introduction to Application - dependency mapping discovery m) Chargeback - Measurement and expense reports
n) Operations Dashboard - Monitor health and performance analysis o) Capacity Management - Planning and optimization
p) Automation Disaster Recovery
q) DR Planning of automation , testing , and execution r) Networking and security
s) Network that is scalable and virtualized security awareness t) Virtualized datacenter
u) Virtualized datacenter and can be developed into a public cloud v) Platform Virtualization Using the highest enterprise platform w) Brochure
3) Security of Virtualizes – 6 license
a) Having the ability thorough protection against server including: 1)) Virtualization Security : Protecting virtual desktops and servers from
zero-day malware
2)) Cloud security : the security policy Public and Hybrid cloud, multitenant cloud security environment
3)) Integrated server security : Consolidating all security servers into one comprehensive platform that optimizes security protection across physical , virtual and cloud servers
4)) Security can rise above the platform virtualization (virtual appliance) that are agentless
5)) Scanning - level deduplication hypervisor 6)) Having a module platforms :
a)) Protection against Malware b)) integrity Monitoring
c)) web reputation d)) Disorders prevention
e)) Bidirectional State full Firewall f)) history inspections
b) Having Compliance :
1)) Payment Card Industry Data Security Standard Version 2.0 2)) Health Insurance Portability and Accountability Act
3)) Federal Information Security Management Act/NIS 4)) North American Electric Reliability Corporation 5)) Statement on Auditing Standards 70
c) Including management control interface
d) Letters of support from the principle or distributor e) Brochure
4) Operating System– 3 license
a) The number of users is not limited asked b) The service is not restricted file
e) Virtual machine has 2 free
f) Have active directory domain services
g) Supporting services as DHCP , DNS Server , Fax Server and Application Server
h) License can be transferred to other devices i) Media Kit
j) Brochure
5) Data Base System- 1 license a) Supports up to 16 Core b) Supports Basic OLTP
c) Supports T - SQL , Data types , File table
d) Supports Management studio , Policy management base e) Have basic high availability
f) Have basic reporting , Analytics , multidimensional semantic models , data of mining
g) Supports built-in Data connectors , Designer Transforms ) h) License can be transferred to other devices
i) 1 Units Media Kit j) brochure b. Primary Storage - 1 units
Primary Storage must have a minimum specification: 1) hard drive capacity 600GB 10K RPM SAS 2.5 inch x 12
2) Supports up to 64 physical servers when using fiber channel connection 4 Gbps or 8 Gbps
3) Supports up to 96 hard drives
4) Each virtual disk supports up to eight snapshots , with a total of 128 snapshots per system
5) Supports full replication - Virtual Disk Copy 6) Supports remote replication
7) Supports 8 physical servers are connected directly , or support up to 64 physical servers when configured with Fiber Channel Switches
8) Having Dual Controller , each controller has a battery backed cache 2GB 9) Dual controllers operate in an active - active and mutually monitoring its cache 10) Cache protection is provided via flash memory for permanent data protection 11) Raid level 0, 1, 10, 5, 6
12) Supports up to 256 virtual disks 13) Having a back plane connections : 14) 4 x 8Gb/s SFP ports on each controller 15) One x4 6Gb SAS ( Connection expansion ) 16) One RJ - 45 1Gb Ethernet ( Management ) 17) One PS / 2 Serial
18) Having indicators :
c) Controller Indicator : 1 Power indicator LED lights , one controller failure indicator LED lights , LED lamp identification 1 controller , 1 LED light cache activity indicator, 1 LED indicator lights cache failur
d) Power supply indicator : 3 LED AC status , DC status and power supply cooling fan failure
19) A maximum of 600 watts of peak power consumption 20) Letters of support and after-sales of the principal
21) Letter of availability of spare parts from the principal for 5 years
22) PCs, Servers, Primary Storage and SAN switch one brand to facilitate interoperability and after-sales service
23) Brochure
c. SAN SWITCH - 2 units
SAN switch must have a minimum specification
1) Redundant 8 Gbps Fiber Channel Switch , 8 ports active , 16 empty 2) Letters of support and after-sales of the principal
3) Letter of availability of spare parts from the principal for 5 years
4) PCs, Servers, Primary Storage and SAN switch one brand to facilitate interoperability and after-sales service
5) Brochure
d. Rack Server 42U – 3 units
Rack Server 42U must have a minimum specification:
1) 42U
2) Min. High 1968 mm, wide 600 mm, depth 1090 mm, have side panel 3) Using a steel frame
4) The door has perforated min 75% for maximum airflow
5) The cable systemmanagement were tool less design for easy installation 6) Available cable exit point on the side cover on the shelf
7) Airflow management were tool less design for easy installation 8) Static load capacity up to 1300 Kg
9) Category Protection IP20
10) Standard compliance EIA-310-D. ROHS 11) Include :
a) (1) single arch mesh front door b) (1) Double Door Flat nets
c) (1) roof side plate equipped with cable lines
d) (4) Entry point at the top of the rack with a width of 60 cm e) (5) Entry point at the top of the rack with a width of 80 cm f) (2) separate pairs of side panels
g) (4) 19" Raill vertical Mounting h) (4) Rack Legs are adjustable shelves i) (2) 42Ucable Tray vertical
j) (1) user manual k) (1) hardware bag l) Baying kit, 4 pcs
m) (1) Inteligent Switched PDU: (21) IECC13 & (6) IECC19 outlets, 32 amper rated 1 Phase
13) availibility spare part letter from principal min. 5 years 14) Brosur
2. NETWORK
a. Firewall - 1 unit
Firewall must have a minimum specification: 1) 6 ports 1 Gibit / s Ethernet LAN
2) 4 SFP ports
3) 2 ports mini physical interface module
4) 6 slots GPIM or a combination of multiple GPIM and XPIM 5) 2 GB of RAM memory and a 2 GB flash
6) Has been integrated power supply , including power cable 7) Includes Rack mount kit
8) Supports T1/E1 , ADSL2 / 2 + , VDSL , G.SHDSL , DS3/E3
9) One year security subscription for Enterprise - includes Kaspersky AV , WF , Sophos AS and IDP
10) Includes 1 year onsite replacement spare parts support , update software , upgrades and backup units
11) Maximum Performance and Capacity :
12) 5.5 Gbps firewall performance for large packets 13) 1.7 Gbps firewall performance Internet mix 14) 700 KPPS firewall + routing PPS ( 64 Byte ) 15) Gbps of IPsec VPN throughput for large packets 16) IPsec VPN tunnels : 2000
17) IPS (intrusion prevention system) 800 Mbps 18) 300 Mbps Antivirus
19) 27000 Connections per second
20) OPTIONS : 64 K / 128 K , 512 MB / 1 GB / 2 GB DRAM DRAM maximum concurrent sessions
21) Maximum security policy 7256
22) Maximum users supported Unrestricted
23) Supports up to 40 port 802.3at and 802.3af POE + 247 watts maximum 24) available 2 USB ports
25) 56 BGP Instances 26) 192 BGP peers 27) 712 K BGP Routes 28) 56 OSPF instances 29) 712 K OSPF routes 30) 56 RIP v1 / v2 instances 31) 712 K RIP v2 routes 32) 712 K Static routes
33) 2000 Concurrent VPN tunnels 34) 456 Tunnel interfaces
35) DES (56-bit), 3DES (168-bit) and AES (256-bit) 36) MD-5 and SHA-1 authentication
37) Has a modular operating system , is not monolithic
38) Has an architecture that separates the control plane and data plane 39) Having a configuration rollback feature
41) security gateways , core switches , distribution switches , and access switches 1 brand for easy after-sales service , compatibility and interoperability
b. Core switch – 1 unit
Core Switch must have a minimum specification:
1) 2U
2) Total Port min. 40 port 10 GbE
3) Has a connection port 128 Gbps backplane module
4) Includes 3 mtr cable for connection to the backplane 128GB 5) 1 unit 1200W AC power supply
6) 2 pieces includes of 2.5 mtr power cable 16A/250V
7) 1 piece of CAT5 copper gigabit SFP with a maximum transmission distance of 100m
8) 24 pieces of 10 GbE SFP optic Ethernet 850nm with a maximum transmission distance of 300 m
9) Processor: min. 1.5 Ghz
10) Memory: min. DRAM 1GB and 2GB Flash 11) load sharing redundant power supply
12) Having a management roll-back feature that serves to restore the configuration to a previous configuration
13) Operating System is modular / Scalable
14) The device supports up to 48 port 2U with speed 10 GbE per ports 15) Having Throughput min. Full Duplex at 714 Mpps Layer 2 and 3 16) Features Layer 2 :
a) It has a data rate of up to 960 Gbps Full Duplex on layer 2 and 3 b) Supports jumbo frames up to 9216 bytes
c) Supports up to 32000 mac address
d) Supports up to 4096 VLANs and VLAN IDs 17) Features Layer 3 : IPV4
a) ISIS , RIP , OSPF , BGP , BGP , ISIS b) Supports up to 10,000 IPv4 unicast route c) Supports up to 4000 IPv4 multicast route d) Static Routing
e) Policy Routing
f) Protocols multiple virtual routers
g) Protocols that are bidirectional forwarding detection 18) Features Layer 3 : IPv6
a) Supports up to 1000 neighbor discovery b) Supports up to 1000 IPv6 unicast route c) Supports up to 1000 IPv6 multicast route 19) Letters of support and after-sales from principle
20) security gateways , core switches , distribution switches , and access switches 1 brand for easy after-sales service , compatibility and interoperability
c. Access switch – 18 units
Access switch must have a minimum specification: 1) 24-port 10/100/1000BASE-T POE
4) 128 Gbps switching capacity use 5) 2 and Layer 3 throughput : 95Mbps 6) Layer 2 features :
7) Maximum MAC addresses per system : 16,000 8) Jumbo frames : 9.216 Bytes
9) Number of VLANs : 4,096
10) Range of possible VLAN IDs : 1 to 4.095
11) 2 pieces of 10 GbE SFP optic Ethernet 850nm with a maximum transmission distance of 300 m
12) Having a management roll-back feature that serves to restore the configuration to a previous configuration
13) Operating System is modular / Scalable
14) Letters of support and after-sales from principle
15) security gateways , core switches , distribution switches , and access switches 1 brand for easy after-sales service , compatibility and interoperability
16) brochure
d. Server Farm switch – 2 units
Server Farm switch must have a minimum specification: 1) 24-port 10/100/1000BASE-T
2) Fix 4 - port uplinks can config as port GbE ( SFP ) or 10GbE ( SFP + ) 3) DRAM: 1 GB ECC, 1 GB Flash, CPU 1Ghz
4) Use 88 Gbps switching capacity 5) Use 88 Gbps switching capacity 6) Layer 2 features :
7) Maximum MAC addresses per system : 32,000 8) Jumbo frames : 9.216 Bytes
9) Number of VLANs : 4,096
10) Range of possible VLAN IDs: 1-4,095
11) Uplink Module 2 - Port 10G SFP + / 4 - port 1G SFP
12) 2 pieces of 10 GbE SFP optical Ethernet transmission 850nm with a maximum distance of 300m
13) Having a management roll-back feature that serves to restore the configuration to a previous configuration
14) Operating System is modular / Scalable
15) Letters of support and after-sales from principle
16) security gateways , core switches , distribution switches , and access switches 1 brand for easy after-sales service , compatibility and interoperability
e. Wall mount Rack 15U – 13 units
Wall mount Rack 15U must have a minimum specification: 1) Wall mounted Rack 15U Depth 600mm Double Door 2) includes :
3) 1 Units Glass front Door 4) 1 Units Back Metal Door 5) 2 Units Side Panel 6) 1 Units Single Fans
9) 4 Unit Dynabolt
10) 2 unit wiring management 11) Broshur
f. UPS (wallmount Rack) – 13 units
UPS must have a minimum specification: 1) input connections using IEC - 320 C14 2) Output connection using IEC - 320 C13 x 6
3) Communication interface using USB , terminal blocks , Intellislot 4) Rack / Tower Convertible , including Tower Stand
5) The battery can expand
6) Shutdown & monitoring software can be installed on Windows NT/2000/XP/Vista , Linux9
7) LED Display
8) Capacity 1500VA / 1350watt 9) Power factor 0.9
10) Input Voltage 177 - 280VAC ( 100 % load ) , 115 - 280VAC ( 30 % Load ) 11) Input Frequency 40-70Hz
12) Input Protection Type Resettable Circuit Breaker 13) Frequency 50Hz
14) Efficiency of > 90 % on Line Mode
15) Output can be adjusted in battery mode 220/230/240VAC 16) Voltage regulation : ± 3 %
17) Wave Form Pure Sine Wave
18) Battery Type Sealed , non - spillage , maintenance-free , lead acid with 5 year life time
19) backup time at full load > 4 Minutes
20) Recharge time 3 hours to 90 % of the specified capacity , after full discharge into resistive load
21) Hot swappable battery
22) Operating Conditions 3,000 meters max. Elevation, 090 % humidity non -condensing, 0-40 deg . C
23) The noise level is 45 dBA on Line Mode 24) Online Thermal Dissipation
25) Accessories
26) Supporting SNMP / WEB Management Card 27) Supports battery cabinet Extend yes
28) Supporting Service Bypass panel 29) rack mount kit
30) Letters of support and after-sales from principle
31) Letter from the principal availability of spare parts for min. 5 years 32) entire UPS 1 brand for easy after-sales service
3. LIBRARY
a. Library Tools
Library Tools must have a minimum specification: 1) Anti-theft Detection – 2 unit
a) Gate read range :
1)) Security gate has a 96 cm distance between the antennas, which provide an effective distance of 90 cm fromthe book;
3)) Read tags in 3D.
b) Security Modes : EAS and/or AFI
c) Operation Mode: Each panel has a TX and RX, can work by itself. Various sensors each panel is 45cm from both sides. 2 panels to form a hallway, 3 panels to form a double aisle, max. 3.
d) Alarm : An alarm (audio and visual) if the goods are taken voice security without being checked
e) All materials detected :
1)) Security gate responds to all materials such as books, videos, CDs and DVDs
2)) Detection of anti-theft does not damage or remove the magnetic material.
f) Security avoidance: Vendors have measures to prevent the protector of RFID security system disarm.
g) Tag read range: Read range of the tag with an RFID reader component of the security gate of more than 45 cm each side.
h) People counter: Integrated bi-directional (count in and out traffic) i) Operation:
1)) Gate detector capable of operating in the Library Circulation System (eg no network connection to the host or server) that is isolated. 2)) Detection gates have visual and sound alarm
3)) Gate detector capable of operating additional peripheral equipment such as alarms, door locks, and CCTV.
4)) Gate detector in accordance with the requirements of the ADA to open the door.
j) Installation: Detection gates can be installed directly onto the floor or into a portable base plate.
k) Communication Interface: Ethernet
l) Components: One reason including integrated antennas and electronic unit (controller)
m) Have Armed RFID EAS tag detection (or AFI) n) Detection of a wide variety of goods
o) Can connect the camera to the door p) Can integrated with Surveillance Station
q) The technology required for the identification and management of anti-theft in the library
r) Library staff know immediately when the goods pass through the gate not borrowed detection
s) Prospective thieves hindered by the presence of gate detection t) The volume of the alarm can be set
u) Hardware:
1)) Frequency: 13.56 MHz
2)) Operating distance: Up to 96cm (depending on tag type and antenna configuration)
3)) Dimension : 1782 x 556 x 45 mm
4)) More than 30% transparent panel (can be seen clearly) v) Software(option) Integrated software, include following figures:
1)) Patron Record in / out counter daily to the database 2)) Reset counters daily
2) RFID Tag
Must having a min specification: a) Security and circulation
1)) RFID tags provide security and circulation.
2)) RFID tags have an electronic article surveillance (EAS) and AFI security bit that turns off automatically during check out and enabled automatically during check-in.
b) Standards :
a) Tags have standard ISO 15693 and 18000-3
b) Able to work with the reader and antenna according to ISO15693 c) The data on the tag should not be locked to activate a new data
model that was replaced in the future.
c) Tag presentation Tags can be printed with logo library and / or barcodes. d) Tag application CDs and DVDs tags can be applied directly to a CD or
DVD surface. e) Chip memory size:
a) Tag has a minimal memory size 112 bytes written and read.
b) Chip memory support through software lock function to protect the data changes
f) Tag life Tags must be tested for cycle read / write more than 100,000 and is guaranteed for the life of the item they are applied (not less than 10 years).
g) Quality The thickness of no more than 250 [mm]. h) Specification :
1)) Integrated Circuit (IC) : NXP I-CODE SLIX
2)) Air interface protocol: ISO 15693, 18000-3 Mode 1 3)) Memory:1024 bit, organized in 32 blocks, 4 byte each 4)) Operating frequency:13.56 MHz Transponder antenna
5)) material: Aluminum
RFID for Book: - 6 Rools (2000pcs /rool) 1) Antenna Size: 47mm x 47mm 2) Label Size: 50mm x 50mm
RFID for CD/DVD: - 2 Rools (2000pcs /rool) 1) Antenna Size: 35mm diameter
2) Label Size: 40mm diameter 3) Staff Station – 2 units
a) Process item stack:
1)) Station staff can check out and check in the items in the stack in height 30cm
2)) Station staff can read and write items in a stack height of 30cm b) Barcode scanners : Barcode scanners can be used for additional reading
RFID
c) Functions: Station staff provide a check out , check -in functions , initialization tagged goods
d) Conversion function:
e) Installation: RFID hardware components for circulation staff must be in, or under counter installation options to accommodate various configurations of the circulation desk.
f) Ease of use: Station staff are modular for ease of service and replacement of low cost equipment
g) PC platform: Staff interfaces must operate on workstations running the current or higher version of Microsoft Windows XP / 7 / 8.
h) Tagging Process: Station is able to program the tag by placing items marked at station antenna and then scan the bar code of the item.
i) Data in Memory: Country Code , Library Code , Branch Code , Patron or Media , Accession Number, Call Number
j) Reading area: Tags can be read only at the top of the antenna, to avoid reading of the items that are not desirable.
k) Software Function:
a) Accession Number Keyboard Input Module, EAS Turn off / Turn -on Function. ( Able to work with any Integrated Library System ) RFID & Barcode convert Function
b) Can be connected to computers and barcode scanners to work with the Integrated Library System.
l) Security Mechanism: Awards from either the EAS or AFI.
m) The components of the system are certified by UL standards and FCC Part 15 standards.
n) Provide Services:
a) Arm/Disarm of EAS bit (or AFI) inside the library material b) Program from library new material
4) Self-Check Station (K type) - 2 units a) Ease of use:
a) Self- check station is easy to use, especially by library users who are not trained that children, the elderly, or have disabilities, etc. b) The station has a touch -screen operation.
c) Subscribers have access to detailed help screen. The system should be able to \ showing that multimedia library ready while waiting for surgery. This system must be capable of displaying multimedia with an explanation on the monitor for convenience and users can use their own system.
d) Stations have the ability to give voice instructions and / or information via speakers.
b) Languages offered: Station offers : English c) Reliable, robust:
1)) Unit self- check is reliable and robust in terms of aesthetic appearance
2)) Station capable of handling an item consisting of magnetic media without risk of damage or removal.
d) Messages: Unit self-check to remind customers to problems encountered during checkout and renewal transactions .
e) Communication to LMS:
2)) Support Native connection to the Integrated Library System .\Station has direct interaction with the Library Circulation System through SIP2 or Native connection without the need to maintain a separate database.
3)) Station will block customers who are blocked by ILS library. f) Customer information:
1)) The Self Check Station has the ability to display the customer account information utilizing the LMS library.
2)) Stations must provide visual and audio indication whenever the EAS tag (AFI) has been activated or deactivated.
g) Receipts:
1)) The Self Check Station can print a receipt that can be customized by the library.
2)) Stations have the option to print a receipt number, a comprehensive acceptance, or receipt of people for each item.
3)) Receipt shows items that patrons tried but failed to check the successful examined.
4)) Station receipt printer must use a standard thermal receipt paper. h) Report: Able to report the use of statistical tools, namely, daily statistics,
statistics monthly, yearly statistics, etc.
i) Patron cards: The Self Check Station is compatible with a variety of library cards such as RFID, barcode and smart card (Mifare).
j) Self-Check Function:
1)) The Self Check Station is able to check, and check -in all the materials in the pile up as high as 30cm at a time.
2)) Check - in and check - out are able to process the items one by one. 3)) Station capable of processing one item at a time or, with the
exception of CDs and DVDs, a pile of items up to 30cm.
4)) Capable of performing the functions of checkout stations and off EAS tag (AFI) in the process.
5)) Station capable of processing multiple items in one pile
6)) Station allows for the placement of items in the library of every orientation.
k) System components certified by UL standards and standards - FCC Part 15.
l) Messages customizable: Self Check Station offers users a customized text message
m) Remote administration: Self Check Station can be administered from a remote computer. Giving details of remote administration.
n) All material can be issued: All materials can be published through a self-check station.
o) Tag read range: Tag read range of RFID readers in touch with more than 30cm
p) RFID Reader:
1)) Antenna dimension: 337 x 327 x 8 mm 2)) Reader dimension: 85 x 145 x 31 mm 3)) Operation frequency: 13.56 MHz
4)) Data interface: RS-232c / USB with cable, provide a connector RS232c/USB in order to connect between PC and RFID Reader 5)) Reading distance: Up to 30 cm
7)) Standard: EN 300 683, ISO 15693, 18000-3, CE, FCC q) Thermal Receipt Printer - 8cm width paper, with cutter 5) Shelf Management System– 2 Units
a) Functions:
1)) Search for any book requested 2)) Checking inventory the entire library 3)) Looking for a book that one placement
b) Design of inventory control scanner: The scanner has an ergonomic design, is capable of scanning the shelves at all levels and can be done with one hand.
c) Battery: The scanner uses a long -lasting battery. d) Reading Distance: min. 15 cm
e) Reading:
1)) Hand-held unit is able to scan the shelves by waving a stick along the bottom of the bookshelf without having to stop for each item. 2)) Unit hand -held must read the number of unique items , access
number and call number in the RFID tag
f) Search: Hand-held unit can search for a specific item number that has been loaded into the mobile computing, voice alarm sounds when the goods have been detected.
g) Hand held RFID Reader:
1)) Operation frequency: 13.56 MHz 2)) Data interface: USB with cable 3)) Reading distance: Min. 15 cm 6) Book-Drop Station (Return Unit) – 2 units
1) Controlled access to returns:
1)) The system includes an access control option for putting a book back , which is re- opening the channel to refund any items that are valid and prevent any unwanted material errors on the channel 2)) Returns book allows items to be identified in the re- circulation
system and update the library after patron accounts in real time. b) Languages offered: English
c) Interface to LMS:
1)) Units returning books or Native SIP2 compliant connection, and can be enhanced by NCIP in the future.
2)) SIP2 book return units compliant and can connect to the Integrated Library System with SIP2, such INNOPAC / Millennium, SirsiDynix, Aleph, VTLS and many others.
3)) Support native connection to the Integrated Library System d) Interoperability:
1)) Book return units have the ability to check the receipt and display of library information in accordance with LMS message received when returning a book.
2)) Books back and activate the RFID EAS (AFI) on the same seat. 3)) Book Drop designed to work with automated sorting equipment. 4)) Book Drop is able to process library materials without danger of
e) Return receipts:
1)) Book Drop can print a receipt that can be tailored to the library. 2)) Book Drop has the option to print a receipt number, a
comprehensive acceptance, or receipt of people for each item. 3)) Book Drop scored a direct transaction when the restore process is
complete as patron name, date of return, the name of the book or audiovisual materials, and the amount of the return of books. f) Report: Able to report the use of statistical tools, namely the daily
statistics, statistics monthly, yearly statistics, etc. g) Security:
1)) Book Drop Unit provides security features that prevent all non -library material or non - material to be returned full.
2)) The door is closed if it does not work and in the middle of the check -in process.
3)) Smart Book Drop - Able to deny the right to re- book.
4)) Smart Bin - Protect book to keep from falling, alarm when 80 % or 100 % full.
h) Conveyor Interface: Book Drop is able to interact with the sorter.
i) Tag read range: Tag read range with respect to its proximity to the RFID component unit of the return of the book is about 20cm.
j) System components are certified by UL and FCC standards - Part 15 standards.
k) RFID Reader
-1)) Antenna dimension: 337 x 327 x 8 mm 2)) Reader dimension: 85 x 145 x 31 mm 3)) Operation frequency: 13.56 MHz
4)) Data interface: RS-232C with cable, provide a connector RS232C in order to connect between PC and RFID Reader
5)) Reading distance: Up to 30 cm 6)) Power supply: 12 V DC, 220/110V
7)) Standard: EN 300 683, ISO 15693, 18000-3, CE, FCC
l) Thermal Receipt Printer - 8cm width paper, with cutter and near end detector
7) Conversion Station – 1 unit a) Staff Station
b) Process item stack:
1)) Staff stations can tag items in a stack within the height of 30cm. 2)) Staff stations can read and write items in a stack within the height of
30cm.
c) Barcode scanners: Barcode scanners can be used in addition to RFID readers
d) Conversion function:
1)) Staff stations also operate as tag conversion / programming stations 2)) Transferring the data from barcode onto RFID tag.
e) PC platform: Staff interfaces must operate on workstations running the current or higher version of Microsoft Windows XP / 7 / 8.
g) It is removable with wheel.
h) Tagging Process: Station is capable of programming tags by placing a tagged item on the station’s antenna and then scanning the item’s bar code.
i) Data in Memory: Country Code, Library Code, Branch Code, Patron or Media, Accession Number, Call Number
j) Reading area: Tag can be read only on top of antenna, to avoid reading from un-wanted items.
k) Software Function:
1)) Accession Number Keyboard Input Module, EAS Turn-off / Turn-on Function. (Able to work with any Integrated Library System) & Barcode convert RFID Function
2)) Able to connect with computer and barcode scanner to work with Integrated Library System.
l) Security Mechanism: Choice from either EAS or AFI.
m) The components of the system are certified by UL standard and FCC-Part 15 standards.
n) RFID Reader
-1)) Antenna dimension: 337 x 327 x 8 mm 2)) Reader dimension: 85 x 145 x 31 mm 3)) Operation frequency: 13.56 MHz
4)) Data interface: RS-232c / USB with cable, provide a connector RS232c/USB in order to connect between PC and RFID Reader 5)) Reading distance: Up to 30 cm
6)) Power supply: 12 V DC, 220/110V
7)) Standard: EN 300 683, ISO 15693, 18000-3, CE, FCC o) Thermal Receipt Printer - 8cm width paper, with cutter.
Automatic Label Dispenser. 8) Patron Card Process System– 1 units
a) Hardware:
1)) Card Printer(Double Sides printing 2)) Digital Webcam & Tripod
b) Software: Image Capture & Printing Software c) Card Printer
d) Print: Double Sides
e) Printing Method: Color Dye Sublimation / Monochrome Thermal Transfer f) Printer Interface: USB 1.1 USB 2.0(compatible)
g) Card Capacity: 100-Card feeder, 30-card stacker
h) Power Supply: External power supply 100 ~ 240 VAC; 50Hz ~ 60Hz i) Printing Speed: 35 seconds for color and 7 second for monochrome
System Request: IBM-PC or compatible, Windows 2000/XP/7/8, Pentium class 133MHz Computer with 128MB of RAM or higher, 100 MB free hard disk space or higher
j) Ribbon Options: YMCKOK for double-side, 250 images 9) RFID Card – 4 box (250pcs /box)
a) Chipset: Mifare S50
b) Operating Frequency: 13.56 MHz c) Material PVC
e) Storage Temperature: -25 to 50℃( ISO 7810 ) f) Finish: Gloss
10) Printer Ribbon - 4 Rolls (250 prints /roll)
a) Type: YMCKOK, Front side - color, Back side – black only b) Print Count 250 prints per roll
b. Library Integrated & Management System
Library Integrated & Management System must have a minimum specification: Integrated Library System requirements – 1 set
Web-based system design License : a single library Modules include :
1)) Cataloging ( MARC format ) 2)) circulation
3)) Online Public Access Catalog ( OPAC ) 4)) serial
5)) acquisition 6)) message
7)) Integrated with RFID
Computer operating environment - Application and database servers : 1)) Windows Server 2008/2012
2)) IIS 7/8
3)) Net Framework 4.0 or above 4)) Microsoft SQL Server 2008/2012 Librarian - last computer :
1)) PC
2)) XP/7/8 Windows + IE 7/8/9/10/11 Computer requests the reader :
1)) Supports Windows , Linux , Mac , iOS , Android
2)) Supports IE , Chrome , FireFox , Opera , Safari browsers .
1) Requirements Overall Function: a) Design Module
1)) Should modularization design of the system.
2)) Modules can be selected individually or as a whole according to the actual demand .
3)) The data between modules is transparent, bibliographic data is input after the other modules can access it without an exchange or create index .
b) Permissions can be set
1)) According to different sets of users with different permissions . 2)) Enter the system you want to enter an ID and password , to
determine user access privileges .
3)) kses into different modules , please enter the password once . c) Network security for high
1)) File permissions can be set according to user access rights on the network .
d) Preview or print the report / export file and
1)) Reports can be displayed and printed in the local computer .
2)) Reports can also be exported as WORD , EXCEL , and PDF files for modification .
e) parameter
1)) Can set various code according to the different needs of each library .
2)) Various parameters are stored in the table , so you can access and modify .
f) friendly Interface;
The user uses the browser to operate the system , using a mouse , keyboard or touch screen .
g) Open table structure;
Microsoft SQL Server database , the system manager can fully control their data and can take advantage of it .
h) Automatically generate code writer;
As long as the customer in the catalog , automatically generate code from the author cutter .
i) Can handle various types of data
1)) Can handle books , non media - books and technical papers and journals , and so on
2)) Books and journals have different data table structure , librarians can build data in accordance with the characteristics of various types of data
j) The system offers printing on inkjet and laser printers and barcode barcodes of items patrons.
k) Notification of new books , a new journal for a protective notification , notification late notice for a loan , loan , and library announcements by E -MAIL (optional module)
l) It can work with barcode printer , after adding a data item , the user can print barcode stickers and spine straight
m) Data output mode can be selected for 1 . Print reports , 2 . Report preview , 3 . Export to a file ( Word , PDF and Excel )
n) Long access numbers to select items 6-14 characters o) OPAC unlimited user license
p) The system can operate in 64 operating system , can fully utilize the capacity of existing computer operations
q) The database system can use SQL Server 2008 or 2012 .
r) The system uses the latest AJAX asynchronous technology , Web pages can do a partial update function , no need to update the data when the page refreshed .
s) The system uses a multi - tier architecture , and provides a complete module ( including cataloging , circulation , OPAC and management modules ) Web-based interface , users regardless of librarians and customers do not need to install a separate client program , to the online browser .
u) Librarians computer and the host server only http ( port 80 ) connection , it meets the security requirements of information up - to-date .
2) Cataloging :
a) Book Support services that provide the data shift existing systems without rebuilding the bibliographic data .
b) Providing Internet Bibliography copy function , you can set up multiple libraries ( bibliography Centre ) and scan the ISBN barcode or enter the ISBN number to query various libraries ( bibliography Centre ) .
c) Without the ISBN , use the title , author , publisher , keyword query library for others to copy the bibliographic data , it is possible to finish within one minute ..
d) Copy cataloging support not only UNI - MARC but also MARC21 format . e) Provides classification table , the keyword search function , helping
librarians to quickly categorize books .
f) Authors code can be generated automatically by the author’s name , you can adjust the cutting table .
g) You can perform the function of checking the calling number , call the same list of numbers to check and adjust the number of calls from librarians to create a unique call number .
h) When the query function catalog , contains the following access points : the identification number , classification number , title , author , publisher , ISBN , accession numbers and so on ..
i) Provide to make a copy of the book in a batch mode .
j) Provides two ways to generate additional numbers , 1 . Enter the number of librarians , 2 . The system automatically generates an accession number .
k) Librarians can choose the initial accession numbers to generate the number.
l) Provide the ability to query un accession number - are used .
m) Working with barcode printer , when cataloging also can print barcode labels and stickers spine
n) Provide the following batch modification bibliographic data , such as classification numbers , special collection code , language code , location code , source code , code rack , new books , a collection of topics , and others .
o) Provides UNI - MARC , MARC21 bibliographic and batch import data into the database . The system will check for duplicate accession numbers to avoid incorrect data into the database .
p) Catalog format magazine is divided into titles , and the contents were placed in three parts ( three levels )
q) Catalog function periodically , librarians can print the following reports : list of magazines , statics problem reports , transaction reports and a list of special journals .
r) Cataloging support cover images uploaded to the database , either by ISBN scan to access the images from the internet bookstore or upload from your local computer or capture images from a webcam .
s) Cataloging image upload support closing entries to the database , either by uploading from local computer or capture images from a webcam . t) Librarians can use the webcam to capture the cover image , and then
u) Support zone and book a new topic to be displayed in the OPAC , can librarian collection manually or by scanning a barcode to collect books . 3) Marc format
a) Uni - Marc handle both full Marc21 format and cataloging .
b) Provide original catalog , catalog copy , scan ISBN auto catalog - catalog copy and samples etc. .
c) One of the functions of cataloging full screen , can modify tags , indicators and subfield in the same screen and each has its own explanation to help librarians understand .
d) Providing multi- samples to be used as the original catalog . 4) Circulation :
a) Patron of data required fields : number , affiliation , name , password , user categories and the effective date .
b) Secondary field of a record : the card ID number , date of birth , job title , filing date , gender , the invalid , phone numbers , addresses , and EMAIL c) Patron provide field data card number to meet the future demand for the
use of smart cards .
d) Function print library cards can be divided into three types : the printing , batch printing is selected , and five to one page will be printed .
e) Provide customers with modifying the batch function . f) Can set the closing day , the return will avoid closing day .
g) Patron maintenance data including photo capture and restore it to the database . Photos protective captured using webcam or upload images from your computer files .
h) The system can print color library card , library card barcode and includes color photos .
i) The main circulation function can handle the problem , return , renew , reserve and overnight operation problems / back .
j) The system can handle the problems of the journal , return and circulation overnight .
k) The system will display the name , unit , number of allowances , has been borrowed , the amount of funds and the patron valid when the circulation operation .
l) Patrons can use the library card , number protectors , had to borrow a book and name to perform circulation operations .
m) The system can set a provisional date for the issuing or return an item n) Circulation operations including patron checking out / in, check -in only,
updating , maintenance reserve fund to pay and supplies . o) The system will alert you if the item is not allowed to check out .
p) For item - law , the system will alert librarians to remain on the shelf reservation .
q) The system will calculate the funds or / and day delay for items returned late .
r) The system will generate due and overdue notification list for librarians to take action .
s) Librarians can query the patron circulation history and present status of the patron .
v) Reports include daily circulation statistics , categories and statistics department . Librarians can select the data period .
w) Inventory can be done partially or as a whole .
x) All operations in the main circulation of the screen , just switch to using it and do not need to change the display .
y) Circulation journal can be handled overnight on the counter . z) Librarians can upload images into the database protective shield . 5) Online Public Access Catalog ( OPAC ) :
a) When the book search , book search and retrieval questions :
1)) full-text search field are : title , author , publisher , series title , subject and abstract .
2)) Full - text search field , you can enter three pieces of text and Boolean logic can be set ( or , and , not )
3)) Access points include the classification number , accession number , ISBN and date e .
4)) Between the different access points are as AND Boolean logic . 5)) The results question the system can sort by number , calling
number , a special collection + classification number , title , author and publisher .
6)) The view can be on the grid , a single screen with book covers , and detailed information .
b) Question of the Journal provides a bibliography , a collection of top-down order lookup . While browsing the journal edition of the journal cover image can be displayed .
c) Main OPAC screen provides a zone of new books , subject books zones , zone ratings book .
d) Display search results in two ways : on the screen grid and bibliography to the cover image . In grid mode , patrons can click the ’ + ’ to display all items relative status .
e) Provide patrons with online renewal and online booking capability .
f) Customers are welcome to indicate the status of the circulation and look for Library Bulletin .
g) Customers can change their communication information , login password , query lending conditions .
h) Provides a three - tier classification request , after the first classification then select option will appear the second layer will be selected . When displaying a second layer of classification , also shows the number of each classification . After selecting a second layer of classification numbers , the third layer of the numbers will show and also the quantity of each item . Once patrons select third classification number , the system began to request books from a number of classification and show the results . i) Limit query results can be set , such as branches , language , year of
publication , type of item , the type of data , classification , etc. .
j) After collection request , provide hyperlinks to bookstores and book search sites , can be connected to the internet bookstore and search engine , the query page book introduction .
k) Upon request the collection , click on the author and the publication of related links can query the same author and publisher of the book .
the Book Bag, patrons can export bibliographic data into an Excel file into the computer .
m) Patrons may request its circulation history . He could do a ranking for books borrowed .
n) Click on " ☆ ☆ ☆ ☆ ☆ " , the edit window appears evaluation , evaluation of the book , for others who want to borrow a book reader , the higher the number of stars , more representative evaluation
o) OPAC home page can be provided in the center of the screen : the display area , a book to read new books area , display area topic . The display area can be arranged subject to more than one topic , the order of topics can be arranged .
p) Providing external links and internal links on the function of the system , librarians can manage multiple network links for customers to use . Link an internal event just after login patrons .
q) Book cover featuring a picture is not displayed in Flash , so it is supported to indicate the MAC machine and iPAD .
6) Serial
a) Catalog format magazine is divided into titles , and the contents were placed in three parts ( three levels )
b) Catalog function periodically , librarians can print the following reports : list of magazines , statics problem reports , transaction reports and a list of special journals .
c) Cataloging image upload support closing entries to the database , either by uploading from local computer or capture images from a webcam . d) The system can handle the problems of the journal , return and circulation
overnight .
e) Offers a variety of reports , statistics gathering , transaction reports , etc. . f) Issues can check in central
g) Changes made in the subscription status ( such as cancellations ) are automatically reflected in the expected number of copies
h) Status categories such as lost , damaged , lost , or delayed can be defined i) This system can display the status of the subscription in the OPAC
information
j) Summary of proprietary information can be automatically generated by the system if the library in accordance with the standards of ownership
k) Serials receipts can be included in the profile patron SDI , alerting them when new issues of the journal becomes available
7) Acquisition :
a) Optional items produced records when staff make orders
b) Creating an audit trail in order to log , recording all the ordering, receiving , and activities - related invoices . Log includes the date , time , and name of the person doing the action
c) Suspend command while the costs are not borne by the budget d) Alert staff when ordering materials cost more than expected
e)
