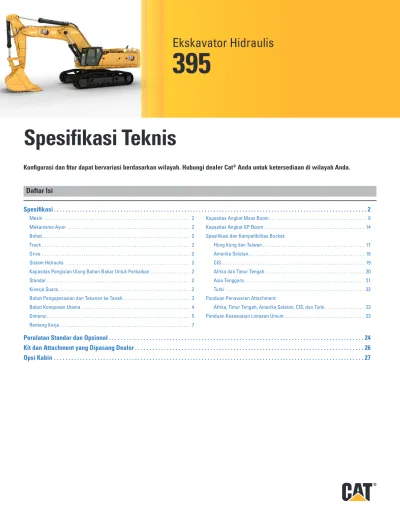

Spesifikasi Teknis. Ekskavator Hidraulis. Daftar Isi

(1)

Spesifikasi Teknis

395

Konfigurasi dan fitur dapat bervariasi berdasarkan wilayah. Hubungi dealer Cat

®

_{Anda untuk ketersediaan di wilayah Anda.}

Daftar Isi

Spesifikasi . . . 2

Mesin . . . . 2

Mekanisme Ayun . . . . 2

Bobot . . . . 2

Track . . . . 2

Drive . . . . 2

Sistem Hidraulis . . . . 2

Kapasitas Pengisian Ulang Bahan Bakar Untuk Perbaikan . . . . 2

Standar . . . . 2

Kinerja Suara . . . . 2

Bobot Pengoperasian dan Tekanan ke Tanah . . . . 3

Bobot Komponen Utama . . . . 4

Dimensi . . . . 5

Rentang Kerja . . . . 7

Kapasitas Angkat Mass Boom . . . 8

Kapasitas Angkat GP Boom . . . . 14

Spesifikasi dan Kompatibilitas Bucket:

Hong Kong dan Taiwan . . . . 17

Amerika Selatan . . . . 18

CIS . . . . 19

Afrika dan Timur Tengah . . . . 20

Asia Tenggara . . . . 21

Turki . . . . 22

Panduan Penawaran Attachment:

Afrika, Timur Tengah, Amerika Selatan, CIS, dan Turki . . . . 23

Panduan Kesesuaian Lintasan Umum . . . . 23

Peralatan Standar dan Opsional . . . 24

Kit dan Attachment yang Dipasang Dealer . . . 26

(2)

2 Daya Bersih – ISO 9249:2007

404 kW

542 hp

Daya Mesin – ISO 14396:2007

405 kW

543 hp

Diameter Silinder

145 mm

6 in

Langkah

183 mm

7 in

Volume

18,1 L

1.105 in

3

• Emisi mesin C18 setara dengan U.S. EPA Tier 2/EU Stage II atau Tier 3/

Stage IIIA dan memenuhi standar emisi Nonroad Stage III Tiongkok.

• Disarankan untuk penggunaan hingga ketinggian 4.500 m (14.760 ft)

dengan penurunan kapasitas mesin di atas 3.000 m (9.840 ft).

• Daya bersih yang tersedia pada flywheel ketika mesin dilengkapi dengan

kipas, pembersih udara, knalpot, dan alternator dengan kecepatan mesin

1.900 rpm.

• Kecepatan terukur 1.900 rpm.

Mekanisme Ayun

Kecepatan Ayun

6,3 rpm

Torsi Ayun Maksimum

362 kN·m

267.333 lbf-ft

Bobot

Bobot Operasional

94.100 kg

207.400 pon

• Undercarriage Long Variable Gauge, Mass boom, stick M2.92JC (9'7"),

bucket SDV 6,5 m

3

_{(8,5 yd}

3

_{), double grouser shoes 650 mm (26") dan beban}

penyeimbang standar.

Track

Lebar Shoe Track Opsional

900 mm

35 in

Lebar Shoe Track Opsional

750 mm

30 in

Lebar Shoe Track Opsional

650 mm

26 in

Jumlah Shoes (tiap sisi)

51 Jumlah Roller Track (tiap sisi)

9 Jumlah Roller Carrier (tiap sisi)

3 Drive

Kemampuan Grading Maksimum

35°/70 %

Kecepatan Travel Maksimum

4,6 km/j

2,8 mpj

Tarikan Drawbar Maksimum

581 kN

130.614 lbf

Maksimum – Peralatan*

(532 ×

2 pompa)

(141 ×

2 pompa)

Sistem Ayun – Aliran Maksimum**

295 L/mnt

78 gal/mnt

Tekanan Maksimum – Alat – Peralatan

37.000 kPa

5.366 psi

Tekanan Maksimum – Travel

35.000 kPa

5.076 psi

Tekanan Maksimum – Ayun

31.000 kPa

4.496 psi

Silinder Boom – Diameter Lubang

210 mm

8 in

Silinder Boom – Langkah

1.967 mm

77 in

Silinder Stick – Diameter Lubang

225 mm

9 in

Silinder Stick – Langkah

2.262 mm

89 in

Silinder Bucket HB2 – Diameter Lubang

200 mm

8 in

Silinder Bucket HB2 – Langkah

1.451 mm

57 in

Silinder Bucket JC – Diameter Lubang

220 mm

9 in

Silinder Bucket JC – Langkah

1.586 mm

62 in

*

* 1.008 L/mnt (504 × 2 pompa) 266 gal/mnt (133 × 2 pompa) untuk model

395 yang dijual di Turki.

**279 L/mnt (74 gal/mnt) untuk model 395 yang dijual di Turki.

Kapasitas Pengisian Ulang Bahan Bakar Untuk Perbaikan

Kapasitas Tangki Bahan Bakar

1.220 L

322 gal

Sistem Pendinginan

71 L

19 gal

Oli Mesin (dengan filter)

67 L

18 gal

Swing Drive (masing-masing)

24 L

6 gal

Final Drive (masing-masing)

20 L

5 gal

Sistem Hidraulis (termasuk tangki)

740 L

195 gal

Tangki Hidraulis (termasuk pipa isap)

372 L

98 gal

Standar

Rem

ISO 10265:2008

Kabin/FOGS

ISO 10262:1998

Kinerja Suara

ISO 6395 (eksternal)

109 dB(A)

ISO 6396 (di dalam kabin)

80 dB(A)

• Jika terpasang dengan benar dan dipelihara, kabin yang ditawarkan

oleh Caterpillar ketika diuji dengan pintu dan jendela tertutup sesuai

dengan ANSI/SAE J1166 OCT98, memenuhi persyaratan OSHA dan

MSHA untuk batas paparan suara terhadap operator yang berlaku pada

saat pembuatan.

• Perlindungan pendengaran mungkin diperlukan saat mengoperasikan

dengan stasiun dan kabin operator terbuka (bila tidak dipelihara dengan

benar atau pintu/jendela terbuka) untuk waktu yang lama atau di

lingkungan yang bising.

(3)

Bobot Pengoperasian dan Tekanan ke Tanah

650 mm (26")

Double Grouser Shoes

750 mm (30")

Double Grouser Shoes

900 mm (35")

Bobot

ke Tanah

Tekanan

Bobot

ke Tanah

Tekanan

Bobot

ke Tanah

Tekanan

Konfigurasi Dasar Alat Berat

(pon)

kg

(psi)

kPa

(pon)

kg

(psi)

kPa

(pon)

kg

(psi)

kPa

Base Frame dengan Track Rollers dan Carrier Rollers

Beban Penyeimbang Standar + Alat Berat Dasar Dengan Undercarriage Long Variable Gauge

Mass Boom + Stick M2.92JC (9'7") +

bucket SDV 6,5 m

3

_{(8,5 yd}

3

₎

_(207.400)

94.100 _(18,5)

127,7

_(209.300)

94.900 _(16,2)

111,7

_(211.600)

96.000 _(13,7)

94,2

Mass Boom + Stick M3.4JC (11'2") +

bucket SDV 6,5 m

3

_{(8,5 yd}

3

₎

_(207.500)

94.100 _(18,5)

127,8

_(209.400)

95.000 _(16,2)

111,8

_(211.700)

96.000 _(13,7)

94,2

Boom GP + Stick GP3.4JC (11'2") +

bucket SDV 6,5 m

3

_{(8,5 yd}

3

₎

_(208.500)

94.600 _(18,6)

128,5

_(210.500)

95.500 _(16,3)

112,4

_(212.800)

96.500 _(13,7)

94,7

Base Frame dengan Track Rollers dan Carrier Rollers

Beban Penyeimbang Yang Dapat Dilepas + Alat Berat Dasar Dengan Undercarriage Long Variable Gauge*

Mass Boom + Stick M2.92JC (9'7") +

bucket SDV 6,5 m

3

_{(8,5 yd}

3

₎

_(207.500)

94.100 _(18,5)

127,8

_(209.400)

95.000 _(16,2)

111,8

_(211.800)

96.100 _(13,7)

94,2

*Tergantung pada penawaran di setiap wilayah .

(4)

kg

pon

Bobot Alat Berat Dasar: meliputi rangka atas, undercarriage, beban penyeimbang, silinder boom, tanpa boom, stick, bucket,

silinder stick, silinder bucket, roda rel, tangki bahan bakar, operator

Dengan Beban Penyeimbang Standar, Rangka Ayun, Rangka Dasar Dengan Track Rollers dan Carrier Rollers

61.910

136.480 Dengan Beban Penyeimbang yang Dapat Dilepas, Rangka Ayun, Rangka Dasar dengan Track Rollers dan Carrier Rollers*

61.960

136.600 Shoe Track:

Lebar 650 mm (26"), Tebal 20,5 mm (0,8"), Double Grouser Track Shoes

9.290

20.470 Lebar 750 mm (30"), Tebal 20,5 mm (0,8"), Double Grouser Track Shoes

10.160

22.400 Lebar 900 mm (35"), Tebal 20,5 mm (0,8"), Double Grouser Track Shoes*

11.220

24.740 Dua Silinder Boom

1.820

4.010 Bobot Tangki Bahan Bakar 90 % dan Operator 75 kg (165 pon)

1.010

2.230 Beban Penyeimbang:

Beban Penyeimbang Standar

15.450

34.060 Beban Penyeimbang dengan Alat Pelepas*

15.510

34.190 Rangka Ayun

9.100

20.060 Undercarriage Panjang Dengan Ukuran yang Dapat Diubah:

Base Frame dengan Track Rollers dan Carrier Rollers

24.170

53.290 Boom (termasuk line, pin, silinder stick):

Mass Boom 7,25 m (23'9")

8.560

18.880 GP Boom 8,4 m (27'7")*

9.310

20.530 Stick (termasuk line, pin, silinder bucket, bucket linkage):

Mass Stick M2.92JC (9'7")

5.510

12.150 Mass Stick M3.4JC (11'2")*

5.550

12.240 GP Stick GP3.4JC (11'2")*

5.290

11.660 Bucket (tanpa linkage):

SDV 6,5 m

3

_{(8,5 yd}

3

₎

_7.790

_17.170

Quick Coupler:

Quick Coupler CW Khusus

1.130

2.490 Quick Coupler Pin Grabber

1.730

3.820

*Tergantung pada penawaran di setiap wilayah .

(5)

Dimensi

Semua dimensi adalah perkiraan dan mungkin berbeda, tergantung pada pilihan bucket .

4

3

7

8

2

5

1 10, 11

9

6 Opsi Boom

Mass Boom

GP Boom

7,25 m (23'9")

8,4 m (27'7")

Opsi Stick

Stick GP

M2.92JC (9'7")

M3.4JC (11'2")

GP3.4JC (11'2")

1 Ketinggian Mesin:

Ketinggian Puncak Kabin

3.670 mm

12'0"

3.670 mm

12'0"

3.670 mm

12'0"

Ketinggian Puncak FOGS

3.810 mm

12'6"

3.810 mm

12'6"

3.810 mm

12'6"

Ketinggian Susuran Tangan

3.750 mm

12'4"

3.750 mm

12'4"

3.750 mm

12'4"

Dengan Boom/Stick/Bucket Terpasang

5.330 mm

17'6"

5.330 mm

17'6"

5.250 mm

17'3"

Dengan Boom/Stick Terpasang

4.490 mm

14'9"

4.580 mm

15'0"

4.880 mm

16'0"

Dengan Boom Terpasang

3.940 mm

12'11"

3.940 mm

12'11"

4.070 mm

13'4"

Dengan Boom/Stick/Bucket Terpasang (dengan jalur tambahan)

5.350 mm

17'7"

5.350 mm

17'7"

5.270 mm

17'3"

Dengan Boom/Stick Terpasang (dengan jalur tambahan)

4.560 mm

15'0"

4.650 mm

15'3"

4.920 mm

16'2"

Dengan Boom Terpasang (dengan jalur tambahan)

4.010 mm

13'2"

4.010 mm

13'2"

4.140 mm

13'7"

2 Panjang Mesin:

Dengan Boom/Stick/Bucket Terpasang

13.980 mm

45'10"

13.890 mm

45'7"

15.090 mm

49'6"

Dengan Boom/Stick Terpasang

13.770 mm

45'2"

13.810 mm

45'4"

15.060 mm

49'5"

Dengan Boom Terpasang

11.980 mm

39'4"

11.980 mm

39'4"

13.160 mm

43'2"

Dengan Boom/Stick/Bucket Terpasang (dengan jalur tambahan)

13.980 mm

45'10"

13.890 mm

45'7"

15.090 mm

49'6"

Dengan Boom/Stick Terpasang (dengan jalur tambahan)

13.770 mm

45'2"

13.810 mm

45'4"

15.060 mm

49'5"

Dengan Boom Terpasang (dengan jalur tambahan)

11.990 mm

39'4"

11.990 mm

39'4"

13.150 mm

43'2"

3 Lebar Rangka Atas:

Tanpa Jalur Jalan

3.930 mm

12'11"

3.930 mm

12'11"

3.930 mm

12'11"

Dengan Jalur Jalan

4.510 mm

14'10"

4.510 mm

14'10"

4.510 mm

14'10"

Lebar Jalur Jalan

500 mm

1'8"

500 mm

1'8"

500 mm

1'8"

(6)

6

4

3

7

8

2

5

1 10, 11

9

6 Opsi Boom

Mass Boom

GP Boom

7,25 m (23'9")

8,4 m (27'7")

Opsi Stick

Stick GP

M2.92JC (9'7")

M3.4JC (11'2")

GP3.4JC (11'2")

7 Panjang Track – Panjang ke Pusat Roller

5.120 mm

16'10"

5.120 mm

16'10"

5.120 mm

16'10"

8 Panjang Track

6.350 mm

20'10"

6.350 mm

20'10"

6.350 mm

20'10"

9 Ukuran Track:

Dipendekkan

2.750 mm

9'0"

2.750 mm

9'0"

2.750 mm

9'0"

Direntangkan

3.510 mm

11'6"

3.510 mm

11'6"

3.510 mm

11'6"

10 Lebar Track – Dipendekkan:

Shoes 650 mm (26")

3.400 mm

11'2"

3.400 mm

11'2"

3.400 mm

11'2"

Shoes 750 mm (30")

3.500 mm

11'6"

3.500 mm

11'6"

3.500 mm

11'6"

Shoes 900 mm (35")

3.840 mm

12'7"

3.840 mm

12'7"

3.840 mm

12'7"

Lebar Track – Direntangkan:

Shoes 650 mm (26")

4.160 mm

13'8"

4.160 mm

13'8"

4.160 mm

13'8"

Shoes 750 mm (30")

4.260 mm

14'0"

4.260 mm

14'0"

4.260 mm

14'0"

Shoes 900 mm (35")

4.410 mm

14'6"

4.410 mm

14'6"

4.410 mm

14'6"

11 Lebar Undercarriage – Direntangkan (dengan pijakan):

Shoes 650 mm (26")

3.690 mm

12'1"

3.690 mm

12'1"

3.690 mm

12'1"

Shoes 750 mm (30")

3.690 mm

12'1"

3.690 mm

12'1"

3.690 mm

12'1"

Shoes 900 mm (35")

3.880 mm

12'9"

3.880 mm

12'9"

3.880 mm

12'9"

Lebar Undercarriage – Direntangkan (dengan pijakan):

Shoes 650 mm (26")

4.450 mm

14'7"

4.450 mm

14'7"

4.450 mm

14'7"

Shoes 750 mm (30")

4.450 mm

14'7"

4.450 mm

14'7"

4.450 mm

14'7"

Shoes 900 mm (35")

4.450 mm

14'7"

4.450 mm

14'7"

4.450 mm

14'7"

Tipe Bucket

SDV

Kapasitas Bucket

6,50 m

3

_{8,50 yd}

3

_{6,50 m}

3

_{8,50 yd}

3

_{6,50 m}

3

_{8,50 yd}

3

(7)

Rentang Kerja

Semua dimensi adalah perkiraan dan mungkin berbeda, tergantung pada pilihan bucket .

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 6 7 8 9 5 4 3 2 1 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 –1 Meters Meters 0 5 10 15 20 25 30 35 40 45 Feet 15 10 20 25 5 0 5 10 15 20 25 30 35 45 40 Feet 2 3 1 7 6 4 5 M3.4JC (11'2") M2.92JC (9'7") 0 1 2 3 4 5 6 7 8 9 10 11 12 14 13 6 7 8 9 5 4 3 2 1 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 –1 Meters Meters 0 5 10 15 20 25 30 35 40 45 50 Feet 15 10 20 30 25 5 0 5 10 15 20 25 30 35 45 40 Feet 2 3 1 7 6 4 5 GP3.4JC (11'2")

Opsi Boom

Mass Boom

GP Boom

7,25 m (23'9")

8,4 m (27'7")

Opsi Stick

Mass Stick

Stick GP

M2.92JC (9'7")

M3.4JC (11'2")

GP3.4JC (11'2")

1 Kedalaman Penggalian Maksimum

7.190 mm

23'7"

7.660 mm

25'2"

8.750 mm

28'8"

2 Jangkauan Maksimum di Permukaan Tanah

12.260 mm

40'3"

12.700 mm

41'8"

13.980 mm

45'10"

3 Ketinggian Pemotongan Maksimum

12.370 mm

40'7"

12.590 mm

41'4"

13.470 mm

44'2"

4 Ketinggian Pemuatan Maksimum

7.960 mm

26'1"

8.190 mm

26'10"

9.030 mm

29'8"

5 Ketinggian Pemuatan Minimum

3.660 mm

12'0"

3.190 mm

10'6"

3.960 mm

13'0"

6 Potongan Kedalaman Maksimum untuk Dasar Rata 2.440 mm (8'0")

7.050 mm

23'2"

7.530 mm

24'8"

8.620 mm

28'3"

7 Kedalaman Maksimum Penggalian Dinding Vertikal

4.580 mm

15'0"

4.970 mm

16'4"

6.100 mm

20'0"

Daya Gali Bucket (ISO)

497 kN

111.820 lbf

498 kN

111.950 lbf

498 kN

111.950 lbf

Daya Gali Stick (ISO)

394 kN

88.570 lbf

360 kN

80.920 lbf

360 kN

80.920 lbf

Tipe Bucket

SDV

Kapasitas Bucket

6,50 m

3

_{8,50 yd}

3

_{6,50 m}

3

_{8,50 yd}

3

_{6,50 m}

3

_{8,50 yd}

3

(8)

8

2,92 m (9'7") 7,25 m (23'9") Double Grouser Shoes 650 mm (26") 5.120 mm (16'10") M2.92JC 3.510 mm (11'6") 6.350 mm (20'10") 3.000 mm/10'0" 4.500 mm/15'0" 6.000 mm/20'0" 7.500 mm/25'0" 9.000 mm/30'0" mm ft/in 10 .500 mm kg *21 .300 *21 .300 6 .290 35'0" pon 9 .000 mm kg *23 .050 *23 .050 *19 .250 *19 .250 7 .820 30'0" pon *45.100 *45.100 *42.700 *42.700 25'2" 7 .500 mm kg *25 .750 *25 .750 *18 .450 *18 .450 8 .830 25'0" pon *56.150 *56.150 *40.750 *40.750 28'8" 6 .000 mm kg *42 .050 *42 .050 *32 .250 *32 .250 *27 .100 26 .950 *24 .000 20 .050 *18 .400 18 .300 9 .500 20'0" pon *90.050 *90.050 *69.650 *69.650 *58.800 58.000 *52.350 43.100 *40.450 *40.450 31'0" 4 .500 mm kg *35 .950 *35 .950 *28 .850 25 .850 *24 .700 19 .550 *18 .850 16 .800 9 .890 15'0" pon *77.550 *77.550 *62.500 55.700 *53.650 42.050 *41.400 37.150 32'4" 3 .000 mm kg *38 .750 34 .400 *30 .400 24 .800 *25 .300 19 .000 *19 .800 16 .100 10 .040 10'0" pon *83.750 74.200 *65.800 53.500 *54.900 40.850 *43.550 35.500 32'11" 1 .500 mm kg *39 .550 33 .250 *31 .050 24 .000 *25 .400 18 .500 *21 .450 16 .050 9 .960 5'0" pon *85.750 71.550 *67.200 51.750 *55.050 39.900 *47.200 35.300 32'8" 0 mm kg *28 .950 *28 .950 *38 .250 32 .700 *30 .400 23 .550 *24 .550 18 .250 *22 .100 16 .650 9 .640 0'0" pon *67.450 *67.450 *83.000 70.400 *65.800 50.750 *52.900 39.350 *48.700 36.650 31'7" –1 .500 mm kg *42 .500 *42 .500 *35 .000 32 .700 *28 .050 23 .500 *21 .700 18 .300 *21 .400 18 .150 9 .060 –5'0" pon *60.950 *60.950 *92.700 *92.700 *75.900 70.300 *60.600 50.600 *47.100 40.050 29'8" –3 .000 mm kg *35 .000 *35 .000 *29 .400 *29 .400 *23 .150 *23 .150 *19 .850 *19 .850 8 .170 –10'0" pon *76.000 *76.000 *63.400 *63.400 *49.350 *49.350 *43.550 *43.550 26'7" –4 .500 mm kg *19 .800 *19 .800 *16 .500 *16 .500 6 .740 –15'0" pon *41.400 *41.400 *38.450 *38.450 21'0" ISO 10567

** Menunjukkan bahwa beban dibatasi oleh kapasitas pengangkatan hidraulis, bukan oleh beban jungkit . Beban di atas sesuai dengan standar kapasitas angkat ekskavator hidraulis ISO 10567:2007 . Beban tersebut tidak melebihi 87 % kapasitas pengangkatan hidraulis atau 75 % beban penumpahan . Bobot semua aksesori pengangkat harus dikurangkan dari kapasitas pengangkatan di atas . Kapasitas pengangkatan didasarkan pada mesin yang terletak di atas permukaan yang seragam dan kokoh . Penggunaan titik alat kerja tambahan untuk memegang/mengangkat benda, dapat memengaruhi kinerja angkat mesin .

**Kapasitas angkat berlaku untuk beban penyeimbang standar dan beban penyeimbang dengan alat pelepas . Kapasitas angkat tetap dalam ±5 % untuk semua shoe track yang tersedia .

(9)

Kapasitas Angkat Mass Boom – Beban Penyeimbang Standar – tanpa Bucket, Pengangkatan Berat: Aktif**

Undercarriage Panjang Dengan Ukuran yang Dapat Diubah

2,92 m (9'7") 7,25 m (23'9") Double Grouser Shoes 750 mm (30") 5.120 mm (16'10") M2.92JC 3.510 mm (11'6") 6.350 mm (20'10") 3.000 mm/10'0" 4.500 mm/15'0" 6.000 mm/20'0" 7.500 mm/25'0" 9.000 mm/30'0" mm ft/in 10 .500 mm kg *21 .300 *21 .300 6 .290 35'0" pon 9 .000 mm kg *23 .050 *23 .050 *19 .250 *19 .250 7 .820 30'0" pon *45.100 *45.100 *42.700 *42.700 25'2" 7 .500 mm kg *25 .750 *25 .750 *18 .450 *18 .450 8 .830 25'0" pon *56.150 *56.150 *40.750 *40.750 28'8" 6 .000 mm kg *42 .050 *42 .050 *32 .250 *32 .250 *27 .100 *27 .100 *24 .000 20 .250 *18 .400 *18 .400 9 .500 20'0" pon *90.050 *90.050 *69.650 *69.650 *58.800 58.500 *52.350 43.450 *40.450 *40.450 31'0" 4 .500 mm kg *35 .950 *35 .950 *28 .850 26 .100 *24 .700 19 .700 *18 .850 16 .950 9 .890 15'0" pon *77.550 *77.550 *62.500 56.200 *53.650 42.450 *41.400 37.500 32'4" 3 .000 mm kg *38 .750 34 .700 *30 .400 25 .050 *25 .300 19 .150 *19 .800 16 .250 10 .040 10'0" pon *83.750 74.850 *65.800 53.950 *54.900 41.250 *43.550 35.850 32'11" 1 .500 mm kg *39 .550 33 .550 *31 .050 24 .250 *25 .400 18 .700 *21 .450 16 .200 9 .960 5'0" pon *85.750 72.200 *67.200 52.250 *55.050 40.250 *47.200 35.650 32'8" 0 mm kg *28 .950 *28 .950 *38 .250 33 .050 *30 .400 23 .800 *24 .550 18 .450 *22 .100 16 .800 9 .640 0'0" pon *67.450 *67.450 *83.000 71.050 *65.800 51.250 *52.900 39.700 *48.700 37.000 31'7" –1 .500 mm kg *42 .500 *42 .500 *35 .000 33 .000 *28 .050 23 .700 *21 .700 18 .500 *21 .400 18 .350 9 .060 –5'0" pon *60.950 *60.950 *92.700 *92.700 *75.900 71.000 *60.600 51.050 *47.100 40.450 29'8" –3 .000 mm kg *35 .000 *35 .000 *29 .400 *29 .400 *23 .150 *23 .150 *19 .850 *19 .850 8 .170 –10'0" pon *76.000 *76.000 *63.400 *63.400 *49.350 *49.350 *43.550 *43.550 26'7" –4 .500 mm kg *19 .800 *19 .800 *16 .500 *16 .500 6 .740 –15'0" pon *41.400 *41.400 *38.450 *38.450 21'0" ISO 10567

(10)

10

2,92 m (9'7") 7,25 m (23'9") Double Grouser Shoes 900 mm (35") 5.120 mm (16'10") M2.92JC 3.510 mm (11'6") 6.350 mm (20'10") 3.000 mm/10'0" 4.500 mm/15'0" 6.000 mm/20'0" 7.500 mm/25'0" 9.000 mm/30'0" mm ft/in 10 .500 mm kg *21 .300 *21 .300 6 .290 35'0" pon 9 .000 mm kg *23 .050 *23 .050 *19 .250 *19 .250 7 .820 30'0" pon *45.100 *45.100 *42.700 *42.700 25'2" 7 .500 mm kg *25 .750 *25 .750 *18 .450 *18 .450 8 .830 25'0" pon *56.150 *56.150 *40.750 *40.750 28'8" 6 .000 mm kg *42 .050 *42 .050 *32 .250 *32 .250 *27 .100 *27 .100 *24 .000 20 .450 *18 .400 *18 .400 9 .500 20'0" pon *90.050 *90.050 *69.650 *69.650 *58.800 *58.800 *52.350 43.950 *40.450 *40.450 31'0" 4 .500 mm kg *35 .950 *35 .950 *28 .850 26 .350 *24 .700 19 .950 *18 .850 17 .150 9 .890 15'0" pon *77.550 *77.550 *62.500 56.800 *53.650 42.900 *41.400 37.900 32'4" 3 .000 mm kg *38 .750 35 .100 *30 .400 25 .300 *25 .300 19 .350 *19 .800 16 .450 10 .040 10'0" pon *83.750 75.650 *65.800 54.550 *54.900 41.700 *43.550 36.250 32'11" 1 .500 mm kg *39 .550 33 .900 *31 .050 24 .500 *25 .400 18 .900 *21 .450 16 .350 9 .960 5'0" pon *85.750 73.000 *67.200 52.800 *55.050 40.700 *47.200 36.050 32'8" 0 mm kg *28 .950 *28 .950 *38 .250 33 .400 *30 .400 24 .050 *24 .550 18 .650 *22 .100 17 .000 9 .640 0'0" pon *67.450 *67.450 *83.000 71.850 *65.800 51.850 *52.900 40.200 *48.700 37.450 31'7" –1 .500 mm kg *42 .500 *42 .500 *35 .000 33 .350 *28 .050 23 .950 *21 .700 18 .700 *21 .400 18 .550 9 .060 –5'0" pon *60.950 *60.950 *92.700 *92.700 *75.900 71.750 *60.600 51.650 *47.100 40.900 29'8" –3 .000 mm kg *35 .000 *35 .000 *29 .400 *29 .400 *23 .150 *23 .150 *19 .850 *19 .850 8 .170 –10'0" pon *76.000 *76.000 *63.400 *63.400 *49.350 *49.350 *43.550 *43.550 26'7" –4 .500 mm kg *19 .800 *19 .800 *16 .500 *16 .500 6 .740 –15'0" pon *41.400 *41.400 *38.450 *38.450 21'0" ISO 10567

(11)

Kapasitas Angkat Mass Boom – Beban Penyeimbang Standar – tanpa Bucket, Pengangkatan Berat: Aktif**

Undercarriage Panjang Dengan Ukuran yang Dapat Diubah

3,4 m (11'2") 7,25 m (23'9") Double Grouser Shoes 650 mm (26") 5.120 mm (16'10") M3.4JC 3.510 mm (11'6") 6.350 mm (20'10") 3.000 mm/10'0" 4.500 mm/15'0" 6.000 mm/20'0" 7.500 mm/25'0" 9.000 mm/30'0" mm ft/in 10 .500 mm kg *17 .450 *17 .450 6 .970 35'0" pon *39.000 *39.000 22'2" 9 .000 mm kg *21 .850 *21 .850 *15 .950 *15 .950 8 .370 30'0" pon *46.150 *46.150 *35.350 *35.350 27'1" 7 .500 mm kg *24 .500 *24 .500 *19 .100 *19 .100 *15 .350 *15 .350 9 .330 25'0" pon *53.350 *53.350 *37.350 *37.350 *33.900 *33.900 30'4" 6 .000 mm kg *30 .650 *30 .650 *25 .950 *25 .950 *23 .100 20 .200 *15 .300 *15 .300 9 .960 20'0" pon *66.200 *66.200 *56.350 *56.350 *50.300 43.350 *33.650 *33.650 32'6" 4 .500 mm kg *47 .700 *47 .700 *34 .500 *34 .500 *27 .900 26 .050 *23 .950 19 .600 *15 .600 *15 .600 10 .330 15'0" pon *102.250 *102.250 *74.450 *74.450 *60.450 56.100 *52.050 42.150 *34.350 *34.350 33'10" 3 .000 mm kg *37 .800 34 .750 *29 .700 24 .900 *24 .800 18 .950 *16 .400 15 .000 10 .480 10'0" pon *81.650 74.900 *64.300 53.650 *53.800 40.850 *36.000 33.100 34'4" 1 .500 mm kg *39 .300 33 .300 *30 .700 24 .000 *25 .200 18 .450 *17 .650 14 .950 10 .400 5'0" pon *85.050 71.750 *66.500 51.750 *54.550 39.700 *38.800 32.900 34'1" 0 mm kg *30 .950 *30 .950 *38 .700 32 .600 *30 .500 23 .450 *24 .750 18 .100 *19 .700 15 .400 10 .100 0'0" pon *71.500 *71.500 *83.900 70.150 *66.050 50.500 *53.450 38.950 *43.350 33.950 33'1" –1 .500 mm kg *26 .100 *26 .100 *45 .400 *45 .400 *36 .100 32 .450 *28 .750 23 .250 *22 .850 18 .000 *20 .550 16 .650 9 .550 –5'0" pon *58.850 *58.850 *98.800 *98.800 *78.250 69.750 *62.150 50.050 *48.950 38.800 *45.250 36.750 31'3" –3 .000 mm kg *42 .800 *42 .800 *38 .450 *38 .450 *31 .300 *31 .300 *24 .900 23 .400 *19 .450 19 .150 8 .700 –10'0" pon *96.600 *96.600 *83.350 *83.350 *67.650 *67.650 *53.300 50.500 *42.750 42.450 28'4" –4 .500 mm kg *28 .150 *28 .150 *23 .250 *23 .250 *16 .800 *16 .800 7 .450 –15'0" pon *60.300 *60.300 *49.350 *49.350 *36.600 *36.600 24'2" ISO 10567

(12)

12

3,4 m (11'2") 7,25 m (23'9") Double Grouser Shoes 750 mm (30") 5.120 mm (16'10") M3.4JC 3.510 mm (11'6") 6.350 mm (20'10") 3.000 mm/10'0" 4.500 mm/15'0" 6.000 mm/20'0" 7.500 mm/25'0" 9.000 mm/30'0" mm ft/in 10 .500 mm kg *17 .450 *17 .450 6 .970 35'0" pon *39.000 *39.000 22'2" 9 .000 mm kg *21 .850 *21 .850 *15 .950 *15 .950 8 .370 30'0" pon *46.150 *46.150 *35.350 *35.350 27'1" 7 .500 mm kg *24 .500 *24 .500 *19 .100 *19 .100 *15 .350 *15 .350 9 .330 25'0" pon *53.350 *53.350 *37.350 *37.350 *33.900 *33.900 30'4" 6 .000 mm kg *30 .650 *30 .650 *25 .950 *25 .950 *23 .100 20 .350 *15 .300 *15 .300 9 .960 20'0" pon *66.200 *66.200 *56.350 *56.350 *50.300 43.750 *33.650 *33.650 32'6" 4 .500 mm kg *47 .700 *47 .700 *34 .500 *34 .500 *27 .900 26 .250 *23 .950 19 .750 *15 .600 *15 .600 10 .330 15'0" pon *102.250 *102.250 *74.450 *74.450 *60.450 56.550 *52.050 42.550 *34.350 *34.350 33'10" 3 .000 mm kg *37 .800 35 .050 *29 .700 25 .150 *24 .800 19 .150 *16 .400 15 .150 10 .480 10'0" pon *81.650 75.550 *64.300 54.150 *53.800 41.200 *36.000 33.400 34'4" 1 .500 mm kg *39 .300 33 .650 *30 .700 24 .250 *25 .200 18 .600 *17 .650 15 .050 10 .400 5'0" pon *85.050 72.400 *66.500 52.200 *54.550 40.050 *38.800 33.200 34'1" 0 mm kg *30 .950 *30 .950 *38 .700 32 .900 *30 .500 23 .650 *24 .750 18 .250 *19 .700 15 .550 10 .100 0'0" pon *71.500 *71.500 *83.900 70.800 *66.050 51.000 *53.450 39.350 *43.350 34.300 33'1" –1 .500 mm kg *26 .100 *26 .100 *45 .400 *45 .400 *36 .100 32 .750 *28 .750 23 .450 *22 .850 18 .200 *20 .550 16 .850 9 .550 –5'0" pon *58.850 *58.850 *98.800 *98.800 *78.250 70.400 *62.150 50.550 *48.950 39.200 *45.250 37.150 31'3" –3 .000 mm kg *42 .800 *42 .800 *38 .450 *38 .450 *31 .300 *31 .300 *24 .900 23 .650 *19 .450 19 .350 8 .700 –10'0" pon *96.600 *96.600 *83.350 *83.350 *67.650 *67.650 *53.300 50.950 *42.750 *42.750 28'4" –4 .500 mm kg *28 .150 *28 .150 *23 .250 *23 .250 *16 .800 *16 .800 7 .450 –15'0" pon *60.300 *60.300 *49.350 *49.350 *36.600 *36.600 24'2" ISO 10567

(13)

Kapasitas Angkat Mass Boom – Beban Penyeimbang Standar – tanpa Bucket, Pengangkatan Berat: Aktif**

Undercarriage Panjang Dengan Ukuran yang Dapat Diubah

3,4 m (11'2") 7,25 m (23'9") Double Grouser Shoes 900 mm (35") 5.120 mm (16'10") M3.4JC 3.510 mm (11'6") 6.350 mm (20'10") 3.000 mm/10'0" 4.500 mm/15'0" 6.000 mm/20'0" 7.500 mm/25'0" 9.000 mm/30'0" mm ft/in 10 .500 mm kg *17 .450 *17 .450 6 .970 35'0" pon *39.000 *39.000 22'2" 9 .000 mm kg *21 .850 *21 .850 *15 .950 *15 .950 8 .370 30'0" pon *46.150 *46.150 *35.350 *35.350 27'1" 7 .500 mm kg *24 .500 *24 .500 *19 .100 *19 .100 *15 .350 *15 .350 9 .330 25'0" pon *53.350 *53.350 *37.350 *37.350 *33.900 *33.900 30'4" 6 .000 mm kg *30 .650 *30 .650 *25 .950 *25 .950 *23 .100 20 .550 *15 .300 *15 .300 9 .960 20'0" pon *66.200 *66.200 *56.350 *56.350 *50.300 44.200 *33.650 *33.650 32'6" 4 .500 mm kg *47 .700 *47 .700 *34 .500 *34 .500 *27 .900 26 .500 *23 .950 20 .000 *15 .600 *15 .600 10 .330 15'0" pon *102.250 *102.250 *74.450 *74.450 *60.450 57.150 *52.050 43.000 *34.350 *34.350 33'10" 3 .000 mm kg *37 .800 35 .400 *29 .700 25 .400 *24 .800 19 .350 *16 .400 15 .350 10 .480 10'0" pon *81.650 76.350 *64.300 54.750 *53.800 41.650 *36.000 33.800 34'4" 1 .500 mm kg *39 .300 34 .000 *30 .700 24 .500 *25 .200 18 .800 *17 .650 15 .250 10 .400 5'0" pon *85.050 73.200 *66.500 52.800 *54.550 40.550 *38.800 33.600 34'1" 0 mm kg *30 .950 *30 .950 *38 .700 33 .300 *30 .500 23 .950 *24 .750 18 .450 *19 .700 15 .750 10 .100 0'0" pon *71.500 *71.500 *83.900 71.600 *66.050 51.550 *53.450 39.800 *43.350 34.700 33'1" –1 .500 mm kg *26 .100 *26 .100 *45 .400 *45 .400 *36 .100 33 .100 *28 .750 23 .750 *22 .850 18 .400 *20 .550 17 .000 9 .550 –5'0" pon *58.850 *58.850 *98.800 *98.800 *78.250 71.200 *62.150 51.150 *48.950 39.650 *45.250 37.550 31'3" –3 .000 mm kg *42 .800 *42 .800 *38 .450 *38 .450 *31 .300 *31 .300 *24 .900 23 .900 *19 .450 *19 .450 8 .700 –10'0" pon *96.600 *96.600 *83.350 *83.350 *67.650 *67.650 *53.300 51.550 *42.750 *42.750 28'4" –4 .500 mm kg *28 .150 *28 .150 *23 .250 *23 .250 *16 .800 *16 .800 7 .450 –15'0" pon *60.300 *60.300 *49.350 *49.350 *36.600 *36.600 24'2" ISO 10567

(14)

14

3,4 m (11'2") 8,4 m (27'7") Double Grouser Shoes 650 mm (26") 5.120 mm (16'10") GP3.4JC 3.510 mm (11'6") 6.350 mm (20'10") 4.500 mm/15'0" 6.000 mm/20'0" 7.500 mm/25'0" 9.000 mm/30'0" 10.500 mm/35'0" mm ft/in 10 .500 mm kg *15 .600 *15 .600 8 .740 35'0" pon *34.700 *34.700 28'1" 9 .000 mm kg *19 .750 *19 .750 *14 .650 *14 .650 9 .890 30'0" pon *43.300 *43.300 *32.400 *32.400 32'1" 7 .500 mm kg *22 .600 *22 .600 *20 .200 *20 .200 *17 .300 15 .750 *14 .200 *14 .200 10 .710 25'0" pon *48.950 *48.950 *44.050 *44.050 *31.350 *31.350 34'11" 6 .000 mm kg *30 .250 *30 .250 *24 .600 *24 .600 *21 .250 19 .850 *19 .150 15 .450 *14 .150 13 .650 11 .260 20'0" pon *65.050 *65.050 *53.150 *53.150 *46.100 42.750 *41.700 33.200 *31.200 30.250 36'10" 4 .500 mm kg *34 .500 *34 .500 *26 .800 25 .050 *22 .450 19 .100 *19 .700 15 .050 *14 .400 12 .750 11 .590 15'0" pon *74.150 *74.150 *57.900 54.050 *48.700 41.100 *42.800 32.300 *31.700 28.200 37'11" 3 .000 mm kg *28 .650 23 .800 *23 .550 18 .350 *20 .250 14 .600 *14 .950 12 .300 11 .720 10'0" pon *61.950 51.350 *51.000 39.500 *43.900 31.400 *32.850 27.100 38'5" 1 .500 mm kg *29 .650 22 .950 *24 .200 17 .750 *20 .500 14 .200 *15 .850 12 .200 11 .650 5'0" pon *71.800 68.000 *64.150 49.450 *52.450 38.200 *44.400 30.600 *34.850 26.900 38'2" 0 mm kg *36 .750 31 .200 *29 .600 22 .450 *24 .200 17 .350 *20 .250 13 .950 *17 .200 12 .500 11 .380 0'0" pon *80.500 67.100 *64.100 48.300 *52.450 37.350 *43.750 30.100 *37.900 27.550 37'3" –1 .500 mm kg *23 .750 *23 .750 *34 .900 31 .200 *28 .450 22 .250 *23 .350 17 .200 *19 .100 13 .900 *17 .850 13 .300 10 .900 –5'0" pon *54.700 *54.700 *75.850 67.000 *61.600 47.900 *50.450 37.000 *40.900 30.050 *39.300 29.300 35'8" –3 .000 mm kg *37 .050 *37 .050 *31 .550 31 .450 *26 .050 22 .350 *21 .250 17 .250 *17 .300 14 .750 10 .170 –10'0" pon *80.750 *80.750 *68.450 67.600 *56.350 48.150 *45.650 37.250 *38.100 32.650 33'2" –4 .500 mm kg *30 .750 *30 .750 *26 .550 *26 .550 *21 .950 *21 .950 *16 .700 *16 .700 *16 .150 *16 .150 9 .130 –15'0" pon *66.550 *66.550 *57.250 *57.250 *46.950 *46.950 *35.350 *35.350 29'8" -6 .000 mm kg *18 .750 *18 .750 *14 .000 *14 .000 *13 .500 *13 .500 7 .610 –20'0" pon *39.300 *39.300 *31.400 *31.400 23'9" ISO 10567

Kapasitas angkat tetap dalam ±5 % untuk semua shoe track yang tersedia .

(15)

Kapasitas Angkat GP Boom – Beban Penyeimbang Standar – tanpa Bucket, Pengangkatan Berat: Aktif

Undercarriage Panjang Dengan Ukuran yang Dapat Diubah

3,4 m (11'2") 8,4 m (27'7") Double Grouser Shoes 750 mm (30") 5.120 mm (16'10") GP3.4JC 3.510 mm (11'6") 6.350 mm (20'10") 4.500 mm/15'0" 6.000 mm/20'0" 7.500 mm/25'0" 9.000 mm/30'0" 10.500 mm/35'0" mm ft/in 10 .500 mm kg *15 .600 *15 .600 8 .740 35'0" pon *34.700 *34.700 28'1" 9 .000 mm kg *19 .750 *19 .750 *14 .650 *14 .650 9 .890 30'0" pon *43.300 *43.300 *32.400 *32.400 32'1" 7 .500 mm kg *22 .600 *22 .600 *20 .200 *20 .200 *17 .300 15 .850 *14 .200 *14 .200 10 .710 25'0" pon *48.950 *48.950 *44.050 *44.050 *31.350 *31.350 34'11" 6 .000 mm kg *30 .250 *30 .250 *24 .600 *24 .600 *21 .250 20 .050 *19 .150 15 .600 *14 .150 13 .800 11 .260 20'0" pon *65.050 *65.050 *53.150 *53.150 *46.100 43.150 *41.700 33.500 *31.200 30.550 36'10" 4 .500 mm kg *34 .500 *34 .500 *26 .800 25 .250 *22 .450 19 .250 *19 .700 15 .150 *14 .400 12 .900 11 .590 15'0" pon *74.150 *74.150 *57.900 54.500 *48.700 41.500 *42.800 32.650 *31.700 28.450 37'11" 3 .000 mm kg *28 .650 24 .050 *23 .550 18 .500 *20 .250 14 .750 *14 .950 12 .450 11 .720 10'0" pon *61.950 51.850 *51.000 39.900 *43.900 31.700 *32.850 27.400 38'5" 1 .500 mm kg *29 .650 23 .150 *24 .200 17 .900 *20 .500 14 .350 *15 .850 12 .350 11 .650 5'0" pon *71.800 68.650 *64.150 49.900 *52.450 38.600 *44.400 30.900 *34.850 27.150 38'2" 0 mm kg *36 .750 31 .500 *29 .600 22 .650 *24 .200 17 .500 *20 .250 14 .100 *17 .200 12 .650 11 .380 0'0" pon *80.500 67.750 *64.100 48.800 *52.450 37.750 *43.750 30.400 *37.900 27.850 37'3" –1 .500 mm kg *23 .750 *23 .750 *34 .900 31 .500 *28 .450 22 .500 *23 .350 17 .350 *19 .100 14 .050 *17 .850 13 .400 10 .900 –5'0" pon *54.700 *54.700 *75.850 67.650 *61.600 48.400 *50.450 37.400 *40.900 30.350 *39.300 29.600 35'8" –3 .000 mm kg *37 .050 *37 .050 *31 .550 *31 .550 *26 .050 22 .600 *21 .250 17 .450 *17 .300 14 .900 10 .170 –10'0" pon *80.750 *80.750 *68.450 68.250 *56.350 48.650 *45.650 37.650 *38.100 32.950 33'2" –4 .500 mm kg *30 .750 *30 .750 *26 .550 *26 .550 *21 .950 *21 .950 *16 .700 *16 .700 *16 .150 *16 .150 9 .130 –15'0" pon *66.550 *66.550 *57.250 *57.250 *46.950 *46.950 *35.350 *35.350 29'8" -6 .000 mm kg *18 .750 *18 .750 *14 .000 *14 .000 *13 .500 *13 .500 7 .610 –20'0" pon *39.300 *39.300 *31.400 *31.400 23'9" ISO 10567

(16)

16

3,4 m (11'2") 8,4 m (27'7") Double Grouser Shoes 900 mm (35") 5.120 mm (16'10") GP3.4JC 3.510 mm (11'6") 6.350 mm (20'10") 4.500 mm/15'0" 6.000 mm/20'0" 7.500 mm/25'0" 9.000 mm/30'0" 10.500 mm/35'0" mm ft/in 10 .500 mm kg *15 .600 *15 .600 8 .740 35'0" pon *34.700 *34.700 28'1" 9 .000 mm kg *19 .750 *19 .750 *14 .650 *14 .650 9 .890 30'0" pon *43.300 *43.300 *32.400 *32.400 32'1" 7 .500 mm kg *22 .600 *22 .600 *20 .200 *20 .200 *17 .300 16 .050 *14 .200 *14 .200 10 .710 25'0" pon *48.950 *48.950 *44.050 *44.050 *31.350 *31.350 34'11" 6 .000 mm kg *30 .250 *30 .250 *24 .600 *24 .600 *21 .250 20 .250 *19 .150 15 .750 *14 .150 13 .950 11 .260 20'0" pon *65.050 *65.050 *53.150 *53.150 *46.100 43.600 *41.700 33.850 *31.200 30.900 36'10" 4 .500 mm kg *34 .500 *34 .500 *26 .800 25 .550 *22 .450 19 .450 *19 .700 15 .350 *14 .400 13 .050 11 .590 15'0" pon *74.150 *74.150 *57.900 55.100 *48.700 41.950 *42.800 33.000 *31.700 28.800 37'11" 3 .000 mm kg *28 .650 24 .300 *23 .550 18 .700 *20 .250 14 .900 *14 .950 12 .600 11 .720 10'0" pon *61.950 52.450 *51.000 40.350 *43.900 32.100 *32.850 27.750 38'5" 1 .500 mm kg *29 .650 23 .400 *24 .200 18 .100 *20 .500 14 .550 *15 .850 12 .500 11 .650 5'0" pon *71.800 69.450 *64.150 50.500 *52.450 39.050 *44.400 31.300 *34.850 27.500 38'2" 0 mm kg *36 .750 31 .850 *29 .600 22 .900 *24 .200 17 .750 *20 .250 14 .300 *17 .200 12 .800 11 .380 0'0" pon *80.500 68.500 *64.100 49.400 *52.450 38.200 *43.750 30.800 *37.900 28.200 37'3" –1 .500 mm kg *23 .750 *23 .750 *34 .900 31 .850 *28 .450 22 .750 *23 .350 17 .550 *19 .100 14 .250 *17 .850 13 .600 10 .900 –5'0" pon *54.700 *54.700 *75.850 68.450 *61.600 49.000 *50.450 37.850 *40.900 30.750 *39.300 29.950 35'8" –3 .000 mm kg *37 .050 *37 .050 *31 .550 *31 .550 *26 .050 22 .850 *21 .250 17 .650 *17 .300 15 .100 10 .170 –10'0" pon *80.750 *80.750 *68.450 *68.450 *56.350 49.250 *45.650 38.100 *38.100 33.350 33'2" –4 .500 mm kg *30 .750 *30 .750 *26 .550 *26 .550 *21 .950 *21 .950 *16 .700 *16 .700 *16 .150 *16 .150 9 .130 –15'0" pon *66.550 *66.550 *57.250 *57.250 *46.950 *46.950 *35.350 *35.350 29'8" -6 .000 mm kg *18 .750 *18 .750 *14 .000 *14 .000 *13 .500 *13 .500 7 .610 –20'0" pon *39.300 *39.300 *31.400 *31.400 23'9" ISO 10567

(17)

Spesifikasi dan Kompatibilitas Bucket – Hong Kong dan Taiwan

Linkage

Lebar Kapasitas Bobot Isi Mass Boom GP Boom

mm in m3 _yd3 _kg _pon _% _{M2 .92 (9'7")} _{M3 .4 (11'2")} _{GP3 .4 (11'2")}

Pin-On (Tanpa Quick Coupler)

General Duty JC 2 .550 100 6,00 7,65 6 .042 13 .320 100

JC 2 .600 102 6,50 8,50 6 .237 13 .749 100

JC 2 .800 110 7,00 9,15 6 .508 14 .347 100 X

Heavy Duty JC 2 .450 96 6,00 7,85 6 .123 13 .498 100

JC 2 .650 104 6,60 8,63 6 .564 14 .470 100

Severe Duty – Tepian Penggali JC 2 .500 98 6,00 7,85 7 .113 15 .681 90

JC 2 .650 104 6,50 8,50 7 .365 16 .236 90

Extreme Duty JC 2 .550 100 6,00 7,85 6 .123 13 .499 90

Extreme Duty – Tepian Penggali JC 2 .550 100 6,00 7,85 8 .523 18 .791 90 X

Beban maksimum dengan pin-on (payload + bucket) kg 17 .112 15 .750 12 .396

pon 37 .726 34 .722 27 .328

Beban di atas sesuai dengan standar ekskavator hidraulis EN474-5:2006 + A3:2013, yang tidak melebihi 87 % kapasitas pengangkatan hidraulis atau 75 % kapasitas jungkit dengan linkage depan yang terentang sepenuhnya pada garis dasar tanah dengan bucket terlipat .

Kapasitas berdasarkan ISO 7451:2007 .

Kepadatan Bahan Maksimum:

2 .100 kg/m3_{(3 .500 pon/yd}3₎ 1 .800 kg/m3_{(3 .000 pon/yd}3₎ 1 .500 kg/m3_{(2 .500 pon/yd}3₎ 1 .200 kg/m3_{(2 .000 pon/yd}3₎ 900 kg/m3_{(1 .500 pon/yd}3₎ X Tidak Direkomendasikan

Caterpillar merekomendasikan penggunaan alat kerja yang sesuai untuk memaksimalkan nilai yang diterima pelanggan dari produk kami . Penggunaan alat kerja, termasuk bucket, yang berada di luar rekomendasi atau spesifikasi Caterpillar untuk bobot, dimensi, aliran, tekanan, dan lain-lain dapat menghasilkan kinerja yang kurang optimal, termasuk namun tidak terbatas pada pengurangan produksi, stabilitas, keandalan, dan daya tahan komponen . Penggunaan alat kerja yang tidak benar sehingga menyebabkan gerakan menyapu, mencongkel, memutar, dan/atau menahan beban berat akan mengurangi umur boom dan stick .

(18)

Linkage

Lebar Kapasitas Bobot Isi Mass Boom

mm in m3 _yd3 _kg _pon _% _{M2 .92 (9'7")}

General Duty JC 2 .350 93 5,70 7,45 5 .824 12 .839 100

JC 2 .450 96 6,00 7,84 6 .006 13 .240 100

JC 2 .600 102 6,50 8,50 6 .237 13 .749 100

Heavy Duty JC 1 .800 71 4,10 5,36 4 .922 10 .851 100

JC 2 .450 96 6,00 7,85 6 .123 13 .498 100

JC 2 .500 98 6,00 7,85 7 .113 15 .681 90

JC 2 .650 104 6,50 8,50 7 .365 16 .236 90

Extreme Duty – Tepian Penggali JC 2 .350 93 5,40 7,06 7 .513 16 .564 90

JC 2 .200 87 5,00 6,54 7 .650 16 .866 90

JC 2 .550 100 6,00 7,85 8 .523 18 .791 90

Beban maksimum dengan pin-on (payload + bucket) kg 17 .112

pon 37 .726

2 .100 kg/m3_{(3 .500 pon/yd}3₎

1 .800 kg/m3_{(3 .000 pon/yd}3₎

1 .500 kg/m3_{(2 .500 pon/yd}3₎

(19)

Spesifikasi dan Kompatibilitas Bucket – CIS

Linkage

mm in m3 _yd3 _kg _pon _% _{M2 .92 (9'7")}

Heavy Duty JC 1 .800 71 4,10 5,36 4 .922 10 .851 100

JC 2 .650 104 6,60 8,63 6 .564 14 .470 100

JC 2 .500 98 6,00 7,85 7 .113 15 .681 90

JC 2 .650 104 6,50 8,50 7 .365 16 .236 90

Extreme Duty JC 2 .550 100 6,00 7,85 6 .123 13 .499 90

JC 2 .350 93 5,40 7,06 7 .513 16 .564 90

JC 2 .500 98 5,70 7,46 7 .745 17 .075 90

JC 2 .550 100 6,00 7,85 8 .523 18 .791 90

pon 37 .726

2 .100 kg/m3_{(3 .500 pon/yd}3₎

1 .800 kg/m3_{(3 .000 pon/yd}3₎

1 .500 kg/m3_{(2 .500 pon/yd}3₎

(20)

20

Linkage

mm in m3 _yd3 _kg _pon _% _{M2 .92 (9'7")}

General Duty JC 2 .800 110 7,00 9,15 6 .508 14 .347 100

Heavy Duty JC 1 .800 71 4,10 5,36 4 .922 10 .851 100

JC 2 .650 104 6,60 8,63 6 .564 14 .470 100

JC 2 .500 98 6,00 7,85 7 .113 15 .681 90

JC 2 .650 104 6,50 8,50 7 .365 16 .236 90

JC 2 .550 100 6,00 7,85 6 .123 13 .499 90

JC 2 .350 93 5,40 7,06 7 .513 16 .564 90

JC 2 .500 98 5,70 7,46 7 .745 17 .075 90

JC 2 .550 100 6,00 7,85 8 .523 18 .791 90

pon 37 .726

2 .100 kg/m3_{(3 .500 pon/yd}3₎

1 .800 kg/m3_{(3 .000 pon/yd}3₎

1 .500 kg/m3_{(2 .500 pon/yd}3₎

(21)

Spesifikasi dan Kompatibilitas Bucket – Asia Tenggara

Linkage

mm in m3 _yd3 _kg _pon _% _{M2 .92 (9'7")}

General Duty JC 2 .550 100 6,00 7,65 6 .042 13 .320 100

JC 2 .600 102 6,50 8,50 6 .237 13 .749 100

JC 2 .800 110 7,00 9,15 6 .508 14 .347 100

Heavy Duty JC 2 .450 96 6,00 7,85 6 .123 13 .498 100

JC 2 .650 104 6,60 8,63 6 .564 14 .470 100

JC 2 .650 104 6,50 8,50 7 .365 16 .236 90

Extreme Duty JC 2 .550 100 6,00 7,85 6 .123 13 .499 90

pon 37 .726

2 .100 kg/m3_{(3 .500 pon/yd}3₎

1 .800 kg/m3_{(3 .000 pon/yd}3₎

1 .500 kg/m3_{(2 .500 pon/yd}3₎

(22)

22

Linkage

mm in m3 _yd3 _kg _pon _% _{M2 .92 (9'7")}

General Duty JC 2 .800 110 7,00 9,15 6 .508 14 .347 100

Heavy Duty JC 1 .800 71 4,10 5,36 4 .922 10 .851 100

JC 2 .650 104 6,60 8,63 6 .564 14 .470 100

JC 2 .500 98 6,00 7,85 7 .113 15 .681 90

JC 2 .650 104 6,50 8,50 7 .365 16 .236 90

JC 2 .550 100 6,00 7,85 6 .123 13 .499 90

JC 2 .350 93 5,40 7,06 7 .513 16 .564 90

JC 2 .500 98 5,70 7,46 7 .745 17 .075 90

JC 2 .550 100 6,00 7,85 8 .523 18 .791 90

pon 37 .726

*Kesesuaian berlaku untuk beban penyeimbang standar dan beban penyeimbang dengan alat pelepas . Beban di atas sesuai dengan standar ekskavator hidraulis EN474-5:2006 + A3:2013, yang tidak melebihi 87 % kapasitas pengangkatan hidraulis atau 75 % kapasitas jungkit dengan linkage depan yang terentang sepenuhnya pada garis dasar tanah dengan bucket terlipat .

2 .100 kg/m3_{(3 .500 pon/yd}3₎

1 .800 kg/m3_{(3 .000 pon/yd}3₎

1 .500 kg/m3_{(2 .500 pon/yd}3₎

(23)

Panduan Penawaran Attachment – Afrika, Timur Tengah, Amerika Selatan, CIS, dan Turki*

Tidak semua alat tambahan tersedia di semua wilayah . Hubungi dealer Cat Anda untuk konfigurasi yang tersedia di wilayah Anda .

ü

Sesuai Tidak Sesuai

ATTACHMENT DENGAN PIN

Tipe Boom

Mass Boom

Panjang Stick

M2.92 (9'7")

M3.4 (11'2")

Mobile Scrap dan

Demolition Shears

S3070

_S3090

ü

_ü

ü

_ü

ATTACHMENT COUPLER KHUSUS CW-70

Tipe Boom

Mass Boom

Panjang Stick

M2.92 (9'7")

M3.4 (11'2")

Mobile Scrap dan

Demolition Shears

S3070

_{S3070 Bagian Atas Rata}

ü

_ü

ü

_ü

S3090

ü

S3090 Bagian Atas Rata

ü

* Kesesuaian berlaku untuk beban penyeimbang standar dan beban penyeimbang dengan alat pelepas .

Panduan Kesesuaian Lintasan Umum

Untuk produksi dan efisiensi maksimum, kami merekomendasikan agar alat berat pemuatan dan pengangkutan disesuaikan untuk mencapai kinerja

yang optimal .

**Konfigurasi*:**

Undercarriage Panjang Dengan Ukuran yang Dapat Disesuaikan, Mass boom 7,25 m (23'9"), stick M2.92JC (9'7"), SDV bucket 6,5 m

3

_{(8,5 yd}

3

_{), double}

grouser shoes 650 mm (26") dan beban penyeimbang standar.

Lintasan yang Diperlukan Untuk Mengisi Truk Hingga Kapasitas Terukur

Jenis Material Kepadatan Material Faktor Pengisian

Truk Bak Jungkit Cat Truk Lapangan Cat

735 740 GC 745 770G 772G 773E 773G 775G

Tanah – Galian Basah 1 .600 kg/m3_{(2 .700 pon/yd}3₎ _{100 %} _— _— ₄ ₄ ₅ ₅ ₅ ₆

Batu Kapur – Pecah 1 .540 kg/m3_{(2 .600 pon/yd}3₎ _{90 %} ₄ ₄ ₅ ₄ ₅ ₆ ₆ ₇

* Kesesuaian lintasan yang ditunjukkan mencerminkan konfigurasi alat berat, faktor pengisian, dan kepadatan material umum yang ditunjukkan . Perubahan pada konfigurasi alat berat, faktor pengisian, atau kepadatan material serta faktor-faktor khusus di lokasi pekerjaan dapat memengaruhi rekomendasi kesesuaian lintasan untuk penggunaan oleh Anda . Hubungi dealer Cat Anda untuk informasi selengkapnya .
