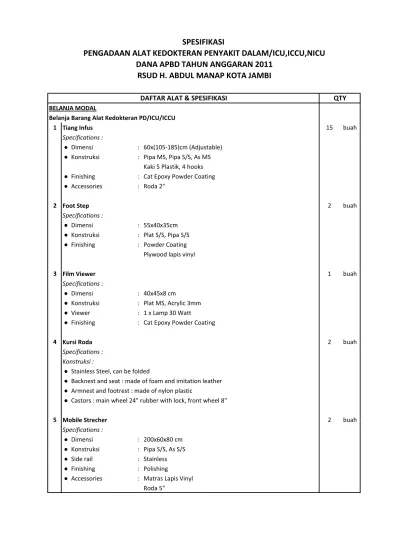

BELANJA MODAL
Belanja Barang Alat Kedokteran PD/ICU/ICCU
1 Tiang Infus 15 buah
Specifications :
● Dimensi : 60x(105-185)cm (Adjustable) ● Konstruksi : Pipa MS, Pipa S/S, As MS
Kaki 5 Plastik, 4 hooks ● Finishing : Cat Epoxy Powder Coating ● Accessories : Roda 2"
2 Foot Step 2 buah
Specifications :
● Dimensi : 55x40x35cm
● Konstruksi : Plat S/S, Pipa S/S ● Finishing : Powder Coating
Plywood lapis vinyl
3 Film Viewer 1 buah
Specifications :
● Dimensi : 40x45x8 cm
● Konstruksi : Plat MS, Acrylic 3mm ● Viewer : 1 x Lamp 30 Watt
● Finishing : Cat Epoxy Powder Coating
4 Kursi Roda 2 buah
Specifications : Konstruksi :
● Stainless Steel, can be folded
● Backnest and seat : made of foam and imitation leather ● Armnest and footrest : made of nylon plastic
● Castors : main wheel 24" rubber with lock, front wheel 8"
5 Mobile Strecher 2 buah
Specifications :
● Dimensi : 200x60x80 cm
● Konstruksi : Pipa S/S, As S/S ● Side rail : Stainless ● Finishing : Polishing
● Accessories : Matras Lapis Vinyl Roda 5"
DAFTAR ALAT & SPESIFIKASI
QTY
SPESIFIKASI
PENGADAAN ALAT KEDOKTERAN PENYAKIT DALAM/ICU,ICCU,NICU
DANA APBD TAHUN ANGGARAN 2011
6 Meja Mayo 2 buah Specifications :
● Dimensi : 43x60x(80-120)cm ● Konstruksi : Plat S/S, Pipa S/S, Pipa MS ● Finishing : Cat Epoxy Powder Coating ● Accessories : Roda 2"
7 Bedside Cabinet 10 unit
Specifications :
● Dimensi : 45x40x90cm ● Kontruksi : Plat MS ● Top Cover : Fiberglass
● Finishing : Cat Epoxy Powder Coating ● Accessories : Roda 2"
Gantungan Handuk
8 Oksigen portable+Trolley 3 unit
Specifications :
● Tabung Kapasitas 1000 Liter ● Flow meter + Humidifier ● Trolley
9 Bak Instrument Besar 10 buah
Specifications :
● Made of stainless steel ● Uk. 400x350x50mm
10 Bak Instrument Sedang 10 buah
Specifications :
● Made of stainless steel ● Uk. 300x250x50mm
11 Ambubag Bayi 1 buah
Specifications :
● Triggered safly valve : 40 mbar
● Material : Silicone transparent
● Use for : Babies and infants
● Supply bag : 240 ml
● Oxygen Reservoir : 600 ml
● Silicone Breathing Mask : Size 0, size 1 and size 2 ● Storage temperature : -400C to +700C ● Operating temperature : -180C to +500C
● Bag and membrane material : Silicone, can be sterilized up to 1340C
12 Pispot Stainless 3 buah
Specifications :
13 Dressing Trolley 2 buah Specifications :
● Dimensi : 45x91x85 cm
● Konstruksi : Plat S/S, Pipa S/S ● Finishing : Polishing ● Accessories : 2 Laci
Dudukan Waskom Ø32cm Dudukan Ember
Roda 2"
14 Double Bowl Trolley 4 buah
Specifications :
● Dimensi : 80x40x80 cm
● Konstruksi : Pipa □, Pipa Ø, As MS ● Finishing : Epoxy Powder Coating ● Accessories : Roda 2"
2 Waskom S/S Ø36cm
15 Medicine Trolley 1 buah
Specifications :
● Dimensi : 93x40x91 cm
● Konstruksi : Plat S/S, Pipa S/S
● Finishing : Cat Epoxy Powder Coating ● Accessories : Roda 3"
16 UV Room Sterilisator 1 unit
Specifications :
● Dimensi : (41-110) x 127cm ● Konstruksi : Plat S/S, Pipa S/S Ø ● Finishing : Cat epoxy powder coating
● Power consumption : AC 220Volt, 180Watt, 50 Hz ● UV Lamp : 10 Watt x 1 Unit
● Accessories : Timer Hour Meter Roda 2"
17 Minor Set 5 set
Consist of :
- Standard Forceps Serr 145mm 2
- Standard Tissue Forceps 1x2, 145mm 2
- Lister Bandage Scisors 140mm 2
- Mayo-Lexer Scissors CVD 165mm 2
- Littauer Suture Scissors 135mm 2
- Pean Forceps Del CVD 140mm 2
- Allis Forceps 4x5, 155mm 2
- Foerster Sponge Fcps Serr Str 242mm 1
- Pot Korentang (lokal) 1
18 ECG 1 unit Specifications :
ECG - Features
ECG leads Standard 12 leads
Recording chanel 1,3,6 and 12 Channel
Sensitivity 5, 10, 20, auto (I~aVF : 10, V1 ~ V6 : 5) mm/mV Basic measurement Heart rate, PR, QRS, QT/QTc, P-R-T axes Display
Type 2 lines text LCD screen
User interface Keyboard with touch screen Character available Alphanumeric and symbol Printer
Printing speed 12.5,25,50mm/s Recording system Thermal print head Effective writing width 204mm
Recorder Resolution
Vertical 8 dots/mm
Horizontal 16 dots/mm
Paper type Thermal roll paper Set - up
AC 50 / 60 -- 20dB or better
Muscle 25 ~ 35Hz -- 3dB
Base line drift 0.1Hz -- 3dB or lower Low pass filter off, 40Hz, 100Hz, 150Hz
Patient data ID, nama, age, sex, hight, weight Communication & Protection
Communication PC connection by LAN PC-Software ECG Plus_Spiro Defibrillation protection Provided
Signal quality control Disconnected lead detection Frequency response 0.05 ~ 150Hz within -3db Electrial Features
Input circuit Floating input,Isolated and defibrillation protected
Input impedance ≥ MΩ
Input range ≥± 5mV
Common ModeRejection ≥± dB DC offset voltage ≥± 3 mV Time constant 3.2sec. (-0~+20%) Patient isolation <10µA
Power supply AC
Power requirement 100-240Vac, 50/60Hz, 1.0-0.5A Power consumption 60W max
Safety Class I, type BF
Enviromental Specifications
Operating humidity 30~85% R.H
19 Instrument Cabinet 2 Pintu 2 buah Specifications :
● Dimensi : 90x40x170cm
● Konstruksi : Plat MS, Kaca 5 mm ● Finishing : Cat Epoxy Powder Coating ● Accessories : 3 Shelf Glasses (Adjustable High)
20 Suction Pump Portable 1 unit
Specifications :
» 1 L plastic collecting bottle » 0-600/620 mmHg vacuum range » Pump displacement: 20 L/min » Air filter
» Vacuum adjustment » Vacuum gauge » Overflow safety device » Quiet operation
» Maintenance and oil free piston pump » Motor speed: 1400 rpm/min
» Power consumption: 0.006kW, 0.3A » Mobile
» Rated voltage: 230V » Rated current: 50Hz
21 Standing Spygnomanometer 2 buah
Specifications :
● Featuring a two piece stand column for easy height adjustment and built-in cuff storage system.
● Made from rugged indestructible ABS housing, black baked enamel finish. ● Supplied with five castors of 2" diameter for good stability and mobility. ● Come complete with calibrated nylon cuff or bandage cuff and deluxe air
release valve.
● The unit is covered by 3 (three) years calibration warranty +/-3 mmHg
22 Timbangan 6 buah
Specifications :
● Capacity : 120 Kg
● Graduation : 0.5 Kg
● Meas : 27 x 26 x 5 cm
23 Ventilator ICU 1 unit
Technical Specifications Ventilation modes
● Pressure CPAP, BILEVEL, SIMV, PRVC, a/c
● ASB (Assisted Spontaneous CPAP, BILEVEL, SIMV, MMV Breathing)
● ABV (Apnea Backup Ventilation) CPAP
● Additional NIV, TC, Sigh
● Manual Single breath,inspiratory/expiratory hold, ventilation pause automatic, 100% O2 for 2 minutes
Advanced
● Intelligent synchronized Manual and automatic pneumatic nebulizer
● CO2 capnography Sidestream
Ventilation settings
● Ventilation frequency/ 1 to 120 per minute ABV breath frequency
● Tidal volume/Volume limit/ 50 to 2500 mL ABV volume limit
● Minute volume 0.5 to 50 L/min
● Inspiratory flow 0 to 120 L/min ● Inspiratory pressure/ABV 5 to 90 mbar
pressure/ Pressure limit
● PEEP 0 to 50 mbar
● Inspiratory time 0.1 to 15 s
● I:E ratio / ABV I:E ratio 1:6 to 6:1 ● Inspiratory O2 concentration 21 to 100 %
● Pressure support 0 to 50 mbar
● PHIGH (BILEVEL only) 5 to 50 mbar ● THIGH (BILEVEL only) 1 to 15 s ● PLOW (BILEVEL only) 0 to 45 mbar ● TLOW (BILEVEL only) 1 to 45 s ● Upper pressure limit (PRVC only) 5 to 90 mbar ● Lower pressure limit (PRVConly ) 2 to 50 mbar
Advanced ventilation settings
● Safety pressure 40 to 100 mbar
● Apnea time 5 to 60 s
● Max. inspiratory time for 0.5 to 5 s pressure support
● Inspiratory pressure trigger -10 to -1 mbar ● Inspiratory flow trigger -0.5 to 20 L/min ● Expiratory trigger 5 to 90 % ● Cuff pressure offset 1 to 20 mbar ● Cuff minimal pressure 0 to 20 mbar ● Cuff pressure limit 1 to 90 mbar ● Nebulizer duration Manual,1 to 60 min ● Sigh offset pressure 5 to 20 mbar
● Sigh rate 1/10 to 1/200
Curves
● Pressure Inspiratory pressure and PEEP (realtime) ● Flow Inspiratory and expiratory flow(realtime) ● Volume Inspiratory and expiratory volume(realtime)
● CO2 CO2 from sidestream sensor(realtime)
Loops
● P/V Pressure / Volume loop(realtime)
● Flow/V Flow / Volume loop (realtime)
Values
● Ppeak Peak pressure
● PEEP PEEP
● Pmean Mean pressure
● Pplat Plateau pressure
● Fi Inspiratory flow
● Fe Expiratory flow
● Vi Inspiratory volume
● Ve Expiratory volume
● MVi Inspiratory minute volume
● MVe Expiratory minute volume
● f Breathing frequency
● I:E I:E ratio
● Ti Inspiratory time
● Te Expiratory time
● R Resistance
● C Compliance
● PEEPi Intrinsic PEEP
● Rsbi Rapid swallow breathing index
● O2i Inspiratory O2 concentration
● O2e Expiratory O2 concentration
● CO2i Inspiratory CO2 concentration
● CO2e Expiratory CO2 concentration
Trend
● Parameters Ppeak, PEEP, Pmean, Pplat,Flow, Vtid, MV, f, R, C, O2, CO2i, CO2e
● Time scale 6 to 96 h
Advanced alarm settings
● Limits auto Set limits according to a 30 minute trend ● Limits standard Reset limits to standard values
● Alarms off Silence alarms for 2 minutes ● Alarm list Show list of the 10 last alarms ● Alarm sound Set Alarm frequency and loudness
Additional alarms
● Apnea No spontaneous breaths within set time
● CO2 apnea No CO2 in expiration
● Battery powered Loss of mains
● Battery At 5, 10 and 15 %
● Device check necessary Information of incomplete device check ● Technical alarms Technical alarms and warnings
● Event-Log Log for 5000 entries with date and time Display and Connectors
● Screen High resolution 10.4"
TFT color display
Up to 8 curves, 3 loops and 24 values simultaneously
● Brightness Auto, dark, medium, bright
