PERFORMANCE OF OFFICE BUILDING INTEGRATED PHOTOVOLTAIC FOR WINDOWS UNDER SEMI-ARID CLIMATE IN ALGERIA
MESLOUB ABDELHAKIM
A thesis submitted in fulfilment of the requirements for the award of the degree of
Doctorate of Philosophy
Faculty of Built Environment and Surveying Universiti Teknologi Malaysia
March 2019
brought to you by CORE
View metadata, citation and similar papers at core.ac.uk
iii DEDECATION
To my beloved parents, wife, my daughter Leen, sisters and friends
iv
ACKNOWLEDGMENTS
In the Name of Allah, the Beneficent, the Merciful. First of all, I must give thanks to Allah who gave me the ability, patience and has helped me to complete this study. Peace and blessing be upon our prophet Mohammed.
I would like to express special thanks and gratitude to my supervisor Assoc. Prof. Dr. Mohd Zin bin Kandar for his guidance, patience, dedication, and encouragement during my study at UTM. I have the highest respect to Dr.Dodo Yakubu and admiration for his generous support and guidance during all stages in my PhD degree.
I would like to give further thanks to those people who supported me in carrying out this research. Especially, my beloved parents, wife, sisters and my Aunts for their support and constant encouragement to me during my study. They have always asked Allah to help me in their prayers. May Allah bless and protect them.
v ABSTRACT
Building integrated photovoltaic (BIPV) has become the most significant alternative form of renewable energy for producing clean energy and to protect the environment. In Algeria, some problems arise due to the high energy consumption levels of building sector. Large amounts of this energy are lost through the external envelope façade, because of poor window design. Therefore, this research aimed to investigate the optimum BIPV windows performance for overall energy consumption (OEC) in typical office buildings in the semi-arid climate. Field measurements on a tested office building were carried out during the spring and summer seasons for the calibration and validation of Energy-plus and Integrated Environment Solution Virtual Environment (IES-VE) software. The data was analysed and used to develop a model for (OEC) simulation. The results of the investigation from the site measurements show that the BIPV window application provides a sufficient quantity of uniform daylight with only 20% Visible Light Transmittance (VLT), plus a comfortable indoor temperature and a considerable amount of clean energy production. The base-model and nine commercially-available BIPV modules, with different Window Wall Ratio (WWR), cardinal orientation and tilt angles were applied in an extensive simulation exercise. The simulation was carried out using Energy-plus to evaluate the energy generated through simple and equivalent one-diode models. The thermal performance used the Ideal load Air System (ILAS) model. In addition to IES-VE for the assessment of visual comfort and daylighting performance, through a combination of daylight control method, Useful Daylight Illuminance (UDI) and CEI glare index (CGI) were done. The results from this study revealed that the optimum BIPV window design differentiates in each orientation; which is the double glazing PV modules (A) with medium WWR and 20% VLT in the Southern facade, 30% VLT toward the East-West axis. Meanwhile, the North orientation is not suitable the application of BIPV window. The Maximum energy saving can be obtained with a 60% toward the South orientation by double glazing PV module (D). On the other hand, the PV modules minimize significantly the glare index comparing the base-model. The result established that the energy output percentages in a 3D model can be used by architects and designers in the early stages of design. Thus, the adoption of optimum BIPV window shows a significant improvement of the overall energy saving and visual comfort to deem them as an essential application in the semi-arid climate.
vi ABSTRAK
Bangunan Fotovoltaik bersepadu (BIPV) telah menjadi alternatif yang paling penting untuk tenaga boleh diperbaharui bagi menghasilkan tenaga bersih dan juga untuk melindungi alam sekitar. Di Algeria, beberapa masalah timbul disebabkan tahap penggunaan tenaga tinggi sektor bangunan. Sejumlah besar tenaga ini hilang melalui permukaan luar bangunan disebabkan oleh reka bentuk tingkap yang lemah. Oleh itu, kajian ini bertujuan untuk mengkaji prestasi tingkap BIPV yang optimum untuk penggunaan tenaga keseluruhan (OEC) di bangunan pejabat biasa di bawah iklim separa gersang. Ukuran lapangan bagi pejabat yang diuji telah dilakukan pada musim bunga dan musim panas untuk tujuan kalibrasi dan validasi perisian Energy-plus dan Integrated Environment Solution Virtual Environment (IES-VE). Data telah dianalisis dan digunakan untuk membangunkan model untuk simulasi (OEC). Keputusan kajian dari pengukuran di tapak menunjukkan bahawa aplikasi tetingkap BIPV menyediakan kuantiti yang mencukupi dan pencahayaan siang seragam, dengan hanya 20%, Transmisi Cahaya Boleh Dilihat (VLT) ditambah dengan suhu dalaman yang selesa dan pengeluaran tenaga bersih yang banyak. Model asas dan sembilan modul BIPV yang tersedia secara komersial, dengan Nisbah Dinding Tingkap (WWR) yang berbeza, orientasi kardinal dan sudut condong digunakan untuk latihan simulasi yang menyeluruh. Simulasi dijalankan menggunakan Energy-plus untuk menilai tenaga melalui model satu-diod yang sederhana, bersamaan dengan prestasi terma menggunakan model Sistem Udara Beban Ideal (ILAS). Sebagai tambahan kepada Persekitaran Maya Penyelesaian Alam Sekitar Bersepadu (IES-VE) untuk penilaian keselesaan visual dan pencahayaan siang hari, melalui gabungan kaedah kawalan siang hari, pencahayaan siang hari yang berguna (UDI) dan CEI indeks silau (CGI), dilaksanakan daripada kajian ini mendedahkan bahawa Reka bentuk tetingkap BIPV optimum dibezakan mengikut, setiap orientasi; yang merupakan modul PV kaca berganda (A) dengan WWR sederhana dan 20% di permukaan Selatan, 30% VLT ke arah paksi Timur-Barat. Sementara itu, orientasi Utara tidak sesuai untuk penggunaan tetingkap BIPV. Penjimatan tenaga maksimum sehingga 60% bagi orientasi Selatan menggunakan PV kaca berganda (D). Modul PV meminimumkan secara ketara indeks silau berbanding dengan model asas. Hasil kajian telah menetapkan bahawa peratusan penghasilan tenaga dalam model 3D boleh digunakan oleh arkitek dan pereka pada peringkat awal rekabentuk. Justeru, penggunaan tetingkap BIPV yang optimum menunjukkan penambahbaikan yang ketara terhadap penjimatan tenaga dan keselesaan visual secara keseluruhan dan ia boleh dianggap sebagai aplikasi penting di kawasan iklim separa gersang.
vii
TABLE OF CONTENTS
CHAPTER TITLE PAGE
DECLARATION ii DEDECATION iii ACKNOWLEDGMENTS iv ABSTRACT v ABSTRAK vi TABLE OF CONTENTS vi
LIST OF TABLES xii
LIST OF FIGURES xiii
LIST OF ABBREVIATIONS xix
LIST OF APPENDICES xxi
1 INTRODUCTION 1 1.1 Background 1 1.2 Problem Statement 7 1.3 Research Gap 8 1.4 Research Aims 9 1.5 Research Objective 9 1.6 Research Questions 10
1.7 Scope of the Study 11
1.8 Significance of the Research 12
1.9 Organisation of Thesis 12
2 LITERATURE REVIEW 15
2.1 Introduction 15
2.2 Building Integrated Photovoltaic (BIPV) Technology 15
2.2.1 BIPV Definition and Concepts 16
viii
2.2.3 Design of Building-integrated photovoltaic
module 19
2.2.4 Potential value and economic development of
BIPV 21
2.2.5 Overview on Photovoltaic technology in Algeria
context 23
2.3 Building integrated Photovoltaic (BIPV) Window 27 2.3.1 Classification of BIPV window generations 27 2.3.2 Comparison between thin film and crystalline
silicon 31
2.4 Factors Influences on the Electrical Performance of
BIPV windows 32
2.4.1 Energy output Performance of tilted BIPV
window 34
2.5 Climatic condition factor effect on BIPV window
performance in Algeria context 36
2.5.1 The Solar radiation 36
2.5.2 The Sun path 39
2.5.3 The Sky Conditions 40
2.6 Architectural design factor effect on Overall energy
performance of BIPV window 43
2.6.1 The Window to wall ratio (WWR) 44
2.6.2 The BIPV window orientation 46
2.7 Research on BIPV Systems 46
2.7.1 The performance of Heat Transfer models of
BIPV window 47
2.7.2 Experimental application studies of Energy
Performance of BIPV window 49
2.8 Daylighting in office Building Design 51
2.8.1 Visual Comfort in Office 51
ix
2.8.3 Metrics for evaluating Daylighting availability
and quality in office 52
2.8.3.1WorkPlane Illuminance (WPI) 52
2.8.3.2Illuminance level 53
2.8.3.3The daylight factor 55
2.8.3.4Dynamic daylight metric (climate-based) 55
2.8.3.5Uniformity 57
2.8.3.6Related-Glare indices 57
2.8.4 Unilateral lighting mode in Algerian office 59 2.8.5 Daylighting performance of BIPV window 60
2.9 Overall Performance of BIPV Windows 62
3 Methodology 67
3.1 Introduction 67
3.2 Research framework 67
3.3 Experiment Conditions setup 69
3.3.1 Measurement Procedure 69
3.3.1.1Location, Climate Data and general
considerations 69
3.3.1.2Design Concept of common single office
building (Base-model) 71
3.3.1.3PV Module selected for the experiment 72
3.3.1.4Daylighting measurement 74
3.3.1.5Heating transfer (heat flux) measurement 77 3.3.1.6Monitoring of Electrical measurement‘s
instrument 78
3.3.2 Energy simulation software tools 80
3.4 Validation procedure 81
3.5 The building Simulation performance 83
3.5.1 BIPV modules selection for simulation 86
3.5.2 The Simulation Procedure 89
3.5.3 Energy output model simulation 90
x
3.5.5 Daylighting simulation 94
3.5.6 The optimum design of overall energy
performance 100
3.6 Summary 101
4 RESULTS AND ANALYSIS 103
4.1 Introduction 103
4.2 Results of Experiment and Validation 103
4.2.1.1Calibration of instruments result 103 4.2.1.2Energy output model results and
validation 106
4.2.1.3Thermal performance results and
validation 109
4.2.1.4Daylighting results and validation 113
4.3 Summary of the experimental result 118
4.4 Simulation results 119
4.4.1 Analysis of vertical solar radiance (Meteonorm
Data-base) 119
4.4.2 Evaluation of the energy output of different BIPV
modules 124
4.4.2.1Assessment of the energy output with
different tilted angle 125
4.4.2.2Assessment of Cell temperature of BIPV windows against energy output in
different tilt angle 130
4.4.3 Analytical Criteria for Daylight Simulation 132 4.4.3.1Daylighting and lighting energy
performance of base-model 132
4.4.3.2Daylighting and lighting energy performance of BIPV windows modules 136 4.4.4 Evaluation of Cooling and Heating energy
consumption of base-model against BIPV
xi
4.4.5 Evaluation of optimum overall energy
performance of different BIPV windows against
base-model 148
4.4.5.1Energy saving of BIPV windows modules
against base-model 160
4.5 Summary of simulation results 164
5 CONCLUSION, RECOMMENDATIONS, AND
FURTHER STUDY 167
5.1 Introduction 167
5.2 Review of Research Objectives 167
5.3 Significant findings 171
5.4 Practical Implication and Application of the Research 172
5.5 Research Limitations 172
5.6 Recommendations 173
5.7 Recommendations for Further Study 176
5.8 Review 176 5.9 Summary 177 REFERENCES 178 6 Appendix A 198 7 Appendix B 208 8 Appendix C 213 9 Appendix D 218 10 Appendix E 221 11 Appendix F 223 12 Appendix G 227 13 Appendix H 229 14 Appendix I 246
xii LIST OF TABLES
TABLE NO. TITLE PAGE
Table 2.1: summary of add value building-integrated photovoltaic, Source: (Watt, 2001)
...21
Table 2.2: Latest sub-module efficiencies measured under the global AM1.5 spectrum (1000 W/m2) at 25°C (Green, Emery, Hishikawa, Warta, & Dunlop, 2015) ...30
Table 2.3: Received sunlight per year in Algeria in relation to climatic regions, Source: (Yacef et al., 2014) ...38
Table 2.4: glare discomfort indices scale of different metrics ...58
Table 3.1: Electrical and Thermo-optical characteristics of BIPV windows used in this experiment under Standard Test Condition (STC) ...74
Table 3.3: Room index measurement points norms...76
Table 3.4: BIPV windows characteristics, for more details check the appendix A ...88
Table 3.5: description of mathematical variable used in simple model ...90
Table 3.6: simulation parameter and operation condition of thermostat set point ...94
Table 3.7: Thermal properties of external boundary of typical office building in Algeria, source: (Yassine & Lotfi, 2011) ...94
Table4.1: MBE and RMSE of daily energy output model used in the experiment ... 108
Table 4.2: Component overview (annual values) ... 125
Table 4.3: Summary of Performance Indicator Criteria for Daylight Simulation (ISO). ... 132
Table 4.4: The useful daylight illuminance of BIPV window modules with different transparency (10%, 20%, and 30%) against the base-model in cardinal orientations ... 139
Table 4.5: CIE glare index of optimum PV modules in cardinal orientation against base-model in solstice summer, winter and equinox Spring ... 159
Table 5.1: Summary of Findings in Relation to the objectives. ... 170
xiii LIST OF FIGURES
FIGURE NO. TITLE PAGE
Figure 1.1: : The amount of solar energy could be exploited, source: (IEA, 2013) ....2 Figure 1.2: The average of building‘s energy consumption shown as a percentage of national energy consumption and in relative international form, Source: (IEA online 4 Figure 1.3: Final energy consumption by sector in Algeria -Zone 2. under semi-arid climate, Source: (APRUE, 2015)...4 Figure 1.4: The Application of BIPV window technology in the world, Source: (Biyik et al., 2017) ...7 Figure2.1: example of BIPV and BAPV system installation in façade (A) and the roof (B), the BIPV presented on the left pic. Source: (A) URL:
www.onyxsolar.com/genyo-building (B)(K. Park, Kang, Kim, Yu, & Kim, 2010) .. 17 Figure 2.2: BIPV integration concepts, Source: (Laura Maturi, 2018). ... 18 Figure 2.3: The hierarchical PV Configurations and PV elements, Source: (Geoff Stapleton, 2013) ... 18 Figure 2.4: locations of a building where photovoltaic elements can be integrated into. Source: Naps Systems Oy., Photovoltaic in Buildings - a brief introduction, 2001... 19 Figure 2.5: Product categorization used throughout the product benchmark analysis Source: (Verberne et al., 2015) ... 20 Figure 2.6: Photovoltaic energy growth and (price) by sector, Source: (IEA, 2014) ... 23 Figure 2.7: R&D Institutional Framework in the REN ... 24 Figure 2.8: installed 268MW of solar in 2015, source: (Tom Kenning, 2016) URL: www.pv-tech.org/news/algeria-installed-268mw-of-solar-in-2015 ... 25 Figure 2.9: Contribution of Renewable Energy for power generation (PV system) in Algeria. ... 26
xiv
Figure 2.10: Example of first generation BIPV window module ... 28 Figure 2.11: Example of second and third generation BIPV windows module ... 29 Figure 2.12: Photovoltaic generations based on solar cell ... 29 Figure 2.13: comparison between the effect of thin film (a-si) and c-si under low light intensity and high temperature. Source: (Maurus et al., 2004) ... 32 Figure 2.14: 2D energy output plots of PV arrays according to various
angle-settingsLeft: Effect of tilt angle & orientation on total yearly energy output of PV array (east south facing)Middle: Effect of tilt angle and orientation on total yearly energy output of PV array (W,S facing)Right: Percentage of total yearly energy output of PV array at different tilt angles and orientations ... 34 Figure 2.15: The annual solar radiation data in m2 for the world in 2016 (solarGis, 2016).of a typical Campbell- Stokes sunshine recorder, Source:
solargis.info/doc/free-solar-radiation-maps-DNI ... 36 Figure 2.16: Distribution of Direct and diffuse radiance in Tebessa (Algeria) ... 38 Figure 2.17: (a) the location of Tebessa city (b) sunshine hours & solar radiance in Tebessa (Weather station in Tebessa) ... 39 Figure 2.18: Sun path of the city of Tebessa by IES-VE 2017 ... 40 Figure 2.19: Result Zoning of Daylight Availability over Algeria (Zemmouri, 2010) ... 41 Figure 2.20: Monthly Distribution of Extreme Conditions of Sky Mode (Dj-Rouag, 2001). ... 42 Figure 2.21: Window design architectural Parameters, source: (Carmody et al.,
2004)modified by researcher 43
Figure 2.22: BIPV façade at Bagatelos Architectural Glass Systems Inc,
Sacramento, CA, (Henson, 2012) ... 45 Figure 2.23: Tthe minimum Illuminance level based on International Standard ISO 8995-1:2002 (CIE 2001/ISO 2002) for visual performance in office (A) WPI
horizontal for drawing task (B) for computer ... 55 Figure 2.24: Approximate Daylighting Penetration, Source: (Robertson, 2003) ... 59 Figure 2.25: facade configurations used in the study 1. Base-case, 2. Half STPV and 3- Full STPV configuration. ... 60 Figure 3.1: Research framework ... 68
xv
Figure 3.2: The location and orientation of the case study being investigated (an office building in University of Tébessa)... 70 Figure 3.3: Annual averagetemperature of Tebessa (Algeria), source: (Meteonorm, 2010) ... 70 Figure 3.4: Climate data of Tebessa city extracted from IESVE software, version 2016... 71 Figure 3.5: Design concept of office building chosen for experiment (interior, Plan of typical floor, Exterior 3D model) ... 72 Figure 3.6: (a) Schematic design and dimension of module (b) (pin) layers
components of module (c) structure of amorphous silicon module type used for the experiment (d) PV module used in this experiment ... 73 Figure 3.7: Data logger, Position of sensor and Base-U-1 & Coupler ... 75 Figure 3.8: Grids of measurements within office building ... 76 Figure 3.9: (a) Positions for measuring heat flux and air temperature, (b) FluxTeq data reader and heat flux sensor placed on a window surface during a cold day ... 78 Figure 3.10: (A,B) system used to evaluate the maximum energy output of BIPV windows under real conditions, (C) the recording of solar charge controller (MPPT). ... 79 Figure 3.11: Typical floor 3d model for Validation ... 82 Figure 3.12: Summary of validation procedure of this study ... 83 Figure 3.13: 3D base model office building used for of daylighting validation
sketchup 2015. ... 84 Figure 3.14: Proposed model for evaluation the energy output of BIPV windows in different tilt angle and cardinal, intermediate orientations (Geometric A) ... 85 Figure 3.15: Proposed 3D model for optimization simulation stage (Geometric B) . 86 Figure 3.16: BIPV windows modules types used for the simulations ... 88 Figure 3.17: A schematic diagram of the simulation methodology ... 89 Figure 3.18: schematic design of Equivalent one diode model ... 91 Figure 3.19: schedule overview heating and cooling (HVAC) system (open-studio) ... 93 Figure 3.20: Placement of the sensor on the centre of references office ... 96 Figure 3.21: Daily Profile schedule of light control in (IESVE, 2016) ... 96
xvi
Figure 3.22: possible cases of lighting controls vs Illuminance level (a) lower than minimum level of illuminance (b) higher than targeted illuminance level (c) both cases in one day. ... 98 Figure 3.23: Example of minimum Day-lit zone of (10% WWR) ... 99 Figure 3.24: flowchart explains the part of determination the optimum BIPV
window design. ... 101 Figure 4.1: (a) amount of Global Horizontal Irradiance (GHI), (b) Calibration of two sensors PHFS-01type in term of (surface cell temperature) (c) Calibration of four HOBO light meters in term of (Air temperature) used in the experiment ... 104 Figure 4.2: (a) comparison of Outdoor temperature in measurement and TMY used in simulation,(b) shelter wooden box design used to measure external air temperature ... 105 Figure 4.3: (a) Comparison between Monitoring data and simulated model of PV module through the mockup model: monthly accumulated data of energy output, (b) relationship between solar radiance and energy output in May (spring season). ... 107 Figure 4.4: hourly Global and diffuse radiance of tilt angle 90 degree of Eastern façade ... 107 Figure 4.5: Comparison of measured and simulated daily energy output of BIPV window in East-Southeast facade under semi-arid clime Algeria, Tebessa ... 108 Figure 4.6: Hourly heat gain/loss measurement data in spring and summer season compare with simulated data. ... 109 Figure 4.7: Validation of measured indoor air temperature and simulation by using Energy-plus in summer season (1st to 15th June) ... 110 Figure 4.8: Indoor air temperature of tested office during (a) spring season (b) summer season ... 111 Figure 4.9: Measurement of Surface cell temperature of BIPV module during (a) spring season (1 may to 20 may) (b) summer season (1july to 14july) ... 112 Figure4.10: Total clouds cover distribution in Tebessa city (May2017), source: Meteoblue website ... 114 Figure 4.11: Comparaison between level of illuminance at references points (A1, A2, B1, B2) and simulation ... 114
xvii
Figure 4.12: The light meter reference (A2) exposed to direct sunlight at 8am, morning period ... 115 Figure 4.13: Uniformity of test office under clear and overcast sky ... 116 Figure 4.14: Comparaison between measured global outdoor illuminance and
simulation (IES-VE,2016) ... 117 Figure 4.15: (a) yearly global horizontal & diffuse radiance (b) Seasonally global and diffuse tilted 90o radiance in different orientations (E, N, W, and S) ... 121 Figure 4.16: Comparison between (GHI) and (DHI) with tilted 90 vertical solar irradiance in different orientation ... 123 Figure 4.17: (a) Energy output of different PV modules with various conversion efficiency from 2.8% to 8% (b) Energy output performance in cardinal orientation (c) Monthly Distribution of energy output PV module with conversion efficiency n=4 ... 124 Figure 4.18: Annual energy output of BIPV window on vertical façade according to different orientation ... 126 Figure 4.19: Annual energy output affected by different tilt angle on the southern façade ... 127 Figure 4.20: percentage of BIPV windows energy output performance based on tilt angle and orientations under semi-arid region in Algeria ... 128 Figure 4.21: The area of potential BIPV used (Roof, opaque, windows) ... 129 Figure 4.22: effect of the cell temperature against energy output with different tilt angle in design days: 21thjune, 21thdecember and 21th September ... 131 Figure 4.23: Annual lighting energy consumption of based-model in cardinal
orientations ... 133 Figure 4.24: hourly and means of (WPI) level with cardinal orientation of base-model throughout the year... 134 Figure 4.25: Lighting energy consumption by using different VLT of PV modules in cardinal orientations (a) East, (b) West, (c) South (d) North, respectively ... 138 Figure 4.26: Annual cooling energy consumption of BIPV modules against base-model ... 144 Figure 4.27: annual heating energy consumption of BIPV modules against base-model ... 146
xviii
Figure 4.28: Monthly distribution of heating and cooling energy consumption of base-model with WWR30% ... 147 Figure 4.29: Overall energy performance and visual comfort of the PV modules achieve the optimum design in the Southern Façade ... 152 Figure 4.30: Overall energy performance and visual comfort of the PV modules achieve the optimum design in the Northern Façade ... 154 Figure 4.31 : Overall energy performance and visual comfort of the PV modules achieve the optimum design in the Eastern Façade ... 156 Figure 4.32 : Overall energy performance and visual comfort of PV module achieve the optimum design in the East Façade ... 156 Figure 4.33 : Overall energy performance and visual comfort of the PV modules achieve the optimum design in the Western Façade ... 158 Figure 4.34: the maximum percentage of Energy saving of BIPV modules compared with base-model in cardinal orientations (A) South (B) East (C) North (D) West respectively ... 162 Figure 4.35: the optimum WWR of PV modules and base-model in cardinal
orientation and its energy saving against optimum base-model. ... 163 Figure 5.1: The optimum design of a BIPV window (WWR, VLT, conversion efficiency) according to each of the cardinal orientation of an office building with vertical facades. ... 174 Figure 5.2: 3D model guideline of the energy output percentages obtained from various tilt angles and (A) Southern hemisphere orientations (B) Northern
xix
LIST OF ABBREVIATIONS
BIPV - Building Integrated Photovoltaic BAPV - Building Added Photovoltaic IEA - International Energy Agency
APRUE - Agency for the Promotion and Rational Use of Energy CREDEG - Electricity & Gas R&D Center
UDTS - Unit for the development of silicium technology CDER - Centre for Renewable Energy Development UDES - Unit for Developing Solar Equipment
NEAL - New Energy Algeria Company Specialized in Development of Renewable Energy
OEC - Overall Energy Consumption STC - Standard Test Condition UDI - Useful Daylight Illuminance
DA - Daylight Autonomy
Lux - Unit of illuminance
CEI - Commission International d‘eclairage
W - Watt
kWh - Kilo-watt Hour
IES-VE - Integrated Environment Solution Virtual Environment
FC - Foot-Candle
Ei - Exterior illuminance ii - interior illuminance
m - meter
ȵ - Efficiency of Module
Pmax - Max power
Vpm - Max power Voltage
Ipm - Max power Current
WWR - Windows Wall Ratio
WPI - Work Plane Illuminance
DF - Daylight Factor
VLT - Visible Light Transmittance SHGC - Solar Heat Gain Coefficient
N - North S - South E - East W - West S-E - South-east S-W - South-west N-E - North-east N-W - North-west
MBE - Mean Bias Error
CVRMSE - Coefficient Variation of Root Means Square Error GHI - Global Horizontal Irradiance
xx DHI - Direct Horizontal Irradiance
CGI - CEI Glare Index
GVCP - Guth Visual comfort possibility DGI - Daylight Glare Index
URG - Unified Glare index DGP - Daylight Glare Index
CdTe - Cadmium Telluride
Mu-Si - Micro-morph Silicon a-Si - Amorphous silicon
CIGS - Copper Indium gallium diselendide OPV - Organic Photovoltaic
DSSCs - Dye sensitised solar cells m-Si - Mono-crystalline
STPV - Semi-transparent Photovoltaic PV-IGU - Photovoltaic insulated glass unit PV-DFS - Photovoltaic Double skin facade NEB - Net Electricity Benefit
xxi
LIST OF APPENDICES
APPENDIX TITLE PAGE
A Data sheet of BIPV modules used in (1) Experiment (2) Simulations from manufactories
198
B The daily and monthly calculation of MBE & RMSE of Energy output direct current by usage of MPPT
208
C Set-up of experiment measurements in tested office building in Tebessa
213
D Algerian Solar Maps show: (1) PV power potential (2) Global Horizontal Irradiance (3) Direct Normal irradiance from (1994–2015) according to solar resource data: Solargis
218
E Monthly Distribution of (Global &Diffuse) Horizontal Solar radiance
221
F Improvement of Means CEI Glare Index evaluation of (A) base-model against (B) optimum PV modules designs
223
G Daily-Peak Illuminance level of base-model in cardinal orientation with WWR20%
227
H Overall energy performance of different PV modules balanced (cooling/heating energy consumption, lighting energy consumption and energy output with the percentage of UDI
229
I Yearly basis of Absolut Work plan illuminance of different PV modules used in the simulation
1 CHAPTER 1
1 INTRODUCTION
1.1 Background
Sustainable developments in the field of architecture are turning out to be increasingly vital which requires the utilization of renewable energy and the reduction of energy consumption. The effect of global warming is the result of pollutant emissions from both traditional and conventional energy resources which takes account of the reduction of fossil fuel, intensification of oil consumption and the increment in the energy demand (Stoppato, 2008). These concerns have led to the emergence of significant development of renewable energy industries. Several studies show that this new sector played a vital role and many countries such as Algeria have taken measures to ensure sustainability of the utilization of global alternative energy resources (Hui, 1997; A Boudghene Stambouli, Khiat, Flazi, & Kitamura, 2012).
According to International Energy Agency (IEA) world council, solar energy is natural and a clean energy source as the current availability of the energy surpasses the annual energy demand by 400 times, whereas its potential surpasses the demand by 10,000 times. The sun will provide roughly limitless energy for the next 4-5 billion years (IEA, 2013) as shown in the Figure1.1. Hepbasli (2008) stated that solar energy resource such as photovoltaic is commonly used along with the leading technologies such as geothermal, biomass and hydroelectric energy. According to the Renewable Energy Policy Network for the 21st Century (REN21), there has been a noticeable growth by 55% in the utilization of photovoltaic (PV) as it is considered to be the most substantial
2
energy resources available. In addition, study by Zahedi (2006) found that it is expected that solar PV electric‘s capacity worldwide shown to incline tremendously by 2030 from 1,000 MW in 2000 to 140,000 MW. By 2040, the renewable electric energy may possibly become adequate to support the base load and half of the global electricity energy demand claimed by the European Renewable Energy Council (Teske, Zervos, & Schäfer, 2007). Further, studies shows that the amount of solar electricity produced surpasses the global need as projected by the solar pyramid in the case of the Algerian Sahara with 50% of the space, 10% of the system energy efficiency and 14% PV module coverage (A Boudghene Stambouli et al., 2012).
Figure 1.1: : The amount of solar energy could be exploited, source: (IEA, 2013)
In this decade, the ability to fully utilize renewable energy innovation in building as well as environmental sustainability is the main topic for human societies around the planet. Many researchers such as (Huijts, Molin, & Steg, 2012; Rogers, Simmons, Convery, & Weatherall, 2008; Vlek & Steg, 2007; Wüstenhagen, Wolsink, & Bürer, 2007) stated that quality is taken into account of all countries in short and long term of
3
natural resources, sustainable development and in addition to the technology used to designate economic, social, and environmental dimensions of our upcoming survival. According to Intissar Fakir (2016), low oil prices affects immensely on Algeria‘s finances and energy use leaving the economy at struggle in 2016. Alternatively, Algeria is interested to supplant fossil fuels and natural Gas with renewable energy resources. However, , it is a challenge for the government to promote renewable energy to minimize the utilization of energy in buildings as it is a new sector in the country (Himri, Malik, Stambouli, Himri, & Draoui, 2009; A Boudghene Stambouli et al., 2012).
Across all nations, the sector of energy consumption in buildings alone consumes around 20% to 60% of the overall account that is used by all sectors, and an average of about 31% worldwide. Algeria, a standout amongst the most nations on the planet‘s energy utilization assessed 42% more than the average by more than 10% as shown in the figure 1.2. However, according to latest statistic of the Algerian agency for the promotion and rational use of energy (APRUE) in 2015, this percentage varies from zone to others, the Zone 2 and 7 represent the context of this study (Semi-arid climate) include Tebessa city. Subsequently, Figure 1.3 shows the final energy consumption by 35% in transport sector, 16% industrial sector, 6% agricultural sector and 45% residential & office building sector as shown in Figure.1.3. The utilization creates 25% of the national CO2 outflow as these measurements are liable to ascend over the later because of the developing interest for convenience in building sector (Sotehi, Chaker, Benamra, & Ramoul, 2015b). This major consumption level warrants a point by point comprehension of the building sector's consumption elements to formulate and guide the sector‘s energy consumption in the attainment to stimulate efficiency, conservation, technology implementation and energy source substituting such as to on-site renewable energy.
4
Figure 1.2: The average of building‘s energy consumption shown as a percentage of
national energy consumption and in relative international form, Source: (IEA online
Figure 1.3: Final energy consumption by sector in Algeria -Zone 2. under semi-arid climate, Source: (APRUE, 2015).
5
The building sector is the largest consumer of energy, with a share of almost 50% of the entire energy consumption for all types of buildings, according to experts at Bayer, the German company that facilitated a meeting on the topic of energy efficiency on 29 May 2012 (the German-Algerian Chamber of Commerce). Approximately, 60% to 80% of this energy is lost. Up to 60% of the energy loss is attributed to air-conditioning and heating acquired through external envelopes (openings, roofs, walls and grounds). This percentage is in line with a recent study carried out by Missoum and Draoui in (2016). According to an APRUE report in 2013, the demand for electricity in Algeria has been increasing at a normal rate of 9.5% over the past five years, with 42% of the energy consumption being accounted for by residential and offices buildings, where 58% of the energy is from gas and 61% from electricity. According to studies by Bélaïd and Abderrahmani in (2013), electricity production is estimated to double in the next decade in order to maintain the economic growth and demographic expansion. On the other hand, a vital portion of the energy consumption in the building sector is marked by a solid annual growth rate of 6.28%, thereby making it necessary to consider energy saving measures (Ferhat & Boutrahi, 2014).
From another perspective, a study showed that there are no building regulations or any recommendations for daylighting and window-to-wall ratios (WWR) for public buildings. Thus, poor window designs and the absence of regulations in Algeria will lead to higher energy consumption (A. Belakehal, 2014). However, electric lighting now makes up 25% of the total energy consumption, making it one of the main consumers of electricity in buildings (Amirat & El Hassar, 2005).
There are concerns about the incorporation of PV on buildings, as the experience of various disadvantages has prevented the building sector from understanding the capability of this advancement in Algeria‘s building envelope. The main problems blocking improvements in solar technology have been identified as being in relation to financial issues, the extremely high cost of equipment and the time taken for returns on the capital invested for such innovations. In addition, householders are not interested in
6
enhancing their energy efficiency by installing building-integrated photovoltaics (BIPV) in their homes to keep energy costs low. According to (Maafi, 2000; Semache, Hamidat, & Benchatti), and the APRUE report (2010), PV power is used for rural electrification, pumping, telecommunication repeaters, refrigeration and ventilation. The report published in APRUE (2010) by the European Commission on the 6th framework program on research uncovered the deficiency of the policy regarding building-integrated PVs, while construction grants for both public and private buildings do not include any regulations with regard to the utilization of energy by buildings in this country. The awareness and doubts of households with regard to the installation of photovoltaics in residential buildings also need to be considered. In addition, studies by (Chaurey & Kandpal, 2010; Haw, Sopian, & Sulaiman, 2009) have stated that these are some of the fundamental limitations that need more attention in most countries as with other concerns arising from limitations in the system design (Heinstein, Ballif, & Perret-Aebi, 2013). In particular, these new technologies, such as BIPV systems (Goh, Goh, Yap, Masrom, & Mohamed, 2017; R. J. Yang & Zou, 2016), which can substitute historical building elements and can achieve additional purposes needed for the building‘s envelope (Maturi, 2013). Lately, it has been popular to produce electrical energy from windows and glass (Li, Lam, Chan, & Mak, 2009). This has been made possible by employing photovoltaic (PV) panels combined within windows. Such technology is created to aid several functions. In addition to the basic task of generating electricity, the multiple-use of BIPV window indicates that it is able to give glare protection and reduce heat gain and loss to save energy (Attoye, Tabet Aoul, & Hassan, 2017). However, there are insufficient researches and analyses in this domain, thereby making the development of this technology an urgent task in Algeria.
7 1.2 Problem Statement
In Algeria, the energy consumption levels for buildings are very high. A large amount of this energy is lost through the external envelope façade of buildings (claddings, openings), while energy demands for both heating and cooling are high in summer and winter respectively due to the nature of the Algerian climate. Since mid-rise buildings (4-11story) are the dominant typology in Algeria (Senouci et al., 2012), it has been suggested that window glazing should play a significant role as a building material, for which BIPV windows can be an alternative.
It has been noticed that literature exhibited a significant lack of BIPV windows energy support and performance in Algerian building sector (Maafi, 2000; A Boudghene Stambouli et al., 2012). Besides, the integration of BIPV windows into the façade of mid-rise buildings instead of conventional windows is almost non-existent as shown in figure 1.4, even though Algeria has an enormous potential in solar energy in addition to an obvious drop in PV prices in the market over the last few years.

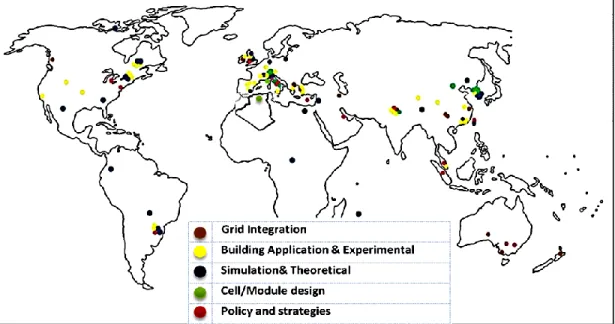

Figure 1.4: The Application of BIPV window technology in the world, Source: (Biyik et al., 2017)
8
The on-going research into energy consumption in the building sector in Algeria is mainly concentrated on several areas including the output efficiency of PV plants that are connected to an installed grid. This application was implemented on the site of the Centre for Development of Renewable Energy in Bouzaréah (Algiers) (Cherfaa et al.). This technology is considered to be the first of its kind in Algeria. In addition, the research has also been focused on minimising energy consumption by utilizing thermal insulation technology. The most common application is the usage of adobe (mud bricks) building material. Other techniques that have been given extensive importance in researches and practical applications in Algeria are the application of BIPVT systems (Sotehi, Chaker, Benamra, & Ramoul, 2015a) and the manipulation of the orientation of the building or natural ventilation in summer to obtain optimum performance (Hacene & Sari, 2013; Zemmouri & Schiler, 2005).
For all the reasons mentioned above, this research attempted to make use of the enormous solar energy potential of Algeria by utilizing the BIPV windows technology. This aim was accomplished by investigating the optimum performance of BIPV windows as an alternative solution for minimizing energy consumption in the building sector. The outcome of this research, if implemented, will positively impact energy savings for the occupants and beneficiaries of office buildings, as they comprise the most common category of energy consumers.
1.3 Research Gap
Architectural practices in Algeria generally do not keep pace with the use of the aspects of sustainability and technology to reduce energy in the building sector. Based on the literature and the observations of this researcher as an architect, the use of renewable solar energy panels in buildings is limited, except for those installed on the roofs of a few houses. The installation of BIPV windows in the vertical façade of
mid-9
rise buildings is completely scarce even though the use of BIPV windows is linked with the huge vertical façade areas compared to roof areas. The solar radiation supplied by the vertical installations might not be at a maximum, but the energy savings could be compensated by the use of a huge façade such as in mid-rise and high-rise buildings. The majority of the studies that focused on the overall energy performance of BIPV windows targeted the climate of Asian countries, while no study has been performed in countries with a similar climate to Algeria. Consequently, in order to fill the gap, this research targeted the overall energy performance of BIPV windows in relation to the WWR, and the orientation and tilt angles in terms of four factors: visual comfort with energy output, utilization of day lighting, and heat gain and loss to achieve the optimum performance of a BIPV window façade in a semi-arid climate.
1.4 Research Aims
This research was aimed in determining the optimum performance of BIPV windows in a typical office building while maximizing daylighting and minimizing the heat gain/ heat loss into the interior in order to obtain a visually comfortable internal micro climate and energy savings in a semi-arid climate.
1.5 Research Objective
1. To investigate a level of the overall energy (Energy output, Heat gain/loss and Daylighting) of BIPV windows performance of a typical office building under Semi-arid climate in Algeria.
2. To evaluate the performance of different BIPV windows types based on (conversion Efficiency, visible Transparency, Solar Heat gain Coefficient
10
SHGC and U-value) orientations, Window to Wall Ratio (WWR) for assessment of overall energy use.
a. To determine the optimum tilt angle design of BIPV window in term of energy output.
b. To compare the overall energy performance of base-model with different BIPV window modules
3. To recommend an optimum design model of BIPV windows in cardinal orientations to improve energy saving and visual comfort in Algeria.
1.6 Research Questions
After reviewing the past literature, and in line with the above-mentioned objectives, this study will seek answers to the following research questions:
1. What are the influences of applying BIPV windows technology on overall energy performance under a Semi-arid climate of Algeria?
2. Does modifying the configuration of BIPV windows design (Orientations, types of PV, WWR) affect reducing the quantity of energy output?
3. What is the optimum tilt angle to maximise the energy output?
4. What is the optimum WWR and orientation of BIPV windows modules according to Algeria climate in the office buildings in view to optimise day lighting and maximise energy output?
5. Is it possible that the use of BIPV window as an alternative to conventional window could lead to zero energy saving?
11 1.7 Scope of the Study
The scope of this study covered the following points:
i. Building sector, including residential and public buildings, which is comprised of different activities such as for tourism (hotels, restaurants), education, health, administration, offices (financial institutions and other private services). However, this study focused on office buildings.
ii. Office building structures contain many spaces such as individual or open offices, laboratories, meeting rooms, and conference rooms. An individual office was chosen for this study because it is considered to be the most important element in an office building; however, a computer used as (electrical equipment) always has constant energy consumption for all scenarios.
iii. This study focused on second-generation PV modules (thin film technology) that are available in the market rather than on first-generation modules (silicon wafer-based technology).
iv. Algeria is a large country with four different climatic zones. The overall energy performance analysis of this study was limited to the Haut-plateau region of Algeria, where the majority of the offices are concentrated (the region is located between latitudes 34°-36° and is within a semi-arid climate zone).
v. This study focused on the effect on the overall energy performance of a BIPV window installed on the vertical façade rather than on the roof area of a building mainly because the roof area is relatively small compared to the external façade of a high-rise and mid-rise building. Furthermore, a large portion of the roof area is usually occupied by various building service installations such as water tanks, chillers, cooling towers, a lift machine room, etc.
vi. The EnergyPlus and IES-VE (Integration Environment Solution Virtual Environment) simulation software were chosen from several simulation software, including Design-builder, Ecotec, Velux, and Revit. Energy-Plus was chosen for its ability to simulate the BIPV window application accurately and to provide all the necessary details. At the same time, IES-VE was selected for its
12
many properties and its accurate annual calculation of daylight through the WPI data, useful daylight illuminates and glare index metrics, and diminished light control (IES, 1993; IES-VE. 2006;(CF Reinhart & Breton, 2009).
1.8 Significance of the Research
There is no specific design of BIPV window in Algerian office buildings in relation to its orientation, sunlight permissible in office, and visual comfort of occupant through regulations to achieve the maximum energy saving and environmental needs. The Authorities of Algeria has not put in place a proper design procedure for office building energy consumption and visual comfort for users. Therefore, this research aims to generate significant information to serve as a platform for overall energy performance requirements for office building design. Subsequently, the requirements would form a basis for future overall energy and visual comfort recommendations for Algerian office building design.
1.9 Organisation of Thesis
Chapter Two reviews the state-of-the-art BIPV technology in the world and, particularly, in Algeria. This is followed by an explanation on the concept of the BIPV window and its classification and design. Furthermore, this chapter presents the electrical, climatic and architectural factors that influence the performance of the BIPV window technology. In addition, it reviews the experimental applications and heat transfer model of the BIPV window. It also provides an explanation of the visual comfort in offices and the metrics used to evaluate the quantity and quality of day lighting using the BIPV window. Furthermore, this chapter presents the performance of
13
the BIPV window within an office building. It concludes with an examination of the relevant researches on this topic.
Chapter Three explains the research methodology, which is a combination of two methods. The first consists of a site visitation and experimental measurements in a selected Algerian office building, followed by computer simulations using EnergyPlus and IES-VE Integrated Environment Solution Virtual Environment.
Chapter Four presents the results of the field measurements in a tested office in Tebessa during critical time periods, and compares these results with the international standard. This chapter also presents the results from a simulated overall energy model of a base model and different BIPV window modules in the office in order to determine the maximum energy saved and to meet the criteria of visual comfort.
Chapter Five reviews the research objectives highlighted in Chapter one and examines the impact of the findings revealed through the outlined objectives. The practical implications and recommendations are highlighted, and the limitations of the study are discussed, with suggestions offered for further research.
178 REFERENCES
A. Belakehal, A. B. a. K. A. (2014). Office Buildings Daylighting Design in Hot Arid Regions: Forms, Codes and Occupants‘ Point of View. International Engineering Conference on Hot Arid Regions (IECHAR 2010).
Abdeladim, K., Bouchakour, S., Arab, A. H., Cherfa, F., Chouder, A., & Kerkouche, K. Contribution for assessment and mapping in Algeria using appropriate models Abdelhakeem, M., Aminu, D. Y., & Kandar, M. Z. (2015). Investigating use of daylight
in a typical algerian public classroom typology. JURNAL TEKNOLOGI, 77(15), 21-30.
Alexandri, E., Papastefanakis, D., & Damasiotis, M. (2008). Integration of solar technologies into buildings in Mediterranean communities. Centre for Renewable Energy Sources, Athens.
Alonso-Garcia, M., Ruiz, J., & Chenlo, F. (2006). Experimental study of mismatch and shading effects in the I–V characteristic of a photovoltaic module. Solar Energy Materials and Solar Cells, 90(3), 329-340.
Amar, H.-A. (2015). Quantification of solar radiation in Algeria, application to the sizing of photovoltaic systems. Université de Tlemcen.
Amirat, M., & El Hassar, S. (2005). Economies d'energie dans le secteur de l'habitat consommation electrique des ménages: Cas d'un foyer algérien typique en période d'hiver. Revue des énergies renouvelables, 8(1), 27-37.
Andenæs, E., Jelle, B. P., Ramlo, K., Kolås, T., Selj, J., & Foss, S. E. (2018). The influence of snow and ice coverage on the energy generation from photovoltaic solar cells. Solar Energy, 159, 318-328.
Andersen, D., & Foldbjerg, R. (2012). Daylight, Energy and Indoor Climate–Basic Book. Editorial team: Daylight Energy and Indoor Climate (DEIC), VELUX A/S.
Anderson, A.-L., Chen, S., Romero, L., Top, I., & Binions, R. (2016). Thin films for advanced glazing applications. Buildings, 6(3), 37.
179
APRUE. (2010). International Exhibition of Renewable Energy and Energy Management. Algeria: The National Agency for the Promotion and Rationalization of the Use of Energy Retrieved from http://www.aprue.org.dz/publications.html.
APRUE. (2015). Regional energy situation. Retrieved 10-9-2018, from The National Agency for the Promotion and Rationalization of the Use of Energy http://www.aprue.org.dz/publications.html
Aries, M. B., Veitch, J. A., & Newsham, G. R. (2010). Windows, view, and office characteristics predict physical and psychological discomfort. Journal of Environmental Psychology, 30(4), 533-541.
Aristizabal, A., & Gordillo, G. (2008). Performance monitoring results of the first grid-connected BIPV system in Colombia. Renewable Energy, 33(11), 2475-2484. Attoye, D. E., Tabet Aoul, K. A., & Hassan, A. (2017). A Review on Building
Integrated Photovoltaic Façade Customization Potentials. Sustainability, 9(12), 2287.
Barman, S., Chowdhury, A., Mathur, S., & Mathur, J. (2018). Assessment of the efficiency of window integrated CdTe based semi-transparent photovoltaic module. Sustainable Cities and Society, 37, 250-262.
Basak, O. D., & Sazak, B. S. (2013). Effect of developments on a PV system efficiency. Paper presented at the Electrical and Electronics Engineering (ISEEE), 2013 4th International Symposium on.
Bayrak, F., Ertürk, G., & Oztop, H. F. (2017). Effects of partial shading on energy and exergy efficiencies for photovoltaic panels. Journal of cleaner production, 164, 58-69.
Bélaïd, F., & Abderrahmani, F. (2013). Electricity consumption and economic growth in Algeria: A multivariate causality analysis in the presence of structural change. Energy Policy, 55, 286-295.
Bellia, L., Cesarano, A., Iuliano, G. F., & Spada, G. (2008). Daylight glare: a review of discomfort indexes.
Bellini, E. (2017). Aurés Solaire commissions Algeria‘s second module factory. PV magazine.
180
Bellini, E. (2018). Engie, Sonatrach officialize partnership for solar and renewables. PV magazine.
Bendel, C. (2003). Multifunktionale Nutzung photovoltaischer Anlagen. Photovoltaik– Neue Horizonte, 76.
Biyik, E., Araz, M., Hepbasli, A., Shahrestani, M., Yao, R., Shao, L., . . . Rico, E. (2017). A key review of building integrated photovoltaic (BIPV) systems. Engineering science and technology, an international journal, 20(3), 833-858. Cantin, F., & Dubois, M.-C. (2011). Daylighting metrics based on illuminance,
distribution, glare and directivity. Lighting Research & Technology, 43(3), 291-307.
Carlos, J. S., & Corvacho, H. (2015). Evaluation of the performance indices of a ventilated double window through experimental and analytical procedures: SHGC-values. Energy and Buildings, 86, 886-897.
Carlucci, S., Causone, F., De Rosa, F., & Pagliano, L. (2015). A review of indices for assessing visual comfort with a view to their use in optimization processes to support building integrated design. Renewable and Sustainable Energy Reviews, 47, 1016-1033.
CDER. (2016). Photovoltaic solar energy Division Retrieved 03-28-2016, 2016, from http://www.cder.dz/spip.php?rubrique213
Chaurey, A., & Kandpal, T. C. (2010). Assessment and evaluation of PV based decentralized rural electrification: An overview. Renewable and Sustainable Energy Reviews, 14(8), 2266-2278.
Chegaar, M., & Chibani, A. (2001). Global solar radiation estimation in Algeria. Energy conversion and management, 42(8), 967-973.
Chen, F., Wittkopf, S. K., Ng, P. K., & Du, H. (2012). Solar heat gain coefficient measurement of semi-transparent photovoltaic modules with indoor calorimetric hot box and solar simulator. Energy and Buildings, 53, 74-84.
Chen, W., Shen, H., & Liu, Y. (2009). Performance evaluation of PV arrays at different tilt angles and orientations in BIPV. Taiyangneng Xuebao. Acta Energiae Solaris Sinica, 30, 206-210.
181
Cherfaa, F., Araba, A. H., Oussaidb, R., Abdeladima, K., Bouchakoura, S., & Kerkouchea, K. Performance evaluation of the first grid connected PV system in Algeria. Paper presented at the 28th European Photovoltaic Solar Energy Conference and Exhibition. Paris.
Chiang, C.-M., & Lai, C.-M. (2002). A study on the comprehensive indicator of indoor environment assessment for occupants‘ health in Taiwan. Building and Environment, 37(4), 387-392.
Commission, C. o. t. E. (2010). Directive 2010/31/EU of the European Parliament and of the council of 19 May 2010 on the energy performance of buildings. Off. J. Eur. Union L, 153, 13-35.
Cornaro, C., Basciano, G., Puggioni, V. A., & Pierro, M. (2017). Energy saving assessment of semi-transparent photovoltaic modules integrated into NZEB. Buildings, 7(1), 9.
Corporation, O. C. (2009). HOBO Pendant,Temperature/Light Data Logger: Specifications and Light measurement
Retrieved 01-03-2015 www.onsetcomp.com
Crawley, D. B., Hand, J. W., Kummert, M., & Griffith, B. T. (2008). Contrasting the capabilities of building energy performance simulation programs. Building and Environment, 43(4), 661-673.
Cuce, E. (2016). Toward multi-functional PV glazing technologies in low/zero carbon buildings: Heat insulation solar glass–Latest developments and future prospects. Renewable and Sustainable Energy Reviews, 60, 1286-1301.
De Carli, M., De Giuli, V., & Zecchin, R. (2008). Review on visual comfort in office buildings and influence of daylight in productivity. Paper presented at the 11th International Conference Indoor Air, Copenhagen.
Didoné, E. L., & Wagner, A. (2013). Semi-transparent PV windows: a study for office buildings in Brazil. Energy and Buildings, 67, 136-142.
Dinçer, İ., Midilli, A., & Kucuk, H. (2014). Progress in Sustainable Energy Technologies: Generating Renewable Energy (Vol. 1): Springer.
182
Djalel, D., & Moatezbillah, G. (2014). Optimal Exploitation of a Solar Power System for a Semi-Arid Zone (Case Study: Ferkène, Algeria). International Journal of Renewable Energy Research (IJRER), 4(2), 389-400.
Djamel, Z., & Noureddine, Z. (2017). The Impact of Window Configuration on the Overall Building Energy Consumption under Specific Climate Conditions.
Energy Procedia, 115, 162-172. doi:
https://doi.org/10.1016/j.egypro.2017.05.016
Dubey, S., Sarvaiya, J. N., & Seshadri, B. (2013). Temperature dependent photovoltaic (PV) efficiency and its effect on PV production in the world–a review. Energy Procedia, 33, 311-321.
Duffie, J. A., & Beckman, W. A. (2013). Solar engineering of thermal processes: John Wiley & Sons.
Eiffert, P., & Kiss, G. J. (2000). Building-integrated photovoltaic designs for commercial and institutional structures: a sourcebook for architects: DIANE Publishing.
Ellis, P. G., Torcellini, P. A., & Crawley, D. B. (2008). Energy Design Plugin: An EnergyPlus Plugin for SketchUp; Preprint: National Renewable Energy Lab.(NREL), Golden, CO (United States).
Falk, A., Durschner, C., & Remmers, K.-H. (2013). Photovoltaics for professionals: solar electric systems marketing, design and installation: Routledge.
Fedail, H. H. A. (2015). Design and Implementation of a Microcontroller–Based Solar Panel Tracking System. Sudan University of Science and Technology.
Ferhat, S., & Boutrahi, M. (2014). The Residential Built Heritage Of Algiers And Its Energy Behaviour: Case Study Of The Building Number 3 Flats Of The Aero-habitat District. WIT Transactions on Ecology and the Environment, 186, 39-53. Fesharaki, V. J., Dehghani, M., Fesharaki, J. J., & Tavasoli, H. (2011). The effect of temperature on photovoltaic cell efficiency. Paper presented at the Proceedings of the 1stInternational Conference on Emerging Trends in Energy Conservation– ETEC, Tehran, Iran.
Flodberg, K., Blomsterberg, Å., & Dubois, M.-C. (2012). Low-energy office buildings using existing technology: simulations with low internal heat gains. International Journal of Energy and Environmental Engineering, 3(1), 19.
183
Fung, T. Y., & Yang, H. (2008). Study on thermal performance of semi-transparent building-integrated photovoltaic glazings. Energy and Buildings, 40(3), 341-350. Gairaa, K., & Bakelli, Y. (2013). Solar energy potential assessment in the Algerian south
area: case of Ghardaïa region. Journal of Renewable Energy, 2013.
Gassim, O. A. O. (2015). Improvement of Performance of Conjugated Polymer Solar Cells Coated. Sudan University of Science and Technology.
Geoff Stapleton, S. N., Geoff Milne (2013). Photovoltaic systems. Retrieved 9/2/2018 http://www.yourhome.gov.au
Ghezloun, A., Oucher, N., & Chergui, S. (2012). Energy policy in the context of sustainable development: Case of Algeria and Tunisia. Energy Procedia, 18, 53-60.
Goel, S., Rosenberg, M. I., & Eley, C. (2017). ANSI/ASHRAE/IES Standard 90.1-2016 Performance Rating Method Reference Manual: Pacific Northwest National Lab.(PNNL), Richland, WA (United States).
Goh, K. C., Goh, H. H., Yap, A. B. K., Masrom, M. A. N., & Mohamed, S. (2017). Barriers and drivers of Malaysian BIPV application: Perspective of developers. Procedia Eng, 180, 1585-1595.
Green, M. A. (2003). Crystalline and thin-film silicon solar cells: state of the art and future potential. Solar Energy, 74(3), 181-192.
Green, M. A., Emery, K., Hishikawa, Y., Warta, W., & Dunlop, E. D. (2015). Solar cell efficiency tables (Version 45). Progress in Photovoltaics: Research and applications, 23(1), 1-9.
Griffith, B. T., & Ellis, P. G. (2004). Photovoltaic and Solar Thermal Modeling with the EnergyPlus Calculation Engine: Preprint: National Renewable Energy Lab., Golden, CO (US).
Grynning, S., Gustavsen, A., Time, B., & Jelle, B. P. (2013). Windows in the buildings of tomorrow: Energy losers or energy gainers? Energy and Buildings, 61, 185-192.
Gulagi, A. (2015). Characterization and Investigation on Material Compatibilities of Building Integrated Photovoltaic Module Components.
184
Hacene, M. E. A. B., & Sari, N. E. C. (2013). Algerian Strategy in the Context of Sustainable Development: The Case of Green Building. Int. J. of Thermal & Environmental Engineering, 6(1), 1-6.
Hachem, C., Fazio, P., & Athienitis, A. (2013). Solar optimized residential neighborhoods: Evaluation and design methodology. Solar Energy, 95, 42-64. Hamakawa, Y. (2013). Thin-film solar cells: next generation photovoltaics and its
applications (Vol. 13): Springer Science & Business Media.
Hammad, B., Al–Abed, M., Al–Ghandoor, A., Al–Sardeah, A., & Al–Bashir, A. (2017). Modeling and analysis of dust and temperature effects on photovoltaic systems‘ performance and optimal cleaning frequency: Jordan case study. Renewable and Sustainable Energy Reviews.
Han, J., Lu, L., Peng, J., & Yang, H. (2013). Performance of ventilated double-sided PV façade compared with conventional clear glass façade. Energy and Buildings, 56, 204-209.
Han, J., Lu, L., & Yang, H. (2009). Thermal behavior of a novel type see-through glazing system with integrated PV cells. Building and Environment, 44(10), 2129-2136.
Haselbach, L. (2008). The engineering guide to LEED-new construction: sustainable construction for engineers: McGraw-Hill.
Haw, L., Sopian, K., & Sulaiman, Y. (2009). Public response to residential building integrated photovoltaic system (BIPV) in Kuala Lumpur urban area. Paper presented at the Proceedings of the 4th IASME/WSEAS International Conference on Energy and Environment, Cambridge, UK.
Haysom, J. E., Hinzer, K., & Wright, D. (2016). Impact of electricity tariffs on optimal orientation of photovoltaic modules. Progress in Photovoltaics: Research and applications, 24(2), 253-260.
He, W., Zhang, Y., Sun, W., Hou, J., Jiang, Q., & Ji, J. (2011). Experimental and numerical investigation on the performance of amorphous silicon photovoltaics window in East China. Building and Environment, 46(2), 363-369.
Heinstein, P., Ballif, C., & Perret-Aebi, L.-E. (2013). Building integrated photovoltaics (BIPV): review, potentials, barriers and myths. Green, 3(2), 125-156.
185
Hensen, J. L., & Lamberts, R. (2012). Building performance simulation for design and operation: Routledge.
Henson, J. W. C. (2012). BIPV FAÇADES RECONSIDERED: MID-RISE AND HIGH RISE APPLICATIONS. Paper presented at the Building Enclosure Science & Technology (BEST3) Conference.
Hepbasli, A. (2008). A key review on exergetic analysis and assessment of renewable energy resources for a sustainable future. Renewable and Sustainable Energy Reviews, 12(3), 593-661.
Himri, Y., Malik, A. S., Stambouli, A. B., Himri, S., & Draoui, B. (2009). Review and use of the Algerian renewable energy for sustainable development. Renewable and Sustainable Energy Reviews, 13(6), 1584-1591.
Hui, S. C. (1997). From renewable energy to sustainability: the challenge for Hong Kong. Hong Kong Institution of Engineers, 351-358.
Huijts, N. M., Molin, E., & Steg, L. (2012). Psychological factors influencing sustainable energy technology acceptance: A review-based comprehensive framework. Renewable and Sustainable Energy Reviews, 16(1), 525-531.
Husnaina, I., Mushtaqa, W., & Khana, Z. S. (2016). Comparison of thin film versus crystalline PV modules for utility-scale electric power production in Pakistan. Ibarra, D., & Reinhart, C. F. (2009). Daylight factor simulations–how close do
simulation beginners ‗really‘get? Paper presented at the Building simulation. IEA. (2013). World Energy Resources Survey. 468. www.worldenergy.org
Ihm, P., Nemri, A., & Krarti, M. (2009). Estimation of lighting energy savings from daylighting. Building and Environment, 44(3), 509-514.
Index, G. B., & Malaysia, G. (2013). Green Building Index: Retrieved.
Infield, D., Eicker, U., Fux, V., Mei, L., & Schumacher, J. (2006). A simplified approach to thermal performance calculation for building integrated mechanically ventilated PV facades. Building and Environment, 41(7), 893-901. Intissar Fakir, D. g.-y. (2016). Running Low: Algeria‘s Fiscal Challenges and
Implications for Stability. http://carnegie-mec.org/2016/02/11/running-low-algeria-s-fiscal-challenges-and-implications-for-stability/itu8
186
ISO, I. (2002). 8995-1: 2002 (CIE S 008/E: 2001). Lighting of indoor work places. Geneva: ISO Organización Internacional de Normalización.
Jakubiec, J., & Reinhart, C. (2011). DIVA-FOR-RHINO 2.0: Environmental parametric modeling in Rhinoceros/Grasshopper using RADIANCE, Daysim and EnergyPlus. Paper presented at the Conference proceedings of building simulation.
Jarić, M., Budimir, N., Pejanovic, M., & Svetel, I. (2013). A review of energy analysis simulation tools.
Kacira, M., Simsek, M., Babur, Y., & Demirkol, S. (2004). Determining optimum tilt angles and orientations of photovoltaic panels in Sanliurfa, Turkey. Renewable Energy, 29(8), 1265-1275.
Kapsis, K., & Athienitis, A. K. (2011). Building integrated semi-transparent photovoltaics: energy and daylighting performance. Paper presented at the Photonics North 2011.
Kapsis, K., Dermardiros, V., & Athienitis, A. (2015). Daylight performance of perimeter office façades utilizing semi-transparent photovoltaic windows: a simulation study. Energy Procedia, 78, 334-339.
Kazem, H. A., Chaichan, M. T., Alwaeli, A. H., & Mani, K. (2017). Effect of Shadows on the Performance of Solar Photovoltaic, Cham.
Khatib, T., Kazem, H., Sopian, K., Buttinger, F., Elmenreich, W., & Albusaidi, A. S. (2013). Effect of dust deposition on the performance of multi-crystalline photovoltaic modules based on experimental measurements. International Journal of Renewable Energy Research (IJRER), 3(4), 850-853.
Kibria, M. T., Ahammed, A., Sony, S., Hossain, F., & Islam, S. (2014). A Review: Comparative studies on different generation solar cells technology. Paper presented at the Proc. of 5th International Conference on Environmental Aspects of Bangladesh.
Krarti, M., Erickson, P. M., & Hillman, T. C. (2005). A simplified method to estimate energy savings of artificial lighting use from daylighting. Building and Environment, 40(6), 747-754.
