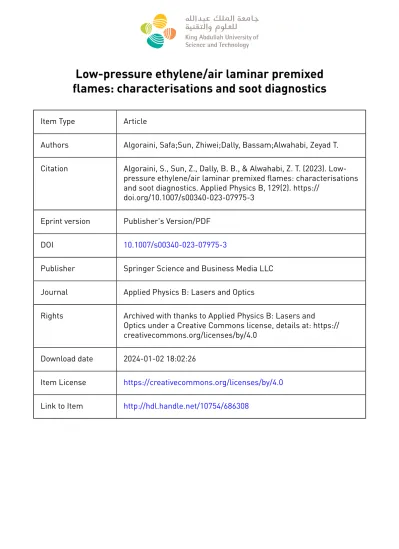

Low-pressure ethylene/air laminar premixed flames: characterisations and soot diagnostics
Item Type Article
Authors Algoraini, Safa;Sun, Zhiwei;Dally, Bassam;Alwahabi, Zeyad T.
Citation Algoraini, S., Sun, Z., Dally, B. B., & Alwahabi, Z. T. (2023). Low- pressure ethylene/air laminar premixed flames: characterisations and soot diagnostics. Applied Physics B, 129(2). https://
doi.org/10.1007/s00340-023-07975-3 Eprint version Publisher's Version/PDF
DOI 10.1007/s00340-023-07975-3
Publisher Springer Science and Business Media LLC Journal Applied Physics B: Lasers and Optics
Rights Archived with thanks to Applied Physics B: Lasers and
Optics under a Creative Commons license, details at: https://
creativecommons.org/licenses/by/4.0 Download date 2024-01-02 18:02:26
Item License https://creativecommons.org/licenses/by/4.0
Link to Item http://hdl.handle.net/10754/686308
RESEARCH
Low‑pressure ethylene/air laminar premixed flames: characterisations and soot diagnostics
Safa Algoraini1 · Zhiwei Sun2 · Bassam B. Dally3 · Zeyad T. Alwahabi1
Received: 9 November 2022 / Accepted: 11 January 2023 / Published online: 21 January 2023
© Crown 2023
Abstract
In this work, the structure of laminar premixed ethylene/air flat flames at low pressure are studied experimentally. The aim of the work is to exploit the spatial expansion of laminar 1D flames and advanced laser techniques to better understand the conditions and precursors affecting soot particles inception. Soot volume fraction (fv) profiles were measured using laser- induced incandescence (LII), while spatial distribution of the CH* and C2* radicals was measured using spatially resolved emission spectroscopy. Spatially resolved laser-induced fluorescence has been used to record emission from 2–3 rings, 3–4 rings and > 5 rings. The temperature of soot particles (Ts) was evaluated through fitting the spectrally resolved soot luminosity, while flame gaseous temperature (Tg) was measured using a fine thermocouple. The laminar flow velocity was modeled and used to evaluate the reaction time at each HAB. Taking advantage of the expanded flame structure at low pressure, the profiles of CH*, C2*, soot and temperatures, as a function of the height above the burner, were well resolved. It was found that CH* and C2* chemiluminescence overlap in space. The thickness of CH* layer is larger than that of C2*, and it peaks at slightly different location, CH* appears approximately 1 mm before C2*. The distance between the two peaks decreases linearly with the increase in pressure. The lowest value of the initial soot volume fraction (fv) was 0.19 ppb, measured at pressure 27 kPa.
It was found that fv scales with the pressure following a power function of the form fv α Prn, where n is 2.15 ± 0.7. It was observed that, in all the flames investigated, the initial soot particles first appear at a common critical inception temperature, Tinception, of 1465 ± 66 K. It was found that the Tinception is lower than the maximum flame temperature, Tmax, by ~ 45° and appeared ~ 1 mm further than the location of Tmax. Using the Lagrangian quantity dfv/dt and fv, it was possible to reveal the soot growth rate, kSG. At pressure of 27 kPa, the value of kSG was evaluated as 20 s−1.
Keywords Soot · Laminar flames · PAH · Temperature · Optical diagnostics · Low pressure
1 Introduction
Soot formation and destruction in hydrocarbon flames have been under investigation for a considerable time [1]. Under- standing soot evolution in flames requires knowledge of many interdependent and spatially correlated parameters that impact on both the chemical and physical processes
and those contribute to the formation, fragmentation and oxidation of soot particulates. Measuring and corelating the controlling parameters with local soot evolution under sim- pler laminar conditions, e.g., laminar premixed flat flames, have been the focus of many studies in the past [2, 3].
The complexity of the soot formation process stems from the fact that many of the steps happen at broad temporal rate and are affected by a number of factors including, tem- perature, pressure, strain rate and fuel type. For example, the ratio of carbon to other elements within a hydrocarbon fuel has major impact on soot propensity, so does pressure which has a strong effect on the fuel pyrolysis and nucleation process, which in turn affects the rate of soot formation and oxidation in a flame [4]. Soot formation under atmospheric pressures has many practical applications such as in heat- ing furnaces, boilers and kilns. Research into these flames with conditions emulating those in industrial systems have
* Zeyad T. Alwahabi
1 School of Chemical Engineering, The University of Adelaide, Adelaide, SA 5005, Australia
2 School of Mechanical Engineering, The University of Adelaide, Adelaide, SA 5005, Australia
3 Clean Combustion Research Center, King Abdullah University of Science and Technology, Thuwal 23955-6900, Saudi Arabia
been ongoing for decades [5]. Nonetheless, understand- ing soot formation mechanisms at high pressure is also of great interest especially in engines and gas turbines. The introduction of optical diagnostic techniques provides sig- nificant advantages over physical sampling methods under such conditions. Optical diagnostic techniques provide high spatial and temporal resolutions, which are important for confined flames under high pressure and turbulent condi- tions [5–7]. The in situ soots diagnostic methods, and the need of new tools to probe soot chemistry, has been covered by Michelsen 2017. [8]
The major processes of soot formation, including forma- tion of gas phase soot precursors, soot inception and surface reactions, and particle–particle interactions have been out- lined in the review by Wang et al. 2019 and the references within [9]. The soot morphology in high-pressure co-flow laminar diffusion methane flames has been recently inves- tigated by Li et al. 2022. It was concluded that the maturity and oxidation resistance of soot particles increased with elevated pressure [10].
Nonetheless, many studies have focused on the effect of pressure on the structure and formation of soot in laminar premixed [11–15] and non-premixed [1, 16–23] flame condi- tions using a variety of fuels. Such flames are easier to sta- bilize and measure, especially that the effect and complexity of turbulence is eliminated and solely focus on the effect of pressure. The investigation of soot particles in turbulent flames have attracted wide attention due to their practical applicability. For example, Mulla et al. demonstrated simul- taneous imaging of soot volume fraction and qualitative LIF of PAH and OH radicals in turbulent n-heptane spray flames.
It was found there is no strong instantaneous correlations between soots-PAH, due to different chemical timescales of soot and the imaged smaller-PAH [24].
Despite the valuable contributions these studies have pro- vided, the underlying understandings of soot inception and growth with respect to pressure is still limited [25, 26]. The findings from these studies all agree that soot concentration increases with increase in pressure. They reported the main effect of pressure on soot formation is taken as the increase in soot formation with a proportionality degree of Pn, where 1 ≥ n ≥ 3, (fv = kPn) in pressure range from 1 to 70 bar.
Low-pressure conditions provide good opportunity to investigate the soot formation process, as flame thickness and soot zone expand. This provides improvement in the spatial resolution and can benefit investigating of the soot inception conditions and enables the measurements of soots’
growth rates. Most of the published studies have been con- ducted using laminar flames and utilized laser-induced fluorescence (LIF) and laser-induced Incandescence (LII) in several premixed (CH4/O2/N2) flames at low-pressure environment [11, 27–29]. A significantly high value of n, namely 11, for low-pressure CH4/O2/N2 flames has been
reported [11]. These studies concluded that pressure expo- nent n increases significantly with the increase in the level of aromatics in the fuel. For example, the n value is found to be 1.6, 2.9 and 5.3 or benzene, naphthalene, pyrene, respectively.
There has been enormous research volume directed into the soot particles formation; however, the goal of complete understanding is yet to be reached. It is not trivial compar- ing the data from the literature due to the use of different fuels, different flow conditions in the presentence of phase changing process. To introduce a common focal points and standard flames, two dedicated international workshops have been established, namely, the international sooting flames workshop and the international workshop on laser-induced incandescence. The work in this paper utilized the targeted C2H4/ Air premixed flame, at a desirable phi = 2.1 stochio- metric ratio. Low-pressure conditions were chosen to access the regions needed to measure the surface growth, which, to the best of the authors’ knowledge, has not been reported previously in this targeted flame.
The specific aims of this work are to investigate the effect of pressure on soot volume fraction and evaluate the depend- ence of the pressure exponent n on pressure. The distance between the flame front and the location of the first detected soot particles is determined by recording the location of the CH* and C2* radicals. The qualitative PAH LIF and the gas temperature are used for further understanding the soot’s inception conditions. Finally, the transition between soot inception and surface growth have been investigated to revel the soot’s surface growth.
2 Experimental apparatus
Flat ethylene/air premixed flames were stabilized on a water- cooled McKenna burner, which consists of a porous plate with a diameter of 60 mm. A steel plate of 80 mm in diam- eter was employed at a height of 25 mm above the burner surface to stabilize the flames. Mixture of ethylene and air was supplied through the central porous plate with a total flow rate of 5 Liters per minute (L/min) and an equivalence ratio (Φ) of 2.1. Nitrogen was used as co-flow to shield the flames from surrounding air. All gas flows were controlled using mass flow controllers (Bronkhorst).
The McKenna burner was fixed onto an electrically con- trolled traverse and housed in a stainless-steel low-pressure apparatus with a total volume of 39.8 L and four optically accessible windows, as shown in Fig. 1. The traverse has a resolution better than 0.1 mm. To achieve measurements at different heights along the flame centreline, the burner was traversed vertically with a spatial resolution of 0.5 mm. The chamber was pumped down using a vacuum pump (Edwards, EDM12). The Pressure was measured using a Baratron
(MKS, 122AA-0100AB) with an accuracy of ± 0. 2 kPa. To achieve this accuracy, an electronic pressure regulator and controlling system (Equilibar, QPV 1) was installed in the exhaust gas pipeline. This provides excellent pressure stabil- ity and kept the chamber pressure constant with a variation of 0.66 kPa. A Nikon camera model (D7100), with micro lens, was used to record the flames’ appearance.
The gas temperature, Tg, was measured using a 75-μm-diameter uncoated Pt/Pt-R thermocouple (Omega).
The measured values were corrected based on the heat radia- tion loss method, Shaddix [30]. The fine wire thermocouple was selected to minimize conductivity and radiation effects and other catalytic effects at the junction.
In the spatially resolved emission spectroscopy, the flame emission was imaged on the end of an optical
fiber (Thorlabs, BFL200HS02) using two spherical lens, L1 and L2, as shown in Fig. 2 with focusing lengths of f1 = 300 mm and f2 = 250 mm. The fiber end was traversed vertically along the image of the flame centreline, thus collecting signals at different heights of the flame. The core diameter of the fiber is 0.2 mm and the position of the fiber end were controlled with an accuracy of ± 0.5 mm.
The other end of the fiber was coupled into the slit of a spectrometer (Andor, Shamrock 500i) installed with a 150 lines/mm grating and an ICCD camera for signals record.
The relative spectral response of this detection system was calibrated with a stabilize broad-band tungsten light source (Thorlabs, SLS201L). Then, the recorded spectra had been corrected for the relative spectral response of the detection system.
Fig. 1 Low-pressure combus- tion apparatus
Fig. 2 Experimental setup, where L1 and L2 repre- sent lenses (f = 300 mm and f = 250 mm, respectively); OF is an optical fiber
In the Laser-Induced Incandesces (LII) setup, the fun- damental output (1064 nm and ~ 8 ns in duration) from a Nd:YAG laser (Surelite II) was used as an excitation source to heat up soot particles. The laser beam transmitted a half- wave plate and a Glen-laser polarizer, through which the laser power was varied. Then, the round laser beam was reformed into a horizontal laser sheet using a cylindrical lens (f = 750 mm). Within the detection volume on the cen- terline of the flames, the horizontally oriented laser sheet has a thickness of 1 mm and a width of 5 mm in the signal- viewing direction, which is perpendicular to the laser propa- gation direction. A laser fluence of 1.3 J/cm2 was used in all measurements, unless otherwise stated. LII signal, in the spectral region < 900 nm was collected using an intensified CCD camera (ICCD) and a short pass filter. The ICCD was set to operate at gate delay and gate width of 120 ns and 50 ns, respectively.
In the PAH Laser-induced fluorescence (LIF) measure- ments, the fourth harmonic (266 nm) of a 10 Hz pulsed Nd:YAG laser (Quantel, Q Smart) was used as laser source.
The incident laser energy was kept at 23.3 mJ cm–2 per pulse to minimize possible interference from any LII signal from laser-heated soot particles. The laser beam was transmitted via a half-wave plate and a Glen-laser polarizer, through which the laser power was varied. The round laser beam was then reformed into a horizontal laser sheet using three cylindrical lenses. The LIF signal was collected at right angles to the laser propagation by a 100 mm focal lens. The lens was positioned so that the fluorescence is coupled to an optical fiber. The other end of the fiber was connected to a spectrometer (Andor, Shamrock 500i) equip with a 150 lines mm–1 grating. The fiber was fixed at the same position, while the burner was traversed vertically to obtain PAH LIF along different HABs. In this way, the incident laser energy is kept almost constant as the HAB changes. An ICCD (Andor, iStar) camera was connected to the spectrometer to record the LIF signals. The delay time and the gate width
of the ICCD was set to zero and 30 ns, respectively. It was necessary to use a short gate width to avoid any contribu- tion from possible LII signal of soot. To deal with minor flame fluctuation, the measurement was repeated 200 times to reach a reasonable average.
3 Results and discussion
To achieve stable low-pressure flames at Ф = 2.1, the flow rates for the C2H4, air and N2 co-flow were kept at 0.64 Lmin−1, 4.35 Lmin−1, and 1 Lmin−1, respectively. The total flow rate was 5 Lmin−1. It was found, by experiment, that the flame becomes unsustainable when the pressure was reduced below 27 kPa. The photos of stable C2H4/air flames, at dif- ferent pressures, down to 27 kPa, are shown in Fig. 3.
To record the temperature profile, the thermocouple was fixed at one location and the burner was traversed vertically.
The error from the thermocouple measurements was ± 75 K.
Typical recorded data for a pressure of 46 kPa, along with the correction parameters including velocity, viscos- ity, and thermal conductivity of the gas mixture, are listed in (Appendix 1_ Table 1), The velocity of the flow was simulated through a CFD model using the Ansys-Fluent software package, version 18.0. The viscosity and thermal conductivity of the gas mixture were calculated using the Chapman–Enskog theory and the relation of Wassiljwa [31], respectively. The viscosity was computed using Sutherland's formula [32] based on the Model of thermophysical param- eters [33].
Figure 4 displays the corrected temperature profiles. All profiles show an almost linear increase of temperature in then preheat zone extending from 1 to 6 mm before a broad flame front from 6 to 10 mm and a steady decline up to 20 mm.
Typical spatially resolved emission spectra are shown in Fig. 5. At heights from 0 to 23 mm above the burner
Fig. 3 Photographs of flat, rich premixed laminar flames at dif- ferent pressures with Ф = 2.1
surface with an increasing step of 1 mm, at each height 200 spectra were collected and averaged. Considering the con- figuration of the optical collection system, it is found that only the measurements below 3.2 mm were minorly influ- enced by the blocking edge of the burner by about 12%.
Furthermore, flames images (Fig. 3) collected using a digital camera show no clear blue emission below 3 mm. In the hydrocarbon flame emission, the strong CH* (0,0) in from (A2Δ −X3∏
) system is noticeable at 431.5 nm partly over- lapped by C2 emission at 436 nm, where the C∗2 emission reported by swan bands (d3∏
g−a3∏
u) are clearly detected at 436 nm, 472 nm and 517 nm [34]. The intensity of CH* and C∗2 was determined by integrating the peak in the range (418–431) nm and (500–525) nm, respectively.
For the case with pressure of 48 kPa, the CH* radi- cals started to form at a height of 2 mm HAB, while the C2*radicals appeared at 3 mm HAB. The peaks of CH* and C2* increased from 3 to 5 mm HAB. The position of van- ishing C∗2 was determined when the value of the peak of C∗2 was drop to 71% of the maximum value, However, The C2* emission profile disappeared at 6 mm HAB, while the CH* emission can be still seen at this location. The CH* emission
0 5 10 15 20
HAB (mm) 0
300 600 900 1200 1500 1800
T (K)
48 kPa 46 kPa 40 kPa 38 kPa 35 kPa 32 kPa 27 kPa
Fig. 4 Corrected temperature axial profiles for flames with different pressures and HAB with Φ = 2.1
Fig. 5 Spatially resolved emission spectra for ϕ = 2.1 and pressure of 32 kPa at HAB = 4 mm (a) and HAB = 8 mm and (b)
decreased until it disappeared at 9 mm HAB. At 4 mm HAB, the emission of soot increased in intensity until 10 mm HAB from where it starts to decrease until the signal disappeared at 19 mm. At 32 kPa, the CH* radical appears at a height of 2 mm HAB, while the C2* started to form at 3 mm HAB.
The signal intensifies by 4 mm, and the peak increases until a height of 6 mm HAB. At a height of 6 mm HAB, a soot emission was also observed, in addition to emission from CH* and C2* radicals. The emission from C2* vanishes at 8 mm HAB, and only emission from CH* and soot were recorded at this height. The peak of CH* diminishes once a height of 11 mm is reached, where at this height we can see only the emission of the soot profile. The soot emission starts to decrease from 12 mm and disappears at 17 mm.
The emission from CH* and C2* nearly overlaps with each other at atmospheric pressure, while the separation between them can be seen in the reduced pressure flames, particularly for pressure less than 40 kPa. It is also interesting to observe a clear separation between the C2* and CH* layers at reduced pressures.
At the lowest pressure case, 27 kPa, the peak of the emission of C2* appears later than that of CH*, at distance of ~ 0.6 mm. Moreover, the vertical distance between the two peaks decreasing linearly with increasing pressure with a slope of 25 × 10–9 ± 0.062 × 10–9 (mPa–1) indicating that the distance will approach zero at 53 kPa.
To extract the temperature of soot particles, the spatially resolved emission spectra recorded were used. It was nec- essary to remove the intensity data near the CH* and the C2* emission peaks, namely 431 nm, 436 nm, 472 nm and 517 nm. The recorded emission spectra were calibrated based of the detector response to a broad-band tungsten light source (Thorlabs, SLS201L). To obtain the soot temperature, it was assumed the soot’s emission can be approximated by blackbody radiation. A MATLAB function, Fit Blackbody Equation to Spectrum version 1.0.0.0 was used [34]. The function iterates to fit to the experimentally recoded spectra
to yield the temperature, based on the best fit to the recoded data.
Figure 6 shows the measured Tg and Ts profiles. They show a slight difference between gas temperature and par- ticles temperature at the height where the maximum tem- perature is found axially, particularly for the 48 kPa flame.
This difference may be due to soot condensation on the ther- mocouple junction or the uncertainty of spectral properties of soot particles used to derive the temperature from the line-of-sight signals of soot luminosity. Nevertheless, the measured Tg agrees well and are fairly consistent with previ- ous results [35, 36].
The LII signal was recoded at different HAB for flames with a pressure range of 48 to 27 kPa. A calibration process was performed to convert the recorded LII signals to soot volume fraction fv, between which a linear relationship exists [37]. A laser extinction measurement was carried out in a steady ethylene/air premixed sooting flame with equivalence ratio of 2.1. The flame was stabilized on the same McKenna burner at atmospheric pressure. A continuous laser beam at 1064 nm was used for the extension measurements. The mean soot volume fraction fv can then be calculated using the equation:
where I/Io is the ratio of transmitted laser radiation to the incident, l is the laser wavelength and L is the optical path.
The quantity 6𝜋E(m) represents the dimensionless extinc- tion coefficient, Ke. The value of E(m) depends on the kind of soot, T and the laser wavelength [38]. The value of E(m) was set 0.265, as a reasonable choice for C2H4/Air premixed laminar flames, which results of Ke to be 5.01.
Figure 7 presents fv at different HAB for the different low-pressure flames investigated It is observed that the Soot volume fraction increases with HAB and that increasing the pressure has a significant enhancing effect on soot formation.
(1) fv= − 𝜆
6𝜋E(m)Lln (I
I0
) ,
0 10 20
HAB (mm) 0
300 600 900 1200 1500 1800
T (K)
a
TGa s TS oot
0 10 20
HAB (mm) b
0 10 20
HAB (mm) c
Fig. 6 Axial profiles of gas and soot temperatures measured in three flames with a P = 48 kPa, b P = 35 kPa and c P = 27 kPa
A rapid increase in soot volume fraction starts at HAB of approximately 8–10 mm, where C2* and CH* emissions fade away.
Figure 8a present the soot volume fractions measured at HAB = 7 mm for the seven different pressure cases. A power fitting of the form fv = k Prn, where n is scaling
factor, revels that n = 2.15. The exponential factor, n, slightly increases with HAB, as shown in Fig. 8b, reveal- ing a weak dependence on the height above the burner surface. This slight increase in the exponential factor may also be attributed to the influence of the stabilizer plate at
Fig. 7 Axial profiles of soot volume fractions under different reduced pressures
0 5 10 15 20 25
HAB (mm) 10-3
10-2
f v(ppm)
48 kPa 46 kPa 40 kPa 38 kPa 35 kPa 32 kPa 27 kPa
Fig. 8 (a) Measured soot volume fraction (circles) measured at HAB = 7 mm for the different flames, and an exponential fit curve (dashed line) with a factor of n = 2.15, (b) the exponential factors fitted at different heights of the flames
HAB = 25 mm, which can influence the flow fields when the flames’ propagate to the stagnation plate.
Figure 9 presents a summary of the values of the expo- nential factor n, including the value measured in the pre- sent work and those reported previously. The dependence of soot formation on pressure had been widely studied in pressure elevated flames, while the work performed in low-pressure flames is relatively rare. Interestingly, from Fig. 9 one can observe that the values of n are similar for different range of pressures and for different fuels inves- tigated and found to in the range of 2–3.4. For N2-diluted C2H4 with co-flow laminar diffusion flames under high- pressure ranges, the exponent n was estimated as 1.8, when using CH4, CH4–air, C2H4 or C2H4–air. For C6H6–air, the pressure exponent value n was estimated as 2.0 for high- pressure ranges [13, 14, 18, 20, 39]. Karataş and Gülder [16] employed a circular co-flow burner type using an Abel-type inversion approach on a co-flow laminar dif- fusion flame type in their study on C2H4 flames diluted with N2 at pressures ranging between 0 and 20 bar; they
estimated the exponent n to be 2.8. In [17, 19], pressure scaling was reported at the maximum volume fraction of the integrated soot with an exponent of n = 3.4 estimated for laminar diffusion n-heptane and co-flow laminar dif- fusion propane–air flames from 1 to 3 bar. Similarly, and also in accordance with the experimental results reported here, variation in the pressure exponential function of the soot volume fraction is very high when the experiment is conducted at low pressure. This was previously reported by Desgroux et al. who subjected CH4/N2/O2 at low pres- sure (20–28 kPa) at 30 mm HAB, as Our measured value is consistent with the previously reported vales at higher pressure and ~ 5 times lower than the value measure reported by Desgroux et al. for CH4/N2/O2 low-pressure flames [11], as illustrated in Fig. 9.
Figure 10 presents a typical of PAH LIF spectra for a pressure of 40 kPa and at different HAB. The emission wavelength of PAHs increases along with an increase in aro- matic ring size; hence, in several previous studies, the detec- tion wavelength was varied to distinguish the relative size
Fig. 9 Comparison of the value of n obtained from this work with previous results. CH4/O/N [11], N2-diluted C2H4 [23]
C7H16/air [17, 40], CH4/air [18, 20, 41], C3H8/ air [19], C6H6/ air and C2H4 /air [1, 13–16, 21, 22, 39]. the * indicates the measured value in this study
Fig. 10 PAH LIF spectra for Φ = 2.1 and pressure of 40 kPa at HAB = 1 mm (red), 4 mm (blue) and 14 mm (black)
groups of PAHs. Three detection wavelength bands were used to distinguish three kinds of PAHs [42, 43].
PAH LIF signal in the range 320–360 nm is due to 2–3-membered PAHs. Signals in the wavelength range 370–410 nm indicate the presence of 4-aromatic-ring-mem- bered species. PAH LIF signals above 500 nm indicate the presence of PAHs with 5-membered ring structures, where the individual rings consist of five carbon atoms. Hence, PAH LIF signals of 500–550 are indicative of the presence of 5-membered PAHs. The signal strengths roughly indicate the concentration of the corresponding PAHs. The currently used LIF technique can only measure PAH concentrations in a qualitative manner, and it is still a big challenge to cali- brate the PAH mole fractions from LIF signals measured in flames [44]. It is worth noting that LIF from liquid-like condense species and form PAH attached to soot surfaces may also contribute to the recorded LIF [45, 46].
Figure 11 a, b shows the PAH LIF over HAB (1–16 mm) at pressures of 40 kPa and 27 kPa, respectively, through three wavelengths range, 320–360 nm, 370–410 nm and 500–550 nm. From Fig. 11a with pressure 40 kPa, the wavelength range of 500–550 nm resulted in lower PAH LIF at low HAB than other wavelengths range, but PAH LIF increased after HAB = 12 mm and was higher than other wavelengths range. However, in the results shown in Fig. 11b, where pressure was 27 kPa, the wavelength range of 500–550 nm produced lower PAH LIF than did other wavelengths range over all values of HAB, and the wave- length range of 370–410 nm produced higher values of PAH LIF than did other wavelengths range for all values of HAB, but it decreased along HAB.
From Fig. 11a, b, the peak spatial distributions of (2–3R) PAH LIF were followed by the peak spatial dis- tributions of (3–4R) PAH LIF with a difference of 1 mm HAB at both pressure settings. The peak intensity of (3–4R) PAH LIF was greater than (2-3R) PAH LIF at pressure of 27 kPa, where the peaks were close to each other at pressure 40 kPa. The spatial distribution of > 5R PAH LIF signals started to form when the (2-3R) PAH LIF signals reached their peak. These peaks are coincided with the location of maximum of intensity of C2*. How- ever, it is hard to determine the peak spatial distribution of > 5R PAHs LIF signal, as the signal kept increasing inside the soot growth region which indicated soot and PAHs formation. However, The PAH LIF signal in the range 500–550 nm is strongly influenced by LII signal generated form the 266 nm laser radiation. Therefore, the PAH LIF for (R > 5) was not used further in the analysis.
In both pressure setting, the soot signal started to rise after 1 mm the (2–3R) PAH LIF reached the peak intensity. The figure shows a negative relation in which the consump- tion of (3–4R) PAH LIF might be correlated with the soot onset. Such relationship is consistent with the findings reported at low pressure by Betrancourt et al. [47]. They reported, using butane/oxygen/nitrogen flames, that soot signal started at 1 mm after pyrene reached its peak inten- sity. In another study at atmosphere pressure, the onset of small PAHs when using an ethylene air flame was near the surface of the burner. The signal from the small aromatic species reaches a local maximum then the signal started to raise. After this, the signal of the large PAH starts to rise and continue to increase over the distance of measurement.
The trend of soot volume fraction follows the large PAH.
Fig. 11 Axial profiles of three PAH LIF ranges corresponding to 2–3R, 3–4R and 35R at different pressures; (a) 40 kPa and (b) 27 kPa
However, the onset of soot was located after the onset of both small aromatic species and large PAH around 2 mm [48].
Figure 12 summarizes the values of flame temperature for soot emergence, revealing a critical inception temperature, Tinception, of 1465 ± 66 K and that the value of critical incep- tion temperature from soot formation slightly decreases with the pressure.
To obtain reaction time scale, the velocity field of the flame was modeled by Computational Fluid Dynamics CFD, using the Ansys-Fluent software package, version 18.0. The CFD simulation model was the approach chosen to predict the velocity profile. However, the CFD model should be tested to ensure accurate and precise simulated results. To validate the model, the velocity profile was measured by a hot wire in a cold flow. The simulated profile was compared to the measured values, where the error margin is found to be better than 15%.
The total reaction time at each height above burner level, t(HAB), was calculated using Eq. 2, below:
where t(HAB = i) is the total reaction time at location HAB = i and dtHAB=i is the local reaction time at location HAB = i.
(2) t(HAB=i) = (
HAB = i
∑
HAB = 0
dtHAB = i),
The local reaction time (dtHAB=i) was calculated based on Eq. 3, below:
where xHAB=i+1—xHAB=i is the distance between loca- tion xHAB=i+1 and xHAB=i, which equals to 1 mm, and vHAB=i is the velocity at location HAB = i. The time origin was set at the location where the first soot particles were detected.
Soot formation involves various physical and chemical mechanisms and reactions; however, soot particles nuclea- tion and inception is the most important process in soot formation. This particularly because ~ 85% of the total car- bon produced as a result of surface growth rather than soot inception. Models were developed and experiments were performed to define the rate of particle surface growth.
Early models were based on the assumption that particle surface growth rate is dependent on either the surface area of the soot particle or the soot volume fraction.
Figure 13 presents reveal the spatial relationships among the parameters measured at the lowest pressure, 27 kPa. The spatial distributions include, T, CH* and C2*, chemilumines- cence, (2–3R) and (3–4) PAH LIF, fv, and dfv/dt.
It is observed that the first detectable soot particles coincide with the location of maximum C2* emission. Soot (3) dtHAB = i = xHAB = i + 1−xHAB = i
vHAB = i ,
Fig. 12 Temperature of first soot inception, as measured by the thermocouple, at Φ = 2.1, the datum at pressure 101 kPa was obtained from Saito et al.
[49]
20 30 40 50 60 70 80 90 100
Pressure (kPa) 0
300 600 900 1200 1500 1800
T (K)
particles are evidently formed within the descent region of the radical emissions, forming an overlap region of the radicals with soot. Above this region, a significant increase in soot volume fraction can be found in Fig. 11, indicat- ing a faster soot formation rate than in the overlap region with the radicals. Another interesting observation is that Tg peaks in this soot–radical overlap region, indicating that this layer may be a critical region for understanding soot formation in this kind of premixed flames. Figure 11 also reveals the Tg where soot emerges, i.e., the temperature at the lowest location with detectable soot in the different flames.
Plotting dfv∕dt versus HAB is expected to revel three important regions, region i with positive slope, region ii with a plateau and region iii with a negative slope, Bockhorn et al.
[50]. When this has been tested for the flames investigated at phi = 2.1, the three regions were only observed at pressure of 27 kPa, as shown in Fig. 13 d. Region i, below 14 mm HAB, where the dfv∕dt increases with increasing HAB can
be connected to the soot particles inception process. region ii with a plateau observed from HAB ~ 14–17 mm, At HAB above 17 mm, a negative slope has been observed, as illus- trated in Fig. 13 d.
One aim of this study was to measure the growth of a soot volume fraction at low pressure in premixed ethylene/
air flames. Variables used were differential functions of soot volume fraction with respect to time (dfv /dt).
An early expression of this relationship was proposed by Wanger to express the relationship between the rate of parti- cle surface growth and the soot volume fraction, as shown in Eq. 4. Harries and Weiner developed a model that helped in presenting a formulation to identify the rate of particle surface growth [51]. The state of the fv profile has been found to fol- low the following first-order rate law, proposed by Bockhorn et al. [50]:
(4) dfv∕dt=kSG(
fv∞−fv) .
Fig. 13 Spatial profiles for the premixed C2H4/ air flame stabilized at 27 kPa, tempera- ture, a, chemiluminescence of CH* (dark blue triangle) and C2
* (light blue triangle), PAH LIF of (2–3R) (light brown circle) and (3–4R) (red square), b, soot volume fraction, c, Lagrangian time-derivative of soot volume fraction, d
T (K)Normalised Int.fv (ppm)df v/dt (s- 1)
HAB (mm) 0
1 10-3 2 10-3 3 10-3
i ii iii
0 1 10-8 2 10-8 3 10-8 4 10-8 5 10-8
0 5 10 15 20
a
b
c
d
0 600 1200 1800
0 0.6 1.2
In Eq. 4, fv∞ is the soot volume fraction at a vast dis- tance away from the burner surface (i.e., plateau value) and kSG is a rate constant describing the time of active soot growth. The variable t is the ‘reaction time’, which describes the progress of measurable soot formation process.
To determine whether the pressure has some influence on kSG, a graphical representation was prepared by plotting dfv∕dt as function of fv, as shown in Fig. 14.
Figure 14 shows the axial profiles of dfv∕dt as a func- tion of fv for C2H4 flames stabilized at 27 kPa–48 kPa. The soot appearance rates are due to different processes includ- ing inception, surface growth, PAH addition, and oxidation Plotting dfv∕dt versus fv shows three regions, region I with positive slope, region ii with a plateau and region iii with a negative slope, Bockhorn et al. [50].
From HAB 14 to 17 mm, fv increases with time at a con- stant rate. Figure 15 shows the values dfv∕dt as function of pressure.
The values of dfv∕dt increased with increasing pressure to reach a maximum value of 3.4 × 10–7 s−1 at pressure 48 kPa.
It was observed that dfv∕dt remains constant above 40 kPa.
The smallest constant dfv∕dt recoded was 4.2 × 10–8 s−1 at pressure 27 kPa. This rate is still 40% more than the rate reported by [11] for CH4/N2/O2 low-pressure flame stabi- lized at 26.6 kPa. Equation 4 can be applied in region iii,
where the slope is negative, to obtain the soot’s surface growth and PAH addition.
It was found that the evaluation of soot surface growth, kSG , was only possible at lowest pressure of 27 kPa, where the slope declined sharpy after the plateau region. This decline was shown to be independent of temperature effect [52] and was interpreted as a decrease in the reactivity of the soot [52, 53]; however, the reason for the loss of reactivity remains unknown. The decline was also observed in flames of aromatic fuels [53].
The soot surface growth rate constant kSG was calculated to be 20 s−1, using linear fitting. It is worth noting that the temperature in the almost constant with HAB above 14 mm, with a dT∕d(HAB) less than 50 K. In comparison with the previously published literature at elevated pressure [15, 54], atmospheric pressure [55, 56] and low pressure [11, 50], our recorded kSG is the lowest value, as shown in Fig. 16.
The influence of low pressure on the soot volume fraction increases with almost the same magnitude as the increase in the peak value of dfv∕dt . This corresponds to a slope change in dfv∕dt as a function of fv . This further indicates the slow- ing or completion of the soot inception process [11].
Figure 16 presents a summary of previously measured soot growth rate constant kSG along with values from this study. The figure indicates that the measured growth rate of soot in the current study is 80% lower, when compared to
Fig. 14 dfv/dt as a function of soot volume fraction and linear fit for pressure 27 kPa (red line)
previous studies. The results presented above are also con- trasted with a study by Tsurikov et al. [54], who examined the precise, spatially distributed soot concentration in flames employing various fuels, equivalency ratios, and pressures.
In addition, to the aforementioned findings, Baumgärtner
et al.[56] investigated the soot particles growth in terms of mass and number density was affected by the fuel type, temperature and the content of hydrogen atoms. The results showed that in the acetylene flames, the soot volume fraction grows dramatically, and the signals of light scattering can be seen effectively at just over 1 mm above the burner. The soot mass increase is likewise quite quick, and over 90%
of the soot is created in less than 5 ms as particle coagu- lation occurs. Therefore, in conclusion, the current results and previous studies have deviating soot growth rate. This may be due to use different stabilizers at different places, for example, above the flame, which affects soot growth rate.
The value of kSG is independent of pressure or fuel type and mixture composition, but it does depend on temperature.
4 Conclusion
The soot volume fraction, chemiluminescence of CH* and C2*, gas and particle temperatures have been measured in a series of flat premixed ethylene/air flames with a constant equivalence ratio of 2.1 and at sub-atmospheric pressures, from 27 to 48 kPa. The spatially resolved measurements reveal that the CH* layer thickness can be used as an indi- cator of the flame front, was larger than for C2*. It was observed that the distance between the maximum recorded
Fig. 15 dfv/dt at the plateau regains as a function pressure
0 5 10-8 1 10-7 1.5 10-7 2 10-7 2.5 10-7 3 10-7 3.5 10-7 4 10-7
27 32 35 40 46 48
df v/dt (s-1 )
Pressure (kPa)
Fig. 16 Summary of previous studies’ soot growth rate, kSG, the * indicates the measured value in this study
intensity of CH* and C2* decreased linearly with increasing pressure—with a slope of 25 × 10–9 ± 0.062 × 10–9 (mPa–1).
The lowest value of soot volume fractions was 0.19 ppb, recorded at 5 ± 0.5 mm above the burner surface in flames.
This location coincides with the location of maximum C2*. It was found that the Soot volume fraction follows a power function with respect to pressure, i.e., fv∝pn and a value of n = 2.15 ± 0.7. It was also found that the value of n is weakly dependent on the measurement location above the burner. The measured gas temperature and particles tem- perature agree very well within ± 70 degree. Furthermore, a common temperature of 1465 ± 66 K was found at the early stage of soot inception. From the PAH LIF study, it was found that the maximum value for (2–3R) PAH LIF occurred at ~ 1 mm before the maximum value of (3–4R) PAH LIF. The soot surface growth rate kSG was calculated to be 20 s−1. This is 80% lower than previously published values recorded at elevated pressure.
Supplementary Information The online version contains supplemen- tary material available at https:// doi. org/ 10. 1007/ s00340- 023- 07975-3.
Acknowledgements The first author acknowledges the PhD scholar- ship from the Saudi Ministry of Education. The last author would like to thank Mr Jeffrey Hiorns and Mr Jason Peak, form the mechanical workshop at the School of Chemical Engineering, the University of Adelaide, for building the vacuum chamber system used in this study.
Author contributions S.Algoraini, Z. Sun and Z Awahabi setup up the experimentS.Algoraini data collectionS.Algoraini and Z Awahabi figures preparationsS.Algoraini, Z. Sun, B Dally and Z Awahabi data processing and paper writing
Data availability The data are available on request.
Declarations
Conflict of interest The authors declare no competing interests.
Open Access This article is licensed under a Creative Commons Attri- bution 4.0 International License, which permits use, sharing, adapta- tion, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http:// creat iveco mmons. org/ licen ses/ by/4. 0/.
References
1. W.L. Flower, An investigation of soot formation in axisymmet- ric turbulent diffusion flames at elevated pressure. Symp. Int.
Combust. 22(1), 425–435 (1989)
2. L.S. Tran, P.-A. Glaude, F. Battin-Leclerc, An experimental study of the structure of laminar premixed flames of ethanol/
methane/oxygen/argon. Combust. Explos. Shock Waves 49(1), 11 (2013)
3. F. Xu, P.B. Sunderland, G.M. Faeth, Soot formation in laminar premixed ethylene/air flames at atmospheric pressure. Combust.
Flame 108(4), 471–493 (1997)
4. H.I. Joo, Ö.L. Gülder, Soot formation and temperature field struc- ture in co-flow laminar methane–air diffusion flames at pressures from 10 to 60 atm. Proc. Combust. Inst. 32(1), 769–775 (2009) 5. Adelaide, T.U.o. ISF Workshop. Available from: https://
www. adela ide. edu. au/ cet/ isfwo rkshop/ data- sets/ press urised- flames- and- sprays
6. W.R. Boyette et al., Effects of pressure on soot production in piloted turbulent non-premixed jet flames. Combust. Flame 227, 271–282 (2021)
7. M. Grader et al., Influence of flow field dynamics on soot evolu- tion in an aero-engine model combustor. Proc. Combust. Inst.
38(4), 6421–6429 (2021)
8. H.J. Michelsen, Probing soot formation, chemical and physical evolution, and oxidation: a review of in situ diagnostic tech- niques and needs. Proc. Combust. Inst. 36(1), 717–735 (2017) 9. Y. Wang, S.H. Chung, Soot formation in laminar counterflow
flames. Prog. Energy Combust. Sci. 74(152), 238 (2019) 10. J. Li et al., An experimental investigation of soot morphology
and nanostructure in high-pressure co-flow laminar methane diffusion flames. Exp. Therm. Fluid Sci. 136, 110676 (2022) 11. P. Desgroux et al., Soot volume fraction measurement in low-
pressure methane flames by combining laser-induced incandes- cence and cavity ring-down spectroscopy: effect of pressure on soot formation. Combust. Flame 155(1–2), 289–301 (2008) 12. M.-W. Bae, K.-S. Kim, A study on soot formation in premixed
constant-volume propane combustion. KSME J. 8(2), 175–182 (1994)
13. M. Bönig et al., Twenty-Third Symposium (International) on CombustionSoot formation in premixed C2H4 flat flames at ele- vated pressure. Symp. Int. Combust. 23(1), 1581–1587 (1991) 14. H. Böhm et al., The influence of pressure and temperature on
soot formation in premixed flames. Symp. Int. Combust. 22(1), 403–411 (1989)
15. H. Mätzing, H.G. Wagner, Measurements about the influence of pressure on carbon formation in premixed laminar C2H4-air flames. Symp. Int. Combust. 21(1), 1047–1055 (1988) 16. A.E. Karataş, Ö.L. Gülder, Dependence of sooting character-
istics and temperature field of co-flow laminar pure and nitro- gen-diluted ethylene–air diffusion flames on pressure. Combust.
Flame 162(4), 1566–1574 (2015)
17. L. Zhou et al., Measurements of sooting tendency in laminar diffusion flames of n-heptane at elevated pressure. Combust.
Flame 160(11), 2507–2516 (2013)
18. F. Liu et al., Numerical and experimental study of an axisym- metric coflow laminar methane–air diffusion flame at pressures between 5 and 40 atmospheres. Combust. Flame 146(3), 456–
471 (2006)
19. D.S. Bento, K.A. Thomson, Ö.L. Gülder, Soot formation and temperature field structure in laminar propane–air diffusion flames at elevated pressures. Combust. Flame 145(4), 765–778 (2006)
20. K.A. Thomson et al., Soot concentration and temperature meas- urements in co-annular, nonpremixed CH4/air laminar flames at pressures up to 4 MPa. Combust. Flame 140(3), 222–232 (2005) 21. L.L. McCrain, W.L. Roberts, Measurements of the soot volume
field in laminar diffusion flames at elevated pressures. Combust.
Flame 140(1–2), 60–69 (2005)
22. W.L. Flower, C.T. Bowman, Twentieth Symposium (International) on CombustionMeasurements of the structure of sooting laminar
diffusion flames at elevated pressures. Symp. Int. Combust. 20(1), 1035–1044 (1985)
23. S.A. Steinmetz, T. Fang, W.L. Roberts, Soot particle size measure- ments in ethylene diffusion flames at elevated pressures. Combust.
Flame 169, 85–93 (2016)
24. I.A. Mulla, B. Renou, Simultaneous imaging of soot volume frac- tion, PAH, and OH in a turbulent n-heptane spray flame. Combust.
Flame 209, 452–466 (2019)
25. A.E. Karataş, Ö.L. Gülder, Soot formation in high pressure lami- nar diffusion flames. Prog. Energy Combust. Sci. 38(6), 818–845 (2012)
26. J.W. Martin et al., Soot inception: Carbonaceous nanoparticle for- mation in flames. Prog. Energy Combust. Sci. 88, 100956 (2022) 27. X. Mercier et al., Implementation of a new spectroscopic method
to quantify aromatic species involved in the formation of soot particles in flames. Appl. Phys. B 91(2), 387–395 (2008) 28. M. Wartel et al., Pyrene measurements in sooting low pressure
methane flames by jet-cooled laser-induced fluorescence. J. Phys.
Chem. A 115(49), 14153–14162 (2011)
29. M. Wartel et al., Quantitative measurement of naphthalene in low- pressure flames by jet-cooled laser-induced fluorescence. Appl.
Phys. B 100(4), 933–943 (2010)
30. C.R. Shaddix, Correcting thermocouple measurements for radia- tion loss: a critical review (Sandia National Labs, Livermore, 1999)
31. B.E. Poling, J.M. Prausnitz, J.P. O’connell, Properties of gases and liquids (McGraw-Hill Education, New york, 2001)
32. C. Co, Flow of fluids through valves, fittings, and pipe (Crane Company, Stamford, 1988)
33. Model of thermophysical parameters. 2009; Available from: http://
www. ap1700. com
34. O'Haver, T. Fit blackbody equation to spectrum. 2008; Available from: https:// www. mathw orks. com/ matla bcent ral/ filee xchan ge/
20129- fit- black body- equat ion- to- spect rum
35. M.R. Kholghy et al., Comparison of multiple diagnostic tech- niques to study soot formation and morphology in a diffusion flame. Combust. Flame 176, 567–583 (2017)
36. O.P. Korobeinichev et al., A study of low-pressure premixed eth- ylene flame with and without ethanol using photoionization mass spectrometry and modeling. Proc. Combust. Inst. 33(1), 569–576 (2011)
37. Kohse-Höinghaus, K, JB Jeffries, Applied combustion diagnos- tics. 2002
38. C. Schulz et al., Laser-induced incandescence: recent trends and current questions. Appl Phys. B 83(3), 333–354 (2006)
39. W. Lee, Y.D. Na, Soot study in laminar diffusion flames at ele- vated pressure using two-color pyrometry and abel inversion.
JSME Int J. Ser. B 43(4), 550–555 (2000)
40. L. Zhou et al., Experimental study of Polycyclic Aromatic Hydro- carbons (PAHs) in n-Heptane laminar diffusion flames from1.0 to 3.0 bar. Fuel 209, 265–273 (2017)
41. Gulder OL et al. Influence of pressure on soot formation in lami- nar diffusion flames of methane-air up to 40 bar. 2005
42. P. Liu et al., The diagnostics of laser-induced fluorescence (LIF) spectra of PAHs in flame with TD-DFT: special focus on
five-membered ring. J. Phys. Chem. A 119(52), 13009–13017 (2015)
43. Y. Zhang et al., Experimental and kinetic study of the effects of CO2 and H2O addition on PAH formation in laminar premixed C 2 H 4/O 2/Ar flames. Combust. Flame 192, 439–451 (2018) 44. P. Liu et al., Chemical mechanism of exhaust gas recirculation
on polycyclic aromatic hydrocarbons formation based on laser- induced fluorescence measurement. Energy Fuels 32(6), 7112–
7124 (2018)
45. D. Aubagnac-Karkar et al., Soot particles inception and PAH con- densation modelling applied in a soot model utilizing a sectional method. Combust. Flame 189, 190–206 (2018)
46. A. Faccinetto et al., Progress toward the quantitative analysis of PAHs adsorbed on soot by laser desorption/laser ionization/
time-of-flight mass spectrometry. Environ. Sci. Technol. 49(17), 10510–10520 (2015)
47. C. Betrancourt et al., Experimental and numerical investigation of the transition from non sooting to sooting premixed n-butane flames, encompassing the nucleation flame conditions. Combust.
Flame 243, 112172 (2022)
48. J. Wu et al., Reduction of PAH and soot in premixed ethylene–air flames by addition of ethanol. Combust. Flame 144(4), 675–687 (2006)
49. K. Saito et al., A study of the early history of soot formation in various hydrocarbon diffusion flames. Combust. Sci. Technol.
80(1–3), 103–119 (1991)
50. H. Bockhorn et al., Investigation of the surface growth of soot in flat low pressure hydrocarbon oxygen flames. Symp. Int. Combust.
20(1), 979–988 (1985)
51. S.J. Harris, A.M. Weiner, A picture of soot particle inception, in Symposium International on Combustion. (Elsevier, Amsterdam, 1989)
52. S.J. Harris, A.M. Weiner, Determination of the rate constant for soot surface growth. Combust. Sci. Technol. 32(5–6), 267–275 (1983)
53. S.J. Harris, A.M. Weiner, Soot particle growth in premixed tolu- ene/ethylene flames. Combust. Sci. Technol. 38(1–2), 75–87 (1984)
54. M. Tsurikov et al., Laser-based investigation of soot formation in laminar premixed flames at atmospheric and elevated pressures.
Combust. Sci. Technol. 177(10), 1835–1862 (2005)
55. C.J. Dasch, The decay of soot surface growth reactivity and its importance in total soot formation. Combust. Flame 61(3), 219–
225 (1985)
56. L. Baumgärtner et al., Rate of soot growth in atmospheric pre- mixed laminar flames. Symp. Int. Combust. 20(1), 959–967 (1985)
Publisher's Note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
