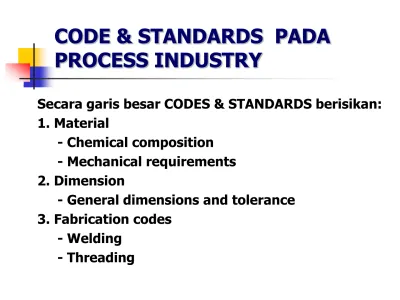

CODE & STANDARDS PADA
PROCESS INDUSTRY
Secara garis besar CODES & STANDARDS berisikan:
1. Material
- Chemical composition
- Mechanical requirements
2. Dimension
- General dimensions and tolerance
3. Fabrication codes
BERAPA STANDARD & CODE
INTERNATIONAL
ASTM
(American Society for Testing and Materials)
AWWA
(American Water Works Association)
AWS
(American Welding Society)
MSS
(Manufacturers standardization Society)
SAE
(Society of automotive Engineers)
ASME (American Society of
Mechanical Engineers)
1. ASME 3.1 Piping and Piping Systems
- B31.1 Power piping (Piping for Industrial and marine application) - B31.2 Fuel gas Piping
- B31.3 Process piping
- B31.4 Pipeline transportation system for liquid hydrocarbon and other liquids
- B31.5 Refrigeration piping and heat transfer component - B31.8 Gas Transmission and Distribution Piping system - B31.9 Building service piping
ASME (American Society of Mechanical
Engineers)
2. ASME Boiler and Pressure Vessel Code section
- Section I. Power Boilers - Section II. Material
- Section III.1 Rules for Nuclear Power Plant Components - Section III.2 Code for concrete reactor vessel &
containments - Section IV Heating Boilers
- Section V Nondestructive Examination
- Section VI Recommended Rules for the Care and Operation of heating boilers
- Section VII Recommended Guidelines the Care of Power Bilers
- Section VIII.1 Pressure Vessels Div.1 - Section VIII.1 Pressure Vessels Div.2
- Section IX Welding and Brazing Qualification
- Section X Fiber-Reinforced Plastic Pressure Vessels
PIPING COMPONENT
1. PIPA
A. Material
- Ferrous (Logam)
Std ASME 36.10
- Non Ferrous (Bukan logam)
Std ASME 36.19
B. Construction
PIPING COMPONENT
2. Fitting ( Sambungan )
A. Type
- Elbow 90, Elbow 45, - Reducer
- Tee : Equal Tee, Reducer Tee - Connection (Sambungan)
- Butt weld Ends (std ASME 16.9) - Threaded, Socket (std ASME 16.11) B. Flange
KETEBALAN PIPA ASME B 31.3
C = Ca + CM
CONTOH
Pada sistem perpipan diketahui
Tentukan
a. Ketebalan minimum yang diperlukan secara teorical
b. Ketebalan Minimum (Nominal wall thicknes) sesuai ASME 36.10
Penyelesaian
Mechanical Allowance : 0.05” Ditanya
a. Ketebalan minimum yang diperlukan secara teorical
b. Ketebalan Minimum (Nominal wall thicknes) sesuai ASME
36.10

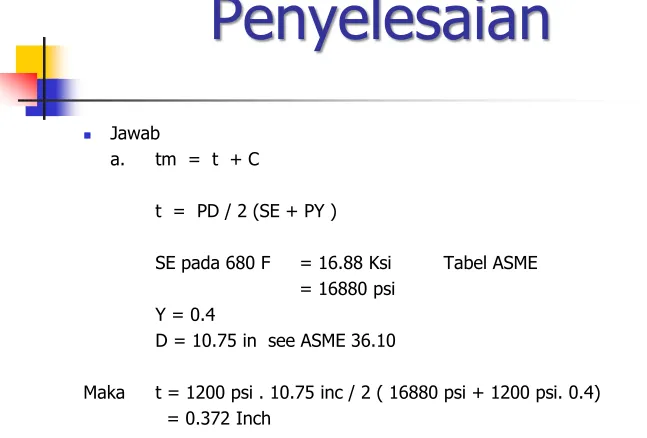

Penyelesaian
Jadi Wall thickness secara teorical 0.4845 in b. Minimum nominal wall thickness adalah
