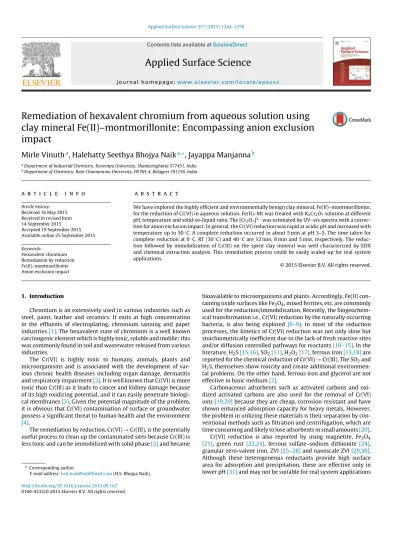

ContentslistsavailableatScienceDirect
Applied
Surface
Science
j o u r n a l ho me p ag e :w w w . e l s e v i e r . c o m / l o c a t e / a p s u s c
Remediation
of
hexavalent
chromium
from
aqueous
solution
using
clay
mineral
Fe(II)–montmorillonite:
Encompassing
anion
exclusion
impact
Mirle
Vinuth
a,
Halehatty
Seethya
Bhojya
Naik
a,∗,
Jayappa
Manjanna
baDepartmentofIndustrialChemistry,KuvempuUniversity,Shankaraghatta577451,India bDepartmentofChemistry,RaniChannammaUniversity,PBNH-4,Belagavi591156,India
a
r
t
i
c
l
e
i
n
f
o
Articlehistory:
Received16May2015 Receivedinrevisedform 14September2015 Accepted19September2015 Availableonline25September2015
Keywords:
Hexavalentchromium Remediationbyreduction Fe(II)–montmorillonite Anionexclusionimpact
a
b
s
t
r
a
c
t
Wehaveexploredthehighlyefficientandenvironmentallybenignclaymineral,Fe(II)–montmorillonite, forthereductionofCr(VI)inaqueoussolution.Fe(II)–MtwastreatedwithK2Cr2O7solutionatdifferent
pH,temperatureandsolid-to-liquidratio.The[Cr2O7]2−wasestimatedbyUV–visspectrawitha
correc-tionforanionexclusionimpact.Ingeneral,theCr(VI)reductionwasrapidatacidicpHandincreasedwith temperatureupto50◦C.Acompletereductionoccurredinabout5minatpH3–5.Thetimetakenfor
completereductionat0◦C,RT(30◦C)and40◦Care12min,8minand5min,respectively.The
reduc-tionfollowedbyimmobilizationofCr(III)onthespentclaymineralwaswellcharacterizedbyEDX andchemicalextractionanalysis.Thisremediationprocesscouldbeeasilyscaled-upforrealsystem applications.
©2015ElsevierB.V.Allrightsreserved.
1. Introduction
Chromiumisanextensivelyusedinvariousindustriessuchas steel,paint,leatherand ceramics.It exitsat highconcentration in theeffluents ofelectroplating, chromiumtanning and paper industries[1].Thehexavalentstateofchromiumisawellknown carcinogenicelementwhichishighlytoxic,solubleandmobile;this wascommonlyfoundinsoilandwastewaterreleasedfromvarious industries.
The Cr(VI) is highly toxic to humans, animals, plants and microorganismsandis associatedwiththedevelopmentof var-iouschronichealthdiseasesincludingorgandamage,dermatitis andrespiratoryimpairment[2].ItiswellknownthatCr(VI)ismore toxicthanCr(III)asitleadstocancerandkidneydamagebecause ofitshighoxidizingpotential,anditcaneasilypenetrate biologi-calmembranes[3].Giventhepotentialmagnitudeoftheproblem, itisobviousthatCr(VI)contaminationofsurfaceorgroundwater possessasignificantthreattohumanhealthandtheenvironment
[4].
Theremediationbyreduction,Cr(VI)→Cr(III),isthepotentially
usefulprocesstocleanupthecontaminatedsitesbecauseCr(III)is lesstoxicandcanbeimmobilizedwithsolidphase[5]andbecame
∗Correspondingauthor.
E-mailaddress:hsbnaik@rediffmail.com(H.S.BhojyaNaik).
bioavailabletomicroorganismsandplants.Accordingly,Fe(II) con-tainingoxidesurfaceslikeFe3O4,mixedferrites,etc.arecommonly
usedforthereduction/immobilization.Recently,the biogeochem-icaltransformationi.e.,Cr(VI)reductionbythenaturallyoccurring bacteria,is alsobeing explored[6–9]. In mostof thereduction processes,thekineticsofCr(VI)reductionwasnotonlyslowbut stoichiometricallyinefficientduetothelackoffreshreactivesites and/ordiffusioncontrolledpathwaysforreactants[10–15].Inthe literature,H2S[15,16],SO2[11],H2O2[17],ferrousiron[13,18]are
reportedforthechemicalreductionofCr(VI)→Cr(III).TheSO2and
H2S,themselvesshowtoxicityandcreateadditional
environmen-talproblems.Ontheotherhand,ferrousironandglycerolarenot effectiveinbasicmedium[2].
Carbonaceousadsorbentssuchasactivatedcarbonsand oxi-dized activatedcarbons arealsoused fortheremoval ofCr(VI) ions[19,20]becausetheyarecheap,corrosionresistantandhave shownenhancedadsorptioncapacityforheavymetals.However, theprobleminutilizingthesematerialsistheirseparationby con-ventionalmethodssuchasfiltrationandcentrifugation,whichare timeconsumingandlikelytoloseadsorbentsinsmallamounts[20]. Cr(VI) reduction is also reported by using magnetite, Fe3O4
[21], green rust [22,23], ferrous sulfate–sodium dithionite[24], granularzero-valentiron,ZVI[25–28]andnanoscaleZVI[29,30]. Although these heterogeneous reductants provide high surface areaforadsorptionandprecipitation,theseareeffectiveonlyin lowerpH[31]andmaynotbesuitableforrealsystemapplications
Fig.1.Schematicdiagramof2:1dioctahedralsmectiteclaymineral,whereMn+ indicatestheinterlayer/exchangeablecation,fore.g.,Fe2+ionsinFe(II)–Mt.
suchaswaterandsoiltreatmentswhereinlargeamountsofthese adsorbents/reductantsarerequired.Therefore,itisimperiousto lookforeffectivereductantand/oradsorbentforCr(VI)inthewide rangeofpHandtemperature.Accordingly,wehaveexploredthe useofFe-basedclaymineralforreductionandimmobilizationof Cr(VI),andwasfoundtobehighlyeffectiveandfeasibleintermsof stoichiometryandreactionkinetics.
Claymineralsareimportantclassofmaterialswhicharereadily availableinnature.Theseare usedasverygood adsorbentsfor toxicelementssuchasarsenate[32,33],decolourationagents,ion exchangers,molecularsieves,catalystsandalsousedinbrick man-ufacturingindustries[34,35].Therearefewreportsonnaturaland modifiedclaymineralsusedforCr(VI)reduction[36–41]. More-overTunisianclay,ElHariaclayandraw/aluminumpillaredclays areusedforremovaltoxicelementslikePb2+,As(III),Cu2+andHg2+
ionsinaqueoussolutionthrough adsorptionprocesses[42–45]. Eloussaiefetal.haveinvestigatedtheefficiencyofthreedifferent claymaterialssuchasraw,acid-activatedandaluminum-pillared Tunisiansmectite(RSM, ASM, andAl-SM)for theadsorptionof Pb(II),Zn(II)andCd(II)insingleandmulti-elementsystems[46]. Fromthe aboveexperimentalresults revealedthat natural and modifiedclaymineralsactaseffectiveadsorbentforremovalof toxicelementsinaqueoussolution.
Montmorillonite(Mt)isa2:1dioctahedralsmectitegroupclay mineralhavingalayeredstructure,Fig.1.Theoctahedralalumina sheetissandwichedbetweentetrahedralsilicatesheets.The neg-ativechargeiscreatedontheclaymineralduetotheisomorphic substitutionintheoctahedralsites(byMg,Fe,andTi)and tetra-hedralsites(byAl,Fe).Suchapermanentnegativelayerchargeis balancedbyexchangeablecationslikeCa2+,Na+,etc.atthe
inter-layer.Thus, thecation exchange capacity (CEC)of clay mineral dependsonthenetelementalcomposition,whichvarieswiththe geographicalavailabilityintheenvironment.
Thepropertiesand usesofthis claymineralcanbemodified notonlybyalteringthestructuralFe(II)/Fe(III)ratio[36],butalso byreplacingtheinterlayercationswithavarietyofinorganicand organic cations [32,33]. Further, the availability as wellas the amountand/oraccessofstructuralFe(II)forredoxreactionsisvery limited.ThereforeitisrationaltomakeuseofFe(II)–Mt,i.e.,the redoxsensitiveFe(II)ionsplacedintheinterlayerofclaymineral toaugmenttherealfieldapplications.Hence,itispossibletomake useofsuchanimportantredoxsensitiveclaymineralforthe reduc-tionofCr(VI).Thus,inthepresentstudy,Fe(II)–Mtisusedasan effectivereductantforCr(VI)inaqueoussolutionfollowedbyits immobilization.Thereductionreactionwascarriedoutat differ-entpHandtemperaturebyvaryingtheamountofFe(II)–Mt.Anion exclusionimpactencounteredinthisstudyisalsoinvestigated.
2. Materialsandmethods
Na-montmorillonite (Kunipia F, Japan) with a CEC of about 113meq/100g having approximate chemical com-position, (Na0.431K0.002Ca0.002) (Al1.56Mg0.305Fe0.099Ti0.007)oct
(Si3.949Al0.051)tetO10(OH)2nH2Oisusedhere[47].Aqueous
solu-tionofK2Cr2O7waschosenasthemodelhexavalentchromium
contaminant. Double distilled water was used throughout this study.TheconcentrationofCr(VI)wasestimatedfromitsoptical densityatmax=350nmusingUV-Visspectrophotometer.
2.1. PreparationofFe(II)–Mt
Inthefirststep,Fe(III)–Mtwasobtainedbythecationexchange ofaboverawclaymineralin0.4MFeCl3solution.SuchanFe(III)–Mt
wastreatedwithascorbicacidtoreduceinterlayerFe(III)toFe(II) ions[47].Forcomparison,Na(I)–andCa(II)–Mtwerealsoprepared bytheconventionalcationexchangemethodwith1Msolutionsof NaClandCaCl2,respectively.
In order to estimate theinterlayer iron, Fe(II)–Mt was sub-jectedforcationexchangewith0.05MH2SO4forabout24h.The
ratioofferroustoferricions(Fe2+/Fe
totalwhereFetotal=Fe2++Fe3+)
released was determined by 1,10-phenanthroline method [48]
usingUV-Visspectrophotometer(max=510nm).
The X-ray diffraction pattern (XRD) of the samples were recordedusingD2phaserXRD(BrukerAXSGmbH,Germany)with Ni-filteredCuK␣radiation,=1.5417nm.Infraredspectraofthe
sampleswererecorded byKBrpelletmethodusingIRanalyzer (FT-IR8600PC,ShimadzuCorporation,Japan).Themicrographsof freshly prepared and spent Fe(II)–Mt was recorded using field emissionscanningelectronmicroscope(NovaNanoSEM600,FEI Company,Netherlands)alongwithenergydispersiveX-ray(EDX) analysisforelementalcomposition.
2.2. ReductionofCr(VI)→Cr(III)byFe(II)–Mtinaqueoussolution
In a typical stoichiometric case, freshly prepared Fe(II)–Mt (0.35g)wasaddedtotheK2Cr2O7solution(1mM,100mL)andkept
stirringmagnetically.Thereactionswerealsocarriedoutat differ-entsolid-to-liquidratio,pH(adjustedwithdil.HClandNaOH)and temperature.Thereactionmixturewaswithdrawnperiodicallyby usingsyringetubeandthenfilteredthrough0.2mmembrane
fil-tertoremovedispersedclayparticles.Thedecreaseinthe[Cr(VI)] concentrationwasestimatedfromitsopticaldensity.Itis impor-tanttonotethattheabsorbancevaluesherewerecorrectedfor anionexclusionimpacti.e.,equivalenttothatobservedwithtypical divalentclaymineral,Ca(II)–Mt(obtainedinaseparateexperiment withidenticalconditions).ThedecreaseinK2Cr2O7concentration,
duetoreductionofFe(II)–Mt,wasexpressedhereintermsof% reductionasfunctionoftime.
ThespentoroxidizedFe(II)–Mtwasseparatedby centrifuga-tion,washedthoroughlywithwater andvacuumdried atroom temperature for further characterization using FESEM/EDX and FT-IR.Theadsorbed(immobilized)chromiumonspent/oxidized Fe(II)–Mtwasextractedusingdifferentreagentsviz.,0.05MH2SO4,
0.5M(NH)4C2O4,1MNaCl,0.05MNa2EDTA.Ineachcase,aknown
amount(≈0.2g)ofthespent/oxidizedFe(II)–Mtwasdispersedin
50mLofreagentsfor24h.Aftertheextraction, thesupernatant liquid,filteredthrough0.2mmembranefilter,wasanalyzedfor
chromiumbyinductivelycoupledplasmaopticalemission spec-troscopy(ICP-OES;PerkinElmer,Optima-7000DV,USA).
3. Resultsanddiscussion
3.1. FormationofFe(II)–Mt
The ratio of ferrous to ferric ions (Fe2+/Fe
total where
Fetotal=Fe2++Fe3+)releasedfromthefreshlypreparedFe(II)–Mt
oncationexchangewith0.05MH2SO4 wasfoundtobecloseto
10 20 30
Fig.2. PowderXRDpatternsofFe(II)–MtincomparisonwithCa(II)–andNa(I)–Mt atrelativehumidityof40%.
500 1000 1500 2000 2500 3000 3500 4000
Fig.3.FT-IRspectraoffreshlypreparedFe(II)–MtcomparedwithNa(I)–Mtaswell asspent/oxidizedFe(II)–Mt.
tobe97meq/100g.InadditiontotheXRDandFT-IRresultsalso confirmedtheformationofFe(II)–Mt.
TheXRDpatternsofFe(II)–MtincomparisonwithCa(II)–Mtand Na(I)–Mtatrelativehumidity(RH)of40%isshowninFig.2.The basalspacing(d001)areasfollows: Fe(II)–Mt,15.2 ˚A;Ca(II)–Mt,
14.9 ˚A and Na–Mt, 12.1 ˚A. It is clear that the divalent cation exchangedclaymineralsshowedhigherd001 duetolargerlayer
ofhydrationwhencomparedtomonovalentcationexchangedclay mineral.Thesevaluesareingoodagreementwiththepreviously reportedvalues[49,50].
AsshowninFig.3,theFT-IRspectraoffreshlypreparedFe(II)–Mt issimilartothatofNa(I)–Mt.Thebasicstructureofclaymineral hasnotundergoneanychanges.Forinstance,thebendingvibration bandsat∼520cm−1forSi O Al,and920cm−1forAl2OHareintact.
HoweverthestretchingvibrationsofSi Ogroup∼1046cm−1are
slightlybroadened.Thevibrationbandsat1628cm−1corresponds
500
Fig.4.UV–visabsorptionspectraofK2Cr2O7solutionwithandwithoutCa(II)–Mt andFe(II)–Mt[theanionexclusionimpactisclearlyseenwithCa(II)–Mt].
toadsorbedwaterand3429cm−1forwaterpresentatthe
inter-layer.
3.2. Cr(VI)reductionbyFe(II)–Mt
3.2.1. Anionexclusionimpact(AEI)
Itiswell-establishedthatthepermanentnegativelycharged lay-eredclaymineralsuchasmontmorillonite exhibitstronganion exclusion impact(AEI).Theseeffects have animportantimpact on the adsorption and diffusion of anion. The diffusion of Cl−
ionsin compactedmontmorillonite hasbeenstudiedfor better understandingandmodelingofengineeredbarriersystemforthe geologicaldisposalofnuclearwaste[51].Inviewofthis,ithasbeen suggestedtocorrecttheAEIforCr2O72−ionstoarriveattheproper
reductionlevelofhexavalentchromiumbyFe(II)–Mt.Hence,we treatedatypicaldivalentcation-exchangedclaymineral,Ca(II)–Mt withK2Cr2O7solutionunderidenticalconditionbeforesubjecting
theactualclaymineral,Fe(II)–Mt.AsshowninFig.4,theoverall absorptionvalueofK2Cr2O7solutionhasincreasedsignificantlyin
presenceofCa(II)–Mt(OD:1)whencomparedtoabsorption spec-traofK2Cr2O7solutionalone(OD:0).InthepresenceofFe(II)–Mt,
althoughasimilarAEIis applicable,wecouldseea decreasein absorbancevalue(OD:2)ofK2Cr2O7 solutionduetoredox
reac-tion(Cr6++3Fe2+
→Cr3++3Fe3+).However,theabsorbancevalue
herehasbeeninfluencedbytheAEI.Inordertoobtaintheactual decreaseinabsorbancevaluewithFe(II)–Mt,wemustsubtractby avaluewhich isequaltothatenhanced valueobservedin case ofCa(II)–Mt.ItisimportanttonotethattheAEIvariedwith dif-ferentparametersviz.,contacttime,pH,solid-to-liquidratioand temperature.Thereforehere,alltheabsorptionvalueshavebeen correctedusingthecorrespondingOD:1andOD:2valueswhilethe OD:0remainedalmostthesame.
3.2.2. Effectofstoichiometryonredoxreaction
Fig.5(a–c)showsthe%reductionof[Cr2O7]2−atdifferentpHas
afunctionoftimefordifferentsolid-to-liquidratioviz.,(a)oxidant andreductantareinstoichiometricamounts,(b) reductantisin excessand(c)oxidantinexcess.Ingeneral,[Cr2O7]2−reduction
0 5 10 15 20 25 120 150 180
Reductant & oxidant are in stoichiometric amounts
i.e. [Fe(II)-mont] : [Cr2O72-]
Fig.5. ReductionofCr(VI)by(a)stoichiometricamountofFe(II)–Mtatdifferent pH.(b)ExcessamountofFe(II)–MtatpH5and6.(c)Sub-stoichiometricamountof Fe(II)–MtatpH5and6.
Itiswell-knownthatthepHhasasignificanteffectontheCr(VI) reduction.Forinstance,Xiang-Rongetal.[2]haveshownthatthe reductionofCr(VI)byascorbicacidunderacidicpHisfasterthanin neutralpHandslowerinalkalinepH.Asimilarlyobservationwas madeforCr(VI)reductionusingmagnetite[52].Therewas>90% removalofCr(VI)bymagneticnanoparticlesatpH2–4whereasit was55%atpH4–7andonly40%atpH7–10[53].Usingnanoscale zerovalentironsupportedonmesoporoussilica(nZVI@MCM-41)
[54],acompletereductionwasachievedatpH3inabout9hand itwasdecreased to50%atpH5.Butatneutral andhigher pH,
0 2 4 6 8 10 12 14 16
Stoichiometric amounts of reductant & oxidant @ pH = 5
i.e. [Fe(II)-mont] : [Cr2O72-]
Fig.6.ReductionofCr(VI)atpH5by(a)stoichiometricamountofFe(II)–Mtat differenttemperatures.(b)ExcessamountofFe(II)–Mtat0◦CandRT.(c)
Sub-stoichiometricamountofFe(II)–montat0◦CandRT.
therewasnoreductionofCr(VI)usingnZVI@MCM-41. Bentonite-supportednZVIisalsousedforremovalCr(VI)fromwastewater.At pH2,almostcompletereductionoccurredwithinonemin,butat pH8only27%reductionwasobservedevenafter20min[40]. How-ever,inthepresentstudy,wecouldobtainasignificantreduction ofCr(VI)evenatpH8.
Kaduetal.[55]havereportedtheremediationofCr(VI)from simulated water streams using Fe–Ni bimetallic nanoparticles (Fe–NiNPs)andtheirnanocompositespreparedwith montmoril-loniteclay.Batchexperimentswitha25mgL−1Cr(VI)solutionand
10minthatfollowedfirstorderreactionkinetics. Amongst25%, 50%,75%in situ andloadednanocomposites, 75%compositions showedbetteractivitywithenhancedreductioncapacitybelowpH 4duetothegenerationofreactiveH•species.
Among the clay minerals used for Cr(VI) reduction, Fe(II)-bearingphyllosilicatessuchasiron-richmontmorillonite,chlorite andaregularlyinterstratifiedchlorite-smectite(corrensite)have beenstudiedatacidicpH3[37].Chloriteandcorrensite,owingto thetheirhighFe(II)/Fe(III)ratio,showedrapidreductionofCr(VI). TheoxidationofstructuralFe(II)toFe(III)wasconfirmedbyFe K-edgechangesintheX-rayabsorptionspectra.Similarly,iron-rich claymineral(ferroussaponitefromDeccanregionofIndia)was showntoreduceCr(VI)gradually[38].Therearenotmanyreports onnaturalormodifiedclaymineralsforCr(VI)reduction.Further, theavailabilityaswellastheamountand/oraccessofstructural Fe(II)forredoxreactionsisverylimited.Hence,thisstudyishaving agreatsignificancebecauseFe(II)–Mtcouldbepreparedinlarge amountstoaugmenttherealfieldapplications.
AlthoughtherewasstoichiometricallylessamountofFe(II)–Mt (0.2g≈65%)inFig.5c,itisinterestingtoseeacomplete
reduc-tionofCr(VI)inabout30min.Thismustbeduetothedifference intheabsorptionvaluewhilecorrectingtheAEIbecausetheentire Fe(II)–Mtisconsumed(oxidized)within30min,therebyceasing theAEIvalueclosetozero.Therearesomereports onthe sol-ventextractionofCr(VI)withtetrabutylammoniumbromidefrom aqueoussolution[56]whichshowedthattheefficiencydecreased considerablywithincreasingpHandceasedtozeroatpH∼6.
How-ever,inthepresentstudyweseetheefficientreductionofCr(VI) evenatnearneutralpH.
3.2.3. EffectoftemperatureonCr(VI)reductionbyFe(II)–Mt
ThereductionofCr(VI)byFe(II)–Mtwascarriedoutindifferent temperatures(0–50◦C)atpH5,Fig.6(a–c).Ingeneral,theCr(VI)
reductionincreasedwithtemperatureupto40◦C.Thetimetaken
forcompletereductionat0◦C,RT(30◦C)and40◦Care12min,8min
and5min,respectively.Whentherewasanexcessof Fe(II)–Mt (Fig.6b),ittookjust3minforcompleteCr(VI)reductionat0◦Cand
RT.However,whenFe(II)–Mt(Fig.6c)wasstoichiometricallyless, atRTittookabout40minforcompleteCr(VI)reductionwhereas at0◦C,thereductionwasabout95%evenafter1h.
Xiang-Rong et al. [2] have reported that the temperature dependentreduction of Cr(VI) byascorbic acidin the range of 5–40◦CatpH7took30minforcompletion.Asignificanteffecton
thereductionofCr(VI)wasobservedwhenthetemperaturewas 5–25◦C.InvitrostudiesofCr(VI)reductionbycellfreeextracts
ofchromate-reducingbacteriahaveshownthemaximum reduc-tionatambienttemperature,28◦C[57].Bentonite-supportednZVI
Table1
AmountsofFeandCrreleasedfromspentoroxidizedFe(II)–Mtindifferentreagents.
Extractionreagents Fepresentin(mM) Crpresentin(mM)
0.05MH2SO4 3.45 3.65
0.5M(NH)4C2O4 2.42 3.39
1MNaCl 1.29 2.0
0.05MNa2EDTA 1.22 8.51
usedfortheremovalCr(VI)fromwastewater[40]showedabout 74%reductionat25◦Cand82%reduction40◦C.Onthecontrary,
whenFe3O4-stabilizedFe0nanoparticleswereusedforreduction
ofCr(VI)fromaqueoussolution[41],therateofreductionwashigh atlowertemperature,forinstance,about90%reductionwasseenat 25◦Cwhileitis79%at40◦C.However,inthepresentstudy,wesee
theefficientreductionofCr(VI)byFe(II)–Mtinallthetemperatures from0to50◦C.
3.3. ExaminationofspentoroxidizedFe(II)–Mt
InordertounderstandthereductionofCr(VI)and immobiliza-tionofCr(III)ontheclaymineral,itisimportanttoexaminethe spentoroxidizedFe(II)–Mt.Fig.7showsthephotographofadry claymineralFe(II)–Mtbeforeandaftertreatingwith1mMK2Cr2O7
solutionatpH5.ThespentFe(II)–MtwasanalyzedbyFESEM/EDX spectratoobserveanymorphologicalchangesuponCr(VI) reduc-tion.AsshowninFig.8therewasnoappreciablechangeinthe microstructureof Fe(II)–Mt.However,EDX confirmedthe pres-enceofimmobilizedCrpresentinthespent/oxidizedFe(II)–Mt.As revealedbyFTIRspectra(Fig.3),thespentclaymineralisintact whencomparedtofreshFe(II)–Mtinallrespects.
Thefollowing reactionsmaybe writtenfor theoxidation of interlayerFe(II)ionsandtheirprecipitationtoneutralspecies(if any)andtheCr(VI)reductionfollowedbyimmobilizationasCr(III) species: 6 (Fe2+
→Fe3++e−); 3Fe3++9H2O→3Fe(OH)3+9H+;
(Cr2O7)2−+8H++6e−→2Cr(OH)3+H2O.
Also, thereis noindicationaboutthepresence ofadditional Fe–Croxidephaseprobablyduetotheirsmallfraction.Inorderto quantitativelyestimatetheadsorbedCrandironinthespentclay mineral,Fe(III)–Mt,thechemicalextractionwasdonewith differ-entreagentsviz.,0.05MH2SO4,0.5M(NH)4C2O4,1MNaCl,0.05M
Na2EDTA.Ineachcase,aknownamount(0.2g)ofthespentclay
mineralwasdispersedin50mLofreagentsfor24handthe sam-pleswereanalyzedbyICP-OES.AsshowninTable1,Na2EDTAwas
foundtobetheeffectivereagenttoextractthesemetalsdueto itschelatingability.TheFeandCrcontentwereslightlysmaller thantheexpectedvalues.Thisisprobablyduetotheirexistenceas
Fig.8. FESEMwithEDXof(a)freshFe(II)–Mtand(b)oxidized/spentFe(II)–Mt.
oxyhydroxides(FeOOHorCrOOH)whichrequirerepeated treat-mentpreferablyatelevatedtemperatureforcompleteextraction.
AlthoughsomeFe-containingclaymineralslikeferroussaponite arefoundinthenaturalenvironment[38],theavailabilityaswellas theamountand/oraccessofstructuralFe(II)isverylimitedforlarge scalerealsystemapplications.Ontheotherhand,fewreduction processesdevelopedseemedtoberestrictedonlyforlaboratoryuse
[58]andnotforrealsystemapplications.Ifferroussulfateorsodium sulfiteisusedasreductantsforCr(VI)→Cr(III),ferrichydroxideand
sulfurdioxide(toxicandhighlyvolatile)willbeformed, respec-tively,asbyproductswhicharedifficulttohandle[59].Henceitis essentialtoproposeasuitablereductant/adsorbentforfield appli-cation,especiallytotreatwaterandsoil.WebelievethatFe(II)–Mt couldbetheefficientandsuitable materialtoaugmentthereal filedapplications.Forthis,aslurryofFe(II)–Mtfilledindialysis bagscouldbesuspendedinthecontaminatedbodiessuchas flow-ingorstagnantwatersand/orindustrialeffluents.Inthecaseof soilcontamination,itmustbesufficientlymoisturized(wet)before dispersingtheFe(II)–Mt.
4. Conclusions
WehaveconfirmedoneofthepotentialapplicationsofFe(II)–Mt totreatthehazardousCr(VI)contaminationinaqueoussolution.
Theanionexclusionimpactof[Cr2O7]2−ionwiththenegatively
chargedclaymineralherewasconsideredinallourestimations ofCr(VI)reductions.Ingeneral,[Cr2O7]2−reductionbyFe(II)–Mt
isarapidprocess,especiallyunderstoichiometricconditions.For instance,acompletereductionoccurredinabout5minatpH3–5. AtneutralpHandabove,thereductionwasrelativelyslow.The Cr(VI)reductionincreasedwithtemperatureupto40◦C.Thetime
takenforcompletereductionat0◦C,RT(30◦C),40◦Care12min,
8minand5min,respectively.Theimmobilizationofthereduced Cr(III)wasconfirmedfromtheEDXspectraofspentclaymineral andchemicalextractions,especiallyinNa2EDTA.
Acknowledgements
TheleadauthorM.VinuthwishestothankMr.K.Chandrasekhar forhishelpwithXRDanalysis,PavanS.atTuv-SudSouthAsiaPvt. Ltd.BangaloreforassistancewithICP-OESanalysisandProf.G.U. KulkarniatJNCASRforprovidingFESEMfacility.
References
[1]M.Barkat,D.Nibou,S.Chegrouche,A.Mellah,Chem.Eng.Prog.48(2009) 38–47.
[3]M.E.Losi,C.Amrhein,W.T.J.Frankenberger,Environ.Contam.Toxicol.136 (1994)91–121.
[4]S.L.Friess,Sci.TotalEnviron.86(1989)109–112.
[5]I.J.Buerge,S.J.Hug,Environ.Sci.Technol.32(1998)2092–2099. [6]J.M.Chen,O.J.Hao,Environ.Sci.Technol.28(1998)219–251. [7]A.R.Shakoor,S.Tahseen,R.U.Haq,FoliaBiol.44(1999)50–54.
[8]B.Wielinga,M.M.Mizuba,C.M.Hansel,S.Fendorf,Environ.Sci.Technol.35 (2001)522–527.
[9]J.L.Nyman,A.B.Cunningham,F.J.Caccavo,R.Gerlach,Biorem.J.6(2002) 39–55.
[10]E.I.Onstott,W.S.Gregory,Environ.Sci.Technol.7(1973)333–337. [11]L.E.Eary,D.Rai,Environ.Sci.Technol.22(1988)972–977.
[12]C.D.Palmer,P.R.Wittbrodt,Environ.HealthPerspect.92(1991)25–40. [13]S.E.Fendorf,G.C.Li,Environ.Sci.Technol.30(1996)1614–1617. [14]J.C.Seaman,P.M.Bertsch,L.Schwallie,Environ.Sci.Technol.33(1999)
938–944.
[15]C.Kim,Q.H.Zhou,B.L.Deng,E.C.Thornton,H.F.Xu,Environ.Sci.Technol.35 (2001)2219–2225.
[16]E.C.Thornton,J.E.Amonette,Environ.Sci.Technol.33(1999)4096–4101. [17]M.Pettine,L.Campanella,F.J.Millero,Environ.Sci.Technol.36(2002)
901–907.
[18]D.L.Sedlak,P.G.Chan,Geochim.Cosmochim.Acta61(1997)2185–2192. [19]B.V.Babu,S.Gupta,Adsorption14(2008)85–92.
[20]L.-H.Zhang,Q.Sun,D.-H.Liu,A.-H.Lu,J.Mater.Chem.A1(2013)9477–9483. [21]T.Kendelewicz,P.Liu,C.S.Doyle,G.E.BrownJr.,Surf.Sci.469(2000)144–163. [22]D.L.Bond,S.Fendorf,Environ.Sci.Technol.37(2003)2750–2757.
[23]L.E.Legrand,A.Figuigui,F.Mercier,A.Chausse,Environ.Sci.Technol.38 (2004)4587–4595.
[24]R.D.Ludwig,C.Su,T.R.Lee,R.T.Wilkin,S.D.Acree,R.R.Ross,A.Keeley, Environ.Sci.Technol.41(2007)5299–5305.
[25]M.J.Alowitz,M.M.Scherer,Environ.Sci.Technol.36(2002)299–306. [26]S.S.Chen,C.Y.Cheng,C.W.Li,P.H.Chai,Y.M.Chang,J.Hazard.Mater.142
(2007)362–367.
[27]S.W.Jeen,D.W.Blowes,R.W.Gillham,J.Contam.Hydrol.95(2008)76–91. [28]B.Flury,J.Frommer,U.Eggenberger,U.Mader,M.Nachtegaal,R.Kretzschmar,
Environ.Sci.Technol.43(2009)6786–6792. [29]Y.Xu,D.Zhao,WaterRes.41(2007)2101–2108.
[30]X.Q.Li,J.Cao,W.X.Zhang,Ind.Eng.Chem.Res.47(2008)2131–2139. [31]J.-H.Kim,J-H.Kim,K.V.Bokare,E.-J.Kim,Y.-Y.Chan,Y.-S.Chang,J.Nanopart.
Res.14(2012)1010–1022.
[32]T.Grygar,D.Hradil,P.Bezdicka,B.Dousova,L.Capek,O.Schneeweiss,Clays ClayMiner.2(2007)165–176.
[33]C.Leungo,V.Puccia,M.Avena,J.Hazard.Mater.2(2011)1713–1719. [34]J.T.Kloprogge,J.PorousMater.5(1998)5–41.
[35]M.Eloussaief,N.Fakhfakh,A.Sdiri,S.Bouaziz,M.Benzina,Trans.Ind.Ceram. Soc.71(2012)195–202.
[36]J.W.Stucki,Ironredoxprocessesinsmectites,in:F.Bergaya,B.K.G.Theng,G. Lagaly(Eds.),HandbookofClayScience,Elsevier,Amsterdam,2006(Chapter 8).
[37]M.F.Brigatti,C.Lugli,G.Cibin,A.Marcelli,G.Giuli,E.Paris,A.Mottana,Z.Wu, ClaysClayMiner.2(2000)272–281.
[38]G.Parthasarathy,B.M.Choudary,B.Sreedhar,A.C.Kunwar,R.Srinivasan,Am. Mineral.88(2003)1983–1988.
[39]M.Eloussaief,N.Kallel,A.Yaacoubi,M.Benzina,Chem.Eng.J.168(2011) 1024–1031.
[40]L.-N.Shi,X.Zhang,Z.-L.Chen,WaterRes.45(2011)886–892. [41]Y.Wu,J.Zhang,Y.Tong,X.Xu,J.Hazard.Mater.172(2009)1640–1645. [42]M.Eloussaief,W.Hamza,N.Kallel,M.Benzina,Environ.Prog.Sustain.Energy
32(2013)229–238.
[43]M.Eloussaief,S.Bouaziz,N.Kallel,M.Benzina,Desalin.WaterTreat.(2013) 1–5.
[44]M.Eloussaief,I.Jarraya,M.Benzina,Appl.ClaySci.46(2009)409–413. [45]M.Eloussaief,A.Sdiri,M.Benzina,Environ.Sci.Pollut.Res.20(2012)469–479. [46]M.Eloussaief,M.Benzina,J.Hazard.Mater.178(2010)753–757.
[47]J.Manjanna,Appl.ClaySci.42(2008)32–38.
[48]B.M.Vinoda,J.Manjanna,Appl.ClaySci.97(2014)78–83.
[49]J.Manjanna,T.Kozaki,N.Kozai,S.Sato,J.Nucl.Sci.Technol.44(2007) 929–932.
[50]N.Kozai,Y.Adachi,S.Kawamura,K.Inada,T.Kozai,S.Sato,H.Ohashi,T. Ohnuki,T.Banba,J.Nucl.Sci.Technol.38(2001)1141–1143.
[51]L.R.Vanloon,M.A.Glaus,W.Muller,Appl.Geochem.229(2007)2536–2552. [52]Y.H.Thomas,J.T.Samuel,Environ.Sci.Technol.39(2005)4499–4504. [53]Y.Panga,G.Zeng,L.Tang,Y.Zhang,Y.Liu,X.Lei,Z.Li,J.Zhang,Z.Liu,Y.Xiong,
Chem.Eng.J.175(2011)222–227.
[54]E.Petala,K.Dimos,A.Douvalis,T.Bakas,J.Tucek,R.Zboril,M.A.Karakassides, J.Hazard.Mater.261(2013)295–306.
[55]B.S.Kadu,Y.D.Sathe,A.B.Ingle,R.C.Chikate,K.R.Patil,C.V.Rode,Appl.Catal.B 104(2011)407–414.
[56]P.Venkateswaran,K.Palanivelu,Sep.Purif.Technol.40(2004)279–284. [57]K.S.Sumit,S.Rakshapal,A.Ashutosh,S.Mangal,K.Alok,Environ.Sci.Pollut.
Res.20(2013)1661–1674.
