• Alternatif Mesin yang akan Digunakan
PENGOLAHAN DATA
PENGOLAHAN DATA
PENGOLAHAN DATA
PENGOLAHAN DATA
Millstar VT-550 CNC bed mill Millstar VT-550 CNC bed mill Motor 5 HP; 3 Ph 230/460V; Pre-wired 230V Number Of Spindle Speeds Variable
Range Of Spindle Speeds (RPM) 80 ~ 5800 rpm Spindle Taper NT-40, BT-40 or Cat-V-40
Table Size 1500 x 450 mm T-Slots Number And Size 3 and 18 mm
Head Movement ± 45° Work Table Weight Capacity 1000 Kgs
T-Slots Centers 80 Quill Down Feed Rates (IPR) .003 - .009 - .018
L/R x F/B x Height 2000 x 1800 x 2550 mm
JET JTM-4VS CNC bed mill JET JTM-4VS CNC bed mill Motor 3 HP; 3 Ph 230/460V; Pre-wired
230V Number Of Spindle Speeds Variable Range Of Spindle Speeds (RPM) 60 – 4200
Spindle Taper R-8
Table Size 9" x 49" T-Slots Number And Size 3 and 5/8-in
Head Movement 90 Degrees Right & Left, 45 Degrees Front & Back Work Table Weight Capacity 660 lbs.
T-Slots Centers 2-1/2-in Quill Down Feed Rates (IPR) .0015 - .003 - .006
L/R x F/B x Height 1700 x 1480 x 2150 mm
JET-1600R-4 Radial Drill Press 75Hp, 460 Motor 7-1/2 HP, 230/460V, 3 Ph, Prewired 230V Number Of Spindle Speeds 12 (40 - 1920)
Spindle Taper 5 MT Column Diameter 14-9/16" Drilling Capacity Cast Iron 2-3/8" Drilling Capacity Mild Steel 2"
Tapping Capacity Cast Iron 5" Tapping Capacity Mild Steel 7-3/8"
Boring Capacity Steel 3-15/16" Boring Capacity Cast Iron 5" Distance Column To Spindle (max/in.) 50"
Distance Column To Spindle (min/in.) 13" Distance Base To Spindle (max/in.) 63" Quill Travel 13" Quill Down Feed Rates (IPR) (.003 - .038 IPR)
Elevating Motor 2 HP
Machine Dimensions (L/R x F/B x Height) : 1040 x 2500 x 3000 mm Coolant Pump Motor 1 HP
Table Dimensions 27-7/8" x 19-5/8" x 15-3/4"

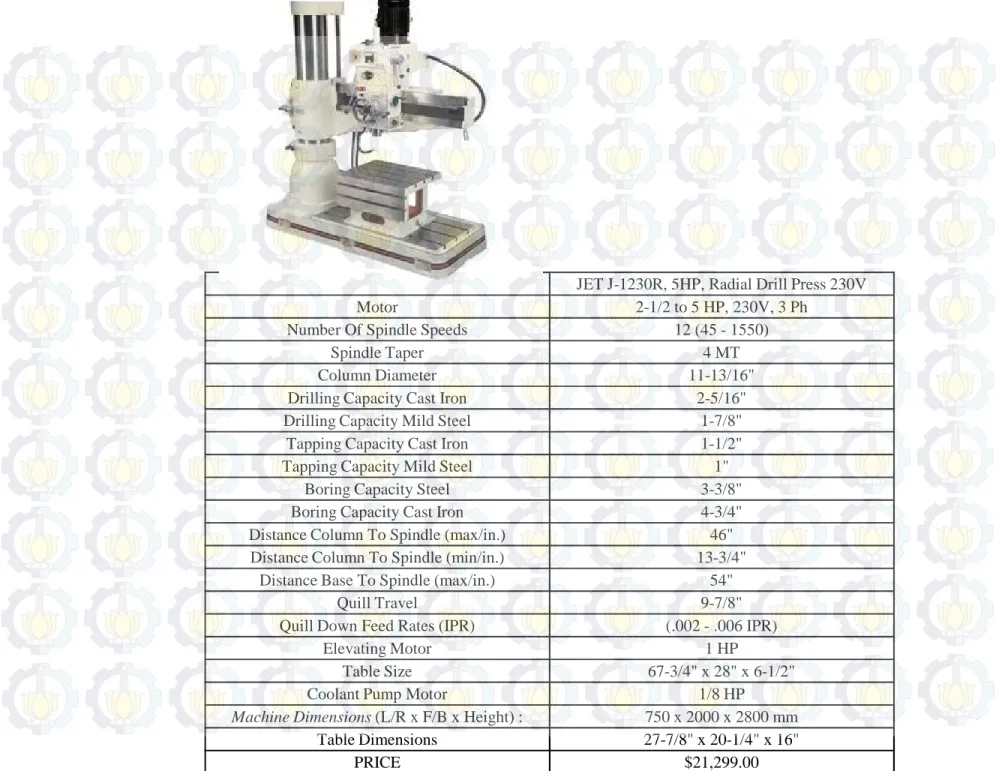

JET J-1230R, 5HP, Radial Drill Press 230V Motor 2-1/2 to 5 HP, 230V, 3 Ph
Number Of Spindle Speeds 12 (45 - 1550) Spindle Taper 4 MT Column Diameter 11-13/16" Drilling Capacity Cast Iron 2-5/16" Drilling Capacity Mild Steel 1-7/8"
Tapping Capacity Cast Iron 1-1/2" Tapping Capacity Mild Steel 1"
Boring Capacity Steel 3-3/8" Boring Capacity Cast Iron 4-3/4" Distance Column To Spindle (max/in.) 46"
Distance Column To Spindle (min/in.) 13-3/4" Distance Base To Spindle (max/in.) 54"
Quill Travel 9-7/8" Quill Down Feed Rates (IPR) (.002 - .006 IPR)
Elevating Motor 1 HP
Table Size 67-3/4" x 28" x 6-1/2" Coolant Pump Motor 1/8 HP
Machine Dimensions (L/R x F/B x Height) : 750 x 2000 x 2800 mm Table Dimensions 27-7/8" x 20-1/4" x 16"
NICHOLS "BIG TWIN" MILL Working Surface of Table 16" x 48"
Machine Dimensions (L/R x F/B x Height) : 2050 x 2000 x 2150 mm Machine Dimensions (L/R x F/B x Height) : 2050 x 2000 x 2150 mm
Spindle Nose Separation: Minimum 4" Spindle Nose Separation: Maximum 24"
Height of Spindle Center Above Table: Minimum 4.5" Height of Spindle Center Above Table: Maximum 16.5" Maximum Longitudinal Offset of Heads 12"
Spindle Speed Range (30) 5 - 2360 RPM Table Feed, Infinitely Variable: 0.5 - 150 IPM Table Rapid Traverse 200 IPM
Maximum Cutting Stroke 36"
Motor Driven with (2) 10 HP, 1200 RPM, 3 Phase, 60 Cycle Price $ 16,000.00
Nichols - Twin Mill (TM-640)
Machine Dimensions (L/R x F/B x Height) : 1700 x 1480 x 2000 mm
Table Size: 10" x 30"
Min. Distance between Spindle Noses: 4" Max. Distance between Spindle Noses: 16" Height of Spindle C'line above Table, Min.: 3.5" Height of Spindle C'line above Table, Max.: 11.2" Max. Longitudinal offset of Heads: 8-1/4"
Spindle Speeds (15): 55 - 2050 RPM Table Feed Rates, Variable: 0.3 - 50 In/Min Rapid Traverse Feed: 150 In/Min
Max. Recommended Cutter Diameter: 6" (2) 6HP Motor Drives 230/460/3/60 Price $ 7,500.00
• Rekap Waktu Proses Produksi dengan
Alternatif Mesin Baru
No
Mesin
Waktu / unit (detik)
D 700
Altf. A
D 700
Altf. B
D 2700
Altf. A
D 2700
Altf B
1
Double Spindle Milling Machine
5610
4062
6110
4530
2 Radial Drill Machine 7726 6131 9477 7624
PENGOLAHAN DATA
PENGOLAHAN DATA
PENGOLAHAN DATA
PENGOLAHAN DATA
• Rekap Jumlah Mesin yang Dibutuhkan

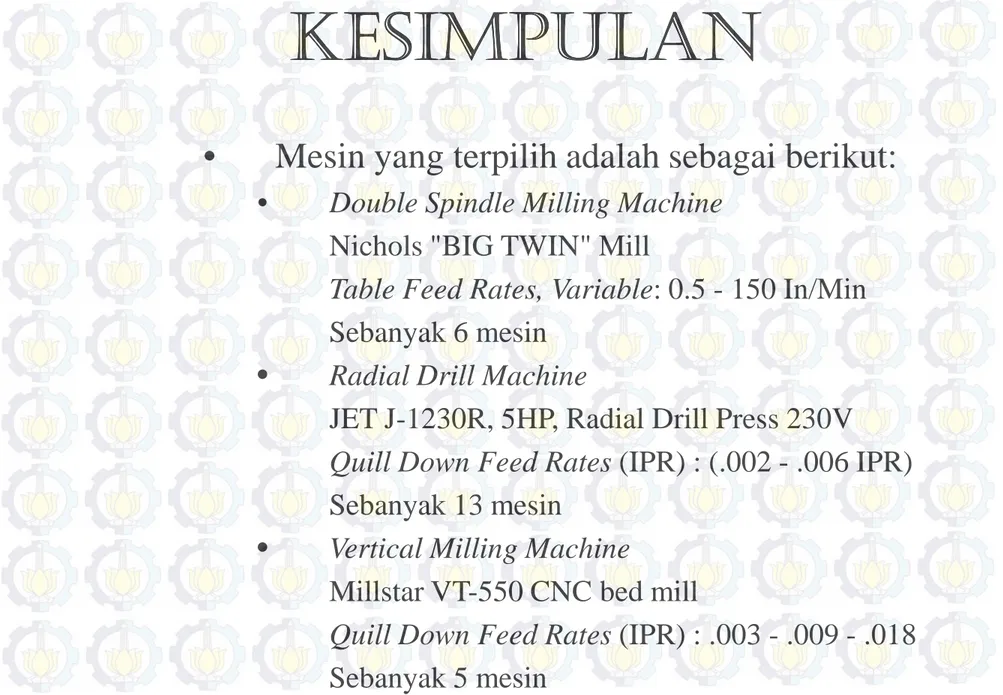

2 Radial Drill Machine 7726 6131 9477 7624
