REVIEW
History of supercritical
fl
uid chromatography: Instrumental development
Muneo Saito
*JASCO Corporation, 2967-5 Ishikawa-cho, Hachioji, Tokyo 192-8537, Japan
Received 12 September 2012; accepted 5 December 2012 Available online 11 January 2013
In the early days of supercriticalfluid chromatography (SFC), it was categorized as high-pressure or dense gas chro-matography (HPGC or DGC) and low boiling point hydrocarbons were used as supercritical mobile phase. Various liquids and gases were examined, however, by the late 1970s, carbon dioxide (CO2) became the most preferredfluid because it has low critical temperature (31.1C) and relatively low critical pressure (7.38 MPa); in addition, it is toxic, non-flammable and inexpensive. A prototype of a modern packed-column SFC instrument appeared in the late 1970s. However, in the 1980s, as open tubular capillary columns appeared and there was keen competition with packed columns. And packed-column SFC at once became less popular, but it regained popularity in the early 1990s. The history of SFC was of“the rise and fall.”Advances in chiral stationary phase took place in the early 1990s made packed-column SFC truly useful chiral separation method and SFC is now regarded as an inevitable separation tool both in analytical and preparative separation.
Ó2012, The Society for Biotechnology, Japan. All rights reserved.
[Key words:Supercriticalfluid; Chromatography; Open tubular capillary column; Packed column; Preparative supercriticalfluid chromatography; Chiral separation]
What is a supercriticalfluid? It is a highly compressed gas that has a density similar to that of a liquid.Fig. 1shows the phase diagram of a pure substance.
At the triple point (TP) the three phases (gas, liquid, and solid) of the substance coexist in thermodynamic equilibrium. As the temperature goes high, the substance coexists in two phases, i.e., gas and liquid. At the critical point (CP) and in the region the temperature and the pressure are above the critical temperature and pressure, the substance exists in a single gaseous phase. The substance in this region is defined as in the supercritical state where the density is liquid-like while the viscosity is gas-like, and the diffusivity is in between those of a liquid and a gas as shown in
Table 1 (1). It is expected that a supercriticalfluid, which has the higher diffusivity and the lower viscosity than a liquid solvent, will function much better than a liquid solvent as an extractant and a mobile phase in extraction and chromatography.
Chromatography that uses a supercriticalfluid as the mobile phase, i.e., supercriticalfluid chromatography (SFC), wasfirst re-ported by Klesper et al.(2)as high-pressure gas chromatography (HPGC) in 1962, a little before the advent of high-performance liquid chromatography (HPLC). Although SFC has a history as long as or even a little longer than that of HPLC, it was not so long ago, probably in the latter half of the 1990s, when SFC was recognized as a truly useful separation method. There are a few reasons why it took such a long time. The greatest reason is the advent of HPLC. At the time of thefirst report on SFC, gas chromatography (GC) was
already a well established method and its instrumentation was readily available from several commercial sources and researchers’ interest was shifted to an analytical method that could analyze thermally labile, non-volatile or polar compounds that could not be separated by GC. Liquid chromatography (LC) has the potential to realize these requirements, however, stationary phases and instrumentation available at the time did not allow high-speed and high-efficiency analysis comparable to that of GC. And tremendous efforts were paid to the development of HPLC. Although SFC is not as versatile as LC, it too has good potential. The development of SFC was unfortunately shaded by the rapid development of HPLC that took place in the latter half of the 1960s and the 1970s.
There are two important review articles on SFC, one published in 2009 by Taylor(3)and the other in 2011 by Guiochon and Tarafder
(4). Taylor(3)overviewed various techniques in SFC and put them into a compact and comprehensive article. Guiochon and Tarafder
(4)covered every aspect of SFC including theoretical and empirical treatments of physicochemical properties of high temperature and high-pressure fluids, even including thermodynamics and the equations of state. Their article is roughly 77 pages and could be a small monograph. The author recommends the readers to read these review articles for an in-depth understanding of SFC. In this article, the author covers mainly a history of instrumental devel-opment that was partially discussed in the above reviews.
Fig. 2shows the number of articles on SFC published each year from 1962 to 2012. In the 1960s, the number is very small and does not chart as well relative to the later years. In the 1970s, the number varies but not more than 30 per year. However, in the 1980s, the number exponentially increases from 15 to over 400 in a decade. In *Tel.:þ81 42 646 4111x204; fax:þ81 42 643 0053.
E-mail address:muneo.saito@jasco.co.jp.
www.elsevier.com/locate/jbiosc
VOL. 115 No. 6, 590e599, 2013
1389-1723/$esee front matterÓ2012, The Society for Biotechnology, Japan. All rights reserved.
the 1990s, the number is somehow saturated at around 500e600. Then, it rapidly increased again in the first decade of the 21st century.
EARLY WORKS IN HIGH-PRESSURE GAS CHROMATOGRAPHY (HPGC) OR DENSE GAS CHROMATOGRAPHY (DGC)
Works of early pioneers In the early days, presently
accepted terminology“supercriticalfluid chromatography (SFC)” for the method was not established, and various terms were used such as (ultra) HPGC and dense gas chromatography (DGC).
Thefirst report on SFC by Klesper et al.(2) appeared in the Communications to the editor section of Journal of Organic Chemistry in 1962. It is a brief report, less than 2 pages. They indicated thermally labile porphyrin mixtures were separated on polyethylene glycol stationary phase with two mobile phase gases such as dichlorodifluoromethane (Tc¼112C) and
monochlorodi-fluoromethane (Tc¼96C) at temperatures of 150
e170C. They also stated“above 1000 psi (7 MPa) with thefirst and 1400 psi (9.8 MPa) with the second, vaporization increased with increasing gas pres-sure”, indicating that porphyrins were dissolved in the supercritical mobile phase. In addition, they foresaw the possibility of prepara-tive SFC by stating“the porphyrins could be recovered at the outlet valve.”
Sie et al.(5e8)published a series of articles on HPGC in 1966 and 1967. They used supercritical carbon dioxide as the mobile phase and discussed fluidesolid and fluideliquid separation modes. It should be noted that they developed a sophisticated pneumatically
operated injector in order to inject a sample under high-pressure and high-temperature conditions. It is also unique that they used a UV absorption detector with a quartz cell that was equipped with a gaseliquid separator and detection was carried out under atmo-spheric pressure. Both devices did not survive, however, the author thinks it is worth mentioning these pioneering works.
Sophisticated instrumentation developed in the late
1960s In 1968, Klesper’s group reported a new SFC system(9).
The system was equipped with a mechanical backpressure regulator that could control the pressure independent of theflow rate. The detector was a filter photometer with a high-pressure flow cell. It should be noted that the detector used in HPLC at that time was a simple single-wavelength photometer with a low-pressure Hg discharge lamp as the light source which emits UV light at 254 nm(10). In 1968, vacuum tubes were still in use and the transition to transistors had just begun. Therefore, the author believes that the system consisted of a sophisticated analog servo system with vacuum tubes. It is remarkable that a prototype of a modern packed-column SFC appeared more than 40 years ago.
In 1969, Giddings et al. (11)reported DGC. In the article they stated“One of the most interesting features of ultra-high-pressure gas chromatography would be its convergence with classical liquid chromatography. A liquid is ordinarily about 1000 times denser than a gas; at 1000 atm, however, gas molecules crowd together with a liquid-like density. At such densities intermolecular forces become very large, and are undoubtedly capable of extracting big molecules from the stationary phase. Thus in effect, non-volatile components are made volatile.”
Thefirst sentence seems to imply the unified chromatography that was later realized and reported by Ishii et al.(12)in 1988 and more recently by Chester and Pinkston(13). The latter part of the paragraph describes solvation of a solute in a supercriticalfluid. This phenomenon was investigated and well elucidated by Kim and Johnston(14)in 1987 and Kajimoto et al.(15)in 1988. Their works will be explained later.
FIG. 1. Phase diagram of pure substance.TP: triple point;CP: critical point;Pc: critical
pressure; andTc: critical temperature. These parameters are specific to each substance.
Reproduced from Saito et al. (47) with permission of John Wiley & Sons, Inc.
TABLE 1.Properties of gas, liquid and supercriticalfluid.a
Property Units Gas 1 atm, 25
C Liquid 1 atm, 25 aAfter Takishima and Masuoka(1).
0
Giddings et al. proposed an extension of the Hildebrand solu-bility parameter to a supercritical fluid (11). They used various gases including He, N2, CO2 and NH3, and examined retention behavior of various substances such as purines, nucleosides and nucleotides, steroids, sugars, terpenes, amino acids, proteins, car-bowaxes, etc. However, CO2later became the most preferredfluid because it has low critical temperature (31.1C) and relatively low
critical pressure (7.38 MPa), in addition, it is non-toxic, non-fl am-mable and inexpensive. Today, an SFC mobile phase automatically assumes a pure or mixture of CO2and organic modifiers.
SFC instrumentation with pressure programming and
fractionation capability In 1970, Jentoft and Gouw (16)
reported a new SFC system that allows pressure programming. They separated polycyclic aromatic hydrocarbons and styrene oligomers utilizing pressure programming. In the case of a supercritical mobile phase, the higher the pressure, the stronger the solvating power becomes. Thus, it functions similar to gradient elution in LC. They claimed that their new SFC system offered comparable performance to high resolution LC (note that the terminology “high-performance liquid chromatography”was not yet generally accepted at that time). It is remarkable that they already developed such a sophisticated SFC system as early as in 1970. At that time, HPLC was still in an early developmental stage and there was an argument as to which type of the pump (i.e., a syringe, a reciprocating or a constant-pressure pump) was best suited for the HPLC pump. In 1972, they developed a high-pressure fraction collector to fractionate components eluted from an SFC system, proving that SFC can be used for preparative applications(17).
In 1977, Klesper and Hartman(18,19)reported a sophisticated preparative SFC (prep-SFC) and fractionation of styrene oligomers. Fractions were analyzed with mass spectrometry, thus, constituting offline SFC-mass spectrometry (MS). In 1978, Randall and Wahrhaftig (20) described a dense gas chromatography (DGC)/ mass spectrometer (MS) Interface.
In 1980, a monograph edited by Schneider et al.(21)was pub-lished. This book covers developments that took place mainly in Europe in the 1960s and 70s such as plant scale supercriticalfluid extraction (SFE) and their applications, physicochemical studies of supercriticalfluid including phase equilibria, analytical scale SFE combined with thin layer chromatography (TLC), and SFC.
OPEN TUBULAR CAPILLARY COLUMN VERSUS PACKED COLUMN, AND OTHER DEVELOPMENTS
Research activities on column technology and instrumentation were very active and diverse in the 1980s, and this led to the commercialization of SFC instruments.
Open tubular capillary column In 1981, Novotny and Lee’s
group introduced open tubular capillary column SFC(22). A typical open tubular capillary column was a 50
m
m inner diameter fusedsilica capillary tube and the internal wall was coated with a polymer such as dimethyl polysiloxane that functioned as the stationary phase.
Novotny et al. (23) previously studied retention behavior of packed columns under various conditions, and stated that a packed column could not give high-efficiency at high-linear velocity because of the pressure drop along the column that functions as a negative density gradient. They emphasized that a small pressure drop across an open tubular capillary column would give higher efficiency than a packed column. Later open tubular capillary SFC was patented and exclusively marketed by Lee Scientific. The system consisted of a syringe pump, an injection valve with a split mechanism, a GC-like oven, a wall-coated open tubular column, afixed restrictor, and aflame ionization detector (FID).Fig. 3shows
a schematic diagram of a typical GC-like open tubular column SFC system. The SFC system sold well in the beginning mainly in the US, however, within a few years, it was revealed that it had intrinsic technical difficulties.
Technical advantages of SFC over other modes of chromatog-raphy such as GC and LC are summarized as inTable 2. In SFC, all three parameters (i.e., pressure, temperature and modifier content) can independently or cooperatively control retention, or even a gradient method can be applied to all the parameters. These advantages were too heavily emphasized at that time. Therefore, it often misled chromatographers to think that SFC was a type of super chromatography. However, in the case of open tubular capillary SFC, pressure (or density that is inversely proportional to the pressure under the certain conditions) which is the most important operating parameter, could only be varied by changing theflow velocity due to the limitation of the constant restrictor. This means that the pressure could not be changed independently of theflow velocity. Therefore, one could never obtain the optimum flow velocity at the optimum pressure. In addition, the standard FID detector could not be used with an organic modifier because even a small amount of organic solvent produced too high a background on the baseline, limiting application range. There were a few attempts to use premixed CO2 with an organic solvent in the cylinder to add some polarity to the CO2-based mobile phase in order to elute polar compounds using a UV absorption detector equipped with a microflow cell. However, this technique did not attract chromatographers because they could not change the modifier content as required or run modifier gradient elutions. Thus, it could not extend the application areas, and open tubular capillary column SFC rapidly diminished in the early 1990’s. Taylor intensively described the history of open tubular capillary column SFC(3).
Packed column Before the advent of open tubular capillary
column SFC, all SFC research works were performed using packed columns. While open tubular capillary column SFC was GC-like instrument, packed-column SFC was more like LC. In 1982, Gere et al.(24)modified a HewlettePackard (HP) HPLC system to operate as an SFC system by adding a backpressure regulator and other devices. They showed that SFC gave higher efficiency with 3, 5 and 10
m
m packing materials especially in high flow velocityregion. Packed-column SFC was developed almost independently of open tubular capillary column SFC. Packed-column SFC at once became less popular, especially in the US due to the marketing strategy of open tubular column SFC in the middle of 1980s.
Column Oven

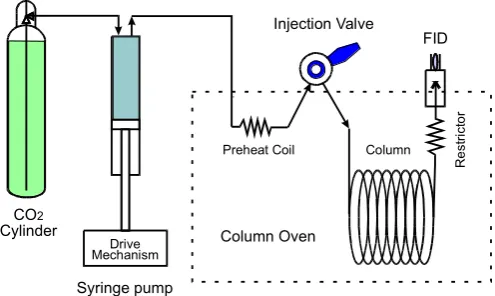

FIG. 3. Schematic diagram of typical GC-like open tubular column SFC system. Since the
flow rate is very low, a screw-driven syringe pump is used. Backpressure is applied by a restrictor that has a certainflow resistance to keep the system pressure above the critical pressure of thefluid. Pressure was controlled by changing the mobile phase
However, it regained popularity when packed columns were found to have a wider application range than open tubular columns
(25,26). Fig. 4 shows a schematic diagram of a typical LC-like packed-column SFC system with automated backpressure regulator. It is very similar to an HPLC system. However, a backpressure regulator that keeps thefluid pressure above the critical pressure and an oven that keeps the fluid temperature above the critical temperature are vital devices specific to SFC.
Photodiode array UV detector and electronic backpressure
regulator In 1985, Sugiyama et al. (27) developed a
packed-column SFEeSFC hyphenated system, and demonstrated the extraction and chromatography of caffeine from ground coffee beans. The SFE directly coupled to an SFC system allowed an online introduction to an SFC column and the signal was
monitored with a photodiode array UV detector (PDA). PDA has soon become the standard detector in packed-column SFC.
In a modern SFC system, the most important device may be the backpressure regulator which allows pressure control independent of mobile phaseflow rate. Saito et al.(28)developed an electron-ically controlled backpressure regulator that had a very small internal volume and allowed efficient fractionation without cross contamination between fractions. This type of the backpressure regulator has become the standard device in packed-column SFC.
Chiral separation In the 1980s, Okamoto et al. (29,30)
developed highly efficient and versatile chiral stationary phases (CSP) and published a series of articles. Later, these CSPs were commercialized by Daicel Corporation, Osaka, Japan, and rapidly spread throughout the world; first used with LC and then extended to SFC.
In 1985, Mourier et al.(31)demonstrated a chiral separation of phosphine oxides with supercritical and subcritical carbon dioxide mobile phase. In 1986, Hara et al.(32)demonstrated an SFC chiral separation ofdl-amino acid derivatives. In the same year, Perrut and Jusforgues(33)developed a prep-SFC system with a 60-mm i.d. column with carbon dioxide recirculation. They mentioned that a preparative SFC is a sophisticated high-pressure gas equipment and thus expensive(33). Therefore, preparative SFC is suitable for fractionation of high-valued compounds such as chiral drugs, essential oils, etc.
Later in the 1990s and 2000s, advances in chiral stationary phase and instrumental development made chiral separations one of the most important and preferred applications in both analytical and preparative SFC(34,35).
Cluster theory For the utilization of a supercriticalfluid as an
extraction solvent or a mobile phase for chromatography, thefluid must have a solvating power. Kajimoto(36)illustrated the behavior of molecules in gas, liquid, and supercritical state in view of the intermolecular potential and the average molecular energy as shown in Fig. 5. At lower temperatures, an energetically lower state is strongly favored as is known in statistical thermodynamics. In the liquid state at low temperatures, therefore, each molecule feels the attractive intermolecular potential and most molecules are trapped in the potential well, the depth of which is usually larger than the average kinetic energy per molecule, moving around only a small region surrounded by adjacent molecules. This is a rough picture of the liquid state. On the other hand, in the gas state, most molecules at high temperatures, where the average kinetic energy is large, can move freely over the attractive potential well to expand the free volume of the system.
In the supercriticalfluid region near the critical temperature, some molecules may move freely and some may be trapped to form so-called weak clusters since kinetic energies of each molecule are fluctuating around the average value clusters formed when the molecular kinetic energy is smaller than the attractive energy between adjacent molecules. In addition, these clusters are rapidly changing in size and constitution due to molecular collisions. When a solute molecule is thrown into the supercriticalfluid, and if the soluteesolvent attractive integration is larger than the solventesolvent interaction, the solute molecule may be sur-rounded by the solvent molecules which form cluster because attractive potential energy around the solute molecule is larger than the average kinetic energy of the solvent (supercritical) molecules. Clustering around a solute molecule is now considered a major cause of enhanced solubility in supercriticalfluids.
In 1987, Kim and Johnston(14)experimentally showed that the local concentration of thefluid solvent molecules around a solute molecule, phenol blue, is higher than the bulk concentration by measuring the UV absorption wavelength shift of phenol blue in
INJ RF
PU1
PU2
Preheat Coil
OVEN
PDA
PT
BR
Collection tube
Colum
n
Sample Sampling syringe
CO Modifier2
FIG. 4. Schematic diagram of typical LC-like packed-column SFC system with auto-mated backpressure regulator. PU1: liquefied CO2delivery reciprocating pump with
chilled pump heads; PU2: modifier solvent delivery pump; RF: safety relief valve that prevents over pressure; INJ: injection valve; PDA: photodiode array UV detector; PT: pressure transducer; and BR: backpressure regulator. The pressure transducer moni-tors the pressure real time and the backpressure regulator compares the set pressure and actual pressure and control theflow resistance of the regulator so that the actual pressure becomes equal to the set pressure.
TABLE 2.Various modes of chromatography and available control parameters.
Parameter/Mode GC SFC LC
Pressure No Yes No
Temperature Yes Yes Yes
various supercriticalfluids such as CO2, CF3Cl, and CHF3. In 1988, Kajimoto et al. (15) obtained the first experimental evidence of solvation by cluster formation via measurements of the UV absorption wavelength shift of 4-(N,N-dimethyl amino)benzonitrile (DMABN) both in a supersonic jet and supercritical CHF3 with various densities. They calculated the change in the number of the fluid molecules around the solute molecule by employing a clus-tering model based on the Sutherland potential and Langmuir type adsorption. Comparison of the experimental data agreed well with the calculated values.
Symposia and workshops held in the 1980s In 1987, Smith
organized thefirst international workshop on SFC at Loughborough University of Technology. Many research groups; Bartle’s, Smith’s, Leyendecker’s, Lee’s, Sandra’s, Game’s, Lane’s and Saito’s groups, gathered from Europe, US and Japan, and had an intensive discus-sion. Commercial instruments from Lee Scientific (open tubular capillary column SFC) and JASCO (packed-column SFC and analyt-ical SFE) were demonstrated. Contents of the discussion were published as a monograph edited by Smith from Royal Society of Chemistry(37).
In 1988, Perrut organized thefirst International Symposium on Supercritical Fluids (ISSF) that covered a very wide range of research on supercriticalfluids, including industrial scale extrac-tion, chromatography, phase equilibria, equations of state, etc., in Nice, France. This symposium was very successful and gathered many researchers in variousfields from various countries. The ISSF has been held in every 3 years and the latest one was held in May 2012 in San Francisco.
In 1988, Lee and Markides organized the 1988 Workshop on Supercritical Fluid Chromatography in Park City, Utah. They have organized the Workshop/Symposium in Utah a couple of times. The 4th workshop was held in Cincinnati, Ohio, and the 5th one was held in Baltimore, Maryland. Lee and Markides (38) edited a monograph that collected works presented in the series of symposia and workshops in 1990.
DEVELOPMENT OF SFC AS A PRACTICAL TOOL IN ANALYTICAL AND PREPARATIVE CHROMATOGRAPHY
Analytical SFC The solvating power of a supercritical fluid
mobile phase depends on the density of thefluid. This means that under the isobaric condition, the lower the temperature, the higher the solvating power becomes. Thus, the lower the temperature, the retention becomes shorter which is contrary to normal retention behavior in GC and HPLC. In GC, the higher the vapor pressure, the shorter the retention. This means that the higher the temperature, the shorter the retention. Therefore, if the column temperature is significantly higher than the critical temperature of the mobile phasefluid, thefluid’s solvating power competes with the solute’s vapor pressure. Fig. 6 shows the relationship between the logarithm of capacity factor k0 and the reciprocal of column
temperature T (K) (39). At the temperatures of 2.4 (144C) or
FIG. 5. Behavior of molecules in gas, liquid, and supercritical state. Reproduced from Kajimoto(36)with permission of Kagakudojin.
FIG. 6. Relationship between the logarithm of capacity factork0and the reciprocal of column temperature T (K). Conditions: column, Capcell Pak CN, 5 mm; mobile phase, CO2, 4 mL/min as liquid; pressure, constant at 20 MPa. Reproduced from Saito
lower, the retention (k0) decreases roughly linearly to the reciprocal
of the temperature; according to SFC theory. However, at the temperature of 2.4 (144C) or higher, the retention (k0) decreases
as well according to GC theory. At 2.4 (144C) there are maxima
that are generated by the competition between the changes of solvating power and the vapor pressure effect.
In the case of open tubular capillary SFC, it is often operated in this temperature region, and makes it difficult to predict the retention. Controlling the pressure by changing theflow velocity further complicates the prediction. In open tubular capillary column SFC, the mobile phase is often pure CO2 and a pressure (density) gradient is used. While in the case of packed-column SFC as stated before, it is more LC-like from view points of instrumen-tation, and it is common practice to add polar modifier to CO2and perform LC-like modifier gradient.
In packed-column SFC, chromatographers started to use organic modifiers in higher percentage; a few to several 10s%. In such cases, both critical temperature and pressure are rapidly elevated as shown inFig. 7 (40). For example, 5% (30%) methanol in CO2gives the critical temperature 51C (135C) and the critical pressure of
105 bar (168 bar) as shown in the gray box. Therefore, under commonly used chromatographic conditions such as 100e120 bar pressure and 40C temperature, the mobile phase
fluid is not in a supercritical state. Cui and Olesik (41) started to use high-concentration modifiers in liquefied CO2as early as in 1991. They recognized that their mobile phase was not a supercriticalfluid and they called it“enhanced-fluidity mobile phase”. However, this term was not generally accepted by SFC chromatographers and the term supercriticalfluid chromatography remains as is regardless of the actual state of the fluid used. It should be noted that in such conditions, the solvating power or retention can hardly be controlled by changing the pressure because the temperature and the pressure are well below the critical values of the binary mixture fluid and the densities do not change much by the pressure. In short, such a mobile phase is a simple mixture of liquefied CO2gas and an organic solvent, though when thefluid temperature and pressure are a little under the critical values it may be called a subcriticalfluid. Advantages of this type of mobile phase are lower viscosity than a liquid mobile phase and easy recovery of the
sample solute by decompression which is very useful when it is used in preparative separation. An LC-like SFC system together with the use of high-concentration modifier and modifier gradient offered great flexibility in analytical work and chroma-tographers have finally found it as non-experimental ordinary chromatograph.
Preparative SFC As discussed previously, Klesper foresaw the
possibility of preparative SFC(2), in their pioneering work in the 1960s (9) and 1970s (18,19). Saito and Yamauchi’s group demonstrated the enrichment of tocopherol from wheat germ in 1989(42)and the fractionation of lemon peel oil in 1990(43)by semi-preparative SFC using a 20-mm i.d. column. Berger and Perrut(44)reviewed preparative SFC works in 1970s and in the 80s. In 1992, Ute et al. (45) demonstrated isolation of methyl methacrylate (MMA) oligomer, according to the degree of poly-merization employing a negative temperature gradient. In 1995, Saito and Yamauchi(46)separatedflavanone enantiomers on a 20-mm i.d. column with a stacked injection technique using a photo-diode array UV/Vis detector (PDA). These works proved that SFC is suitable for analytical and preparative separations; and that the same SFC system could be used for both analytical and semi-preparative applications. Chiral separation is now the most successful application in SFC including analytical and preparative separations.
Text books and commercialization of packed-column SFC
systems in the 1990s Saito et al.(47)published a monograph
that describe the practice of SFE and packed-column SFC including preparative SFC in 1994. T.A. Berger published a monograph on packed-column SFC in 1995(48). In 1998, Klaus and C. Berger (not related to T.A. Berger)(49)published a book on SFC with packed columns. These books encouraged chromatographers to use SFC, thus, packed-column SFC became the main stream of SFC by the late 1990s, and packed-column SFC instrumentation became commercially available from several sources; Hewlett Packard (later Berger Instrument), JASCO, Gilson, Novasep, etc.
Standard configuration of a packed-column SFC
system The standard configuration of a packed-column SFC
FIG. 7. Relationship between the calculated critical temperature, pressure and mass % of a CO2-methanol mixture. Recalculated using the program by Saito and Nitta(40)with
TABLE 3.Overview of history of development of SFC.
Publication year Authors (ref. no.) Application/Event Mobile phase Stationary phase Apparatus/Detector
1962 Klesper et al.(2) Porphyrin mixtures Diclorodifluoroethane monochlorodifl uoro-methane
Polyethylene glycol GC-like very simple homemade system/FID
1966, 1967 Sie et al.(5e8) Paraphins CO2 Silica gel coated with
glycerol, squalene
GC-like relatively simple homemade system/FID 1968 Karayannis et al.(9) Porphyrin mixtures Diclorodifluoroethane Chromosorb/cabowax 20 M GC-like sophisticated
homemade system/ photometer 1969 Giddings et al.(11) Purines, nucleosides and
nucleotides, steroids, sugars, terpenes, amino acids, proteins, carbowaxes, etc.
CO2, NH3, etc. Chromosorb/silicone oil GC-like sophisticated
homemade system/FID Ultra-high-pressure system, details unknown
1970 Jentoft and Gouw(16) PAHs, styrene oligomer CO2 Woelm basic alumina.
Porosil/n-pentane 1972 Jentoft and Gouw(17) Preparative separation of
above solutes and fraction collection
CO2 Woelm basic alumina.
Porosil/n-pentane
n-pentaneþmethanol Porosil LC-like homemade very sophisticated system/UV photometer/pressure programming 1981 Novotny et al.(22) Various chemicals such as
drugs, natural products, etc.; separation of styrene oligomers were often demonstrated to show its high resolution
CO2 Open tubular capillary
column/dimethyl polysiloxan
GC-like system with syringe pump/FID
1982 Gere et al.(24) PAHs CO2 ODS Modified Commercial HPLC
system/backpressure regulator
1985 Sugiyama et al.(27) Caffeine extraction and separation
CO2 Silica gel LC-like sophisticated
system/PDA 1985 Mourier et al.(31) Chiral separation of
phosphine oxides
CO2 Pirckle type CSP Modified Varian HPLC
system 1986 Hara et al.(32) Chiral separation ofd-lamino
acid derivatives
CO2þmethanol Homemade CSP LC-like commercial SFC system(JASCO)/PDA
1986 Perrut and
Jusforgues(33)
Large scale preparative SFC (60 mm i.d. column) with CO2 recirculation
CO2 NA Semi-pilot plan scale
preparative SFC
1987 Saito et al.(28) PAHs, experimentally showed outlet massflow reduction and elucidated the phenomenon theoretically
CO2 Silica gel LC-like commercial SFC
system/PDA
1987 Kim and Johnston(14) Experimentally showed clustering in supercritical
fluids
CO2, CF3Cl, and CHF3 NA NA
1987 Smith(37) First Workshop on SFC NA NA NA
1988 Perrut First international
symposium on supercriticalfluids
NA NA NA
1988 Lee and Markides Workshop on analytical SFC NA NA NA
1990 Yamauchi and
Saito(43)
Fractionation of lemon peel oil
CO2þethanol Silica gel LC-like commercial SFC
system(JASCO)/PDA 1991 Cui and Olesik(41) High-concentration modifier
enhanced-fluidity mobile phase
CO2þmethanol Hypercarb PGC HP GC/Isco syringe pump
1992 Ute et al.(45) Isolation of methyl methacrylate (MMA) oligomer, according to the degree of polymerization
CO2 Silica gel Commercial SFC system/HP
GC oven/negative a 20-mm i.d. column with stacked injections
CO2þethanol Silica gel (20 mm i.d. column)
Commercial semi-prep-SFC system
2001 Wang et al.(61) Mass-directed fractionation for drug discovery
CO2þmethanol NA Homemade
semi-prep-SFCeMS 2006 Zheng et al.(80) SFC/MS of polypeptides CO2þ(methanolþ
trifluoroacetic acid)
2-Ethylpyridine bonded silica column
Commercial SFCeMS
2005 Xu et al.(81,82) Estrogen metabolites CO2þmethanol Cyanopropyl silica column connected in series with a diol column
Commercial SFCeMS/MS 2006
system established in the 1990s comprises of a reciprocating CO2 pump with chilled pump heads, a reciprocating modifier solvent pump, a manual or an automated injection device, a column oven, a UV absorption detector (typically a PDA detector), a backpressure regulator that allows the pressure control independent of theflow rate, and a chromatography data system (CDS) as shown inFig. 4. Other types of detectors have also been used.
Various detection systems Randall wrote a long article in
1982, on dense (supercritical) gas chromatographyemass spectrometry (MS), trying to stimulate research in this area(50). There are many articles on capillary column SFCeMS appeared in the 1980s(51e53). Crowther and Henion(54) reported packed-column SFCeMS for polar drug analysis. Those works in the 1980s were reviewed by Kalinoski et al.(55) in 1986 and Sheeley and Reinhold(56) in 1989. However, practical application of packed-column SFCeMS started in the 1990s after successful interfacing with atmospheric pressure ionization, i.e., APCI and ESI(57). These works were reviewed by several researchers(58e60).
In 2001, Wang et al.(61)reported mass-directed fractionation and isolation by packed-column SFC/MS, and proposed a fraction-ation method utilizing the matching of mass spectra of the sample compounds and those stored in the library. Zhang et al. (62)
developed a similar mass-directed preparative SFC purification system in 2006. Recently, Li and Hsieh(63)reviewed SFCeMS. MS detection is now a very powerful and indispensable method to accurately identify the target compound especially in the phar-maceutical industry(64).
In chiral separation, a chiral detector plays an important role as no other detector can differentiate chiral compounds. A chiral detector is an optical detector by nature. There are two types of detectors based on different optical property. One is based on optical rotation (OR) and the other on circular dichroism (CD). An OR detector measures the difference in refractive index of enan-tiomers, whereas a CD detector measures the difference in optical absorption. A refractive index is subject to the change of temper-ature and density, thus, it is extremely difficult to obtain a stable baseline in SFC. On the other hand, an absorption-based CD signal is very stable as a UV absorption detector, even in SFC. In addition, the g-factor (CD/UV signal), indicates enantiopurity independent of the peak concentration. Kanomata et al.(65)reported advantages of CD detection in SFC especially when it is employed in prepara-tive SFC.
FID has been the standard detector in open tubular capillary SFC. In packed-column SFC, the stationary phase is much stronger than that in open tubular capillary SFC, therefore, the addition of a polar modifier is necessary to elute a sample solute. As discussed before, even a small amount of organic modifier interferes with an FID however, it is still used with packed columns for specific analyses such as analyses of petroleum fuels using pure CO2as a mobile phase. These methods are published by ASTM as D5186(66)and D6550(67).
Evaporative light scattering detection (ESLD) is regarded as a pseudo-universal detector in HPLC and SFC. Since it does not require analytes to have UV absorption, it is a preferred detector in SFC in place of a refractive index detector that is not compatible with the high-backpressure required by SFC. Early attempts in using an ESLD in SFC were carried out by Carraud et al.(68), by Nizery et al.(69), and by Hoffmann and Greibrokk
(70)in the late 1980s. In 1996, Strode and Taylor(71)reviewed previous works of SFC-ESLD and investigated optimum condi-tions under various elution modes such as pressure gradient and modifier gradient.
To facilitate the readers to overview the half-a-century long history of the development of SFC, publications and events related to SFC are listed in chronological order inTable 3.
RECENT TRENDS IN SUPERCRITICAL FLUID CHROMATOGRAPHY
As discussed in the previous section, standardized SFC systems finally became commercially available from several sources by the late 1990s and were recognized as a truly useful separation instruments. However, the history of SFC was of“the rise and fall”, as Smith(72)wrote in his review article in 1999. Harris(73)wrote a very interesting story in her review article based on interviews with Karen Phinney of NIST and other SFC experts.“When Phinney joined NIST, she said to one of her colleagues,‘I’m doing SFC’,‘Oh, science fiction chromatography’ replied the colleague.” This happened in the mid 1990s.
As we are in the 21st century and the resources are growing scarce, demands for sustainable chemistry or green chemistry have been getting stronger. CO2-based SFC could significantly reduce the use of organic solvents in the separation process, and also energy in a fractionation and evaporation processes. Therefore, SFC has been expected to contribute greatly to green chemistry. In fact, the Green Chemistry Group (Oakmont, PA, USA), has been promoting the International Conference on Packed-Column SFC every year since 2008.
The author’s intention, as indicated by the title, is to review history of supercritical fluid chromatography in view of instru-mental developments and he will not go into the details about SFC applications. Nevertheless, the author would like to touch on some of important research works. Since the late 1990s, SFC research has been focused on expansion of application areas associated with development of column technology.
CO2-based SFC is normal phase chromatography and as such, polar analytes are difficult to separate by SFC. In order to expand the application areas, there are many attempts to separate such analytes(25,26,74e77). Works done in the 1980s and 1990s were intensively reviewed by Berger(78)in 1997.
In the 21st century, advances in column and mobile phase chemistryfinally allowed the analysis of biomolecules that were difficult to separate by SFC(79). In addition, advances in tandem mass spectrometry enabled the analysis of a very small amount of biomolecules and extended SFCeMS application range to metabo-lism research. Taylor’s group successfully analyzed a polypeptide with up to 40-mers using trifluoroacetic acid as additive in a CO2/methanol mobile phase to suppress the deprotonation of the peptide carboxylic acid groups and to protonate the peptide amino groups on a 2-ethylpyridine bonded silica column, which was specifically developed for SFC (80). They Xu et al. (81,82)
separated 15 estrogen metabolites by using SFCeMS/MS with a mobile phase of CO2-methanol mixture in gradient mode on a cyanopropyl silica column connected in series with a diol column in 10 min, whereas HPLCeMS/MS required 70 min. Bamba’s group
(83e85) performed extensive study on metabolic profiling of various natural products including lipids and polar lipids using SFCeMS/MS.
To conclude this article, the author would like to mention that there are a huge number of articles published since the advent of modern SFC, however, he had to mention less than 1% of such articles on a sampling basis. The readers mayfind that this review article examines many older works from the 1960se1980s. However, it is the intention of author to introduce these pioneering works to the readers which are often omitted in more recent review articles.
References
2. Klesper, K., Corwin, A. H., and Turner, D. A.:High pressure gas chromatog-raphy above critical temperatures, J. Org. Chem.,27, 700e701 (1962). 3. Taylor, L. T.: Supercritical fluid chromatography for the 21st century,
J. Supercrit. Fluids,47, 566e573 (2009).
4. Guiochon, G. and Tarafder, A.:Review Fundamental challenges and oppor-tunities for preparative supercriticalfluid chromatography, J. Chromatogr. A, 1218, 1037e1114 (2011).
5. Sie, S. T., Van Beersum, W., and Rjinders, G. W. A.:High-pressure gas chro-matography and chrochro-matography with supercriticalfluids. I. The effect of pressure on partition coefficients in gas-liquid chromatography with carbon dioxide as a carrier gas, Sep. Sci.,1, 459e490 (1966).
6. Sie, S. T. and Rjinders, G. W. A.:High-pressure gas chromatography and chromatography with supercritical fluids. II. Permeability and efficiency of packed columns with high-pressure gases as mobilefluids under conditions of incipient turbulence, Sep. Sci.,2, 699e727 (1967).
7. Sie, S. T. and Rjinders, G. W. A.:High-pressure gas chromatography and chromatography with supercriticalfluids. III. Fluid-liquid chromatography, Sep. Sci.,2, 729e753 (1967).
8. Sie, S. T. and Rjinders, G. W. A.:High-pressure gas chromatography and chromatography with supercriticalfluids, IV. Fluid-solid chromatography, Sep. Sci.,2, 755e777 (1967).
9. Karayannis, N. K., Corwin, A. H., Baker, E. W., Klesper, E., and Walter, J. A.: Apparatus and materials for hyperpressure gas chromatography of nonvolatile compounds, Anal. Chem.,40, 1736e1739 (1968).
10. Snyder, L. R. and Kirkland, J. J. (Eds.): Introduction to modern liquid chro-matography, 1st ed., p.130e131. John Wiley & Sons, New York (1979). 11. Giddings, C. G., Myers, M. N., and King, J. W.:Dense gas chromatography at
pressures to 2000 atmospheres, J. Chromatogr. Sci.,7, 276e283 (1969). 12. Ishii, D., Niwa, T., Ohta, K., and Takeuchi, T.:Unified capillary
chromatog-raphy, J. High Resol. Chromatogr.,11, 800e801 (1988).
13. Chester, T. L. and Pinkston, J. D.:Supercriticalfluid and unified chromatog-raphy, Anal. Chem.,76, 4606e4643 (2004).
14. Kim, S. and Johnston, K. P.:Molecular interactions in dilute supercriticalfluid solutions, Ind. Eng. Chem. Res.,26, 1206e1213 (1987).
15. Kajimoto, O., Futakami, M., Kobayashi, T., and Yamasaki, K.: Charge-trans-fer-state formation in supercriticalfluid: (N,N-dimethylamino)benzonitrile in trifluoromethane, J. Phys. Chem.,92, 1347e1352 (1988).
16. Jentoft, R. E. and Gouw, T. H.: Pressure-programmed supercritical fluid chromatography of wide molecular weight range mixtures, J. Chromatogr. Sci., 8, 138e142 (1970).
17. Jentoft, R. E. and Gouw, T. H.:Apparatus for supercriticalfluid chromatography with carbon dioxide as the mobile phase, Anal. Chem.,44, 681e686 (1972). 18. Klesper, E. and Hartmann, W.:Supercriticalfluid chromatography of styrene
oligomers, J. Polym. Lett. Ed.,15, 9e16 (1977).
19. Hartmann, W. and Klesper, E.:Preparative supercriticalfluid chromatography of styrene oligomers, J. Polym. Lett. Ed.,15, 713e719 (1977).
20. Randall, L. G. and Wahrhaftig, A. L.:Dense gas chromatograph/mass spec-trometer interface, Anal. Chem.,50, 1703e1705 (1978).
21. Schneider, G. M.,Stahl, E., and Wilke, G. (Eds.): Extraction with supercritical
fluid, Verlag Chemie, Weinheim (1980).
22. Novotny, M., Springton, S. R., Peaden, P. A., Fjeldsted, J., and Lee, M. L.: Capillary supercriticalfluid chromatography, Anal. Chem., 53, 407Ae414A (1981).
23. Novotny, M., Bertsch, W., and Zlatkis, A.:Temperature and pressure effects in supercritical-fluid chromatography, J. Chromatogr.,61, 17e28 (1971). 24. Gere, D. R., Board, R., and McManigill, D.:Supercriticalfluid chromatography
with small particle diameter packed columns, Anal. Chem.,54, 736e740 (1982). 25. Taylor, L. T. and Change, H.-C.:Packed column development in supercritical
fluid chromatography, J. Chromatogr. Sci.,28, 357e366 (1990).
26. Smith, R. M. and Sanagi, M. M.:Retention and selectivity in supercriticalfluid chromatography on an octadecylsilyl-silica column, J. Chromatogr. A,505, 147e159 (1990).
27. Sugiyama, K., Saito, M., Hondo, T., and Senda, M.:New double-stage sepa-ration analysis method: directly coupled laboratory-scale supercriticalfluid extractiondsupercriticalfluid chromatography, monitored with a multiwave-length ultraviolet detector, J. Chromatogr.,332, 107e116 (1985).
28. Saito, M., Yamauchi, Y., Kashiwazaki, H., and Sugawara, M.:New pressure regulating system for constant massflow supercritical-fluid chromatography and physico-chemical analysis of mass-flow reduction in pressure programming by analogous circuit model, Chromatographia,25, 801e805 (1988).
29. Okamoto, Y., Kawashima, M., and Hatada, K.:Useful chiral packing materials for high-performance liquid chromatographic resolution of enantiomers: phenylcarbamates of polysaccharides coated on silica gel, J. Am. Chem. Soc., 106, 5357e5359 (1984).
30. Okamoto, Y., Kawashima, M., and Hatada, K.:Chromatographic resolution: XI. Controlled chiral recognition of cellulose triphenylcarbamate derivatives supported on silica gel, J. Chromatogr.,363, 173e186 (1986).
31. Mourier, P. A., Eliot, E., Caude, M. H., Rosset, R. H., and Tambute, A. G.: Supercritical and subcriticalfluid chromatography on a chiral stationary phase
for the resolution of phosphine oxide enantiomers, Anal. Chem., 57, 2819e2823 (1985).
32. Hara, S., Dobashi, A., Kinoshita, K., Hondo, T., Saito, M., and Senda, M.: Carbon dioxide supercritical fluid chromatography on a chiral diamide stationary phase for the resolution of D- and L-amino acid derivatives, J. Chromatogr. A,371, 153e158 (1986).
33. Perrut, M. and Jusforgues, P.:Un nouveau procédé de fractionnement: la chro-matographie préparative avec éluant supercritique, Entropie,132, 3e9 (1986). 34. Phinney, K. W.: Review enantioselective separations by packed column
subcritical and supercriticalfluid chromatography, Anal. Bioanal. Chem.,382, 639e645 (2005).
35. Mangelings, D. and Heyden, Y. V.:Review Chiral separations in sub- and supercriticalfluid chromatography, J. Sep. Sci.,31, 1252e1273 (2008). 36. Kajimoto, O.: Supercritical fluid: visual observation of its characteristics,
Kagaku,47, 444e450 (1992) (in Japanese).
37. Smith, R. M. (Ed.): Supercriticalfluid chromatography, RSC monograph series, Royal Society of Chemistry, Letchworth, U.K. (1988).
38. Lee, M. L. and Markides, K. E. (Eds.): Analytical supercriticalfluid chroma-tography and extraction. Chromachroma-tography Conference, Inc., Provo, Utah (1990). 39. Saito, M., Yamauchi, Y., and Okuyama, T.:Fundamentals of packed-column supercriticalfluid chromatography and extraction, pp. 63e100, in: Saito, M., Yamauchi, Y., and Okuyama, T. (Eds.), Fractionation by packed-column SFC and SFE. VCH, New York (1994).
40. Saito, M. and Nitta, T.:Fundamental properties of supercriticalfluids relevant to chromatography and extraction, pp. 27e60, in: Saito, M., Yamauchi, Y., and Okuyama, T. (Eds.), Fractionation by packed-column SFC and SFE. VCH, New York (1994).
41.Cui, Y. and Olesik, S. V.:High-performance liquid chromatography using mobile phases with enhancedfluidity, Anal. Chem.,63, 1812e1819 (1991). 42.Saito, M., Yamauchi, M., Inomata, K., and Kottkamp, W.:Enrichment of
tocopherols in wheat by directly coupled supercriticalfluid extraction with semipreparative supercriticalfluid chromatography, J. Chromatogr. Sci.,27, 79e85 (1989).
43.Yamauchi, Y. and Saito, M.:Fractionation of lemon-peel oil by semi-prepar-ative supercritical fluid chromatography, J. Chromatogr. A, 505, 237e246 (1990).
44. Berger, C. and Perrut, M.:Review Preparative supercriticalfluid chromatog-raphy, J. Chromatogr. A,505, 37e43 (1990).
45. Ute, K., Miyatake, N., Asada, T., and Hatada, K.:Stereoregular oligomers of methyl methacrylate, Polym. Bull.,28, 561e568 (1992).
46. Saito, M. and Yamauchi, Y.:Preparative supercriticalfluid chromatography and its applications to chiral separation, pp. 863e866, in: Hatano, T. and Hanai, T. (Eds.), Proceeding of the International Symposium on Chromatog-raphy. The 35th Anniversary of the Research Group on Liquid Chromatography, Yokohama (1995).
47. Saito, M.,Yamauchi, Y., and Okuyama, T. (Eds.): Fractionation by packed-column SFC and SFE, VCH, New York (1994).
48. Berger, T. A.:Packed column SFC. RSC chromatography monographs. Royal Society of Chemistry, London (1995).
49. Klaus, A. and Berger, C. (Eds.): Supercritical fluid chromatography with packed columns. Chromatographic science series, vol. 7. Marcel Dekker Inc., New York (1998).
50. Randall, L. G.:The present status of dense (Supercritical) gas extraction and dense gas chromatography: impetus for DGC/MS development, Sep. Sci. Technol.,17, 1e118 (1982).
51. Smith, R. D., Fjeldsted, J. C., and Lee, M. L.:Directfluid injection interface for capillary supercriticalfluid chromatography-mass spectrometry, J. Chromatogr. A,247, 231e243 (1982).
52. Wright, B. W., Kalinoski, H. T., Udesth, H. R., and Smith, R. D.:Capillary supercriticalfluid chromatography-mass spectrometry, J. High Resolut. Chro-matogr.,9, 145e153 (1986).
53. Cousin, J. and Arpino, P. J.:Construction of a supercriticalfluid chromatog-raphy-mass spectrometer instrument system using capillary columns, and chemical ionization source accepting high flow-rates of mobile phase, J. Chromatogr. A,398, 125e141 (1987).
54. Crowther, J. B. and Henion, J. D.:Supercritical fluid chromatography of polar drugs using small-particle packed columns with mass spectrometric detection, Anal. Chem.,57, 2711e2716 (1985).
55. Kalinoski, H. T., Udseth, H. R., Wright, B. W., and Smith, R. D.:Analytical applications of capillary supercriticalfluid chromatographyemass spectrom-etry, J. Chromatogr.,400, 307e316 (1987).
56.Sheeley, D. M. and Reinhold, V. N.:Supercritical-fluid chromatographydmass spectrometry of high-molecular-weight biopolymers: instrumental consider-ations and recent progress, J. Chromatogr. A,474, 83e96 (1989).
57.Huang, E., Henion, J., and Covey, T. R.: Packed-column supercriticalfluid chromatography-mass spectrometry and supercriticalfluid chromatography-tandem mass spectrometry with ionization at atmospheric pressure, J. Chromatogr. A.,511, 257e270 (1990).
59.Arpino, P. J. and Haas, P.:Recent developments in supercriticalfluid chromatog-raphy-mass spectrometry coupling, J. Chromatogr. A,703, 479e488 (1995). 60.Combs, M. T., Ashraf-Khorassani, M., and Taylor, L. T.: Packed column
supercrotocalfluid chromatography-mass spectroscopy: a review, J. Chroma-togr. A,785, 85e100 (1997).
61.Wang, T., Barber, M., Hardt, I., and Kassel, D. B.:Mass-directed fractionation and isolation of pharmaceutical compounds by packed-column supercritical
fluid chromatography/mass spectrometry, Rapid Commun. Mass Spectrom.,15, 2067e2075 (2001).
62.Zhang, X., Towle, M. H., Felice, C. E., Flament, J. H., and Goetzinger, W. K.: Development of a mass-directed preparative supercriticalfluid chromatog-raphy purification system, J. Comb. Chem.,8, 705e714 (2006).
63.Li, F. and Hsieh, Y.:Supercriticalfluid chromatography-mass spectrometry for chemical analysis, J. Sep. Sci.,31, 1231e1237 (2008).
64.Hopfgartner, G. and Bourgogne, E.:Quatitative high-throughput analysis of drugs in biological matrices by mass spectrometry, Mass Spectrom. Rev.,22, 195e514 (2003).
65.Kanomata, T., Silverman, C., Horikawa, Y., Bounoshita, M., Saito, H., and Saito, M.:Circular dichroism detection for the determination of fraction-ation timing in preparative supercritical fluid chromatography for chiral separations, LCGC The Peak,December 2007, 7, 8, 10, 12, 14, 16, 18, 20, 22 (2007).
66.American Society for Testing and Materials:ASTM Standard D5186e03(2009): Standard test method for determination of aromatic content and polynuclear aromatic content of diesel fuels and aviation turbine fuels by supercriticalfluid chromatography. ASTM International, West Conshohocken, PA (2009). 67.American Society for Testing and Materials: ASTM Standard D6550e10:
Standard test method for determination of olefin content of gasolines by supercritical-fluid chromatography. ASTM International, West Conshohocken, PA (2003).
68.Carraud, P., Thiebaut, D., Caude, M., Rosset, R., Lafosse, M., and Dreux, M.: Supercritical fluid chromatography/light scattering detector: a promising coupling for polar compound analysis with packed columns, Chromatogr. Sci., 25, 395e398 (1987).
69.Nizery, D., Thiebaut, D., Caude, M., Rosset, R., Lafosse, M., and Dreux, M.: Improved evaporative light scattering detection for SFC with CO2-methanol
mobile phases, J. Chromatogr.,467, 49e60 (1989).
70.Hoffmann, S. and Greibrokk, T.:Packed capillary supercriticalfluid chroma-tography with mixed mobile phases and light-scattering detection, J. Microcol. Sep.,1, 35e40 (1989).
71. Strode, J. T. B. and Taylor, L. T.:Evaporative light scattering detection for supercriticalfluid chromatography, J. Chromatogr. Sci.,34, 261e271 (1996). 72. Smith, R. M.:Supercriticalfluid in separation sciencedthe dreams, the reality
and the future, J. Chromatogr. A,856, 83e115 (1999).
73. Harris, C. H.:Product review: the SFC comeback, Anal. Chem.,74, 87Ae91A (2002).
74. Berger, T. A. and Deye, J. F.:Separation of phenols by packed column super-criticalfluid chromatography, J. Chromatogr. Sci.,29, 54e59 (1991). 75. Berger, T. A. and Deye, J. F.:Correlation between column surface area and
retention of polar solutes in packed-column supercriticalfluid chromatog-raphy, J. Chromatogr. A,594, 291e295 (1992).
76. Smith, M. S., Oxford, J., and Evans, M. B.:Improved method for the separation of ranitidine and its metabolites based on supercriticalfluid chromatography, J. Chromatogr. A,683, 402e406 (1994).
77. Blackwell, J. A. and Stringham, R. W.:Effect of mobile phase additives in packed-column supercriticalfluid chromatography, Anal. Chem.,69, 409e415 (1997). 78. Berger, T. A.:Review separation of polar solutes by packed column
super-criticalfluid chromatography, J. Chromatogr. A,785, 3e33 (1997).
79. Pinkston, J. D., Stanton, D. T., and Wen, D.:Elution and preliminary structure-retention modeling of polar and ionic substances in supercriticalfluid chro-matography using volatile ammonium salts as mobile phase additives, J. Sep. Sci.,27, 115e123 (2004).
80. Zheng, J., Pinkston, J. D., Zoutendam, P. H., and Taylor, L. T.:Feasibility of supercriticalfluid chromatography/mass spectrometry of polypeptides with up to 40-Mers, Anal. Chem.,78, 1535e1545 (2006).
81. Xu, X., Veenstra, T. D., Fox, S. D., Roman, J. M., Issaq, H. J., Falk, R., Saavedra, J. E., Keefer, L. K., and Ziegler, R. G.:Measuringfifteen endogenous estrogens simultaneously in human urine by high-performance liquid chro-matography-mass spectrometry, Anal. Chem.,77, 6646e6654 (2005). 82. Xu, X., Roman, J. M., Veenstra, T. D., Anda, J. V., Ziegler, R. G., and Issaq, H. J.:
Analysis offifteen estrogen metabolites using packed column supercriticalfluid chromatography-mass spectrometry, Anal. Chem.,78, 1553e1558 (2006). 83. Bamba, T., Fukusaki, E., Kajiyama, S., Ute, K., Kitayama, T., and
Kobayashi, A.:High-resolution analysis of polyprenols by supercriticalfluid chromatography, J. Chromatogr. A,911, 113e117 (2001).
84. Matsubara, A., Fukusaki, E., and Bamba, T.:Metabolite analysis by super-criticalfluid chromatography, Bioanalysis,2, 27e34 (2010).
