SPESIFIKASI ALAT BERAT : EXCAVATOR DAN SHOVEL

Dalam pekerjaan earthwork, excavator merupakan salah satu unit alat berat yang sangat berperan dalam proses tersebut. Excavator biasa digunakan untuk berbagai industri seperti konstruksi, telekomunikasi, pertambangan, dan industri lainnya. Excavator merupakan unit alat berat yang terdiri dari boom, stick, bucket, dan cab dimana platform dapat berotasi. Platform tersebut bertumpu pada track atau roda. Dalam perhitungan cut-fill, sebagai engineer kita harus mengetahui spesifikasi alat berat yang digunakan, dalam konteks ini adalah spesifikasi excavator dan shovel. Excavator dan shovel banyak diprodukasi oleh berbagai prosdusen manufaktur alat berat. Komatsu, Caterpillar, Hitachi, Doosan Infracore, Bucyrus International, John Deere, Kobelco, dan Liebherr merupakan sebagian contoh dari berbagai produsen manufaktur excavator dan shovel. Berikut ini merupakan berbagai spesifikasi excavator dan shovel.

SPESIFIKASI EXCAVATOR PC200-8

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas.

Gambar PC200-8

Berikut ini merupakan spesifikasi teknis PC200-8

Operation / Application

(2)

Arm size (m) & type 2900 Heavy Duty Bucket size – KGA standard GP (m3) 0.97

Arm crowd force – ISO (kgf) 11,000

Bucket crowd force – ISO (kgf) 15,200 Digging depth – maximum (mm) 6,620 Digging reach – maximum (mm) 9,875 Maximum reach @ ground level (mm) 9,700

Swing radius (mm) 2,750

Related information

Komatsu Genuine Attachments available include a dynamic cast quick hitch and selection of bucket solutions.

PC210LC-10

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Berikut ini merupakan spesifikasi teknis PC210LC-10

(3)

Type Water-cooled, 4-cycle, direct injection

Aspiration Turbocharged, aftercooled, cooled

EGR

Number of cylinders 6

Bore 4.21” 107 mm

Stroke 4.88” 124 mm

Piston displacement 408 in³ 6.69 ltr Horsepower

SAE J1995 – Gross 165

HP 123 kW ISO 9249 / SAE J1349 – Net 158

HP 118 kW

Rated rpm 2000 rpm

Fan drive method for radiator cooling Mechanical

Governor All-speed control, electronic

*EPA Tier 4 Interim and EU stage 3B emissions certified

PC210LC-10 Long Front

(4)

Gambar PC210LC-10 Long Front (Long Arm)

Berikut ini merupakan spesifikasi teknis PC210LC-10 Long Front

PC300LC-8

Gambar PC300LC-8

Boom size (m) & type 6500

Arm size (m) & type 3200

Bucket size – KGA standard GP (m3) 1.61

Arm crowd force – ISO (kgf) 17400

Bucket crowd force – ISO (kgf) 23100

Digging depth – maximum (mm) 7380

(5)

Maximum reach @ ground level (mm) 10920

Swing radius (mm) 3450

Related information

PC400LC-8

Gambar PC400 PC800LC-10

(6)

Gambar PC800LC-10

(7)

Gambar Spesifikasi Kombinasi Bucket, Arm, dan Boom PC400 PC1250LC-10

(8)

Gambar PC1250LC-10

(9)

CAT312E

(10)

Gambar CAT312E

Berikut ini merupakan spesifikasi teknis CAT312E

ENGINE

Engine Model Cat® C4.4 ACERT™

Flywheel Power 68.0 kW

Bore 105.0 mm

Stroke 127.0 mm

Displacement 4.4 L

Gross Power – SAE J1995 71.0 kW

Net Power – SAE J1349 68.0 kW

WEIGHTS

Operating Weight 15000.0 kg

Maximum Operating Weight 15000.0 kg

Maximum Operating Weight** 15000.0 kg

Minimum Operating Weight 13500.0 kg

Minimum Operating Weight* 13500.0 kg

(11)

Swing Torque 30.9 kN·m

Swing Speed 11.5 RPM

CAT316E

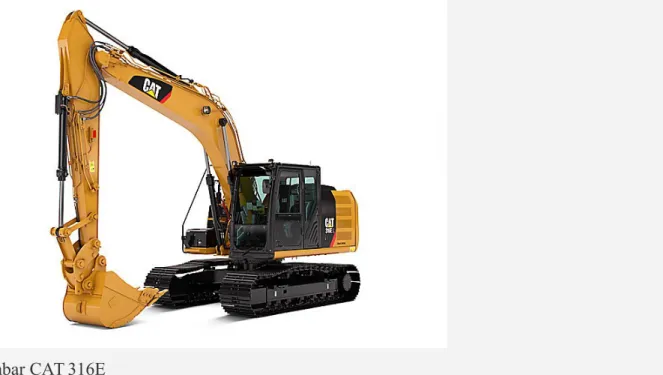

Gambar CAT 316E

ENGINE

Bore 105.0 mm

Stroke 127.0 mm

Displacement 4.4 L

WEIGHTS

(12)

Swing Speed 9.3 RPM

CAT320E

Gambar CAT320E

ENGINE

Net Flywheel Power 114.0 kW

Bore 105.0 mm

Stroke 127.0 mm

Displacement 6.6 L

WEIGHTS

(13)

Maximum Weight 24730.0 kg

Minimum Weight 21500.0 kg

SERVICE REFILL CAPACITIES

Fuel Tank Capacity 410.0 L

Cooling System 30.0 L

Swing Drive 8.0 L

Final Drive (each) 8.0 L

Hydraulic System (including tank) 260.0 L

Hydraulic Tank 143.0 L

Engine Oil (with filter) 23.0 L

CAT324E

Gambar CAT324E

(14)

Bore 105.0 mm

Stroke 135.0 mm

Displacement 7.01 L

Net Power – SAE J1349/ISO 9249 142.0 kW WEIGHTS

Swing Drive (each) 10.0 L

CAT329E

(15)

Gambar CAT329E

ENGINE

Bore 105.0 mm

Stroke 135.0 mm

Displacement 7.01 L

(16)

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas. Berikut ini merupakan spesifikasi teknis CAT336D /D L Series 2

ENGINE

Engine Model Cat® C9

Bore 112.0 mm

Stroke 149.0 mm

Displacement 8.8 L

Engine Power (ISO 14396) 209.0 kW

Net Power (SAE J1349/ISO 9249) 200.0 kW

WEIGHTS

Operating Weight – Long Undercarriage 37086.0 kg Operating Weight – Standard Undercarriage 34489.0 kg SWING MECHANISM

CAT336E L

(17)

Gambar CAT336E L

Berikut ini merupakan spesifikasi CAT336E L ENGINE

Engine Model Cat® C9.3 (ATAAC)

Bore 115.0 mm

Stroke 149.0 mm

Displacement 9.3 L

Gross Power – SAE J1995 241.0 kW WEIGHTS

CAT349E

Gambar CAT349E

Berikut ini merupakan spesifikasi teknis CAT349E ENGINE

(18)

Engine Model Cat® C13 ACERT™

Bore 130.0 mm

Stroke 157.0 mm

Displacement 12.5 L

WEIGHTS

Maximum Weight** 53300.0 kg

Minimum Weight* 47800.0 kg

CAT374D

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas. Berikut ini merupakan spesifikasi teknis CAT374D

ENGINE

Engine Model Cat C15 ACERT™ (ATAAC)

Net Power – ISO 9249 355.0 kW Net Power – SAE J1349 355.0 kW Net Power – EEC 80/1269 355.0 kW

Bore 137.0 mm

Stroke 171.0 mm

Displacement 15.2 L

WEIGHTS

Operating Weight – Long Undercarriage 71132.0 kg CAT390D

(19)

Gambar CAT 390D L

Berikut ini merupakan spesifikasi teknis CAT390D ENGINE

Engine Model Cat® C18 ACERT™ (ATAAC)

Bore 145.0 mm

Stroke 183.0 mm

Displacement 18.1 L

WEIGHTS

Operating Weight – Long Undercarriage 86190.0 kg Hitachi ZX 200

(20)

Gambar Hitachi ZX 200

Berikut ini merupakan spesifikasi teknis Hitachi ZX 200

Model Code ZX200-5G / ZX200LC-5G / ZX210H-5G / ZX210LCH-5G ZX210K-5G / ZX210LCK-5G

Engine Rated Power 125 kW (168 HP) Operating Weight

ZX200-5G : 19 800 kg / ZX200LC-5G : 20 400 kg ZX210H-5G : 21 100 kg / ZX210LCH-5G : 21 500 kg ZX210K-5G : 21 100 kg / ZX210LCK-5G : 21 500 kg

Backhoe Bucket ISO Heaped : 0.51 – 1.20 m3 Hitachi ZX 330

(21)

Model Code ZX330

Engine Rated Power 184 kW (250 PS)

OperatingWeight ZAXIS330 : 31 000 kg

ZAXIS330LC : 31 600 kg

Backhoe Bucket SAE, PCSA Heaped : 1.15 – 1.86 m 3 CECE Heaped : 1.00 – 1.60 m3

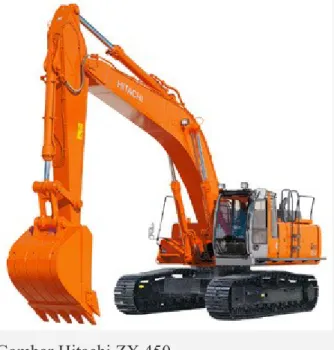

Hitachi ZX 450

(22)

Model Code ZX450

Engine Rated Power 235 kW (320 PS) Operating Weight 42 500 kg

Backhoe Bucket SAE, PCSA Heaped : 1.15 m

3_{– 2.65 m}3 CECE Heaped : 1.0 – 2.3 m3

Hitachi ZX 870-5G

Gambar Hitachi ZX 870-5G

(23)

Model Code ZX870-5G / ZX870LC-5G / ZX870H-5G / ZX870LCH-5G Engine Rated Power 360 kW (483 HP)

Operating Weight ZX870-5G : 80 800 kg / ZX870LC-5G : 82 600 kg ZX870H-5G : 82 300 kg / ZX870LCH-5G : 84 200 kg

Backhoe Bucket ISO Heaped : 2.9 – 4.5 m3 P E R B A N D I N G A N H I T A C H I Model Operating Weight (kg) Engine Rated Power (kW) Backhoe Bucket PCSA heaped (m3₎ ZX110 10700 63 0.19 – 0.59 ZX200-5G 19800 125 0.51 – 1.20 ZX330 31000 184 1.15 – 1.86 Kobelco SK210 LC

Produk ini setipe dengan produk SK-200-8.

Gambar Kobelco SK210 LC

Berikut ini merupakan spesifikasi Kobelco SK210 LC

Model Name SK210LC

Machine Type SK210LC-9

(24)

Engine 157 hp 117 kW / 2,000 rpm Operating Weight 48,500 lbs 22,000 kg Kobelco SK 260-LC

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas. Produk ini setipe dengan tipe SK 250-8.

Gambar Kobelco SK 260-LC

Berikut ini merupakan spesifikasi teknis Kobelco SK-260-LC

Model Name SK260LC

STD Bucket Capacity 1.31 cu.yd 1.00 m3

Engine 176 hp 131 kW / 2,100 rpm

Operating Weight 56,890 lbs 25,800 kg Kobelco SK 350LC

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas. Tipe ini sama dengan Kobelco SK 330-8 yang dipasarkan di Asia.

(25)

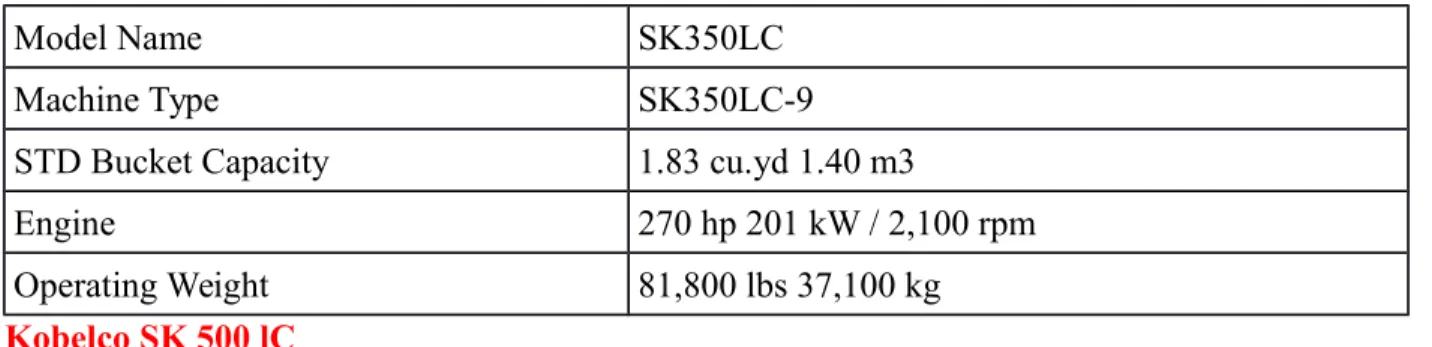

Gambar Kobelco SK-350LC

Berikut ini merupakan spesifikasi teknis Kobelco SK 350-LC

Model Name SK350LC

Operating Weight 81,800 lbs 37,100 kg Kobelco SK 500 lC

Gambar Kobelco SK 500 LC

Berikut ini merupakan spesifikasi teknis Kobelco SK 500 LC

Model Name SK500LC

Operating Weight 111,800 lbs 50,700 kg Kobelco SK 850 LC

(26)

Gambar Kobelco SK-850 LC

Berikut ini merupakan spesifikasi teknis Kobelco SK 850 LC Model Name SK850LC Machine Type SK850LC-9 STD Bucket Capacity 4.58 cu.yd 3.50 m3 Engine 510 hp 380 kW / 1,800 rpm Operating Weight 181,440 lbs 82,300 kg

Perbandingan Spesifikasi Produk Excavator Kobelco

SK130-8 (SK140LC -8) 0.5 74/2,000 12800-13,200 {13,000-13,500} SK130L-8 Logging spec 0.45 74/2,000 14,700 SK200-8 (SK210LC -8) 0.8 118/2,000 20,400-21,200 {20,900-21,600} SK250-8 (SK260LC 1.0 137/2,100 24,600-25,100 (25,200-25,600)

(27)

-8) SK330-8 (SK350LC -8) 1.4 209/2,100 *200/2,100 (Non-Tier3 model) 33,700-34,700 {34,400-35,500} SK460-8 (SK480LC -8) 1.9 257/1,850 46,400-48,300 (47,300-49,400) SK850LC (SK850LC ) 3.5 370/1,800 78,200-80,500 Doosan DX 180

Gambar Doosan DX 180 LC

Berikut ini merupakan spesifikasi teknis Doosan DX 180 LC

Emissions Interim Tier 4 (iT4)

HP, SAE Net 122 hp @ 1,950 rpm

(28)

Digging Depth 20′ 1″

Dump Height 21′ 3″

Swing Torque 33,988 ft lb

Arm Breakout Force 19,936 ft lb

Bucket Breakout Force 25,312 ft lb Doosan DX 300 LC

Berikut ini merupakan spesifikasi Doosan DX 300 LC

Weight 67,770 lb

Digging Reach 35′ 2″

Doosan DX 490 LC

(29)

Weight 112,502 lb

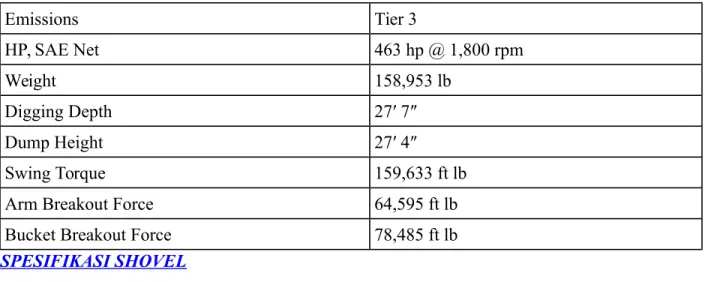

Bucket Breakout Force 67,902 ft lb Doosan DX 700

(30)

Emissions Tier 3 HP, SAE Net 463 hp @ 1,800 rpm Weight 158,953 lb Digging Depth 27′ 7″ Dump Height 27′ 4″ Swing Torque 159,633 ft lb

Bucket Breakout Force 78,485 ft lb SPESIFIKASI SHOVEL

PC2000LC-10

Gambar PC2000LC-8

(31)

Gambar Kapasitas Bucket PC2000LC-10 PC3000LC-10

Gambar PC3000LC-10

(32)

Gambar Kombinasi Kapasitas BUcket, Boom, dan Stick PC4000LC-10

(33)

Gambar PC4000LC-10

BACKHOE ATTACHMENT

■ 9.75 m / 32’0″ boom

■ 4.5 m / 14’9″ stick

■ Set of cylinders

■ 22 m³ / 29 yd³ (SAE 1:1) bucket WP2, with hammerless GET system

PC8000LC-10

(34)

Gambar PC8000LC-10

BACKHOE ATTACHMENT

■ 11.5 m / 37’9″ boom

■ 5.5 m / 18’0″ stick

CAT6015/6015 FS

(35)

Gambar CAT 6015/6015FS

Berikut ini merupakan spesifikasi teknis CAT6015/6015 FS

GENERAL DATA Engine Output –

SAE J1995 Cat® C18 – 522 kW (700 hp); Cummins® QSK19 – 477 kW (640 hp) Standard Bucket

Capacity

Face Shovel (SAE 2:1) – 7 m3 (9.2 yd3); Std. rock backhoe (SAE 1:1) – 6 m3 (7.8 yd3); M.E. backhoe (SAE 1:1) – 7 m3 (9.2 yd3)

Fuel tank capacity 1300.0 L

OPERATING WEIGHTS WITH STANDARD UNDERCARRIAGE – SHOVEL UNIT – CAT® C18

Standard track pads – Ground pressure 16.7 N/cm2 (24.2 psi) Standard track pads – Operating weight 105200.0 kg

Standard track pads – Pad width 600.0 mm Standard track pads – Width over pads 4400.0 mm

Track pads option – Ground pressure 13.5 N/cm2 (19.6 psi) Track pads option – Operating weight 106600.0 kg

Track pads option – Pad width 750.0 mm Track pads option – Width over pads 4550.0 mm

(36)

OPERATING WEIGHTS WITH STANDARD UNDERCARRIAGE – BACKHOE UNIT – CAT® C18

Track pads option – Pad width 750.0 mm Track pads option – Width over pads 4550.0 mm CAT 6018 FS

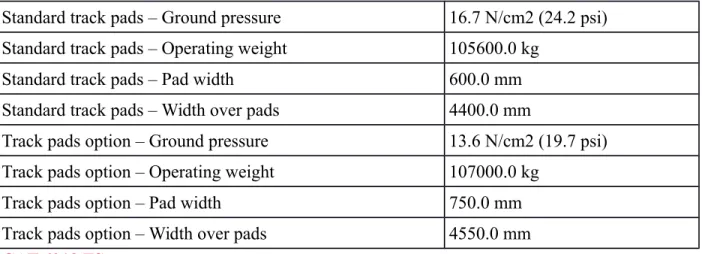

Gambar CAT 6018 FS

Berikut ini merupakan spesifikasi teknis CAT 6018 FS GENERAL DATA

Engine Output – SAE J1995 858 kW (1,150 hp)

Standard Bucket Capacity Face Shovel (heaped 2:1) – 10.0 m3 (13.1 yd3); Backhoe (heaped 1:1) – 10.0 m3 (13.1 yd3)

(37)

(205 tons) Engine output SAE J1995 – 2 ×

Cat C18 ACERT 858.0 kW

HYDRAULIC SYSTEM WITH PUMP MANAGING SYSTEM Hydraulic tank capacity – approximately 2000.0 L

Main pumps – AC version 2 × variable axial piston pumps Main pumps – Diesel version 4 × variable swash plate pumps Main pumps – Maximum oil flow – AC version 2 × 578 L/min (2 × 153 gal/min) Main pumps – Maximum oil flow – Diesel version 4 × 412 L/min (4 × 109 gal/min) Maximum pressure, attachment 300.0 bar

Maximum pressure, swing pumps 370.0 bar

Swing pumps – AC version 1 × reversible swash plate pump Swing pumps – Diesel version 2 × reversible swash plate pumps Swing pumps – Maximum oil flow – AC version 516 L/min (136 gal/min)

Swing pumps – Maximum oil flow – Diesel version 2 × 288 L/min (2 × 76 gal/min) Total volume of hydraulic oil – approximately 2500.0 L

CAT6040

(38)

Berikut ini merupakan spesifikasi teknis CAT6040 GENERAL DATA

Engine Output – SAE

J1995 Cat® C32 – 1516 kW (2,032 hp) Standard Bucket

Capacity

Face Shovel (heaped 2:1) – 22.0 m3 (28.8 yd3); Backhoe (heaped 1:1) – 22.0 m3 (28.8 yd3)

Operating Weight Face Shovel – 405 tonnes (446 tons); Backhoe – 407 tonnes (449 tons) HYDRAULIC SYSTEM WITH PUMP MANAGING SYSTEM

Hydraulic tank capacity – AC version Approx. 4000 L (1,057 U.S. gal) Hydraulic tank capacity – Diesel version Approx. 3400 L (898 U.S. gal) Main pumps – AC version 4 × variable flow axial piston pumps Main pumps – Diesel version 4 × variable swash plate pumps Main pumps – Max. oil flow – AC version 4 × 746 L/min (4 × 197 U.S. gal/min) Main pumps – Max. oil flow – Diesel version 4 × 724 L/min (4 × 191 U.S. gal/min) Max. pressure, attachment 300.0 bar

Max. pressure, swing pumps 350.0 bar

Max. pressure, travel 350.0 bar

Swing pumps – AC version 3 × reversible swash plate pump Swing pumps – Diesel version 4 × reversible swash plate pump Swing pumps – Max. oil flow – AC version 3 × 491 L/min (3 × 130 U.S. gal/min) Swing pumps – Max. oil flow – Diesel version 4 × 321 L/min (4 × 85 U.S. gal/min) Total volume of hydraulic oil – AC version Approx. 6400 L (1,585 U.S. gal) Total volume of hydraulic oil – Diesel version Approx. 5800 L (1,532 U.S. gal) CAT 6060

(39)

Gambar CAT6060

Berikut ini merupakan spesifikasi teknis CAT6060 FS

GENERAL DATA Engine Output – SAE

J1995 Cat® 3512C – 2240 kW (3,000 hp) Standard Bucket

Capacity

Hydraulic tank capacity – AC version – approximately 5100.0 L Hydraulic tank capacity – Diesel version – approximately 7100.0 L

Main pumps – AC version 4 × variable flow axial piston pumps

Main pumps – Diesel version 4 × swash plate double pumps Main pumps – Maximum oil flow – AC version 4 × 933 L/min (4 × 246 gal/min) Main pumps – Maximum oil flow – Diesel version 4 × 1300 L/min (4 × 343 gal/min) Maximum pressure, attachment 320.0 bar

(40)

Maximum pressure, travel 370.0 bar

Swing pumps – AC version 3 × reversible swash plate pumps Swing pumps – Diesel version 4 × reversible swash plate pumps Swing pumps – Maximum oil flow – AC version 3 × 491 L/min (3 × 131 gal/min) Swing pumps – Maximum oil flow – Diesel version 4 × 352 L/min (4 × 93 gal/min) Total volume of hydraulic oil – AC version – approximately 7300.0 L

Total volume of hydraulic oil – Diesel version –

approximately 9400.0 L

CAT6090

Gambar CAT 6090

Berikut ini merupakan spesifikasi CAT6090 GENERAL DATA

Standard Bucket Capacity Face Shovel (SAE 2:1) – 52.0 m3 (68.0 yd3) Operating Weight Face Shovel – 980 tonnes (1,080 tons) HYDRAULIC SYSTEM WITH PUMP MANAGING SYSTEM

Hydraulic tank capacity – approximately 10000.0 L

(41)

Main pumps – Maximum oil flow – AC version 8 × 943 L/min (8 × 249 gal/min) Main pumps – Maximum oil flow – Diesel version 8 × 936 L/min (8 × 247 gal/min) Maximum pressure, attachment 310.0 bar

Maximum pressure, swing pumps 350.0 bar Maximum pressure, travel 360.0 bar

Swing pumps 6 × reversible swash plate pumps

Swing pumps – Maximum oil flow – AC version 6 × 496 L/min (6 × 131 gal/min) Swing pumps – Maximum oil flow – Diesel version 6 × 488 L/min (6 × 129 gal/min) Total volume of hydraulic oil – approximately 13000.0 L

Liebherr R9100

Gambar Liebherr R9100

Berikut ini merupakan spesifikasi teknis Liebherr R9100

Operating weight 108,500 – 112,500 kg

Engine output 565 kW/757 hp

(ISO 9249)

Backhoe bucket capacity 6.80 m³ @ 1.8 t/m³

Shovel capacity 7.00 m³ @ 1.8 t/m³

Liebherr R9250

(42)

Engine output 960 kW/1,287 hp

(ISO 9249)

Liebherr R9400

(43)

Berikut ini merupakan spesifikasi Liebherr R9400

Engine output 1,250 kW/1,675 PS

(ISO 9249)

Liebherr R996 B

(44)

Gambar Liebherr R996 B

Berikut ini merupakan spesifikasi Liebherr R996 B

Engine output 2,240 kW/3,000 hp

(ISO 9249)

Liebherr R9800

(45)

Liebherr R9800

(ISO 9249)

Hitachi EX1200-6

(46)

Gambar Hitachi EX 1200-6

Berikut ini merupakan spesifikasi teknis Hitachi EX 1200-6

Model Code EX1200-6

Engine Gross Power 567 kW (760 HP) Operating Weight

Backhoe : 111 000 kg

BE-front : 112 000 kg

Loading Shovel : 114 000 kg

Loading Shovel Bucket Heaped : 5.9 – 6.5 m3 Hitachi EX 1900

Gambar Hitachi EX 1900

Berikut ini merupakan spesifikasi Hitachi EX 1900

(47)

Operating Weight Loading Shovel : 191 000 kg Backhoe : 192 000 kg

Berikut ini merupakan spesifikasi teknis Hitachi EX 2600

Model Code EX2600-6

Engine Gross Power 1 119 kW (1 500 HP)

(48)

16.5 m3

Backhoe Bucket SAE, PCSA Heaped : 17.0 m 3 CECE Heaped : 15.0 m3

Hitachi EX 3600

Loading Shovel Bucket Heaped : 21.0 m

3 23.0 m3

Backhoe Bucket SAE,PCSA Heaped : 22.0 m

3 CECE Heaped : 19.2 m3

(49)

Model Code EX5600-6

Engine Gross Power 2 x 1 119 kW (2 x 1 500 HP)

Loading Shovel Bucket Heaped : 27.0 – 29.0 m3

Hitachi EX 8000

(50)

Engine RatedPower 2 x 1 400 kW (2 x 1 900 PS)

OperatingWeight Loading Shovel : 805 000 kg (1 770 000 lb) Loading Shovel Bucket PCSA Heaped : 40.0 m3_{(52.3 d}3₎

PERBANDINGAN SPESIFIKASI HITACHI

Model Operating Weight (kg) Engine Rated Power (kW) Backhoe Bucket PCSA heaped (m3₎

Loading Shovel Bucket PCSA heaped (m3₎ EX1200-5D 108000 567 3.0 – 6.5 5.9 – 6.5 EX1200-6 111000 567 5.2 – 6.7 5.9 – 6.5 EX1900-6 192000 810 12.0 11.0 EX2600-6 254000 1119 17.0 15.0 – 16.5 EX3600-6 359000 1450 22.0 21.0 ZX450 42500 235 1.15 – 2.65 2.3 – 2.8 EX5600-6 533000 2 x 1119 34.0 27.0 – 29.0 EX8000 805000 1400 x 2 40.0 ZX870-5G 80800 360 2.9 – 4.5

(51)

Bila anda ingin mencari brosur alat berat dari berbagai manufaktur besar, berikut ini merupakan link yang dapat anda gunakan untuk mencari brosur spesifikasi alat berat yang anda cari. Anda bisa mencari brosur spesifikasi excavator/PC/Hitachi, Dozer, Wheel Loader, Motor Grader, Dump Truck, Articulated Hauler, Haul Truck, dan berbagai macam alat berat lainnya.

Produk Caterpillar : http://www.cat.com/en_US/products/new/equipment.html Produk Komatsu : http://www.komatsuamerica.com/

Produk Liebherr : http://www.liebherr.com/ME/en-GB/default_me.wfw/measure-nonMetric Produk Hitachi : http://www.hexindo-tbk.co.id/products/index.html

Produk Kobelco : http://www.kobelco-kenki.co.jp/english/products/asia/index.html#a Produk

Doosan : http://www.doosanequipment.com/dice/products/excavators/Wheel+Excavators.page? About these ads

Share this:

 Facebook



(52)

SPESIFIKASI ALAT BERAT : DUMP TRUCK, HAUL TRUCK, DAN ARTICULATED HAULER TRUCK

In "Other Knowledgement"

PEMANDANGAN DARI MENARA, MIANGAS

Berikut ini merupakan pemandangan dari menara navigasi yang terletak di daerah bukit, pulau miangas. foto-foto ini diambil oleh luhur kurnianto, saya sendiri, dan mutti.

In "GAMBAR MIANGAS"

DERMAGA dan KAPAL PERINTIS, MIANGAS

Di Miangas, terdapat dermaga yang menjadi tempat berlabuhnya kapal perintis. Dermaga di Miangas terletak di pantai Lobo. Berikut ini merupakan gambar dari Dermaga dan Kapal Perintis yang bersandar. Gambar ini diambil oleh Luhur K, saya, dan Edo

In "GAMBAR MIANGAS" Comments 1. raimu says: September 5, 2014 at 4:38 pm 1 0 Rate This mantaaaaaaaap man!!!! Reply 2. winarnorambar says: June 7, 2015 at 5:47 pm 1

(53)

0

Rate This

Reblogged this on Winarno De YE2CQK Blog and commented:

Bucket Excavator dan Capasitas

Reply

Leave a Reply

SEJARAH DAN PERKEMBANGAN KEJUARAAN BULUTANGKIS PIALA THOMAS DAN PIALA UBER

 Email Subscription

Enter your email address to subscribe to this blog and receive notifications of new posts by email.

Join 837 other followers

 Recent Posts

o AIR TERJUN IDAMAN, PERJALANAN MENANTANG YANG TAK TERLUPAKAN DI BUMI ENGGANG, KABUPATEN BULUNGAN, PROVINSI KALIMANTAN UTARA

o ULASAN SEKILAS MENGENAI DOPING, EFEK DOPING, DAN SANKSI PENGGUNAAN DOPING

(54)

o Kemilau Keindahan Alam Biduk-Biduk Mulai Banyak Dilirik

o BIDUK-BIDUK, PESONA KEINDAHAN ALAM UJUNG TIMUR KABUPATEN BERAU, PROVINSI KALIMANTAN TIMUR

o MARATUA, MENIKMATI SUNSET DAN KEINDAHAN BAWAH LAUT YANG MENAWAN

 Blogroll

o civileng blog o Donghaeng

o MadeAndi's Wordpress

o QUIZ WISATA PULAU KOMODO GRATIS

o Services Offshore and Onshore Structures (Dayu Sri Wulan and Lambutan Sinaga)

o tiara framilia o wijaya’s blog

o Blog at WordPress.com. o Blog at WordPress.com.

Blog at WordPress.com. | The Greyzed Theme. Follow

Follow “Jefrihutagalung's Blog”

Get every new post delivered to your Inbox. Join 837 other followers

Build a website with WordPress.com •

•

(55)

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

(56)

• • • • • • • • • • • • • • • • • VVAGALUNG'S BLOG

FOR KNOWLEDGEMENTS, NEWS, AND FUN THINGS stay updated via rss

 KALENDER MASEHI M T W T F S S « Feb Apr » 1 2 3 4 5 6 7 8 9 1 0 1 1 1 2 1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0 2 1 2 2 2 3

(57)

M T W T F S S « Feb Apr » 2 4 2 5 2 6 2 7 2 8 2 9 3 0 3 1 March 2014  BLOG STATS o 1,257,296 hits  ARCHIVES Archives   CATEGORIES Categories   

(58)

 DOWNLOAD SMADAV

 QUIZ WISATA PULAU KOMODO GRATIS

 FOLLOW BLOG VIA EMAIL

Enter your email address to follow this blog and receive notifications of new posts by email. Join 837 other followers

SPESIFIKASI ALAT BERAT : EXCAVATOR DAN SHOVEL

Posted: March 21, 2014 in Other Knowledgement

Tags: Brosur Spesifikasi Excavator, Brosur Spesifikasi Shovel

2

13 Votes Follow

(59)

Dalam pekerjaan earthwork, excavator merupakan salah satu unit alat berat yang sangat berperan dalam proses tersebut. Excavator biasa digunakan untuk berbagai industri seperti konstruksi, telekomunikasi, pertambangan, dan industri lainnya. Excavator merupakan unit alat berat yang terdiri dari boom, stick, bucket, dan cab dimana platform dapat berotasi. Platform tersebut bertumpu pada track atau roda. Dalam perhitungan cut-fill, sebagai engineer kita harus mengetahui spesifikasi alat berat yang digunakan, dalam konteks ini adalah spesifikasi excavator dan shovel. Excavator dan shovel banyak diprodukasi oleh berbagai prosdusen manufaktur alat berat. Komatsu, Caterpillar, Hitachi, Doosan Infracore, Bucyrus International, John Deere, Kobelco, dan Liebherr merupakan sebagian contoh dari berbagai produsen manufaktur excavator dan shovel. Berikut ini merupakan berbagai spesifikasi excavator dan shovel.

SPESIFIKASI EXCAVATOR PC200-8

Gambar PC200-8

Berikut ini merupakan spesifikasi teknis PC200-8

(60)

Boom size (m) & type 5700 Heavy Duty

Arm size (m) & type 2900 Heavy Duty

Arm crowd force – ISO (kgf) 11,000

Bucket crowd force – ISO (kgf) 15,200 Digging depth – maximum (mm) 6,620 Digging reach – maximum (mm) 9,875 Maximum reach @ ground level (mm) 9,700

Swing radius (mm) 2,750

Related information

PC210LC-10

(61)

Model Komatsu SAA6D107E-2*

Type Water-cooled, 4-cycle, direct

injection

Aspiration Turbocharged, aftercooled, cooled

EGR

Number of cylinders 6

Bore 4.21” 107 mm

Stroke 4.88” 124 mm

Piston displacement 408 in³ 6.69 ltr Horsepower

SAE J1995 – Gross 165

HP 123 kW ISO 9249 / SAE J1349 – Net 158

HP 118 kW

Rated rpm 2000 rpm

Fan drive method for radiator cooling Mechanical

Governor All-speed control, electronic

*EPA Tier 4 Interim and EU stage 3B emissions certified

PC210LC-10 Long Front

(62)

Gambar PC210LC-10 Long Front (Long Arm)

Berikut ini merupakan spesifikasi teknis PC210LC-10 Long Front

PC300LC-8

(63)

Boom size (m) & type 6500

Arm size (m) & type 3200

Arm crowd force – ISO (kgf) 17400

Bucket crowd force – ISO (kgf) 23100

Digging depth – maximum (mm) 7380

Digging reach – maximum (mm) 11100 Maximum reach @ ground level (mm) 10920

Swing radius (mm) 3450

Related information

PC400LC-8

Gambar PC400 PC800LC-10

(64)

Gambar PC800LC-10

(65)

Gambar Spesifikasi Kombinasi Bucket, Arm, dan Boom PC400 PC1250LC-10

(66)

Gambar PC1250LC-10

(67)

CAT312E

(68)

Gambar CAT312E

ENGINE

Bore 105.0 mm

Stroke 127.0 mm

Displacement 4.4 L

WEIGHTS

(69)

CAT316E

Gambar CAT 316E

ENGINE

Bore 105.0 mm

Stroke 127.0 mm

Displacement 4.4 L

WEIGHTS

(70)

Swing Speed 9.3 RPM

CAT320E

Gambar CAT320E

ENGINE

Bore 105.0 mm

Stroke 127.0 mm

Displacement 6.6 L

WEIGHTS

(71)

Swing Drive 8.0 L

CAT324E

Gambar CAT324E

(72)

Bore 105.0 mm

Stroke 135.0 mm

Displacement 7.01 L

Swing Drive (each) 10.0 L

CAT329E

(73)

Gambar CAT329E

ENGINE

Bore 105.0 mm

Stroke 135.0 mm

Displacement 7.01 L

(74)

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas. Berikut ini merupakan spesifikasi teknis CAT336D /D L Series 2

ENGINE

Engine Model Cat® C9

Bore 112.0 mm

Stroke 149.0 mm

Displacement 8.8 L

Engine Power (ISO 14396) 209.0 kW

Net Power (SAE J1349/ISO 9249) 200.0 kW

WEIGHTS

Operating Weight – Long Undercarriage 37086.0 kg Operating Weight – Standard Undercarriage 34489.0 kg SWING MECHANISM

CAT336E L

(75)

Gambar CAT336E L

Berikut ini merupakan spesifikasi CAT336E L ENGINE

Engine Model Cat® C9.3 (ATAAC)

Bore 115.0 mm

Stroke 149.0 mm

Displacement 9.3 L

Gross Power – SAE J1995 241.0 kW WEIGHTS

CAT349E

Gambar CAT349E

Berikut ini merupakan spesifikasi teknis CAT349E ENGINE

(76)

Engine Model Cat® C13 ACERT™

Bore 130.0 mm

Stroke 157.0 mm

Displacement 12.5 L

WEIGHTS

Maximum Weight** 53300.0 kg

Minimum Weight* 47800.0 kg

CAT374D

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas. Berikut ini merupakan spesifikasi teknis CAT374D

ENGINE

Engine Model Cat C15 ACERT™ (ATAAC)

Bore 137.0 mm

Stroke 171.0 mm

Displacement 15.2 L

WEIGHTS

Operating Weight – Long Undercarriage 71132.0 kg CAT390D

(77)

Gambar CAT 390D L

Berikut ini merupakan spesifikasi teknis CAT390D ENGINE

Engine Model Cat® C18 ACERT™ (ATAAC)

Bore 145.0 mm

Stroke 183.0 mm

Displacement 18.1 L

WEIGHTS

Operating Weight – Long Undercarriage 86190.0 kg Hitachi ZX 200

(78)

Model Code ZX200-5G / ZX200LC-5G / ZX210H-5G / ZX210LCH-5G ZX210K-5G / ZX210LCK-5G

Engine Rated Power 125 kW (168 HP) Operating Weight

ZX200-5G : 19 800 kg / ZX200LC-5G : 20 400 kg ZX210H-5G : 21 100 kg / ZX210LCH-5G : 21 500 kg ZX210K-5G : 21 100 kg / ZX210LCK-5G : 21 500 kg

Backhoe Bucket ISO Heaped : 0.51 – 1.20 m3 Hitachi ZX 330

(79)

Model Code ZX330

Engine Rated Power 184 kW (250 PS)

OperatingWeight ZAXIS330 : 31 000 kg

ZAXIS330LC : 31 600 kg

Hitachi ZX 450

(80)

Model Code ZX450

Engine Rated Power 235 kW (320 PS) Operating Weight 42 500 kg

Backhoe Bucket SAE, PCSA Heaped : 1.15 m

3_{– 2.65 m}3 CECE Heaped : 1.0 – 2.3 m3

Hitachi ZX 870-5G

Gambar Hitachi ZX 870-5G

(81)

Model Code ZX870-5G / ZX870LC-5G / ZX870H-5G / ZX870LCH-5G Engine Rated Power 360 kW (483 HP)

Operating Weight ZX870-5G : 80 800 kg / ZX870LC-5G : 82 600 kg ZX870H-5G : 82 300 kg / ZX870LCH-5G : 84 200 kg

Backhoe Bucket ISO Heaped : 2.9 – 4.5 m3 P E R B A N D I N G A N H I T A C H I Model Operating Weight (kg) Engine Rated Power (kW) Backhoe Bucket PCSA heaped (m3₎ ZX110 10700 63 0.19 – 0.59 ZX200-5G 19800 125 0.51 – 1.20 ZX330 31000 184 1.15 – 1.86 Kobelco SK210 LC

Produk ini setipe dengan produk SK-200-8.

Gambar Kobelco SK210 LC

Berikut ini merupakan spesifikasi Kobelco SK210 LC

Model Name SK210LC

(82)

Engine 157 hp 117 kW / 2,000 rpm Operating Weight 48,500 lbs 22,000 kg Kobelco SK 260-LC

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas. Produk ini setipe dengan tipe SK 250-8.

Gambar Kobelco SK 260-LC

Berikut ini merupakan spesifikasi teknis Kobelco SK-260-LC

Model Name SK260LC

Operating Weight 56,890 lbs 25,800 kg Kobelco SK 350LC

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas. Tipe ini sama dengan Kobelco SK 330-8 yang dipasarkan di Asia.

(83)

Gambar Kobelco SK-350LC

Berikut ini merupakan spesifikasi teknis Kobelco SK 350-LC

Model Name SK350LC

Operating Weight 81,800 lbs 37,100 kg Kobelco SK 500 lC

Gambar Kobelco SK 500 LC

Berikut ini merupakan spesifikasi teknis Kobelco SK 500 LC

Model Name SK500LC

Operating Weight 111,800 lbs 50,700 kg Kobelco SK 850 LC

(84)

Gambar Kobelco SK-850 LC

Berikut ini merupakan spesifikasi teknis Kobelco SK 850 LC Model Name SK850LC Machine Type SK850LC-9 STD Bucket Capacity 4.58 cu.yd 3.50 m3 Engine 510 hp 380 kW / 1,800 rpm Operating Weight 181,440 lbs 82,300 kg

Perbandingan Spesifikasi Produk Excavator Kobelco

SK130-8 (SK140LC -8) 0.5 74/2,000 12800-13,200 {13,000-13,500} SK130L-8 Logging spec 0.45 74/2,000 14,700 SK200-8 (SK210LC -8) 0.8 118/2,000 20,400-21,200 {20,900-21,600} SK250-8 (SK260LC 1.0 137/2,100 24,600-25,100 (25,200-25,600)

(85)

-8) SK330-8 (SK350LC -8) 1.4 209/2,100 *200/2,100 (Non-Tier3 model) 33,700-34,700 {34,400-35,500} SK460-8 (SK480LC -8) 1.9 257/1,850 46,400-48,300 (47,300-49,400) SK850LC (SK850LC ) 3.5 370/1,800 78,200-80,500 Doosan DX 180

Berikut ini merupakan spesifikasi teknis Doosan DX 180 LC

(86)

Bucket Breakout Force 25,312 ft lb Doosan DX 300 LC

Weight 67,770 lb

Digging Reach 35′ 2″

Doosan DX 490 LC

(87)

Weight 112,502 lb

Bucket Breakout Force 67,902 ft lb Doosan DX 700

(88)

Emissions Tier 3 HP, SAE Net 463 hp @ 1,800 rpm Weight 158,953 lb Digging Depth 27′ 7″ Dump Height 27′ 4″ Swing Torque 159,633 ft lb

Bucket Breakout Force 78,485 ft lb SPESIFIKASI SHOVEL

PC2000LC-10

Gambar PC2000LC-8

(89)

Gambar Kapasitas Bucket PC2000LC-10 PC3000LC-10

Gambar PC3000LC-10

(90)

Gambar Kombinasi Kapasitas BUcket, Boom, dan Stick PC4000LC-10

(91)

Gambar PC4000LC-10

BACKHOE ATTACHMENT

■ 9.75 m / 32’0″ boom

■ 4.5 m / 14’9″ stick

PC8000LC-10

(92)

Gambar PC8000LC-10

BACKHOE ATTACHMENT

■ 11.5 m / 37’9″ boom

■ 5.5 m / 18’0″ stick

CAT6015/6015 FS

(93)

Gambar CAT 6015/6015FS

Berikut ini merupakan spesifikasi teknis CAT6015/6015 FS

GENERAL DATA Engine Output –

SAE J1995 Cat® C18 – 522 kW (700 hp); Cummins® QSK19 – 477 kW (640 hp) Standard Bucket

Capacity

Face Shovel (SAE 2:1) – 7 m3 (9.2 yd3); Std. rock backhoe (SAE 1:1) – 6 m3 (7.8 yd3); M.E. backhoe (SAE 1:1) – 7 m3 (9.2 yd3)

Fuel tank capacity 1300.0 L

OPERATING WEIGHTS WITH STANDARD UNDERCARRIAGE – SHOVEL UNIT – CAT® C18

Track pads option – Pad width 750.0 mm Track pads option – Width over pads 4550.0 mm

(94)

OPERATING WEIGHTS WITH STANDARD UNDERCARRIAGE – BACKHOE UNIT – CAT® C18

Track pads option – Pad width 750.0 mm Track pads option – Width over pads 4550.0 mm CAT 6018 FS

Gambar CAT 6018 FS

Berikut ini merupakan spesifikasi teknis CAT 6018 FS GENERAL DATA

Standard Bucket Capacity Face Shovel (heaped 2:1) – 10.0 m3 (13.1 yd3); Backhoe (heaped 1:1) – 10.0 m3 (13.1 yd3)

(95)

(205 tons) Engine output SAE J1995 – 2 ×

Cat C18 ACERT 858.0 kW

HYDRAULIC SYSTEM WITH PUMP MANAGING SYSTEM Hydraulic tank capacity – approximately 2000.0 L

Main pumps – AC version 2 × variable axial piston pumps Main pumps – Diesel version 4 × variable swash plate pumps Main pumps – Maximum oil flow – AC version 2 × 578 L/min (2 × 153 gal/min) Main pumps – Maximum oil flow – Diesel version 4 × 412 L/min (4 × 109 gal/min) Maximum pressure, attachment 300.0 bar

Maximum pressure, swing pumps 370.0 bar

Swing pumps – AC version 1 × reversible swash plate pump Swing pumps – Diesel version 2 × reversible swash plate pumps Swing pumps – Maximum oil flow – AC version 516 L/min (136 gal/min)

Swing pumps – Maximum oil flow – Diesel version 2 × 288 L/min (2 × 76 gal/min) Total volume of hydraulic oil – approximately 2500.0 L

CAT6040

(96)

Berikut ini merupakan spesifikasi teknis CAT6040 GENERAL DATA

Engine Output – SAE

J1995 Cat® C32 – 1516 kW (2,032 hp) Standard Bucket

Capacity

Hydraulic tank capacity – AC version Approx. 4000 L (1,057 U.S. gal) Hydraulic tank capacity – Diesel version Approx. 3400 L (898 U.S. gal) Main pumps – AC version 4 × variable flow axial piston pumps Main pumps – Diesel version 4 × variable swash plate pumps Main pumps – Max. oil flow – AC version 4 × 746 L/min (4 × 197 U.S. gal/min) Main pumps – Max. oil flow – Diesel version 4 × 724 L/min (4 × 191 U.S. gal/min) Max. pressure, attachment 300.0 bar

Max. pressure, swing pumps 350.0 bar

Max. pressure, travel 350.0 bar

Swing pumps – AC version 3 × reversible swash plate pump Swing pumps – Diesel version 4 × reversible swash plate pump Swing pumps – Max. oil flow – AC version 3 × 491 L/min (3 × 130 U.S. gal/min) Swing pumps – Max. oil flow – Diesel version 4 × 321 L/min (4 × 85 U.S. gal/min) Total volume of hydraulic oil – AC version Approx. 6400 L (1,585 U.S. gal) Total volume of hydraulic oil – Diesel version Approx. 5800 L (1,532 U.S. gal) CAT 6060

(97)

Gambar CAT6060

Berikut ini merupakan spesifikasi teknis CAT6060 FS

GENERAL DATA Engine Output – SAE

J1995 Cat® 3512C – 2240 kW (3,000 hp) Standard Bucket

Capacity

Hydraulic tank capacity – AC version – approximately 5100.0 L Hydraulic tank capacity – Diesel version – approximately 7100.0 L

Main pumps – AC version 4 × variable flow axial piston pumps

Main pumps – Diesel version 4 × swash plate double pumps Main pumps – Maximum oil flow – AC version 4 × 933 L/min (4 × 246 gal/min) Main pumps – Maximum oil flow – Diesel version 4 × 1300 L/min (4 × 343 gal/min) Maximum pressure, attachment 320.0 bar

(98)

Maximum pressure, travel 370.0 bar

Swing pumps – AC version 3 × reversible swash plate pumps Swing pumps – Diesel version 4 × reversible swash plate pumps Swing pumps – Maximum oil flow – AC version 3 × 491 L/min (3 × 131 gal/min) Swing pumps – Maximum oil flow – Diesel version 4 × 352 L/min (4 × 93 gal/min) Total volume of hydraulic oil – AC version – approximately 7300.0 L

Total volume of hydraulic oil – Diesel version –

approximately 9400.0 L

CAT6090

Gambar CAT 6090

Berikut ini merupakan spesifikasi CAT6090 GENERAL DATA

Standard Bucket Capacity Face Shovel (SAE 2:1) – 52.0 m3 (68.0 yd3) Operating Weight Face Shovel – 980 tonnes (1,080 tons) HYDRAULIC SYSTEM WITH PUMP MANAGING SYSTEM

Hydraulic tank capacity – approximately 10000.0 L

(99)

Main pumps – Maximum oil flow – AC version 8 × 943 L/min (8 × 249 gal/min) Main pumps – Maximum oil flow – Diesel version 8 × 936 L/min (8 × 247 gal/min) Maximum pressure, attachment 310.0 bar

Maximum pressure, swing pumps 350.0 bar Maximum pressure, travel 360.0 bar

Swing pumps 6 × reversible swash plate pumps

Swing pumps – Maximum oil flow – AC version 6 × 496 L/min (6 × 131 gal/min) Swing pumps – Maximum oil flow – Diesel version 6 × 488 L/min (6 × 129 gal/min) Total volume of hydraulic oil – approximately 13000.0 L

Liebherr R9100

Engine output 565 kW/757 hp

(ISO 9249)

Liebherr R9250

(100)

Engine output 960 kW/1,287 hp

(ISO 9249)

Liebherr R9400

(101)

Berikut ini merupakan spesifikasi Liebherr R9400

Engine output 1,250 kW/1,675 PS

(ISO 9249)

Liebherr R996 B

(102)

Gambar Liebherr R996 B

Berikut ini merupakan spesifikasi Liebherr R996 B

(ISO 9249)

Liebherr R9800

(103)

Liebherr R9800

(ISO 9249)

Hitachi EX1200-6

(104)

Model Code EX1200-6

Engine Gross Power 567 kW (760 HP) Operating Weight

Backhoe : 111 000 kg

BE-front : 112 000 kg

Loading Shovel : 114 000 kg

(105)

Berikut ini merupakan spesifikasi teknis Hitachi EX 2600

Model Code EX2600-6

(106)

16.5 m3

Hitachi EX 3600

Loading Shovel Bucket Heaped : 21.0 m

3 23.0 m3

Backhoe Bucket SAE,PCSA Heaped : 22.0 m

3 CECE Heaped : 19.2 m3

(107)

Model Code EX5600-6

Engine Gross Power 2 x 1 119 kW (2 x 1 500 HP)

Loading Shovel Bucket Heaped : 27.0 – 29.0 m3

Hitachi EX 8000

(108)

Engine RatedPower 2 x 1 400 kW (2 x 1 900 PS)

OperatingWeight Loading Shovel : 805 000 kg (1 770 000 lb) Loading Shovel Bucket PCSA Heaped : 40.0 m3_{(52.3 d}3₎

PERBANDINGAN SPESIFIKASI HITACHI

Model Operating Weight (kg) Engine Rated Power (kW) Backhoe Bucket PCSA heaped (m3₎

Loading Shovel Bucket PCSA heaped (m3₎ EX1200-5D 108000 567 3.0 – 6.5 5.9 – 6.5 EX1200-6 111000 567 5.2 – 6.7 5.9 – 6.5 EX1900-6 192000 810 12.0 11.0 EX2600-6 254000 1119 17.0 15.0 – 16.5 EX3600-6 359000 1450 22.0 21.0 ZX450 42500 235 1.15 – 2.65 2.3 – 2.8 EX5600-6 533000 2 x 1119 34.0 27.0 – 29.0 EX8000 805000 1400 x 2 40.0 ZX870-5G 80800 360 2.9 – 4.5

(109)

Bila anda ingin mencari brosur alat berat dari berbagai manufaktur besar, berikut ini merupakan link yang dapat anda gunakan untuk mencari brosur spesifikasi alat berat yang anda cari. Anda bisa mencari brosur spesifikasi excavator/PC/Hitachi, Dozer, Wheel Loader, Motor Grader, Dump Truck, Articulated Hauler, Haul Truck, dan berbagai macam alat berat lainnya.

Produk Caterpillar : http://www.cat.com/en_US/products/new/equipment.html Produk Komatsu : http://www.komatsuamerica.com/

Produk Liebherr : http://www.liebherr.com/ME/en-GB/default_me.wfw/measure-nonMetric Produk Hitachi : http://www.hexindo-tbk.co.id/products/index.html

Produk Kobelco : http://www.kobelco-kenki.co.jp/english/products/asia/index.html#a Produk

Doosan : http://www.doosanequipment.com/dice/products/excavators/Wheel+Excavators.page? About these ads

Share this:

 Facebook



(110)

In "Other Knowledgement"

PEMANDANGAN DARI MENARA, MIANGAS

Berikut ini merupakan pemandangan dari menara navigasi yang terletak di daerah bukit, pulau miangas. foto-foto ini diambil oleh luhur kurnianto, saya sendiri, dan mutti.

In "GAMBAR MIANGAS"

DERMAGA dan KAPAL PERINTIS, MIANGAS

Di Miangas, terdapat dermaga yang menjadi tempat berlabuhnya kapal perintis. Dermaga di Miangas terletak di pantai Lobo. Berikut ini merupakan gambar dari Dermaga dan Kapal Perintis yang bersandar. Gambar ini diambil oleh Luhur K, saya, dan Edo

In "GAMBAR MIANGAS" Comments 1. raimu says: September 5, 2014 at 4:38 pm 1 0 Rate This mantaaaaaaaap man!!!! Reply 2. winarnorambar says: June 7, 2015 at 5:47 pm 1

(111)

0

Rate This

Reblogged this on Winarno De YE2CQK Blog and commented:

Bucket Excavator dan Capasitas

Reply
