besi beton

(1)

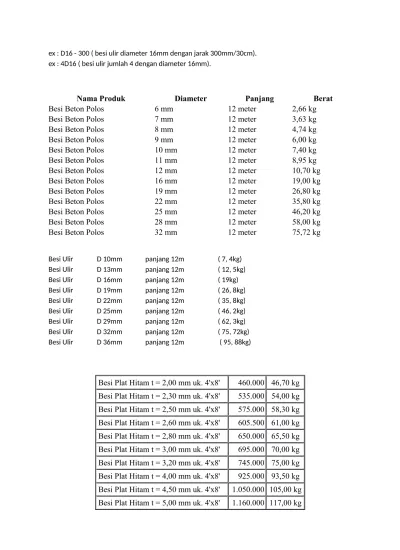

ex : D16 - 300 ( besi ulir diameter 16mm dengan jarak 300mm/30cm).

ex : 4D16 ( besi ulir jumlah 4 dengan diameter 16mm).

Nama Produk Diameter Panjang Berat

Besi Beton Polos 6 mm 12 meter 2,66 kg

Besi Ulir D 10mm panjang 12m ( 7, 4kg) Besi Ulir D 13mm panjang 12m ( 12, 5kg) Besi Ulir D 16mm panjang 12m ( 19kg) Besi Ulir D 19mm panjang 12m ( 26, 8kg) Besi Ulir D 22mm panjang 12m ( 35, 8kg) Besi Ulir D 25mm panjang 12m ( 46, 2kg) Besi Ulir D 29mm panjang 12m ( 62, 3kg) Besi Ulir D 32mm panjang 12m ( 75, 72kg) Besi Ulir D 36mm panjang 12m ( 95, 88kg)

Besi Plat Hitam t = 2,00 mm uk. 4'x8' 460.000 46,70 kg Besi Plat Hitam t = 2,30 mm uk. 4'x8' 535.000 54,00 kg Besi Plat Hitam t = 2,50 mm uk. 4'x8' 575.000 58,30 kg Besi Plat Hitam t = 2,60 mm uk. 4'x8' 605.500 61,00 kg Besi Plat Hitam t = 2,80 mm uk. 4'x8' 650.000 65,50 kg Besi Plat Hitam t = 3,00 mm uk. 4'x8' 695.000 70,00 kg Besi Plat Hitam t = 3,20 mm uk. 4'x8' 745.000 75,00 kg Besi Plat Hitam t = 4,00 mm uk. 4'x8' 925.000 93,50 kg Besi Plat Hitam t = 4,50 mm uk. 4'x8' 1.050.000 105,00 kg Besi Plat Hitam t = 5,00 mm uk. 4'x8' 1.160.000 117,00 kg

(2)

Besi Plat Hitam t = 6,00 mm uk. 4'x8' 1.385.000 140,00 kg Besi Plat Hitam t = 8,00 mm uk. 4'x8' 1.850.000 187,00 kg Besi Plat Hitam t = 9,00 mm uk. 4'x8' 2.075.000 210,00 kg Besi Plat Hitam t = 10,00 mm uk. 4'x8' 2.300.000 233,30 kg Besi Plat Hitam t = 12,00 mm uk. 4'x8' 2.775.000 280,00 kg Besi Plat Hitam t = 15,00 mm uk. 4'x8' 3.465.000 350,00 kg Besi Plat Hitam t = 16,00 mm uk. 4'x8' 3.690.000 373,00 kg Besi Plat Hitam t = 18,00 mm uk. 4'x8' 4.160.000 420,00 kg Besi Plat Hitam t = 19,00 mm uk. 4'x8' 4.380.000 443,00 kg Besi Plat Hitam t = 20,00 mm uk. 4'x8' 4.620.000 467,00 kg Besi Plat Hitam t = 22,00 mm uk. 4'x8' 5.075.000 513,00 kg Besi Plat Hitam t = 25,00 mm uk. 4'x8' 5.770.000 583,00 kg

Besi Plat Bordes

Uraian Harga Berat

Besi Plat Bordes t = 2,30 mm uk. 4'x8' 620.000 59,00 kg Besi Plat Bordes t = 3,00 mm uk. 4'x8' 790.000 75,00 kg Besi Plat Bordes t = 3,20 mm uk. 4'x8' 835.000 79,60 kg Besi Plat Bordes t = 4,00 mm uk. 4'x8' 1.035.000 98,50 kg Besi Plat Bordes t = 4,50 mm uk. 4'x8' 1.155.000 110,00 kg Besi Plat Bordes t = 5,00 mm uk. 4'x8' 1.285.000 122,00 kg Besi Plat Bordes t = 6,00 mm uk. 4'x8' 1.525.000 145,00 kg

UKURAN BESI BAJA WF / WIDE FLANGE BEAM

SIZE WEIGHT

A A S

100 x 50 x 5 x 7 mm - 12 M 112 Kg 125 x 60 x 6 x 8 mm - 12 M 158,4 Kg 148 x 100 x 6 x 9 mm - 12 M 253,2 Kg 150 x 75 x 5 x 7 mm - 12 M 168 Kg 175 x 90 x 5 x 8 mm - 12 M 217,2 Kg 194 x 150 x 6 x 9 mm - 12 M 367 Kg 198 x 99 x 4,5 x 7 mm - 12 M 218,4 Kg 200 x 100 x 5,5 x 8 mm - 12 M 256 Kg 244 x 175 x 7 x 11 mm - 12 M 529 Kg 248 x 124 x 5 x 8 mm - 12 M 308,4 Kg 250 x 125 x 6 x 9 mm - 12 M 355,2 Kg

(3)

294 x 200 x 8 x 12 mm - 12 M 681 Kg 298 x 149 x 6 x 8 mm - 12 M 384 Kg 200 x 150 x 6,5 x 9 mm - 12 M 440,4 Kg 346 x 174 x 6 x 9 mm - 12 M 497 Kg 350 x 175 x 7 x 11 mm - 12 M 595,2 Kg 396 x 199 x 7 x 11 mm - 12 M 679,5 Kg 400 x 200 x 8 x 13 mm - 12 M 792 Kg 446 x 199 x 8 x 12 mm - 12 M 794,40 Kg 450 x 200 x 9 x 14 mm - 12 M 912 Kg 500 x 200 x 10 x 16 mm - 12 M 1.075 Kg 588 x 300 x 12 x 20 mm - 12 M 1.812 Kg 600 x 200 x 11 x 17 mm - 12 M 1.272 Kg 700 x 300 x 13 x 24 mm - 12 M 2.220 Kg 800 x 300 x 14 x 26 mm - 12 M 2.520 Kg

ukuran khusus Besi WF 900 x 300 x 16 x 28 x 12 M berat = 2916 kg

BESI H BEAM / KANAL H

SIZE WEIGHT

A B t1 t2

100 x 100 x 6 x 8 mm - 12

M 206 Kg

125 x 125 x 5 x 7 mm - 12

M 222 Kg

125 x 125 x 6,5 x 9 mm - 12

M 286 Kg

150 x 150 x 7 x 10 mm - 12

M 378 Kg

175 x 175 x 7 x 11 mm - 12

M 482 Kg

200 x 200 x 8 x 12 mm - 12

M 599 Kg

250 x 250 x 9 x 14 mm - 12

M 869 Kg

300 x 300 x 10 x 15 mm - 12

M 1,128 Kg

350 x 350 x 12 x 19 mm - 12

M 1.644 Kg

400 x 400 x 13 x 21 mm - 12

M 2.064 Kg

BESI SIKU / EQUAL ANGLE

SIZE WEIGHT

A A S

20 x 20 x 3 mm - 6 M 5,31 Kg 25 x 25 x 3 mm - 6 M 6,72 Kg

(4)

30 x 30 x 3 mm - 6 M 8,16 Kg 40 x 40 x 3 mm - 6 M 11 Kg 40 x 40 x 4 mm - 6 M 14,5 Kg 40 x 40 x 5 mm - 6 M 18 Kg 45 x 45 x 4 mm - 6 M 16,44 Kg 45 x 45 x 5 mm - 6 M 20,5 Kg 50 x 50 x 4 mm - 6 M 18,4 Kg 50 x 50 x 5 mm - 6 M 22,68 Kg 50 x 50 x 6 mm - 6 M 27,58 Kg 60 x 60 x 5 mm - 6 M 27,42 Kg 60 x 60 x 6 mm - 6 M 32,52 Kg 65 x 65 x 6 mm - 6 M 35,46 Kg 70 x 70 x 6 mm - 6 M 38,28 Kg 70 x 70 x 7 mm - 6 M 44,28 Kg 75 x 75 x 6 mm - 6 M 41,22 Kg 75 x 75 x 7 mm - 6 M 47,64 Kg 75 x 75 x 8 mm - 6 M 54,18 Kg 75 x 75 x 9 mm - 6 M 60 Kg 80 x 80 x 6 mm - 6 M 43,02 Kg 80 x 80 x 8 mm - 6 M 57,96 Kg 90 x 90 x 8 mm - 6 M 65,4 Kg 90 x 90 x 9 mm - 6 M 73,2 Kg 90 x 90 x 10 mm - 6 M 79,8 Kg 100 x 100 x 8 mm - 6 M 73,2 Kg 100 x 100 x 10 mm - 6 M 90,6 Kg 100 x 100 x 11 mm - 6 M 119,4 Kg 120 x 120 x 12 mm - 6 M 130 Kg 125 x 125 x 12 mm - 6 M 140 Kg 130 x 130 x 9 mm - 6 M 129 Kg 130 x 130 x 12 mm - 6 M 140 Kg 150 x 150 x 12 mm - 6 M 164 Kg 150 x 150 x 15 mm - 6 M 202 Kg 200 x 200 x 15 mm - 6 M 272 Kg 200 x 200 x 16 mm - 6 M 301 Kg 200 x 200 x 20 mm - 6 M 358 Kg 200 x 200 x 25 mm - 6 M 442 Kg 250 x 250 x 25 mm - 6 M 562 Kg BESI BAJA PLAT HITAM / MILD STEEL

SIZE WEIGHT

1,20 mm x 4’ x 8’ 28,- Kg 1,40 mm x 4’ x 8’ 33,- Kg 1,50 mm x 4’ x 8’ 35,- Kg 1,90 mm x 4’ x 8’ 44,5 Kg 2,00 mm x 4’ x 8’ 46,7 Kg

(5)

2,3 mm x 4’ x 8’ 54,- Kg 2,60 mm x 4’ x 8’ 60,7 Kg 2,80 mm x 4’ x 8’ 65,3 Kg 2,90 mm x 4’ x 8’ 67,6 Kg 3,00 mm x 4’ x 8’ 70,- Kg 3,20 mm x 4’ x 8’ 75,- Kg 4 mm x 4’ x 8’ 93,3 Kg 4,50 mm x 4’ x 8’ 105,- Kg 5 mm x 4’ x 8’ 117,- Kg 6 mm x 4’ x 8’ 140,- Kg 8 mm x 4’ x 8’ 187,- Kg 9 mm x 4’ x 8’ 210,- Kg 10 mm x 4’ x 8’ 233,- Kg 12 mm x 4’ x 8’ 280,- Kg 13 mm x 4’ x 8’ 303,- Kg 15 mm x 4’ x 8’ 350,- Kg 16 mm x 4’ x 8’ 373,- Kg 18 mm x 4’ x 8’ 420,- Kg 19 mm x 4’ x 8’ 443,- Kg 20 mm x 4’ x 8’ 497,- Kg 21 mm x 4’ x 8’ 490,- Kg 22 mm x 4’ x 8’ 513,- Kg 25 mm x 4’ x 8’ 583,- Kg 28 mm x 4’ x 8’ 653,- Kg 30 mm x 4’ x 8’ 700,- Kg 32 mm x 4’ x 8’ 747,- Kg 38 mm x 4’ x 8’ 887,- Kg 50 mm x 4’ x 8’ 1.167,- Kg 65 mm x 4’ x 8’ 1.516,- Kg 75 mm x 4’ x 8’ 1.750,- Kg 100 mm x 4’ x 8’ 2.333,- Kg

CARA PERHITUNGAN BERAT/CALCULATION METHOD :

4’ x 8’ = Tebal x 23,33 = Berat (Kg)

BESI PLAT KAPAL / BKI / A 516 / A 283

SIZE WEIGHT

4,5 mm x 5’ x 20’ 328 Kg 5 mm x 5’ x 20’ 365 Kg 6 mm x 5’ x 20’ 438 Kg 7 mm x 5’ x 20’ 510 Kg 8 mm x 5’ x 20’ 583 Kg 9 mm x 5’ x 20’ 656 Kg 10 mm x 5’ x 20’ 729 Kg 12 mm x 5’ x 20’ 875 Kg

(6)

14 mm x 5’ x 20’ 1.021 Kg 16 mm x 5’ x 20’ 1.167 Kg 19 mm x 5’ x 20’ 1.386 Kg 22 mm x 5’ x 20’ 1.604 Kg 25 mm x 5’ x 20’ 1.823 Kg 30 mm x 5’ x 20’ 2.187 Kg 40 mm x 5’ x 20’ 2.916 Kg 50 mm x 5’ x 20’ 3.645 Kg

5’ x 20’ = Tebal (mm) x 72,9 = Berat (Kg) /WEIGHT (Kg)

BESI PLAT KAPAL BKI / A 516 / A 283 4,5 mm x 6’ x 20’ 394 Kg

5 mm x 6’ x 20’ 438 Kg 6 mm x 6’ x 20’ 525 Kg 8 mm x 6’ x 20’ 700 Kg 9 mm x 6’ x 20’ 788 Kg 10 mm x 6’ x 20’ 875 Kg 12 mm x 6’ x 20’ 1.050 Kg 14 mm x 6’ x 20’ 1.225 Kg 16 mm x 6’ x 20’ 1.400 Kg 19 mm x 6’ x 20’ 1.664 Kg 22 mm x 6’ x 20’ 1.925 Kg 25 mm x 6’ x 20’ 2.188 Kg

6’ x 20’ = Tebal (mm) x 87,5 = Berat (Kg) /WEIGHT (Kg)

BESI BETON POLOS / BJTP 24

SIZE WEIGHT

6 mm – 12 M 2.66 Kg 8 mm – 12 M 4,74 Kg 9 mm – 12 M 6,- Kg 10 mm - 12 M 7,4 Kg 12 mm – 12 M 10,66 Kg 13 mm – 12 M 12,48 Kg 16 mm – 12 M 18,96 Kg 19 mm – 12 M 26,76 Kg 22 mm – 12 M 35,76 Kg 25 mm – 12 M 46,2 Kg 28 mm – 12 M 57,96 Kg 32 mm – 12 M 75,72 Kg 36 mm – 12 M 95,88 Kg

(7)

BESI BETON ULIR / BJTD 40

SIZE WEIGHT

D 10 mm – 12 M 7,4 Kg D 13 mm – 12 M 12,48 Kg D 16 mm – 12 M 18,96 Kg D 19 mm – 12 M 26,76 Kg D 22 mm – 12 M 35,76 Kg D 25 mm – 12 M 46,2 Kg D 29 mm – 12 M 62,28 Kg D 32 mm – 12 M 75,72 Kg D 36 mm – 12 M 95,88 Kg

BESI CNP / KANAL C / LIP CHANNEL

SIZE WEIGHT NOTE

A B C T

60 x 30 x 10 x 1,6 mm - 6 M 9,76 Kg 75 x 35 x 15 x 1,6 mm - 6 M 12,4 Kg 75 x 45 x 15 x 1,6 mm - 6 M 13,92 Kg 75 x 45 x 15 x 2,3 mm - 6 M 19,5 Kg 100 x 50 x 20 x 1,6 mm - 6 M 17,5 Kg 100 x 50 x 20 x 2,3 mm - 6 M 24,4 Kg 100 x 50 x 20 x 3,2 mm - 6 M 33,– Kg 125 x 50 x 20 x 2,3 mm - 6 M 27,1 Kg 125 x 50 x 20 x 3,2 mm - 6 M 36,8 Kg 150 x 50 x 20 x 2,3 mm - 6 M 29,8 Kg 150 x 50 x 20 x 3,2 mm - 6 M 40,6 Kg 150 x 65 x 20 x 2,3 mm - 6 M 33,– Kg 150 x 65 x 20 x 3,2 mm - 6 M 45,1 Kg 200 x 75 x 20 x 3,2 mm - 6 M 56,62 Kg UNP UKURAN JIS

SIZE WEIGHT

H B T

UNP 5 (50x 38x 5 mm) – 6M 30 Kg UNP 6,5 (65x 42x 5 mm) – 6M 41 Kg UNP 7,5 (75x 40x 5 mm) – 6M 45,3 Kg UNP 8 (80x 45x 5 mm) – 6M 47,76 Kg UNP 10 (100x 50x 5 mm) – 6M 56,2 Kg UNP 10 (100x 50x 6 mm) – 6M 67,5 Kg UNP 12 (120x 55x 7 mm) – 6M 80,40 Kg UNP 12,5 (125x 65x 6 mm) – 6M 80,40 Kg UNP 15 (150x 75x 6,5 mm) – 6M 112 Kg UNP 18 (180x 75x 7 mm) – 6M 128 Kg UNP 20 (200x 80x 7,5 mm) – 6M 148 Kg UNP 25 (250x 90x 9 mm) – 6M 208 Kg

(8)

UNP 30 (300x 90x 9 mm) – 6M 229 Kg UNP 300 (300x 100x 10 mm) – 6M 526 Kg UNP UKURAN EROPA

SIZE WEIGHT

H B T

UNP 14 (140x 60x 7 mm) – 6M 96 Kg UNP 16 (160x 65x 7,5 mm) – 6M 115,5 Kg UNP 18 (180x 70x 8 mm) – 12M 271 Kg UNP 20 (200x 70x 8,5 mm) – 12M 310 Kg UNP 22 (220x 80x 9 mm) – 12M 371 Kg UNP 24 (240x 85x 9,5 mm) – 12M 410 Kg UNP 26 (260x 90x 10 mm) – 12M 456 Kg UNP 28 (280x 80x 10 mm) – 12M 500 Kg UNP 30 (300x 100x 10 mm) – 12M 556 Kg UNP 32 (320x 100x 14 mm) – 12M 714 Kg UNP 38 (380x 100x 10,5 x16 mm) – 12M 670 Kg UNP 40 (400x 110x 14 mm) – 12M 862 Kg PIPA BESI SCHD DAN MEDIUM

Size (mm) SCH 40 SCH 80

Inches

mm inch TH W W TH W

6 10.5 1.7 0.369 0.45 2.4 0.479

8 ¼ 13.8 2.2 0.629 0.675 3 0.799

10 17.3 2.3 0.851 1 3.2 1.11

15 ½ 21.7 2.8 1.31 1.46 3.7 1.64

20 ¾ 27.2 2.9 1.74 2 3.9 2.24

25 1 34 3.4 2.57 2.89 4.5 3.27

32 1 ¼ 42.7 3.6 3.47 4.24 4.9 4.57

40 1 ½ 48.6 3.7 4.1 4.89 5.1 5.47

50 2 60.5 3.9 5.44 6.72 5.5 7.46

65 2 ½ 76.3 5.2 9.12 10.4 7 12

80 3 89.1 5.5 11.3 13.4 7.6 15.3

90 3 ½ 101.6 5.7 13.5 16.3 8.1 18.7

100 4 114.3 6 16 18.8 8.6 22.4

125 5 139.8 6.6 21.7 26.3 9.5 30.5

150 6 165..2 7.1 27.7 35.8 11 41.8

200 8 216.3 8.2 42.1 52.3 12.7 63.8

250 10 267.4 9.3 59.2 79.8 15.1 93.9

300 12 318.5 10.3 78.3 107 17.4 129

350 14 355.6 11.1 94.3 127 19 158

400 16 406.4 12.7 123 160 21.4 203

450 18 457.2 14.3 156 205 23.8 254

500 20 508 15.1 184 248 26.2 311

(9)

Katalog Alumunium Rectangular Hollow

No Die No Dimension ( mm ) Weight ( Length X Height X Thickness ) ( Kg/m ) 1 3276 17.25 x 12.00 x 1.10 0.161 2 8244 18.00 x 12.00 x 1.30 0.193

3 5303 19.00 x 9.25 x 1.50 0.205

4 2480 19.05 x 12.70 x 1.10 0.176 5 7419 20.00 x 10.00 x 1.10 0.166 6 1400 25.40 x 12.70 x 1.00 0.196 7 0513B 25.40 x 12.70 x 1.50 0.285 8 7367 25.40 x 19.00 x 2.00 0.419 9 8382 28.00 x 22.00 x 2.00 0.496 10 2861 32.00 x 16.00 x 1.20 0.298 11 2461 32.00 x 18.00 x 2.00 0.499 12 8378 35.00 x 28.00 x 2.00 0.637 13 7972 36.40 x 14.70 x 3.00 0.731 14 2698R 37.00 x 20.00 x 1.50 0.439 15 3542 38.00 x 25.00 x 1.00 0.329 16 1849 38.00 x 25.00 x 1.10 0.352 17 2191 38.10 x 19.05 x 1.10 0.328 18 6421 38.10 x 15.88 x 3.00 0.780 19 1418 38.10 x 25.40 x 1.10 0.333 20 3032 38.10 x 25.40 x 1.00 0.365 21 0986 38.10 x 25.40 x 1.12 0.397 22 0094 38.10 x 25.40 x 1.59 0.546 23 8341 40.00 x 37.00 x 1.30 0.514 24 4345 42.00 x 38.00 x 3.00 1.168 25 6581 50.00 x 10.00 x 2.00 0.607 26 0096 50.60 x 25.40 x 2.00 0.783 27 4245 50.60 x 25.40 x 2.00 0.780 28 2972 50.80 x 25.40 x 1.00 0.402 29 1419A 50.80 x 25.40 x 1.15 0.461 30 0988E 50.80 x 25.40 x 1.20 0.480 31 5527 50.80 x 18.00 x 3.00 1.021 32 0456 50.80 x 25.40 x 1.58 0.625 33 0052 50.80 x 25.40 x 1.58 0.625 34 8163 54.50 x 29.50 x 2.50 1.067 35 3039 60.00 x 28.00 x 5.00 2.114 36 1465 75.00 x 12.50 x 1.20 0.555 37 3234 76.20 x 25.40 x 1.10 0.593 38 1486 76.20 x 25.40 x 1.20 0.645

(10)

Katalog Alumunium Rectangular Hollow

No Die No Dimension ( mm ) Weight ( Length X Height X Thickness ) ( Kg/m ) 39 0328 76.20 x 25.40 x 2.03 1.073 40 4291 76.20 x 38.10 x 1.20 0.728 41 3405 76.20 x 38.10 x 1.00 0.698 42 1765 76.20 x 38.10 x 1.30 0.787 43 2486 76.20 x 44.45 x 1.20 0.769 44 0453E 76.20 x 44.45 x 1.57 1.000 45 0379 76.20 x 44.45 x 1.58 1.006 46 7427 79.80 x 20.00 x 1.20 0.633 47 4067 80.00 x 40.00 x 2.80 1.720 48 2446 80.00 x 45.00 x 3.00 2.050 49 2225 83.90 x 28.90 x 1.40 0.796 50 2157 93.06 x 61.31 x 10.00 7.283 51 7420 99.80 x 20.00 x 1.00 0.638 52 2414 100.00 x 40.00 x 4.00 2.793 53 7527 100.00 x 70.00 x 6.00 4.943 54 1756 101.60 x 25.40 x 1.20 0.810 55 0454E 101.60 x 25.40 x 1.57 1.054 56 0140 101.60 x 25.40 x 1.98 1.321 57 0021 101.60 x 25.40 x 2.36 1.563 58 2487 101.60 x 44.45 x 1.20 0.934 59 0452E 101.60 x 44.45 x 1.57 1.216 60 0023 101.60 x 44.45 x 2.36 1.808 61 4729 120.00 x 50.00 x 2.00 1.802 62 3249 127.00 x 25.40 x 1.60 1.294 63 2305 132.00 x 25.40 x 2.00 2.179 64 3497 145.00 x 50.00 x 1.80 1.870 65 3105 150.00 x 50.00 x 3.00 3.154 66 4182 150.00 x 100.00 x 2.90 3.838
