LAMPIRAN A PERHITUNGAN

(1)

LABORATORIUM OPERASI TEKNIK KIMIA I PROGRAM STUDI TEKNIK KIMIA FAKULTAS TEKNOLOGI INDUSTRI UNIVERSITAS MUSLIM INDONESIA

LAMP. A-1 ALIRAN FLUIDA (FLUID FLOW)

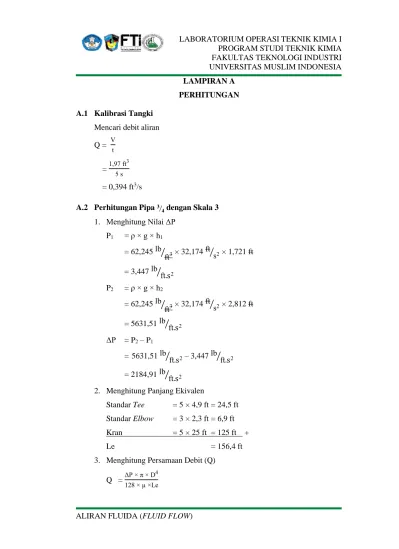

LAMPIRAN A PERHITUNGAN A.1 Kalibrasi Tangki

Mencari debit aliran Q = ^V

t

= ^{1,97 ft}

3

5 s

= 0,394 ft³/s

A.2 Perhitungan Pipa ³⁄₄ dengan Skala 3 1. Menghitung Nilai ΔP

P1 = ρ × g × h1

= 62,245 lb ft³

⁄ × 32,174 ft s⁄² × 1,721 ft

= 3,447 lb ft.s⁄ ² P2 = ρ × g × h2

= 62,245 lb ft³

⁄ × 32,174 ft s⁄² × 2,812 ft

= 5631,51 lb ft.s⁄ ² ΔP = P2 – P1

= 5631,51 lb ft.s⁄ ² – 3,447 lb ft.s⁄ ²

= 2184,91 lb ft.s⁄ ²

2. Menghitung Panjang Ekivalen

Standar Tee = 5 × 4,9 ft = 24,5 ft Standar Elbow = 3 × 2,3 ft = 6,9 ft

Kran = 5 × 25 ft = 125 ft +

Le = 156,4 ft

3. Menghitung Persamaan Debit (Q) Q = ^{ΔP × π × D}

4

128 × µ ×Le

(2)

=

2184,91 lb⁄ft.s² × 3,14 × 0,0443 ft⁴ 128 × 0,00054 lb⁄ft.s² × 156,4 ft

= 0,002444 ft³⁄s

4. Mencari Luas Permukaan Pipa A = ^{π ×D}

2

4

= 3,14 × 0,0443 ft² 4

= 0,0015 ft²

5. Mencari Kecepatan Aliran V = ^Q

A

= ^{0,0024 ft}

3⁄s 0,0015 ft²

= 1,5865 ft⁄s

6. Mencari Bilangan Reynold Re = ^{ρ × V × D}

µ

=

62,245 lb ft³

⁄ × 1,5865 ft s⁄ × 0,0443 ft 0,00054 lb ft.s⁄

= 8101,69114

7. Mencari Faktor Friksi (f) f = Kekasaran Pipa

Diameter

= _{0,0443 ft}^0,00015 = 0,0033 ft

8. Mencari Nilai Head Loss F = 2 × f × Le × v²

D ×g

= 2 × 0,0033ft × 156,4 ft × 1,5865² ft s⁄ 0,0443 ft × 32,174ft s⁄

= 1,8705 ft

(3)

9. Mencari Kesetimbangan Energi W = ^ΔP

ρ × g+ F

=

2184,91 lb ft.s²

⁄

62,245 lb.ft³ × 32,174 ft⁄s²

+

1,8705 ft

=

2,9615 ft

(4)

LAMP. B-1 ALIRAN FLUIDA (FLUID FLOW)

LAMPIRAN B DATA PENGAMATAN B.1 Data Pengamatan Kalibrasi Tangki Pipa ³⁄₄ Skala 3

Tabel B.1 Data Pengamatan Kalibrasi Tangki Pipa ³⁄₄ Skala 3

No Volume (ft³) Float (ft)

1. 0,06957 39.03

2. 0,050853 37,59

3. 0,027899 36,8

4. 0,049441 35,4

5. 0,040612 34,25

6. 0,022601 33,61

7. 0,057563 31,98

8. 0,044143 30,73

9. 0,030371 29,87

10. 0,031077 28,99

11. 0,063566 27,19

12. 0,03143 26,3

13. 0,035315 25,3

14. 0,059329 23,62

15. 0,038846 22,52

16. 0,048028 21,16

17. 0,042378 19,96

18. 0,044143 18,71

19. 0,044497 17,45

20. 0,044143 16,2

(5)

B.2 Data Pengamatan Kalibrasi Tangki Pipa ¹⁄₂ Skala 2

Tabel B.1 Data Pengamatan Kalibrasi Tangki Pipa ¹⁄₂ Skala 2

No Volume (ft³) Float (ft)

1. 0,12165 39,144

2. 0,142886 36,964

3. 0,17769 34,253

4. 0,121977 32,392

5. 0,079505 31,179

6. 0,190799 28,268

7. 0,168252 25,701

8. 0,189488 22,81

9. 0,099824 21,287

10. 0,072164 20,186

11. 0,139478 18,058

12. 0,088878 16,702

13. 0,146163 14,472

14. 0,161238 12,012

15. 0,152718 9,682

B.3 Data Pengamatan Pipa ³⁄₄ Skala 3

Tabel B.3 Data Pengamatan Pipa ³⁄₄ Skala 3

No Venturimeter (ft) Pipa (ft)

1. 2,812 1,721

2. 2,674 1,583

3. 2,458 1,384

4. 2,716 1,878

5. 2,556 1,493

6. 2,721 1,574

7. 2,873 1,685

(6)

B.4 Data Pengamatan Pipa ¹⁄₂ Skala 2

Tabel B.4 Data Pengamatan Pipa ¹⁄₂ Skala 2

No Venturimeter (ft) Pipa (ft)

1. 2,125 1,268

2. 2,137 1,257

3. 2,216 1,177

4. 2,144 1,165

5 2,316 1,291

(7)

ALIRAN FLUIDA (FLUID FLOW)

LAMPIRAN C DOKUMENTASI C.1 Alat

Gambar C.1 Manometer Gambar C.2 Stopwatch Gambar C.3 Gelas Ukur 1000 mL C.2 Kegiatan Praktikum

Gambar C.4 Kegiatan Praktikum

(8)

LAMP. C-2 ALIRAN FLUIDA (FLUID FLOW)

C.3 Sumber Buku dari Buku

Gambar C.5 Sumber Buku Transport Processes and Unit Operations

(9)

Gambar C.6 Sumber Buku Unit Operations

(10)

Gambar C.7 Sumber Buku Transport Processes and Unit Operations

(11)

Gambar C.8 Moody Diagram
