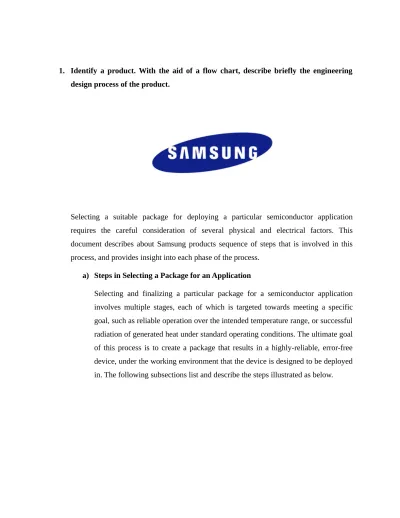

1. Identify a product. With the aid of a flow chart, describe briefly the engineering design process of the product.
Selecting a suitable package for deploying a particular semiconductor application requires the careful consideration of several physical and electrical factors. This document describes about Samsung products sequence of steps that is involved in this process, and provides insight into each phase of the process.
a) Steps in Selecting a Package for an Application
b) Phase 1: Feasibility Study
The very first phase in the package selection process is the feasibility study phase. This phase consists of the following steps:
i. Checking the possibility of packaging the design
A check is made to ensure whether the design can indeed be packaged or not. Certain designs, such as those using high-power semiconductors, cannot be integrated in a single package, necessitating a change in either the design or its planned package.
ii. Defining the basic structure of the package
design intended to be deployed in a mobile device would be considered for integration in an FBGA package. During this step, the maximum margins for the physical parameters and form factors for the design, such as its weight and dimensions, are also estimated.
iii. Performing a pre-characteristics simulation
The pre-characteristics simulation step provides an overview of how well the selected package suits the design. Put in other words, it provides the engineering team an idea of whether the package is compatible with the design or not. This is usually performed using specialized and automated tools.
Once the design passes the feasibility study phase, it proceeds to the next phase, wherein the first draft of the details for the package is created.
c) Phase 2: Initial Package Design
The following steps are carried out during the initial package design phase:
i. Defining detailed specifications for the package design
ii. Mapping the package balls and bumps
A map is then created showing the layout of the balls and interconnecting bumps that the final package would have, along with the signals that the balls and bumps would carry.
iii. SI/PI/TI pre-simulation
Next, pre-simulation tests are performed to obtain measures of SI (signal integrity), PI (power integrity), and TI (thermal integrity) for the package.
iv. Power/ground planning
For packages that utilize multiple layers (such as PoPs), power/ground planning is a critical task and must be performed carefully to avoid phenomena such as ground bounce.
v. Timing/delay estimation
Signals for high speed designs that operate at several GHz, such as SoCs, must be made available at the package pins or balls considering all the intermediate delays in the signal paths. Transitional delays for all the signal lines are carefully estimated at this step.
vi. Thermal simulation (lumped model)
The package design is then simulated for thermal stability using an equivalent lumped model of the design. Any potential thermal bottlenecks in the package are usually discovered during this step of the design phase.
The design, after passing all the steps in the initial design phase, proceeds to the production facilities. Together with the production processes, the final phase of the package design is carried out, as described next.
The final package design phase takes place in parallel with the production of the design samples. The following steps are carried out during the final package design phase:
i. Post-characteristics simulation
Extensive PI/SI/TI simulations are performed to verify the design's stable operation and reliable performance in the selected package. As shown in Figure 1 above, eye diagrams are extensively used for SI simulation to detect any fatal violations for any signal on the chosen package.
ii. Detailed thermal, webpage, and structural simulations
In-depth simulations are performed to obtain stable operational results for the thermal, webpage, and structural behavior of the package under the expected operating conditions.
At the end of this phase, the specifications for the design are finalized for production.
e) Phase 4: Quality Improvement using DFSS
Using business process management methodologies defined in DFSS (Design for Six Sigma), areas that can be improved for the packaging and production processes are identified. This is usually accomplished via meetings and discussions between senior technical and managerial staff.
