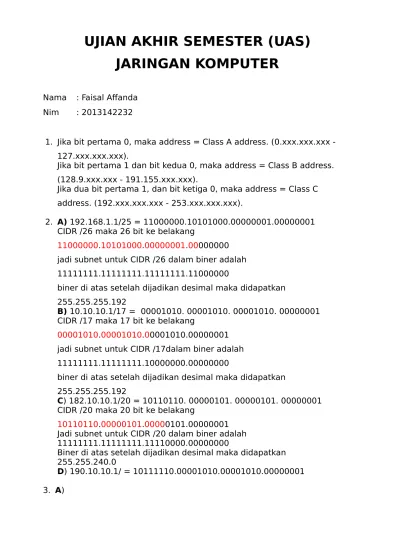

UJIAN AKHIR SEMESTER (UAS)
JARINGAN KOMPUTER
Nama : Faisal Affanda Nim : 2013142232
1. Jika bit pertama 0, maka address = Class A address. (0.xxx.xxx.xxx - 127.xxx.xxx.xxx).
Jika bit pertama 1 dan bit kedua 0, maka address = Class B address. (128.9.xxx.xxx - 191.155.xxx.xxx).
Jika dua bit pertama 1, dan bit ketiga 0, maka address = Class C address. (192.xxx.xxx.xxx - 253.xxx.xxx.xxx).
2. A) 192.168.1.1/25 = 11000000.10101000.00000001.00000001 CIDR /26 maka 26 bit ke belakang
11000000.10101000.00000001.00000000 jadi subnet untuk CIDR /26 dalam biner adalah 11111111.11111111.11111111.11000000
biner di atas setelah dijadikan desimal maka didapatkan 255.255.255.192
B) 10.10.10.1/17 = 00001010. 00001010. 00001010. 00000001 CIDR /17 maka 17 bit ke belakang
00001010.00001010.00001010.00000001 jadi subnet untuk CIDR /17dalam biner adalah 11111111.11111111.10000000.00000000
biner di atas setelah dijadikan desimal maka didapatkan 255.255.255.192
C) 182.10.10.1/20 = 10110110. 00000101. 00000101. 00000001 CIDR /20 maka 20 bit ke belakang
10110110.00000101.00000101.00000001 Jadi subnet untuk CIDR /20 dalam biner adalah 11111111.11111111.11110000.00000000
Biner di atas setelah dijadikan desimal maka didapatkan 255.255.240.0
LAB A LAB B
B) - Panjang Kabel Lab A = 5m x 30 Pc + 2 switch + 1 Router = 153m - Panjang Kabel Lab B = 5m x 30 Pc + 2 Switch + 1 Router = 153m
- Jumlah Konektor Lab A = 65 Konektor - Jumlah Konektor Lab B = 65 Konektor
- Jumlah Switch dan Router Lab A = 2 Switch dan 1 Router - Jumlah Switch dan Router Lab B = 2 Switch dan 1 Router
C) Lab A : IP | SubnetMask | Gateway Pc0 = 192.168.1.2|255.255.255.0|192.168.1.1
Pc1 = 192.168.1.3|255.255.255.0|192.168.1.1
Pc2 = 192.168.1.4|255.255.255.0|192.168.1.1 Pc3 = 192.168.1.5|255.255.255.0|192.168.1.1
Pc4 = 192.168.1.6|255.255.255.0|192.168.1.1
Pc5 = 192.168.1.7|255.255.255.0|192.168.1.1 Pc6 = 192.168.1.8|255.255.255.0|192.168.1.1
Pc7 = 192.168.1.9|255.255.255.0|192.168.1.1
Pc8 = 192.168.1.10|255.255.255.0|192.168.1.1 Pc9 = 192.168.1.11|255.255.255.0|192.168.1.1
Pc10 = 192.168.1.12|255.255.255.0|192.168.1.1
Pc12 = 192.168.1.14|255.255.255.0|192.168.1.1
Pc13 = 192.168.1.15|255.255.255.0|192.168.1.1
Pc14 = 192.168.1.16|255.255.255.0|192.168.1.1 Pc15 = 192.168.1.17|255.255.255.0|192.168.1.1
Pc16 = 192.168.1.18|255.255.255.0|192.168.1.1
Pc17 = 192.168.1.19|255.255.255.0|192.168.1.1 Pc18 = 192.168.1.20|255.255.255.0|192.168.1.1
Pc19 = 192.168.1.21|255.255.255.0|192.168.1.1
Pc20 = 192.168.1.22|255.255.255.0|192.168.1.1 Pc21 = 192.168.1.23|255.255.255.0|192.168.1.1
Pc22 = 192.168.1.24|255.255.255.0|192.168.1.1
Pc23 = 192.168.1.25|255.255.255.0|192.168.1.1 Pc24 = 192.168.1.26|255.255.255.0|192.168.1.1
Pc25 = 192.168.1.27|255.255.255.0|192.168.1.1
Pc26 = 192.168.1.28|255.255.255.0|192.168.1.1 Pc27 = 192.168.1.29|255.255.255.0|192.168.1.1
Pc28 = 192.168.1.30|255.255.255.0|192.168.1.1
Pc29 = 192.168.1.31|255.255.255.0|192.168.1.1 Pc30 = 192.168.1.32|255.255.255.0|192.168.1.1
Router = 192.168.1.1 1/0 | 192.168.2.1 SE 2/0
Lab B : IP | SubnetMask | Gateway
Pc01 = 10.0.0.2|255.0.0.0|10.0.0.1 Pc02 = 10.0.0.3|255.0.0.0|10.0.0.1
Pc03 = 10.0.0.4|255.0.0.0|10.0.0.1
Pc04 = 10.0.0.5|255.0.0.0|10.0.0.1 Pc05 = 10.0.0.6|255.0.0.0|10.0.0.1
Pc06 = 10.0.0.7|255.0.0.0|10.0.0.1
Pc07 = 10.0.0.8|255.0.0.0|10.0.0.1 Pc08 = 10.0.0.9|255.0.0.0|10.0.0.1
Pc09 = 10.0.0.10|255.0.0.0|10.0.0.1
Pc011 = 10.0.0.12|255.0.0.0|10.0.0.1
Pc012 = 10.0.0.13|255.0.0.0|10.0.0.1
Pc013 = 10.0.0.14|255.0.0.0|10.0.0.1 Pc014 = 10.0.0.15|255.0.0.0|10.0.0.1
Pc015 = 10.0.0.16|255.0.0.0|10.0.0.1
Pc016 = 10.0.0.17|255.0.0.0|10.0.0.1 Pc017 = 10.0.0.18|255.0.0.0|10.0.0.1
Pc018 = 10.0.0.19|255.0.0.0|10.0.0.1
Pc019 = 10.0.0.20|255.0.0.0|10.0.0.1 Pc020 = 10.0.0.21|255.0.0.0|10.0.0.1
Pc021 = 10.0.0.22|255.0.0.0|10.0.0.1
Pc022 = 10.0.0.23|255.0.0.0|10.0.0.1 Pc023 = 10.0.0.24|255.0.0.0|10.0.0.1
Pc024 = 10.0.0.25|255.0.0.0|10.0.0.1
Pc025 = 10.0.0.26|255.0.0.0|10.0.0.1 Pc026 = 10.0.0.27|255.0.0.0|10.0.0.1
Pc027 = 10.0.0.28|255.0.0.0|10.0.0.1
Pc028 = 10.0.0.29|255.0.0.0|10.0.0.1 Pc029 = 10.0.0.30|255.0.0.0|10.0.0.1
